2-20 — MANUAL TRANSMISSION ASM AND CASE (#26613) — 54 parça

27 24 25 37 36 232 28 414 35 90 421 36 2 37 97 86 29 103 435 104 86 430 50 417 417 45 119 121 33 117 429 117 73 71 72 71 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

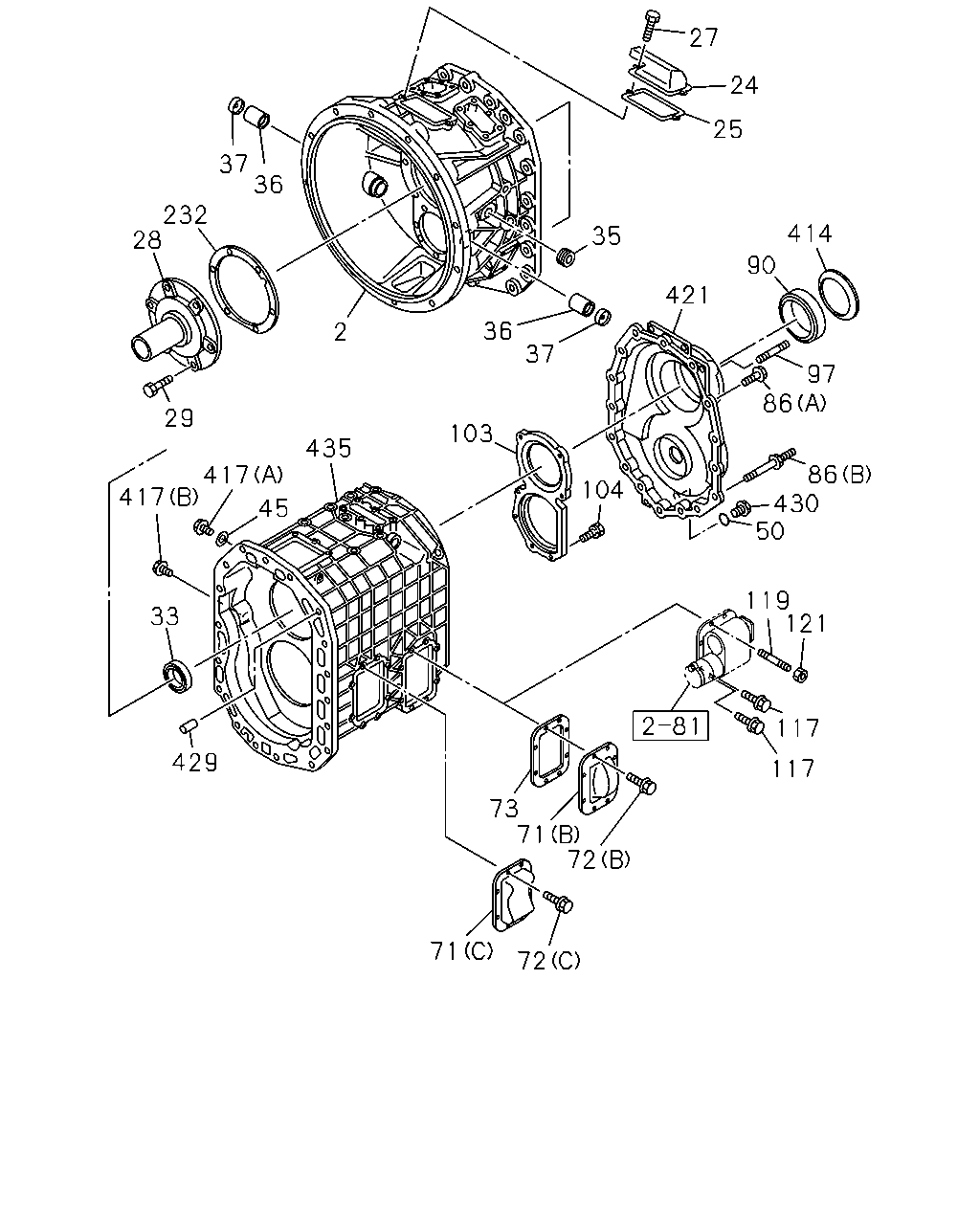

2	HOUSING; CLU	1-31111-200-0	01	1	0411-
24	COVER; CHECK HOLE,DUST	1-31131-037-0	01	1	0411-
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	1-31139-008-0	01	1	0411-
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	04	1	0411-
28	COVER; FRT,TRANS CASE	1-33121-158-1	01	1	0411-
29	BOLT; FRT COVER M10X40 FLANGE	0-28181-040-0	06	1	0411-
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-562-0	01	1	0411-
35	GROMMET; CLU HSG OD=45	9-31139-007-0	01	1	0411-
36	BEARING; NEEDLE,CLU HSG	1-09811-087-0	02	1	0411-
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-003-0	02	1	0411-
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0411-
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0411-
71	COVER; SIDE,TRANS CASE (A)	1-33141-057-1	01	1	0411-
71	COVER; SIDE,TRANS CASE (C)	1-33141-058-0	01	1	0411-
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)	1-33141-044-1	01	1	0411-
72	BOLT; SIDE COVER (A) M10X30 FLANGE	0-28181-030-0	04	1	0411-
72	BOLT; SIDE COVER (C) M12X40 FLANGE	0-28181-240-0	08	1	0411-
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M12X30	0-28781-230-0	08	1	0411-
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33142-041-0	01	1	0411-
86	BOLT; RR COVER (A) M12X40 FLANGE	0-28181-240-0	14	1	0411-
86	BOLT; RR COVER (B) M10X16,M12X40 L=67.7	1-09029-082-0	02	1	0411-
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09625-577-1	01	1	0411-
97	STUD; PARKING BRK M16X41 L=62	1-09302-151-0	01	1	0411-
103	RETAINER; BRG	1-33151-059-0	01	1	0411-
104	BOLT; BRG RET M10X38 FLANGE	1-09049-029-1	08	1	0411-
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M12X35 FLANGE	0-28181-235-0	02	1	0411-
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M12X130 FLANGE	0-28196-213-0	02	1	0411-
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M12X25 L=43	9-94411-225-0	04	1	0411-
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 FLANGE	0-91150-212-0	04	1	0411-
232	GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33142-051-1	01	1	0411-
414	COVER; DUST,RR COVER	1-33139-011-1	01	1	0411-
417	PLUG; OIL FILLER,TRANS (A) M24X17 FLANGE	1-09604-022-0	01	1	0411-
417	PLUG; OIL FILLER,TRANS (B) M22X12	1-09604-035-0	01	1	0411-
421	COVER; RR,TRANS	1-33131-243-0	01	1	0411-
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	06	1	0411-
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	0411-
435	CASE; TRANS	1-33111-359-0	01	1	0411-

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

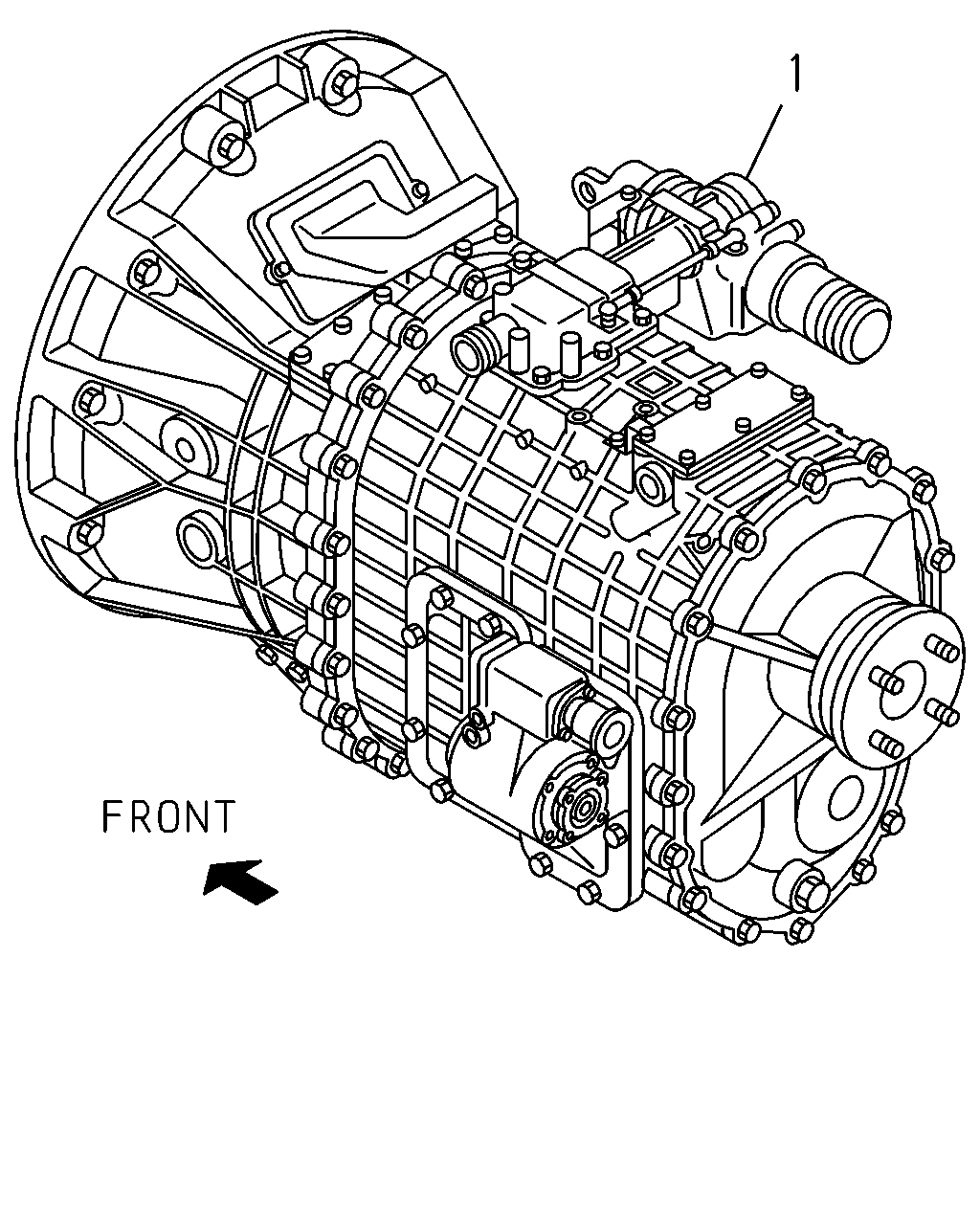

	1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33043-783-0	01	1	0411-
	1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33043-783-0	01	1	0411-

260 410 329 264 410 38 71 27 496 72 332 264

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

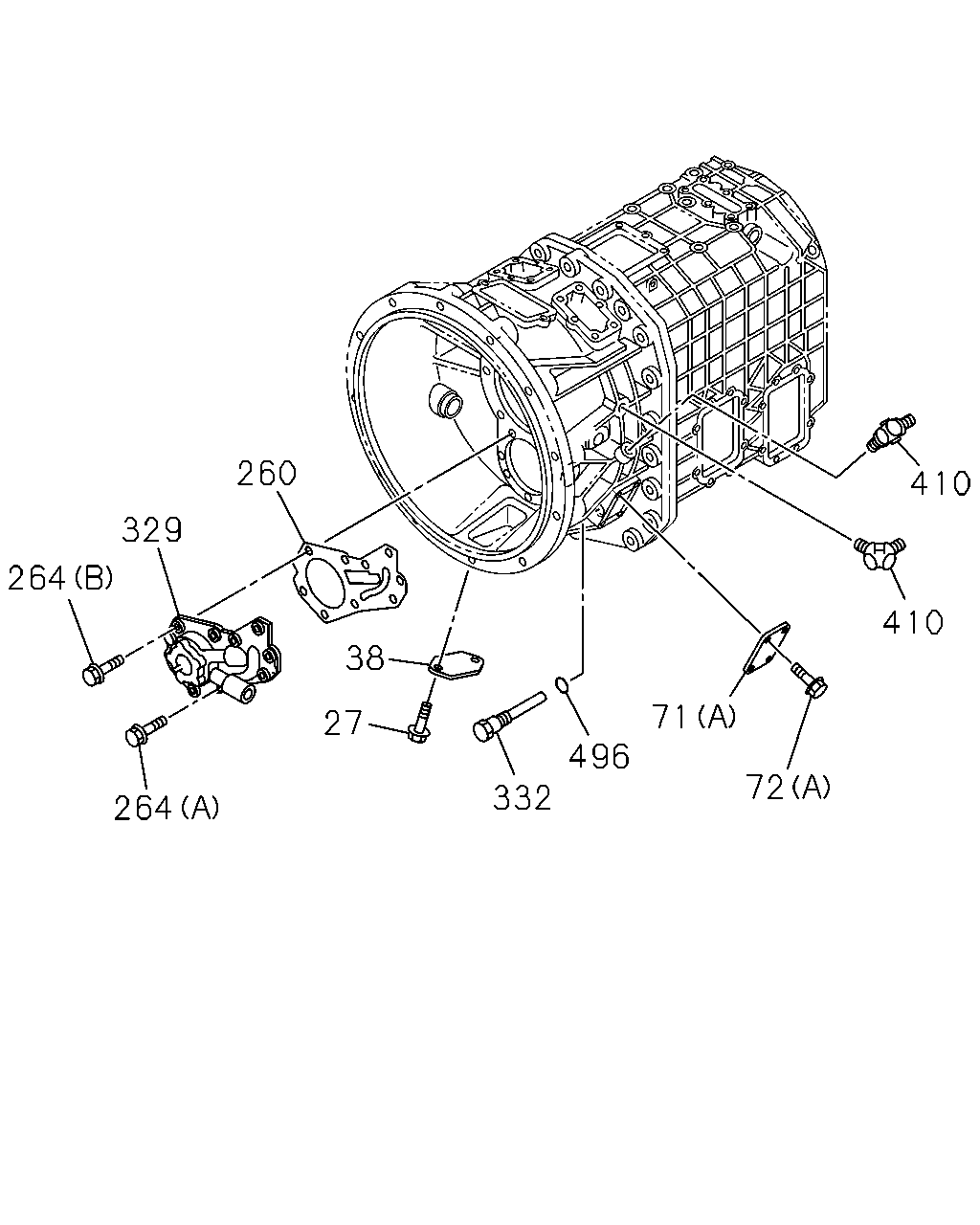

27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	04	1	0411-
38	COVER; CHECK HOLE,LWR	1-31131-003-0	01	1	0411-
71	COVER; SIDE,TRANS CASE (A)	1-33141-057-1	01	1	0411-
71	COVER; SIDE,TRANS CASE (C)	1-33141-058-0	01	1	0411-
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)	1-33141-044-1	01	1	0411-
72	BOLT; SIDE COVER (A) M10X30 FLANGE	0-28181-030-0	04	1	0411-
72	BOLT; SIDE COVER (C) M12X40 FLANGE	0-28181-240-0	08	1	0411-
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M12X30	0-28781-230-0	08	1	0411-
260	GASKET; OIL PUMP	1-34142-031-0	01	1	0411-
264	BOLT; OIL PUMP (B) M10X40 FLANGE	0-28181-040-0	09	1	0411-
264	BOLT; OIL PUMP (A) M10X70 FLANGE	0-28181-070-0	01	1	0411-
329	PUMP ASM; OIL	1-34150-112-0	01	1	0411-
332	FILTER; OIL	1-34159-050-1	01	1	0411-
410	UNION; OIL PIPE R1/4 & M16 ELBOW	1-09660-800-1	02	1	0411-
496	GASKET; OIL FILTER	1-09630-090-0	01	1	0411-
