◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 10893 - FVR(HONG KONG) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-45 - WATER SEDIMENTER; FUEL ▶
1-45 — WATER SEDIMENTER; FUEL (#26610) — 180 parça

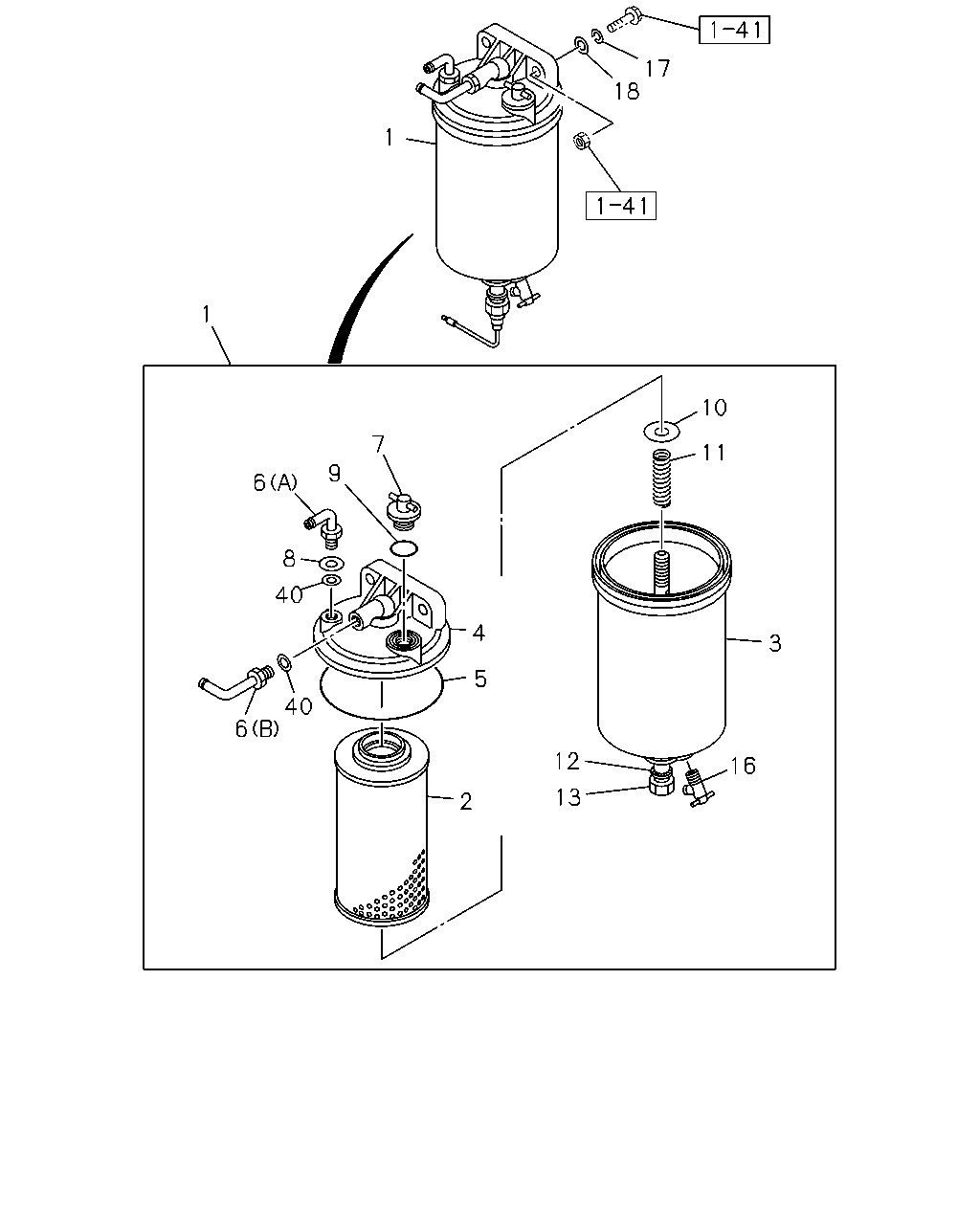

çizim 86324
17 18 1 1 10 7 11 9 6 8 4 4 3 5 40 6 12 16 13 2
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SEDIMENTER; FUEL 8-98105-751-2 01 1 1003-1302 ●
1 SEDIMENTER; FUEL 8-97605-073-4 01 1 1303- ●
1 SEDIMENTER; FUEL 1-13200-953-2 01 1 9601-9701 ● ● ●
1 SEDIMENTER; FUEL 1-13200-953-2 01 1 9702-9803 ● ●
1 SEDIMENTER; FUEL
EXC. EURO2 SPECIFICATION<THN> 		1-13200-953-2 01 1 9702-9803 ●
1 SEDIMENTER; FUEL 1-13200-953-2 01 1 9804-0006 ●
1 SEDIMENTER; FUEL
EURO2 SPECIFICATION<THN> 		1-13200-964-1 01 1 9702-9803 ●
1 SEDIMENTER; FUEL 1-13200-964-1 01 1 9804-9809 ●
1 SEDIMENTER; FUEL
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) 		1-13200-964-1 01 1 9810-0004 ●
1 SEDIMENTER; FUEL 1-13200-964-1 01 1 0005-0006 ●
1 SEDIMENTER; FUEL 1-13201-017-0 01 1 0007-0011 ● ●
1 SEDIMENTER; FUEL 1-13201-021-0 01 1 0012-0106 ● ●
1 SEDIMENTER; FUEL 1-13201-021-0 01 1 0107-0411 ● ●
1 SEDIMENTER; FUEL 8-97605-073-2 01 1 0412-1002 ● ●
1 SEDIMENTER; FUEL 8-97605-073-4 01 1 1003-1302 ●
1 SEDIMENTER; FUEL 8-98201-949-0 01 1 1303- ●
2 ELEMENT; FUEL FILTER 1-13240-194-0 01 1 9601-9803 ● ● ●
2 ELEMENT; FUEL FILTER 1-13240-194-0 01 1 9804-0011 ● ●
2 ELEMENT; FUEL FILTER 1-13240-020-0 01 1 0012-0106 ● ●
2 ELEMENT; FUEL FILTER 1-13240-020-0 01 1 0107-0411 ● ●
3 BODY ASM; SEDIMENTER 1-13211-069-0 01 1 0012-0106 ● ●
3 BODY ASM; SEDIMENTER 1-13211-069-0 01 1 0107-0411 ● ●
4 COVER; UPR,SEDIMENTER ASM 1-13212-176-2 01 1 9601-9803 ● ● ●
4 COVER; UPR,SEDIMENTER ASM 1-13212-176-2 01 1 9804-0011 ● ●
4 COVER; UPR,SEDIMENTER ASM 1-13212-055-0 01 1 0012-0106 ● ●
4 COVER; UPR,SEDIMENTER ASM 1-13212-055-0 01 1 0107-0411 ● ●
5 GASKET; UPR COVER,SEDIMENTER 9-09920-643-0 01 1 9601-9603 ● ● ●
5 GASKET; UPR COVER,SEDIMENTER 1-13213-017-0 01 1 9604-9803 ● ● ●
5 GASKET; UPR COVER,SEDIMENTER 1-13213-017-0 01 1 9804-0011 ● ●
5 GASKET; UPR COVER,SEDIMENTER 1-09630-072-0 01 1 0012-0106 ● ●
5 GASKET; UPR COVER,SEDIMENTER 1-09630-072-0 01 1 0107-0411 ● ●
6 CONNECTOR ASM; SEDIMENTER
(A) INLET 		1-13229-004-0 01 1 0012-0106 ● ●
6 CONNECTOR ASM; SEDIMENTER
(A) INLET 		1-13229-004-0 01 1 0107-0411 ● ●
6 CONNECTOR ASM; SEDIMENTER
(B) 		1-13229-005-0 01 1 0012-0106 ● ●
6 CONNECTOR ASM; SEDIMENTER
(B) 		1-13229-005-0 01 1 0107-0411 ● ●
7 PLUG; DRAIN,SEDIMENTER
M8X10 		9-09862-068-0 01 1 9601-9803 ● ● ●
7 PLUG; DRAIN,SEDIMENTER
M8X10 		9-09862-068-0 01 1 9804-0011 ● ●
7 PLUG; DRAIN,SEDIMENTER 1-13219-059-0 01 1 0012-0106 ● ●
7 PLUG; DRAIN,SEDIMENTER 1-13219-059-0 01 1 0107-0411 ● ●
8 STOPPER; CONN,SEDIMENTER 1-13229-001-0 02 1 0012-0106 ● ●
8 STOPPER; CONN,SEDIMENTER 1-13229-001-0 02 1 0107-0411 ● ●
9 GASKET; DRAIN PLUG & CONNECTOR 5-09623-024-1 01 1 9601-9803 ● ● ●
9 GASKET; DRAIN PLUG & CONNECTOR 5-09623-024-1 01 1 9804-0011 ● ●
9 GASKET; DRAIN PLUG & CONNECTOR 1-13219-060-0 01 1 0012-0106 ● ●
9 GASKET; DRAIN PLUG & CONNECTOR 1-13219-060-0 01 1 0107-0411 ● ●
10 SEAT; ELEMENT,SEDIMENTER 1-13249-020-0 01 1 0012-0106 ● ●
10 SEAT; ELEMENT,SEDIMENTER 1-13249-020-0 01 1 0107-0411 ● ●
11 SPRING; SET,SCREEN 1-13249-019-0 01 1 0012-0106 ● ●
11 SPRING; SET,SCREEN 1-13249-019-0 01 1 0107-0411 ● ●
12 GASKET; CENTER BOLT 1-13219-057-0 01 1 0012-0106 ● ●
12 GASKET; CENTER BOLT 1-13219-057-0 01 1 0107-0411 ● ●
13 BOLT; CENTER,SEDIMENTER 1-13231-030-0 01 1 0012-0106 ● ●
13 BOLT; CENTER,SEDIMENTER 1-13231-030-0 01 1 0107-0411 ● ●
16 COCK ASM; DRAIN 1-13219-058-0 01 1 0012-0106 ● ●
16 COCK ASM; DRAIN 1-13219-058-0 01 1 0107-0411 ● ●
17 WASHER; LK,FUEL SEDIMENTER
ID=14.2 		9-09150-514-0 02 1 0108-0411 ● ●
18 WASHER; PL,FUEL SEDIMENTER
ID=15 		9-09160-514-0 02 1 0108-0411 ● ●
18 WASHER; PL,FUEL SEDIMENTER
ID=10.5 OD=26 		9-09164-710-0 02 1 0412-0605 ● ●
18 WASHER; PL,FUEL SEDIMENTER
ID=10.5 OD=26 		0-91614-710-0 02 1 0606- ● ●
40 GASKET; CONNECTOR TO COVER
ID=14.2 OD=19.2 		1-09630-085-0 02 1 0012-0106 ● ●
40 GASKET; CONNECTOR TO COVER
ID=14.2 OD=19.2 		1-09630-085-0 02 1 0107-0411 ● ●
çizim 86334
1 1 7 9 2 38 5 4 35 34
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SEDIMENTER; FUEL 8-98105-751-2 01 1 1003-1302 ●
1 SEDIMENTER; FUEL 8-97605-073-4 01 1 1303- ●
1 SEDIMENTER; FUEL 1-13200-953-2 01 1 9601-9701 ● ● ●
1 SEDIMENTER; FUEL 1-13200-953-2 01 1 9702-9803 ● ●
1 SEDIMENTER; FUEL
EXC. EURO2 SPECIFICATION<THN> 		1-13200-953-2 01 1 9702-9803 ●
1 SEDIMENTER; FUEL 1-13200-953-2 01 1 9804-0006 ●
1 SEDIMENTER; FUEL
EURO2 SPECIFICATION<THN> 		1-13200-964-1 01 1 9702-9803 ●
1 SEDIMENTER; FUEL 1-13200-964-1 01 1 9804-9809 ●
1 SEDIMENTER; FUEL
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) 		1-13200-964-1 01 1 9810-0004 ●
1 SEDIMENTER; FUEL 1-13200-964-1 01 1 0005-0006 ●
1 SEDIMENTER; FUEL 1-13201-017-0 01 1 0007-0011 ● ●
1 SEDIMENTER; FUEL 1-13201-021-0 01 1 0012-0106 ● ●
1 SEDIMENTER; FUEL 1-13201-021-0 01 1 0107-0411 ● ●
1 SEDIMENTER; FUEL 8-97605-073-2 01 1 0412-1002 ● ●
1 SEDIMENTER; FUEL 8-97605-073-4 01 1 1003-1302 ●
1 SEDIMENTER; FUEL 8-98201-949-0 01 1 1303- ●
2 ELEMENT; FUEL FILTER 1-13240-194-0 01 1 9601-9803 ● ● ●
2 ELEMENT; FUEL FILTER 1-13240-194-0 01 1 9804-0011 ● ●
2 ELEMENT; FUEL FILTER 1-13240-020-0 01 1 0012-0106 ● ●
2 ELEMENT; FUEL FILTER 1-13240-020-0 01 1 0107-0411 ● ●
4 COVER; UPR,SEDIMENTER ASM 1-13212-176-2 01 1 9601-9803 ● ● ●
4 COVER; UPR,SEDIMENTER ASM 1-13212-176-2 01 1 9804-0011 ● ●
4 COVER; UPR,SEDIMENTER ASM 1-13212-055-0 01 1 0012-0106 ● ●
4 COVER; UPR,SEDIMENTER ASM 1-13212-055-0 01 1 0107-0411 ● ●
5 GASKET; UPR COVER,SEDIMENTER 9-09920-643-0 01 1 9601-9603 ● ● ●
5 GASKET; UPR COVER,SEDIMENTER 1-13213-017-0 01 1 9604-9803 ● ● ●
5 GASKET; UPR COVER,SEDIMENTER 1-13213-017-0 01 1 9804-0011 ● ●
5 GASKET; UPR COVER,SEDIMENTER 1-09630-072-0 01 1 0012-0106 ● ●
5 GASKET; UPR COVER,SEDIMENTER 1-09630-072-0 01 1 0107-0411 ● ●
7 PLUG; DRAIN,SEDIMENTER
M8X10 		9-09862-068-0 01 1 9601-9803 ● ● ●
7 PLUG; DRAIN,SEDIMENTER
M8X10 		9-09862-068-0 01 1 9804-0011 ● ●
7 PLUG; DRAIN,SEDIMENTER 1-13219-059-0 01 1 0012-0106 ● ●
7 PLUG; DRAIN,SEDIMENTER 1-13219-059-0 01 1 0107-0411 ● ●
9 GASKET; DRAIN PLUG & CONNECTOR 5-09623-024-1 01 1 9601-9803 ● ● ●
9 GASKET; DRAIN PLUG & CONNECTOR 5-09623-024-1 01 1 9804-0011 ● ●
9 GASKET; DRAIN PLUG & CONNECTOR 1-13219-060-0 01 1 0012-0106 ● ●
9 GASKET; DRAIN PLUG & CONNECTOR 1-13219-060-0 01 1 0107-0411 ● ●
34 PLUG; DRAIN,FUEL FILTER 1-13219-314-0 01 1 9601-9803 ● ● ●
34 PLUG; DRAIN,FUEL FILTER 1-13219-314-0 01 1 9804-0011 ● ●
35 GASKET; DRAIN PLUG 8-94416-377-0 01 1 9601-9803 ● ● ●
35 GASKET; DRAIN PLUG 8-94416-377-0 01 1 9804-0011 ● ●
38 FLOAT; SEDIMENTER 1-13219-313-0 01 1 9601-9803 ● ● ●
38 FLOAT; SEDIMENTER 1-13219-313-0 01 1 9804-0011 ● ●
çizim 105108
1 26 26 15 98 57
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SEDIMENTER; FUEL 8-98105-751-2 01 1 1003-1302 ●
1 SEDIMENTER; FUEL 8-97605-073-4 01 1 1303- ●
1 SEDIMENTER; FUEL 1-13200-953-2 01 1 9601-9701 ● ● ●
1 SEDIMENTER; FUEL 1-13200-953-2 01 1 9702-9803 ● ●
1 SEDIMENTER; FUEL
EXC. EURO2 SPECIFICATION<THN> 		1-13200-953-2 01 1 9702-9803 ●
1 SEDIMENTER; FUEL 1-13200-953-2 01 1 9804-0006 ●
1 SEDIMENTER; FUEL
EURO2 SPECIFICATION<THN> 		1-13200-964-1 01 1 9702-9803 ●
1 SEDIMENTER; FUEL 1-13200-964-1 01 1 9804-9809 ●
1 SEDIMENTER; FUEL
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) 		1-13200-964-1 01 1 9810-0004 ●
1 SEDIMENTER; FUEL 1-13200-964-1 01 1 0005-0006 ●
1 SEDIMENTER; FUEL 1-13201-017-0 01 1 0007-0011 ● ●
1 SEDIMENTER; FUEL 1-13201-021-0 01 1 0012-0106 ● ●
1 SEDIMENTER; FUEL 1-13201-021-0 01 1 0107-0411 ● ●
1 SEDIMENTER; FUEL 8-97605-073-2 01 1 0412-1002 ● ●
1 SEDIMENTER; FUEL 8-97605-073-4 01 1 1003-1302 ●
1 SEDIMENTER; FUEL 8-98201-949-0 01 1 1303- ●
15 SENSOR ASM; SEDIMENTER 8-98201-953-0 01 1 1303- ●
15 SENSOR ASM; SEDIMENTER 8-97605-127-3 01 1 0412-1302 ● ●
15 SENSOR ASM; SEDIMENTER 8-97605-127-3 01 1 1303- ●
26 PIPE; FUEL,IN & OUT
(A) OUT NPTF3/8-18 OD=12 		8-98122-952-0 01 1 1003-1203 ●
26 PIPE; FUEL,IN & OUT
(A) OUT NPTF3/8-18 OD=12 		8-98122-952-0 01 1 1204- ● ●
26 PIPE; FUEL,IN & OUT
(B) IN NPTF3/8-18 OD=10 		8-98122-953-0 01 1 1003-1203 ●
26 PIPE; FUEL,IN & OUT
(B) IN NPTF3/8-18 OD=10 		8-98122-953-0 01 1 1204- ● ●
26 PIPE; FUEL,IN & OUT
(A) OUT 		8-94409-622-0 01 1 0412-1002 ● ●
26 PIPE; FUEL,IN & OUT
(A) OUT 		8-94409-622-0 01 1 1003-1203 ●
26 PIPE; FUEL,IN & OUT
(B) IN 		8-97358-699-0 01 1 0412-1002 ● ●
26 PIPE; FUEL,IN & OUT
(B) IN 		8-97358-699-0 01 1 1003-1203 ●
57 CARTRIDGE KIT; FUEL FILTER 8-98123-256-0 01 1 1003-1302 ●
57 CARTRIDGE KIT; FUEL FILTER 8-98081-862-0 01 1 1303- ●
57 CARTRIDGE KIT; FUEL FILTER 8-97605-118-1 01 1 0412-0712 ● ●
57 CARTRIDGE KIT; FUEL FILTER 8-98081-862-0 01 1 0801-1002 ● ●
57 CARTRIDGE KIT; FUEL FILTER 8-98081-862-0 01 1 1003-1302 ●
57 CARTRIDGE KIT; FUEL FILTER 8-98201-951-0 01 1 1303- ●
98 CAP; FUEL SEDIMENTER 8-97603-126-0 01 1 1204-1302 ●
98 CAP; FUEL SEDIMENTER 8-98201-952-0 01 1 1303- ●
98 CAP; FUEL SEDIMENTER 8-97605-126-0 01 1 0412-1203 ● ●
98 CAP; FUEL SEDIMENTER 8-97605-126-0 01 1 1204-1302 ●
98 CAP; FUEL SEDIMENTER 8-97603-126-0 01 1 1303- ●
çizim 339060
26 1 26 15 57 98
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SEDIMENTER; FUEL 8-98105-751-2 01 1 1003-1302 ●
1 SEDIMENTER; FUEL 8-97605-073-4 01 1 1303- ●
1 SEDIMENTER; FUEL 1-13200-953-2 01 1 9601-9701 ● ● ●
1 SEDIMENTER; FUEL 1-13200-953-2 01 1 9702-9803 ● ●
1 SEDIMENTER; FUEL
EXC. EURO2 SPECIFICATION<THN> 		1-13200-953-2 01 1 9702-9803 ●
1 SEDIMENTER; FUEL 1-13200-953-2 01 1 9804-0006 ●
1 SEDIMENTER; FUEL
EURO2 SPECIFICATION<THN> 		1-13200-964-1 01 1 9702-9803 ●
1 SEDIMENTER; FUEL 1-13200-964-1 01 1 9804-9809 ●
1 SEDIMENTER; FUEL
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) 		1-13200-964-1 01 1 9810-0004 ●
1 SEDIMENTER; FUEL 1-13200-964-1 01 1 0005-0006 ●
1 SEDIMENTER; FUEL 1-13201-017-0 01 1 0007-0011 ● ●
1 SEDIMENTER; FUEL 1-13201-021-0 01 1 0012-0106 ● ●
1 SEDIMENTER; FUEL 1-13201-021-0 01 1 0107-0411 ● ●
1 SEDIMENTER; FUEL 8-97605-073-2 01 1 0412-1002 ● ●
1 SEDIMENTER; FUEL 8-97605-073-4 01 1 1003-1302 ●
1 SEDIMENTER; FUEL 8-98201-949-0 01 1 1303- ●
15 SENSOR ASM; SEDIMENTER 8-98201-953-0 01 1 1303- ●
15 SENSOR ASM; SEDIMENTER 8-97605-127-3 01 1 0412-1302 ● ●
15 SENSOR ASM; SEDIMENTER 8-97605-127-3 01 1 1303- ●
26 PIPE; FUEL,IN & OUT
(A) OUT NPTF3/8-18 OD=12 		8-98122-952-0 01 1 1003-1203 ●
26 PIPE; FUEL,IN & OUT
(A) OUT NPTF3/8-18 OD=12 		8-98122-952-0 01 1 1204- ● ●
26 PIPE; FUEL,IN & OUT
(B) IN NPTF3/8-18 OD=10 		8-98122-953-0 01 1 1003-1203 ●
26 PIPE; FUEL,IN & OUT
(B) IN NPTF3/8-18 OD=10 		8-98122-953-0 01 1 1204- ● ●
26 PIPE; FUEL,IN & OUT
(A) OUT 		8-94409-622-0 01 1 0412-1002 ● ●
26 PIPE; FUEL,IN & OUT
(A) OUT 		8-94409-622-0 01 1 1003-1203 ●
26 PIPE; FUEL,IN & OUT
(B) IN 		8-97358-699-0 01 1 0412-1002 ● ●
26 PIPE; FUEL,IN & OUT
(B) IN 		8-97358-699-0 01 1 1003-1203 ●
57 CARTRIDGE KIT; FUEL FILTER 8-98123-256-0 01 1 1003-1302 ●
57 CARTRIDGE KIT; FUEL FILTER 8-98081-862-0 01 1 1303- ●
57 CARTRIDGE KIT; FUEL FILTER 8-97605-118-1 01 1 0412-0712 ● ●
57 CARTRIDGE KIT; FUEL FILTER 8-98081-862-0 01 1 0801-1002 ● ●
57 CARTRIDGE KIT; FUEL FILTER 8-98081-862-0 01 1 1003-1302 ●
57 CARTRIDGE KIT; FUEL FILTER 8-98201-951-0 01 1 1303- ●
98 CAP; FUEL SEDIMENTER 8-97603-126-0 01 1 1204-1302 ●
98 CAP; FUEL SEDIMENTER 8-98201-952-0 01 1 1303- ●
98 CAP; FUEL SEDIMENTER 8-97605-126-0 01 1 0412-1203 ● ●
98 CAP; FUEL SEDIMENTER 8-97605-126-0 01 1 1204-1302 ●
98 CAP; FUEL SEDIMENTER 8-97603-126-0 01 1 1303- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
