Sayfa 1-41 - Isuzu EPC

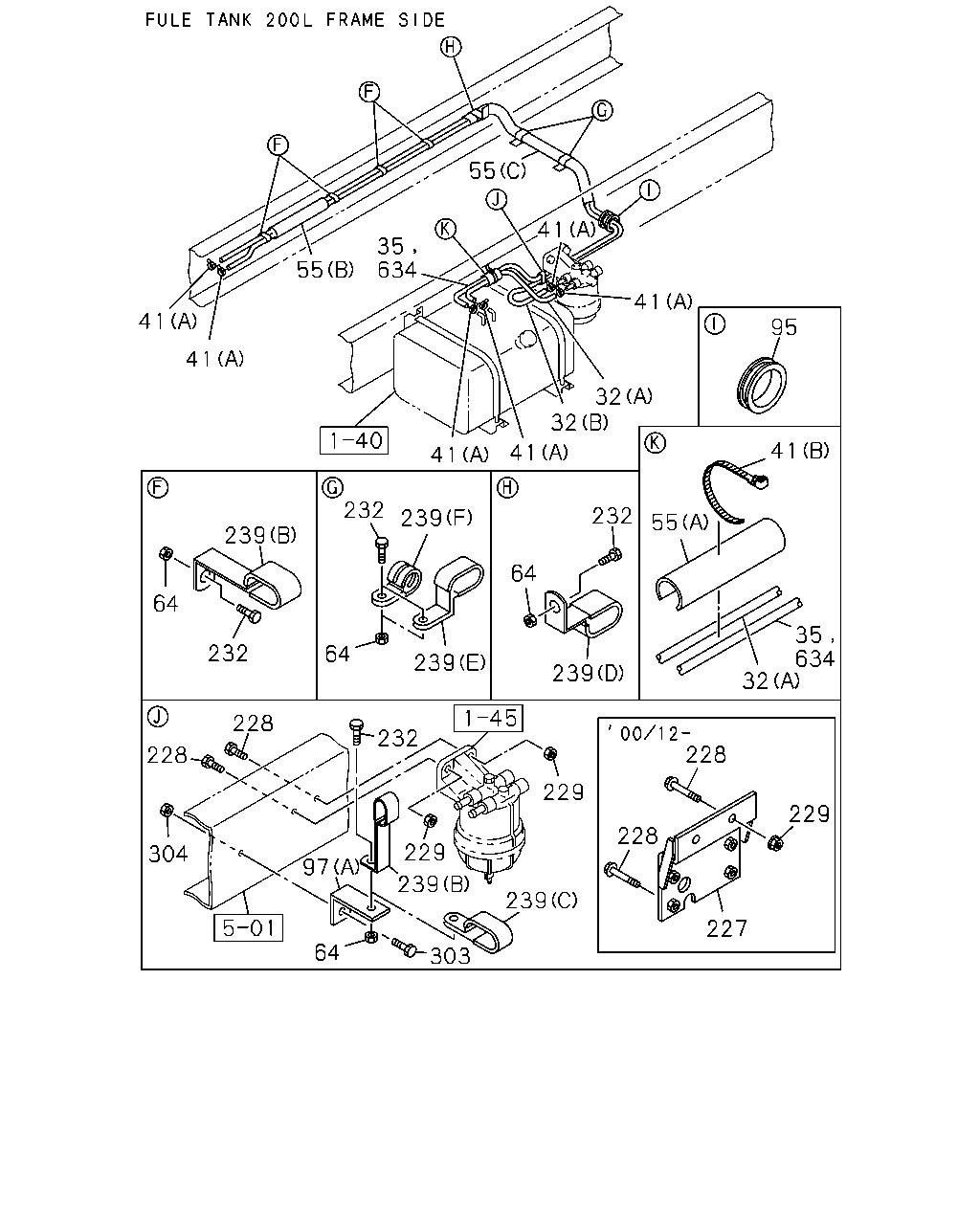

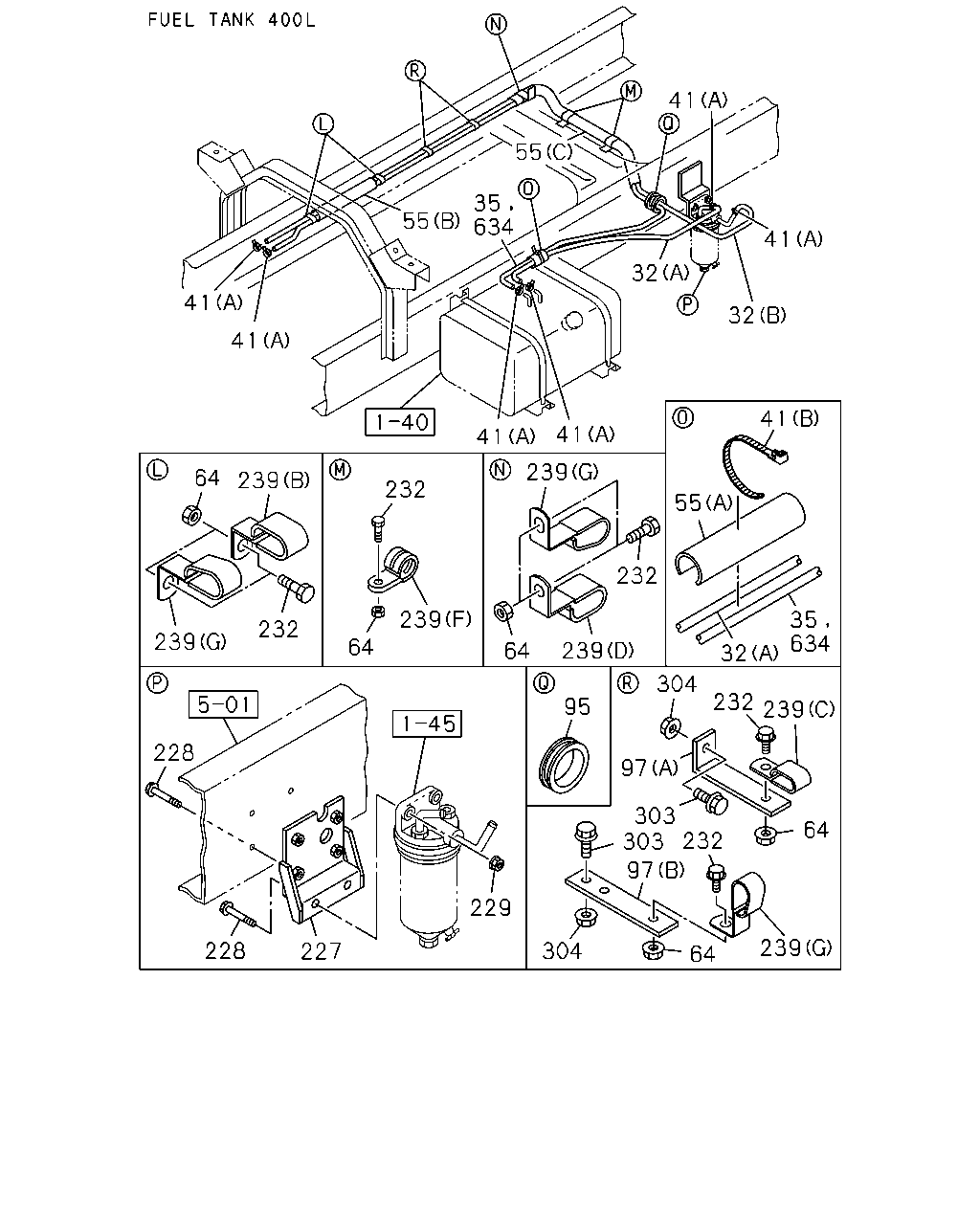

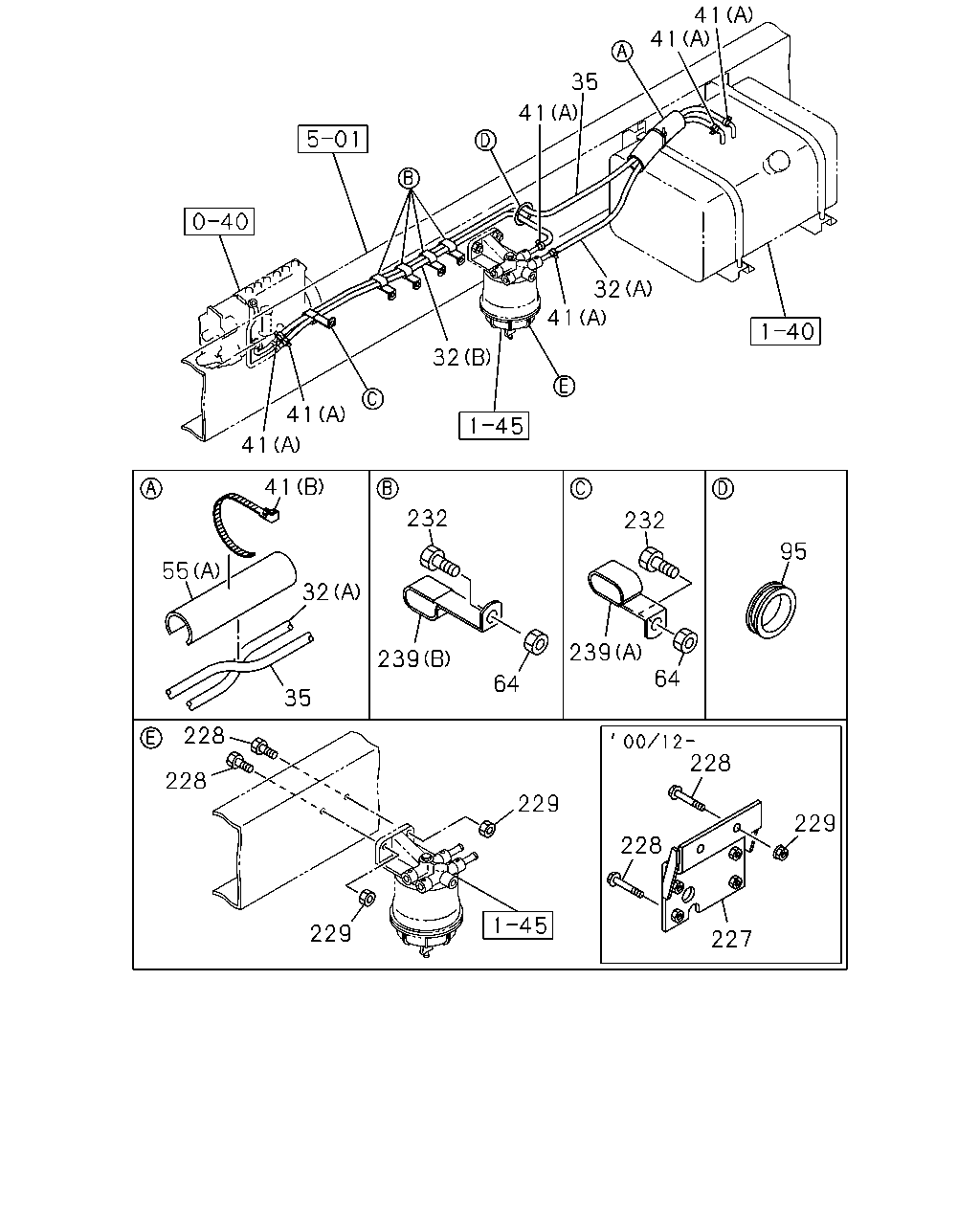

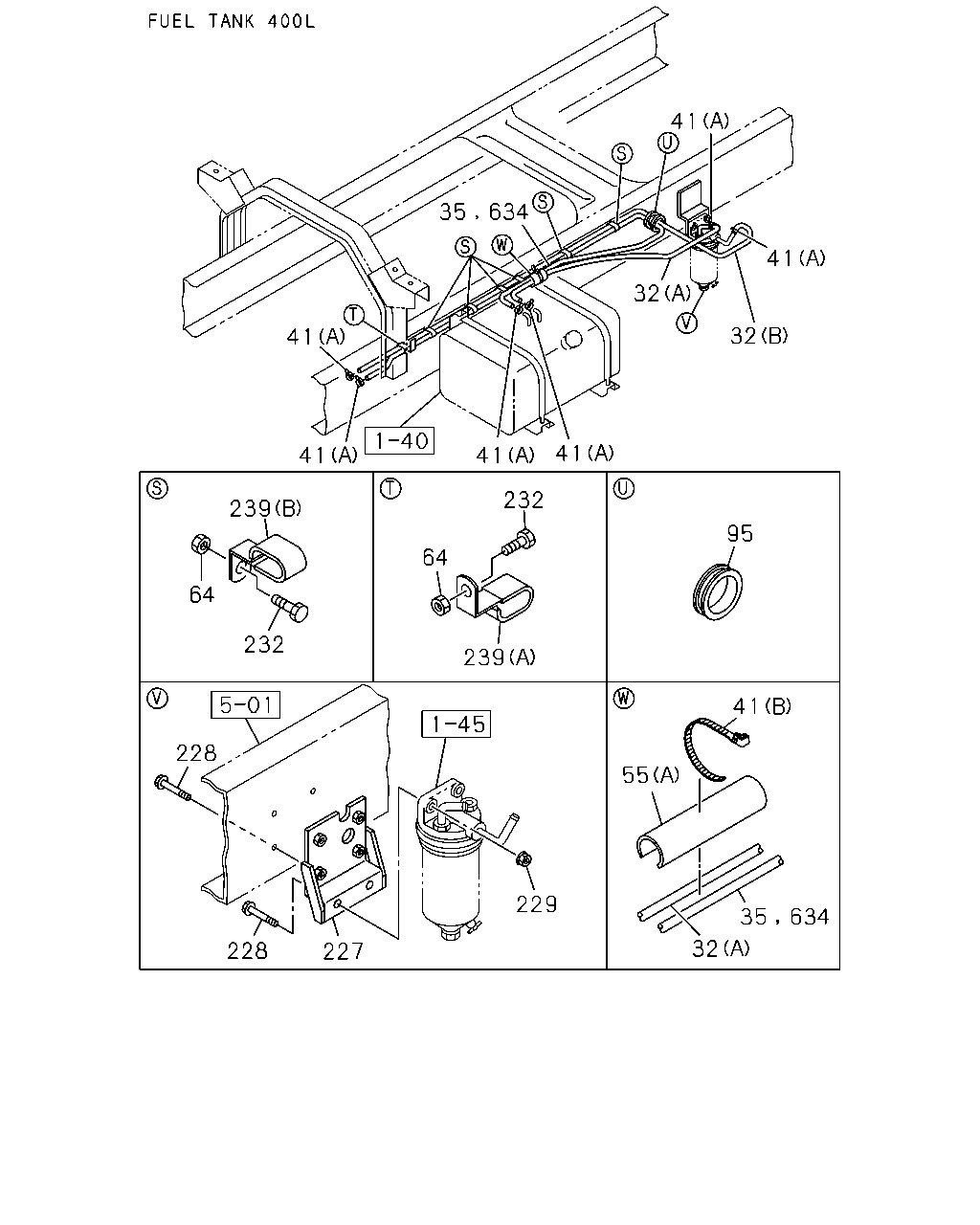

1-41 — FUEL PIPING; CHASSIS (#26609) — 641 parça

41 41 35 41 32 41 32 41 41 41 232 232 95 55 32 239 239 64 64 35 228 228 228 229 229 228 229 227

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
32	PIPE; DELIVERY,FUEL TANK (A) L=760 SERVICED BY L=3000	0-01260-300-0	01	1	9601-9609	●
32	PIPE; DELIVERY,FUEL TANK (A) L=760 SERVICED BY L=3000	0-01260-300-0	01	1	9610-9803	●	●
32	PIPE; DELIVERY,FUEL TANK (A) L=760 SERVICED BY L=3000	0-01260-300-0	01	1	9804-0004		●
32	PIPE; DELIVERY,FUEL TANK (A) L=1300 SERVICED BY L=3000	0-01260-300-0	01	1	0005-0006		●
32	PIPE; DELIVERY,FUEL TANK (A) L=820 SERVICED BY L=3000	0-01260-300-0	01	1	0007-0011		●
32	PIPE; DELIVERY,FUEL TANK (A) L=850 SERVICED BY L=3000	0-01260-300-0	01	1	0012-0106		●
32	PIPE; DELIVERY,FUEL TANK (A) L=980 SERVICED BY L=3000	0-01260-300-0	01	1	0107-			●
32	PIPE; DELIVERY,FUEL TANK (B) L=1350 SERVICED BY L=3000	0-01260-300-0	01	1	9601-9609	●
32	PIPE; DELIVERY,FUEL TANK (B) L=1350 SERVICED BY L=3000	0-01260-300-0	01	1	9610-9803	●	●
32	PIPE; DELIVERY,FUEL TANK (B) L=1350 SERVICED BY L=3000	0-01260-300-0	01	1	9804-0004		●
32	PIPE; DELIVERY,FUEL TANK (B) L=2000 SERVICED BY L=3000	0-01260-300-0	01	1	0005-0006		●
32	PIPE; DELIVERY,FUEL TANK (B) L=1350 SERVICED BY L=3000	0-01260-300-0	01	1	0007-0011		●
32	PIPE; DELIVERY,FUEL TANK (B) L=1450 SERVICED BY L=3000	0-01260-300-0	01	1	0012-0106		●
32	PIPE; DELIVERY,FUEL TANK (B) L=2000 SERVICED BY L=3000	0-01260-300-0	01	1	0107-			●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EURO2 SPECIFICATION<THN> (A) L=1300 SERVICED BY L=3000	0-01260-300-0	01	1	9610-9701				●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EURO2 SPECIFICATION<THN> (A) L=460 SERVICED BY L=3000	0-01260-300-0	01	1	9702-9803				●
32	PIPE; DELIVERY,FUEL TANK (A) L=460 SERVICED BY L=3000	0-01260-300-0	01	1	9804-0011				●
32	PIPE; DELIVERY,FUEL TANK (A) L=550 SERVICED BY L=3000	0-01260-300-0	01	1	0012-0106				●
32	PIPE; DELIVERY,FUEL TANK (A) L=1050 SERVICED BY L=3000	0-01260-300-0	01	1	0107-0411				●
32	PIPE; DELIVERY,FUEL TANK (A) L=900 SERVICED BY L=3000	0-01260-300-0	01	1	0412-				●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EURO2 SPECIFICATION<THN> (B) L=4250 SERVICED BY L=8000	0-01260-800-0	01	1	9610-9701				●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EURO2 SPECIFICATION<THN> (B) L=5050 SERVICED BY L=8000	0-01260-800-0	01	1	9702-9803				●
32	PIPE; DELIVERY,FUEL TANK (B) L=5050 SERVICED BY L=8000	0-01260-800-0	01	1	9804-0004				●
32	PIPE; DELIVERY,FUEL TANK (B) L=3800 SERVICED BY L=8000	0-01260-800-0	01	1	0005-0011				●
32	PIPE; DELIVERY,FUEL TANK (B) L=3950 SERVICED BY L=8000	0-01260-800-0	01	1	0012-0106				●
32	PIPE; DELIVERY,FUEL TANK (B) L=3150 SERVICED BY L=8000	0-01260-800-0	01	1	0107-0411				●
32	PIPE; DELIVERY,FUEL TANK (B) L=2950 SERVICED BY L=3000	0-01262-300-0	01	1	0412-				●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A) L=700 SERVICED BY L=3000	0-01260-300-0	01	1	9601-9609				●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EXC. EURO2 SPECIFICATION<THN> (A) L=700 SERVICED BY L=3000	0-01260-300-0	01	1	9610-9803				●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B) L=3850 SERVICED BY L=8000	0-01260-800-0	01	1	9601-9609				●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EXC. EURO2 SPECIFICATION<THN> (B) L=3850 SERVICED BY L=8000	0-01260-800-0	01	1	9610-9803				●
35	PIPE; FUEL TANK,RETURN L=1750 SERVICED BY L=3000	0-01260-300-0	01	1	9601-9609	●
35	PIPE; FUEL TANK,RETURN L=1750 SERVICED BY L=3000	0-01260-300-0	01	1	9610-9803	●	●
35	PIPE; FUEL TANK,RETURN L=1750 SERVICED BY L=3000	0-01260-300-0	01	1	9804-0004		●
35	PIPE; FUEL TANK,RETURN L=1300 SERVICED BY L=3000	0-01260-300-0	01	1	0005-0106		●
35	PIPE; FUEL TANK,RETURN WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EURO2 SPECIFICATION<THN> L=5050 SERVICED BY L=8000	0-01260-800-0	01	1	9610-9803				●
35	PIPE; FUEL TANK,RETURN L=5050 SERVICED BY L=8000	0-01260-800-0	01	1	9804-0004				●
35	PIPE; FUEL TANK,RETURN L=3550 SERVICED BY L=8000	0-01260-800-0	01	1	0005-0106				●
35	PIPE; FUEL TANK,RETURN WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) L=3550 SERVICED BY L=8000	0-01260-800-0	01	1	9601-9609				●
35	PIPE; FUEL TANK,RETURN WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EXC. EURO2 SPECIFICATION<THN> L=3550 SERVICED BY L=8000	0-01260-800-0	01	1	9610-9803				●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=17.1	8-94122-679-0	02	1	0412-				●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=14	1-09704-102-0	06	1	0412-			●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=14	1-09704-102-0	06	1	9601-9803	●	●		●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=14	1-09704-102-0	06	1	9804-0106		●		●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=14	1-09704-102-0	06	1	0107-0411			●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=14	1-09704-102-0	04	1	0412-				●
41	CLIP; FUEL PIPE,FUEL TANK (B) L=250	5-09707-030-0	01	1	9601-9803	●	●		●
41	CLIP; FUEL PIPE,FUEL TANK (B) L=250	5-09707-030-1	01	1	9804-0011		●		●
41	CLIP; FUEL PIPE,FUEL TANK (B) L=250	5-09707-030-1	04	1	0012-0106				●
41	CLIP; FUEL PIPE,FUEL TANK (B) L=250	5-09707-030-1	05	1	0107-0201				●
41	CLIP; FUEL PIPE,FUEL TANK (B) L=250	5-09707-030-1	07	1	0202-0411				●
41	CLIP; FUEL PIPE,FUEL TANK (B) L=250	5-09707-030-1	09	1	0412-				●
41	CLIP; FUEL PIPE,FUEL TANK (B) L=250	5-09707-030-1	01	1	0012-0106		●
41	CLIP; FUEL PIPE,FUEL TANK (B) L=250	5-09707-030-1	02	1	0107-0201			●
41	CLIP; FUEL PIPE,FUEL TANK (B) L=250	5-09707-030-1	04	1	0202-			●
55	COVER; PIPE,FUEL TANK (A) L=150 SERVICED BY L=1300	1-09360-677-1	01	1	9601-9803	●	●		●
55	COVER; PIPE,FUEL TANK (A) L=150 SERVICED BY L=1300	1-09360-677-1	01	1	9804-0106		●		●
55	COVER; PIPE,FUEL TANK (A) L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0107-			●	●
55	COVER; PIPE,FUEL TANK (B) L=350	1-09360-460-1	01	1	9607-0411				●
55	COVER; PIPE,FUEL TANK (B) L=350 SERVICED BY L=1300	1-09360-677-1	01	1	0412-				●
55	COVER; PIPE,FUEL TANK (C) L=800	1-09361-018-0	01	1	0006-				●
64	NUT; CLIP M8	9-09110-408-0	03	1	9601-9606	●
64	NUT; CLIP M8 FLANGE	0-91150-108-0	03	1	9607-9609	●
64	NUT; CLIP WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EURO2 SPECIFICATION<THN> M8 FLANGE	0-91150-108-0	14	1	9610-9803				●
64	NUT; CLIP M8 FLANGE	0-91150-108-0	03	1	9610-9803	●	●
64	NUT; CLIP M8 FLANGE	0-91150-108-0	03	1	9804-0004		●
64	NUT; CLIP M8 FLANGE	0-91150-108-0	05	1	0005-0106		●
64	NUT; CLIP M8 FLANGE	0-91150-108-0	07	1	0107-0602			●
64	NUT; CLIP M8 FLANGE	0-91180-108-0	07	1	0603-			●
64	NUT; CLIP WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M8	9-09110-408-0	09	1	9601-9606				●
64	NUT; CLIP WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M8 FLANGE	0-91150-108-0	09	1	9607-9609				●
64	NUT; CLIP WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EXC. EURO2 SPECIFICATION<THN> M8 FLANGE	0-91150-108-0	09	1	9610-9803				●
64	NUT; CLIP M8 FLANGE	0-91150-108-0	14	1	9804-0004				●
64	NUT; CLIP M8 FLANGE	0-91150-108-0	11	1	0005-0106				●
64	NUT; CLIP M8 FLANGE	0-91150-108-0	09	1	0107-0602				●
64	NUT; CLIP M8 FLANGE	0-91180-108-0	09	1	0603-				●
95	BUSHING; PIPE,FUEL TANK ID=32 OD=40 T=23	1-09332-112-0	01	1	0412-				●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=25	1-09332-011-1	01	1	9601-9803	●	●		●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=25	1-09332-011-1	01	1	9804-0106		●		●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=25	1-09332-011-1	01	1	0107-0411			●	●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=25	1-09332-011-1	01	1	0412-			●
95	BUSHING; PIPE,FUEL TANK EURO2 SPECIFICATION<THN> ID=28 OD=35 T=25	1-09332-011-1	02	1	9610-9701		●		●
227	BRACKET; FUEL SEDIMENTER	1-22518-087-1	01	1	0012-0106		●		●
227	BRACKET; FUEL SEDIMENTER	1-22518-087-1	01	1	0107-0411			●	●
227	BRACKET; FUEL SEDIMENTER	1-22518-208-0	01	1	0412-			●	●
228	BOLT; BRKT,SEDIMENTER M10X40 FLANGE	0-28081-040-0	02	1	9601-9606	●	●		●
228	BOLT; BRKT,SEDIMENTER M10X45 FLANGE	0-28081-045-0	02	1	9607-9803	●	●		●
228	BOLT; BRKT,SEDIMENTER M10X45 FLANGE	0-28081-045-0	02	1	9804-0004		●		●
228	BOLT; BRKT,SEDIMENTER M10X45 FLANGE	0-28081-045-0	02	1	0005-0011		●		●
228	BOLT; BRKT,SEDIMENTER M12X35 FLANGE	0-28681-235-0	04	1	0012-0106		●		●
228	BOLT; BRKT,SEDIMENTER M12X40 FLANGE	0-28681-240-0	04	1	0107-0512			●	●
228	BOLT; BRKT,SEDIMENTER M12X40 FLANGE	0-28651-240-0	04	1	0601-			●	●
228	BOLT; BRKT,SEDIMENTER M14X45 FLANGE	0-28881-445-0	02	1	0012-0106		●		●
228	BOLT; BRKT,SEDIMENTER M14X45 FLANGE	0-28881-445-0	02	1	0107-0107			●	●
228	BOLT; BRKT,SEDIMENTER M14X45	0-20801-445-0	02	1	0108-0411			●	●
228	BOLT; BRKT,SEDIMENTER M10X45	0-20801-045-0	02	1	0412-			●	●
229	NUT; BRKT,FUEL FILTER M10	9-09110-510-0	02	1	9601-9606	●	●		●
229	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91150-210-0	02	1	9607-9803	●	●		●
229	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91150-210-0	02	1	9804-0011		●		●
229	NUT; BRKT,FUEL FILTER M12 FLANGE	0-91150-212-0	02	1	0012-0106		●		●
229	NUT; BRKT,FUEL FILTER M14 FLANGE	0-91150-214-0	02	1	0012-0106		●		●
229	NUT; BRKT,FUEL FILTER M14 FLANGE	0-91150-214-0	02	1	0107-0107			●	●
229	NUT; BRKT,FUEL FILTER M14	9-99110-414-0	02	1	0108-0411			●	●
229	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91150-210-0	02	1	0412-0602			●	●
229	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91180-210-0	02	1	0603-			●	●
229	NUT; BRKT,FUEL FILTER M12 FLANGE	0-91150-212-0	04	1	0201-0602			●
229	NUT; BRKT,FUEL FILTER M12 FLANGE	0-91180-212-0	04	1	0603-			●
232	BOLT; CLIP,PIPE M8X30 FLANGE	0-28080-830-0	03	1	9601-9606	●
232	BOLT; CLIP,PIPE M8X35 FLANGE	0-28680-835-0	03	1	9607-9609	●
232	BOLT; CLIP,PIPE WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EURO2 SPECIFICATION<THN> M8X35 FLANGE	0-28680-835-0	14	1	9610-9803				●
232	BOLT; CLIP,PIPE M8X35 FLANGE	0-28680-835-0	03	1	9610-9803	●	●
232	BOLT; CLIP,PIPE M8X35 FLANGE	0-28680-835-0	03	1	9804-9807		●
232	BOLT; CLIP,PIPE M8X30 FLANGE	0-28680-830-0	03	1	9808-0004		●
232	BOLT; CLIP,PIPE M8X30 FLANGE	0-28680-830-0	05	1	0005-0106		●
232	BOLT; CLIP,PIPE M8X30 FLANGE	0-28680-830-0	07	1	0107-0512			●	●
232	BOLT; CLIP,PIPE M8X30 FLANGE	0-28650-830-0	07	1	0601-			●	●
232	BOLT; CLIP,PIPE WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M8X30 FLANGE	0-28080-830-0	09	1	9601-9606				●
232	BOLT; CLIP,PIPE WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M8X35 FLANGE	0-28680-835-0	09	1	9607-9609				●
232	BOLT; CLIP,PIPE WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EXC. EURO2 SPECIFICATION<THN> M8X35 FLANGE	0-28680-835-0	09	1	9610-9803				●
232	BOLT; CLIP,PIPE M8X35 FLANGE	0-28680-835-0	14	1	9804-9807				●
232	BOLT; CLIP,PIPE M8X30 FLANGE	0-28680-830-0	14	1	9808-0004				●
232	BOLT; CLIP,PIPE M8X30 FLANGE	0-28680-830-0	11	1	0005-0106				●
232	BOLT; CLIP,PIPE M8X16 FLANGE	0-28080-816-0	02	1	0107-0501				●
232	BOLT; CLIP,PIPE M8X20 FLANGE	0-28680-820-0	02	1	0502-0512				●
232	BOLT; CLIP,PIPE M8X20 FLANGE	0-28650-820-0	02	1	0601-				●
239	CLIP; FUEL PIPE (A) ID=13X2 H=25 L=50	1-09700-777-0	01	1	9601-9609	●
239	CLIP; FUEL PIPE (A) ID=13X2 H=25 L=50	1-09700-777-0	01	1	9610-9803	●	●
239	CLIP; FUEL PIPE (A) ID=13X2 H=25 L=50	1-09700-777-0	01	1	9804-9907		●
239	CLIP; FUEL PIPE (A) M13X2 H=20 L=60	1-09701-280-0	01	1	9908-0106		●
239	CLIP; FUEL PIPE (A) M13X2 H=20 L=60	1-09701-280-0	01	1	0107-			●
239	CLIP; FUEL PIPE (B) ID=14X29 H=30 L=25	1-09701-101-0	02	1	9601-9609	●			●
239	CLIP; FUEL PIPE WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EURO2 SPECIFICATION<THN> (B) ID=14X29 H=30 L=25	1-09701-101-0	10	1	9610-9803				●
239	CLIP; FUEL PIPE (B) ID=14X29 H=30 L=25	1-09701-101-0	02	1	9610-9803	●	●		●
239	CLIP; FUEL PIPE (B) ID=14X29 H=30 L=25	1-09701-101-0	02	1	9804-9901		●		●
239	CLIP; FUEL PIPE (B) ID=14X29 H=30 L=25	1-09701-101-0	01	1	9902-0004				●
239	CLIP; FUEL PIPE (B) ID=14X29 H=30 L=25	1-09701-101-0	06	1	0005-0006				●
239	CLIP; FUEL PIPE (C) ID=16X2 L=20	9-09535-536-0	02	1	0007-0411				●
239	CLIP; FUEL PIPE (D) ID=16X2 H=76 L=50	1-09700-902-0	01	1	9902-0004				●
239	CLIP; FUEL PIPE (D) ID=16X2 H=76 L=50	1-09700-902-0	03	1	0005-0411				●
239	CLIP; FUEL PIPE (F) ID=37 L=35	1-09701-109-0	02	1	0412-				●
239	CLIP; FUEL PIPE WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EURO2 SPECIFICATION<THN> (E) ID=14X29 H=15 L=20	1-09700-744-0	02	1	9710-9803				●
239	CLIP; FUEL PIPE WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (E) ID=14X29 H=15 L=20	1-09700-744-0	01	1	9601-9609				●
239	CLIP; FUEL PIPE WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EXC. EURO2 SPECIFICATION<THN> (E) ID=14X29 H=15 L=20	1-09700-744-0	01	1	9610-9803				●
239	CLIP; FUEL PIPE WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B) ID=14X29 H=30 L=25	1-09701-101-0	06	1	9601-9609				●
239	CLIP; FUEL PIPE WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EXC. EURO2 SPECIFICATION<THN> (B) ID=14X29 H=30 L=25	1-09701-101-0	06	1	9610-9803				●
239	CLIP; FUEL PIPE WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B) ID=14X29 H=30 L=25	1-09701-101-0	10	1	9804-0004				●
239	CLIP; FUEL PIPE WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (E) ID=14X29 H=15 L=20	1-09700-744-0	02	1	9808-0004				●
239	CLIP; FUEL PIPE (F) ID=32 L=50	1-09701-055-1	02	1	0005-0411				●
239	CLIP; FUEL PIPE (G) ID=15 & 19 H=50 L=60	1-09701-316-0	02	1	0412-				●
239	CLIP; FUEL PIPE (B) ID=14X29 H=30 L=25	1-09701-101-0	02	1	9902-0004		●
239	CLIP; FUEL PIPE (B) ID=14X29 H=30 L=25	1-09701-101-0	04	1	0005-0006		●
239	CLIP; FUEL PIPE (B) ID=14X29 H=30 L=25	1-09701-101-0	04	1	0007-0106		●		●
239	CLIP; FUEL PIPE (B) ID=14X29 H=30 L=25	1-09701-101-0	02	1	0107-0411				●
239	CLIP; FUEL PIPE (G) ID=15 & 19 H=33 L=25	1-09701-317-0	05	1	0412-				●
239	CLIP; FUEL PIPE (B) ID=14X29 H=30 L=25	1-09701-101-0	06	1	0107-			●

41 41 41 41 41 41 41 32 32 232 232 32 634 35 239 64 64 95 55 35 634 229 227 228 228 239

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
32	PIPE; DELIVERY,FUEL TANK (A) L=760 SERVICED BY L=3000	0-01260-300-0	01	1	9601-9609	●
32	PIPE; DELIVERY,FUEL TANK (A) L=760 SERVICED BY L=3000	0-01260-300-0	01	1	9610-9803	●	●
32	PIPE; DELIVERY,FUEL TANK (A) L=760 SERVICED BY L=3000	0-01260-300-0	01	1	9804-0004		●
32	PIPE; DELIVERY,FUEL TANK (A) L=1300 SERVICED BY L=3000	0-01260-300-0	01	1	0005-0006		●
32	PIPE; DELIVERY,FUEL TANK (A) L=820 SERVICED BY L=3000	0-01260-300-0	01	1	0007-0011		●
32	PIPE; DELIVERY,FUEL TANK (A) L=850 SERVICED BY L=3000	0-01260-300-0	01	1	0012-0106		●
32	PIPE; DELIVERY,FUEL TANK (A) L=980 SERVICED BY L=3000	0-01260-300-0	01	1	0107-			●
32	PIPE; DELIVERY,FUEL TANK (B) L=1350 SERVICED BY L=3000	0-01260-300-0	01	1	9601-9609	●
32	PIPE; DELIVERY,FUEL TANK (B) L=1350 SERVICED BY L=3000	0-01260-300-0	01	1	9610-9803	●	●
32	PIPE; DELIVERY,FUEL TANK (B) L=1350 SERVICED BY L=3000	0-01260-300-0	01	1	9804-0004		●
32	PIPE; DELIVERY,FUEL TANK (B) L=2000 SERVICED BY L=3000	0-01260-300-0	01	1	0005-0006		●
32	PIPE; DELIVERY,FUEL TANK (B) L=1350 SERVICED BY L=3000	0-01260-300-0	01	1	0007-0011		●
32	PIPE; DELIVERY,FUEL TANK (B) L=1450 SERVICED BY L=3000	0-01260-300-0	01	1	0012-0106		●
32	PIPE; DELIVERY,FUEL TANK (B) L=2000 SERVICED BY L=3000	0-01260-300-0	01	1	0107-			●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EURO2 SPECIFICATION<THN> (A) L=1300 SERVICED BY L=3000	0-01260-300-0	01	1	9610-9701				●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EURO2 SPECIFICATION<THN> (A) L=460 SERVICED BY L=3000	0-01260-300-0	01	1	9702-9803				●
32	PIPE; DELIVERY,FUEL TANK (A) L=460 SERVICED BY L=3000	0-01260-300-0	01	1	9804-0011				●
32	PIPE; DELIVERY,FUEL TANK (A) L=550 SERVICED BY L=3000	0-01260-300-0	01	1	0012-0106				●
32	PIPE; DELIVERY,FUEL TANK (A) L=1050 SERVICED BY L=3000	0-01260-300-0	01	1	0107-0411				●
32	PIPE; DELIVERY,FUEL TANK (A) L=900 SERVICED BY L=3000	0-01260-300-0	01	1	0412-				●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EURO2 SPECIFICATION<THN> (B) L=4250 SERVICED BY L=8000	0-01260-800-0	01	1	9610-9701				●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EURO2 SPECIFICATION<THN> (B) L=5050 SERVICED BY L=8000	0-01260-800-0	01	1	9702-9803				●
32	PIPE; DELIVERY,FUEL TANK (B) L=5050 SERVICED BY L=8000	0-01260-800-0	01	1	9804-0004				●
32	PIPE; DELIVERY,FUEL TANK (B) L=3800 SERVICED BY L=8000	0-01260-800-0	01	1	0005-0011				●
32	PIPE; DELIVERY,FUEL TANK (B) L=3950 SERVICED BY L=8000	0-01260-800-0	01	1	0012-0106				●
32	PIPE; DELIVERY,FUEL TANK (B) L=3150 SERVICED BY L=8000	0-01260-800-0	01	1	0107-0411				●
32	PIPE; DELIVERY,FUEL TANK (B) L=2950 SERVICED BY L=3000	0-01262-300-0	01	1	0412-				●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A) L=700 SERVICED BY L=3000	0-01260-300-0	01	1	9601-9609				●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EXC. EURO2 SPECIFICATION<THN> (A) L=700 SERVICED BY L=3000	0-01260-300-0	01	1	9610-9803				●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B) L=3850 SERVICED BY L=8000	0-01260-800-0	01	1	9601-9609				●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EXC. EURO2 SPECIFICATION<THN> (B) L=3850 SERVICED BY L=8000	0-01260-800-0	01	1	9610-9803				●
35	PIPE; FUEL TANK,RETURN L=1750 SERVICED BY L=3000	0-01260-300-0	01	1	9601-9609	●
35	PIPE; FUEL TANK,RETURN L=1750 SERVICED BY L=3000	0-01260-300-0	01	1	9610-9803	●	●
35	PIPE; FUEL TANK,RETURN L=1750 SERVICED BY L=3000	0-01260-300-0	01	1	9804-0004		●
35	PIPE; FUEL TANK,RETURN L=1300 SERVICED BY L=3000	0-01260-300-0	01	1	0005-0106		●
35	PIPE; FUEL TANK,RETURN WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EURO2 SPECIFICATION<THN> L=5050 SERVICED BY L=8000	0-01260-800-0	01	1	9610-9803				●
35	PIPE; FUEL TANK,RETURN L=5050 SERVICED BY L=8000	0-01260-800-0	01	1	9804-0004				●
35	PIPE; FUEL TANK,RETURN L=3550 SERVICED BY L=8000	0-01260-800-0	01	1	0005-0106				●
35	PIPE; FUEL TANK,RETURN WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) L=3550 SERVICED BY L=8000	0-01260-800-0	01	1	9601-9609				●
35	PIPE; FUEL TANK,RETURN WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EXC. EURO2 SPECIFICATION<THN> L=3550 SERVICED BY L=8000	0-01260-800-0	01	1	9610-9803				●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=17.1	8-94122-679-0	02	1	0412-				●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=14	1-09704-102-0	06	1	0412-			●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=14	1-09704-102-0	06	1	9601-9803	●	●		●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=14	1-09704-102-0	06	1	9804-0106		●		●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=14	1-09704-102-0	06	1	0107-0411			●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=14	1-09704-102-0	04	1	0412-				●
41	CLIP; FUEL PIPE,FUEL TANK (B) L=250	5-09707-030-0	01	1	9601-9803	●	●		●
41	CLIP; FUEL PIPE,FUEL TANK (B) L=250	5-09707-030-1	01	1	9804-0011		●		●
41	CLIP; FUEL PIPE,FUEL TANK (B) L=250	5-09707-030-1	04	1	0012-0106				●
41	CLIP; FUEL PIPE,FUEL TANK (B) L=250	5-09707-030-1	05	1	0107-0201				●
41	CLIP; FUEL PIPE,FUEL TANK (B) L=250	5-09707-030-1	07	1	0202-0411				●
41	CLIP; FUEL PIPE,FUEL TANK (B) L=250	5-09707-030-1	09	1	0412-				●
41	CLIP; FUEL PIPE,FUEL TANK (B) L=250	5-09707-030-1	01	1	0012-0106		●
41	CLIP; FUEL PIPE,FUEL TANK (B) L=250	5-09707-030-1	02	1	0107-0201			●
41	CLIP; FUEL PIPE,FUEL TANK (B) L=250	5-09707-030-1	04	1	0202-			●
55	COVER; PIPE,FUEL TANK (A) L=150 SERVICED BY L=1300	1-09360-677-1	01	1	9601-9803	●	●		●
55	COVER; PIPE,FUEL TANK (A) L=150 SERVICED BY L=1300	1-09360-677-1	01	1	9804-0106		●		●
55	COVER; PIPE,FUEL TANK (A) L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0107-			●	●
55	COVER; PIPE,FUEL TANK (B) L=350	1-09360-460-1	01	1	9607-0411				●
55	COVER; PIPE,FUEL TANK (B) L=350 SERVICED BY L=1300	1-09360-677-1	01	1	0412-				●
55	COVER; PIPE,FUEL TANK (C) L=800	1-09361-018-0	01	1	0006-				●
64	NUT; CLIP M8	9-09110-408-0	03	1	9601-9606	●
64	NUT; CLIP M8 FLANGE	0-91150-108-0	03	1	9607-9609	●
64	NUT; CLIP WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EURO2 SPECIFICATION<THN> M8 FLANGE	0-91150-108-0	14	1	9610-9803				●
64	NUT; CLIP M8 FLANGE	0-91150-108-0	03	1	9610-9803	●	●
64	NUT; CLIP M8 FLANGE	0-91150-108-0	03	1	9804-0004		●
64	NUT; CLIP M8 FLANGE	0-91150-108-0	05	1	0005-0106		●
64	NUT; CLIP M8 FLANGE	0-91150-108-0	07	1	0107-0602			●
64	NUT; CLIP M8 FLANGE	0-91180-108-0	07	1	0603-			●
64	NUT; CLIP WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M8	9-09110-408-0	09	1	9601-9606				●
64	NUT; CLIP WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M8 FLANGE	0-91150-108-0	09	1	9607-9609				●
64	NUT; CLIP WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EXC. EURO2 SPECIFICATION<THN> M8 FLANGE	0-91150-108-0	09	1	9610-9803				●
64	NUT; CLIP M8 FLANGE	0-91150-108-0	14	1	9804-0004				●
64	NUT; CLIP M8 FLANGE	0-91150-108-0	11	1	0005-0106				●
64	NUT; CLIP M8 FLANGE	0-91150-108-0	09	1	0107-0602				●
64	NUT; CLIP M8 FLANGE	0-91180-108-0	09	1	0603-				●
95	BUSHING; PIPE,FUEL TANK ID=32 OD=40 T=23	1-09332-112-0	01	1	0412-				●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=25	1-09332-011-1	01	1	9601-9803	●	●		●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=25	1-09332-011-1	01	1	9804-0106		●		●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=25	1-09332-011-1	01	1	0107-0411			●	●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=25	1-09332-011-1	01	1	0412-			●
95	BUSHING; PIPE,FUEL TANK EURO2 SPECIFICATION<THN> ID=28 OD=35 T=25	1-09332-011-1	02	1	9610-9701		●		●
227	BRACKET; FUEL SEDIMENTER	1-22518-087-1	01	1	0012-0106		●		●
227	BRACKET; FUEL SEDIMENTER	1-22518-087-1	01	1	0107-0411			●	●
227	BRACKET; FUEL SEDIMENTER	1-22518-208-0	01	1	0412-			●	●
228	BOLT; BRKT,SEDIMENTER M10X40 FLANGE	0-28081-040-0	02	1	9601-9606	●	●		●
228	BOLT; BRKT,SEDIMENTER M10X45 FLANGE	0-28081-045-0	02	1	9607-9803	●	●		●
228	BOLT; BRKT,SEDIMENTER M10X45 FLANGE	0-28081-045-0	02	1	9804-0004		●		●
228	BOLT; BRKT,SEDIMENTER M10X45 FLANGE	0-28081-045-0	02	1	0005-0011		●		●
228	BOLT; BRKT,SEDIMENTER M12X35 FLANGE	0-28681-235-0	04	1	0012-0106		●		●
228	BOLT; BRKT,SEDIMENTER M12X40 FLANGE	0-28681-240-0	04	1	0107-0512			●	●
228	BOLT; BRKT,SEDIMENTER M12X40 FLANGE	0-28651-240-0	04	1	0601-			●	●
228	BOLT; BRKT,SEDIMENTER M14X45 FLANGE	0-28881-445-0	02	1	0012-0106		●		●
228	BOLT; BRKT,SEDIMENTER M14X45 FLANGE	0-28881-445-0	02	1	0107-0107			●	●
228	BOLT; BRKT,SEDIMENTER M14X45	0-20801-445-0	02	1	0108-0411			●	●
228	BOLT; BRKT,SEDIMENTER M10X45	0-20801-045-0	02	1	0412-			●	●
229	NUT; BRKT,FUEL FILTER M10	9-09110-510-0	02	1	9601-9606	●	●		●
229	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91150-210-0	02	1	9607-9803	●	●		●
229	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91150-210-0	02	1	9804-0011		●		●
229	NUT; BRKT,FUEL FILTER M12 FLANGE	0-91150-212-0	02	1	0012-0106		●		●
229	NUT; BRKT,FUEL FILTER M14 FLANGE	0-91150-214-0	02	1	0012-0106		●		●
229	NUT; BRKT,FUEL FILTER M14 FLANGE	0-91150-214-0	02	1	0107-0107			●	●
229	NUT; BRKT,FUEL FILTER M14	9-99110-414-0	02	1	0108-0411			●	●
229	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91150-210-0	02	1	0412-0602			●	●
229	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91180-210-0	02	1	0603-			●	●
229	NUT; BRKT,FUEL FILTER M12 FLANGE	0-91150-212-0	04	1	0201-0602			●
229	NUT; BRKT,FUEL FILTER M12 FLANGE	0-91180-212-0	04	1	0603-			●
232	BOLT; CLIP,PIPE M8X30 FLANGE	0-28080-830-0	03	1	9601-9606	●
232	BOLT; CLIP,PIPE M8X35 FLANGE	0-28680-835-0	03	1	9607-9609	●
232	BOLT; CLIP,PIPE WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EURO2 SPECIFICATION<THN> M8X35 FLANGE	0-28680-835-0	14	1	9610-9803				●
232	BOLT; CLIP,PIPE M8X35 FLANGE	0-28680-835-0	03	1	9610-9803	●	●
232	BOLT; CLIP,PIPE M8X35 FLANGE	0-28680-835-0	03	1	9804-9807		●
232	BOLT; CLIP,PIPE M8X30 FLANGE	0-28680-830-0	03	1	9808-0004		●
232	BOLT; CLIP,PIPE M8X30 FLANGE	0-28680-830-0	05	1	0005-0106		●
232	BOLT; CLIP,PIPE M8X30 FLANGE	0-28680-830-0	07	1	0107-0512			●	●
232	BOLT; CLIP,PIPE M8X30 FLANGE	0-28650-830-0	07	1	0601-			●	●
232	BOLT; CLIP,PIPE WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M8X30 FLANGE	0-28080-830-0	09	1	9601-9606				●
232	BOLT; CLIP,PIPE WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M8X35 FLANGE	0-28680-835-0	09	1	9607-9609				●
232	BOLT; CLIP,PIPE WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EXC. EURO2 SPECIFICATION<THN> M8X35 FLANGE	0-28680-835-0	09	1	9610-9803				●
232	BOLT; CLIP,PIPE M8X35 FLANGE	0-28680-835-0	14	1	9804-9807				●
232	BOLT; CLIP,PIPE M8X30 FLANGE	0-28680-830-0	14	1	9808-0004				●
232	BOLT; CLIP,PIPE M8X30 FLANGE	0-28680-830-0	11	1	0005-0106				●
232	BOLT; CLIP,PIPE M8X16 FLANGE	0-28080-816-0	02	1	0107-0501				●
232	BOLT; CLIP,PIPE M8X20 FLANGE	0-28680-820-0	02	1	0502-0512				●
232	BOLT; CLIP,PIPE M8X20 FLANGE	0-28650-820-0	02	1	0601-				●
239	CLIP; FUEL PIPE (A) ID=13X2 H=25 L=50	1-09700-777-0	01	1	9601-9609	●
239	CLIP; FUEL PIPE (A) ID=13X2 H=25 L=50	1-09700-777-0	01	1	9610-9803	●	●
239	CLIP; FUEL PIPE (A) ID=13X2 H=25 L=50	1-09700-777-0	01	1	9804-9907		●
239	CLIP; FUEL PIPE (A) M13X2 H=20 L=60	1-09701-280-0	01	1	9908-0106		●
239	CLIP; FUEL PIPE (A) M13X2 H=20 L=60	1-09701-280-0	01	1	0107-			●
239	CLIP; FUEL PIPE (B) ID=14X29 H=30 L=25	1-09701-101-0	02	1	9601-9609	●			●
239	CLIP; FUEL PIPE WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EURO2 SPECIFICATION<THN> (B) ID=14X29 H=30 L=25	1-09701-101-0	10	1	9610-9803				●
239	CLIP; FUEL PIPE (B) ID=14X29 H=30 L=25	1-09701-101-0	02	1	9610-9803	●	●		●
239	CLIP; FUEL PIPE (B) ID=14X29 H=30 L=25	1-09701-101-0	02	1	9804-9901		●		●
239	CLIP; FUEL PIPE (B) ID=14X29 H=30 L=25	1-09701-101-0	01	1	9902-0004				●
239	CLIP; FUEL PIPE (B) ID=14X29 H=30 L=25	1-09701-101-0	06	1	0005-0006				●
239	CLIP; FUEL PIPE (C) ID=16X2 L=20	9-09535-536-0	02	1	0007-0411				●
239	CLIP; FUEL PIPE (D) ID=16X2 H=76 L=50	1-09700-902-0	01	1	9902-0004				●
239	CLIP; FUEL PIPE (D) ID=16X2 H=76 L=50	1-09700-902-0	03	1	0005-0411				●
239	CLIP; FUEL PIPE (F) ID=37 L=35	1-09701-109-0	02	1	0412-				●
239	CLIP; FUEL PIPE WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EURO2 SPECIFICATION<THN> (E) ID=14X29 H=15 L=20	1-09700-744-0	02	1	9710-9803				●
239	CLIP; FUEL PIPE WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (E) ID=14X29 H=15 L=20	1-09700-744-0	01	1	9601-9609				●
239	CLIP; FUEL PIPE WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EXC. EURO2 SPECIFICATION<THN> (E) ID=14X29 H=15 L=20	1-09700-744-0	01	1	9610-9803				●
239	CLIP; FUEL PIPE WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B) ID=14X29 H=30 L=25	1-09701-101-0	06	1	9601-9609				●
239	CLIP; FUEL PIPE WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EXC. EURO2 SPECIFICATION<THN> (B) ID=14X29 H=30 L=25	1-09701-101-0	06	1	9610-9803				●
239	CLIP; FUEL PIPE WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B) ID=14X29 H=30 L=25	1-09701-101-0	10	1	9804-0004				●
239	CLIP; FUEL PIPE WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (E) ID=14X29 H=15 L=20	1-09700-744-0	02	1	9808-0004				●
239	CLIP; FUEL PIPE (F) ID=32 L=50	1-09701-055-1	02	1	0005-0411				●
239	CLIP; FUEL PIPE (G) ID=15 & 19 H=50 L=60	1-09701-316-0	02	1	0412-				●
239	CLIP; FUEL PIPE (B) ID=14X29 H=30 L=25	1-09701-101-0	02	1	9902-0004		●
239	CLIP; FUEL PIPE (B) ID=14X29 H=30 L=25	1-09701-101-0	04	1	0005-0006		●
239	CLIP; FUEL PIPE (B) ID=14X29 H=30 L=25	1-09701-101-0	04	1	0007-0106		●		●
239	CLIP; FUEL PIPE (B) ID=14X29 H=30 L=25	1-09701-101-0	02	1	0107-0411				●
239	CLIP; FUEL PIPE (G) ID=15 & 19 H=33 L=25	1-09701-317-0	05	1	0412-				●
239	CLIP; FUEL PIPE (B) ID=14X29 H=30 L=25	1-09701-101-0	06	1	0107-			●
634	HOSE; RUBBER RETURN SERVICED BY L=3000	0-01260-300-0	01	1	0107-			●
634	HOSE; RUBBER RETURN L=3450 SERVICED BY L=8000	0-01260-800-0	01	1	0107-0411				●
634	HOSE; RUBBER RETURN L=3550 SERVICED BY L=8000	0-01260-800-0	01	1	0412-				●

41 41 55 35 634 55 41 32 41 32 41 41 41 64 239 232 239 64 232 239 228 228 227 229 304 64 239 97 232 64 303 97 303 95 304 232 239 64 239 232 239 55 32 35 634

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
32	PIPE; DELIVERY,FUEL TANK (A) L=760 SERVICED BY L=3000	0-01260-300-0	01	1	9601-9609	●
32	PIPE; DELIVERY,FUEL TANK (A) L=760 SERVICED BY L=3000	0-01260-300-0	01	1	9610-9803	●	●
32	PIPE; DELIVERY,FUEL TANK (A) L=760 SERVICED BY L=3000	0-01260-300-0	01	1	9804-0004		●
32	PIPE; DELIVERY,FUEL TANK (A) L=1300 SERVICED BY L=3000	0-01260-300-0	01	1	0005-0006		●
32	PIPE; DELIVERY,FUEL TANK (A) L=820 SERVICED BY L=3000	0-01260-300-0	01	1	0007-0011		●
32	PIPE; DELIVERY,FUEL TANK (A) L=850 SERVICED BY L=3000	0-01260-300-0	01	1	0012-0106		●
32	PIPE; DELIVERY,FUEL TANK (A) L=980 SERVICED BY L=3000	0-01260-300-0	01	1	0107-			●
32	PIPE; DELIVERY,FUEL TANK (B) L=1350 SERVICED BY L=3000	0-01260-300-0	01	1	9601-9609	●
32	PIPE; DELIVERY,FUEL TANK (B) L=1350 SERVICED BY L=3000	0-01260-300-0	01	1	9610-9803	●	●
32	PIPE; DELIVERY,FUEL TANK (B) L=1350 SERVICED BY L=3000	0-01260-300-0	01	1	9804-0004		●
32	PIPE; DELIVERY,FUEL TANK (B) L=2000 SERVICED BY L=3000	0-01260-300-0	01	1	0005-0006		●
32	PIPE; DELIVERY,FUEL TANK (B) L=1350 SERVICED BY L=3000	0-01260-300-0	01	1	0007-0011		●
32	PIPE; DELIVERY,FUEL TANK (B) L=1450 SERVICED BY L=3000	0-01260-300-0	01	1	0012-0106		●
32	PIPE; DELIVERY,FUEL TANK (B) L=2000 SERVICED BY L=3000	0-01260-300-0	01	1	0107-			●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EURO2 SPECIFICATION<THN> (A) L=1300 SERVICED BY L=3000	0-01260-300-0	01	1	9610-9701				●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EURO2 SPECIFICATION<THN> (A) L=460 SERVICED BY L=3000	0-01260-300-0	01	1	9702-9803				●
32	PIPE; DELIVERY,FUEL TANK (A) L=460 SERVICED BY L=3000	0-01260-300-0	01	1	9804-0011				●
32	PIPE; DELIVERY,FUEL TANK (A) L=550 SERVICED BY L=3000	0-01260-300-0	01	1	0012-0106				●
32	PIPE; DELIVERY,FUEL TANK (A) L=1050 SERVICED BY L=3000	0-01260-300-0	01	1	0107-0411				●
32	PIPE; DELIVERY,FUEL TANK (A) L=900 SERVICED BY L=3000	0-01260-300-0	01	1	0412-				●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EURO2 SPECIFICATION<THN> (B) L=4250 SERVICED BY L=8000	0-01260-800-0	01	1	9610-9701				●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EURO2 SPECIFICATION<THN> (B) L=5050 SERVICED BY L=8000	0-01260-800-0	01	1	9702-9803				●
32	PIPE; DELIVERY,FUEL TANK (B) L=5050 SERVICED BY L=8000	0-01260-800-0	01	1	9804-0004				●
32	PIPE; DELIVERY,FUEL TANK (B) L=3800 SERVICED BY L=8000	0-01260-800-0	01	1	0005-0011				●
32	PIPE; DELIVERY,FUEL TANK (B) L=3950 SERVICED BY L=8000	0-01260-800-0	01	1	0012-0106				●
32	PIPE; DELIVERY,FUEL TANK (B) L=3150 SERVICED BY L=8000	0-01260-800-0	01	1	0107-0411				●
32	PIPE; DELIVERY,FUEL TANK (B) L=2950 SERVICED BY L=3000	0-01262-300-0	01	1	0412-				●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A) L=700 SERVICED BY L=3000	0-01260-300-0	01	1	9601-9609				●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EXC. EURO2 SPECIFICATION<THN> (A) L=700 SERVICED BY L=3000	0-01260-300-0	01	1	9610-9803				●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B) L=3850 SERVICED BY L=8000	0-01260-800-0	01	1	9601-9609				●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EXC. EURO2 SPECIFICATION<THN> (B) L=3850 SERVICED BY L=8000	0-01260-800-0	01	1	9610-9803				●
35	PIPE; FUEL TANK,RETURN L=1750 SERVICED BY L=3000	0-01260-300-0	01	1	9601-9609	●
35	PIPE; FUEL TANK,RETURN L=1750 SERVICED BY L=3000	0-01260-300-0	01	1	9610-9803	●	●
35	PIPE; FUEL TANK,RETURN L=1750 SERVICED BY L=3000	0-01260-300-0	01	1	9804-0004		●
35	PIPE; FUEL TANK,RETURN L=1300 SERVICED BY L=3000	0-01260-300-0	01	1	0005-0106		●
35	PIPE; FUEL TANK,RETURN WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EURO2 SPECIFICATION<THN> L=5050 SERVICED BY L=8000	0-01260-800-0	01	1	9610-9803				●
35	PIPE; FUEL TANK,RETURN L=5050 SERVICED BY L=8000	0-01260-800-0	01	1	9804-0004				●
35	PIPE; FUEL TANK,RETURN L=3550 SERVICED BY L=8000	0-01260-800-0	01	1	0005-0106				●
35	PIPE; FUEL TANK,RETURN WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) L=3550 SERVICED BY L=8000	0-01260-800-0	01	1	9601-9609				●
35	PIPE; FUEL TANK,RETURN WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EXC. EURO2 SPECIFICATION<THN> L=3550 SERVICED BY L=8000	0-01260-800-0	01	1	9610-9803				●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=17.1	8-94122-679-0	02	1	0412-				●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=14	1-09704-102-0	06	1	0412-			●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=14	1-09704-102-0	06	1	9601-9803	●	●		●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=14	1-09704-102-0	06	1	9804-0106		●		●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=14	1-09704-102-0	06	1	0107-0411			●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=14	1-09704-102-0	04	1	0412-				●
41	CLIP; FUEL PIPE,FUEL TANK (B) L=250	5-09707-030-0	01	1	9601-9803	●	●		●
41	CLIP; FUEL PIPE,FUEL TANK (B) L=250	5-09707-030-1	01	1	9804-0011		●		●
41	CLIP; FUEL PIPE,FUEL TANK (B) L=250	5-09707-030-1	04	1	0012-0106				●
41	CLIP; FUEL PIPE,FUEL TANK (B) L=250	5-09707-030-1	05	1	0107-0201				●
41	CLIP; FUEL PIPE,FUEL TANK (B) L=250	5-09707-030-1	07	1	0202-0411				●
41	CLIP; FUEL PIPE,FUEL TANK (B) L=250	5-09707-030-1	09	1	0412-				●
41	CLIP; FUEL PIPE,FUEL TANK (B) L=250	5-09707-030-1	01	1	0012-0106		●
41	CLIP; FUEL PIPE,FUEL TANK (B) L=250	5-09707-030-1	02	1	0107-0201			●
41	CLIP; FUEL PIPE,FUEL TANK (B) L=250	5-09707-030-1	04	1	0202-			●
55	COVER; PIPE,FUEL TANK (A) L=150 SERVICED BY L=1300	1-09360-677-1	01	1	9601-9803	●	●		●
55	COVER; PIPE,FUEL TANK (A) L=150 SERVICED BY L=1300	1-09360-677-1	01	1	9804-0106		●		●
55	COVER; PIPE,FUEL TANK (A) L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0107-			●	●
55	COVER; PIPE,FUEL TANK (B) L=350	1-09360-460-1	01	1	9607-0411				●
55	COVER; PIPE,FUEL TANK (B) L=350 SERVICED BY L=1300	1-09360-677-1	01	1	0412-				●
55	COVER; PIPE,FUEL TANK (C) L=800	1-09361-018-0	01	1	0006-				●
64	NUT; CLIP M8	9-09110-408-0	03	1	9601-9606	●
64	NUT; CLIP M8 FLANGE	0-91150-108-0	03	1	9607-9609	●
64	NUT; CLIP WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EURO2 SPECIFICATION<THN> M8 FLANGE	0-91150-108-0	14	1	9610-9803				●
64	NUT; CLIP M8 FLANGE	0-91150-108-0	03	1	9610-9803	●	●
64	NUT; CLIP M8 FLANGE	0-91150-108-0	03	1	9804-0004		●
64	NUT; CLIP M8 FLANGE	0-91150-108-0	05	1	0005-0106		●
64	NUT; CLIP M8 FLANGE	0-91150-108-0	07	1	0107-0602			●
64	NUT; CLIP M8 FLANGE	0-91180-108-0	07	1	0603-			●
64	NUT; CLIP WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M8	9-09110-408-0	09	1	9601-9606				●
64	NUT; CLIP WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M8 FLANGE	0-91150-108-0	09	1	9607-9609				●
64	NUT; CLIP WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EXC. EURO2 SPECIFICATION<THN> M8 FLANGE	0-91150-108-0	09	1	9610-9803				●
64	NUT; CLIP M8 FLANGE	0-91150-108-0	14	1	9804-0004				●
64	NUT; CLIP M8 FLANGE	0-91150-108-0	11	1	0005-0106				●
64	NUT; CLIP M8 FLANGE	0-91150-108-0	09	1	0107-0602				●
64	NUT; CLIP M8 FLANGE	0-91180-108-0	09	1	0603-				●
95	BUSHING; PIPE,FUEL TANK ID=32 OD=40 T=23	1-09332-112-0	01	1	0412-				●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=25	1-09332-011-1	01	1	9601-9803	●	●		●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=25	1-09332-011-1	01	1	9804-0106		●		●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=25	1-09332-011-1	01	1	0107-0411			●	●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=25	1-09332-011-1	01	1	0412-			●
95	BUSHING; PIPE,FUEL TANK EURO2 SPECIFICATION<THN> ID=28 OD=35 T=25	1-09332-011-1	02	1	9610-9701		●		●
97	BRACKET; CLIP (A) L=95	1-82699-085-0	02	1	0007-0411				●
97	BRACKET; CLIP (B) L=100	1-47477-620-1	02	1	0412-				●
227	BRACKET; FUEL SEDIMENTER	1-22518-087-1	01	1	0012-0106		●		●
227	BRACKET; FUEL SEDIMENTER	1-22518-087-1	01	1	0107-0411			●	●
227	BRACKET; FUEL SEDIMENTER	1-22518-208-0	01	1	0412-			●	●
228	BOLT; BRKT,SEDIMENTER M10X40 FLANGE	0-28081-040-0	02	1	9601-9606	●	●		●
228	BOLT; BRKT,SEDIMENTER M10X45 FLANGE	0-28081-045-0	02	1	9607-9803	●	●		●
228	BOLT; BRKT,SEDIMENTER M10X45 FLANGE	0-28081-045-0	02	1	9804-0004		●		●
228	BOLT; BRKT,SEDIMENTER M10X45 FLANGE	0-28081-045-0	02	1	0005-0011		●		●
228	BOLT; BRKT,SEDIMENTER M12X35 FLANGE	0-28681-235-0	04	1	0012-0106		●		●
228	BOLT; BRKT,SEDIMENTER M12X40 FLANGE	0-28681-240-0	04	1	0107-0512			●	●
228	BOLT; BRKT,SEDIMENTER M12X40 FLANGE	0-28651-240-0	04	1	0601-			●	●
228	BOLT; BRKT,SEDIMENTER M14X45 FLANGE	0-28881-445-0	02	1	0012-0106		●		●
228	BOLT; BRKT,SEDIMENTER M14X45 FLANGE	0-28881-445-0	02	1	0107-0107			●	●
228	BOLT; BRKT,SEDIMENTER M14X45	0-20801-445-0	02	1	0108-0411			●	●
228	BOLT; BRKT,SEDIMENTER M10X45	0-20801-045-0	02	1	0412-			●	●
229	NUT; BRKT,FUEL FILTER M10	9-09110-510-0	02	1	9601-9606	●	●		●
229	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91150-210-0	02	1	9607-9803	●	●		●
229	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91150-210-0	02	1	9804-0011		●		●
229	NUT; BRKT,FUEL FILTER M12 FLANGE	0-91150-212-0	02	1	0012-0106		●		●
229	NUT; BRKT,FUEL FILTER M14 FLANGE	0-91150-214-0	02	1	0012-0106		●		●
229	NUT; BRKT,FUEL FILTER M14 FLANGE	0-91150-214-0	02	1	0107-0107			●	●
229	NUT; BRKT,FUEL FILTER M14	9-99110-414-0	02	1	0108-0411			●	●
229	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91150-210-0	02	1	0412-0602			●	●
229	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91180-210-0	02	1	0603-			●	●
229	NUT; BRKT,FUEL FILTER M12 FLANGE	0-91150-212-0	04	1	0201-0602			●
229	NUT; BRKT,FUEL FILTER M12 FLANGE	0-91180-212-0	04	1	0603-			●
232	BOLT; CLIP,PIPE M8X30 FLANGE	0-28080-830-0	03	1	9601-9606	●
232	BOLT; CLIP,PIPE M8X35 FLANGE	0-28680-835-0	03	1	9607-9609	●
232	BOLT; CLIP,PIPE WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EURO2 SPECIFICATION<THN> M8X35 FLANGE	0-28680-835-0	14	1	9610-9803				●
232	BOLT; CLIP,PIPE M8X35 FLANGE	0-28680-835-0	03	1	9610-9803	●	●
232	BOLT; CLIP,PIPE M8X35 FLANGE	0-28680-835-0	03	1	9804-9807		●
232	BOLT; CLIP,PIPE M8X30 FLANGE	0-28680-830-0	03	1	9808-0004		●
232	BOLT; CLIP,PIPE M8X30 FLANGE	0-28680-830-0	05	1	0005-0106		●
232	BOLT; CLIP,PIPE M8X30 FLANGE	0-28680-830-0	07	1	0107-0512			●	●
232	BOLT; CLIP,PIPE M8X30 FLANGE	0-28650-830-0	07	1	0601-			●	●
232	BOLT; CLIP,PIPE WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M8X30 FLANGE	0-28080-830-0	09	1	9601-9606				●
232	BOLT; CLIP,PIPE WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M8X35 FLANGE	0-28680-835-0	09	1	9607-9609				●
232	BOLT; CLIP,PIPE WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EXC. EURO2 SPECIFICATION<THN> M8X35 FLANGE	0-28680-835-0	09	1	9610-9803				●
232	BOLT; CLIP,PIPE M8X35 FLANGE	0-28680-835-0	14	1	9804-9807				●
232	BOLT; CLIP,PIPE M8X30 FLANGE	0-28680-830-0	14	1	9808-0004				●
232	BOLT; CLIP,PIPE M8X30 FLANGE	0-28680-830-0	11	1	0005-0106				●
232	BOLT; CLIP,PIPE M8X16 FLANGE	0-28080-816-0	02	1	0107-0501				●
232	BOLT; CLIP,PIPE M8X20 FLANGE	0-28680-820-0	02	1	0502-0512				●
232	BOLT; CLIP,PIPE M8X20 FLANGE	0-28650-820-0	02	1	0601-				●
239	CLIP; FUEL PIPE (A) ID=13X2 H=25 L=50	1-09700-777-0	01	1	9601-9609	●
239	CLIP; FUEL PIPE (A) ID=13X2 H=25 L=50	1-09700-777-0	01	1	9610-9803	●	●
239	CLIP; FUEL PIPE (A) ID=13X2 H=25 L=50	1-09700-777-0	01	1	9804-9907		●
239	CLIP; FUEL PIPE (A) M13X2 H=20 L=60	1-09701-280-0	01	1	9908-0106		●
239	CLIP; FUEL PIPE (A) M13X2 H=20 L=60	1-09701-280-0	01	1	0107-			●
239	CLIP; FUEL PIPE (B) ID=14X29 H=30 L=25	1-09701-101-0	02	1	9601-9609	●			●
239	CLIP; FUEL PIPE WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EURO2 SPECIFICATION<THN> (B) ID=14X29 H=30 L=25	1-09701-101-0	10	1	9610-9803				●
239	CLIP; FUEL PIPE (B) ID=14X29 H=30 L=25	1-09701-101-0	02	1	9610-9803	●	●		●
239	CLIP; FUEL PIPE (B) ID=14X29 H=30 L=25	1-09701-101-0	02	1	9804-9901		●		●
239	CLIP; FUEL PIPE (B) ID=14X29 H=30 L=25	1-09701-101-0	01	1	9902-0004				●
239	CLIP; FUEL PIPE (B) ID=14X29 H=30 L=25	1-09701-101-0	06	1	0005-0006				●
239	CLIP; FUEL PIPE (C) ID=16X2 L=20	9-09535-536-0	02	1	0007-0411				●
239	CLIP; FUEL PIPE (D) ID=16X2 H=76 L=50	1-09700-902-0	01	1	9902-0004				●
239	CLIP; FUEL PIPE (D) ID=16X2 H=76 L=50	1-09700-902-0	03	1	0005-0411				●
239	CLIP; FUEL PIPE (F) ID=37 L=35	1-09701-109-0	02	1	0412-				●
239	CLIP; FUEL PIPE WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EURO2 SPECIFICATION<THN> (E) ID=14X29 H=15 L=20	1-09700-744-0	02	1	9710-9803				●
239	CLIP; FUEL PIPE WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (E) ID=14X29 H=15 L=20	1-09700-744-0	01	1	9601-9609				●
239	CLIP; FUEL PIPE WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EXC. EURO2 SPECIFICATION<THN> (E) ID=14X29 H=15 L=20	1-09700-744-0	01	1	9610-9803				●
239	CLIP; FUEL PIPE WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B) ID=14X29 H=30 L=25	1-09701-101-0	06	1	9601-9609				●
239	CLIP; FUEL PIPE WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EXC. EURO2 SPECIFICATION<THN> (B) ID=14X29 H=30 L=25	1-09701-101-0	06	1	9610-9803				●
239	CLIP; FUEL PIPE WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B) ID=14X29 H=30 L=25	1-09701-101-0	10	1	9804-0004				●
239	CLIP; FUEL PIPE WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (E) ID=14X29 H=15 L=20	1-09700-744-0	02	1	9808-0004				●
239	CLIP; FUEL PIPE (F) ID=32 L=50	1-09701-055-1	02	1	0005-0411				●
239	CLIP; FUEL PIPE (G) ID=15 & 19 H=50 L=60	1-09701-316-0	02	1	0412-				●
239	CLIP; FUEL PIPE (B) ID=14X29 H=30 L=25	1-09701-101-0	02	1	9902-0004		●
239	CLIP; FUEL PIPE (B) ID=14X29 H=30 L=25	1-09701-101-0	04	1	0005-0006		●
239	CLIP; FUEL PIPE (B) ID=14X29 H=30 L=25	1-09701-101-0	04	1	0007-0106		●		●
239	CLIP; FUEL PIPE (B) ID=14X29 H=30 L=25	1-09701-101-0	02	1	0107-0411				●
239	CLIP; FUEL PIPE (G) ID=15 & 19 H=33 L=25	1-09701-317-0	05	1	0412-				●
239	CLIP; FUEL PIPE (B) ID=14X29 H=30 L=25	1-09701-101-0	06	1	0107-			●
303	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	02	1	0007-0512				●
303	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0601-				●
304	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0007-0602				●
304	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-				●
634	HOSE; RUBBER RETURN SERVICED BY L=3000	0-01260-300-0	01	1	0107-			●
634	HOSE; RUBBER RETURN L=3450 SERVICED BY L=8000	0-01260-800-0	01	1	0107-0411				●
634	HOSE; RUBBER RETURN L=3550 SERVICED BY L=8000	0-01260-800-0	01	1	0412-				●

227 228 228 229 303 64 239 239 229 229 97 304 228 232 228 232 64 64 239 239 239 232 239 232 32 634 35 55 41 41 41 32 32 41 41 41 41 55 634 35 55 95 64

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
32	PIPE; DELIVERY,FUEL TANK (A) L=760 SERVICED BY L=3000	0-01260-300-0	01	1	9601-9609	●
32	PIPE; DELIVERY,FUEL TANK (A) L=760 SERVICED BY L=3000	0-01260-300-0	01	1	9610-9803	●	●
32	PIPE; DELIVERY,FUEL TANK (A) L=760 SERVICED BY L=3000	0-01260-300-0	01	1	9804-0004		●
32	PIPE; DELIVERY,FUEL TANK (A) L=1300 SERVICED BY L=3000	0-01260-300-0	01	1	0005-0006		●
32	PIPE; DELIVERY,FUEL TANK (A) L=820 SERVICED BY L=3000	0-01260-300-0	01	1	0007-0011		●
32	PIPE; DELIVERY,FUEL TANK (A) L=850 SERVICED BY L=3000	0-01260-300-0	01	1	0012-0106		●
32	PIPE; DELIVERY,FUEL TANK (A) L=980 SERVICED BY L=3000	0-01260-300-0	01	1	0107-			●
32	PIPE; DELIVERY,FUEL TANK (B) L=1350 SERVICED BY L=3000	0-01260-300-0	01	1	9601-9609	●
32	PIPE; DELIVERY,FUEL TANK (B) L=1350 SERVICED BY L=3000	0-01260-300-0	01	1	9610-9803	●	●
32	PIPE; DELIVERY,FUEL TANK (B) L=1350 SERVICED BY L=3000	0-01260-300-0	01	1	9804-0004		●
32	PIPE; DELIVERY,FUEL TANK (B) L=2000 SERVICED BY L=3000	0-01260-300-0	01	1	0005-0006		●
32	PIPE; DELIVERY,FUEL TANK (B) L=1350 SERVICED BY L=3000	0-01260-300-0	01	1	0007-0011		●
32	PIPE; DELIVERY,FUEL TANK (B) L=1450 SERVICED BY L=3000	0-01260-300-0	01	1	0012-0106		●
32	PIPE; DELIVERY,FUEL TANK (B) L=2000 SERVICED BY L=3000	0-01260-300-0	01	1	0107-			●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EURO2 SPECIFICATION<THN> (A) L=1300 SERVICED BY L=3000	0-01260-300-0	01	1	9610-9701				●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EURO2 SPECIFICATION<THN> (A) L=460 SERVICED BY L=3000	0-01260-300-0	01	1	9702-9803				●
32	PIPE; DELIVERY,FUEL TANK (A) L=460 SERVICED BY L=3000	0-01260-300-0	01	1	9804-0011				●
32	PIPE; DELIVERY,FUEL TANK (A) L=550 SERVICED BY L=3000	0-01260-300-0	01	1	0012-0106				●
32	PIPE; DELIVERY,FUEL TANK (A) L=1050 SERVICED BY L=3000	0-01260-300-0	01	1	0107-0411				●
32	PIPE; DELIVERY,FUEL TANK (A) L=900 SERVICED BY L=3000	0-01260-300-0	01	1	0412-				●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EURO2 SPECIFICATION<THN> (B) L=4250 SERVICED BY L=8000	0-01260-800-0	01	1	9610-9701				●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EURO2 SPECIFICATION<THN> (B) L=5050 SERVICED BY L=8000	0-01260-800-0	01	1	9702-9803				●
32	PIPE; DELIVERY,FUEL TANK (B) L=5050 SERVICED BY L=8000	0-01260-800-0	01	1	9804-0004				●
32	PIPE; DELIVERY,FUEL TANK (B) L=3800 SERVICED BY L=8000	0-01260-800-0	01	1	0005-0011				●
32	PIPE; DELIVERY,FUEL TANK (B) L=3950 SERVICED BY L=8000	0-01260-800-0	01	1	0012-0106				●
32	PIPE; DELIVERY,FUEL TANK (B) L=3150 SERVICED BY L=8000	0-01260-800-0	01	1	0107-0411				●
32	PIPE; DELIVERY,FUEL TANK (B) L=2950 SERVICED BY L=3000	0-01262-300-0	01	1	0412-				●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A) L=700 SERVICED BY L=3000	0-01260-300-0	01	1	9601-9609				●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EXC. EURO2 SPECIFICATION<THN> (A) L=700 SERVICED BY L=3000	0-01260-300-0	01	1	9610-9803				●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B) L=3850 SERVICED BY L=8000	0-01260-800-0	01	1	9601-9609				●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EXC. EURO2 SPECIFICATION<THN> (B) L=3850 SERVICED BY L=8000	0-01260-800-0	01	1	9610-9803				●
35	PIPE; FUEL TANK,RETURN L=1750 SERVICED BY L=3000	0-01260-300-0	01	1	9601-9609	●
35	PIPE; FUEL TANK,RETURN L=1750 SERVICED BY L=3000	0-01260-300-0	01	1	9610-9803	●	●
35	PIPE; FUEL TANK,RETURN L=1750 SERVICED BY L=3000	0-01260-300-0	01	1	9804-0004		●
35	PIPE; FUEL TANK,RETURN L=1300 SERVICED BY L=3000	0-01260-300-0	01	1	0005-0106		●
35	PIPE; FUEL TANK,RETURN WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EURO2 SPECIFICATION<THN> L=5050 SERVICED BY L=8000	0-01260-800-0	01	1	9610-9803				●
35	PIPE; FUEL TANK,RETURN L=5050 SERVICED BY L=8000	0-01260-800-0	01	1	9804-0004				●
35	PIPE; FUEL TANK,RETURN L=3550 SERVICED BY L=8000	0-01260-800-0	01	1	0005-0106				●
35	PIPE; FUEL TANK,RETURN WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) L=3550 SERVICED BY L=8000	0-01260-800-0	01	1	9601-9609				●
35	PIPE; FUEL TANK,RETURN WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EXC. EURO2 SPECIFICATION<THN> L=3550 SERVICED BY L=8000	0-01260-800-0	01	1	9610-9803				●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=17.1	8-94122-679-0	02	1	0412-				●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=14	1-09704-102-0	06	1	0412-			●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=14	1-09704-102-0	06	1	9601-9803	●	●		●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=14	1-09704-102-0	06	1	9804-0106		●		●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=14	1-09704-102-0	06	1	0107-0411			●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=14	1-09704-102-0	04	1	0412-				●
41	CLIP; FUEL PIPE,FUEL TANK (B) L=250	5-09707-030-0	01	1	9601-9803	●	●		●
41	CLIP; FUEL PIPE,FUEL TANK (B) L=250	5-09707-030-1	01	1	9804-0011		●		●
41	CLIP; FUEL PIPE,FUEL TANK (B) L=250	5-09707-030-1	04	1	0012-0106				●
41	CLIP; FUEL PIPE,FUEL TANK (B) L=250	5-09707-030-1	05	1	0107-0201				●
41	CLIP; FUEL PIPE,FUEL TANK (B) L=250	5-09707-030-1	07	1	0202-0411				●
41	CLIP; FUEL PIPE,FUEL TANK (B) L=250	5-09707-030-1	09	1	0412-				●
41	CLIP; FUEL PIPE,FUEL TANK (B) L=250	5-09707-030-1	01	1	0012-0106		●
41	CLIP; FUEL PIPE,FUEL TANK (B) L=250	5-09707-030-1	02	1	0107-0201			●
41	CLIP; FUEL PIPE,FUEL TANK (B) L=250	5-09707-030-1	04	1	0202-			●
55	COVER; PIPE,FUEL TANK (A) L=150 SERVICED BY L=1300	1-09360-677-1	01	1	9601-9803	●	●		●
55	COVER; PIPE,FUEL TANK (A) L=150 SERVICED BY L=1300	1-09360-677-1	01	1	9804-0106		●		●
55	COVER; PIPE,FUEL TANK (A) L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0107-			●	●
55	COVER; PIPE,FUEL TANK (B) L=350	1-09360-460-1	01	1	9607-0411				●
55	COVER; PIPE,FUEL TANK (B) L=350 SERVICED BY L=1300	1-09360-677-1	01	1	0412-				●
55	COVER; PIPE,FUEL TANK (C) L=800	1-09361-018-0	01	1	0006-				●
64	NUT; CLIP M8	9-09110-408-0	03	1	9601-9606	●
64	NUT; CLIP M8 FLANGE	0-91150-108-0	03	1	9607-9609	●
64	NUT; CLIP WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EURO2 SPECIFICATION<THN> M8 FLANGE	0-91150-108-0	14	1	9610-9803				●
64	NUT; CLIP M8 FLANGE	0-91150-108-0	03	1	9610-9803	●	●
64	NUT; CLIP M8 FLANGE	0-91150-108-0	03	1	9804-0004		●
64	NUT; CLIP M8 FLANGE	0-91150-108-0	05	1	0005-0106		●
64	NUT; CLIP M8 FLANGE	0-91150-108-0	07	1	0107-0602			●
64	NUT; CLIP M8 FLANGE	0-91180-108-0	07	1	0603-			●
64	NUT; CLIP WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M8	9-09110-408-0	09	1	9601-9606				●
64	NUT; CLIP WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M8 FLANGE	0-91150-108-0	09	1	9607-9609				●
64	NUT; CLIP WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EXC. EURO2 SPECIFICATION<THN> M8 FLANGE	0-91150-108-0	09	1	9610-9803				●
64	NUT; CLIP M8 FLANGE	0-91150-108-0	14	1	9804-0004				●
64	NUT; CLIP M8 FLANGE	0-91150-108-0	11	1	0005-0106				●
64	NUT; CLIP M8 FLANGE	0-91150-108-0	09	1	0107-0602				●
64	NUT; CLIP M8 FLANGE	0-91180-108-0	09	1	0603-				●
95	BUSHING; PIPE,FUEL TANK ID=32 OD=40 T=23	1-09332-112-0	01	1	0412-				●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=25	1-09332-011-1	01	1	9601-9803	●	●		●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=25	1-09332-011-1	01	1	9804-0106		●		●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=25	1-09332-011-1	01	1	0107-0411			●	●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=25	1-09332-011-1	01	1	0412-			●
95	BUSHING; PIPE,FUEL TANK EURO2 SPECIFICATION<THN> ID=28 OD=35 T=25	1-09332-011-1	02	1	9610-9701		●		●
97	BRACKET; CLIP (A) L=95	1-82699-085-0	02	1	0007-0411				●
97	BRACKET; CLIP (B) L=100	1-47477-620-1	02	1	0412-				●
227	BRACKET; FUEL SEDIMENTER	1-22518-087-1	01	1	0012-0106		●		●
227	BRACKET; FUEL SEDIMENTER	1-22518-087-1	01	1	0107-0411			●	●
227	BRACKET; FUEL SEDIMENTER	1-22518-208-0	01	1	0412-			●	●
228	BOLT; BRKT,SEDIMENTER M10X40 FLANGE	0-28081-040-0	02	1	9601-9606	●	●		●
228	BOLT; BRKT,SEDIMENTER M10X45 FLANGE	0-28081-045-0	02	1	9607-9803	●	●		●
228	BOLT; BRKT,SEDIMENTER M10X45 FLANGE	0-28081-045-0	02	1	9804-0004		●		●
228	BOLT; BRKT,SEDIMENTER M10X45 FLANGE	0-28081-045-0	02	1	0005-0011		●		●
228	BOLT; BRKT,SEDIMENTER M12X35 FLANGE	0-28681-235-0	04	1	0012-0106		●		●
228	BOLT; BRKT,SEDIMENTER M12X40 FLANGE	0-28681-240-0	04	1	0107-0512			●	●
228	BOLT; BRKT,SEDIMENTER M12X40 FLANGE	0-28651-240-0	04	1	0601-			●	●
228	BOLT; BRKT,SEDIMENTER M14X45 FLANGE	0-28881-445-0	02	1	0012-0106		●		●
228	BOLT; BRKT,SEDIMENTER M14X45 FLANGE	0-28881-445-0	02	1	0107-0107			●	●
228	BOLT; BRKT,SEDIMENTER M14X45	0-20801-445-0	02	1	0108-0411			●	●
228	BOLT; BRKT,SEDIMENTER M10X45	0-20801-045-0	02	1	0412-			●	●
229	NUT; BRKT,FUEL FILTER M10	9-09110-510-0	02	1	9601-9606	●	●		●
229	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91150-210-0	02	1	9607-9803	●	●		●
229	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91150-210-0	02	1	9804-0011		●		●
229	NUT; BRKT,FUEL FILTER M12 FLANGE	0-91150-212-0	02	1	0012-0106		●		●
229	NUT; BRKT,FUEL FILTER M14 FLANGE	0-91150-214-0	02	1	0012-0106		●		●
229	NUT; BRKT,FUEL FILTER M14 FLANGE	0-91150-214-0	02	1	0107-0107			●	●
229	NUT; BRKT,FUEL FILTER M14	9-99110-414-0	02	1	0108-0411			●	●
229	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91150-210-0	02	1	0412-0602			●	●
229	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91180-210-0	02	1	0603-			●	●
229	NUT; BRKT,FUEL FILTER M12 FLANGE	0-91150-212-0	04	1	0201-0602			●
229	NUT; BRKT,FUEL FILTER M12 FLANGE	0-91180-212-0	04	1	0603-			●
232	BOLT; CLIP,PIPE M8X30 FLANGE	0-28080-830-0	03	1	9601-9606	●
232	BOLT; CLIP,PIPE M8X35 FLANGE	0-28680-835-0	03	1	9607-9609	●
232	BOLT; CLIP,PIPE WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EURO2 SPECIFICATION<THN> M8X35 FLANGE	0-28680-835-0	14	1	9610-9803				●
232	BOLT; CLIP,PIPE M8X35 FLANGE	0-28680-835-0	03	1	9610-9803	●	●
232	BOLT; CLIP,PIPE M8X35 FLANGE	0-28680-835-0	03	1	9804-9807		●
232	BOLT; CLIP,PIPE M8X30 FLANGE	0-28680-830-0	03	1	9808-0004		●
232	BOLT; CLIP,PIPE M8X30 FLANGE	0-28680-830-0	05	1	0005-0106		●
232	BOLT; CLIP,PIPE M8X30 FLANGE	0-28680-830-0	07	1	0107-0512			●	●
232	BOLT; CLIP,PIPE M8X30 FLANGE	0-28650-830-0	07	1	0601-			●	●
232	BOLT; CLIP,PIPE WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M8X30 FLANGE	0-28080-830-0	09	1	9601-9606				●
232	BOLT; CLIP,PIPE WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M8X35 FLANGE	0-28680-835-0	09	1	9607-9609				●
232	BOLT; CLIP,PIPE WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EXC. EURO2 SPECIFICATION<THN> M8X35 FLANGE	0-28680-835-0	09	1	9610-9803				●
232	BOLT; CLIP,PIPE M8X35 FLANGE	0-28680-835-0	14	1	9804-9807				●
232	BOLT; CLIP,PIPE M8X30 FLANGE	0-28680-830-0	14	1	9808-0004				●
232	BOLT; CLIP,PIPE M8X30 FLANGE	0-28680-830-0	11	1	0005-0106				●
232	BOLT; CLIP,PIPE M8X16 FLANGE	0-28080-816-0	02	1	0107-0501				●
232	BOLT; CLIP,PIPE M8X20 FLANGE	0-28680-820-0	02	1	0502-0512				●
232	BOLT; CLIP,PIPE M8X20 FLANGE	0-28650-820-0	02	1	0601-				●
239	CLIP; FUEL PIPE (A) ID=13X2 H=25 L=50	1-09700-777-0	01	1	9601-9609	●
239	CLIP; FUEL PIPE (A) ID=13X2 H=25 L=50	1-09700-777-0	01	1	9610-9803	●	●
239	CLIP; FUEL PIPE (A) ID=13X2 H=25 L=50	1-09700-777-0	01	1	9804-9907		●
239	CLIP; FUEL PIPE (A) M13X2 H=20 L=60	1-09701-280-0	01	1	9908-0106		●
239	CLIP; FUEL PIPE (A) M13X2 H=20 L=60	1-09701-280-0	01	1	0107-			●
239	CLIP; FUEL PIPE (B) ID=14X29 H=30 L=25	1-09701-101-0	02	1	9601-9609	●			●
239	CLIP; FUEL PIPE WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EURO2 SPECIFICATION<THN> (B) ID=14X29 H=30 L=25	1-09701-101-0	10	1	9610-9803				●
239	CLIP; FUEL PIPE (B) ID=14X29 H=30 L=25	1-09701-101-0	02	1	9610-9803	●	●		●
239	CLIP; FUEL PIPE (B) ID=14X29 H=30 L=25	1-09701-101-0	02	1	9804-9901		●		●
239	CLIP; FUEL PIPE (B) ID=14X29 H=30 L=25	1-09701-101-0	01	1	9902-0004				●
239	CLIP; FUEL PIPE (B) ID=14X29 H=30 L=25	1-09701-101-0	06	1	0005-0006				●
239	CLIP; FUEL PIPE (C) ID=16X2 L=20	9-09535-536-0	02	1	0007-0411				●
239	CLIP; FUEL PIPE (D) ID=16X2 H=76 L=50	1-09700-902-0	01	1	9902-0004				●
239	CLIP; FUEL PIPE (D) ID=16X2 H=76 L=50	1-09700-902-0	03	1	0005-0411				●
239	CLIP; FUEL PIPE (F) ID=37 L=35	1-09701-109-0	02	1	0412-				●
239	CLIP; FUEL PIPE WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EURO2 SPECIFICATION<THN> (E) ID=14X29 H=15 L=20	1-09700-744-0	02	1	9710-9803				●
239	CLIP; FUEL PIPE WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (E) ID=14X29 H=15 L=20	1-09700-744-0	01	1	9601-9609				●
239	CLIP; FUEL PIPE WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EXC. EURO2 SPECIFICATION<THN> (E) ID=14X29 H=15 L=20	1-09700-744-0	01	1	9610-9803				●
239	CLIP; FUEL PIPE WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B) ID=14X29 H=30 L=25	1-09701-101-0	06	1	9601-9609				●
239	CLIP; FUEL PIPE WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EXC. EURO2 SPECIFICATION<THN> (B) ID=14X29 H=30 L=25	1-09701-101-0	06	1	9610-9803				●
239	CLIP; FUEL PIPE WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B) ID=14X29 H=30 L=25	1-09701-101-0	10	1	9804-0004				●
239	CLIP; FUEL PIPE WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (E) ID=14X29 H=15 L=20	1-09700-744-0	02	1	9808-0004				●
239	CLIP; FUEL PIPE (F) ID=32 L=50	1-09701-055-1	02	1	0005-0411				●
239	CLIP; FUEL PIPE (G) ID=15 & 19 H=50 L=60	1-09701-316-0	02	1	0412-				●
239	CLIP; FUEL PIPE (B) ID=14X29 H=30 L=25	1-09701-101-0	02	1	9902-0004		●
239	CLIP; FUEL PIPE (B) ID=14X29 H=30 L=25	1-09701-101-0	04	1	0005-0006		●
239	CLIP; FUEL PIPE (B) ID=14X29 H=30 L=25	1-09701-101-0	04	1	0007-0106		●		●
239	CLIP; FUEL PIPE (B) ID=14X29 H=30 L=25	1-09701-101-0	02	1	0107-0411				●
239	CLIP; FUEL PIPE (G) ID=15 & 19 H=33 L=25	1-09701-317-0	05	1	0412-				●
239	CLIP; FUEL PIPE (B) ID=14X29 H=30 L=25	1-09701-101-0	06	1	0107-			●
303	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	02	1	0007-0512				●
303	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0601-				●
304	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0007-0602				●
304	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-				●
634	HOSE; RUBBER RETURN SERVICED BY L=3000	0-01260-300-0	01	1	0107-			●
634	HOSE; RUBBER RETURN L=3450 SERVICED BY L=8000	0-01260-800-0	01	1	0107-0411				●
634	HOSE; RUBBER RETURN L=3550 SERVICED BY L=8000	0-01260-800-0	01	1	0412-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
