1-40 — FUEL TANK (#26608) — 152 parça

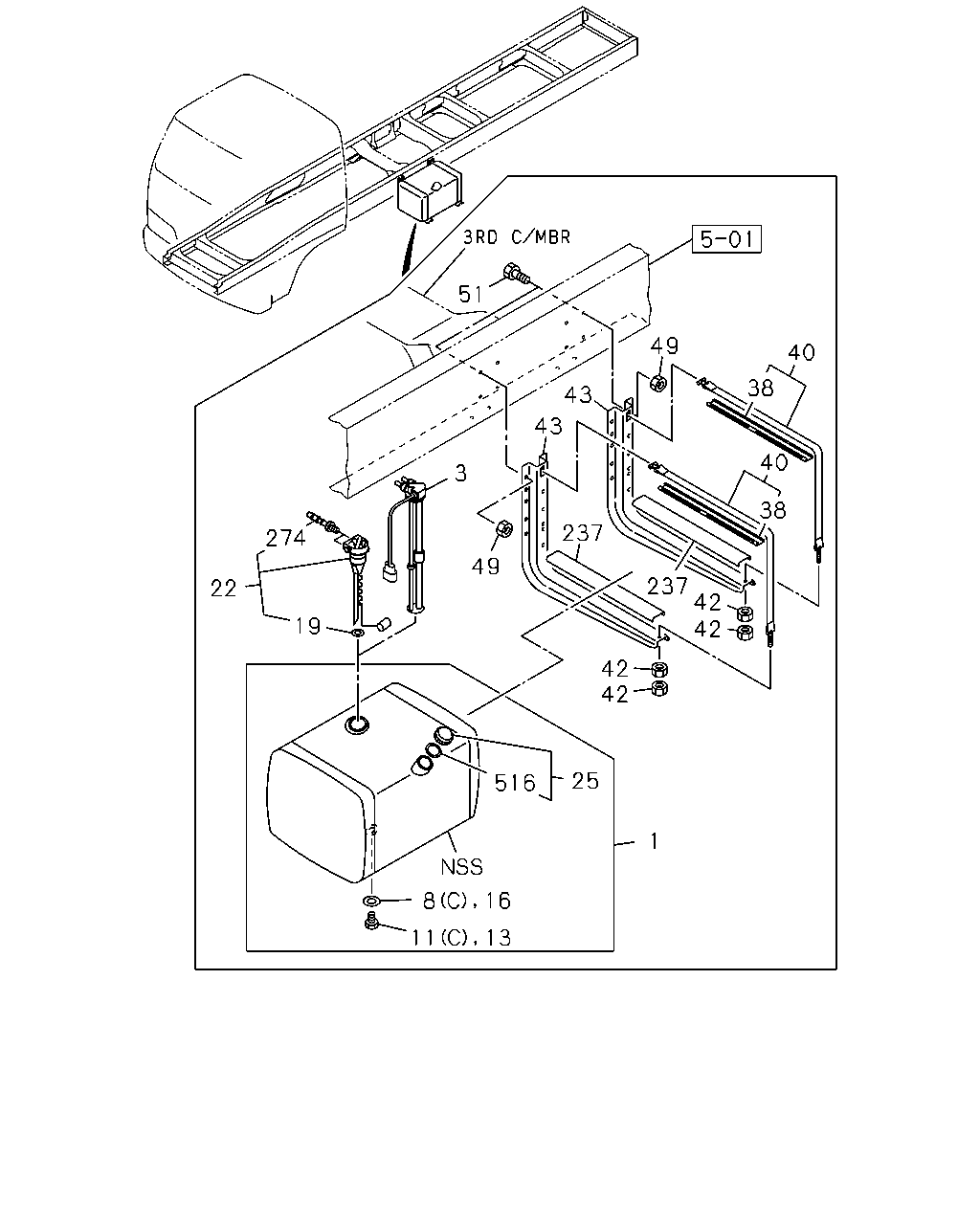

51 49 43 43 3 237 237 42 42 38 40 40 38 49 274 22 19 516 25 1 42 42 8 16 13 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	TANK; FUEL 1020X680X625 400L	1-87411-168-0	01	1	0107-1202	●	●
1	TANK; FUEL 1020X685X625 400L	1-87412-052-0	01	1	1203-	●	●
1	TANK; FUEL 720X610X496 200L	1-22400-996-0	01	1	9601-9803	●		●	●
1	TANK; FUEL 720X610X496 200L	1-22400-996-0	01	1	9804-0003	●		●
1	TANK; FUEL 720X610X496 200L	1-22401-120-0	01	1	0004-0106	●		●
3	UNIT; FUEL TANK,SUB	8-98217-749-0	01	1	1211-	●	●
8	GASKET; DRAIN PLUG,FUEL TANK (C) ID=18.2 T=1.6	8-98030-453-0	01	1	1211-	●	●
8	GASKET; DRAIN PLUG,FUEL TANK (A) T=1.60	1-22416-001-0	01	1	9601-9803	●		●	●
8	GASKET; DRAIN PLUG,FUEL TANK (A) T=1.60	1-22416-001-0	01	1	9804-0106	●		●
8	GASKET; DRAIN PLUG,FUEL TANK (B) T=2.0	9-09923-030-0	01	1	9601-9803	●		●	●
8	GASKET; DRAIN PLUG,FUEL TANK (B) T=2.0	9-09923-030-0	01	1	9804-0106	●		●
11	PLUG; DRAIN,FUEL TANK (C) M18X12	0-92002-418-0	01	1	1211-	●	●
11	PLUG; DRAIN,FUEL TANK (B) M36	1-09604-052-0	01	1	9601-9803	●		●	●
11	PLUG; DRAIN,FUEL TANK (B) M36	1-09604-052-0	01	1	9804-0003	●		●
11	PLUG; DRAIN,FUEL TANK (B) M36	1-09604-052-0	01	1	0004-0106	●		●
11	PLUG; DRAIN,FUEL TANK (A) M18X12	1-09604-081-0	01	1	9601-9803	●		●	●
11	PLUG; DRAIN,FUEL TANK (A) M18X12	1-09604-081-0	01	1	9804-0106	●		●
13	PLUG; SCREW,SUB TANK JOINT M18X12	9-99202-318-0	01	1	0107-0606	●	●
13	PLUG; SCREW,SUB TANK JOINT M18X12	0-92002-418-0	01	1	0607-1210	●	●
16	GASKET; PLUG T=1.60	1-22416-001-0	01	1	0107-0509	●	●
16	GASKET; PLUG ID=18.2 T=1.6	8-98030-453-0	01	1	0510-1210	●	●
19	GASKET; FUEL TANK UNIT	9-83135-003-0	01	1	9601-9803	●		●	●
19	GASKET; FUEL TANK UNIT	9-83135-003-0	01	1	9804-0106	●		●
19	GASKET; FUEL TANK UNIT ID=58	1-83149-005-0	01	1	0107-1210	●	●
22	UNIT; FUEL TANK	1-83141-124-0	01	1	9601-9803	●		●	●
22	UNIT; FUEL TANK	1-83141-124-0	01	1	9804-0106	●		●
22	UNIT; FUEL TANK	1-83141-132-0	01	1	0107-1210	●	●
25	CAP; FILLER,FUEL TANK	1-22440-033-2	01	1	9601-9803	●		●	●
25	CAP; FILLER,FUEL TANK	1-22440-033-2	01	1	9804-0003	●		●
25	CAP; FILLER,FUEL TANK	1-22440-067-0	01	1	0004-0106	●		●
25	CAP; FILLER,FUEL TANK	1-22440-056-0	01	1	0107-	●	●
38	INSULATION; SUPPORT BELT L=650	1-22553-022-1	02	1	9601-9803	●		●	●
38	INSULATION; SUPPORT BELT L=650	1-22553-022-1	02	1	9804-0106	●		●
38	INSULATION; SUPPORT BELT L=1156	1-22553-039-1	02	1	0107-	●	●
40	BELT; SUPPORT,FUEL TANK L=1030	1-22550-204-1	02	1	9601-9803	●		●	●
40	BELT; SUPPORT,FUEL TANK L=1030	1-22550-204-1	02	1	9804-0106	●		●
40	BELT; SUPPORT,FUEL TANK L=1205	1-22550-227-2	02	1	0107-	●	●
42	NUT; SUPPORT BELT M10	9-09110-510-0	04	1	9601-9803	●		●	●
42	NUT; SUPPORT BELT M10	9-09110-510-0	04	1	9804-0106	●		●
42	NUT; SUPPORT BELT M10	9-09110-510-0	04	1	0107-0512	●	●
42	NUT; SUPPORT BELT M10	0-91110-510-0	04	1	0601-	●	●
43	BRACKET; FUEL TANK	1-53461-279-4	02	1	9601-9803	●		●	●
43	BRACKET; FUEL TANK	1-53461-279-4	02	1	9804-0106	●		●
43	BRACKET; FUEL TANK	1-53461-525-1	02	1	0107-	●	●
49	NUT; BRKT M12	9-99110-512-0	12	1	9601-9609	●			●
49	NUT; BRKT M12	9-99110-512-0	12	1	9610-9702	●		●	●
49	NUT; BRKT M12 FLANGE	0-91150-212-0	12	1	9703-9803	●		●	●
49	NUT; BRKT M12	9-99110-512-0	12	1	9804-9808	●		●
49	NUT; BRKT M12	9-99110-512-0	12	1	9809-0004	●		●
49	NUT; BRKT WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) M12	9-99110-512-0	12	1	9809-0004	●
49	NUT; BRKT M12	9-99110-512-0	12	1	0005-0106	●		●
49	NUT; BRKT M12	9-99110-512-0	12	1	0107-0512	●	●
49	NUT; BRKT M12	0-91110-512-0	12	1	0601-	●	●
49	NUT; BRKT WHEEL BASE 5000MM(50W) M12 FLANGE	0-91150-212-0	11	1	9706-9803	●		●	●
49	NUT; BRKT WHEEL BASE 6000MM(60W) M12	9-99110-512-0	11	1	9809-0004	●
51	BOLT; BRKT TO FRAME M12X35 FLANGE	0-28081-235-0	12	1	9601-9606	●		●	●
51	BOLT; BRKT TO FRAME M12X40 FLANGE	0-28681-240-0	12	1	9607-9612	●		●	●
51	BOLT; BRKT TO FRAME M12X35 FLANGE	0-28681-235-0	12	1	9701-9803	●		●	●
51	BOLT; BRKT TO FRAME M12X35 FLANGE	0-28681-235-0	12	1	9804-9805	●		●
51	BOLT; BRKT TO FRAME M12X40 FLANGE	0-28681-240-0	12	1	9806-0106	●		●
51	BOLT; BRKT TO FRAME M12X45 FLANGE	0-28081-245-0	12	1	0107-0512		●
51	BOLT; BRKT TO FRAME M12X45 FLANGE	0-28051-245-0	12	1	0601-		●
51	BOLT; BRKT TO FRAME M12X40 FLANGE	0-28681-240-0	12	1	0107-0512	●
51	BOLT; BRKT TO FRAME M12X40 FLANGE	0-28651-240-0	12	1	0601-	●
237	GASKET; BRKT TO FUEL TANK L=580	1-22553-003-0	02	1	9601-9803	●		●	●
237	GASKET; BRKT TO FUEL TANK L=580	1-22553-003-0	02	1	9804-0106	●		●
237	GASKET; BRKT TO FUEL TANK	1-22553-037-1	04	1	0107-	●	●
274	CONNECTOR; ELBOW,FUEL TANK PIPE	1-83149-006-0	02	1	0107-1210	●	●
516	GASKET; CAP ID=78	8-98259-383-0	01	1	0107-	●	●

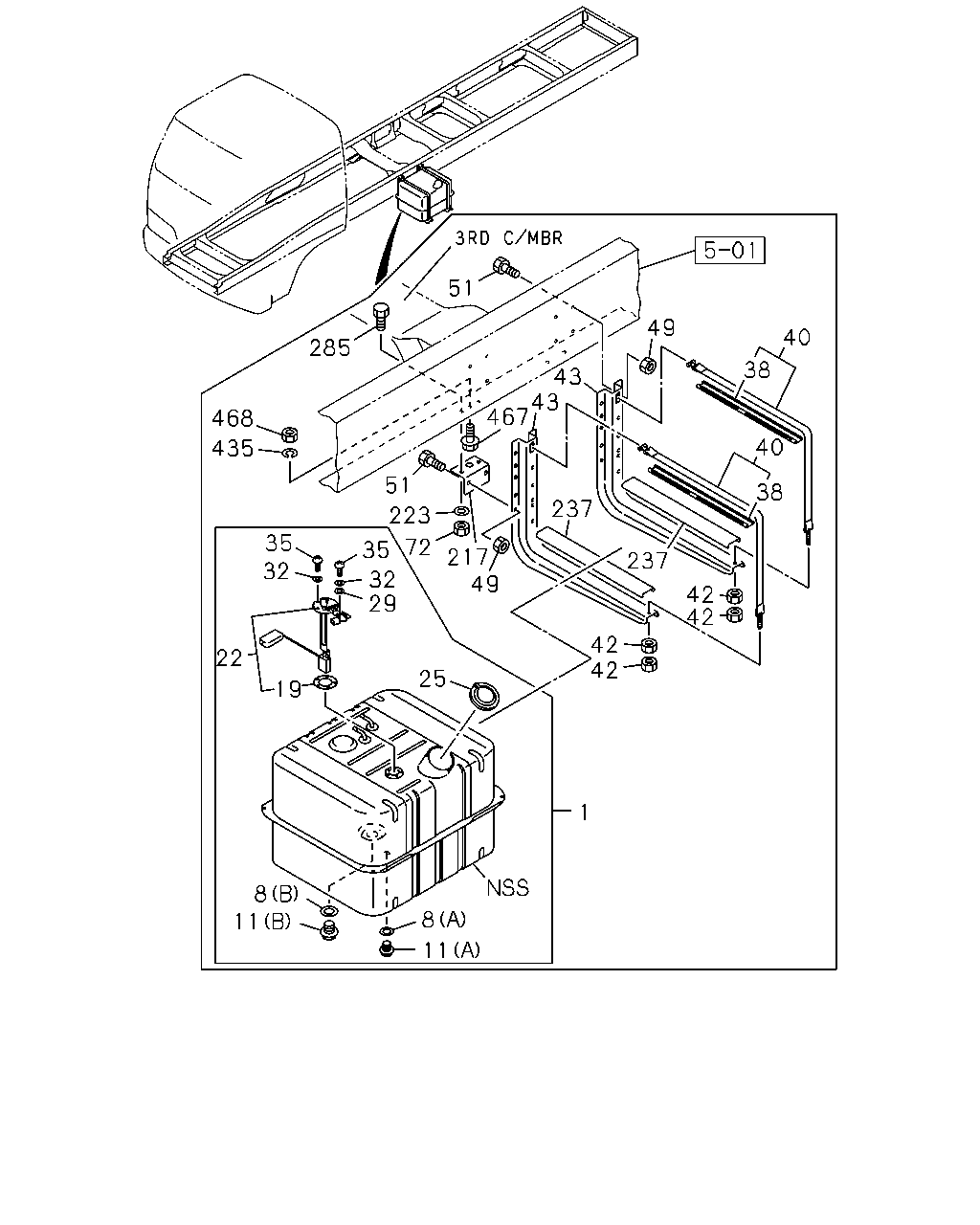

51 49 43 43 467 40 285 38 468 40 435 51 38 237 223 35 32 72 35 217 49 237 32 29 42 42 42 42 22 25 19 1 8 11 8 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	TANK; FUEL 1020X680X625 400L	1-87411-168-0	01	1	0107-1202	●	●
1	TANK; FUEL 1020X685X625 400L	1-87412-052-0	01	1	1203-	●	●
1	TANK; FUEL 720X610X496 200L	1-22400-996-0	01	1	9601-9803	●		●	●
1	TANK; FUEL 720X610X496 200L	1-22400-996-0	01	1	9804-0003	●		●
1	TANK; FUEL 720X610X496 200L	1-22401-120-0	01	1	0004-0106	●		●
8	GASKET; DRAIN PLUG,FUEL TANK (C) ID=18.2 T=1.6	8-98030-453-0	01	1	1211-	●	●
8	GASKET; DRAIN PLUG,FUEL TANK (A) T=1.60	1-22416-001-0	01	1	9601-9803	●		●	●
8	GASKET; DRAIN PLUG,FUEL TANK (A) T=1.60	1-22416-001-0	01	1	9804-0106	●		●
8	GASKET; DRAIN PLUG,FUEL TANK (B) T=2.0	9-09923-030-0	01	1	9601-9803	●		●	●
8	GASKET; DRAIN PLUG,FUEL TANK (B) T=2.0	9-09923-030-0	01	1	9804-0106	●		●
11	PLUG; DRAIN,FUEL TANK (C) M18X12	0-92002-418-0	01	1	1211-	●	●
11	PLUG; DRAIN,FUEL TANK (B) M36	1-09604-052-0	01	1	9601-9803	●		●	●
11	PLUG; DRAIN,FUEL TANK (B) M36	1-09604-052-0	01	1	9804-0003	●		●
11	PLUG; DRAIN,FUEL TANK (B) M36	1-09604-052-0	01	1	0004-0106	●		●
11	PLUG; DRAIN,FUEL TANK (A) M18X12	1-09604-081-0	01	1	9601-9803	●		●	●
11	PLUG; DRAIN,FUEL TANK (A) M18X12	1-09604-081-0	01	1	9804-0106	●		●
19	GASKET; FUEL TANK UNIT	9-83135-003-0	01	1	9601-9803	●		●	●
19	GASKET; FUEL TANK UNIT	9-83135-003-0	01	1	9804-0106	●		●
19	GASKET; FUEL TANK UNIT ID=58	1-83149-005-0	01	1	0107-1210	●	●
22	UNIT; FUEL TANK	1-83141-124-0	01	1	9601-9803	●		●	●
22	UNIT; FUEL TANK	1-83141-124-0	01	1	9804-0106	●		●
22	UNIT; FUEL TANK	1-83141-132-0	01	1	0107-1210	●	●
25	CAP; FILLER,FUEL TANK	1-22440-033-2	01	1	9601-9803	●		●	●
25	CAP; FILLER,FUEL TANK	1-22440-033-2	01	1	9804-0003	●		●
25	CAP; FILLER,FUEL TANK	1-22440-067-0	01	1	0004-0106	●		●
25	CAP; FILLER,FUEL TANK	1-22440-056-0	01	1	0107-	●	●
29	WASHER; PL,FUEL TANK UNIT ID=5.3	9-09160-505-0	01	1	9601-9803	●		●	●
29	WASHER; PL,FUEL TANK UNIT ID=5.3	9-09160-505-0	01	1	9804-0106	●		●
32	WASHER; LK,FUEL TANK UNIT ID=5.1	9-09150-505-0	05	1	9601-9803	●		●	●
32	WASHER; LK,FUEL TANK UNIT ID=5.1	9-09150-505-0	05	1	9804-0106	●		●
35	SCREW; FUEL TANK UNIT M5X10	9-93497-510-0	05	1	9601-9803	●		●	●
35	SCREW; FUEL TANK UNIT M5X10	9-93497-510-0	05	1	9804-0106	●		●
38	INSULATION; SUPPORT BELT L=650	1-22553-022-1	02	1	9601-9803	●		●	●
38	INSULATION; SUPPORT BELT L=650	1-22553-022-1	02	1	9804-0106	●		●
38	INSULATION; SUPPORT BELT L=1156	1-22553-039-1	02	1	0107-	●	●
40	BELT; SUPPORT,FUEL TANK L=1030	1-22550-204-1	02	1	9601-9803	●		●	●
40	BELT; SUPPORT,FUEL TANK L=1030	1-22550-204-1	02	1	9804-0106	●		●
40	BELT; SUPPORT,FUEL TANK L=1205	1-22550-227-2	02	1	0107-	●	●
42	NUT; SUPPORT BELT M10	9-09110-510-0	04	1	9601-9803	●		●	●
42	NUT; SUPPORT BELT M10	9-09110-510-0	04	1	9804-0106	●		●
42	NUT; SUPPORT BELT M10	9-09110-510-0	04	1	0107-0512	●	●
42	NUT; SUPPORT BELT M10	0-91110-510-0	04	1	0601-	●	●
43	BRACKET; FUEL TANK	1-53461-279-4	02	1	9601-9803	●		●	●
43	BRACKET; FUEL TANK	1-53461-279-4	02	1	9804-0106	●		●
43	BRACKET; FUEL TANK	1-53461-525-1	02	1	0107-	●	●
49	NUT; BRKT M12	9-99110-512-0	12	1	9601-9609	●			●
49	NUT; BRKT M12	9-99110-512-0	12	1	9610-9702	●		●	●
49	NUT; BRKT M12 FLANGE	0-91150-212-0	12	1	9703-9803	●		●	●
49	NUT; BRKT M12	9-99110-512-0	12	1	9804-9808	●		●
49	NUT; BRKT M12	9-99110-512-0	12	1	9809-0004	●		●
49	NUT; BRKT WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) M12	9-99110-512-0	12	1	9809-0004	●
49	NUT; BRKT M12	9-99110-512-0	12	1	0005-0106	●		●
49	NUT; BRKT M12	9-99110-512-0	12	1	0107-0512	●	●
49	NUT; BRKT M12	0-91110-512-0	12	1	0601-	●	●
49	NUT; BRKT WHEEL BASE 5000MM(50W) M12 FLANGE	0-91150-212-0	11	1	9706-9803	●		●	●
49	NUT; BRKT WHEEL BASE 6000MM(60W) M12	9-99110-512-0	11	1	9809-0004	●
51	BOLT; BRKT TO FRAME M12X35 FLANGE	0-28081-235-0	12	1	9601-9606	●		●	●
51	BOLT; BRKT TO FRAME M12X40 FLANGE	0-28681-240-0	12	1	9607-9612	●		●	●
51	BOLT; BRKT TO FRAME M12X35 FLANGE	0-28681-235-0	12	1	9701-9803	●		●	●
51	BOLT; BRKT TO FRAME M12X35 FLANGE	0-28681-235-0	12	1	9804-9805	●		●
51	BOLT; BRKT TO FRAME M12X40 FLANGE	0-28681-240-0	12	1	9806-0106	●		●
51	BOLT; BRKT TO FRAME M12X45 FLANGE	0-28081-245-0	12	1	0107-0512		●
51	BOLT; BRKT TO FRAME M12X45 FLANGE	0-28051-245-0	12	1	0601-		●
51	BOLT; BRKT TO FRAME M12X40 FLANGE	0-28681-240-0	12	1	0107-0512	●
51	BOLT; BRKT TO FRAME M12X40 FLANGE	0-28651-240-0	12	1	0601-	●
72	NUT; BRKT M12	9-99110-512-0	04	1	9601-9609	●			●
72	NUT; BRKT M12	9-99110-512-0	04	1	9610-9702	●		●	●
72	NUT; BRKT M12 FLANGE	0-91150-212-0	04	1	9703-9803	●		●	●
72	NUT; BRKT M12	9-99110-512-0	04	1	9804-0106	●		●
72	NUT; BRKT WHEEL BASE 5000MM(50W) M12 FLANGE	0-91150-212-0	03	1	9706-9803	●		●	●
217	BRACKET; FUEL TANK,LOW	1-53461-283-2	02	1	9601-9803	●		●	●
217	BRACKET; FUEL TANK,LOW	1-53461-283-2	02	1	9804-0106	●		●
223	WASHER; PL,LWR BRKT FIX ID=12.5 OD=26	9-09160-612-0	04	1	9601-9702	●		●	●
223	WASHER; PL,LWR BRKT FIX ID=12.5 OD=26	9-09160-612-0	04	1	9804-0006	●		●
237	GASKET; BRKT TO FUEL TANK L=580	1-22553-003-0	02	1	9601-9803	●		●	●
237	GASKET; BRKT TO FUEL TANK L=580	1-22553-003-0	02	1	9804-0106	●		●
237	GASKET; BRKT TO FUEL TANK	1-22553-037-1	04	1	0107-	●	●
285	BOLT; BRKT M12X35 FLANGE	0-28081-235-0	04	1	9601-9606	●		●	●
285	BOLT; BRKT M12X40 FLANGE	0-28681-240-0	04	1	9607-9803	●		●	●
285	BOLT; BRKT M12X40 FLANGE	0-28681-240-0	04	1	9804-0106	●		●
435	WASHER; LK WHEEL BASE 4600MM(46W) FRAME EQUIPMENT HEAVY DUTY(F03) ID=12.5	9-09164-512-0	08	1	9703-9711	●		●	●
467	BOLT WHEEL BASE 4600MM(46W) FRAME EQUIPMENT HEAVY DUTY(F03) M12X40 FLANGE	0-28681-240-0	04	1	9703-9711	●		●	●
468	NUT WHEEL BASE 4600MM(46W) FRAME EQUIPMENT HEAVY DUTY(F03) M12 FLANGE	0-91150-212-0	04	1	9703-9711	●		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
