Sayfa 1-11 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 10893 - FVR(HONG KONG) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-11 - RADIATOR HOSE AND SUB TANK ▶

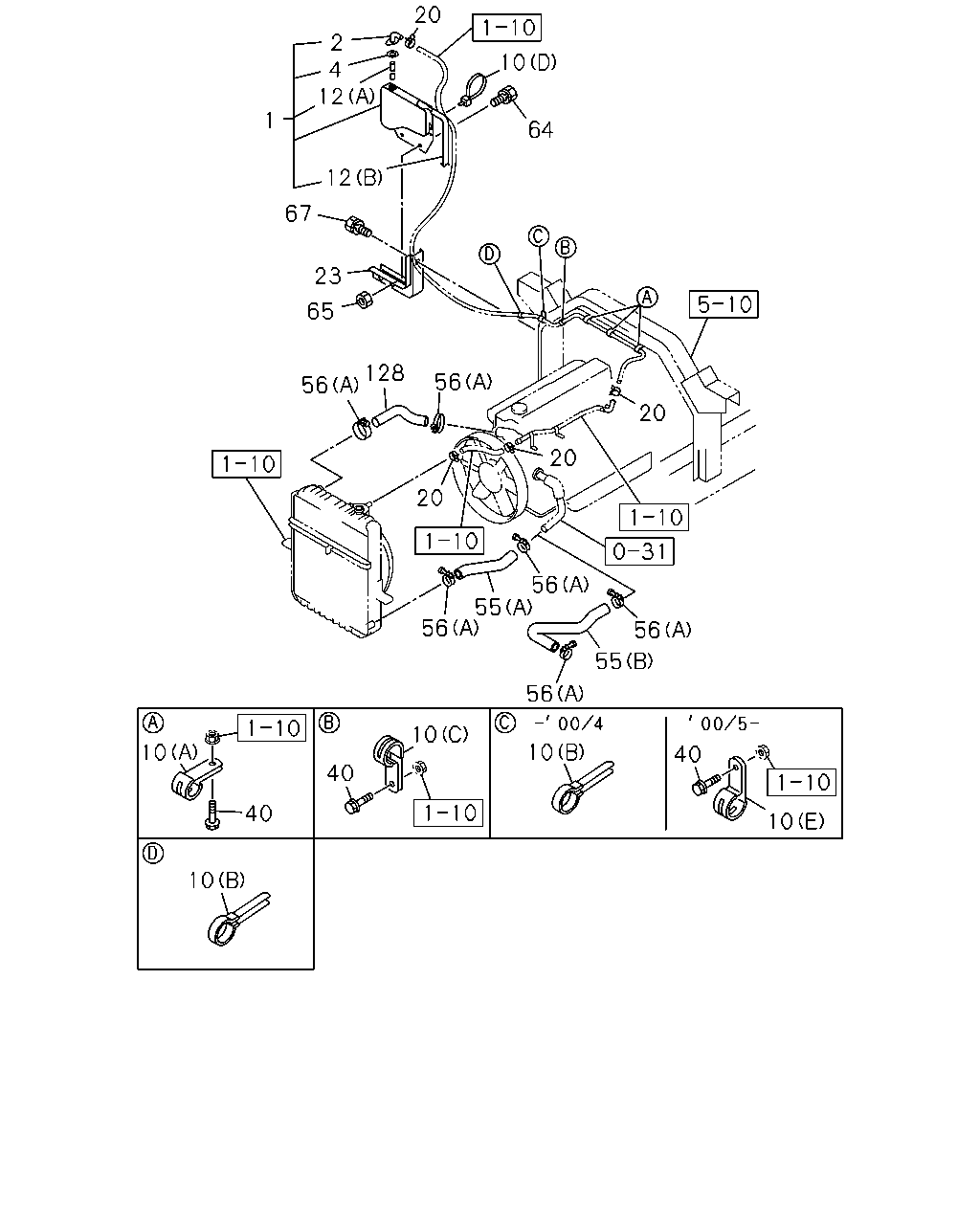

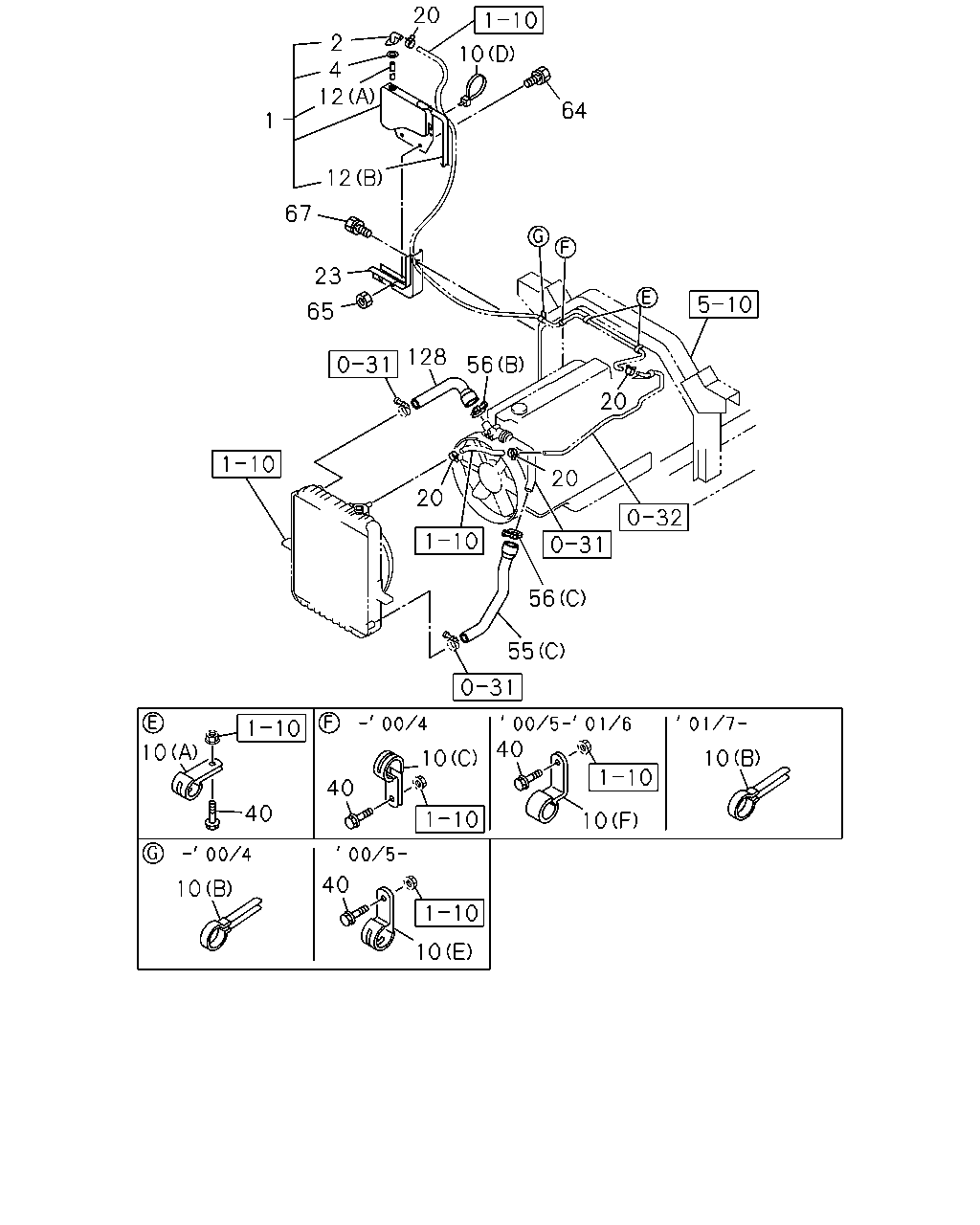

1-11 — RADIATOR HOSE AND SUB TANK (#26604) — 188 parça

20 2 4 12 10 1 64 12 67 23 65 128 56 56 20 20 20 56 55 56 56 55 56 10 10 10 40 40 40 10 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	TANK; SURGE,RAD	1-21480-077-2	01	1	9601-9803	●	●	●
1	TANK; SURGE,RAD	1-21480-077-2	01	1	9804-9812	●	●
1	TANK; SURGE,RAD	1-21480-104-0	01	1	9901-0106	●	●
1	TANK; SURGE,RAD	1-21480-104-1	01	1	0107-	●			●
2	CAP; SURGE TANK	5-21483-001-1	01	1	9601-9803	●	●	●
2	CAP; SURGE TANK	5-21483-001-1	01	1	9804-9812	●	●
2	CAP; SURGE TANK	1-21483-008-0	01	1	9901-0106	●	●
2	CAP; SURGE TANK	1-21483-008-0	01	1	0107-	●			●
4	GASKET; SURGE TANK	5-21489-006-0	01	1	9601-9803	●	●	●
4	GASKET; SURGE TANK	5-21489-006-0	01	1	9804-0106	●	●
4	GASKET; SURGE TANK	5-21489-006-0	01	1	0107-	●			●
10	CLIP; RUBBER HOSE (A) ID=14.5 L=40	1-09701-014-0	02	1	9601-9803	●	●	●
10	CLIP; RUBBER HOSE (A) ID=14.5 L=40	1-09701-014-0	02	1	9804-0106	●	●
10	CLIP; RUBBER HOSE (A) ID=14.5 L=40	1-09701-014-0	01	1	0107-	●
10	CLIP; RUBBER HOSE (D) L=140	5-09707-031-0	01	1	9601-9803	●	●	●
10	CLIP; RUBBER HOSE (D) L=140	5-09707-031-1	01	1	9804-0106	●	●
10	CLIP; RUBBER HOSE (D) L=140	5-09707-031-1	01	1	0107-	●			●
10	CLIP; RUBBER HOSE (C) ID=13 L=50	9-09525-286-0	01	1	9601-9803	●	●	●
10	CLIP; RUBBER HOSE (C) ID=13 L=50	9-09525-286-0	01	1	9804-0004	●	●
10	CLIP; RUBBER HOSE (F) ID=15 H=24 L=20	1-09700-606-0	01	1	0005-0106	●
10	CLIP; RUBBER HOSE (B) ID=14 L=44	9-09917-427-0	01	1	0107-0112	●
10	CLIP; RUBBER HOSE (B) ID=14 L=44	9-09917-427-0	01	1	0201-	●			●
10	CLIP; RUBBER HOSE (B) ID=14 L=44	9-09917-427-0	01	1	9601-9803	●	●	●
10	CLIP; RUBBER HOSE (B) ID=14 L=44	9-09917-427-0	01	1	9804-0004	●	●
10	CLIP; RUBBER HOSE (E) ID=13 L=20	9-09525-235-0	01	1	0005-0106	●	●
10	CLIP; RUBBER HOSE (E) ID=13 L=20	9-09525-235-0	01	1	0107-0606	●			●
10	CLIP; RUBBER HOSE (E) ID=13 L=20	0-95235-235-0	01	1	0607-	●			●
10	CLIP; RUBBER HOSE (C) ID=12 L=70	1-09700-097-1	01	1	0005-0106		●
10	CLIP; RUBBER HOSE (C) ID=12 L=70	1-09700-097-1	01	1	0107-				●
10	CLIP; RUBBER HOSE EURO2 SPECIFICATION<THN> (A) ID=14.5 L=40	1-09701-014-0	01	1	9703-9803		●
10	CLIP; RUBBER HOSE (A) ID=14.5 L=40	1-09701-014-0	01	1	9804-0106		●
10	CLIP; RUBBER HOSE (A) ID=14.5 L=40	1-09701-014-0	02	1	0107-				●
10	CLIP; RUBBER HOSE (E) ID=15 H=24 L=20	1-09700-606-0	01	1	0107-				●
10	CLIP; RUBBER HOSE (B) ID=14 L=44	9-09917-427-0	02	1	0107-0112				●
12	HOSE; SURGE TANK (A)	1-21489-203-0	01	1	9901-0106	●	●
12	HOSE; SURGE TANK (A)	1-21489-203-0	01	1	0107-	●			●
12	HOSE; SURGE TANK (B) L=300	1-09366-199-0	01	1	9601-9803	●	●	●
12	HOSE; SURGE TANK (B) L=300	1-09366-199-0	01	1	9804-0106	●	●
12	HOSE; SURGE TANK (B) L=300	1-09366-199-0	01	1	0107-	●			●
20	CLIP; HOSE,RAD ID=12	8-94238-610-0	04	1	9601-9803	●	●	●
20	CLIP; HOSE,RAD ID=12	8-94238-610-0	04	1	9804-0106	●	●
20	CLIP; HOSE,RAD ID=12	8-94238-610-0	04	1	0107-	●			●
23	BRACKET; RESERVE TANK	1-21489-128-0	01	1	9601-9803	●	●	●
23	BRACKET; RESERVE TANK	1-21489-128-0	01	1	9804-0106	●	●
23	BRACKET; RESERVE TANK	1-21489-128-0	01	1	0107-	●			●
40	BOLT; CLIP M8X20 FLANGE	0-28080-820-0	03	1	9601-9606	●		●
40	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	03	1	9607-9803	●	●	●
40	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	03	1	9804-0004	●	●
40	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	04	1	0005-0106	●	●
40	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	02	1	0107-0512	●
40	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	0601-	●
40	BOLT; CLIP EURO2 SPECIFICATION<THN> M8X20 FLANGE	0-28680-820-0	01	1	9703-9803		●
40	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	01	1	9804-0106		●
40	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	04	1	0107-0107				●
40	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	05	1	0107-0512				●
40	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	05	1	0601-				●
55	HOSE; WATER,RAD OUTLET (A)	1-21437-560-0	01	1	9601-9609			●
55	HOSE; WATER,RAD OUTLET (A)	1-21437-560-0	01	1	9610-9803			●
55	HOSE; WATER,RAD OUTLET EXC. EURO2 SPECIFICATION<THN> (A)	1-21437-560-0	01	1	9610-9803		●
55	HOSE; WATER,RAD OUTLET (C)	1-21437-543-0	01	1	9601-	●
55	HOSE; WATER,RAD OUTLET EURO2 SPECIFICATION<THN> (A)	1-21437-649-0	01	1	9610-9612		●
55	HOSE; WATER,RAD OUTLET EURO2 SPECIFICATION<THN> (B)	1-21437-658-0	01	1	9701-9704		●
55	HOSE; WATER,RAD OUTLET EURO2 SPECIFICATION<THN> (B)	1-21437-663-0	01	1	9705-9803		●
55	HOSE; WATER,RAD OUTLET (B)	1-21437-663-0	01	1	9804-0106		●
55	HOSE; WATER,RAD OUTLET (B)	1-21437-663-2	01	1	0107-				●
56	CLIP; WATER HOSE,RAD (A) ID=63	1-09704-067-0	04	1	9601-9609			●
56	CLIP; WATER HOSE,RAD (A) ID=63	1-09704-067-0	04	1	9610-9803		●	●
56	CLIP; WATER HOSE,RAD (A) ID=63	1-09704-067-0	04	1	9804-0106		●
56	CLIP; WATER HOSE,RAD (A) ID=63	1-09704-067-0	04	1	0107-				●
56	CLIP; WATER HOSE,RAD (B) ID=76	1-09704-069-0	01	1	9601-	●
56	CLIP; WATER HOSE,RAD (C) ID=70	1-09704-078-0	01	1	9601-	●
64	BOLT; BRKT,SUB TANK M8X25 W/LK&PL WASHER	1-09030-074-0	04	1	9601-9803	●	●	●
64	BOLT; BRKT,SUB TANK M8X25 W/LK&PL WASHER	1-09030-074-0	04	1	9804-0106	●	●
64	BOLT; BRKT,SUB TANK M8X25 W/LK&PL WASHER	1-09030-074-0	04	1	0107-0707	●			●
64	BOLT; BRKT,SUB TANK M8X25 W/LK&PL WASHER	1-09030-093-0	04	1	0708-	●			●
65	NUT; BRKT,SUB TANK M8	9-09110-408-0	04	1	9601-9606	●		●
65	NUT; BRKT,SUB TANK M8 FLANGE	0-91150-108-0	04	1	9607-9803	●	●	●
65	NUT; BRKT,SUB TANK M8 FLANGE	0-91150-108-0	04	1	9804-0106	●	●
65	NUT; BRKT,SUB TANK M8 FLANGE	0-91150-108-0	04	1	0107-0602	●			●
65	NUT; BRKT,SUB TANK M8 FLANGE	0-91180-108-0	04	1	0603-	●			●
67	BOLT; BRKT M10X20 FLANGE	0-28081-020-0	02	1	9601-9606	●		●
67	BOLT; BRKT M10X20 FLANGE	0-28681-020-0	02	1	9607-9803	●	●	●
67	BOLT; BRKT M10X20 FLANGE	0-28681-020-0	02	1	9804-0106	●	●
67	BOLT; BRKT M10X20 FLANGE	0-28681-020-0	02	1	0107-0512	●			●
67	BOLT; BRKT M10X20 FLANGE	0-28651-020-0	02	1	0601-	●			●
128	HOSE; WATER,RAD INL	1-21437-450-0	01	1	9601-9609			●
128	HOSE; WATER,RAD INL	1-21437-450-0	01	1	9610-9708			●
128	HOSE; WATER,RAD INL EXC. EURO2 SPECIFICATION<THN>	1-21437-450-0	01	1	9610-9708		●
128	HOSE; WATER,RAD INL	1-21437-675-0	01	1	9709-9803			●
128	HOSE; WATER,RAD INL EXC. EURO2 SPECIFICATION<THN>	1-21437-675-0	01	1	9709-9803		●
128	HOSE; WATER,RAD INL	1-21437-544-0	01	1	9601-	●
128	HOSE; WATER,RAD INL EURO2 SPECIFICATION<THN>	1-21437-648-0	01	1	9610-9803		●
128	HOSE; WATER,RAD INL	1-21437-648-0	01	1	9804-0106		●
128	HOSE; WATER,RAD INL	1-21437-757-0	01	1	0107-				●

20 2 4 12 10 64 1 12 67 23 65 128 56 20 20 20 56 55 40 10 10 10 40 40 10 40 10 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	TANK; SURGE,RAD	1-21480-077-2	01	1	9601-9803	●	●	●
1	TANK; SURGE,RAD	1-21480-077-2	01	1	9804-9812	●	●
1	TANK; SURGE,RAD	1-21480-104-0	01	1	9901-0106	●	●
1	TANK; SURGE,RAD	1-21480-104-1	01	1	0107-	●			●
2	CAP; SURGE TANK	5-21483-001-1	01	1	9601-9803	●	●	●
2	CAP; SURGE TANK	5-21483-001-1	01	1	9804-9812	●	●
2	CAP; SURGE TANK	1-21483-008-0	01	1	9901-0106	●	●
2	CAP; SURGE TANK	1-21483-008-0	01	1	0107-	●			●
4	GASKET; SURGE TANK	5-21489-006-0	01	1	9601-9803	●	●	●
4	GASKET; SURGE TANK	5-21489-006-0	01	1	9804-0106	●	●
4	GASKET; SURGE TANK	5-21489-006-0	01	1	0107-	●			●
10	CLIP; RUBBER HOSE (A) ID=14.5 L=40	1-09701-014-0	02	1	9601-9803	●	●	●
10	CLIP; RUBBER HOSE (A) ID=14.5 L=40	1-09701-014-0	02	1	9804-0106	●	●
10	CLIP; RUBBER HOSE (A) ID=14.5 L=40	1-09701-014-0	01	1	0107-	●
10	CLIP; RUBBER HOSE (D) L=140	5-09707-031-0	01	1	9601-9803	●	●	●
10	CLIP; RUBBER HOSE (D) L=140	5-09707-031-1	01	1	9804-0106	●	●
10	CLIP; RUBBER HOSE (D) L=140	5-09707-031-1	01	1	0107-	●			●
10	CLIP; RUBBER HOSE (C) ID=13 L=50	9-09525-286-0	01	1	9601-9803	●	●	●
10	CLIP; RUBBER HOSE (C) ID=13 L=50	9-09525-286-0	01	1	9804-0004	●	●
10	CLIP; RUBBER HOSE (F) ID=15 H=24 L=20	1-09700-606-0	01	1	0005-0106	●
10	CLIP; RUBBER HOSE (B) ID=14 L=44	9-09917-427-0	01	1	0107-0112	●
10	CLIP; RUBBER HOSE (B) ID=14 L=44	9-09917-427-0	01	1	0201-	●			●
10	CLIP; RUBBER HOSE (B) ID=14 L=44	9-09917-427-0	01	1	9601-9803	●	●	●
10	CLIP; RUBBER HOSE (B) ID=14 L=44	9-09917-427-0	01	1	9804-0004	●	●
10	CLIP; RUBBER HOSE (E) ID=13 L=20	9-09525-235-0	01	1	0005-0106	●	●
10	CLIP; RUBBER HOSE (E) ID=13 L=20	9-09525-235-0	01	1	0107-0606	●			●
10	CLIP; RUBBER HOSE (E) ID=13 L=20	0-95235-235-0	01	1	0607-	●			●
10	CLIP; RUBBER HOSE (C) ID=12 L=70	1-09700-097-1	01	1	0005-0106		●
10	CLIP; RUBBER HOSE (C) ID=12 L=70	1-09700-097-1	01	1	0107-				●
10	CLIP; RUBBER HOSE EURO2 SPECIFICATION<THN> (A) ID=14.5 L=40	1-09701-014-0	01	1	9703-9803		●
10	CLIP; RUBBER HOSE (A) ID=14.5 L=40	1-09701-014-0	01	1	9804-0106		●
10	CLIP; RUBBER HOSE (A) ID=14.5 L=40	1-09701-014-0	02	1	0107-				●
10	CLIP; RUBBER HOSE (E) ID=15 H=24 L=20	1-09700-606-0	01	1	0107-				●
10	CLIP; RUBBER HOSE (B) ID=14 L=44	9-09917-427-0	02	1	0107-0112				●
12	HOSE; SURGE TANK (A)	1-21489-203-0	01	1	9901-0106	●	●
12	HOSE; SURGE TANK (A)	1-21489-203-0	01	1	0107-	●			●
12	HOSE; SURGE TANK (B) L=300	1-09366-199-0	01	1	9601-9803	●	●	●
12	HOSE; SURGE TANK (B) L=300	1-09366-199-0	01	1	9804-0106	●	●
12	HOSE; SURGE TANK (B) L=300	1-09366-199-0	01	1	0107-	●			●
20	CLIP; HOSE,RAD ID=12	8-94238-610-0	04	1	9601-9803	●	●	●
20	CLIP; HOSE,RAD ID=12	8-94238-610-0	04	1	9804-0106	●	●
20	CLIP; HOSE,RAD ID=12	8-94238-610-0	04	1	0107-	●			●
23	BRACKET; RESERVE TANK	1-21489-128-0	01	1	9601-9803	●	●	●
23	BRACKET; RESERVE TANK	1-21489-128-0	01	1	9804-0106	●	●
23	BRACKET; RESERVE TANK	1-21489-128-0	01	1	0107-	●			●
40	BOLT; CLIP M8X20 FLANGE	0-28080-820-0	03	1	9601-9606	●		●
40	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	03	1	9607-9803	●	●	●
40	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	03	1	9804-0004	●	●
40	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	04	1	0005-0106	●	●
40	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	02	1	0107-0512	●
40	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	0601-	●
40	BOLT; CLIP EURO2 SPECIFICATION<THN> M8X20 FLANGE	0-28680-820-0	01	1	9703-9803		●
40	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	01	1	9804-0106		●
40	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	04	1	0107-0107				●
40	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	05	1	0107-0512				●
40	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	05	1	0601-				●
55	HOSE; WATER,RAD OUTLET (A)	1-21437-560-0	01	1	9601-9609			●
55	HOSE; WATER,RAD OUTLET (A)	1-21437-560-0	01	1	9610-9803			●
55	HOSE; WATER,RAD OUTLET EXC. EURO2 SPECIFICATION<THN> (A)	1-21437-560-0	01	1	9610-9803		●
55	HOSE; WATER,RAD OUTLET (C)	1-21437-543-0	01	1	9601-	●
55	HOSE; WATER,RAD OUTLET EURO2 SPECIFICATION<THN> (A)	1-21437-649-0	01	1	9610-9612		●
55	HOSE; WATER,RAD OUTLET EURO2 SPECIFICATION<THN> (B)	1-21437-658-0	01	1	9701-9704		●
55	HOSE; WATER,RAD OUTLET EURO2 SPECIFICATION<THN> (B)	1-21437-663-0	01	1	9705-9803		●
55	HOSE; WATER,RAD OUTLET (B)	1-21437-663-0	01	1	9804-0106		●
55	HOSE; WATER,RAD OUTLET (B)	1-21437-663-2	01	1	0107-				●
56	CLIP; WATER HOSE,RAD (A) ID=63	1-09704-067-0	04	1	9601-9609			●
56	CLIP; WATER HOSE,RAD (A) ID=63	1-09704-067-0	04	1	9610-9803		●	●
56	CLIP; WATER HOSE,RAD (A) ID=63	1-09704-067-0	04	1	9804-0106		●
56	CLIP; WATER HOSE,RAD (A) ID=63	1-09704-067-0	04	1	0107-				●
56	CLIP; WATER HOSE,RAD (B) ID=76	1-09704-069-0	01	1	9601-	●
56	CLIP; WATER HOSE,RAD (C) ID=70	1-09704-078-0	01	1	9601-	●
64	BOLT; BRKT,SUB TANK M8X25 W/LK&PL WASHER	1-09030-074-0	04	1	9601-9803	●	●	●
64	BOLT; BRKT,SUB TANK M8X25 W/LK&PL WASHER	1-09030-074-0	04	1	9804-0106	●	●
64	BOLT; BRKT,SUB TANK M8X25 W/LK&PL WASHER	1-09030-074-0	04	1	0107-0707	●			●
64	BOLT; BRKT,SUB TANK M8X25 W/LK&PL WASHER	1-09030-093-0	04	1	0708-	●			●
65	NUT; BRKT,SUB TANK M8	9-09110-408-0	04	1	9601-9606	●		●
65	NUT; BRKT,SUB TANK M8 FLANGE	0-91150-108-0	04	1	9607-9803	●	●	●
65	NUT; BRKT,SUB TANK M8 FLANGE	0-91150-108-0	04	1	9804-0106	●	●
65	NUT; BRKT,SUB TANK M8 FLANGE	0-91150-108-0	04	1	0107-0602	●			●
65	NUT; BRKT,SUB TANK M8 FLANGE	0-91180-108-0	04	1	0603-	●			●
67	BOLT; BRKT M10X20 FLANGE	0-28081-020-0	02	1	9601-9606	●		●
67	BOLT; BRKT M10X20 FLANGE	0-28681-020-0	02	1	9607-9803	●	●	●
67	BOLT; BRKT M10X20 FLANGE	0-28681-020-0	02	1	9804-0106	●	●
67	BOLT; BRKT M10X20 FLANGE	0-28681-020-0	02	1	0107-0512	●			●
67	BOLT; BRKT M10X20 FLANGE	0-28651-020-0	02	1	0601-	●			●
128	HOSE; WATER,RAD INL	1-21437-450-0	01	1	9601-9609			●
128	HOSE; WATER,RAD INL	1-21437-450-0	01	1	9610-9708			●
128	HOSE; WATER,RAD INL EXC. EURO2 SPECIFICATION<THN>	1-21437-450-0	01	1	9610-9708		●
128	HOSE; WATER,RAD INL	1-21437-675-0	01	1	9709-9803			●
128	HOSE; WATER,RAD INL EXC. EURO2 SPECIFICATION<THN>	1-21437-675-0	01	1	9709-9803		●
128	HOSE; WATER,RAD INL	1-21437-544-0	01	1	9601-	●
128	HOSE; WATER,RAD INL EURO2 SPECIFICATION<THN>	1-21437-648-0	01	1	9610-9803		●
128	HOSE; WATER,RAD INL	1-21437-648-0	01	1	9804-0106		●
128	HOSE; WATER,RAD INL	1-21437-757-0	01	1	0107-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
