◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 10893 - FVR(HONG KONG) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-10 - RADIATOR ▶
1-10 — RADIATOR (#26603) — 859 parça

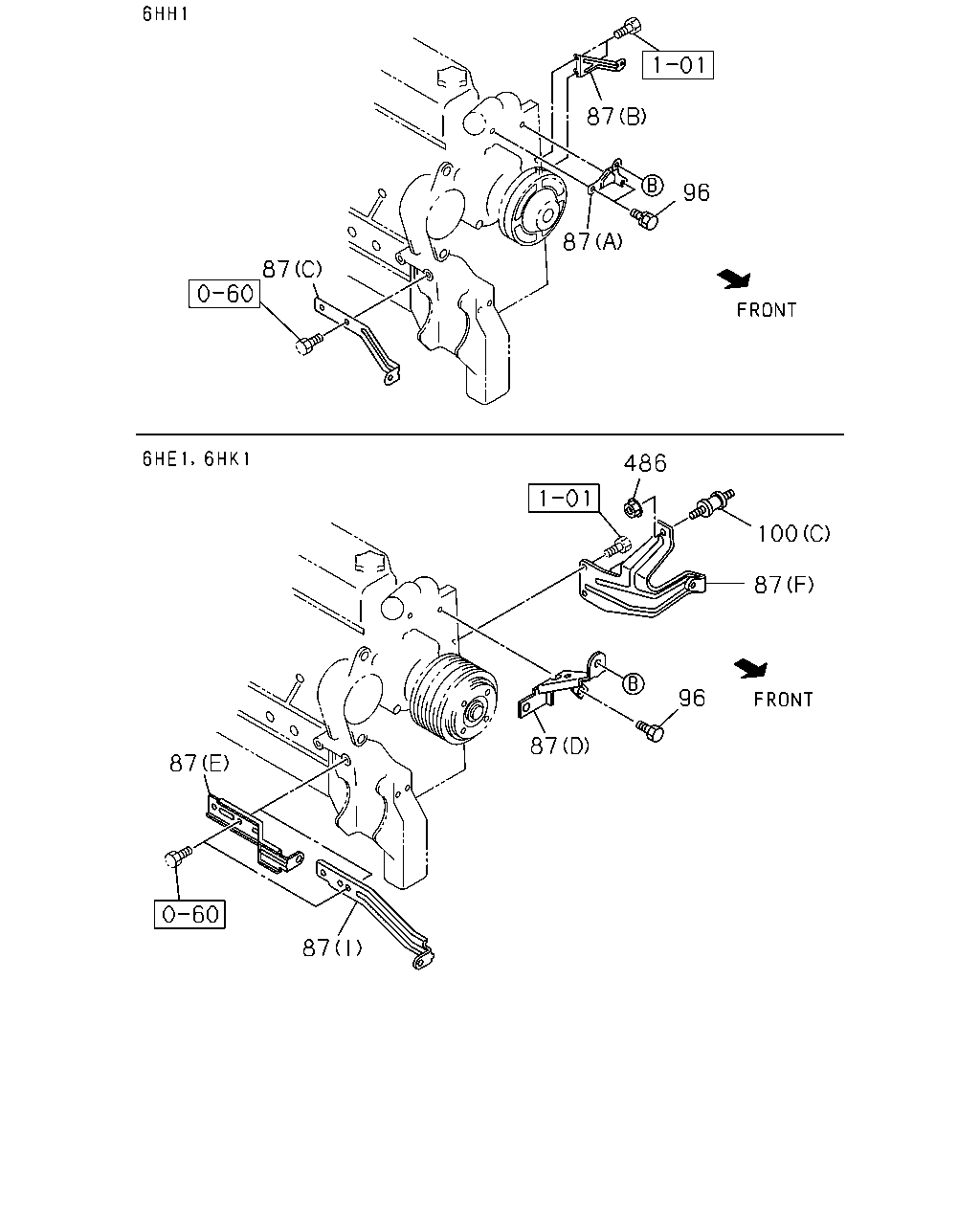

çizim 103605
87 96 87 87 486 100 87 96 87 87 87
BalonParca AdiParca NoAdetTipApplied Date A B C D
87 STAY; FAN GUIDE
(C) 		8-94394-775-0 01 1 9601-9803 ●
87 STAY; FAN GUIDE
(A) 		8-94396-496-1 01 1 9601-9803 ●
87 STAY; FAN GUIDE
(B) 		8-94397-395-1 01 1 9601-9803 ●
87 STAY; FAN GUIDE
(G) 		1-21559-373-0 01 1 9601- ●
87 STAY; FAN GUIDE
(H) 		1-21559-379-0 01 1 9601-0106 ●
87 STAY; FAN GUIDE
(J) 		1-21559-457-0 01 1 0107- ●
87 STAY; FAN GUIDE
(D) 		8-94393-776-0 01 1 9610-0106 ●
87 STAY; FAN GUIDE
(D) 		8-94393-776-1 01 1 0107- ●
87 STAY; FAN GUIDE
(E) 		8-94393-777-1 01 1 9610-0012 ●
87 STAY; FAN GUIDE
(I) 		8-97601-850-0 01 1 0101-0106 ●
87 STAY; FAN GUIDE
(I) 		8-97601-850-0 01 1 0107- ●
87 STAY; FAN GUIDE
(F) 		8-94393-778-2 01 1 9610-0106 ●
87 STAY; FAN GUIDE
(F) 		8-94393-778-2 01 1 0107- ●
96 BOLT; STAY FIX
M8X16 FLANGE 		0-28080-816-0 04 1 0107-0512 ●
96 BOLT; STAY FIX
M8X16 FLANGE 		0-28050-816-0 04 1 0601- ●
96 BOLT; STAY FIX
M10X16 FLANGE 		0-28181-016-0 02 1 9601-9609 ●
96 BOLT; STAY FIX
M10X16 FLANGE 		0-28181-016-0 02 1 9610-9803 ● ●
96 BOLT; STAY FIX
M10X16 FLANGE 		0-28181-016-0 02 1 9804-0106 ●
96 BOLT; STAY FIX
M10X16 FLANGE 		0-28181-016-0 02 1 0107-0512 ●
96 BOLT; STAY FIX
M10X16 FLANGE 		0-28151-016-0 02 1 0601- ●
100 RUBBER; MTG
(A) 		8-94395-766-0 06 1 9604-9606 ●
100 RUBBER; MTG
(B) 		1-09337-027-0 06 1 9601-9603 ● ●
100 RUBBER; MTG
(B) 		1-09337-027-0 06 1 9604-9606 ●
100 RUBBER; MTG
(A) 		8-94395-766-0 06 1 9607-9803 ● ● ●
100 RUBBER; MTG
(A) 		8-94395-766-0 06 1 9804-0106 ● ●
100 RUBBER; MTG
(A) 		8-94395-766-0 06 1 0107- ● ●
100 RUBBER; MTG
(C) 		8-94394-268-1 01 1 9610-0106 ●
100 RUBBER; MTG
(C) 		8-94394-268-1 01 1 0107-0910 ●
100 RUBBER; MTG
(C) 		8-98148-109-0 01 1 0911- ●
486 NUT; MTG RUBBER
M8 FLANGE 		0-91150-108-0 01 1 9610-0106 ●
486 NUT; MTG RUBBER
M8 FLANGE 		0-91150-108-0 01 1 0107-0602 ●
486 NUT; MTG RUBBER
M8 FLANGE 		0-91180-108-0 01 1 0603- ●

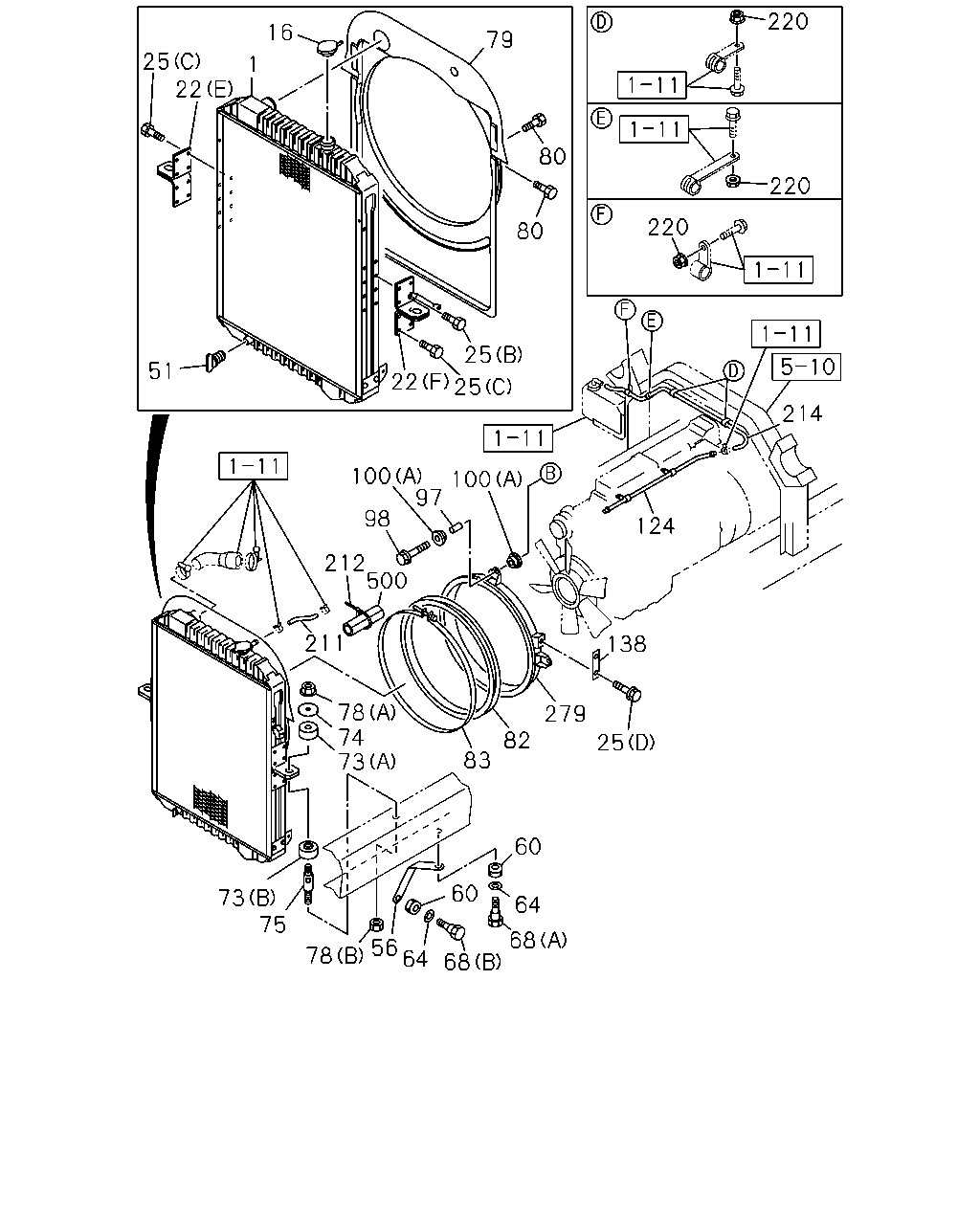

çizim 103607
220 16 79 25 22 1 80 220 220 80 25 51 22 25 214 100 97 100 98 124 212 500 211 138 78 74 73 279 82 25 83 60 60 73 75 64 68 68 56 78 64
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 RADIATOR ASM 1-21410-711-1 01 1 9601-9609 ●
1 RADIATOR ASM 1-21410-711-1 01 1 9610-9803 ●
1 RADIATOR ASM
EXC. EURO2 SPECIFICATION<THN> 		1-21410-711-1 01 1 9610-9803 ●
1 RADIATOR ASM 1-21410-708-0 01 1 9601-0106 ●
1 RADIATOR ASM 1-21410-875-0 01 1 0107- ●
1 RADIATOR ASM
EURO2 SPECIFICATION<THN> 		1-21410-741-2 01 1 9610-9803 ●
1 RADIATOR ASM 1-21410-741-2 01 1 9804-0106 ●
1 RADIATOR ASM 1-21410-876-0 01 1 0107- ●
16 CAP; RAD 1-21450-053-1 01 1 9601-9609 ● ●
16 CAP; RAD 1-21450-053-1 01 1 9610-9803 ● ● ●
16 CAP; RAD 1-21450-053-1 01 1 9804-0106 ● ●
16 CAP; RAD 1-21450-053-2 01 1 0107- ●
16 CAP; RAD 1-21450-097-2 01 1 0107- ●
22 BRACKET; RAD MTG
(B) 		1-21464-462-0 01 1 9601-9601 ●
22 BRACKET; RAD MTG
(B) 		1-21464-491-2 01 1 9602-9609 ●
22 BRACKET; RAD MTG
(B) 		1-21464-491-2 01 1 9610-9704 ●
22 BRACKET; RAD MTG
EXC. EURO2 SPECIFICATION<THN> (B) 		1-21464-491-2 01 1 9610-9704 ●
22 BRACKET; RAD MTG
(B) 		1-21464-546-0 01 1 9705-9803 ●
22 BRACKET; RAD MTG
EXC. EURO2 SPECIFICATION<THN> (B) 		1-21464-546-0 01 1 9705-9803 ●
22 BRACKET; RAD MTG
(A) 		1-21464-463-1 01 1 9601-9609 ●
22 BRACKET; RAD MTG
(A) 		1-21464-463-1 01 1 9610-9803 ● ●
22 BRACKET; RAD MTG
(A) 		1-21464-463-1 01 1 9804-0106 ●
22 BRACKET; RAD MTG
(E) 		1-21464-668-0 01 1 0107- ●
22 BRACKET; RAD MTG
(C) 		1-21464-458-0 01 1 9601- ●
22 BRACKET; RAD MTG
(D) 		1-21464-459-0 01 1 9601-9609 ●
22 BRACKET; RAD MTG
(D) 		1-21464-520-0 01 1 9610-0303 ●
22 BRACKET; RAD MTG
(D) 		1-21464-749-0 01 1 0304- ●
22 BRACKET; RAD MTG
EURO2 SPECIFICATION<THN> (B) 		1-21464-530-0 01 1 9610-9704 ●
22 BRACKET; RAD MTG
EURO2 SPECIFICATION<THN> (B) 		1-21464-549-0 01 1 9705-9803 ●
22 BRACKET; RAD MTG
(B) 		1-21464-549-0 01 1 9804-0106 ●
22 BRACKET; RAD MTG
(F) 		1-21464-737-0 01 1 0107- ●
25 BOLT; BRKT
(C) M8X12 FLANGE 		0-28080-812-0 15 1 0304- ●
25 BOLT; BRKT
(A) M8X12 FLANGE 		0-28080-812-0 15 1 9601-9609 ●
25 BOLT; BRKT
(A) M8X12 FLANGE 		0-28080-812-0 15 1 9610-9803 ● ●
25 BOLT; BRKT
(A) M8X12 FLANGE 		0-28080-812-0 15 1 9804-0106 ●
25 BOLT; BRKT
(D) M8X20 FLANGE 		0-28680-820-0 01 1 0107-0512 ●
25 BOLT; BRKT
(D) M8X20 FLANGE 		0-28650-820-0 01 1 0601- ●
25 BOLT; BRKT
(B) M8X16 FLANGE 		0-28080-816-0 01 1 9601-9609 ●
25 BOLT; BRKT
(B) M8X16 FLANGE 		0-28080-816-0 01 1 9610-9803 ● ●
25 BOLT; BRKT
(B) M8X16 FLANGE 		0-28080-816-0 01 1 9804-0106 ●
25 BOLT; BRKT
(B) M8X16 FLANGE 		0-28080-816-0 01 1 0107- ● ●
25 BOLT; BRKT
(C) M8X12 FLANGE 		0-28080-812-0 17 1 9601-0106 ●
25 BOLT; BRKT
(C) M8X12 FLANGE 		0-28080-812-0 15 1 0107-0303 ● ●
25 BOLT; BRKT
(C) M8X12 FLANGE 		0-28080-812-0 14 1 0304- ●
51 PLUG; DRAIN
W/GASKET 		1-09609-009-0 01 1 9601-9609 ● ●
51 PLUG; DRAIN
W/GASKET 		1-09609-009-0 01 1 9610-9803 ● ● ●
51 PLUG; DRAIN
W/GASKET 		1-09609-009-0 01 1 9804-0106 ● ●
51 PLUG; DRAIN
W/GASKET 		1-09609-009-0 01 1 0107- ● ●
56 STAY; RAD 1-21464-709-0 01 1 0107- ●
56 STAY; RAD 1-21464-708-0 01 1 0107- ●
60 GROMMET 1-09332-117-0 04 1 9601-9609 ●
60 GROMMET 1-09332-117-0 04 1 9610-9803 ●
60 GROMMET
EURO2 SPECIFICATION<THN> 		1-09332-117-0 04 1 9610-9803 ●
60 GROMMET 1-09332-117-0 04 1 9804-0106 ● ●
60 GROMMET 1-09332-117-0 04 1 0107- ● ●
64 WASHER; STAY TO RAD
ID=12.5 		9-09160-512-0 02 1 9601-9609 ●
64 WASHER; STAY TO RAD
ID=12.5 		9-09160-512-0 02 1 9610-9803 ●
64 WASHER; STAY TO RAD
EXC. EURO2 SPECIFICATION<THN> ID=12.5 		9-09160-512-0 02 1 9610-9803 ●
64 WASHER; STAY TO RAD
ID=12.5 OD=26 		9-09160-612-0 04 1 0107-0605 ●
64 WASHER; STAY TO RAD
ID=12.5 OD=26 		0-91610-612-0 04 1 0606- ●
68 BOLT; STAY TO BRKT
(A) M8X30 		1-09009-020-1 02 1 0107- ●
68 BOLT; STAY TO BRKT
(B) M8X22 		1-09009-123-0 02 1 0107- ●
73 RUBBER; CUSHION,RAD MTG
(A) T=14 		1-21467-004-0 02 1 9601-9803 ● ● ●
73 RUBBER; CUSHION,RAD MTG
(A) T=14 		1-21467-004-0 02 1 9804-0106 ● ●
73 RUBBER; CUSHION,RAD MTG
(A) T=14 		1-21467-004-0 02 1 0107- ● ●
73 RUBBER; CUSHION,RAD MTG
(B) T=24 		1-21467-011-1 02 1 9601-9803 ● ● ●
73 RUBBER; CUSHION,RAD MTG
(B) T=24 		1-21467-011-1 02 1 9804-0106 ● ●
73 RUBBER; CUSHION,RAD MTG
(B) T=24 		1-21467-011-1 02 1 0107- ● ●
74 WASHER; PL,CUSHION RUBBER
ID=11 OD=54 		1-09503-154-1 02 1 9601-9604 ● ● ●
74 WASHER; PL,CUSHION RUBBER
OD=55 		9-09852-169-0 02 1 9605-9803 ● ● ●
74 WASHER; PL,CUSHION RUBBER
OD=55 		9-09852-169-0 02 1 9804-0106 ● ●
74 WASHER; PL,CUSHION RUBBER
OD=55 		9-09852-169-0 02 1 0107- ● ●
75 BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5 		1-21466-007-2 02 1 9601-9803 ● ● ●
75 BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5 		1-21466-007-2 02 1 9804-0106 ● ●
75 BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5 		1-21466-007-3 02 1 0107- ● ●
78 NUT; CUSHION RUBBER
(A) M10 FLANGE 		5-09440-006-0 02 1 9601-9803 ● ● ●
78 NUT; CUSHION RUBBER
(A) M10 FLANGE 		5-09440-006-0 02 1 9804-0106 ● ●
78 NUT; CUSHION RUBBER
(A) M10 FLANGE 		5-09440-006-0 02 1 0107- ● ●
78 NUT; CUSHION RUBBER
(B) M12 		9-99110-512-0 02 1 9601-9702 ● ● ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91150-212-0 02 1 9703-9803 ● ● ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91150-212-0 02 1 9804-0106 ● ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91150-212-0 02 1 0107-0602 ● ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91180-212-0 02 1 0603- ● ●
79 GUIDE; FAN,RAD 1-21551-374-2 01 1 9601-9609 ●
79 GUIDE; FAN,RAD 1-21551-374-2 01 1 9610-9803 ●
79 GUIDE; FAN,RAD
EXC. EURO2 SPECIFICATION<THN> 		1-21551-374-2 01 1 9610-9803 ●
79 GUIDE; FAN,RAD 1-21551-397-1 01 1 9601-0106 ●
79 GUIDE; FAN,RAD 1-21551-531-0 01 1 0107- ●
79 GUIDE; FAN,RAD
EURO2 SPECIFICATION<THN> 		1-21551-424-0 01 1 9610-9803 ●
79 GUIDE; FAN,RAD 1-21551-424-0 01 1 9804-9804 ●
79 GUIDE; FAN,RAD 1-21551-452-0 01 1 9804-0106 ●
79 GUIDE; FAN,RAD 1-21551-532-0 01 1 0107- ●
80 BOLT; FAN GUIDE
M6X12 FLANGE 		0-28080-612-0 04 1 9601-9803 ● ●
80 BOLT; FAN GUIDE
M6X12 FLANGE 		0-28080-612-0 04 1 9804-0106 ●
80 BOLT; FAN GUIDE
M6X10 FLANGE 		0-28080-610-0 04 1 0107- ●
80 BOLT; FAN GUIDE
M6X10 FLANGE 		0-28080-610-0 04 1 9610-0106 ●
80 BOLT; FAN GUIDE
M6X10 FLANGE 		0-28080-610-0 08 1 0107- ●
82 COVER; FAN,RAD 1-21559-340-0 01 1 9601-9803 ●
82 COVER; FAN,RAD 1-21559-369-0 01 1 9601-9610 ●
82 COVER; FAN,RAD 1-21559-397-0 01 1 9611- ●
82 COVER; FAN,RAD 1-21559-211-0 01 1 9610-9612 ●
82 COVER; FAN,RAD
EXC. EURO2 SPECIFICATION<THN> 		1-21559-211-0 01 1 9701-9803 ●
82 COVER; FAN,RAD
EURO2 SPECIFICATION<THN> 		1-21559-321-0 01 1 9701-9803 ●
82 COVER; FAN,RAD 1-21559-321-0 01 1 9804-0106 ●
82 COVER; FAN,RAD 1-21559-321-0 01 1 0107- ●
83 CLIP; FAN COVER 1-09707-177-2 01 1 9601-9803 ● ● ●
83 CLIP; FAN COVER 1-09707-177-2 01 1 9804-0106 ● ●
83 CLIP; FAN COVER 1-09707-177-2 01 1 0107- ● ●
97 TUBE; DIST,FAN GUIDE 9-09651-072-0 03 1 9604-9606 ●
97 TUBE; DIST,FAN GUIDE 9-09651-072-0 03 1 9607-9803 ● ● ●
97 TUBE; DIST,FAN GUIDE 9-09651-072-0 03 1 9804-0106 ● ●
97 TUBE; DIST,FAN GUIDE 9-09651-072-0 03 1 0107- ● ●
98 BOLT; RAD FAN GUIDE
M8X25 FLANGE 		0-28080-825-0 03 1 9601-9601 ● ●
98 BOLT; RAD FAN GUIDE
M8X25 FLANGE 		0-28080-825-0 03 1 9602-9606 ●
98 BOLT; RAD FAN GUIDE
M8X30 FLANGE 		0-28080-830-0 03 1 9602-9606 ●
98 BOLT; RAD FAN GUIDE
M8X30 FLANGE 		0-28680-830-0 03 1 9607-9803 ● ● ●
98 BOLT; RAD FAN GUIDE
M8X30 FLANGE 		0-28680-830-0 03 1 9804-0106 ● ●
98 BOLT; RAD FAN GUIDE
M8X30 FLANGE 		0-28680-830-0 03 1 0107-0512 ● ●
98 BOLT; RAD FAN GUIDE
M8X30 FLANGE 		0-28650-830-0 03 1 0601- ● ●
100 RUBBER; MTG
(A) 		8-94395-766-0 06 1 9604-9606 ●
100 RUBBER; MTG
(B) 		1-09337-027-0 06 1 9601-9603 ● ●
100 RUBBER; MTG
(B) 		1-09337-027-0 06 1 9604-9606 ●
100 RUBBER; MTG
(A) 		8-94395-766-0 06 1 9607-9803 ● ● ●
100 RUBBER; MTG
(A) 		8-94395-766-0 06 1 9804-0106 ● ●
100 RUBBER; MTG
(A) 		8-94395-766-0 06 1 0107- ● ●
100 RUBBER; MTG
(C) 		8-94394-268-1 01 1 9610-0106 ●
100 RUBBER; MTG
(C) 		8-94394-268-1 01 1 0107-0910 ●
100 RUBBER; MTG
(C) 		8-98148-109-0 01 1 0911- ●
124 PIPE; WATER,TANK TO RAD 8-94394-461-4 01 1 9601-9803 ●
124 PIPE; WATER,TANK TO RAD 8-94395-451-1 01 1 9610-0106 ●
124 PIPE; WATER,TANK TO RAD 8-97601-482-0 01 1 0107- ●
138 BRACKET; CLIP 1-47476-881-0 01 1 0107- ●
211 HOSE; RAD TO PIPE
L=430 SERVICED BY L=3000 		0-03257-300-0 01 1 9601-9609 ●
211 HOSE; RAD TO PIPE
L=430 SERVICED BY L=3000 		0-03257-300-0 01 1 9610-9705 ● ●
211 HOSE; RAD TO PIPE
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> L=430 SERVICED BY L=3000 		0-03257-300-0 01 1 9706-9803 ●
211 HOSE; RAD TO PIPE
L=430 SERVICED BY L=3000 		0-03257-300-0 01 1 9706-9803 ●
211 HOSE; RAD TO PIPE
L=430 SERVICED BY L=3000 		0-03257-300-0 01 1 9804-0106 ●
211 HOSE; RAD TO PIPE
L=660 SERVICED BY L=3000 		0-03257-300-0 01 1 0107-0109 ●
211 HOSE; RAD TO PIPE
L=660 SERVICED BY L=3000 		0-03557-300-0 01 1 0110- ●
211 HOSE; RAD TO PIPE
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> L=290 SERVICED BY L=3000 		0-03257-300-0 01 1 9706-9803 ●
211 HOSE; RAD TO PIPE
L=350 SERVICED BY L=3000 		0-03257-300-0 01 1 9601-0106 ●
211 HOSE; RAD TO PIPE
L=230 SERVICED BY L=3000 		0-03257-300-0 01 1 0107-0207 ●
211 HOSE; RAD TO PIPE
L=260 SERVICED BY L=3000 		0-03557-300-0 01 1 0208- ●
212 CLIP; HOSE
L=100 		5-09707-036-1 01 1 9610-0102 ●
212 CLIP; HOSE
L=140 		5-09707-031-1 01 1 0103-0106 ●
212 CLIP; HOSE
L=250 		5-09707-030-1 01 1 0107- ●
214 HOSE; PIPE TO RESERVE TANK
L=1300 SERVICED BY L=3000 		0-03257-300-0 01 1 9601-9609 ●
214 HOSE; PIPE TO RESERVE TANK
L=1300 SERVICED BY L=3000 		0-03257-300-0 01 1 9610-9702 ● ●
214 HOSE; PIPE TO RESERVE TANK
L=1300 SERVICED BY L=3000 		0-03257-300-0 01 1 9703-9705 ●
214 HOSE; PIPE TO RESERVE TANK
EXC. EURO2 SPECIFICATION<THN> L=1300 SERVICED BY L=3000 		0-03257-300-0 01 1 9703-9705 ●
214 HOSE; PIPE TO RESERVE TANK
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> L=1300 SERVICED BY L=3000 		0-03257-300-0 01 1 9706-9803 ●
214 HOSE; PIPE TO RESERVE TANK
EXC. EURO2 SPECIFICATION<THN> L=1300 SERVICED BY L=3000 		0-03257-300-0 01 1 9706-9803 ●
214 HOSE; PIPE TO RESERVE TANK
L=1200 SERVICED BY L=3000 		0-03257-300-0 01 1 9601-9705 ●
214 HOSE; PIPE TO RESERVE TANK
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> L=1200 SERVICED BY L=3000 		0-03257-300-0 01 1 9706-9803 ●
214 HOSE; PIPE TO RESERVE TANK
L=1200 SERVICED BY L=3000 		0-03257-300-0 01 1 9706-9803 ●
214 HOSE; PIPE TO RESERVE TANK
L=1200 SERVICED BY L=3000 		0-03257-300-0 01 1 9804-0106 ●
214 HOSE; PIPE TO RESERVE TANK
L=760 SERVICED BY L=3000 		0-03257-300-0 01 1 0107-0109 ●
214 HOSE; PIPE TO RESERVE TANK
L=760 SERVICED BY L=3000 		0-03557-300-0 01 1 0110- ●
214 HOSE; PIPE TO RESERVE TANK
EURO2 SPECIFICATION<THN> L=1400 SERVICED BY L=3000 		0-03257-300-0 01 1 9703-9803 ●
214 HOSE; PIPE TO RESERVE TANK
L=1400 SERVICED BY L=3000 		0-03257-300-0 01 1 9804-0106 ●
214 HOSE; PIPE TO RESERVE TANK
L=1350 SERVICED BY L=3000 		0-03257-300-0 01 1 0107-0109 ●
214 HOSE; PIPE TO RESERVE TANK
L=1350 SERVICED BY L=3000 		0-03557-300-0 01 1 0110- ●
220 NUT; CLIP
M8 		9-09110-408-0 03 1 9601-9606 ● ●
220 NUT; CLIP
M8 FLANGE 		0-91150-108-0 03 1 9607-9803 ● ● ●
220 NUT; CLIP
M8 FLANGE 		0-91150-108-0 03 1 9804-0004 ● ●
220 NUT; CLIP
M8 FLANGE 		0-91150-108-0 04 1 0005-0106 ● ●
220 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 9610-0106 ●
220 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 0107-0602 ●
220 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0603- ●
220 NUT; CLIP
EURO2 SPECIFICATION<THN> M8 FLANGE 		0-91150-108-0 01 1 9703-9803 ●
220 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 9804-0106 ●
220 NUT; CLIP
M8 FLANGE 		0-91150-108-0 04 1 0107-0107 ●
220 NUT; CLIP
M8 FLANGE 		0-91150-108-0 05 1 0107-0602 ●
220 NUT; CLIP
M8 FLANGE 		0-91180-108-0 05 1 0603- ●
279 BELL MOUTH 8-94394-808-2 01 1 9601-9803 ●
279 BELL MOUTH 1-21551-395-0 01 1 9601- ●
279 BELL MOUTH 8-94394-174-1 01 1 9610-9612 ●
279 BELL MOUTH
EXC. EURO2 SPECIFICATION<THN> 		8-94394-174-1 01 1 9701-9803 ●
279 BELL MOUTH
EURO2 SPECIFICATION<THN> 		8-94393-779-0 01 1 9701-9803 ●
279 BELL MOUTH 8-94393-779-0 01 1 9804-0106 ●
279 BELL MOUTH 8-97601-172-1 01 1 0107- ●
500 SLEEVE; RUBBER
ID=17 OD=21 L=40 		1-09337-012-0 01 1 0107-0107 ●

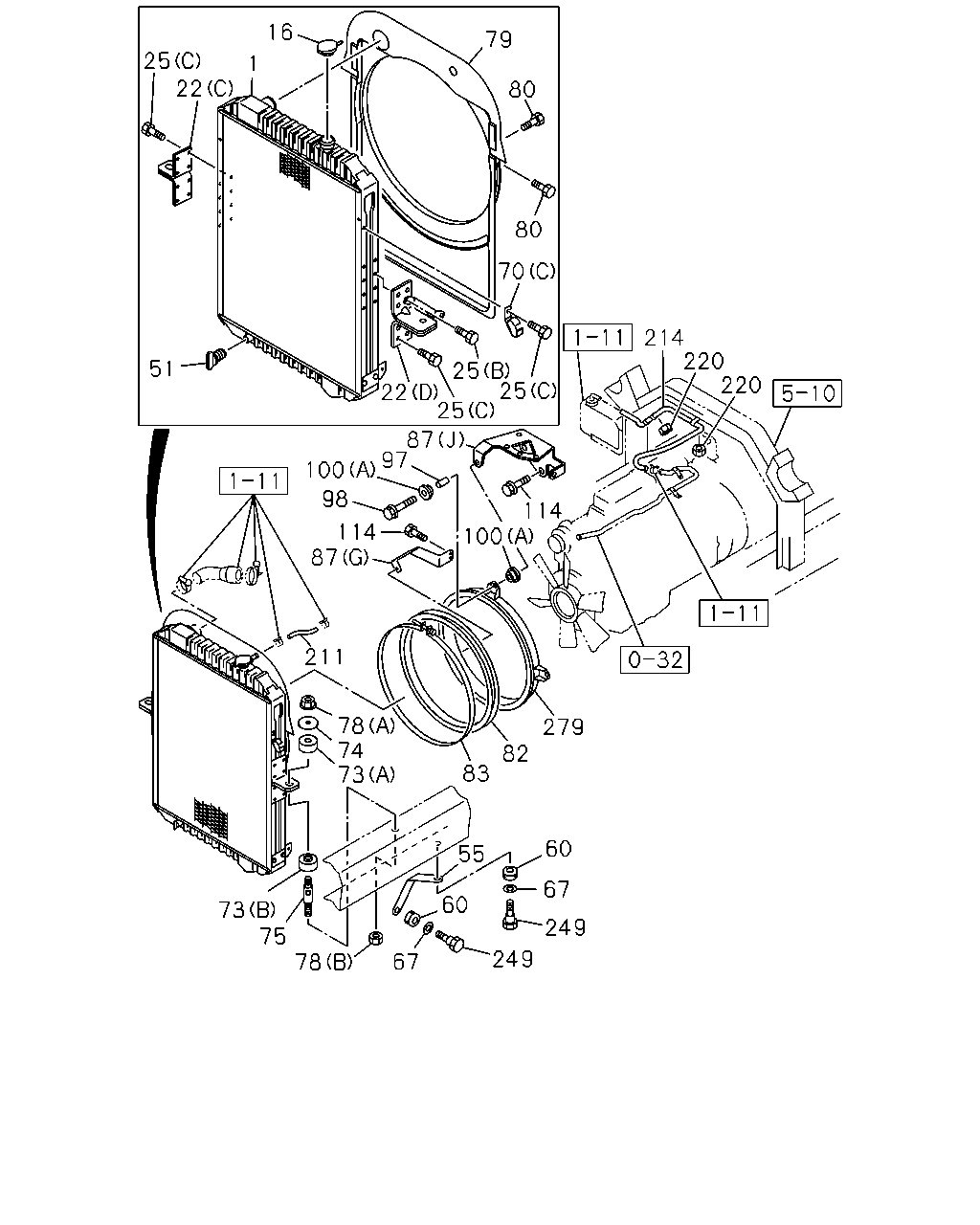

çizim 103609
16 79 25 22 1 80 80 70 214 220 220 51 25 22 25 25 87 97 100 98 114 114 87 100 211 78 74 73 279 82 83 60 55 67 60 73 75 78 249 249 67
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 RADIATOR ASM 1-21410-711-1 01 1 9601-9609 ●
1 RADIATOR ASM 1-21410-711-1 01 1 9610-9803 ●
1 RADIATOR ASM
EXC. EURO2 SPECIFICATION<THN> 		1-21410-711-1 01 1 9610-9803 ●
1 RADIATOR ASM 1-21410-708-0 01 1 9601-0106 ●
1 RADIATOR ASM 1-21410-875-0 01 1 0107- ●
1 RADIATOR ASM
EURO2 SPECIFICATION<THN> 		1-21410-741-2 01 1 9610-9803 ●
1 RADIATOR ASM 1-21410-741-2 01 1 9804-0106 ●
1 RADIATOR ASM 1-21410-876-0 01 1 0107- ●
16 CAP; RAD 1-21450-053-1 01 1 9601-9609 ● ●
16 CAP; RAD 1-21450-053-1 01 1 9610-9803 ● ● ●
16 CAP; RAD 1-21450-053-1 01 1 9804-0106 ● ●
16 CAP; RAD 1-21450-053-2 01 1 0107- ●
16 CAP; RAD 1-21450-097-2 01 1 0107- ●
22 BRACKET; RAD MTG
(B) 		1-21464-462-0 01 1 9601-9601 ●
22 BRACKET; RAD MTG
(B) 		1-21464-491-2 01 1 9602-9609 ●
22 BRACKET; RAD MTG
(B) 		1-21464-491-2 01 1 9610-9704 ●
22 BRACKET; RAD MTG
EXC. EURO2 SPECIFICATION<THN> (B) 		1-21464-491-2 01 1 9610-9704 ●
22 BRACKET; RAD MTG
(B) 		1-21464-546-0 01 1 9705-9803 ●
22 BRACKET; RAD MTG
EXC. EURO2 SPECIFICATION<THN> (B) 		1-21464-546-0 01 1 9705-9803 ●
22 BRACKET; RAD MTG
(A) 		1-21464-463-1 01 1 9601-9609 ●
22 BRACKET; RAD MTG
(A) 		1-21464-463-1 01 1 9610-9803 ● ●
22 BRACKET; RAD MTG
(A) 		1-21464-463-1 01 1 9804-0106 ●
22 BRACKET; RAD MTG
(E) 		1-21464-668-0 01 1 0107- ●
22 BRACKET; RAD MTG
(C) 		1-21464-458-0 01 1 9601- ●
22 BRACKET; RAD MTG
(D) 		1-21464-459-0 01 1 9601-9609 ●
22 BRACKET; RAD MTG
(D) 		1-21464-520-0 01 1 9610-0303 ●
22 BRACKET; RAD MTG
(D) 		1-21464-749-0 01 1 0304- ●
22 BRACKET; RAD MTG
EURO2 SPECIFICATION<THN> (B) 		1-21464-530-0 01 1 9610-9704 ●
22 BRACKET; RAD MTG
EURO2 SPECIFICATION<THN> (B) 		1-21464-549-0 01 1 9705-9803 ●
22 BRACKET; RAD MTG
(B) 		1-21464-549-0 01 1 9804-0106 ●
22 BRACKET; RAD MTG
(F) 		1-21464-737-0 01 1 0107- ●
25 BOLT; BRKT
(C) M8X12 FLANGE 		0-28080-812-0 15 1 0304- ●
25 BOLT; BRKT
(A) M8X12 FLANGE 		0-28080-812-0 15 1 9601-9609 ●
25 BOLT; BRKT
(A) M8X12 FLANGE 		0-28080-812-0 15 1 9610-9803 ● ●
25 BOLT; BRKT
(A) M8X12 FLANGE 		0-28080-812-0 15 1 9804-0106 ●
25 BOLT; BRKT
(D) M8X20 FLANGE 		0-28680-820-0 01 1 0107-0512 ●
25 BOLT; BRKT
(D) M8X20 FLANGE 		0-28650-820-0 01 1 0601- ●
25 BOLT; BRKT
(B) M8X16 FLANGE 		0-28080-816-0 01 1 9601-9609 ●
25 BOLT; BRKT
(B) M8X16 FLANGE 		0-28080-816-0 01 1 9610-9803 ● ●
25 BOLT; BRKT
(B) M8X16 FLANGE 		0-28080-816-0 01 1 9804-0106 ●
25 BOLT; BRKT
(B) M8X16 FLANGE 		0-28080-816-0 01 1 0107- ● ●
25 BOLT; BRKT
(C) M8X12 FLANGE 		0-28080-812-0 17 1 9601-0106 ●
25 BOLT; BRKT
(C) M8X12 FLANGE 		0-28080-812-0 15 1 0107-0303 ● ●
25 BOLT; BRKT
(C) M8X12 FLANGE 		0-28080-812-0 14 1 0304- ●
51 PLUG; DRAIN
W/GASKET 		1-09609-009-0 01 1 9601-9609 ● ●
51 PLUG; DRAIN
W/GASKET 		1-09609-009-0 01 1 9610-9803 ● ● ●
51 PLUG; DRAIN
W/GASKET 		1-09609-009-0 01 1 9804-0106 ● ●
51 PLUG; DRAIN
W/GASKET 		1-09609-009-0 01 1 0107- ● ●
55 STAY; RAD TO UPR MBR 1-21464-453-0 01 1 9601-9609 ●
55 STAY; RAD TO UPR MBR 1-21464-453-0 01 1 9610-9803 ●
55 STAY; RAD TO UPR MBR
EURO2 SPECIFICATION<THN> 		1-21464-453-0 01 1 9610-9803 ●
55 STAY; RAD TO UPR MBR 1-21464-453-0 01 1 9804- ●
55 STAY; RAD TO UPR MBR 1-21464-452-0 01 1 9601-9609 ●
55 STAY; RAD TO UPR MBR 1-21464-452-0 01 1 9610-9803 ●
55 STAY; RAD TO UPR MBR
EURO2 SPECIFICATION<THN> 		1-21464-452-0 01 1 9610-9803 ●
55 STAY; RAD TO UPR MBR 1-21464-452-0 01 1 9804- ●
55 STAY; RAD TO UPR MBR 1-21464-570-0 01 1 9804-0106 ●
55 STAY; RAD TO UPR MBR 1-21464-569-0 01 1 9804-0106 ●
60 GROMMET 1-09332-117-0 04 1 9601-9609 ●
60 GROMMET 1-09332-117-0 04 1 9610-9803 ●
60 GROMMET
EURO2 SPECIFICATION<THN> 		1-09332-117-0 04 1 9610-9803 ●
60 GROMMET 1-09332-117-0 04 1 9804-0106 ● ●
60 GROMMET 1-09332-117-0 04 1 0107- ● ●
67 WASHER; PL,STAY,RAD MBR
ID=12.5 OD=26 		9-09160-612-0 04 1 9601-9609 ●
67 WASHER; PL,STAY,RAD MBR
ID=12.5 OD=26 		9-09160-612-0 04 1 9610-9803 ●
67 WASHER; PL,STAY,RAD MBR
EURO2 SPECIFICATION<THN> ID=12.5 OD=26 		9-09160-612-0 04 1 9610-9803 ●
67 WASHER; PL,STAY,RAD MBR
ID=12.5 OD=26 		9-09160-612-0 04 1 9804-0106 ● ●
67 WASHER; PL,STAY,RAD MBR
ID=12.5 OD=26 		9-09160-612-0 04 1 0107-0605 ●
67 WASHER; PL,STAY,RAD MBR
ID=12.5 OD=26 		0-91610-612-0 04 1 0606- ●
70 STAY; RAD
(A) 		1-21522-064-0 01 1 9601-9609 ●
70 STAY; RAD
(A) 		1-21522-064-0 01 1 9610-9803 ●
70 STAY; RAD
EXC. EURO2 SPECIFICATION<THN> (A) 		1-21522-064-0 01 1 9610-9803 ●
70 STAY; RAD
(B) 		1-21522-070-0 01 1 9601-9609 ●
70 STAY; RAD
(B) 		1-21522-070-0 01 1 9610-9803 ●
70 STAY; RAD
EXC. EURO2 SPECIFICATION<THN> (B) 		1-21522-070-0 01 1 9610-9803 ●
70 STAY; RAD
(C) 		1-83571-875-0 01 1 9601- ●
73 RUBBER; CUSHION,RAD MTG
(A) T=14 		1-21467-004-0 02 1 9601-9803 ● ● ●
73 RUBBER; CUSHION,RAD MTG
(A) T=14 		1-21467-004-0 02 1 9804-0106 ● ●
73 RUBBER; CUSHION,RAD MTG
(A) T=14 		1-21467-004-0 02 1 0107- ● ●
73 RUBBER; CUSHION,RAD MTG
(B) T=24 		1-21467-011-1 02 1 9601-9803 ● ● ●
73 RUBBER; CUSHION,RAD MTG
(B) T=24 		1-21467-011-1 02 1 9804-0106 ● ●
73 RUBBER; CUSHION,RAD MTG
(B) T=24 		1-21467-011-1 02 1 0107- ● ●
74 WASHER; PL,CUSHION RUBBER
ID=11 OD=54 		1-09503-154-1 02 1 9601-9604 ● ● ●
74 WASHER; PL,CUSHION RUBBER
OD=55 		9-09852-169-0 02 1 9605-9803 ● ● ●
74 WASHER; PL,CUSHION RUBBER
OD=55 		9-09852-169-0 02 1 9804-0106 ● ●
74 WASHER; PL,CUSHION RUBBER
OD=55 		9-09852-169-0 02 1 0107- ● ●
75 BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5 		1-21466-007-2 02 1 9601-9803 ● ● ●
75 BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5 		1-21466-007-2 02 1 9804-0106 ● ●
75 BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5 		1-21466-007-3 02 1 0107- ● ●
78 NUT; CUSHION RUBBER
(A) M10 FLANGE 		5-09440-006-0 02 1 9601-9803 ● ● ●
78 NUT; CUSHION RUBBER
(A) M10 FLANGE 		5-09440-006-0 02 1 9804-0106 ● ●
78 NUT; CUSHION RUBBER
(A) M10 FLANGE 		5-09440-006-0 02 1 0107- ● ●
78 NUT; CUSHION RUBBER
(B) M12 		9-99110-512-0 02 1 9601-9702 ● ● ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91150-212-0 02 1 9703-9803 ● ● ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91150-212-0 02 1 9804-0106 ● ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91150-212-0 02 1 0107-0602 ● ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91180-212-0 02 1 0603- ● ●
79 GUIDE; FAN,RAD 1-21551-374-2 01 1 9601-9609 ●
79 GUIDE; FAN,RAD 1-21551-374-2 01 1 9610-9803 ●
79 GUIDE; FAN,RAD
EXC. EURO2 SPECIFICATION<THN> 		1-21551-374-2 01 1 9610-9803 ●
79 GUIDE; FAN,RAD 1-21551-397-1 01 1 9601-0106 ●
79 GUIDE; FAN,RAD 1-21551-531-0 01 1 0107- ●
79 GUIDE; FAN,RAD
EURO2 SPECIFICATION<THN> 		1-21551-424-0 01 1 9610-9803 ●
79 GUIDE; FAN,RAD 1-21551-424-0 01 1 9804-9804 ●
79 GUIDE; FAN,RAD 1-21551-452-0 01 1 9804-0106 ●
79 GUIDE; FAN,RAD 1-21551-532-0 01 1 0107- ●
80 BOLT; FAN GUIDE
M6X12 FLANGE 		0-28080-612-0 04 1 9601-9803 ● ●
80 BOLT; FAN GUIDE
M6X12 FLANGE 		0-28080-612-0 04 1 9804-0106 ●
80 BOLT; FAN GUIDE
M6X10 FLANGE 		0-28080-610-0 04 1 0107- ●
80 BOLT; FAN GUIDE
M6X10 FLANGE 		0-28080-610-0 04 1 9610-0106 ●
80 BOLT; FAN GUIDE
M6X10 FLANGE 		0-28080-610-0 08 1 0107- ●
82 COVER; FAN,RAD 1-21559-340-0 01 1 9601-9803 ●
82 COVER; FAN,RAD 1-21559-369-0 01 1 9601-9610 ●
82 COVER; FAN,RAD 1-21559-397-0 01 1 9611- ●
82 COVER; FAN,RAD 1-21559-211-0 01 1 9610-9612 ●
82 COVER; FAN,RAD
EXC. EURO2 SPECIFICATION<THN> 		1-21559-211-0 01 1 9701-9803 ●
82 COVER; FAN,RAD
EURO2 SPECIFICATION<THN> 		1-21559-321-0 01 1 9701-9803 ●
82 COVER; FAN,RAD 1-21559-321-0 01 1 9804-0106 ●
82 COVER; FAN,RAD 1-21559-321-0 01 1 0107- ●
83 CLIP; FAN COVER 1-09707-177-2 01 1 9601-9803 ● ● ●
83 CLIP; FAN COVER 1-09707-177-2 01 1 9804-0106 ● ●
83 CLIP; FAN COVER 1-09707-177-2 01 1 0107- ● ●
87 STAY; FAN GUIDE
(C) 		8-94394-775-0 01 1 9601-9803 ●
87 STAY; FAN GUIDE
(A) 		8-94396-496-1 01 1 9601-9803 ●
87 STAY; FAN GUIDE
(B) 		8-94397-395-1 01 1 9601-9803 ●
87 STAY; FAN GUIDE
(G) 		1-21559-373-0 01 1 9601- ●
87 STAY; FAN GUIDE
(H) 		1-21559-379-0 01 1 9601-0106 ●
87 STAY; FAN GUIDE
(J) 		1-21559-457-0 01 1 0107- ●
87 STAY; FAN GUIDE
(D) 		8-94393-776-0 01 1 9610-0106 ●
87 STAY; FAN GUIDE
(D) 		8-94393-776-1 01 1 0107- ●
87 STAY; FAN GUIDE
(E) 		8-94393-777-1 01 1 9610-0012 ●
87 STAY; FAN GUIDE
(I) 		8-97601-850-0 01 1 0101-0106 ●
87 STAY; FAN GUIDE
(I) 		8-97601-850-0 01 1 0107- ●
87 STAY; FAN GUIDE
(F) 		8-94393-778-2 01 1 9610-0106 ●
87 STAY; FAN GUIDE
(F) 		8-94393-778-2 01 1 0107- ●
97 TUBE; DIST,FAN GUIDE 9-09651-072-0 03 1 9604-9606 ●
97 TUBE; DIST,FAN GUIDE 9-09651-072-0 03 1 9607-9803 ● ● ●
97 TUBE; DIST,FAN GUIDE 9-09651-072-0 03 1 9804-0106 ● ●
97 TUBE; DIST,FAN GUIDE 9-09651-072-0 03 1 0107- ● ●
98 BOLT; RAD FAN GUIDE
M8X25 FLANGE 		0-28080-825-0 03 1 9601-9601 ● ●
98 BOLT; RAD FAN GUIDE
M8X25 FLANGE 		0-28080-825-0 03 1 9602-9606 ●
98 BOLT; RAD FAN GUIDE
M8X30 FLANGE 		0-28080-830-0 03 1 9602-9606 ●
98 BOLT; RAD FAN GUIDE
M8X30 FLANGE 		0-28680-830-0 03 1 9607-9803 ● ● ●
98 BOLT; RAD FAN GUIDE
M8X30 FLANGE 		0-28680-830-0 03 1 9804-0106 ● ●
98 BOLT; RAD FAN GUIDE
M8X30 FLANGE 		0-28680-830-0 03 1 0107-0512 ● ●
98 BOLT; RAD FAN GUIDE
M8X30 FLANGE 		0-28650-830-0 03 1 0601- ● ●
100 RUBBER; MTG
(A) 		8-94395-766-0 06 1 9604-9606 ●
100 RUBBER; MTG
(B) 		1-09337-027-0 06 1 9601-9603 ● ●
100 RUBBER; MTG
(B) 		1-09337-027-0 06 1 9604-9606 ●
100 RUBBER; MTG
(A) 		8-94395-766-0 06 1 9607-9803 ● ● ●
100 RUBBER; MTG
(A) 		8-94395-766-0 06 1 9804-0106 ● ●
100 RUBBER; MTG
(A) 		8-94395-766-0 06 1 0107- ● ●
100 RUBBER; MTG
(C) 		8-94394-268-1 01 1 9610-0106 ●
100 RUBBER; MTG
(C) 		8-94394-268-1 01 1 0107-0910 ●
100 RUBBER; MTG
(C) 		8-98148-109-0 01 1 0911- ●
114 BOLT; STAY
M8X16 FLANGE 		0-28080-816-0 04 1 9601-0106 ●
211 HOSE; RAD TO PIPE
L=430 SERVICED BY L=3000 		0-03257-300-0 01 1 9601-9609 ●
211 HOSE; RAD TO PIPE
L=430 SERVICED BY L=3000 		0-03257-300-0 01 1 9610-9705 ● ●
211 HOSE; RAD TO PIPE
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> L=430 SERVICED BY L=3000 		0-03257-300-0 01 1 9706-9803 ●
211 HOSE; RAD TO PIPE
L=430 SERVICED BY L=3000 		0-03257-300-0 01 1 9706-9803 ●
211 HOSE; RAD TO PIPE
L=430 SERVICED BY L=3000 		0-03257-300-0 01 1 9804-0106 ●
211 HOSE; RAD TO PIPE
L=660 SERVICED BY L=3000 		0-03257-300-0 01 1 0107-0109 ●
211 HOSE; RAD TO PIPE
L=660 SERVICED BY L=3000 		0-03557-300-0 01 1 0110- ●
211 HOSE; RAD TO PIPE
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> L=290 SERVICED BY L=3000 		0-03257-300-0 01 1 9706-9803 ●
211 HOSE; RAD TO PIPE
L=350 SERVICED BY L=3000 		0-03257-300-0 01 1 9601-0106 ●
211 HOSE; RAD TO PIPE
L=230 SERVICED BY L=3000 		0-03257-300-0 01 1 0107-0207 ●
211 HOSE; RAD TO PIPE
L=260 SERVICED BY L=3000 		0-03557-300-0 01 1 0208- ●
214 HOSE; PIPE TO RESERVE TANK
L=1300 SERVICED BY L=3000 		0-03257-300-0 01 1 9601-9609 ●
214 HOSE; PIPE TO RESERVE TANK
L=1300 SERVICED BY L=3000 		0-03257-300-0 01 1 9610-9702 ● ●
214 HOSE; PIPE TO RESERVE TANK
L=1300 SERVICED BY L=3000 		0-03257-300-0 01 1 9703-9705 ●
214 HOSE; PIPE TO RESERVE TANK
EXC. EURO2 SPECIFICATION<THN> L=1300 SERVICED BY L=3000 		0-03257-300-0 01 1 9703-9705 ●
214 HOSE; PIPE TO RESERVE TANK
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> L=1300 SERVICED BY L=3000 		0-03257-300-0 01 1 9706-9803 ●
214 HOSE; PIPE TO RESERVE TANK
EXC. EURO2 SPECIFICATION<THN> L=1300 SERVICED BY L=3000 		0-03257-300-0 01 1 9706-9803 ●
214 HOSE; PIPE TO RESERVE TANK
L=1200 SERVICED BY L=3000 		0-03257-300-0 01 1 9601-9705 ●
214 HOSE; PIPE TO RESERVE TANK
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> L=1200 SERVICED BY L=3000 		0-03257-300-0 01 1 9706-9803 ●
214 HOSE; PIPE TO RESERVE TANK
L=1200 SERVICED BY L=3000 		0-03257-300-0 01 1 9706-9803 ●
214 HOSE; PIPE TO RESERVE TANK
L=1200 SERVICED BY L=3000 		0-03257-300-0 01 1 9804-0106 ●
214 HOSE; PIPE TO RESERVE TANK
L=760 SERVICED BY L=3000 		0-03257-300-0 01 1 0107-0109 ●
214 HOSE; PIPE TO RESERVE TANK
L=760 SERVICED BY L=3000 		0-03557-300-0 01 1 0110- ●
214 HOSE; PIPE TO RESERVE TANK
EURO2 SPECIFICATION<THN> L=1400 SERVICED BY L=3000 		0-03257-300-0 01 1 9703-9803 ●
214 HOSE; PIPE TO RESERVE TANK
L=1400 SERVICED BY L=3000 		0-03257-300-0 01 1 9804-0106 ●
214 HOSE; PIPE TO RESERVE TANK
L=1350 SERVICED BY L=3000 		0-03257-300-0 01 1 0107-0109 ●
214 HOSE; PIPE TO RESERVE TANK
L=1350 SERVICED BY L=3000 		0-03557-300-0 01 1 0110- ●
220 NUT; CLIP
M8 		9-09110-408-0 03 1 9601-9606 ● ●
220 NUT; CLIP
M8 FLANGE 		0-91150-108-0 03 1 9607-9803 ● ● ●
220 NUT; CLIP
M8 FLANGE 		0-91150-108-0 03 1 9804-0004 ● ●
220 NUT; CLIP
M8 FLANGE 		0-91150-108-0 04 1 0005-0106 ● ●
220 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 9610-0106 ●
220 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 0107-0602 ●
220 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0603- ●
220 NUT; CLIP
EURO2 SPECIFICATION<THN> M8 FLANGE 		0-91150-108-0 01 1 9703-9803 ●
220 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 9804-0106 ●
220 NUT; CLIP
M8 FLANGE 		0-91150-108-0 04 1 0107-0107 ●
220 NUT; CLIP
M8 FLANGE 		0-91150-108-0 05 1 0107-0602 ●
220 NUT; CLIP
M8 FLANGE 		0-91180-108-0 05 1 0603- ●
249 BOLT; STAY,RAD MBR
M8X30 		1-09009-020-1 04 1 9601-9609 ●
249 BOLT; STAY,RAD MBR
M8X30 		1-09009-020-1 04 1 9610-9803 ●
249 BOLT; STAY,RAD MBR
EURO2 SPECIFICATION<THN> M8X30 		1-09009-020-1 04 1 9610-9803 ●
249 BOLT; STAY,RAD MBR
M8X30 		1-09009-020-1 04 1 9804-0106 ● ●
249 BOLT; STAY,RAD MBR
M8X30 		1-09009-020-1 04 1 0107-0205 ●
249 BOLT; STAY,RAD MBR
M8X30 		1-09009-020-1 02 1 0206- ●
249 BOLT; STAY,RAD MBR
M8X22 		1-09009-123-0 02 1 0206- ●
279 BELL MOUTH 8-94394-808-2 01 1 9601-9803 ●
279 BELL MOUTH 1-21551-395-0 01 1 9601- ●
279 BELL MOUTH 8-94394-174-1 01 1 9610-9612 ●
279 BELL MOUTH
EXC. EURO2 SPECIFICATION<THN> 		8-94394-174-1 01 1 9701-9803 ●
279 BELL MOUTH
EURO2 SPECIFICATION<THN> 		8-94393-779-0 01 1 9701-9803 ●
279 BELL MOUTH 8-94393-779-0 01 1 9804-0106 ●
279 BELL MOUTH 8-97601-172-1 01 1 0107- ●

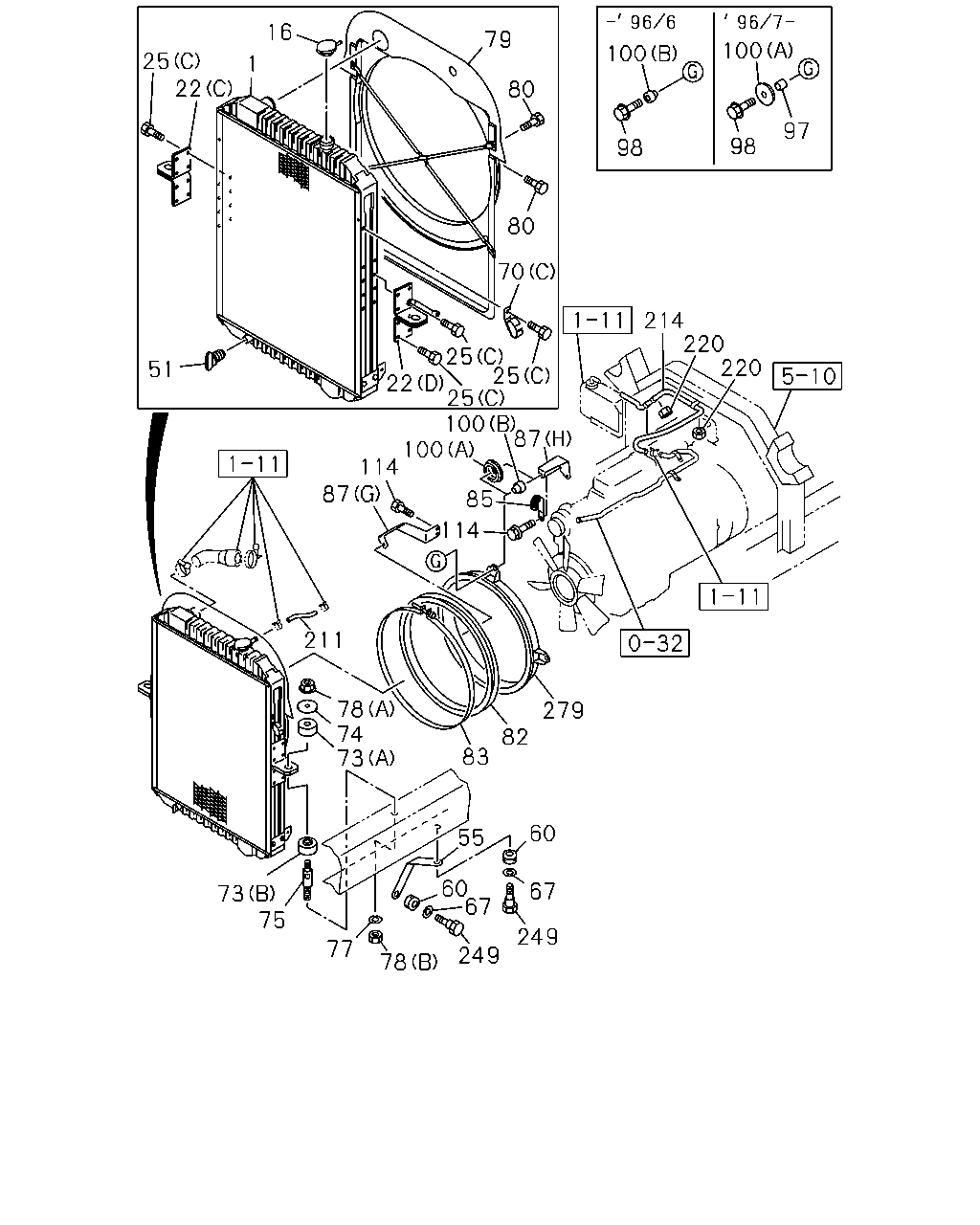

çizim 103610
16 79 100 100 25 22 1 80 97 98 98 80 70 214 220 220 25 25 22 25 100 87 100 114 87 51 85 114 211 78 74 73 279 82 83 60 55 60 67 67 73 75 249 77 249 78
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 RADIATOR ASM 1-21410-711-1 01 1 9601-9609 ●
1 RADIATOR ASM 1-21410-711-1 01 1 9610-9803 ●
1 RADIATOR ASM
EXC. EURO2 SPECIFICATION<THN> 		1-21410-711-1 01 1 9610-9803 ●
1 RADIATOR ASM 1-21410-708-0 01 1 9601-0106 ●
1 RADIATOR ASM 1-21410-875-0 01 1 0107- ●
1 RADIATOR ASM
EURO2 SPECIFICATION<THN> 		1-21410-741-2 01 1 9610-9803 ●
1 RADIATOR ASM 1-21410-741-2 01 1 9804-0106 ●
1 RADIATOR ASM 1-21410-876-0 01 1 0107- ●
16 CAP; RAD 1-21450-053-1 01 1 9601-9609 ● ●
16 CAP; RAD 1-21450-053-1 01 1 9610-9803 ● ● ●
16 CAP; RAD 1-21450-053-1 01 1 9804-0106 ● ●
16 CAP; RAD 1-21450-053-2 01 1 0107- ●
16 CAP; RAD 1-21450-097-2 01 1 0107- ●
22 BRACKET; RAD MTG
(B) 		1-21464-462-0 01 1 9601-9601 ●
22 BRACKET; RAD MTG
(B) 		1-21464-491-2 01 1 9602-9609 ●
22 BRACKET; RAD MTG
(B) 		1-21464-491-2 01 1 9610-9704 ●
22 BRACKET; RAD MTG
EXC. EURO2 SPECIFICATION<THN> (B) 		1-21464-491-2 01 1 9610-9704 ●
22 BRACKET; RAD MTG
(B) 		1-21464-546-0 01 1 9705-9803 ●
22 BRACKET; RAD MTG
EXC. EURO2 SPECIFICATION<THN> (B) 		1-21464-546-0 01 1 9705-9803 ●
22 BRACKET; RAD MTG
(A) 		1-21464-463-1 01 1 9601-9609 ●
22 BRACKET; RAD MTG
(A) 		1-21464-463-1 01 1 9610-9803 ● ●
22 BRACKET; RAD MTG
(A) 		1-21464-463-1 01 1 9804-0106 ●
22 BRACKET; RAD MTG
(E) 		1-21464-668-0 01 1 0107- ●
22 BRACKET; RAD MTG
(C) 		1-21464-458-0 01 1 9601- ●
22 BRACKET; RAD MTG
(D) 		1-21464-459-0 01 1 9601-9609 ●
22 BRACKET; RAD MTG
(D) 		1-21464-520-0 01 1 9610-0303 ●
22 BRACKET; RAD MTG
(D) 		1-21464-749-0 01 1 0304- ●
22 BRACKET; RAD MTG
EURO2 SPECIFICATION<THN> (B) 		1-21464-530-0 01 1 9610-9704 ●
22 BRACKET; RAD MTG
EURO2 SPECIFICATION<THN> (B) 		1-21464-549-0 01 1 9705-9803 ●
22 BRACKET; RAD MTG
(B) 		1-21464-549-0 01 1 9804-0106 ●
22 BRACKET; RAD MTG
(F) 		1-21464-737-0 01 1 0107- ●
25 BOLT; BRKT
(C) M8X12 FLANGE 		0-28080-812-0 15 1 0304- ●
25 BOLT; BRKT
(A) M8X12 FLANGE 		0-28080-812-0 15 1 9601-9609 ●
25 BOLT; BRKT
(A) M8X12 FLANGE 		0-28080-812-0 15 1 9610-9803 ● ●
25 BOLT; BRKT
(A) M8X12 FLANGE 		0-28080-812-0 15 1 9804-0106 ●
25 BOLT; BRKT
(D) M8X20 FLANGE 		0-28680-820-0 01 1 0107-0512 ●
25 BOLT; BRKT
(D) M8X20 FLANGE 		0-28650-820-0 01 1 0601- ●
25 BOLT; BRKT
(B) M8X16 FLANGE 		0-28080-816-0 01 1 9601-9609 ●
25 BOLT; BRKT
(B) M8X16 FLANGE 		0-28080-816-0 01 1 9610-9803 ● ●
25 BOLT; BRKT
(B) M8X16 FLANGE 		0-28080-816-0 01 1 9804-0106 ●
25 BOLT; BRKT
(B) M8X16 FLANGE 		0-28080-816-0 01 1 0107- ● ●
25 BOLT; BRKT
(C) M8X12 FLANGE 		0-28080-812-0 17 1 9601-0106 ●
25 BOLT; BRKT
(C) M8X12 FLANGE 		0-28080-812-0 15 1 0107-0303 ● ●
25 BOLT; BRKT
(C) M8X12 FLANGE 		0-28080-812-0 14 1 0304- ●
51 PLUG; DRAIN
W/GASKET 		1-09609-009-0 01 1 9601-9609 ● ●
51 PLUG; DRAIN
W/GASKET 		1-09609-009-0 01 1 9610-9803 ● ● ●
51 PLUG; DRAIN
W/GASKET 		1-09609-009-0 01 1 9804-0106 ● ●
51 PLUG; DRAIN
W/GASKET 		1-09609-009-0 01 1 0107- ● ●
55 STAY; RAD TO UPR MBR 1-21464-453-0 01 1 9601-9609 ●
55 STAY; RAD TO UPR MBR 1-21464-453-0 01 1 9610-9803 ●
55 STAY; RAD TO UPR MBR
EURO2 SPECIFICATION<THN> 		1-21464-453-0 01 1 9610-9803 ●
55 STAY; RAD TO UPR MBR 1-21464-453-0 01 1 9804- ●
55 STAY; RAD TO UPR MBR 1-21464-452-0 01 1 9601-9609 ●
55 STAY; RAD TO UPR MBR 1-21464-452-0 01 1 9610-9803 ●
55 STAY; RAD TO UPR MBR
EURO2 SPECIFICATION<THN> 		1-21464-452-0 01 1 9610-9803 ●
55 STAY; RAD TO UPR MBR 1-21464-452-0 01 1 9804- ●
55 STAY; RAD TO UPR MBR 1-21464-570-0 01 1 9804-0106 ●
55 STAY; RAD TO UPR MBR 1-21464-569-0 01 1 9804-0106 ●
60 GROMMET 1-09332-117-0 04 1 9601-9609 ●
60 GROMMET 1-09332-117-0 04 1 9610-9803 ●
60 GROMMET
EURO2 SPECIFICATION<THN> 		1-09332-117-0 04 1 9610-9803 ●
60 GROMMET 1-09332-117-0 04 1 9804-0106 ● ●
60 GROMMET 1-09332-117-0 04 1 0107- ● ●
67 WASHER; PL,STAY,RAD MBR
ID=12.5 OD=26 		9-09160-612-0 04 1 9601-9609 ●
67 WASHER; PL,STAY,RAD MBR
ID=12.5 OD=26 		9-09160-612-0 04 1 9610-9803 ●
67 WASHER; PL,STAY,RAD MBR
EURO2 SPECIFICATION<THN> ID=12.5 OD=26 		9-09160-612-0 04 1 9610-9803 ●
67 WASHER; PL,STAY,RAD MBR
ID=12.5 OD=26 		9-09160-612-0 04 1 9804-0106 ● ●
67 WASHER; PL,STAY,RAD MBR
ID=12.5 OD=26 		9-09160-612-0 04 1 0107-0605 ●
67 WASHER; PL,STAY,RAD MBR
ID=12.5 OD=26 		0-91610-612-0 04 1 0606- ●
70 STAY; RAD
(A) 		1-21522-064-0 01 1 9601-9609 ●
70 STAY; RAD
(A) 		1-21522-064-0 01 1 9610-9803 ●
70 STAY; RAD
EXC. EURO2 SPECIFICATION<THN> (A) 		1-21522-064-0 01 1 9610-9803 ●
70 STAY; RAD
(B) 		1-21522-070-0 01 1 9601-9609 ●
70 STAY; RAD
(B) 		1-21522-070-0 01 1 9610-9803 ●
70 STAY; RAD
EXC. EURO2 SPECIFICATION<THN> (B) 		1-21522-070-0 01 1 9610-9803 ●
70 STAY; RAD
(C) 		1-83571-875-0 01 1 9601- ●
73 RUBBER; CUSHION,RAD MTG
(A) T=14 		1-21467-004-0 02 1 9601-9803 ● ● ●
73 RUBBER; CUSHION,RAD MTG
(A) T=14 		1-21467-004-0 02 1 9804-0106 ● ●
73 RUBBER; CUSHION,RAD MTG
(A) T=14 		1-21467-004-0 02 1 0107- ● ●
73 RUBBER; CUSHION,RAD MTG
(B) T=24 		1-21467-011-1 02 1 9601-9803 ● ● ●
73 RUBBER; CUSHION,RAD MTG
(B) T=24 		1-21467-011-1 02 1 9804-0106 ● ●
73 RUBBER; CUSHION,RAD MTG
(B) T=24 		1-21467-011-1 02 1 0107- ● ●
74 WASHER; PL,CUSHION RUBBER
ID=11 OD=54 		1-09503-154-1 02 1 9601-9604 ● ● ●
74 WASHER; PL,CUSHION RUBBER
OD=55 		9-09852-169-0 02 1 9605-9803 ● ● ●
74 WASHER; PL,CUSHION RUBBER
OD=55 		9-09852-169-0 02 1 9804-0106 ● ●
74 WASHER; PL,CUSHION RUBBER
OD=55 		9-09852-169-0 02 1 0107- ● ●
75 BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5 		1-21466-007-2 02 1 9601-9803 ● ● ●
75 BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5 		1-21466-007-2 02 1 9804-0106 ● ●
75 BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5 		1-21466-007-3 02 1 0107- ● ●
77 WASHER; LK,CUSHION RUBBER
ID=12.2 		9-09150-512-0 02 1 9601-9702 ● ● ●
78 NUT; CUSHION RUBBER
(A) M10 FLANGE 		5-09440-006-0 02 1 9601-9803 ● ● ●
78 NUT; CUSHION RUBBER
(A) M10 FLANGE 		5-09440-006-0 02 1 9804-0106 ● ●
78 NUT; CUSHION RUBBER
(A) M10 FLANGE 		5-09440-006-0 02 1 0107- ● ●
78 NUT; CUSHION RUBBER
(B) M12 		9-99110-512-0 02 1 9601-9702 ● ● ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91150-212-0 02 1 9703-9803 ● ● ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91150-212-0 02 1 9804-0106 ● ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91150-212-0 02 1 0107-0602 ● ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91180-212-0 02 1 0603- ● ●
79 GUIDE; FAN,RAD 1-21551-374-2 01 1 9601-9609 ●
79 GUIDE; FAN,RAD 1-21551-374-2 01 1 9610-9803 ●
79 GUIDE; FAN,RAD
EXC. EURO2 SPECIFICATION<THN> 		1-21551-374-2 01 1 9610-9803 ●
79 GUIDE; FAN,RAD 1-21551-397-1 01 1 9601-0106 ●
79 GUIDE; FAN,RAD 1-21551-531-0 01 1 0107- ●
79 GUIDE; FAN,RAD
EURO2 SPECIFICATION<THN> 		1-21551-424-0 01 1 9610-9803 ●
79 GUIDE; FAN,RAD 1-21551-424-0 01 1 9804-9804 ●
79 GUIDE; FAN,RAD 1-21551-452-0 01 1 9804-0106 ●
79 GUIDE; FAN,RAD 1-21551-532-0 01 1 0107- ●
80 BOLT; FAN GUIDE
M6X12 FLANGE 		0-28080-612-0 04 1 9601-9803 ● ●
80 BOLT; FAN GUIDE
M6X12 FLANGE 		0-28080-612-0 04 1 9804-0106 ●
80 BOLT; FAN GUIDE
M6X10 FLANGE 		0-28080-610-0 04 1 0107- ●
80 BOLT; FAN GUIDE
M6X10 FLANGE 		0-28080-610-0 04 1 9610-0106 ●
80 BOLT; FAN GUIDE
M6X10 FLANGE 		0-28080-610-0 08 1 0107- ●
82 COVER; FAN,RAD 1-21559-340-0 01 1 9601-9803 ●
82 COVER; FAN,RAD 1-21559-369-0 01 1 9601-9610 ●
82 COVER; FAN,RAD 1-21559-397-0 01 1 9611- ●
82 COVER; FAN,RAD 1-21559-211-0 01 1 9610-9612 ●
82 COVER; FAN,RAD
EXC. EURO2 SPECIFICATION<THN> 		1-21559-211-0 01 1 9701-9803 ●
82 COVER; FAN,RAD
EURO2 SPECIFICATION<THN> 		1-21559-321-0 01 1 9701-9803 ●
82 COVER; FAN,RAD 1-21559-321-0 01 1 9804-0106 ●
82 COVER; FAN,RAD 1-21559-321-0 01 1 0107- ●
83 CLIP; FAN COVER 1-09707-177-2 01 1 9601-9803 ● ● ●
83 CLIP; FAN COVER 1-09707-177-2 01 1 9804-0106 ● ●
83 CLIP; FAN COVER 1-09707-177-2 01 1 0107- ● ●
85 CLIP
EURO2 SPECIFICATION<THN> ID=18 L=44 		8-94225-185-0 01 1 9610-9803 ●
85 CLIP
ID=18 L=44 		8-94225-185-0 01 1 9804-0106 ●
87 STAY; FAN GUIDE
(C) 		8-94394-775-0 01 1 9601-9803 ●
87 STAY; FAN GUIDE
(A) 		8-94396-496-1 01 1 9601-9803 ●
87 STAY; FAN GUIDE
(B) 		8-94397-395-1 01 1 9601-9803 ●
87 STAY; FAN GUIDE
(G) 		1-21559-373-0 01 1 9601- ●
87 STAY; FAN GUIDE
(H) 		1-21559-379-0 01 1 9601-0106 ●
87 STAY; FAN GUIDE
(J) 		1-21559-457-0 01 1 0107- ●
87 STAY; FAN GUIDE
(D) 		8-94393-776-0 01 1 9610-0106 ●
87 STAY; FAN GUIDE
(D) 		8-94393-776-1 01 1 0107- ●
87 STAY; FAN GUIDE
(E) 		8-94393-777-1 01 1 9610-0012 ●
87 STAY; FAN GUIDE
(I) 		8-97601-850-0 01 1 0101-0106 ●
87 STAY; FAN GUIDE
(I) 		8-97601-850-0 01 1 0107- ●
87 STAY; FAN GUIDE
(F) 		8-94393-778-2 01 1 9610-0106 ●
87 STAY; FAN GUIDE
(F) 		8-94393-778-2 01 1 0107- ●
97 TUBE; DIST,FAN GUIDE 9-09651-072-0 03 1 9604-9606 ●
97 TUBE; DIST,FAN GUIDE 9-09651-072-0 03 1 9607-9803 ● ● ●
97 TUBE; DIST,FAN GUIDE 9-09651-072-0 03 1 9804-0106 ● ●
97 TUBE; DIST,FAN GUIDE 9-09651-072-0 03 1 0107- ● ●
98 BOLT; RAD FAN GUIDE
M8X25 FLANGE 		0-28080-825-0 03 1 9601-9601 ● ●
98 BOLT; RAD FAN GUIDE
M8X25 FLANGE 		0-28080-825-0 03 1 9602-9606 ●
98 BOLT; RAD FAN GUIDE
M8X30 FLANGE 		0-28080-830-0 03 1 9602-9606 ●
98 BOLT; RAD FAN GUIDE
M8X30 FLANGE 		0-28680-830-0 03 1 9607-9803 ● ● ●
98 BOLT; RAD FAN GUIDE
M8X30 FLANGE 		0-28680-830-0 03 1 9804-0106 ● ●
98 BOLT; RAD FAN GUIDE
M8X30 FLANGE 		0-28680-830-0 03 1 0107-0512 ● ●
98 BOLT; RAD FAN GUIDE
M8X30 FLANGE 		0-28650-830-0 03 1 0601- ● ●
100 RUBBER; MTG
(A) 		8-94395-766-0 06 1 9604-9606 ●
100 RUBBER; MTG
(B) 		1-09337-027-0 06 1 9601-9603 ● ●
100 RUBBER; MTG
(B) 		1-09337-027-0 06 1 9604-9606 ●
100 RUBBER; MTG
(A) 		8-94395-766-0 06 1 9607-9803 ● ● ●
100 RUBBER; MTG
(A) 		8-94395-766-0 06 1 9804-0106 ● ●
100 RUBBER; MTG
(A) 		8-94395-766-0 06 1 0107- ● ●
100 RUBBER; MTG
(C) 		8-94394-268-1 01 1 9610-0106 ●
100 RUBBER; MTG
(C) 		8-94394-268-1 01 1 0107-0910 ●
100 RUBBER; MTG
(C) 		8-98148-109-0 01 1 0911- ●
114 BOLT; STAY
M8X16 FLANGE 		0-28080-816-0 04 1 9601-0106 ●
211 HOSE; RAD TO PIPE
L=430 SERVICED BY L=3000 		0-03257-300-0 01 1 9601-9609 ●
211 HOSE; RAD TO PIPE
L=430 SERVICED BY L=3000 		0-03257-300-0 01 1 9610-9705 ● ●
211 HOSE; RAD TO PIPE
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> L=430 SERVICED BY L=3000 		0-03257-300-0 01 1 9706-9803 ●
211 HOSE; RAD TO PIPE
L=430 SERVICED BY L=3000 		0-03257-300-0 01 1 9706-9803 ●
211 HOSE; RAD TO PIPE
L=430 SERVICED BY L=3000 		0-03257-300-0 01 1 9804-0106 ●
211 HOSE; RAD TO PIPE
L=660 SERVICED BY L=3000 		0-03257-300-0 01 1 0107-0109 ●
211 HOSE; RAD TO PIPE
L=660 SERVICED BY L=3000 		0-03557-300-0 01 1 0110- ●
211 HOSE; RAD TO PIPE
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> L=290 SERVICED BY L=3000 		0-03257-300-0 01 1 9706-9803 ●
211 HOSE; RAD TO PIPE
L=350 SERVICED BY L=3000 		0-03257-300-0 01 1 9601-0106 ●
211 HOSE; RAD TO PIPE
L=230 SERVICED BY L=3000 		0-03257-300-0 01 1 0107-0207 ●
211 HOSE; RAD TO PIPE
L=260 SERVICED BY L=3000 		0-03557-300-0 01 1 0208- ●
214 HOSE; PIPE TO RESERVE TANK
L=1300 SERVICED BY L=3000 		0-03257-300-0 01 1 9601-9609 ●
214 HOSE; PIPE TO RESERVE TANK
L=1300 SERVICED BY L=3000 		0-03257-300-0 01 1 9610-9702 ● ●
214 HOSE; PIPE TO RESERVE TANK
L=1300 SERVICED BY L=3000 		0-03257-300-0 01 1 9703-9705 ●
214 HOSE; PIPE TO RESERVE TANK
EXC. EURO2 SPECIFICATION<THN> L=1300 SERVICED BY L=3000 		0-03257-300-0 01 1 9703-9705 ●
214 HOSE; PIPE TO RESERVE TANK
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> L=1300 SERVICED BY L=3000 		0-03257-300-0 01 1 9706-9803 ●
214 HOSE; PIPE TO RESERVE TANK
EXC. EURO2 SPECIFICATION<THN> L=1300 SERVICED BY L=3000 		0-03257-300-0 01 1 9706-9803 ●
214 HOSE; PIPE TO RESERVE TANK
L=1200 SERVICED BY L=3000 		0-03257-300-0 01 1 9601-9705 ●
214 HOSE; PIPE TO RESERVE TANK
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> L=1200 SERVICED BY L=3000 		0-03257-300-0 01 1 9706-9803 ●
214 HOSE; PIPE TO RESERVE TANK
L=1200 SERVICED BY L=3000 		0-03257-300-0 01 1 9706-9803 ●
214 HOSE; PIPE TO RESERVE TANK
L=1200 SERVICED BY L=3000 		0-03257-300-0 01 1 9804-0106 ●
214 HOSE; PIPE TO RESERVE TANK
L=760 SERVICED BY L=3000 		0-03257-300-0 01 1 0107-0109 ●
214 HOSE; PIPE TO RESERVE TANK
L=760 SERVICED BY L=3000 		0-03557-300-0 01 1 0110- ●
214 HOSE; PIPE TO RESERVE TANK
EURO2 SPECIFICATION<THN> L=1400 SERVICED BY L=3000 		0-03257-300-0 01 1 9703-9803 ●
214 HOSE; PIPE TO RESERVE TANK
L=1400 SERVICED BY L=3000 		0-03257-300-0 01 1 9804-0106 ●
214 HOSE; PIPE TO RESERVE TANK
L=1350 SERVICED BY L=3000 		0-03257-300-0 01 1 0107-0109 ●
214 HOSE; PIPE TO RESERVE TANK
L=1350 SERVICED BY L=3000 		0-03557-300-0 01 1 0110- ●
220 NUT; CLIP
M8 		9-09110-408-0 03 1 9601-9606 ● ●
220 NUT; CLIP
M8 FLANGE 		0-91150-108-0 03 1 9607-9803 ● ● ●
220 NUT; CLIP
M8 FLANGE 		0-91150-108-0 03 1 9804-0004 ● ●
220 NUT; CLIP
M8 FLANGE 		0-91150-108-0 04 1 0005-0106 ● ●
220 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 9610-0106 ●
220 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 0107-0602 ●
220 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0603- ●
220 NUT; CLIP
EURO2 SPECIFICATION<THN> M8 FLANGE 		0-91150-108-0 01 1 9703-9803 ●
220 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 9804-0106 ●
220 NUT; CLIP
M8 FLANGE 		0-91150-108-0 04 1 0107-0107 ●
220 NUT; CLIP
M8 FLANGE 		0-91150-108-0 05 1 0107-0602 ●
220 NUT; CLIP
M8 FLANGE 		0-91180-108-0 05 1 0603- ●
249 BOLT; STAY,RAD MBR
M8X30 		1-09009-020-1 04 1 9601-9609 ●
249 BOLT; STAY,RAD MBR
M8X30 		1-09009-020-1 04 1 9610-9803 ●
249 BOLT; STAY,RAD MBR
EURO2 SPECIFICATION<THN> M8X30 		1-09009-020-1 04 1 9610-9803 ●
249 BOLT; STAY,RAD MBR
M8X30 		1-09009-020-1 04 1 9804-0106 ● ●
249 BOLT; STAY,RAD MBR
M8X30 		1-09009-020-1 04 1 0107-0205 ●
249 BOLT; STAY,RAD MBR
M8X30 		1-09009-020-1 02 1 0206- ●
249 BOLT; STAY,RAD MBR
M8X22 		1-09009-123-0 02 1 0206- ●
279 BELL MOUTH 8-94394-808-2 01 1 9601-9803 ●
279 BELL MOUTH 1-21551-395-0 01 1 9601- ●
279 BELL MOUTH 8-94394-174-1 01 1 9610-9612 ●
279 BELL MOUTH
EXC. EURO2 SPECIFICATION<THN> 		8-94394-174-1 01 1 9701-9803 ●
279 BELL MOUTH
EURO2 SPECIFICATION<THN> 		8-94393-779-0 01 1 9701-9803 ●
279 BELL MOUTH 8-94393-779-0 01 1 9804-0106 ●
279 BELL MOUTH 8-97601-172-1 01 1 0107- ●

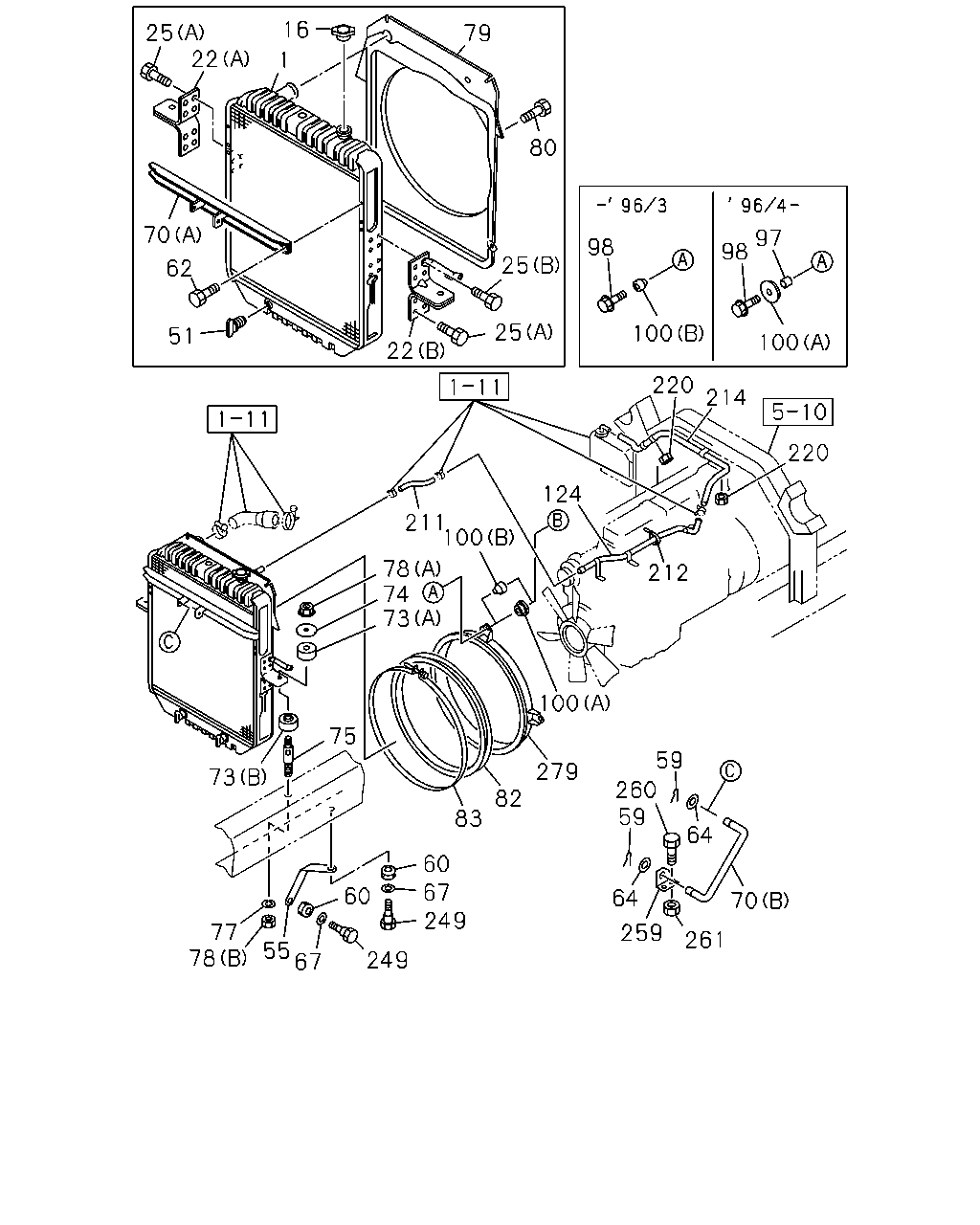

çizim 103729
16 25 22 79 1 80 70 97 98 98 25 62 25 100 51 100 22 220 214 220 124 211 100 78 74 73 212 100 75 59 279 73 260 59 82 83 64 60 67 249 60 64 70 77 78 259 261 55 67 249
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 RADIATOR ASM 1-21410-711-1 01 1 9601-9609 ●
1 RADIATOR ASM 1-21410-711-1 01 1 9610-9803 ●
1 RADIATOR ASM
EXC. EURO2 SPECIFICATION<THN> 		1-21410-711-1 01 1 9610-9803 ●
1 RADIATOR ASM 1-21410-708-0 01 1 9601-0106 ●
1 RADIATOR ASM 1-21410-875-0 01 1 0107- ●
1 RADIATOR ASM
EURO2 SPECIFICATION<THN> 		1-21410-741-2 01 1 9610-9803 ●
1 RADIATOR ASM 1-21410-741-2 01 1 9804-0106 ●
1 RADIATOR ASM 1-21410-876-0 01 1 0107- ●
16 CAP; RAD 1-21450-053-1 01 1 9601-9609 ● ●
16 CAP; RAD 1-21450-053-1 01 1 9610-9803 ● ● ●
16 CAP; RAD 1-21450-053-1 01 1 9804-0106 ● ●
16 CAP; RAD 1-21450-053-2 01 1 0107- ●
16 CAP; RAD 1-21450-097-2 01 1 0107- ●
22 BRACKET; RAD MTG
(B) 		1-21464-462-0 01 1 9601-9601 ●
22 BRACKET; RAD MTG
(B) 		1-21464-491-2 01 1 9602-9609 ●
22 BRACKET; RAD MTG
(B) 		1-21464-491-2 01 1 9610-9704 ●
22 BRACKET; RAD MTG
EXC. EURO2 SPECIFICATION<THN> (B) 		1-21464-491-2 01 1 9610-9704 ●
22 BRACKET; RAD MTG
(B) 		1-21464-546-0 01 1 9705-9803 ●
22 BRACKET; RAD MTG
EXC. EURO2 SPECIFICATION<THN> (B) 		1-21464-546-0 01 1 9705-9803 ●
22 BRACKET; RAD MTG
(A) 		1-21464-463-1 01 1 9601-9609 ●
22 BRACKET; RAD MTG
(A) 		1-21464-463-1 01 1 9610-9803 ● ●
22 BRACKET; RAD MTG
(A) 		1-21464-463-1 01 1 9804-0106 ●
22 BRACKET; RAD MTG
(E) 		1-21464-668-0 01 1 0107- ●
22 BRACKET; RAD MTG
(C) 		1-21464-458-0 01 1 9601- ●
22 BRACKET; RAD MTG
(D) 		1-21464-459-0 01 1 9601-9609 ●
22 BRACKET; RAD MTG
(D) 		1-21464-520-0 01 1 9610-0303 ●
22 BRACKET; RAD MTG
(D) 		1-21464-749-0 01 1 0304- ●
22 BRACKET; RAD MTG
EURO2 SPECIFICATION<THN> (B) 		1-21464-530-0 01 1 9610-9704 ●
22 BRACKET; RAD MTG
EURO2 SPECIFICATION<THN> (B) 		1-21464-549-0 01 1 9705-9803 ●
22 BRACKET; RAD MTG
(B) 		1-21464-549-0 01 1 9804-0106 ●
22 BRACKET; RAD MTG
(F) 		1-21464-737-0 01 1 0107- ●
25 BOLT; BRKT
(C) M8X12 FLANGE 		0-28080-812-0 15 1 0304- ●
25 BOLT; BRKT
(A) M8X12 FLANGE 		0-28080-812-0 15 1 9601-9609 ●
25 BOLT; BRKT
(A) M8X12 FLANGE 		0-28080-812-0 15 1 9610-9803 ● ●
25 BOLT; BRKT
(A) M8X12 FLANGE 		0-28080-812-0 15 1 9804-0106 ●
25 BOLT; BRKT
(D) M8X20 FLANGE 		0-28680-820-0 01 1 0107-0512 ●
25 BOLT; BRKT
(D) M8X20 FLANGE 		0-28650-820-0 01 1 0601- ●
25 BOLT; BRKT
(B) M8X16 FLANGE 		0-28080-816-0 01 1 9601-9609 ●
25 BOLT; BRKT
(B) M8X16 FLANGE 		0-28080-816-0 01 1 9610-9803 ● ●
25 BOLT; BRKT
(B) M8X16 FLANGE 		0-28080-816-0 01 1 9804-0106 ●
25 BOLT; BRKT
(B) M8X16 FLANGE 		0-28080-816-0 01 1 0107- ● ●
25 BOLT; BRKT
(C) M8X12 FLANGE 		0-28080-812-0 17 1 9601-0106 ●
25 BOLT; BRKT
(C) M8X12 FLANGE 		0-28080-812-0 15 1 0107-0303 ● ●
25 BOLT; BRKT
(C) M8X12 FLANGE 		0-28080-812-0 14 1 0304- ●
51 PLUG; DRAIN
W/GASKET 		1-09609-009-0 01 1 9601-9609 ● ●
51 PLUG; DRAIN
W/GASKET 		1-09609-009-0 01 1 9610-9803 ● ● ●
51 PLUG; DRAIN
W/GASKET 		1-09609-009-0 01 1 9804-0106 ● ●
51 PLUG; DRAIN
W/GASKET 		1-09609-009-0 01 1 0107- ● ●
55 STAY; RAD TO UPR MBR 1-21464-453-0 01 1 9601-9609 ●
55 STAY; RAD TO UPR MBR 1-21464-453-0 01 1 9610-9803 ●
55 STAY; RAD TO UPR MBR
EURO2 SPECIFICATION<THN> 		1-21464-453-0 01 1 9610-9803 ●
55 STAY; RAD TO UPR MBR 1-21464-453-0 01 1 9804- ●
55 STAY; RAD TO UPR MBR 1-21464-452-0 01 1 9601-9609 ●
55 STAY; RAD TO UPR MBR 1-21464-452-0 01 1 9610-9803 ●
55 STAY; RAD TO UPR MBR
EURO2 SPECIFICATION<THN> 		1-21464-452-0 01 1 9610-9803 ●
55 STAY; RAD TO UPR MBR 1-21464-452-0 01 1 9804- ●
55 STAY; RAD TO UPR MBR 1-21464-570-0 01 1 9804-0106 ●
55 STAY; RAD TO UPR MBR 1-21464-569-0 01 1 9804-0106 ●
59 PIN; SNAP,STAY 1-09987-158-1 02 1 9601-9609 ●
59 PIN; SNAP,STAY 1-09987-158-1 02 1 9610-9803 ●
59 PIN; SNAP,STAY
EXC. EURO2 SPECIFICATION<THN> 		1-09987-158-1 02 1 9610-9803 ●
60 GROMMET 1-09332-117-0 04 1 9601-9609 ●
60 GROMMET 1-09332-117-0 04 1 9610-9803 ●
60 GROMMET
EURO2 SPECIFICATION<THN> 		1-09332-117-0 04 1 9610-9803 ●
60 GROMMET 1-09332-117-0 04 1 9804-0106 ● ●
60 GROMMET 1-09332-117-0 04 1 0107- ● ●
62 BOLT; STAY
M8X12 FLANGE 		0-28080-812-0 02 1 9601-9609 ●
62 BOLT; STAY
M8X12 FLANGE 		0-28080-812-0 02 1 9610-9803 ●
62 BOLT; STAY
EXC. EURO2 SPECIFICATION<THN> M8X12 FLANGE 		0-28080-812-0 02 1 9610-9803 ●
64 WASHER; STAY TO RAD
ID=12.5 		9-09160-512-0 02 1 9601-9609 ●
64 WASHER; STAY TO RAD
ID=12.5 		9-09160-512-0 02 1 9610-9803 ●
64 WASHER; STAY TO RAD
EXC. EURO2 SPECIFICATION<THN> ID=12.5 		9-09160-512-0 02 1 9610-9803 ●
64 WASHER; STAY TO RAD
ID=12.5 OD=26 		9-09160-612-0 04 1 0107-0605 ●
64 WASHER; STAY TO RAD
ID=12.5 OD=26 		0-91610-612-0 04 1 0606- ●
67 WASHER; PL,STAY,RAD MBR
ID=12.5 OD=26 		9-09160-612-0 04 1 9601-9609 ●
67 WASHER; PL,STAY,RAD MBR
ID=12.5 OD=26 		9-09160-612-0 04 1 9610-9803 ●
67 WASHER; PL,STAY,RAD MBR
EURO2 SPECIFICATION<THN> ID=12.5 OD=26 		9-09160-612-0 04 1 9610-9803 ●
67 WASHER; PL,STAY,RAD MBR
ID=12.5 OD=26 		9-09160-612-0 04 1 9804-0106 ● ●
67 WASHER; PL,STAY,RAD MBR
ID=12.5 OD=26 		9-09160-612-0 04 1 0107-0605 ●
67 WASHER; PL,STAY,RAD MBR
ID=12.5 OD=26 		0-91610-612-0 04 1 0606- ●
70 STAY; RAD
(A) 		1-21522-064-0 01 1 9601-9609 ●
70 STAY; RAD
(A) 		1-21522-064-0 01 1 9610-9803 ●
70 STAY; RAD
EXC. EURO2 SPECIFICATION<THN> (A) 		1-21522-064-0 01 1 9610-9803 ●
70 STAY; RAD
(B) 		1-21522-070-0 01 1 9601-9609 ●
70 STAY; RAD
(B) 		1-21522-070-0 01 1 9610-9803 ●
70 STAY; RAD
EXC. EURO2 SPECIFICATION<THN> (B) 		1-21522-070-0 01 1 9610-9803 ●
70 STAY; RAD
(C) 		1-83571-875-0 01 1 9601- ●
73 RUBBER; CUSHION,RAD MTG
(A) T=14 		1-21467-004-0 02 1 9601-9803 ● ● ●
73 RUBBER; CUSHION,RAD MTG
(A) T=14 		1-21467-004-0 02 1 9804-0106 ● ●
73 RUBBER; CUSHION,RAD MTG
(A) T=14 		1-21467-004-0 02 1 0107- ● ●
73 RUBBER; CUSHION,RAD MTG
(B) T=24 		1-21467-011-1 02 1 9601-9803 ● ● ●
73 RUBBER; CUSHION,RAD MTG
(B) T=24 		1-21467-011-1 02 1 9804-0106 ● ●
73 RUBBER; CUSHION,RAD MTG
(B) T=24 		1-21467-011-1 02 1 0107- ● ●
74 WASHER; PL,CUSHION RUBBER
ID=11 OD=54 		1-09503-154-1 02 1 9601-9604 ● ● ●
74 WASHER; PL,CUSHION RUBBER
OD=55 		9-09852-169-0 02 1 9605-9803 ● ● ●
74 WASHER; PL,CUSHION RUBBER
OD=55 		9-09852-169-0 02 1 9804-0106 ● ●
74 WASHER; PL,CUSHION RUBBER
OD=55 		9-09852-169-0 02 1 0107- ● ●
75 BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5 		1-21466-007-2 02 1 9601-9803 ● ● ●
75 BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5 		1-21466-007-2 02 1 9804-0106 ● ●
75 BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5 		1-21466-007-3 02 1 0107- ● ●
77 WASHER; LK,CUSHION RUBBER
ID=12.2 		9-09150-512-0 02 1 9601-9702 ● ● ●
78 NUT; CUSHION RUBBER
(A) M10 FLANGE 		5-09440-006-0 02 1 9601-9803 ● ● ●
78 NUT; CUSHION RUBBER
(A) M10 FLANGE 		5-09440-006-0 02 1 9804-0106 ● ●
78 NUT; CUSHION RUBBER
(A) M10 FLANGE 		5-09440-006-0 02 1 0107- ● ●
78 NUT; CUSHION RUBBER
(B) M12 		9-99110-512-0 02 1 9601-9702 ● ● ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91150-212-0 02 1 9703-9803 ● ● ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91150-212-0 02 1 9804-0106 ● ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91150-212-0 02 1 0107-0602 ● ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91180-212-0 02 1 0603- ● ●
79 GUIDE; FAN,RAD 1-21551-374-2 01 1 9601-9609 ●
79 GUIDE; FAN,RAD 1-21551-374-2 01 1 9610-9803 ●
79 GUIDE; FAN,RAD
EXC. EURO2 SPECIFICATION<THN> 		1-21551-374-2 01 1 9610-9803 ●
79 GUIDE; FAN,RAD 1-21551-397-1 01 1 9601-0106 ●
79 GUIDE; FAN,RAD 1-21551-531-0 01 1 0107- ●
79 GUIDE; FAN,RAD
EURO2 SPECIFICATION<THN> 		1-21551-424-0 01 1 9610-9803 ●
79 GUIDE; FAN,RAD 1-21551-424-0 01 1 9804-9804 ●
79 GUIDE; FAN,RAD 1-21551-452-0 01 1 9804-0106 ●
79 GUIDE; FAN,RAD 1-21551-532-0 01 1 0107- ●
80 BOLT; FAN GUIDE
M6X12 FLANGE 		0-28080-612-0 04 1 9601-9803 ● ●
80 BOLT; FAN GUIDE
M6X12 FLANGE 		0-28080-612-0 04 1 9804-0106 ●
80 BOLT; FAN GUIDE
M6X10 FLANGE 		0-28080-610-0 04 1 0107- ●
80 BOLT; FAN GUIDE
M6X10 FLANGE 		0-28080-610-0 04 1 9610-0106 ●
80 BOLT; FAN GUIDE
M6X10 FLANGE 		0-28080-610-0 08 1 0107- ●
82 COVER; FAN,RAD 1-21559-340-0 01 1 9601-9803 ●
82 COVER; FAN,RAD 1-21559-369-0 01 1 9601-9610 ●
82 COVER; FAN,RAD 1-21559-397-0 01 1 9611- ●
82 COVER; FAN,RAD 1-21559-211-0 01 1 9610-9612 ●
82 COVER; FAN,RAD
EXC. EURO2 SPECIFICATION<THN> 		1-21559-211-0 01 1 9701-9803 ●
82 COVER; FAN,RAD
EURO2 SPECIFICATION<THN> 		1-21559-321-0 01 1 9701-9803 ●
82 COVER; FAN,RAD 1-21559-321-0 01 1 9804-0106 ●
82 COVER; FAN,RAD 1-21559-321-0 01 1 0107- ●
83 CLIP; FAN COVER 1-09707-177-2 01 1 9601-9803 ● ● ●
83 CLIP; FAN COVER 1-09707-177-2 01 1 9804-0106 ● ●
83 CLIP; FAN COVER 1-09707-177-2 01 1 0107- ● ●
97 TUBE; DIST,FAN GUIDE 9-09651-072-0 03 1 9604-9606 ●
97 TUBE; DIST,FAN GUIDE 9-09651-072-0 03 1 9607-9803 ● ● ●
97 TUBE; DIST,FAN GUIDE 9-09651-072-0 03 1 9804-0106 ● ●
97 TUBE; DIST,FAN GUIDE 9-09651-072-0 03 1 0107- ● ●
98 BOLT; RAD FAN GUIDE
M8X25 FLANGE 		0-28080-825-0 03 1 9601-9601 ● ●
98 BOLT; RAD FAN GUIDE
M8X25 FLANGE 		0-28080-825-0 03 1 9602-9606 ●
98 BOLT; RAD FAN GUIDE
M8X30 FLANGE 		0-28080-830-0 03 1 9602-9606 ●
98 BOLT; RAD FAN GUIDE
M8X30 FLANGE 		0-28680-830-0 03 1 9607-9803 ● ● ●
98 BOLT; RAD FAN GUIDE
M8X30 FLANGE 		0-28680-830-0 03 1 9804-0106 ● ●
98 BOLT; RAD FAN GUIDE
M8X30 FLANGE 		0-28680-830-0 03 1 0107-0512 ● ●
98 BOLT; RAD FAN GUIDE
M8X30 FLANGE 		0-28650-830-0 03 1 0601- ● ●
100 RUBBER; MTG
(A) 		8-94395-766-0 06 1 9604-9606 ●
100 RUBBER; MTG
(B) 		1-09337-027-0 06 1 9601-9603 ● ●
100 RUBBER; MTG
(B) 		1-09337-027-0 06 1 9604-9606 ●
100 RUBBER; MTG
(A) 		8-94395-766-0 06 1 9607-9803 ● ● ●
100 RUBBER; MTG
(A) 		8-94395-766-0 06 1 9804-0106 ● ●
100 RUBBER; MTG
(A) 		8-94395-766-0 06 1 0107- ● ●
100 RUBBER; MTG
(C) 		8-94394-268-1 01 1 9610-0106 ●
100 RUBBER; MTG
(C) 		8-94394-268-1 01 1 0107-0910 ●
100 RUBBER; MTG
(C) 		8-98148-109-0 01 1 0911- ●
124 PIPE; WATER,TANK TO RAD 8-94394-461-4 01 1 9601-9803 ●
124 PIPE; WATER,TANK TO RAD 8-94395-451-1 01 1 9610-0106 ●
124 PIPE; WATER,TANK TO RAD 8-97601-482-0 01 1 0107- ●
211 HOSE; RAD TO PIPE
L=430 SERVICED BY L=3000 		0-03257-300-0 01 1 9601-9609 ●
211 HOSE; RAD TO PIPE
L=430 SERVICED BY L=3000 		0-03257-300-0 01 1 9610-9705 ● ●
211 HOSE; RAD TO PIPE
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> L=430 SERVICED BY L=3000 		0-03257-300-0 01 1 9706-9803 ●
211 HOSE; RAD TO PIPE
L=430 SERVICED BY L=3000 		0-03257-300-0 01 1 9706-9803 ●
211 HOSE; RAD TO PIPE
L=430 SERVICED BY L=3000 		0-03257-300-0 01 1 9804-0106 ●
211 HOSE; RAD TO PIPE
L=660 SERVICED BY L=3000 		0-03257-300-0 01 1 0107-0109 ●
211 HOSE; RAD TO PIPE
L=660 SERVICED BY L=3000 		0-03557-300-0 01 1 0110- ●
211 HOSE; RAD TO PIPE
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> L=290 SERVICED BY L=3000 		0-03257-300-0 01 1 9706-9803 ●
211 HOSE; RAD TO PIPE
L=350 SERVICED BY L=3000 		0-03257-300-0 01 1 9601-0106 ●
211 HOSE; RAD TO PIPE
L=230 SERVICED BY L=3000 		0-03257-300-0 01 1 0107-0207 ●
211 HOSE; RAD TO PIPE
L=260 SERVICED BY L=3000 		0-03557-300-0 01 1 0208- ●
212 CLIP; HOSE
L=100 		5-09707-036-1 01 1 9610-0102 ●
212 CLIP; HOSE
L=140 		5-09707-031-1 01 1 0103-0106 ●
212 CLIP; HOSE
L=250 		5-09707-030-1 01 1 0107- ●
214 HOSE; PIPE TO RESERVE TANK
L=1300 SERVICED BY L=3000 		0-03257-300-0 01 1 9601-9609 ●
214 HOSE; PIPE TO RESERVE TANK
L=1300 SERVICED BY L=3000 		0-03257-300-0 01 1 9610-9702 ● ●
214 HOSE; PIPE TO RESERVE TANK
L=1300 SERVICED BY L=3000 		0-03257-300-0 01 1 9703-9705 ●
214 HOSE; PIPE TO RESERVE TANK
EXC. EURO2 SPECIFICATION<THN> L=1300 SERVICED BY L=3000 		0-03257-300-0 01 1 9703-9705 ●
214 HOSE; PIPE TO RESERVE TANK
EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> L=1300 SERVICED BY L=3000 		0-03257-300-0 01 1 9706-9803 ●
214 HOSE; PIPE TO RESERVE TANK
EXC. EURO2 SPECIFICATION<THN> L=1300 SERVICED BY L=3000 		0-03257-300-0 01 1 9706-9803 ●
214 HOSE; PIPE TO RESERVE TANK
L=1200 SERVICED BY L=3000 		0-03257-300-0 01 1 9601-9705 ●
214 HOSE; PIPE TO RESERVE TANK
EXC. EMISSION SYSTEM FEDERAL REQUIREMENT<NA5> L=1200 SERVICED BY L=3000 		0-03257-300-0 01 1 9706-9803 ●
214 HOSE; PIPE TO RESERVE TANK
L=1200 SERVICED BY L=3000 		0-03257-300-0 01 1 9706-9803 ●
214 HOSE; PIPE TO RESERVE TANK
L=1200 SERVICED BY L=3000 		0-03257-300-0 01 1 9804-0106 ●
214 HOSE; PIPE TO RESERVE TANK
L=760 SERVICED BY L=3000 		0-03257-300-0 01 1 0107-0109 ●
214 HOSE; PIPE TO RESERVE TANK
L=760 SERVICED BY L=3000 		0-03557-300-0 01 1 0110- ●
214 HOSE; PIPE TO RESERVE TANK
EURO2 SPECIFICATION<THN> L=1400 SERVICED BY L=3000 		0-03257-300-0 01 1 9703-9803 ●
214 HOSE; PIPE TO RESERVE TANK
L=1400 SERVICED BY L=3000 		0-03257-300-0 01 1 9804-0106 ●
214 HOSE; PIPE TO RESERVE TANK
L=1350 SERVICED BY L=3000 		0-03257-300-0 01 1 0107-0109 ●
214 HOSE; PIPE TO RESERVE TANK
L=1350 SERVICED BY L=3000 		0-03557-300-0 01 1 0110- ●
220 NUT; CLIP
M8 		9-09110-408-0 03 1 9601-9606 ● ●
220 NUT; CLIP
M8 FLANGE 		0-91150-108-0 03 1 9607-9803 ● ● ●
220 NUT; CLIP
M8 FLANGE 		0-91150-108-0 03 1 9804-0004 ● ●
220 NUT; CLIP
M8 FLANGE 		0-91150-108-0 04 1 0005-0106 ● ●
220 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 9610-0106 ●
220 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 0107-0602 ●
220 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0603- ●
220 NUT; CLIP
EURO2 SPECIFICATION<THN> M8 FLANGE 		0-91150-108-0 01 1 9703-9803 ●
220 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 9804-0106 ●
220 NUT; CLIP
M8 FLANGE 		0-91150-108-0 04 1 0107-0107 ●
220 NUT; CLIP
M8 FLANGE 		0-91150-108-0 05 1 0107-0602 ●
220 NUT; CLIP
M8 FLANGE 		0-91180-108-0 05 1 0603- ●
249 BOLT; STAY,RAD MBR
M8X30 		1-09009-020-1 04 1 9601-9609 ●
249 BOLT; STAY,RAD MBR
M8X30 		1-09009-020-1 04 1 9610-9803 ●
249 BOLT; STAY,RAD MBR
EURO2 SPECIFICATION<THN> M8X30 		1-09009-020-1 04 1 9610-9803 ●
249 BOLT; STAY,RAD MBR
M8X30 		1-09009-020-1 04 1 9804-0106 ● ●
249 BOLT; STAY,RAD MBR
M8X30 		1-09009-020-1 04 1 0107-0205 ●
249 BOLT; STAY,RAD MBR
M8X30 		1-09009-020-1 02 1 0206- ●
249 BOLT; STAY,RAD MBR
M8X22 		1-09009-123-0 02 1 0206- ●
259 BRACKET; RAD STAY 1-21523-025-0 01 1 9601-9609 ●
259 BRACKET; RAD STAY 1-21523-025-0 01 1 9610-9803 ●
259 BRACKET; RAD STAY
EXC. EURO2 SPECIFICATION<THN> 		1-21523-025-0 01 1 9610-9803 ●
260 BOLT; BRKT
M8X20 FLANGE 		0-28080-820-0 02 1 9601-9606 ●
260 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 02 1 9607-9609 ●
260 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 02 1 9610-9803 ●
260 BOLT; BRKT
EXC. EURO2 SPECIFICATION<THN> M8X20 FLANGE 		0-28680-820-0 02 1 9610-9803 ●
261 NUT; BRKT
M8 		9-09110-408-0 02 1 9601-9606 ●
261 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 9607-9609 ●
261 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 9610-9803 ●
261 NUT; BRKT
EXC. EURO2 SPECIFICATION<THN> M8 FLANGE 		0-91150-108-0 02 1 9610-9803 ●
279 BELL MOUTH 8-94394-808-2 01 1 9601-9803 ●
279 BELL MOUTH 1-21551-395-0 01 1 9601- ●
279 BELL MOUTH 8-94394-174-1 01 1 9610-9612 ●
279 BELL MOUTH
EXC. EURO2 SPECIFICATION<THN> 		8-94394-174-1 01 1 9701-9803 ●
279 BELL MOUTH
EURO2 SPECIFICATION<THN> 		8-94393-779-0 01 1 9701-9803 ●
279 BELL MOUTH 8-94393-779-0 01 1 9804-0106 ●
279 BELL MOUTH 8-97601-172-1 01 1 0107- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
