◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 10893 - FVR(HONG KONG) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-01 - ACCELERATOR PEDAL AND CONTROL ▶
1-01 — ACCELERATOR PEDAL AND CONTROL (#26602) — 496 parça

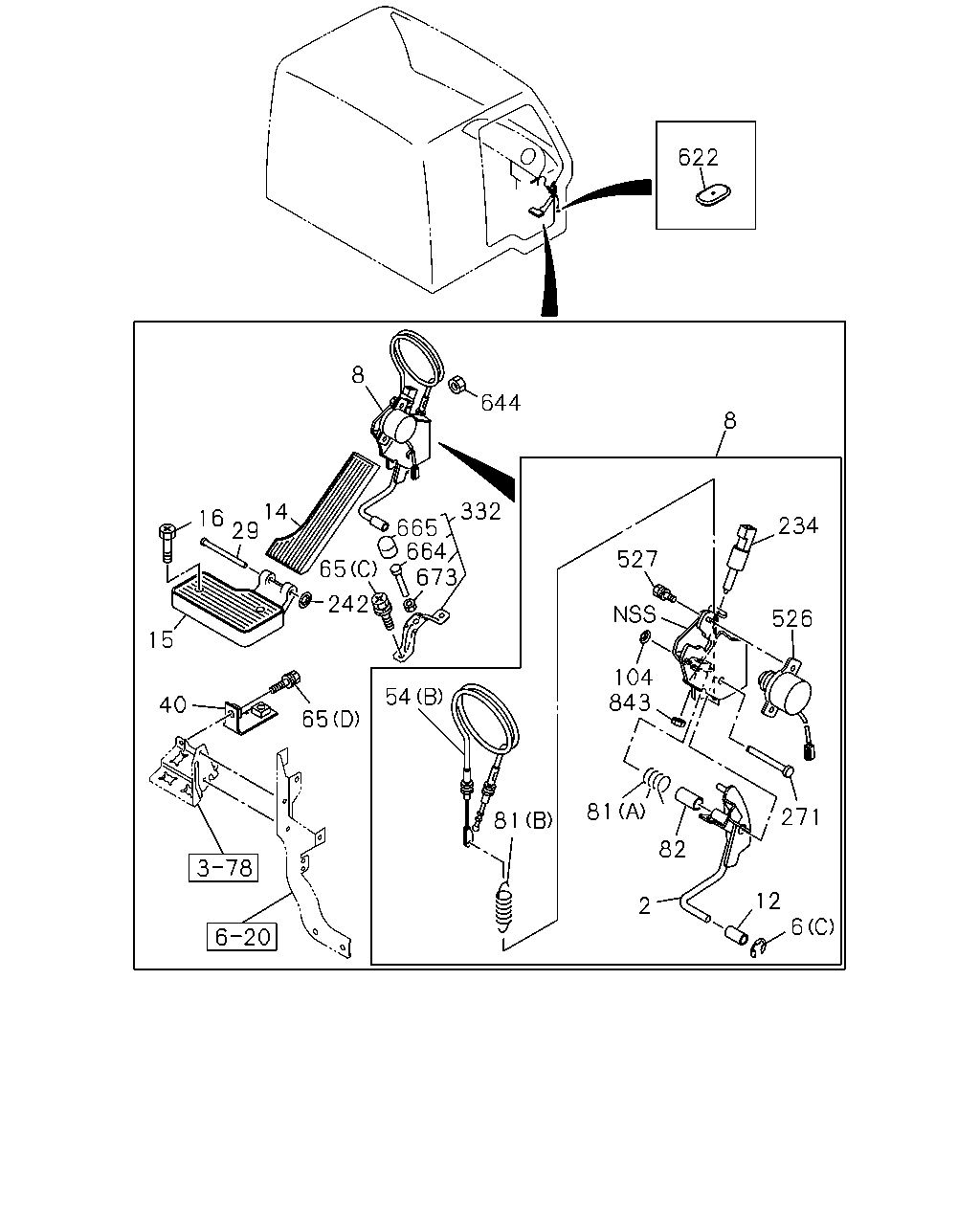

çizim 85856
622 8 644 8 332 14 16 29 234 665 664 673 527 65 242 526 15 104 843 54 40 65 81 271 81 82 12 2 6
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 LEVER; ENG CONT 1-71907-210-2 01 1 9601-9609 ● ●
2 LEVER; ENG CONT 1-71907-210-2 01 1 9610-9803 ● ● ●
2 LEVER; ENG CONT 1-71907-210-2 01 1 9804-0106 ● ●
2 LEVER; ENG CONT 1-71907-500-2 01 1 0107- ● ●
6 RING; SNAP,LINK TO LINK
(A) ID=4 		9-09185-404-0 02 1 9601-9609 ● ●
6 RING; SNAP,LINK TO LINK
(A) ID=4 		9-09185-404-0 02 1 9610-9803 ● ● ●
6 RING; SNAP,LINK TO LINK
(A) ID=4 		9-09185-404-0 02 1 9804-0106 ● ●
6 RING; SNAP,LINK TO LINK
(C) ID=6 		9-09185-406-0 01 1 0107-0204 ● ●
6 RING; SNAP,LINK TO LINK
(B) ID=6 		9-09185-406-0 01 1 9601-9609 ● ●
6 RING; SNAP,LINK TO LINK
(B) ID=6 		9-09185-406-0 01 1 9610-9802 ● ● ●
8 LINK ASM; ENG CONT 1-73996-206-5 01 1 9601-9609 ● ●
8 LINK ASM; ENG CONT 1-73996-206-6 01 1 9610-9803 ● ● ●
8 LINK ASM; ENG CONT 1-73996-206-6 01 1 9804-0106 ● ●
8 LINK ASM; ENG CONT 1-71907-161-9 01 1 0107-1101 ● ●
8 LINK ASM; ENG CONT 8-98170-161-0 01 1 1102- ● ●
12 ROLLER; ENG CONT LEVER 1-09989-007-0 01 1 9601-9609 ● ●
12 ROLLER; ENG CONT LEVER 1-09989-007-0 01 1 9610-9802 ● ● ●
12 ROLLER; ENG CONT LEVER 1-09989-007-0 01 1 0107-0204 ● ●
14 PAD; PEDAL,ACCEL 1-23241-021-0 01 1 9601-9708 ● ● ●
14 PAD; PEDAL,ACCEL 1-73907-563-0 01 1 9709-9803 ● ● ●
14 PAD; PEDAL,ACCEL 1-73907-563-0 01 1 9804-0106 ● ●
14 PAD; PEDAL,ACCEL 1-73907-563-0 01 1 0107- ● ●
15 STAND; HEEL,ACCEL PEDAL 1-73907-266-2 01 1 9601-9803 ● ● ●
15 STAND; HEEL,ACCEL PEDAL 1-73907-266-2 01 1 9804-0106 ● ●
15 STAND; HEEL,ACCEL PEDAL 1-73907-266-3 01 1 0107- ● ●
16 SCREW; HEEL STAND,ACCEL PEDAL
M6X20 W/LK&PL WASHER 		8-94279-202-0 02 1 9601-9803 ● ● ●
16 SCREW; HEEL STAND,ACCEL PEDAL
M6X20 W/LK&PL WASHER 		8-94279-202-0 02 1 9804-9902 ● ●
16 SCREW; HEEL STAND,ACCEL PEDAL
M6X28 W/LK&PL WASHER 		1-09980-543-0 02 1 9903-0106 ● ●
16 SCREW; HEEL STAND,ACCEL PEDAL
M6X28 W/LK&PL WASHER 		1-09980-543-0 02 1 0107- ● ●
29 SHAFT; ACCEL PEDAL
OD=8.0 L=74 		1-71907-212-1 01 1 9601-9803 ● ● ●
29 SHAFT; ACCEL PEDAL
OD=8.0 L=74 		1-71907-212-1 01 1 9804-0106 ● ●
29 SHAFT; ACCEL PEDAL
OD=8.0 L=74 		1-71907-212-1 01 1 0107- ● ●
40 BRACKET; ENG CONT CABLE 1-47477-148-2 01 1 9601-9803 ● ● ●
40 BRACKET; ENG CONT CABLE 1-47477-148-2 01 1 9804-9908 ● ●
40 BRACKET; ENG CONT CABLE 1-47478-612-0 01 1 9909-0106 ● ●
40 BRACKET; ENG CONT CABLE 1-47478-612-0 01 1 0111- ●
54 CABLE; ENG CONT
(A) L=2939 		1-73998-940-4 01 1 9601-9803 ●
54 CABLE; ENG CONT
(A) L=2636.5 		1-73996-296-6 01 1 9601-0106 ●
54 CABLE; ENG CONT
WIDE CAB(FV**F*) (A) L=2755 		1-73996-347-1 01 1 9610-9803 ●
54 CABLE; ENG CONT
(A) L=2755 		1-73996-347-3 01 1 9804-0106 ●
54 CABLE; ENG CONT
(B) L=850 		1-71907-257-0 01 1 0107- ● ●
54 CABLE; ENG CONT
STD CAB(FV**M*) (A) L=2949 		1-73996-284-1 01 1 9610-9709 ●
54 CABLE; ENG CONT
STD CAB(FV**M*) EXC. EURO2 SPECIFICATION<THN> (A) L=2949 		1-73996-284-1 01 1 9710-9803 ●
54 CABLE; ENG CONT
STD CAB(FV**M*) EURO2 SPECIFICATION<THN> (A) L=2996.5 		1-73996-348-1 01 1 9710-9803 ●
65 BOLT
(A) M10X60 		0-16811-060-0 01 1 9601-9609 ●
65 BOLT
(A) M10X60 		0-16811-060-0 01 1 9610-9803 ● ●
65 BOLT
(A) M10X60 		0-16811-060-0 01 1 9804-0106 ●
65 BOLT
(B) M10X20 FLANGE 		0-28181-020-0 01 1 9601-9609 ●
65 BOLT
(B) M10X20 FLANGE 		0-28181-020-0 01 1 9610-9803 ● ●
65 BOLT
(B) M10X20 FLANGE 		0-28181-020-0 01 1 9804-0106 ●
65 BOLT
(B) M10X20 FLANGE 		0-28181-020-0 01 1 0107-0512 ●
65 BOLT
(B) M10X20 FLANGE 		0-28151-020-0 01 1 0601- ●
65 BOLT
(C) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9601-9803 ● ● ●
65 BOLT
(C) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9804-0106 ● ●
65 BOLT
(C) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0107- ● ●
65 BOLT
(D) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 9601-9803 ● ● ●
65 BOLT
(D) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 9804-0106 ● ●
65 BOLT
(A) M10X60 		0-16811-060-0 01 1 0107-0512 ●
65 BOLT
(A) M10X60 		0-16861-060-0 01 1 0601- ●
65 BOLT
(D) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0111-0904 ●
65 BOLT
(D) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 0905- ●
81 SPRING; RETURN,ENG CONT LEVER
(A) 		8-97853-205-1 01 1 9601-9609 ● ●
81 SPRING; RETURN,ENG CONT LEVER
(A) 		8-97853-205-1 01 1 9610-9803 ● ● ●
81 SPRING; RETURN,ENG CONT LEVER
(A) 		8-97853-205-1 01 1 9804-0106 ● ●
81 SPRING; RETURN,ENG CONT LEVER
(A) 		8-97853-205-1 01 1 0107- ● ●
81 SPRING; RETURN,ENG CONT LEVER
(B) 		1-71907-268-0 01 1 0107-0206 ● ●
81 SPRING; RETURN,ENG CONT LEVER
(B) 		8-97997-917-0 01 1 0207- ● ●
82 BUSHING; ENG CONT LVR 1-71907-244-1 02 1 9601-9609 ● ●
82 BUSHING; ENG CONT LVR 1-71907-244-1 02 1 9610-9803 ● ● ●
82 BUSHING; ENG CONT LVR 1-71907-244-1 02 1 9804-0106 ● ●
82 BUSHING; ENG CONT LVR
L=31.5 		1-53459-627-0 01 1 0107- ● ●
104 NUT; ENG CONT
ID=7.9 PUSH NUT 		8-94368-617-0 02 1 9601-9609 ● ●
104 NUT; ENG CONT
ID=7.9 PUSH NUT 		8-94368-617-0 02 1 9610-9803 ● ● ●
104 NUT; ENG CONT
ID=7.9 PUSH NUT 		8-94368-617-0 02 1 9804-0106 ● ●
104 NUT; ENG CONT
ID=7.9 PUSH NUT 		8-94368-617-0 01 1 0107- ● ●
234 SWITCH; ACCEL 1-82380-114-1 01 1 9601-9609 ● ●
234 SWITCH; ACCEL 1-82380-114-1 01 1 9610-9803 ● ● ●
234 SWITCH; ACCEL 1-82380-114-2 01 1 9804-0106 ● ●
234 SWITCH; ACCEL 1-82380-131-2 01 1 0107- ● ●
242 NUT; ACCEL PEDAL
ID=7.9 PUSH NUT 		8-97022-565-0 01 1 9601-9803 ● ● ●
242 NUT; ACCEL PEDAL
ID=7.9 PUSH NUT 		8-97022-565-0 01 1 9804-0106 ● ●
242 NUT; ACCEL PEDAL
ID=7.9 PUSH NUT 		8-97022-565-0 01 1 0107- ● ●
271 SHAFT; ENG CONT
OD=8.0 L=74 		1-71907-212-1 01 1 9601-9609 ● ●
271 SHAFT; ENG CONT
OD=8.0 L=74 		1-71907-212-1 01 1 9610-9803 ● ● ●
271 SHAFT; ENG CONT
OD=8.0 L=74 		1-71907-212-1 01 1 9804-0106 ● ●
271 SHAFT; ENG CONT
OD=8.0 L=69 		1-71907-298-0 01 1 0107- ● ●
332 BRACKET; ACCEL PEDAL STOPPER 1-73998-937-1 01 1 9601-9803 ● ● ●
332 BRACKET; ACCEL PEDAL STOPPER 1-73998-937-1 01 1 9804-0106 ● ●
332 BRACKET; ACCEL PEDAL STOPPER 1-73998-937-1 01 1 0107-0212 ● ●
332 BRACKET; ACCEL PEDAL STOPPER 1-73908-428-0 01 1 0301- ● ●
526 SENSOR; ACCEL 1-81534-003-2 01 1 0107- ● ●
527 BOLT; ACCEL SENSOR
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0107-0206 ● ●
527 BOLT; ACCEL SENSOR
M6X16 W/LK&PL WASHER 		8-94139-963-0 02 1 0207- ● ●
622 GROMMET; ACCEL CONT CABLE
OD=30 		8-94107-655-0 01 1 0107- ●
644 NUT; LINK,ENG CONT
M8 FLANGE W/RUBBER 		1-09984-176-0 02 1 9601-9803 ● ● ●
644 NUT; LINK,ENG CONT
M8 FLANGE W/RUBBER 		1-09984-176-0 02 1 9804-0106 ● ●
644 NUT; LINK,ENG CONT
M8 FLANGE W/RUBBER 		1-09984-176-0 02 1 0107- ● ●
664 BOLT; STOPPER
M8X45 		0-20800-845-0 01 1 9601-9803 ● ● ●
664 BOLT; STOPPER
M8X45 		0-20800-845-0 01 1 9804-0106 ● ●
664 BOLT; STOPPER
M8X45 		0-20800-845-0 01 1 0107- ● ●
665 COVER; STOPPER
RUBBER 		1-23249-009-0 01 1 9601-9803 ● ● ●
665 COVER; STOPPER
RUBBER 		1-23249-009-0 01 1 9804-0106 ● ●
665 COVER; STOPPER
RUBBER 		1-23249-009-0 01 1 0107-0212 ● ●
673 NUT; STOPPER
M8 		9-09111-408-0 01 1 9601-9803 ● ● ●
673 NUT; STOPPER
M8 		9-09111-408-0 01 1 9804-0106 ● ●
673 NUT; STOPPER
M8 		9-09111-408-0 01 1 0107-0512 ● ●
673 NUT; STOPPER
M8 		0-91111-508-0 01 1 0601- ● ●
843 NUT
M12 		9-99111-412-0 01 1 0107-0512 ● ●
843 NUT
M12 		0-91111-512-0 01 1 0601- ● ●

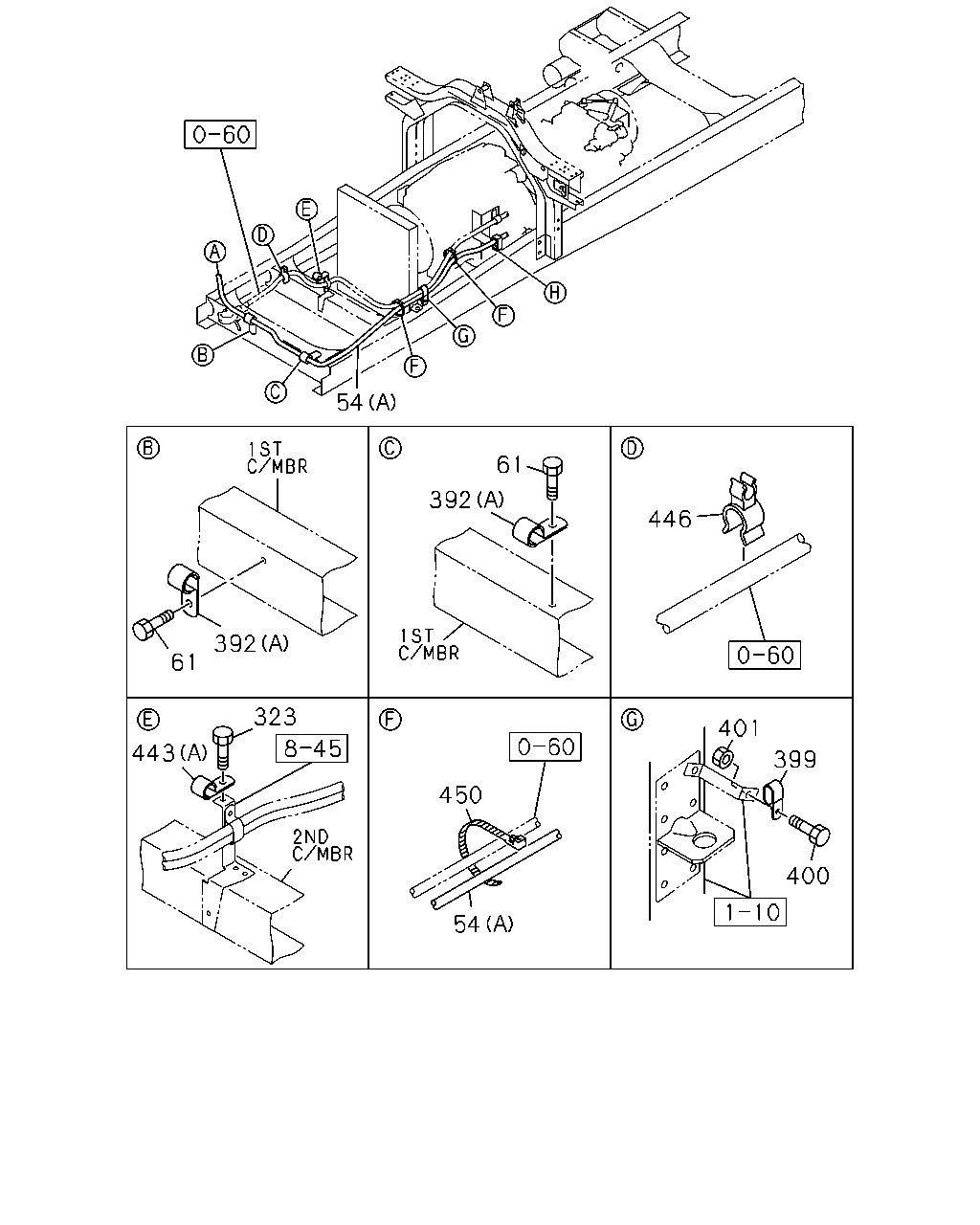

çizim 85859
54 61 392 446 392 61 323 401 443 399 450 400 54
BalonParca AdiParca NoAdetTipApplied Date A B C D
54 CABLE; ENG CONT
(A) L=2939 		1-73998-940-4 01 1 9601-9803 ●
54 CABLE; ENG CONT
(A) L=2636.5 		1-73996-296-6 01 1 9601-0106 ●
54 CABLE; ENG CONT
WIDE CAB(FV**F*) (A) L=2755 		1-73996-347-1 01 1 9610-9803 ●
54 CABLE; ENG CONT
(A) L=2755 		1-73996-347-3 01 1 9804-0106 ●
54 CABLE; ENG CONT
(B) L=850 		1-71907-257-0 01 1 0107- ● ●
54 CABLE; ENG CONT
STD CAB(FV**M*) (A) L=2949 		1-73996-284-1 01 1 9610-9709 ●
54 CABLE; ENG CONT
STD CAB(FV**M*) EXC. EURO2 SPECIFICATION<THN> (A) L=2949 		1-73996-284-1 01 1 9710-9803 ●
54 CABLE; ENG CONT
STD CAB(FV**M*) EURO2 SPECIFICATION<THN> (A) L=2996.5 		1-73996-348-1 01 1 9710-9803 ●
61 BOLT; BRKT TO FRAME ENG CONT CABLE
M8X16 FLANGE 		0-28080-816-0 01 1 9601-0004 ●
61 BOLT; BRKT TO FRAME ENG CONT CABLE
M8X16 FLANGE 		0-28080-816-0 02 1 0005-0106 ● ●
61 BOLT; BRKT TO FRAME ENG CONT CABLE
M8X16 FLANGE 		0-28080-816-0 02 1 9601-9609 ●
61 BOLT; BRKT TO FRAME ENG CONT CABLE
M8X16 FLANGE 		0-28080-816-0 02 1 9610-9803 ● ●
61 BOLT; BRKT TO FRAME ENG CONT CABLE
M8X16 FLANGE 		0-28080-816-0 02 1 9804-0004 ●
323 BOLT; CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 9601-9609 ● ●
323 BOLT; CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 9610-9803 ● ● ●
323 BOLT; CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 9804-0106 ● ●
323 BOLT; CLIP
M8X16 FLANGE 		0-28080-816-0 03 1 0107-0512 ●
323 BOLT; CLIP
M8X16 FLANGE 		0-28050-816-0 03 1 0601- ●
392 CLIP; ACCEL CONT CABLE
(A) ID=13 L=32 		9-09525-265-0 01 1 9601-0106 ●
392 CLIP; ACCEL CONT CABLE
(A) ID=13 L=32 		9-09525-265-0 02 1 9601-9803 ●
392 CLIP; ACCEL CONT CABLE
(A) ID=13 L=32 		9-09525-265-0 02 1 9804-0106 ●
392 CLIP; ACCEL CONT CABLE
(B) ID=11 L=20 		9-09525-035-0 01 1 0005-0106 ●
399 CLIP; CABLE,RAD SIDE
ID=9X2 L=20 		9-09534-835-0 01 1 9601-9609 ●
399 CLIP; CABLE,RAD SIDE
ID=9X2 L=20 		9-09534-835-0 01 1 9610-9704 ● ●
399 CLIP; CABLE,RAD SIDE 1-09701-260-0 01 1 9705-9803 ● ●
399 CLIP; CABLE,RAD SIDE 1-09701-260-0 01 1 9804-0106 ●
399 CLIP; CABLE,RAD SIDE
ID=9 L=25 H=45 		1-09700-867-0 01 1 9601-0106 ●
400 BOLT; CLIP,RAD SIDE
M8X16 FLANGE 		0-28080-816-0 01 1 9601-9803 ● ● ●
400 BOLT; CLIP,RAD SIDE
M8X16 FLANGE 		0-28080-816-0 01 1 9804-0106 ● ●
401 NUT; CLIP,RAD SIDE
M8 		9-09110-408-0 01 1 9601-9606 ●
401 NUT; CLIP,RAD SIDE
M8 FLANGE 		0-91150-108-0 01 1 9607-9609 ●
401 NUT; CLIP,RAD SIDE
M8 FLANGE 		0-91150-108-0 01 1 9610-9803 ● ●
401 NUT; CLIP,RAD SIDE
M8 FLANGE 		0-91150-108-0 01 1 9804-0106 ●
443 CLIP; CABLE
(A) ID=7 L=20 		9-09524-635-0 01 1 9601-9609 ● ●
443 CLIP; CABLE
(A) ID=7 L=20 		9-09524-635-0 01 1 9610-9803 ● ● ●
443 CLIP; CABLE
(A) ID=7 L=20 		9-09524-635-0 01 1 9804-0106 ●
443 CLIP; CABLE
(A) ID=7 L=20 		9-09524-635-0 01 1 0107-0606 ●
443 CLIP; CABLE
(A) ID=7 L=20 		0-95234-635-0 01 1 0607- ●
443 CLIP; CABLE
(A) ID=7 L=16 		9-09524-625-0 01 1 9804-0106 ●
443 CLIP; CABLE
(B) ID=13 L=32 		9-09525-265-0 02 1 0107-0606 ●
443 CLIP; CABLE
(B) ID=13 L=32 		0-95235-265-0 02 1 0607- ●
446 CLIP; ENG CONT
ID=6.8X11.8 		1-09709-127-0 01 1 9601-9609 ●
446 CLIP; ENG CONT
ID=6.8X11.8 		1-09709-127-0 01 1 9610-9803 ● ●
446 CLIP; ENG CONT
ID=6.8X11.8 		1-09709-127-0 01 1 9804-0106 ●
450 CLIP; BAND
L=140 		5-09707-031-0 02 1 9601-9803 ● ● ●
450 CLIP; BAND
L=140 		5-09707-031-1 02 1 9804-0106 ● ●
450 CLIP; BAND
L=250 		5-09707-030-1 01 1 9811-0106 ●

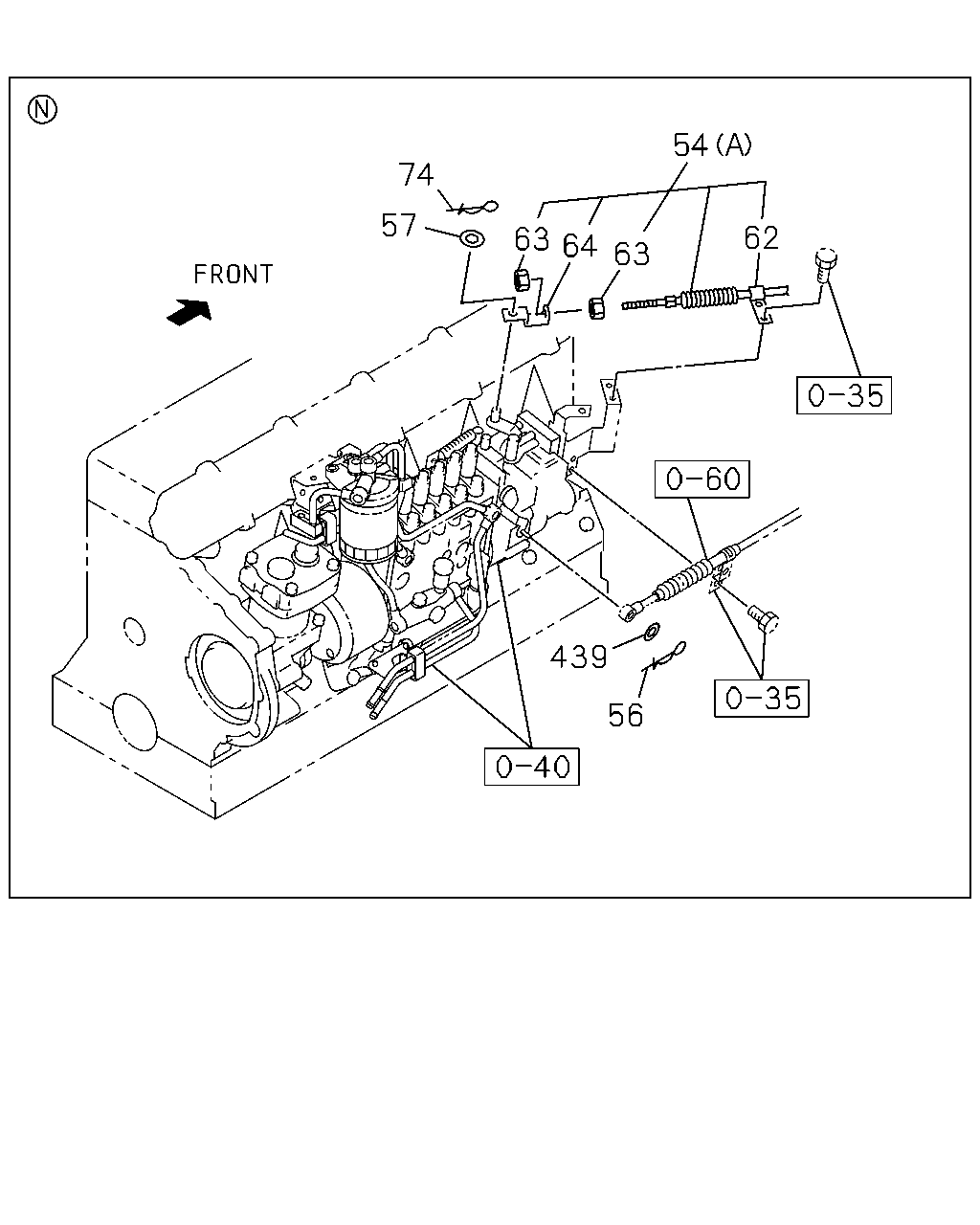

çizim 85860
54 74 57 62 63 64 63 439 56
BalonParca AdiParca NoAdetTipApplied Date A B C D
54 CABLE; ENG CONT
(A) L=2939 		1-73998-940-4 01 1 9601-9803 ●
54 CABLE; ENG CONT
(A) L=2636.5 		1-73996-296-6 01 1 9601-0106 ●
54 CABLE; ENG CONT
WIDE CAB(FV**F*) (A) L=2755 		1-73996-347-1 01 1 9610-9803 ●
54 CABLE; ENG CONT
(A) L=2755 		1-73996-347-3 01 1 9804-0106 ●
54 CABLE; ENG CONT
(B) L=850 		1-71907-257-0 01 1 0107- ● ●
54 CABLE; ENG CONT
STD CAB(FV**M*) (A) L=2949 		1-73996-284-1 01 1 9610-9709 ●
54 CABLE; ENG CONT
STD CAB(FV**M*) EXC. EURO2 SPECIFICATION<THN> (A) L=2949 		1-73996-284-1 01 1 9710-9803 ●
54 CABLE; ENG CONT
STD CAB(FV**M*) EURO2 SPECIFICATION<THN> (A) L=2996.5 		1-73996-348-1 01 1 9710-9803 ●
56 PIN; SNAP,JAW JOINT
L=17.9 		1-09747-015-0 01 1 9601-9609 ●
56 PIN; SNAP,JAW JOINT
L=17.9 		1-09747-015-0 01 1 9610-9803 ● ●
56 PIN; SNAP,JAW JOINT
L=17.9 		1-09747-015-0 01 1 9804-0106 ●
56 PIN; SNAP,JAW JOINT
L=17.9 		1-09747-015-0 01 1 0107- ●
56 PIN; SNAP,JAW JOINT
L=17.9 		1-09747-002-0 01 1 9601-0106 ●
57 WASHER; ENG CONT CABLE
ID=8.4 		9-09160-508-0 01 1 9601-9803 ● ● ●
57 WASHER; ENG CONT CABLE
ID=8.4 		9-09160-508-0 01 1 9804-0106 ● ●
62 CLIP; ENG CONT CABLE
L=30 		1-09700-326-0 01 1 9601-9705 ●
62 CLIP; ENG CONT CABLE
STD CAB(FV**M*) L=30 		1-09700-326-0 01 1 9706-9709 ● ●
62 CLIP; ENG CONT CABLE
STD CAB(FV**M*) L=30 		1-09700-326-0 01 1 9710-9803 ●
62 CLIP; ENG CONT CABLE
STD CAB(FV**M*) EXC. EURO2 SPECIFICATION<THN> L=30 		1-09700-326-0 01 1 9710-9803 ●
62 CLIP; ENG CONT CABLE
L=16 		1-09700-597-0 01 1 9601-0106 ●
62 CLIP; ENG CONT CABLE
WIDE CAB(FV**F*) 		8-94397-228-0 01 1 9610-9709 ●
62 CLIP; ENG CONT CABLE
EURO2 SPECIFICATION<THN> 		8-94397-228-0 01 1 9710-9803 ●
62 CLIP; ENG CONT CABLE 8-94397-228-0 01 1 9804-0106 ●
62 CLIP; ENG CONT CABLE
STD CAB(FV**M*) L=30 		1-09700-326-0 01 1 9610-9705 ●
63 NUT; LOCK,BRKT
M8 		9-09111-408-0 02 1 9601-9609 ● ●
63 NUT; LOCK,BRKT
M8 		9-09111-408-0 02 1 9610-9803 ● ● ●
63 NUT; LOCK,BRKT
M8 		9-09111-408-0 02 1 9804-0106 ● ●
64 BRACKET; ENG CONT CABLE 1-23219-105-1 01 1 9601-9609 ● ●
64 BRACKET; ENG CONT CABLE 1-23219-105-1 01 1 9610-9803 ● ● ●
64 BRACKET; ENG CONT CABLE 1-23219-105-1 01 1 9804-0106 ● ●
74 PIN; SNAP,CABLE END
L=27.7 		8-94157-841-0 01 1 9601-9609 ●
74 PIN; SNAP,CABLE END
L=27.7 		8-94157-841-0 01 1 9610-9803 ● ●
74 PIN; SNAP,CABLE END
L=27.7 		8-94157-841-0 01 1 9804-0106 ●
74 PIN; SNAP,CABLE END
L=27.7 		1-09747-005-0 01 1 9601-0106 ●
439 WASHER; PL,PIN,JAW JOINT
ID=5.3 		9-09160-505-0 01 1 9601-9803 ● ● ●
439 WASHER; PL,PIN,JAW JOINT
ID=5.3 		9-09160-505-0 01 1 9804-0106 ● ●
439 WASHER; PL,PIN,JAW JOINT
ID=5.3 		9-09160-505-0 01 1 0107-0605 ●
439 WASHER; PL,PIN,JAW JOINT
ID=5.3 		0-91610-505-0 01 1 0606- ●

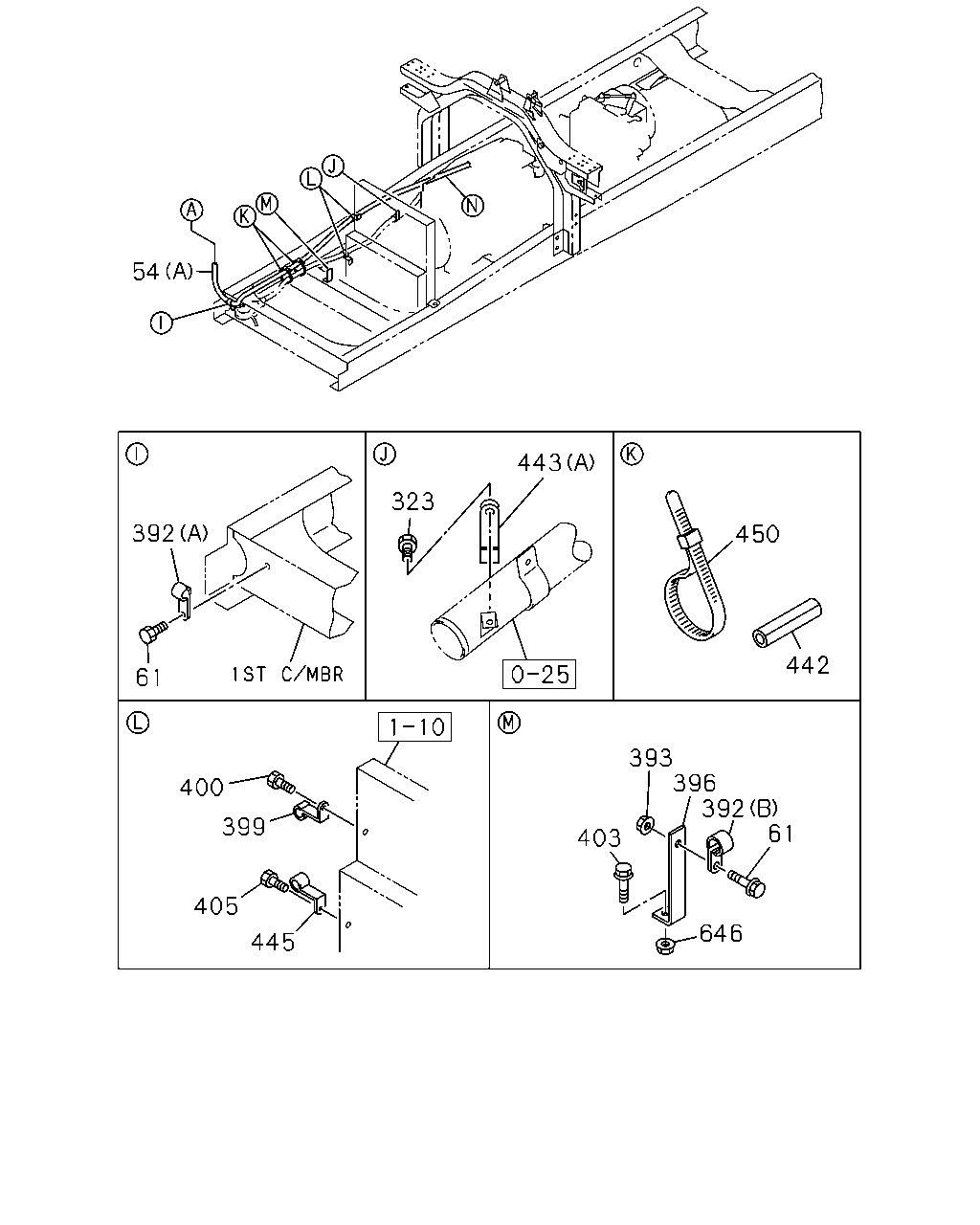

çizim 85910
54 443 323 392 450 442 61 393 396 392 61 400 399 403 405 646 445
BalonParca AdiParca NoAdetTipApplied Date A B C D
54 CABLE; ENG CONT
(A) L=2939 		1-73998-940-4 01 1 9601-9803 ●
54 CABLE; ENG CONT
(A) L=2636.5 		1-73996-296-6 01 1 9601-0106 ●
54 CABLE; ENG CONT
WIDE CAB(FV**F*) (A) L=2755 		1-73996-347-1 01 1 9610-9803 ●
54 CABLE; ENG CONT
(A) L=2755 		1-73996-347-3 01 1 9804-0106 ●
54 CABLE; ENG CONT
(B) L=850 		1-71907-257-0 01 1 0107- ● ●
54 CABLE; ENG CONT
STD CAB(FV**M*) (A) L=2949 		1-73996-284-1 01 1 9610-9709 ●
54 CABLE; ENG CONT
STD CAB(FV**M*) EXC. EURO2 SPECIFICATION<THN> (A) L=2949 		1-73996-284-1 01 1 9710-9803 ●
54 CABLE; ENG CONT
STD CAB(FV**M*) EURO2 SPECIFICATION<THN> (A) L=2996.5 		1-73996-348-1 01 1 9710-9803 ●
61 BOLT; BRKT TO FRAME ENG CONT CABLE
M8X16 FLANGE 		0-28080-816-0 01 1 9601-0004 ●
61 BOLT; BRKT TO FRAME ENG CONT CABLE
M8X16 FLANGE 		0-28080-816-0 02 1 0005-0106 ● ●
61 BOLT; BRKT TO FRAME ENG CONT CABLE
M8X16 FLANGE 		0-28080-816-0 02 1 9601-9609 ●
61 BOLT; BRKT TO FRAME ENG CONT CABLE
M8X16 FLANGE 		0-28080-816-0 02 1 9610-9803 ● ●
61 BOLT; BRKT TO FRAME ENG CONT CABLE
M8X16 FLANGE 		0-28080-816-0 02 1 9804-0004 ●
323 BOLT; CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 9601-9609 ● ●
323 BOLT; CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 9610-9803 ● ● ●
323 BOLT; CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 9804-0106 ● ●
323 BOLT; CLIP
M8X16 FLANGE 		0-28080-816-0 03 1 0107-0512 ●
323 BOLT; CLIP
M8X16 FLANGE 		0-28050-816-0 03 1 0601- ●
392 CLIP; ACCEL CONT CABLE
(A) ID=13 L=32 		9-09525-265-0 01 1 9601-0106 ●
392 CLIP; ACCEL CONT CABLE
(A) ID=13 L=32 		9-09525-265-0 02 1 9601-9803 ●
392 CLIP; ACCEL CONT CABLE
(A) ID=13 L=32 		9-09525-265-0 02 1 9804-0106 ●
392 CLIP; ACCEL CONT CABLE
(B) ID=11 L=20 		9-09525-035-0 01 1 0005-0106 ●
393 NUT; CLIP TO FRAME
M8 FLANGE 		0-91150-108-0 01 1 0005-0106 ●
396 BRACKET; CLIP
L=145 B=25 		1-47477-697-0 01 1 0005-0106 ●
399 CLIP; CABLE,RAD SIDE
ID=9X2 L=20 		9-09534-835-0 01 1 9601-9609 ●
399 CLIP; CABLE,RAD SIDE
ID=9X2 L=20 		9-09534-835-0 01 1 9610-9704 ● ●
399 CLIP; CABLE,RAD SIDE 1-09701-260-0 01 1 9705-9803 ● ●
399 CLIP; CABLE,RAD SIDE 1-09701-260-0 01 1 9804-0106 ●
399 CLIP; CABLE,RAD SIDE
ID=9 L=25 H=45 		1-09700-867-0 01 1 9601-0106 ●
400 BOLT; CLIP,RAD SIDE
M8X16 FLANGE 		0-28080-816-0 01 1 9601-9803 ● ● ●
400 BOLT; CLIP,RAD SIDE
M8X16 FLANGE 		0-28080-816-0 01 1 9804-0106 ● ●
403 BOLT; BRKT,ACCEL PEDAL
M8X20 FLANGE 		0-28680-820-0 01 1 0005-0106 ●
405 BOLT; CABLE CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 9601-0106 ●
405 BOLT; CABLE CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 0107-0512 ●
405 BOLT; CABLE CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 0601- ●
442 SLEEVE; RUBBER,OIL PIPE
L=150 SERVICED BY L=1300 		1-09360-677-1 01 1 9811-0106 ●
443 CLIP; CABLE
(A) ID=7 L=20 		9-09524-635-0 01 1 9601-9609 ● ●
443 CLIP; CABLE
(A) ID=7 L=20 		9-09524-635-0 01 1 9610-9803 ● ● ●
443 CLIP; CABLE
(A) ID=7 L=20 		9-09524-635-0 01 1 9804-0106 ●
443 CLIP; CABLE
(A) ID=7 L=20 		9-09524-635-0 01 1 0107-0606 ●
443 CLIP; CABLE
(A) ID=7 L=20 		0-95234-635-0 01 1 0607- ●
443 CLIP; CABLE
(A) ID=7 L=16 		9-09524-625-0 01 1 9804-0106 ●
443 CLIP; CABLE
(B) ID=13 L=32 		9-09525-265-0 02 1 0107-0606 ●
443 CLIP; CABLE
(B) ID=13 L=32 		0-95235-265-0 02 1 0607- ●
445 CLIP; RAD 1-09700-082-0 01 1 9601-0106 ●
445 CLIP; RAD
ID=7 L=20 		9-09524-635-0 01 1 0107-0606 ●
445 CLIP; RAD
ID=7 L=20 		0-95234-635-0 01 1 0607- ●
450 CLIP; BAND
L=140 		5-09707-031-0 02 1 9601-9803 ● ● ●
450 CLIP; BAND
L=140 		5-09707-031-1 02 1 9804-0106 ● ●
450 CLIP; BAND
L=250 		5-09707-030-1 01 1 9811-0106 ●
646 NUT; BRKT,LEVER
M8 FLANGE 		0-91150-108-0 01 1 0005-0106 ●

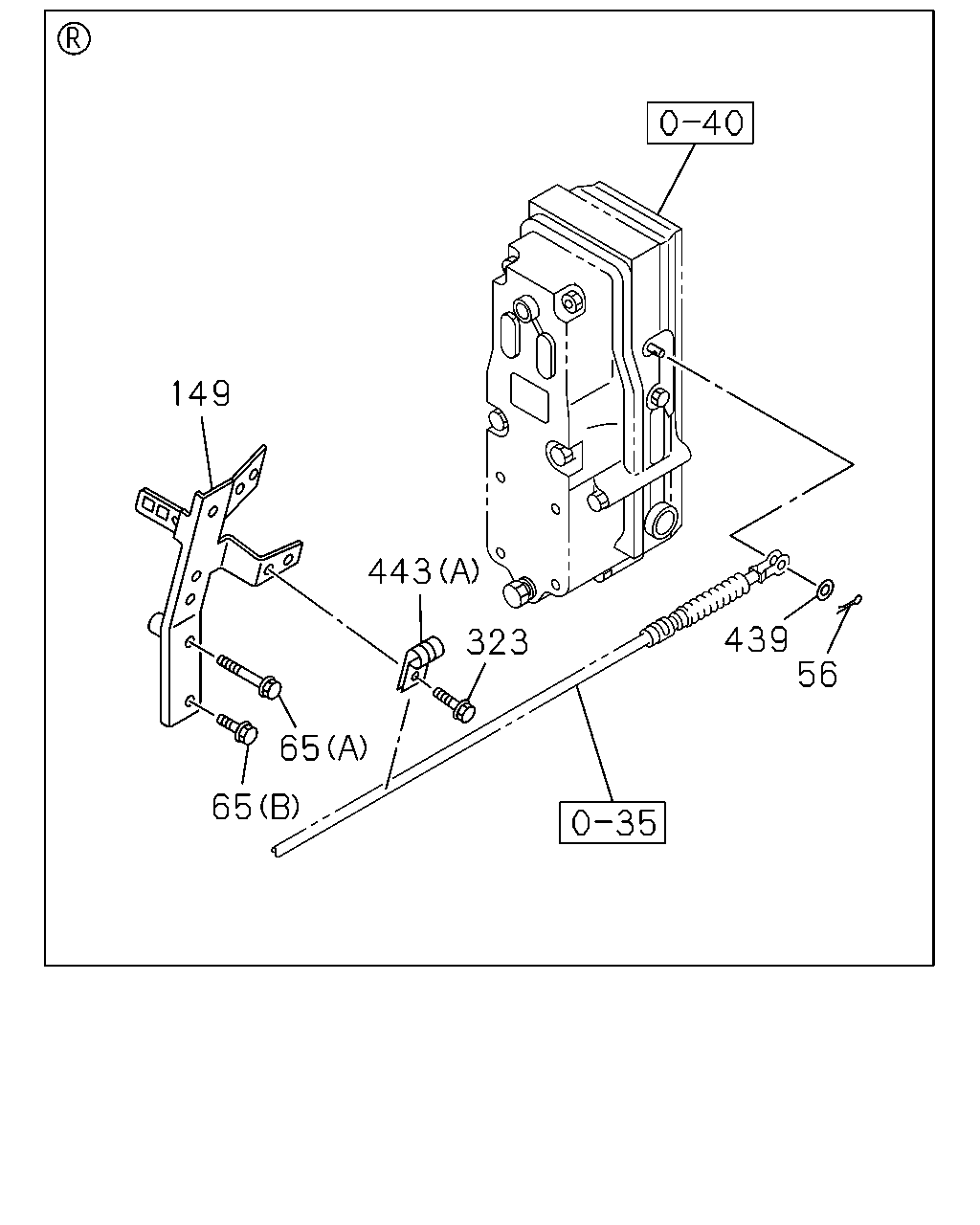

çizim 85913
149 443 439 56 323 65 65
BalonParca AdiParca NoAdetTipApplied Date A B C D
56 PIN; SNAP,JAW JOINT
L=17.9 		1-09747-015-0 01 1 9601-9609 ●
56 PIN; SNAP,JAW JOINT
L=17.9 		1-09747-015-0 01 1 9610-9803 ● ●
56 PIN; SNAP,JAW JOINT
L=17.9 		1-09747-015-0 01 1 9804-0106 ●
56 PIN; SNAP,JAW JOINT
L=17.9 		1-09747-015-0 01 1 0107- ●
56 PIN; SNAP,JAW JOINT
L=17.9 		1-09747-002-0 01 1 9601-0106 ●
65 BOLT
(A) M10X60 		0-16811-060-0 01 1 9601-9609 ●
65 BOLT
(A) M10X60 		0-16811-060-0 01 1 9610-9803 ● ●
65 BOLT
(A) M10X60 		0-16811-060-0 01 1 9804-0106 ●
65 BOLT
(B) M10X20 FLANGE 		0-28181-020-0 01 1 9601-9609 ●
65 BOLT
(B) M10X20 FLANGE 		0-28181-020-0 01 1 9610-9803 ● ●
65 BOLT
(B) M10X20 FLANGE 		0-28181-020-0 01 1 9804-0106 ●
65 BOLT
(B) M10X20 FLANGE 		0-28181-020-0 01 1 0107-0512 ●
65 BOLT
(B) M10X20 FLANGE 		0-28151-020-0 01 1 0601- ●
65 BOLT
(C) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9601-9803 ● ● ●
65 BOLT
(C) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9804-0106 ● ●
65 BOLT
(C) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0107- ● ●
65 BOLT
(D) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 9601-9803 ● ● ●
65 BOLT
(D) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 9804-0106 ● ●
65 BOLT
(A) M10X60 		0-16811-060-0 01 1 0107-0512 ●
65 BOLT
(A) M10X60 		0-16861-060-0 01 1 0601- ●
65 BOLT
(D) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0111-0904 ●
65 BOLT
(D) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 0905- ●
149 BRACKET; ENG CONT 8-94390-006-1 01 1 9601-9803 ●
149 BRACKET; ENG CONT 8-94394-532-1 01 1 9610-0106 ●
149 BRACKET; ENG CONT 8-94394-532-1 01 1 0107- ●
323 BOLT; CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 9601-9609 ● ●
323 BOLT; CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 9610-9803 ● ● ●
323 BOLT; CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 9804-0106 ● ●
323 BOLT; CLIP
M8X16 FLANGE 		0-28080-816-0 03 1 0107-0512 ●
323 BOLT; CLIP
M8X16 FLANGE 		0-28050-816-0 03 1 0601- ●
439 WASHER; PL,PIN,JAW JOINT
ID=5.3 		9-09160-505-0 01 1 9601-9803 ● ● ●
439 WASHER; PL,PIN,JAW JOINT
ID=5.3 		9-09160-505-0 01 1 9804-0106 ● ●
439 WASHER; PL,PIN,JAW JOINT
ID=5.3 		9-09160-505-0 01 1 0107-0605 ●
439 WASHER; PL,PIN,JAW JOINT
ID=5.3 		0-91610-505-0 01 1 0606- ●
443 CLIP; CABLE
(A) ID=7 L=20 		9-09524-635-0 01 1 9601-9609 ● ●
443 CLIP; CABLE
(A) ID=7 L=20 		9-09524-635-0 01 1 9610-9803 ● ● ●
443 CLIP; CABLE
(A) ID=7 L=20 		9-09524-635-0 01 1 9804-0106 ●
443 CLIP; CABLE
(A) ID=7 L=20 		9-09524-635-0 01 1 0107-0606 ●
443 CLIP; CABLE
(A) ID=7 L=20 		0-95234-635-0 01 1 0607- ●
443 CLIP; CABLE
(A) ID=7 L=16 		9-09524-625-0 01 1 9804-0106 ●
443 CLIP; CABLE
(B) ID=13 L=32 		9-09525-265-0 02 1 0107-0606 ●
443 CLIP; CABLE
(B) ID=13 L=32 		0-95235-265-0 02 1 0607- ●

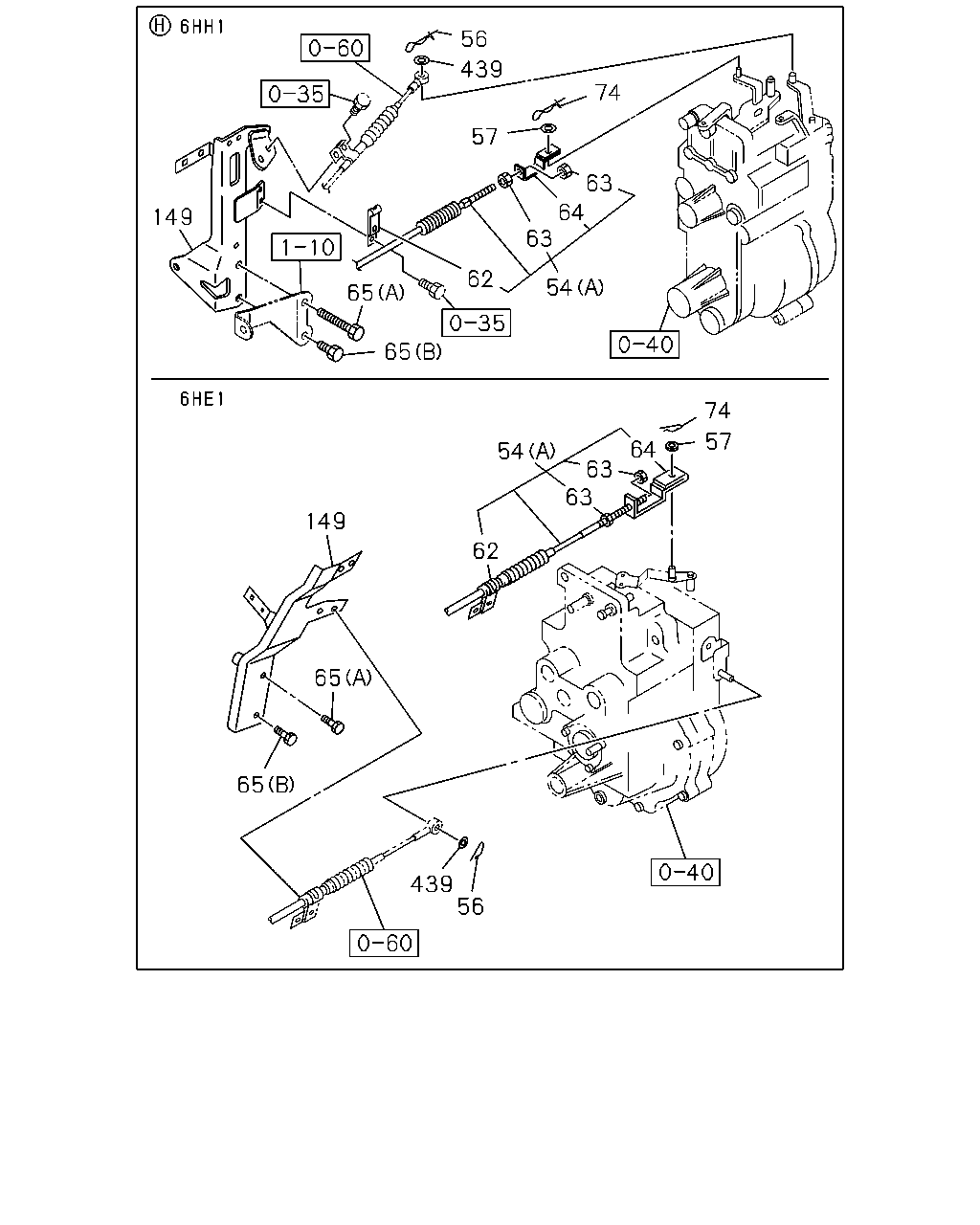

çizim 86321
56 439 74 57 63 64 63 149 62 54 65 65 74 57 64 54 63 63 149 62 65 65 439 56
BalonParca AdiParca NoAdetTipApplied Date A B C D
54 CABLE; ENG CONT
(A) L=2939 		1-73998-940-4 01 1 9601-9803 ●
54 CABLE; ENG CONT
(A) L=2636.5 		1-73996-296-6 01 1 9601-0106 ●
54 CABLE; ENG CONT
WIDE CAB(FV**F*) (A) L=2755 		1-73996-347-1 01 1 9610-9803 ●
54 CABLE; ENG CONT
(A) L=2755 		1-73996-347-3 01 1 9804-0106 ●
54 CABLE; ENG CONT
(B) L=850 		1-71907-257-0 01 1 0107- ● ●
54 CABLE; ENG CONT
STD CAB(FV**M*) (A) L=2949 		1-73996-284-1 01 1 9610-9709 ●
54 CABLE; ENG CONT
STD CAB(FV**M*) EXC. EURO2 SPECIFICATION<THN> (A) L=2949 		1-73996-284-1 01 1 9710-9803 ●
54 CABLE; ENG CONT
STD CAB(FV**M*) EURO2 SPECIFICATION<THN> (A) L=2996.5 		1-73996-348-1 01 1 9710-9803 ●
56 PIN; SNAP,JAW JOINT
L=17.9 		1-09747-015-0 01 1 9601-9609 ●
56 PIN; SNAP,JAW JOINT
L=17.9 		1-09747-015-0 01 1 9610-9803 ● ●
56 PIN; SNAP,JAW JOINT
L=17.9 		1-09747-015-0 01 1 9804-0106 ●
56 PIN; SNAP,JAW JOINT
L=17.9 		1-09747-015-0 01 1 0107- ●
56 PIN; SNAP,JAW JOINT
L=17.9 		1-09747-002-0 01 1 9601-0106 ●
57 WASHER; ENG CONT CABLE
ID=8.4 		9-09160-508-0 01 1 9601-9803 ● ● ●
57 WASHER; ENG CONT CABLE
ID=8.4 		9-09160-508-0 01 1 9804-0106 ● ●
62 CLIP; ENG CONT CABLE
L=30 		1-09700-326-0 01 1 9601-9705 ●
62 CLIP; ENG CONT CABLE
STD CAB(FV**M*) L=30 		1-09700-326-0 01 1 9706-9709 ● ●
62 CLIP; ENG CONT CABLE
STD CAB(FV**M*) L=30 		1-09700-326-0 01 1 9710-9803 ●
62 CLIP; ENG CONT CABLE
STD CAB(FV**M*) EXC. EURO2 SPECIFICATION<THN> L=30 		1-09700-326-0 01 1 9710-9803 ●
62 CLIP; ENG CONT CABLE
L=16 		1-09700-597-0 01 1 9601-0106 ●
62 CLIP; ENG CONT CABLE
WIDE CAB(FV**F*) 		8-94397-228-0 01 1 9610-9709 ●
62 CLIP; ENG CONT CABLE
EURO2 SPECIFICATION<THN> 		8-94397-228-0 01 1 9710-9803 ●
62 CLIP; ENG CONT CABLE 8-94397-228-0 01 1 9804-0106 ●
62 CLIP; ENG CONT CABLE
STD CAB(FV**M*) L=30 		1-09700-326-0 01 1 9610-9705 ●
63 NUT; LOCK,BRKT
M8 		9-09111-408-0 02 1 9601-9609 ● ●
63 NUT; LOCK,BRKT
M8 		9-09111-408-0 02 1 9610-9803 ● ● ●
63 NUT; LOCK,BRKT
M8 		9-09111-408-0 02 1 9804-0106 ● ●
64 BRACKET; ENG CONT CABLE 1-23219-105-1 01 1 9601-9609 ● ●
64 BRACKET; ENG CONT CABLE 1-23219-105-1 01 1 9610-9803 ● ● ●
64 BRACKET; ENG CONT CABLE 1-23219-105-1 01 1 9804-0106 ● ●
65 BOLT
(A) M10X60 		0-16811-060-0 01 1 9601-9609 ●
65 BOLT
(A) M10X60 		0-16811-060-0 01 1 9610-9803 ● ●
65 BOLT
(A) M10X60 		0-16811-060-0 01 1 9804-0106 ●
65 BOLT
(B) M10X20 FLANGE 		0-28181-020-0 01 1 9601-9609 ●
65 BOLT
(B) M10X20 FLANGE 		0-28181-020-0 01 1 9610-9803 ● ●
65 BOLT
(B) M10X20 FLANGE 		0-28181-020-0 01 1 9804-0106 ●
65 BOLT
(B) M10X20 FLANGE 		0-28181-020-0 01 1 0107-0512 ●
65 BOLT
(B) M10X20 FLANGE 		0-28151-020-0 01 1 0601- ●
65 BOLT
(C) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9601-9803 ● ● ●
65 BOLT
(C) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9804-0106 ● ●
65 BOLT
(C) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0107- ● ●
65 BOLT
(D) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 9601-9803 ● ● ●
65 BOLT
(D) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 9804-0106 ● ●
65 BOLT
(A) M10X60 		0-16811-060-0 01 1 0107-0512 ●
65 BOLT
(A) M10X60 		0-16861-060-0 01 1 0601- ●
65 BOLT
(D) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0111-0904 ●
65 BOLT
(D) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 0905- ●
74 PIN; SNAP,CABLE END
L=27.7 		8-94157-841-0 01 1 9601-9609 ●
74 PIN; SNAP,CABLE END
L=27.7 		8-94157-841-0 01 1 9610-9803 ● ●
74 PIN; SNAP,CABLE END
L=27.7 		8-94157-841-0 01 1 9804-0106 ●
74 PIN; SNAP,CABLE END
L=27.7 		1-09747-005-0 01 1 9601-0106 ●
149 BRACKET; ENG CONT 8-94390-006-1 01 1 9601-9803 ●
149 BRACKET; ENG CONT 8-94394-532-1 01 1 9610-0106 ●
149 BRACKET; ENG CONT 8-94394-532-1 01 1 0107- ●
439 WASHER; PL,PIN,JAW JOINT
ID=5.3 		9-09160-505-0 01 1 9601-9803 ● ● ●
439 WASHER; PL,PIN,JAW JOINT
ID=5.3 		9-09160-505-0 01 1 9804-0106 ● ●
439 WASHER; PL,PIN,JAW JOINT
ID=5.3 		9-09160-505-0 01 1 0107-0605 ●
439 WASHER; PL,PIN,JAW JOINT
ID=5.3 		0-91610-505-0 01 1 0606- ●

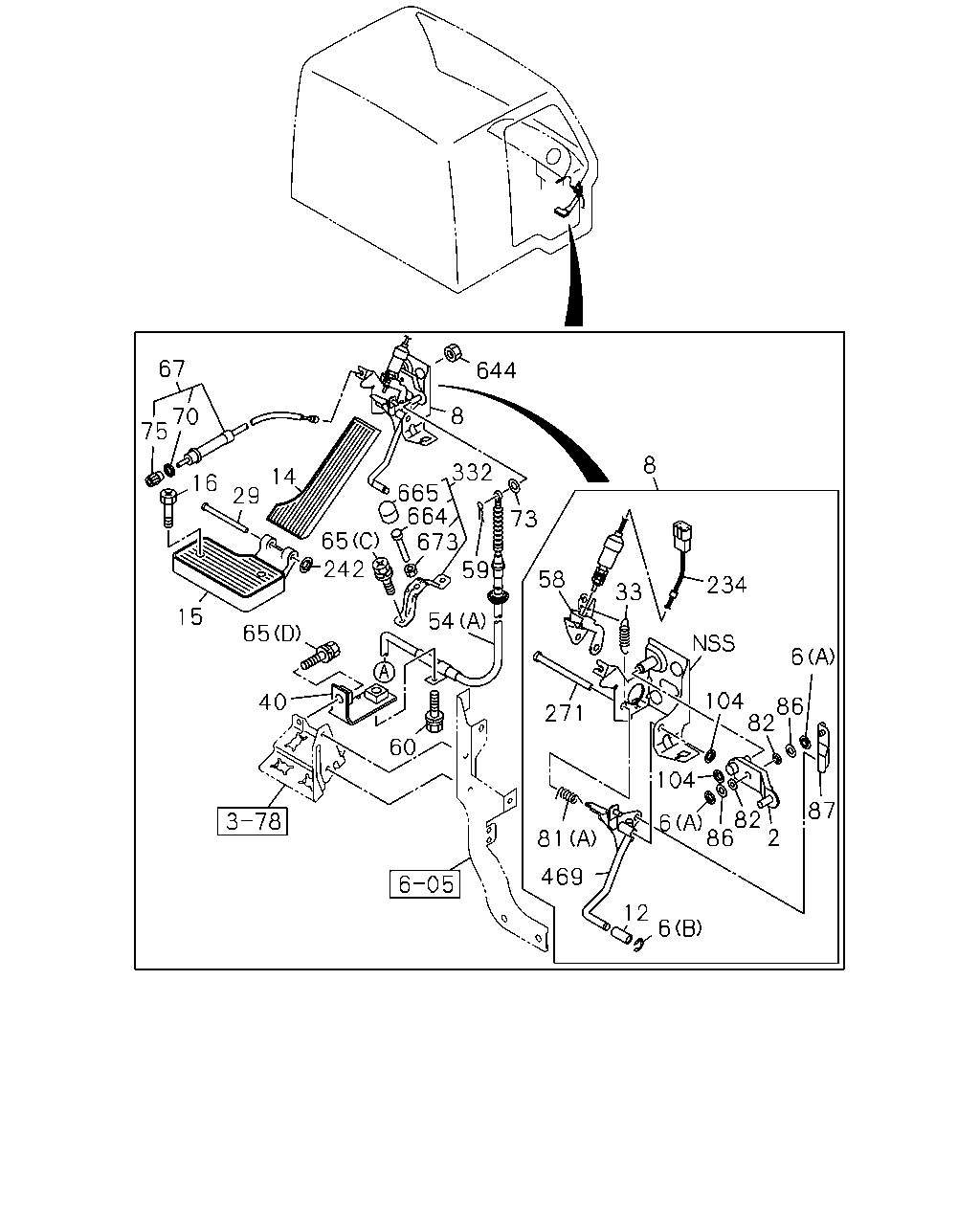

çizim 103599
67 644 8 70 75 332 8 14 16 665 664 673 59 29 73 6 242 58 234 33 15 54 65 6 104 86 82 40 271 60 104 87 82 6 81 469 12 6 86 2
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 LEVER; ENG CONT 1-71907-210-2 01 1 9601-9609 ● ●
2 LEVER; ENG CONT 1-71907-210-2 01 1 9610-9803 ● ● ●
2 LEVER; ENG CONT 1-71907-210-2 01 1 9804-0106 ● ●
2 LEVER; ENG CONT 1-71907-500-2 01 1 0107- ● ●
6 RING; SNAP,LINK TO LINK
(A) ID=4 		9-09185-404-0 02 1 9601-9609 ● ●
6 RING; SNAP,LINK TO LINK
(A) ID=4 		9-09185-404-0 02 1 9610-9803 ● ● ●
6 RING; SNAP,LINK TO LINK
(A) ID=4 		9-09185-404-0 02 1 9804-0106 ● ●
6 RING; SNAP,LINK TO LINK
(C) ID=6 		9-09185-406-0 01 1 0107-0204 ● ●
6 RING; SNAP,LINK TO LINK
(B) ID=6 		9-09185-406-0 01 1 9601-9609 ● ●
6 RING; SNAP,LINK TO LINK
(B) ID=6 		9-09185-406-0 01 1 9610-9802 ● ● ●
8 LINK ASM; ENG CONT 1-73996-206-5 01 1 9601-9609 ● ●
8 LINK ASM; ENG CONT 1-73996-206-6 01 1 9610-9803 ● ● ●
8 LINK ASM; ENG CONT 1-73996-206-6 01 1 9804-0106 ● ●
8 LINK ASM; ENG CONT 1-71907-161-9 01 1 0107-1101 ● ●
8 LINK ASM; ENG CONT 8-98170-161-0 01 1 1102- ● ●
12 ROLLER; ENG CONT LEVER 1-09989-007-0 01 1 9601-9609 ● ●
12 ROLLER; ENG CONT LEVER 1-09989-007-0 01 1 9610-9802 ● ● ●
12 ROLLER; ENG CONT LEVER 1-09989-007-0 01 1 0107-0204 ● ●
14 PAD; PEDAL,ACCEL 1-23241-021-0 01 1 9601-9708 ● ● ●
14 PAD; PEDAL,ACCEL 1-73907-563-0 01 1 9709-9803 ● ● ●
14 PAD; PEDAL,ACCEL 1-73907-563-0 01 1 9804-0106 ● ●
14 PAD; PEDAL,ACCEL 1-73907-563-0 01 1 0107- ● ●
15 STAND; HEEL,ACCEL PEDAL 1-73907-266-2 01 1 9601-9803 ● ● ●
15 STAND; HEEL,ACCEL PEDAL 1-73907-266-2 01 1 9804-0106 ● ●
15 STAND; HEEL,ACCEL PEDAL 1-73907-266-3 01 1 0107- ● ●
16 SCREW; HEEL STAND,ACCEL PEDAL
M6X20 W/LK&PL WASHER 		8-94279-202-0 02 1 9601-9803 ● ● ●
16 SCREW; HEEL STAND,ACCEL PEDAL
M6X20 W/LK&PL WASHER 		8-94279-202-0 02 1 9804-9902 ● ●
16 SCREW; HEEL STAND,ACCEL PEDAL
M6X28 W/LK&PL WASHER 		1-09980-543-0 02 1 9903-0106 ● ●
16 SCREW; HEEL STAND,ACCEL PEDAL
M6X28 W/LK&PL WASHER 		1-09980-543-0 02 1 0107- ● ●
29 SHAFT; ACCEL PEDAL
OD=8.0 L=74 		1-71907-212-1 01 1 9601-9803 ● ● ●
29 SHAFT; ACCEL PEDAL
OD=8.0 L=74 		1-71907-212-1 01 1 9804-0106 ● ●
29 SHAFT; ACCEL PEDAL
OD=8.0 L=74 		1-71907-212-1 01 1 0107- ● ●
33 SPRING; IDLING CONT LEVER 8-94414-815-0 01 1 9601-9609 ● ●
33 SPRING; IDLING CONT LEVER 8-94414-815-0 01 1 9610-9803 ● ● ●
33 SPRING; IDLING CONT LEVER 8-94414-815-0 01 1 9804-0106 ● ●
40 BRACKET; ENG CONT CABLE 1-47477-148-2 01 1 9601-9803 ● ● ●
40 BRACKET; ENG CONT CABLE 1-47477-148-2 01 1 9804-9908 ● ●
40 BRACKET; ENG CONT CABLE 1-47478-612-0 01 1 9909-0106 ● ●
40 BRACKET; ENG CONT CABLE 1-47478-612-0 01 1 0111- ●
54 CABLE; ENG CONT
(A) L=2939 		1-73998-940-4 01 1 9601-9803 ●
54 CABLE; ENG CONT
(A) L=2636.5 		1-73996-296-6 01 1 9601-0106 ●
54 CABLE; ENG CONT
WIDE CAB(FV**F*) (A) L=2755 		1-73996-347-1 01 1 9610-9803 ●
54 CABLE; ENG CONT
(A) L=2755 		1-73996-347-3 01 1 9804-0106 ●
54 CABLE; ENG CONT
(B) L=850 		1-71907-257-0 01 1 0107- ● ●
54 CABLE; ENG CONT
STD CAB(FV**M*) (A) L=2949 		1-73996-284-1 01 1 9610-9709 ●
54 CABLE; ENG CONT
STD CAB(FV**M*) EXC. EURO2 SPECIFICATION<THN> (A) L=2949 		1-73996-284-1 01 1 9710-9803 ●
54 CABLE; ENG CONT
STD CAB(FV**M*) EURO2 SPECIFICATION<THN> (A) L=2996.5 		1-73996-348-1 01 1 9710-9803 ●
58 LEVER; IDLING CONT 1-71907-242-1 01 1 9601-9609 ● ●
58 LEVER; IDLING CONT 1-71907-242-1 01 1 9610-9803 ● ● ●
58 LEVER; IDLING CONT 1-71907-242-1 01 1 9804-0106 ● ●
59 PIN; SNAP,ENG CONT CABLE
L=27.7 		1-09747-005-0 01 1 9601-9803 ● ● ●
59 PIN; SNAP,ENG CONT CABLE
L=27.7 		1-09747-005-0 01 1 9804-0106 ● ●
60 BOLT; CABLE
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 9601-9803 ● ● ●
60 BOLT; CABLE
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 9804-0106 ● ●
65 BOLT
(A) M10X60 		0-16811-060-0 01 1 9601-9609 ●
65 BOLT
(A) M10X60 		0-16811-060-0 01 1 9610-9803 ● ●
65 BOLT
(A) M10X60 		0-16811-060-0 01 1 9804-0106 ●
65 BOLT
(B) M10X20 FLANGE 		0-28181-020-0 01 1 9601-9609 ●
65 BOLT
(B) M10X20 FLANGE 		0-28181-020-0 01 1 9610-9803 ● ●
65 BOLT
(B) M10X20 FLANGE 		0-28181-020-0 01 1 9804-0106 ●
65 BOLT
(B) M10X20 FLANGE 		0-28181-020-0 01 1 0107-0512 ●
65 BOLT
(B) M10X20 FLANGE 		0-28151-020-0 01 1 0601- ●
65 BOLT
(C) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9601-9803 ● ● ●
65 BOLT
(C) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9804-0106 ● ●
65 BOLT
(C) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0107- ● ●
65 BOLT
(D) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 9601-9803 ● ● ●
65 BOLT
(D) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 9804-0106 ● ●
65 BOLT
(A) M10X60 		0-16811-060-0 01 1 0107-0512 ●
65 BOLT
(A) M10X60 		0-16861-060-0 01 1 0601- ●
65 BOLT
(D) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0111-0904 ●
65 BOLT
(D) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 0905- ●
67 CABLE ASM; IDLE CONT
L=399 		1-73998-912-3 01 1 9601-9803 ● ● ●
67 CABLE ASM; IDLE CONT
L=399 		1-73998-912-3 01 1 9804-0106 ● ●
70 NUT; CONT CABLE 1-73908-045-1 01 1 9601-9803 ● ● ●
70 NUT; CONT CABLE 1-73908-045-1 01 1 9804-0106 ● ●
73 WASHER; PL,ACCEL CONT CABLE
ID=8.4 		9-09160-508-0 01 1 9601-9803 ● ● ●
73 WASHER; PL,ACCEL CONT CABLE
ID=8.4 		9-09160-508-0 01 1 9804-0106 ● ●
75 KNOB ASM; IDLING CONT 8-97066-797-1 01 1 9601-9803 ● ● ●
75 KNOB ASM; IDLING CONT 8-97066-797-1 01 1 9804-0106 ● ●
81 SPRING; RETURN,ENG CONT LEVER
(A) 		8-97853-205-1 01 1 9601-9609 ● ●
81 SPRING; RETURN,ENG CONT LEVER
(A) 		8-97853-205-1 01 1 9610-9803 ● ● ●
81 SPRING; RETURN,ENG CONT LEVER
(A) 		8-97853-205-1 01 1 9804-0106 ● ●
81 SPRING; RETURN,ENG CONT LEVER
(A) 		8-97853-205-1 01 1 0107- ● ●
81 SPRING; RETURN,ENG CONT LEVER
(B) 		1-71907-268-0 01 1 0107-0206 ● ●
81 SPRING; RETURN,ENG CONT LEVER
(B) 		8-97997-917-0 01 1 0207- ● ●
82 BUSHING; ENG CONT LVR 1-71907-244-1 02 1 9601-9609 ● ●
82 BUSHING; ENG CONT LVR 1-71907-244-1 02 1 9610-9803 ● ● ●
82 BUSHING; ENG CONT LVR 1-71907-244-1 02 1 9804-0106 ● ●
82 BUSHING; ENG CONT LVR
L=31.5 		1-53459-627-0 01 1 0107- ● ●
86 WASHER; PL,ENG CONT LEVER
ID=6.4 		9-09160-506-0 02 1 9601-9609 ● ●
86 WASHER; PL,ENG CONT LEVER
ID=6.4 		9-09160-506-0 02 1 9610-9803 ● ● ●
86 WASHER; PL,ENG CONT LEVER
ID=6.4 		9-09160-506-0 02 1 9804-0106 ● ●
87 LINK; ENG CONT 1-71907-211-1 01 1 9601-9609 ● ●
87 LINK; ENG CONT 1-71907-211-1 01 1 9610-9803 ● ● ●
87 LINK; ENG CONT 1-71907-211-1 01 1 9804-0106 ● ●
104 NUT; ENG CONT
ID=7.9 PUSH NUT 		8-94368-617-0 02 1 9601-9609 ● ●
104 NUT; ENG CONT
ID=7.9 PUSH NUT 		8-94368-617-0 02 1 9610-9803 ● ● ●
104 NUT; ENG CONT
ID=7.9 PUSH NUT 		8-94368-617-0 02 1 9804-0106 ● ●
104 NUT; ENG CONT
ID=7.9 PUSH NUT 		8-94368-617-0 01 1 0107- ● ●
234 SWITCH; ACCEL 1-82380-114-1 01 1 9601-9609 ● ●
234 SWITCH; ACCEL 1-82380-114-1 01 1 9610-9803 ● ● ●
234 SWITCH; ACCEL 1-82380-114-2 01 1 9804-0106 ● ●
234 SWITCH; ACCEL 1-82380-131-2 01 1 0107- ● ●
242 NUT; ACCEL PEDAL
ID=7.9 PUSH NUT 		8-97022-565-0 01 1 9601-9803 ● ● ●
242 NUT; ACCEL PEDAL
ID=7.9 PUSH NUT 		8-97022-565-0 01 1 9804-0106 ● ●
242 NUT; ACCEL PEDAL
ID=7.9 PUSH NUT 		8-97022-565-0 01 1 0107- ● ●
271 SHAFT; ENG CONT
OD=8.0 L=74 		1-71907-212-1 01 1 9601-9609 ● ●
271 SHAFT; ENG CONT
OD=8.0 L=74 		1-71907-212-1 01 1 9610-9803 ● ● ●
271 SHAFT; ENG CONT
OD=8.0 L=74 		1-71907-212-1 01 1 9804-0106 ● ●
271 SHAFT; ENG CONT
OD=8.0 L=69 		1-71907-298-0 01 1 0107- ● ●
332 BRACKET; ACCEL PEDAL STOPPER 1-73998-937-1 01 1 9601-9803 ● ● ●
332 BRACKET; ACCEL PEDAL STOPPER 1-73998-937-1 01 1 9804-0106 ● ●
332 BRACKET; ACCEL PEDAL STOPPER 1-73998-937-1 01 1 0107-0212 ● ●
332 BRACKET; ACCEL PEDAL STOPPER 1-73908-428-0 01 1 0301- ● ●
469 LEVER ASM 1-71907-209-4 01 1 9601-9609 ● ●
469 LEVER ASM 1-71907-209-5 01 1 9610-9803 ● ● ●
469 LEVER ASM 1-71907-209-5 01 1 9804-0106 ● ●
644 NUT; LINK,ENG CONT
M8 FLANGE W/RUBBER 		1-09984-176-0 02 1 9601-9803 ● ● ●
644 NUT; LINK,ENG CONT
M8 FLANGE W/RUBBER 		1-09984-176-0 02 1 9804-0106 ● ●
644 NUT; LINK,ENG CONT
M8 FLANGE W/RUBBER 		1-09984-176-0 02 1 0107- ● ●
664 BOLT; STOPPER
M8X45 		0-20800-845-0 01 1 9601-9803 ● ● ●
664 BOLT; STOPPER
M8X45 		0-20800-845-0 01 1 9804-0106 ● ●
664 BOLT; STOPPER
M8X45 		0-20800-845-0 01 1 0107- ● ●
665 COVER; STOPPER
RUBBER 		1-23249-009-0 01 1 9601-9803 ● ● ●
665 COVER; STOPPER
RUBBER 		1-23249-009-0 01 1 9804-0106 ● ●
665 COVER; STOPPER
RUBBER 		1-23249-009-0 01 1 0107-0212 ● ●
673 NUT; STOPPER
M8 		9-09111-408-0 01 1 9601-9803 ● ● ●
673 NUT; STOPPER
M8 		9-09111-408-0 01 1 9804-0106 ● ●
673 NUT; STOPPER
M8 		9-09111-408-0 01 1 0107-0512 ● ●
673 NUT; STOPPER
M8 		0-91111-508-0 01 1 0601- ● ●

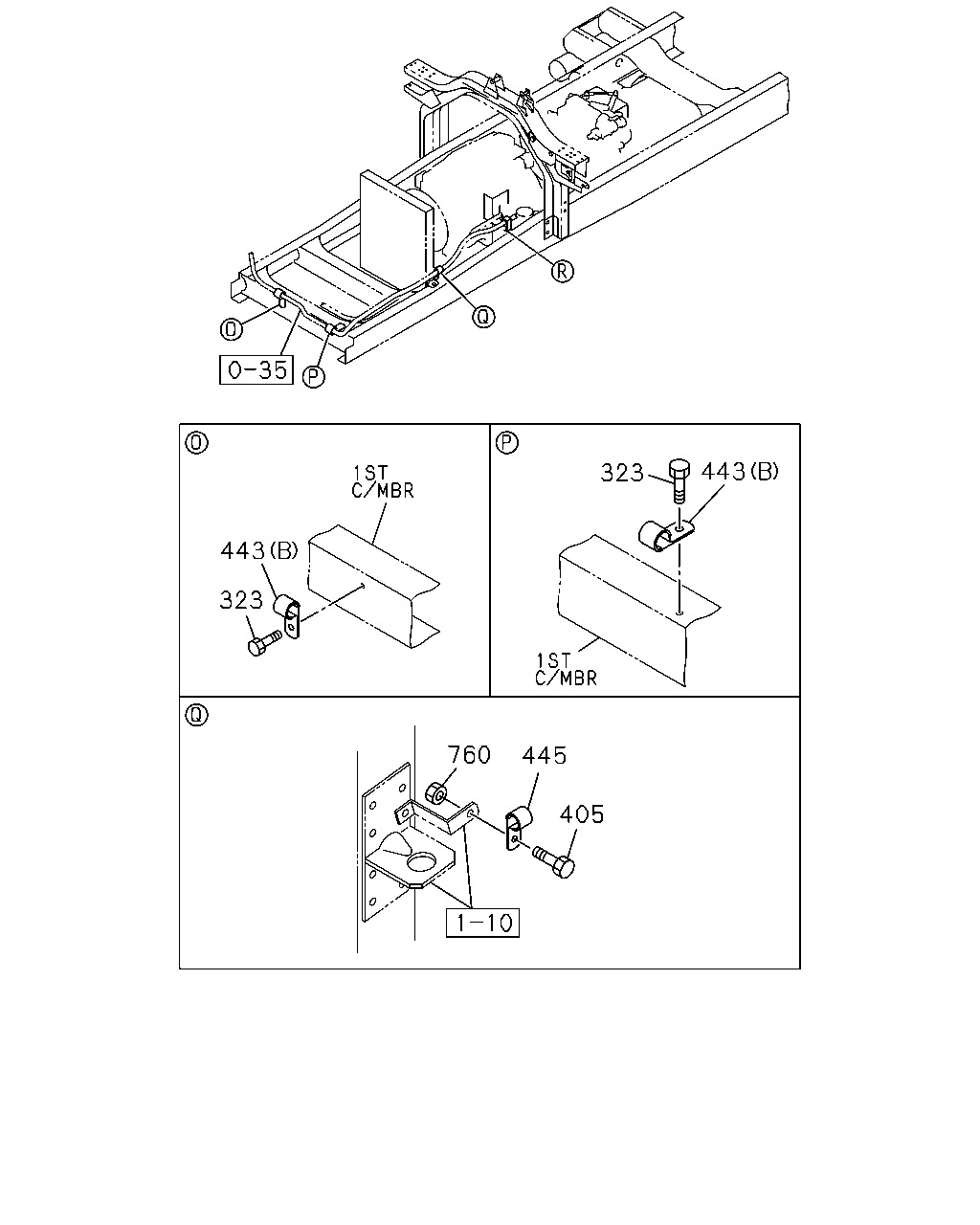

çizim 103602
443 323 443 323 760 445 405
BalonParca AdiParca NoAdetTipApplied Date A B C D
323 BOLT; CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 9601-9609 ● ●
323 BOLT; CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 9610-9803 ● ● ●
323 BOLT; CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 9804-0106 ● ●
323 BOLT; CLIP
M8X16 FLANGE 		0-28080-816-0 03 1 0107-0512 ●
323 BOLT; CLIP
M8X16 FLANGE 		0-28050-816-0 03 1 0601- ●
405 BOLT; CABLE CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 9601-0106 ●
405 BOLT; CABLE CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 0107-0512 ●
405 BOLT; CABLE CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 0601- ●
443 CLIP; CABLE
(A) ID=7 L=20 		9-09524-635-0 01 1 9601-9609 ● ●
443 CLIP; CABLE
(A) ID=7 L=20 		9-09524-635-0 01 1 9610-9803 ● ● ●
443 CLIP; CABLE
(A) ID=7 L=20 		9-09524-635-0 01 1 9804-0106 ●
443 CLIP; CABLE
(A) ID=7 L=20 		9-09524-635-0 01 1 0107-0606 ●
443 CLIP; CABLE
(A) ID=7 L=20 		0-95234-635-0 01 1 0607- ●
443 CLIP; CABLE
(A) ID=7 L=16 		9-09524-625-0 01 1 9804-0106 ●
443 CLIP; CABLE
(B) ID=13 L=32 		9-09525-265-0 02 1 0107-0606 ●
443 CLIP; CABLE
(B) ID=13 L=32 		0-95235-265-0 02 1 0607- ●
445 CLIP; RAD 1-09700-082-0 01 1 9601-0106 ●
445 CLIP; RAD
ID=7 L=20 		9-09524-635-0 01 1 0107-0606 ●
445 CLIP; RAD
ID=7 L=20 		0-95234-635-0 01 1 0607- ●
760 NUT; CLIP,BRKT
M8 FLANGE 		0-91150-108-0 01 1 0107-0602 ●
760 NUT; CLIP,BRKT
M8 FLANGE 		0-91180-108-0 01 1 0603- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
