◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 10893 - FVR(HONG KONG) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-87 - COUPLING; INJECTION PUMP ▶
0-87 — COUPLING; INJECTION PUMP (#26601) — 216 parça

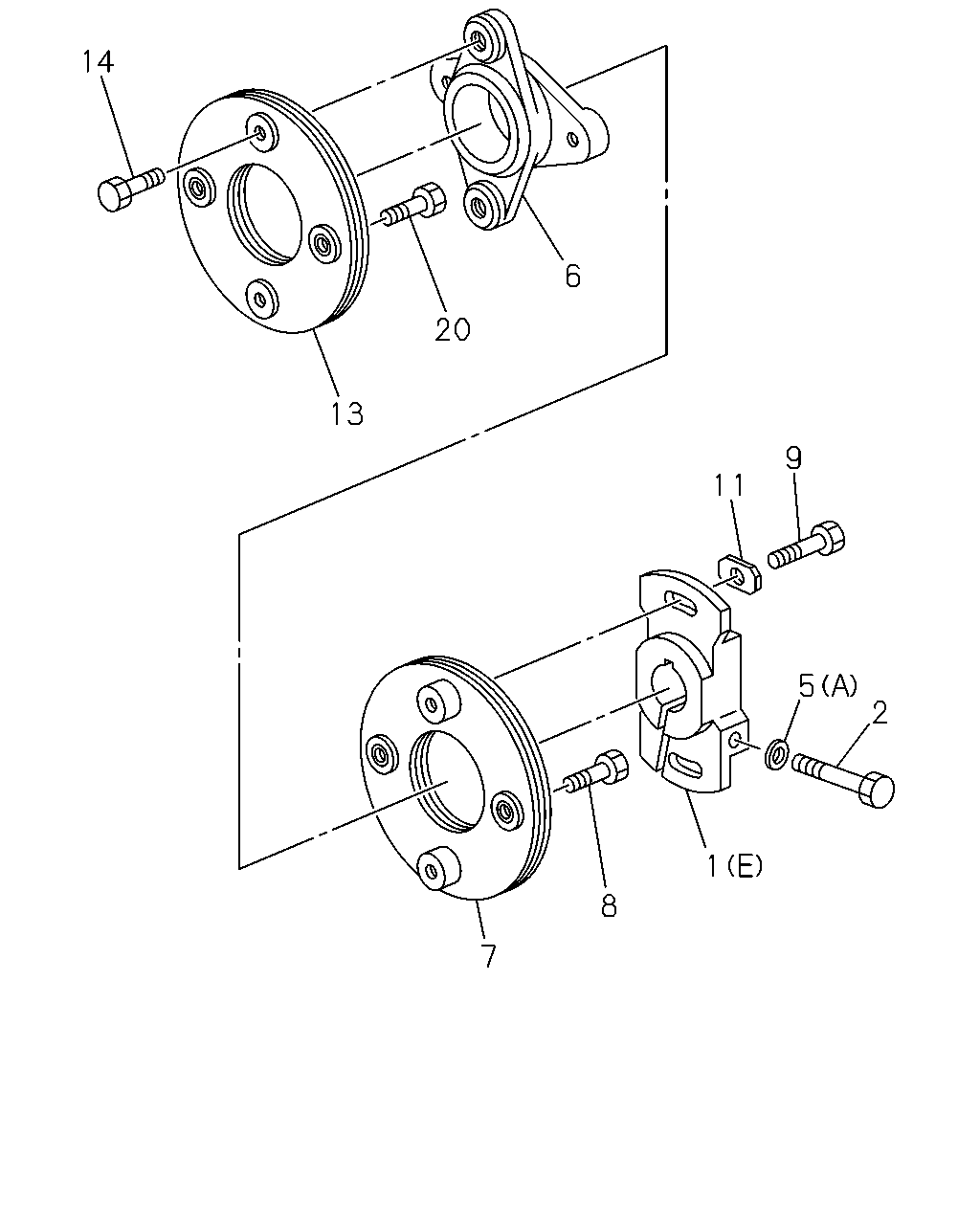

çizim 85828
14 6 20 13 9 11 5 2 1 8 7
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 COUPLING; INJ PUMP DRIVE
(A) 		1-15782-014-0 01 1 9601-9803 ●
1 COUPLING; INJ PUMP DRIVE
(B) 		1-15781-039-0 01 1 9601-0106 ●
1 COUPLING; INJ PUMP DRIVE
(C) 		1-15789-207-0 01 1 0107- ●
1 COUPLING; INJ PUMP DRIVE
(D) 		1-15781-031-0 01 1 9610-0106 ●
1 COUPLING; INJ PUMP DRIVE
(D) 		1-15781-046-0 01 1 0107- ●
1 COUPLING; INJ PUMP DRIVE
(E) 		1-15781-041-0 01 1 9610-0106 ●
1 COUPLING; INJ PUMP DRIVE
(E) 		1-15781-041-0 01 1 0107- ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-010-0 01 1 9601-9803 ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-162-0 01 1 9601-9609 ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-162-0 01 1 9610-0106 ● ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-162-0 01 1 0107- ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-212-0 01 1 0107- ●
5 WASHER; COUPLING FIX,INJ PUMP
(A) 		1-15789-021-0 01 1 9601-9609 ●
5 WASHER; COUPLING FIX,INJ PUMP
(A) 		1-15789-021-0 01 1 9610-0106 ● ●
5 WASHER; COUPLING FIX,INJ PUMP
(A) 		1-15789-021-0 01 1 0107- ●
5 WASHER; COUPLING FIX,INJ PUMP
(B) 		1-15619-131-0 01 1 9610-0106 ●
5 WASHER; COUPLING FIX,INJ PUMP
(B) 		1-15619-131-0 01 1 0107- ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-155-0 01 1 9601-9803 ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-161-0 01 1 9601-9609 ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-161-0 01 1 9610-0106 ● ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-161-0 01 1 0107- ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-208-0 01 1 0107- ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-194-0 01 1 9601-9803 ●
7 PLATE; COUPLING,COUPLING SIDE 1-15619-181-0 01 1 9601-0106 ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-209-0 02 1 0107- ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-189-1 01 1 9610-0106 ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-189-1 01 1 0107- ●
8 BOLT; PLATE TO CROSS COUPLING 1-15749-501-0 02 1 9601-9803 ●
8 BOLT; PLATE TO CROSS COUPLING 1-15619-183-0 02 1 9601-9609 ●
8 BOLT; PLATE TO CROSS COUPLING 1-15619-183-0 02 1 9610-0106 ● ●
8 BOLT; PLATE TO CROSS COUPLING 1-15619-183-0 02 1 0107- ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-122-0 02 1 9601-9803 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-159-0 02 1 9601-0106 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-210-0 02 1 0107- ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-163-0 02 1 9610-0106 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-163-0 02 1 0107- ●
11 WASHER; PLATE TO COUPLING,INJ PUMP 1-15789-188-0 02 1 9610-0106 ●
11 WASHER; PLATE TO COUPLING,INJ PUMP 1-15789-188-0 02 1 0107- ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15789-194-0 01 1 9601-9803 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15619-181-0 01 1 9601-9609 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15619-181-0 01 1 9610-0106 ● ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15619-181-0 01 1 0107- ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-120-0 02 1 9601-9803 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15619-183-0 02 1 9601-9609 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15619-183-0 02 1 9610-0106 ● ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15619-183-0 02 1 0107- ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-211-0 04 1 0107- ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-119-0 02 1 9601-9803 ●
20 BOLT; COUPLING TO INJ PUMP 1-15619-183-0 02 1 9601-9609 ●
20 BOLT; COUPLING TO INJ PUMP 1-15619-183-0 02 1 9610-0106 ● ●
20 BOLT; COUPLING TO INJ PUMP 1-15619-183-0 02 1 0107- ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-214-0 02 1 0107- ●

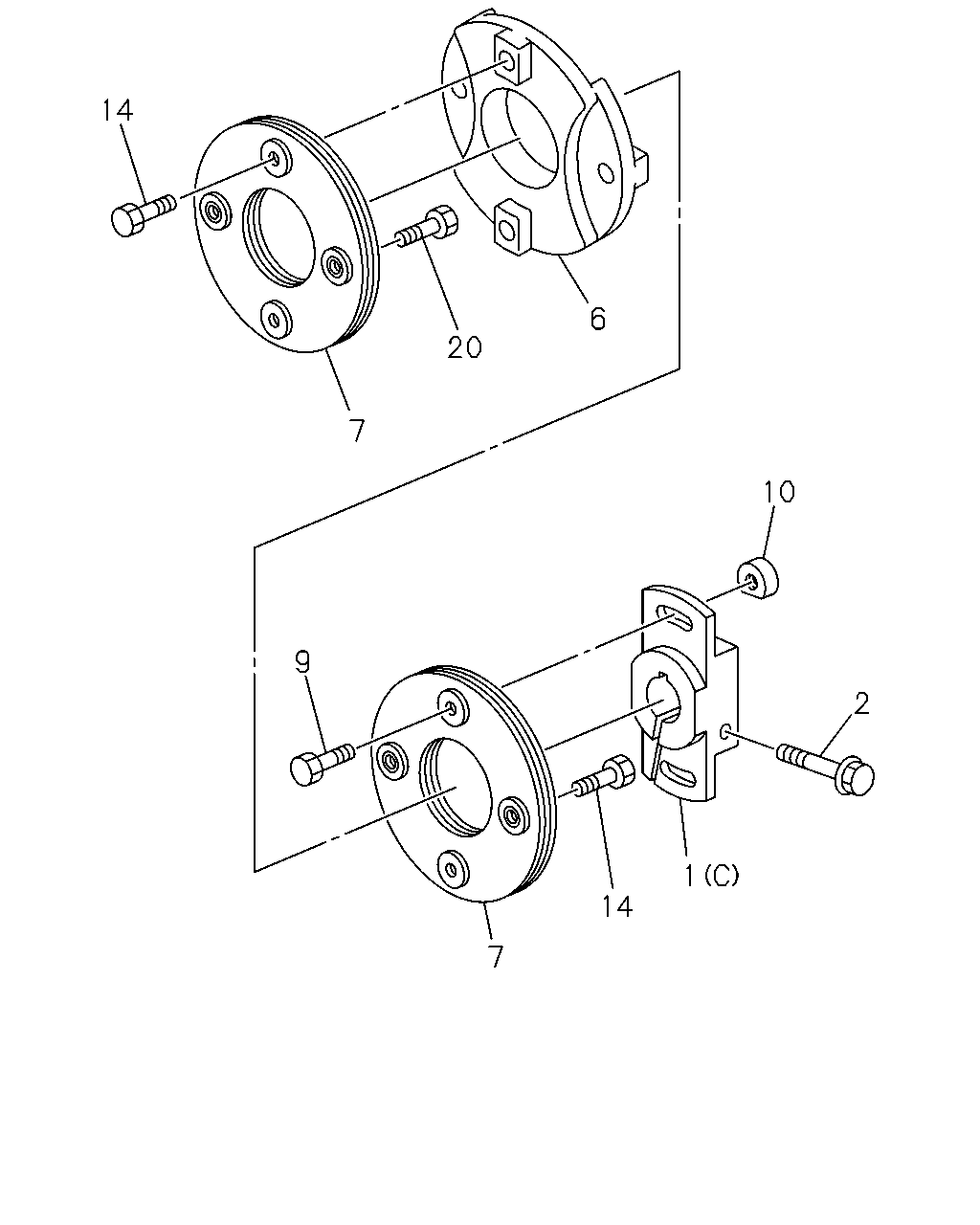

çizim 85830
14 6 20 7 10 9 2 1 14 7
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 COUPLING; INJ PUMP DRIVE
(A) 		1-15782-014-0 01 1 9601-9803 ●
1 COUPLING; INJ PUMP DRIVE
(B) 		1-15781-039-0 01 1 9601-0106 ●
1 COUPLING; INJ PUMP DRIVE
(C) 		1-15789-207-0 01 1 0107- ●
1 COUPLING; INJ PUMP DRIVE
(D) 		1-15781-031-0 01 1 9610-0106 ●
1 COUPLING; INJ PUMP DRIVE
(D) 		1-15781-046-0 01 1 0107- ●
1 COUPLING; INJ PUMP DRIVE
(E) 		1-15781-041-0 01 1 9610-0106 ●
1 COUPLING; INJ PUMP DRIVE
(E) 		1-15781-041-0 01 1 0107- ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-010-0 01 1 9601-9803 ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-162-0 01 1 9601-9609 ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-162-0 01 1 9610-0106 ● ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-162-0 01 1 0107- ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-212-0 01 1 0107- ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-155-0 01 1 9601-9803 ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-161-0 01 1 9601-9609 ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-161-0 01 1 9610-0106 ● ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-161-0 01 1 0107- ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-208-0 01 1 0107- ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-194-0 01 1 9601-9803 ●
7 PLATE; COUPLING,COUPLING SIDE 1-15619-181-0 01 1 9601-0106 ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-209-0 02 1 0107- ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-189-1 01 1 9610-0106 ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-189-1 01 1 0107- ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-122-0 02 1 9601-9803 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-159-0 02 1 9601-0106 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-210-0 02 1 0107- ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-163-0 02 1 9610-0106 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-163-0 02 1 0107- ●
10 NUT; PLATE TO COUPLING,INJ PUMP 1-15789-066-0 02 1 9601-9803 ●
10 NUT; PLATE TO COUPLING,INJ PUMP 1-15789-165-0 02 1 9601-0106 ●
10 NUT; PLATE TO COUPLING,INJ PUMP 1-15789-213-0 02 1 0107- ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-120-0 02 1 9601-9803 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15619-183-0 02 1 9601-9609 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15619-183-0 02 1 9610-0106 ● ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15619-183-0 02 1 0107- ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-211-0 04 1 0107- ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-119-0 02 1 9601-9803 ●
20 BOLT; COUPLING TO INJ PUMP 1-15619-183-0 02 1 9601-9609 ●
20 BOLT; COUPLING TO INJ PUMP 1-15619-183-0 02 1 9610-0106 ● ●
20 BOLT; COUPLING TO INJ PUMP 1-15619-183-0 02 1 0107- ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-214-0 02 1 0107- ●

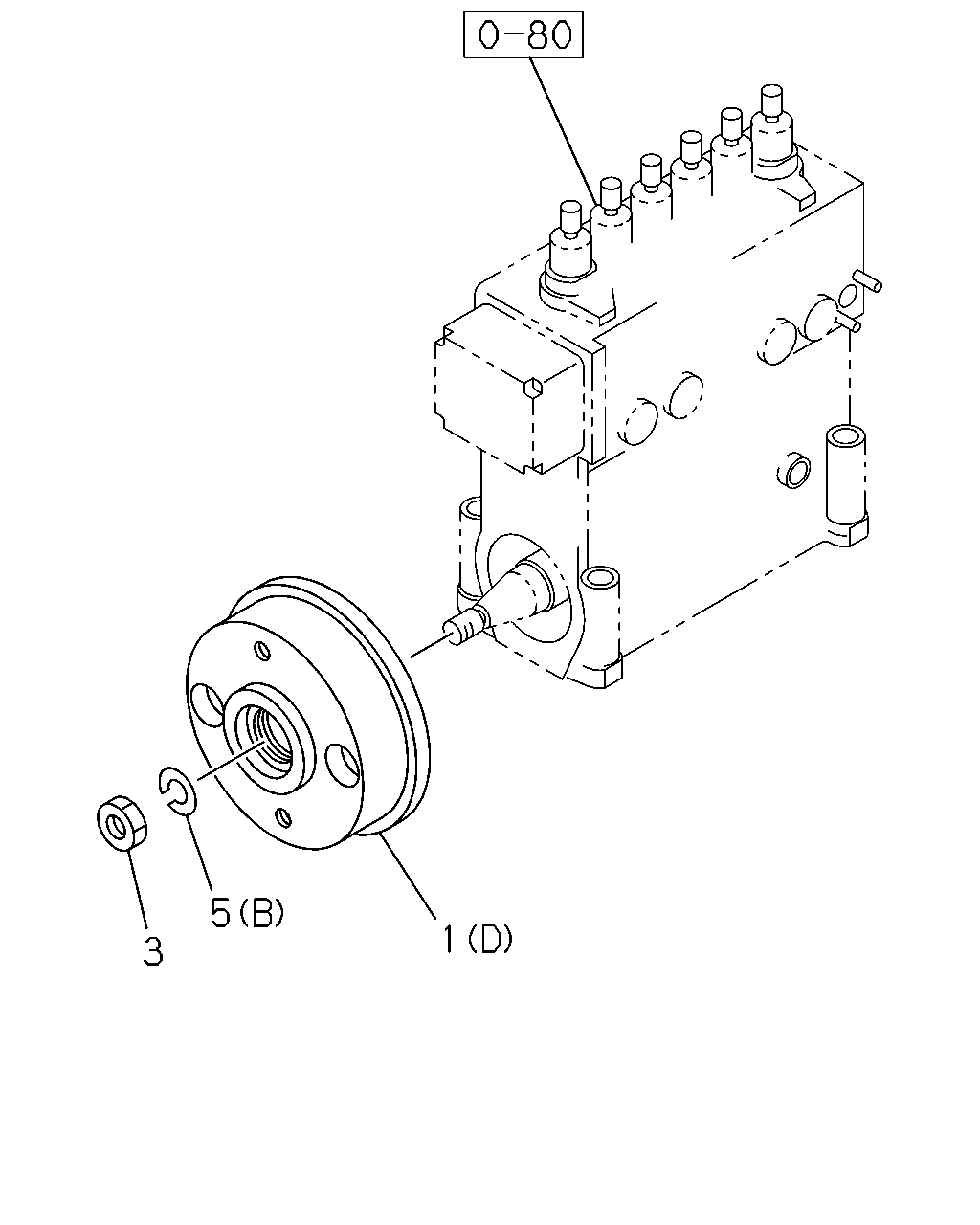

çizim 85911
5 1 3
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 COUPLING; INJ PUMP DRIVE
(A) 		1-15782-014-0 01 1 9601-9803 ●
1 COUPLING; INJ PUMP DRIVE
(B) 		1-15781-039-0 01 1 9601-0106 ●
1 COUPLING; INJ PUMP DRIVE
(C) 		1-15789-207-0 01 1 0107- ●
1 COUPLING; INJ PUMP DRIVE
(D) 		1-15781-031-0 01 1 9610-0106 ●
1 COUPLING; INJ PUMP DRIVE
(D) 		1-15781-046-0 01 1 0107- ●
1 COUPLING; INJ PUMP DRIVE
(E) 		1-15781-041-0 01 1 9610-0106 ●
1 COUPLING; INJ PUMP DRIVE
(E) 		1-15781-041-0 01 1 0107- ●
3 NUT; COUPLING FIX,INJ PUMP 1-15619-132-0 01 1 9610-0106 ●
3 NUT; COUPLING FIX,INJ PUMP 1-15619-132-0 01 1 0107- ●
5 WASHER; COUPLING FIX,INJ PUMP
(A) 		1-15789-021-0 01 1 9601-9609 ●
5 WASHER; COUPLING FIX,INJ PUMP
(A) 		1-15789-021-0 01 1 9610-0106 ● ●
5 WASHER; COUPLING FIX,INJ PUMP
(A) 		1-15789-021-0 01 1 0107- ●
5 WASHER; COUPLING FIX,INJ PUMP
(B) 		1-15619-131-0 01 1 9610-0106 ●
5 WASHER; COUPLING FIX,INJ PUMP
(B) 		1-15619-131-0 01 1 0107- ●

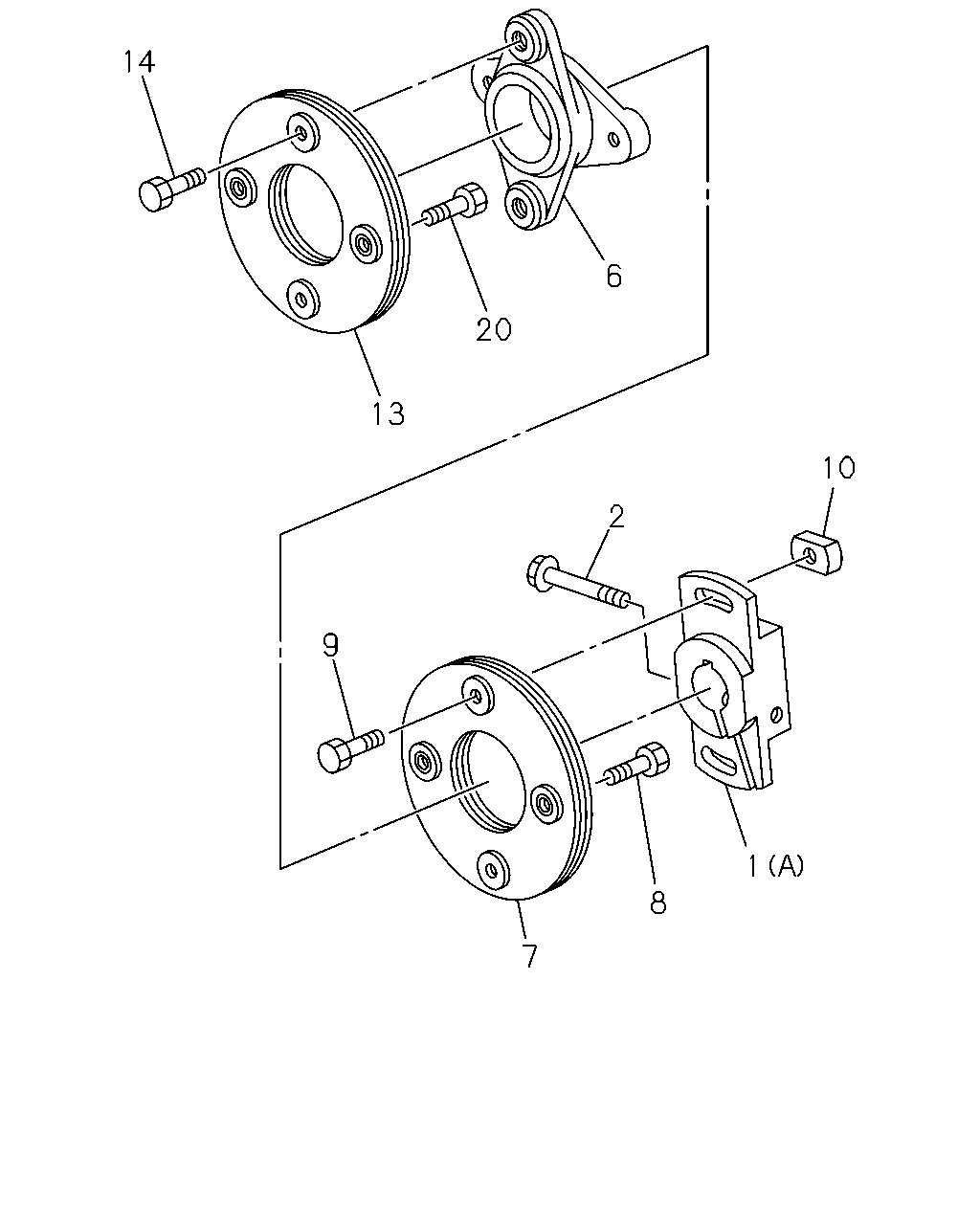

çizim 85912
14 6 20 13 10 2 9 1 8 7
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 COUPLING; INJ PUMP DRIVE
(A) 		1-15782-014-0 01 1 9601-9803 ●
1 COUPLING; INJ PUMP DRIVE
(B) 		1-15781-039-0 01 1 9601-0106 ●
1 COUPLING; INJ PUMP DRIVE
(C) 		1-15789-207-0 01 1 0107- ●
1 COUPLING; INJ PUMP DRIVE
(D) 		1-15781-031-0 01 1 9610-0106 ●
1 COUPLING; INJ PUMP DRIVE
(D) 		1-15781-046-0 01 1 0107- ●
1 COUPLING; INJ PUMP DRIVE
(E) 		1-15781-041-0 01 1 9610-0106 ●
1 COUPLING; INJ PUMP DRIVE
(E) 		1-15781-041-0 01 1 0107- ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-010-0 01 1 9601-9803 ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-162-0 01 1 9601-9609 ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-162-0 01 1 9610-0106 ● ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-162-0 01 1 0107- ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-212-0 01 1 0107- ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-155-0 01 1 9601-9803 ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-161-0 01 1 9601-9609 ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-161-0 01 1 9610-0106 ● ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-161-0 01 1 0107- ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-208-0 01 1 0107- ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-194-0 01 1 9601-9803 ●
7 PLATE; COUPLING,COUPLING SIDE 1-15619-181-0 01 1 9601-0106 ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-209-0 02 1 0107- ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-189-1 01 1 9610-0106 ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-189-1 01 1 0107- ●
8 BOLT; PLATE TO CROSS COUPLING 1-15749-501-0 02 1 9601-9803 ●
8 BOLT; PLATE TO CROSS COUPLING 1-15619-183-0 02 1 9601-9609 ●
8 BOLT; PLATE TO CROSS COUPLING 1-15619-183-0 02 1 9610-0106 ● ●
8 BOLT; PLATE TO CROSS COUPLING 1-15619-183-0 02 1 0107- ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-122-0 02 1 9601-9803 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-159-0 02 1 9601-0106 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-210-0 02 1 0107- ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-163-0 02 1 9610-0106 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-163-0 02 1 0107- ●
10 NUT; PLATE TO COUPLING,INJ PUMP 1-15789-066-0 02 1 9601-9803 ●
10 NUT; PLATE TO COUPLING,INJ PUMP 1-15789-165-0 02 1 9601-0106 ●
10 NUT; PLATE TO COUPLING,INJ PUMP 1-15789-213-0 02 1 0107- ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15789-194-0 01 1 9601-9803 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15619-181-0 01 1 9601-9609 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15619-181-0 01 1 9610-0106 ● ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15619-181-0 01 1 0107- ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-120-0 02 1 9601-9803 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15619-183-0 02 1 9601-9609 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15619-183-0 02 1 9610-0106 ● ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15619-183-0 02 1 0107- ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-211-0 04 1 0107- ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-119-0 02 1 9601-9803 ●
20 BOLT; COUPLING TO INJ PUMP 1-15619-183-0 02 1 9601-9609 ●
20 BOLT; COUPLING TO INJ PUMP 1-15619-183-0 02 1 9610-0106 ● ●
20 BOLT; COUPLING TO INJ PUMP 1-15619-183-0 02 1 0107- ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-214-0 02 1 0107- ●

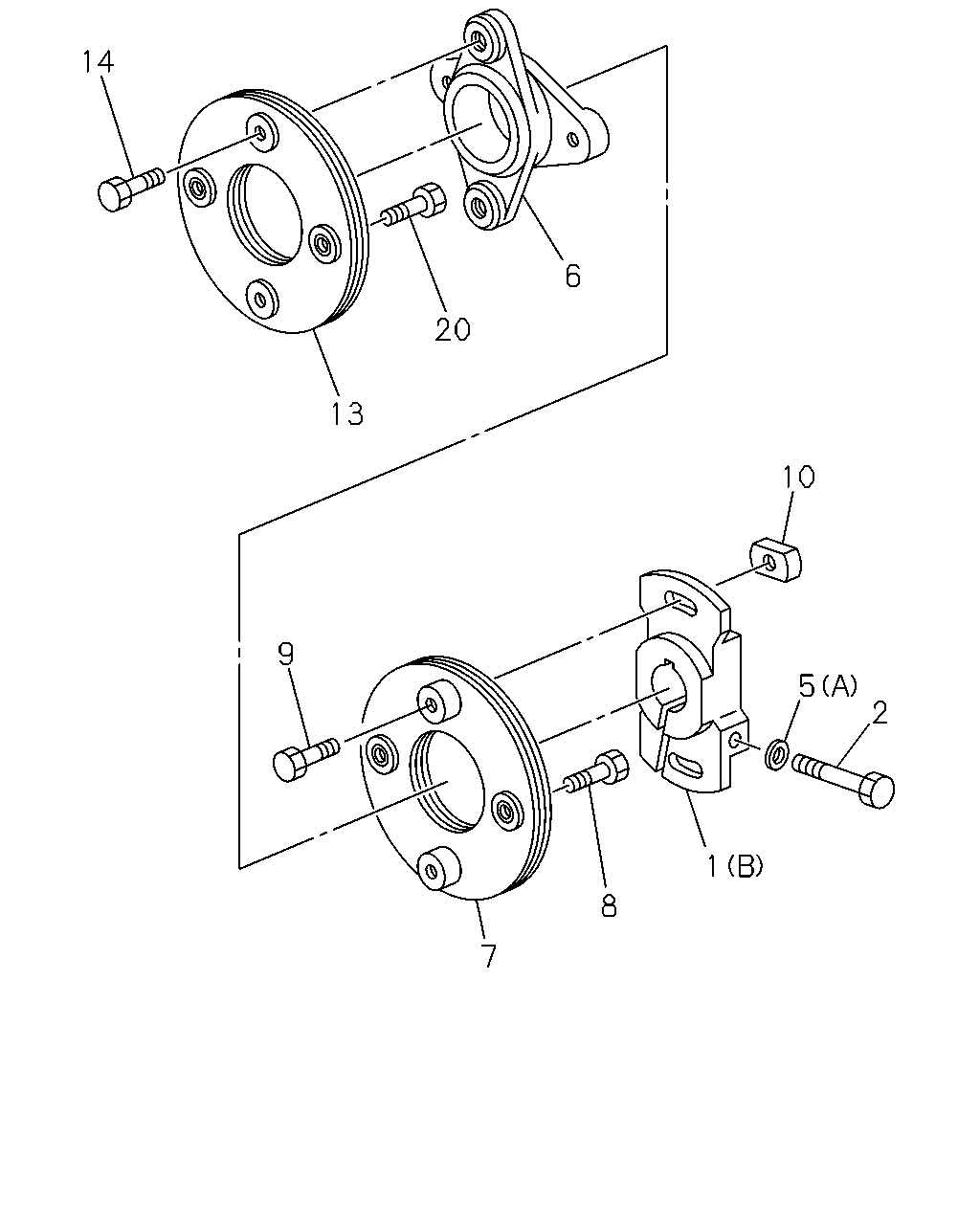

çizim 85944
14 6 20 13 10 9 5 2 1 8 7
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 COUPLING; INJ PUMP DRIVE
(A) 		1-15782-014-0 01 1 9601-9803 ●
1 COUPLING; INJ PUMP DRIVE
(B) 		1-15781-039-0 01 1 9601-0106 ●
1 COUPLING; INJ PUMP DRIVE
(C) 		1-15789-207-0 01 1 0107- ●
1 COUPLING; INJ PUMP DRIVE
(D) 		1-15781-031-0 01 1 9610-0106 ●
1 COUPLING; INJ PUMP DRIVE
(D) 		1-15781-046-0 01 1 0107- ●
1 COUPLING; INJ PUMP DRIVE
(E) 		1-15781-041-0 01 1 9610-0106 ●
1 COUPLING; INJ PUMP DRIVE
(E) 		1-15781-041-0 01 1 0107- ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-010-0 01 1 9601-9803 ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-162-0 01 1 9601-9609 ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-162-0 01 1 9610-0106 ● ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-162-0 01 1 0107- ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-212-0 01 1 0107- ●
5 WASHER; COUPLING FIX,INJ PUMP
(A) 		1-15789-021-0 01 1 9601-9609 ●
5 WASHER; COUPLING FIX,INJ PUMP
(A) 		1-15789-021-0 01 1 9610-0106 ● ●
5 WASHER; COUPLING FIX,INJ PUMP
(A) 		1-15789-021-0 01 1 0107- ●
5 WASHER; COUPLING FIX,INJ PUMP
(B) 		1-15619-131-0 01 1 9610-0106 ●
5 WASHER; COUPLING FIX,INJ PUMP
(B) 		1-15619-131-0 01 1 0107- ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-155-0 01 1 9601-9803 ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-161-0 01 1 9601-9609 ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-161-0 01 1 9610-0106 ● ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-161-0 01 1 0107- ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-208-0 01 1 0107- ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-194-0 01 1 9601-9803 ●
7 PLATE; COUPLING,COUPLING SIDE 1-15619-181-0 01 1 9601-0106 ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-209-0 02 1 0107- ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-189-1 01 1 9610-0106 ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-189-1 01 1 0107- ●
8 BOLT; PLATE TO CROSS COUPLING 1-15749-501-0 02 1 9601-9803 ●
8 BOLT; PLATE TO CROSS COUPLING 1-15619-183-0 02 1 9601-9609 ●
8 BOLT; PLATE TO CROSS COUPLING 1-15619-183-0 02 1 9610-0106 ● ●
8 BOLT; PLATE TO CROSS COUPLING 1-15619-183-0 02 1 0107- ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-122-0 02 1 9601-9803 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-159-0 02 1 9601-0106 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-210-0 02 1 0107- ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-163-0 02 1 9610-0106 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-163-0 02 1 0107- ●
10 NUT; PLATE TO COUPLING,INJ PUMP 1-15789-066-0 02 1 9601-9803 ●
10 NUT; PLATE TO COUPLING,INJ PUMP 1-15789-165-0 02 1 9601-0106 ●
10 NUT; PLATE TO COUPLING,INJ PUMP 1-15789-213-0 02 1 0107- ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15789-194-0 01 1 9601-9803 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15619-181-0 01 1 9601-9609 ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15619-181-0 01 1 9610-0106 ● ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15619-181-0 01 1 0107- ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-120-0 02 1 9601-9803 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15619-183-0 02 1 9601-9609 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15619-183-0 02 1 9610-0106 ● ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15619-183-0 02 1 0107- ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-211-0 04 1 0107- ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-119-0 02 1 9601-9803 ●
20 BOLT; COUPLING TO INJ PUMP 1-15619-183-0 02 1 9601-9609 ●
20 BOLT; COUPLING TO INJ PUMP 1-15619-183-0 02 1 9610-0106 ● ●
20 BOLT; COUPLING TO INJ PUMP 1-15619-183-0 02 1 0107- ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-214-0 02 1 0107- ●

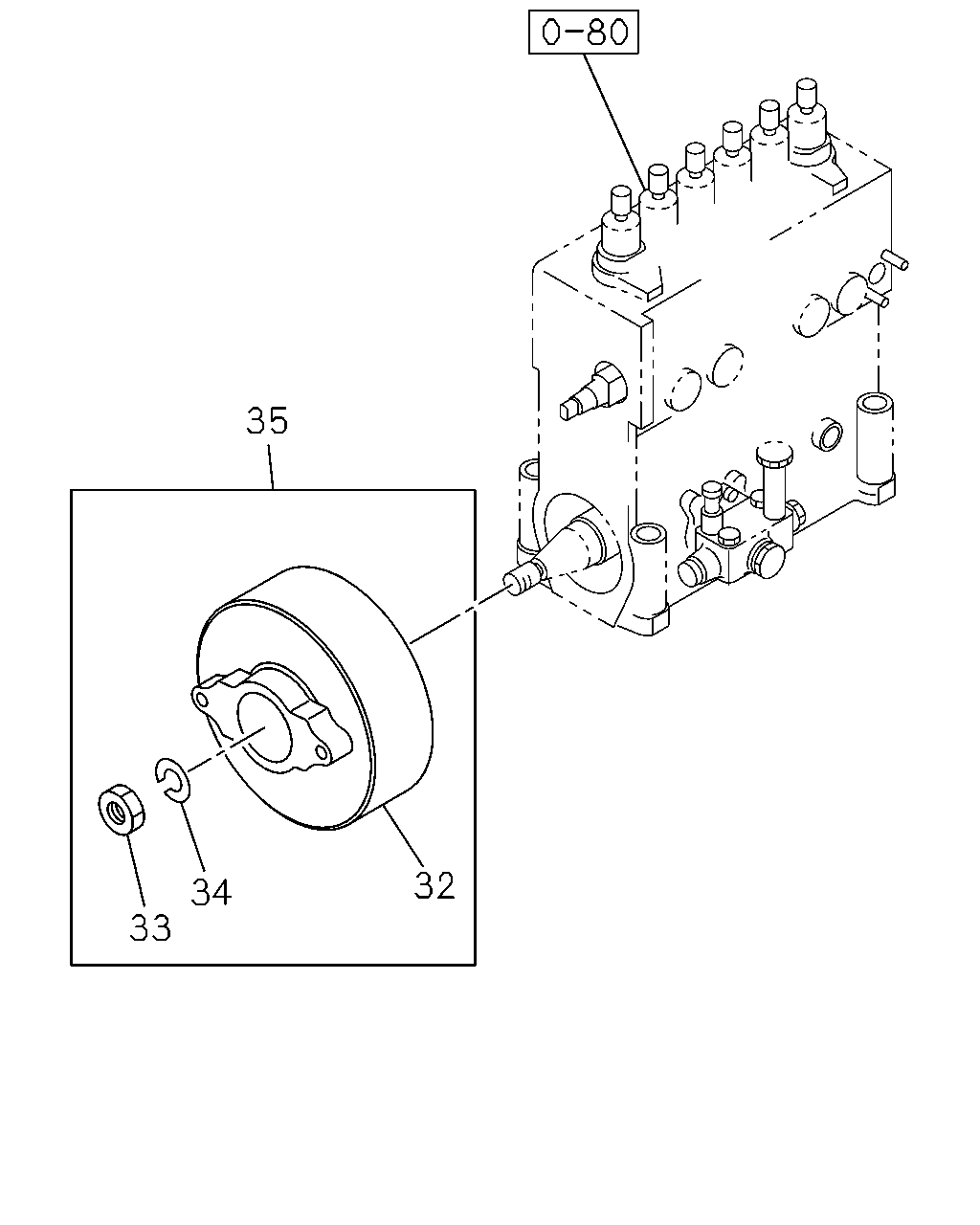

çizim 105221
35 32 34 33
BalonParca AdiParca NoAdetTipApplied Date A B C D
32 DAMPER; INJ PUMP
EURO2 SPECIFICATION<THN> 		1-89963-205-3 01 1 9610-9612 ●
32 DAMPER; INJ PUMP
EURO2 SPECIFICATION<THN> 		1-15744-008-1 01 1 9701-9803 ●
32 DAMPER; INJ PUMP 1-15744-008-1 01 1 9804-0106 ●
33 NUT; DAMPER
EURO2 SPECIFICATION<THN> 		1-19179-020-0 01 1 9610-9803 ●
33 NUT; DAMPER 1-19179-020-0 01 1 9804-0106 ●
34 WASHER; DAMPER
EURO2 SPECIFICATION<THN> 		1-19179-002-0 01 1 9610-9803 ●
34 WASHER; DAMPER 1-19179-002-0 01 1 9804-0106 ●
35 DAMPER ASM; INJ PUMP
EURO2 SPECIFICATION<THN> 		1-15744-014-1 01 1 9610-9803 ●
35 DAMPER ASM; INJ PUMP 1-15744-014-1 01 1 9804-0106 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
