3-52 — BRAKE PIPING; OIL,FRONT (#2660) — 73 parça

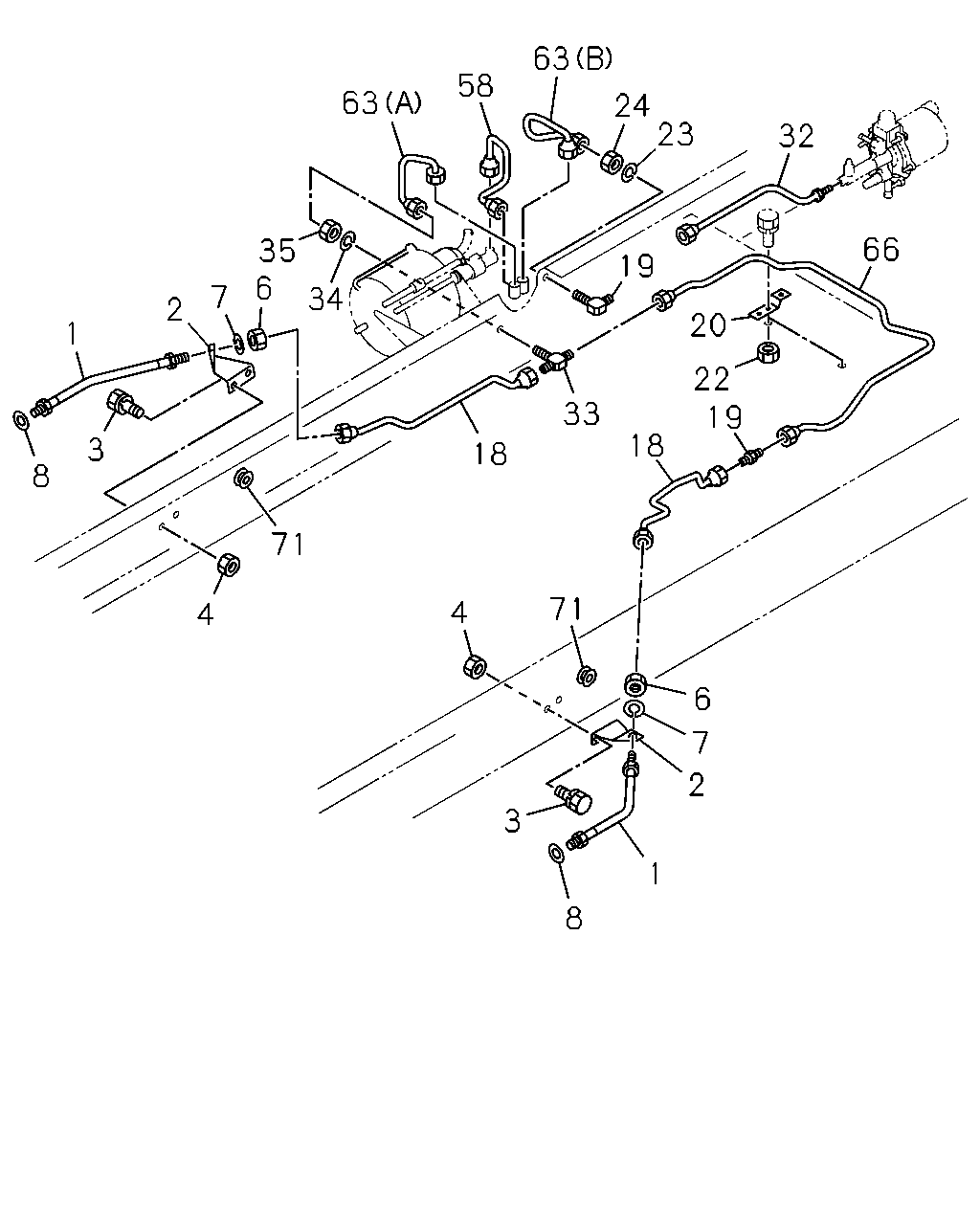

63 58 63 24 23 32 35 6 66 19 7 34 2 20 1 22 19 33 18 3 18 8 71 71 4 4 6 7 2 3 1 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DRUM SIZE20"8STUD<B3S> L=500	1-09364-190-0	02	1	9101-	●
1	HOSE; FLEX,FRT BRK BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01)	1-09364-617-0	02	1	9101-	●
1	HOSE; FLEX,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. DRUM SIZE20"8STUD<B3S>	1-09364-617-0	02	1	9101-	●
1	HOSE; FLEX,FRT BRK	1-09364-617-0	02	1	9101-		●
2	BRACKET; FLEX HOSE,FRT BRK	1-47475-003-1	01	1	9101-	●	●
2	BRACKET; FLEX HOSE,FRT BRK	1-47475-002-1	01	1	9101-	●	●
3	BOLT; BRKT,FLEX HOSE,FRT BRK	0-50040-820-0	04	1	9101-	●	●
4	NUT; FLEX HOSE BRKT,FRT BRK BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01)	9-09110-408-0	04	1	9101-	●	●
6	NUT; FLEX HOSE,FRT BRK	9-09840-280-0	02	1	9101-	●	●
7	WASHER; LK,FLEX HOSE,FRT BRK	9-09150-512-0	02	1	9101-9312	●	●
8	GASKET; FLEX HOSE,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DRUM SIZE20"8STUD<B3S> ID=9 OD=17	9-09920-472-0	02	1	9101-	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) L=496 SERVICED BY L=500	9-47415-350-0	01	1	9101-	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) L=752 SERVICED BY L=800	1-47434-384-0	01	1	9101-	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1937 SERVICED BY L=2000	1-47426-359-0	01	1	9101-	●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1091 SERVICED BY L=1100	1-47426-351-0	01	1	9101-9105	●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1100 SERVICED BY L=1200	1-47426-352-0	01	1	9106-	●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) L=739 SERVICED BY L=800	1-47434-384-0	01	1	9101-		●
18	PIPE; OIL,UNION TO FRT FLEX HOSE BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) L=551 SERVICED BY L=600	1-47413-549-0	01	1	9101-		●
19	UNION; OIL PIPE BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) M12 L=40	9-09223-006-1	01	1	9101-	●	●
19	UNION; OIL PIPE BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) M12 ELBOW	9-09225-206-1	01	1	9101-	●	●
20	BRACKET; UNION,OIL PIPE BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01)	1-47475-763-0	02	1	9101-	●
22	NUT; UNION BRKT BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01)	9-09110-408-0	02	1	9101-	●
23	WASHER; LK,UNION,OIL PIPE BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01)	9-09150-512-0	01	1	9101-9312	●	●
24	NUT; UNION,OIL PIPE BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01)	9-09840-280-0	01	1	9101-	●	●
32	PIPE; OIL,AIR MASTER TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=430	1-47421-840-0	01	1	9101-	●	●
33	UNION; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-09228-206-1	01	1	9101-	●	●
33	UNION; OIL PIPE BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01)	9-09228-506-1	01	1	9101-	●	●
34	WASHER; LK,UNION,OIL PIPE	9-09150-512-0	01	1	9101-9312	●	●
35	NUT; UNION,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-99111-412-0	01	1	9101-	●	●
35	NUT; UNION,OIL PIPE BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01)	9-09840-280-0	01	1	9101-	●	●
58	PIPE; OIL,HYDROMASTER TO SAFETY VLV BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01)	1-47416-047-0	01	1	9101-	●
58	PIPE; OIL,HYDROMASTER TO SAFETY VLV BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01)	1-47417-037-0	01	1	9101-		●
63	PIPE; OIL,SAFETY VLV TO UNION BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) (A)	1-47416-049-0	01	1	9101-	●
63	PIPE; OIL,SAFETY VLV TO UNION BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) (B)	1-47416-635-0	01	1	9101-	●
63	PIPE; OIL,SAFETY VLV TO UNION BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) (A)	1-47417-038-0	01	1	9101-		●
63	PIPE; OIL,SAFETY VLV TO UNION BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) (B)	1-47417-042-0	01	1	9101-		●
66	PIPE; OIL,UNION TO UNION RWD FRT BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) L=1751 SERVICED BY L=1820	1-47434-394-0	01	1	9101-	●
71	GROMMET; OIL PIPE	9-09956-092-1	02	1	9101-	●	●

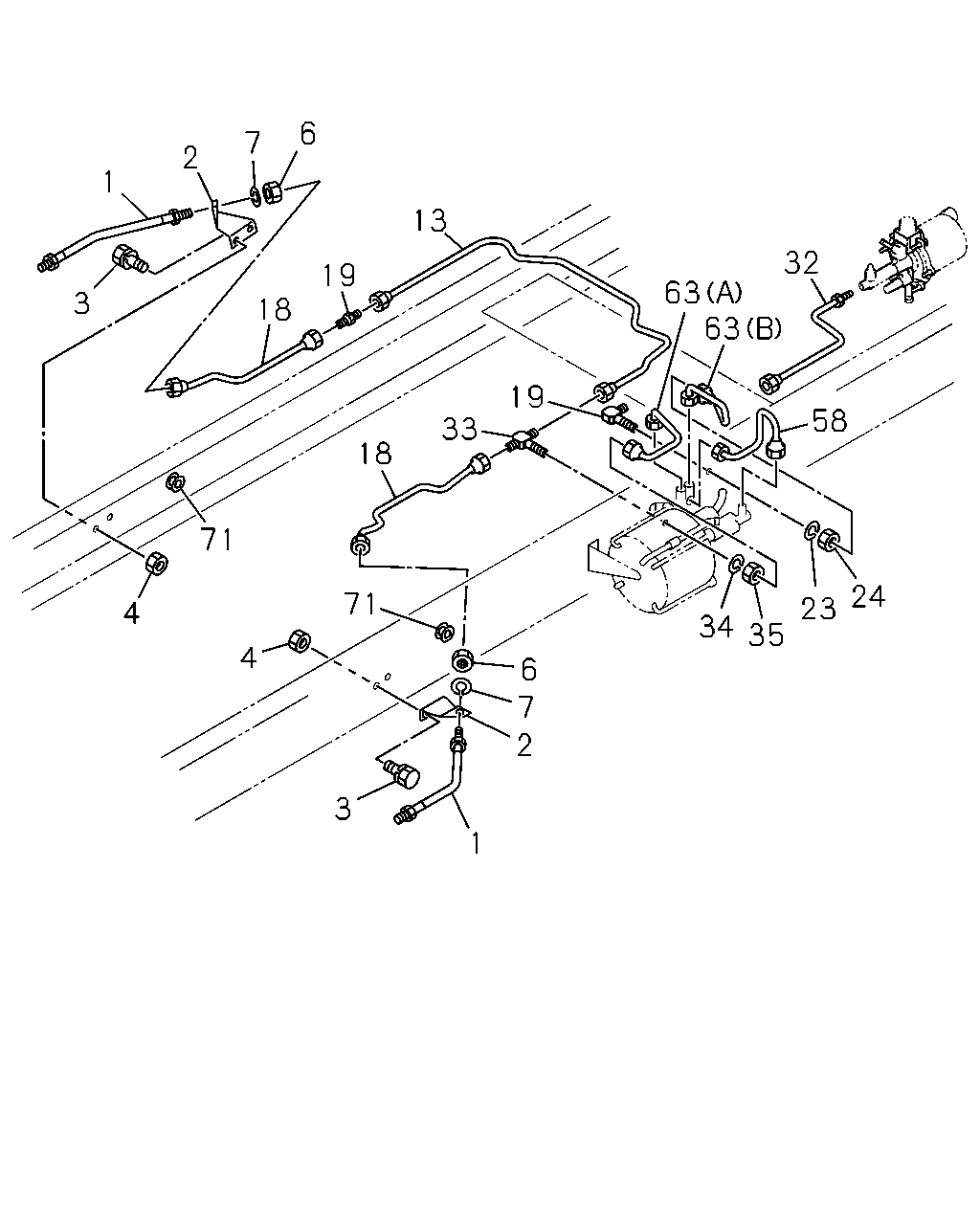

6 7 2 1 13 32 19 63 63 3 18 19 58 33 18 71 24 71 23 34 4 35 4 6 7 2 3 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DRUM SIZE20"8STUD<B3S> L=500	1-09364-190-0	02	1	9101-	●
1	HOSE; FLEX,FRT BRK BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01)	1-09364-617-0	02	1	9101-	●
1	HOSE; FLEX,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. DRUM SIZE20"8STUD<B3S>	1-09364-617-0	02	1	9101-	●
1	HOSE; FLEX,FRT BRK	1-09364-617-0	02	1	9101-		●
2	BRACKET; FLEX HOSE,FRT BRK	1-47475-003-1	01	1	9101-	●	●
2	BRACKET; FLEX HOSE,FRT BRK	1-47475-002-1	01	1	9101-	●	●
3	BOLT; BRKT,FLEX HOSE,FRT BRK	0-50040-820-0	04	1	9101-	●	●
4	NUT; FLEX HOSE BRKT,FRT BRK BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01)	9-09110-408-0	04	1	9101-	●	●
6	NUT; FLEX HOSE,FRT BRK	9-09840-280-0	02	1	9101-	●	●
7	WASHER; LK,FLEX HOSE,FRT BRK	9-09150-512-0	02	1	9101-9312	●	●
13	PIPE; OIL,UNION TO UNION BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) L=1535 SERVICED BY L=1620	1-47413-560-0	01	1	9101-		●
18	PIPE; OIL,UNION TO FRT FLEX HOSE BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) L=496 SERVICED BY L=500	9-47415-350-0	01	1	9101-	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) L=752 SERVICED BY L=800	1-47434-384-0	01	1	9101-	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1937 SERVICED BY L=2000	1-47426-359-0	01	1	9101-	●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1091 SERVICED BY L=1100	1-47426-351-0	01	1	9101-9105	●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1100 SERVICED BY L=1200	1-47426-352-0	01	1	9106-	●	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) L=739 SERVICED BY L=800	1-47434-384-0	01	1	9101-		●
18	PIPE; OIL,UNION TO FRT FLEX HOSE BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) L=551 SERVICED BY L=600	1-47413-549-0	01	1	9101-		●
19	UNION; OIL PIPE BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) M12 L=40	9-09223-006-1	01	1	9101-	●	●
19	UNION; OIL PIPE BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) M12 ELBOW	9-09225-206-1	01	1	9101-	●	●
23	WASHER; LK,UNION,OIL PIPE BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01)	9-09150-512-0	01	1	9101-9312	●	●
24	NUT; UNION,OIL PIPE BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01)	9-09840-280-0	01	1	9101-	●	●
32	PIPE; OIL,AIR MASTER TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=430	1-47421-840-0	01	1	9101-	●	●
33	UNION; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-09228-206-1	01	1	9101-	●	●
33	UNION; OIL PIPE BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01)	9-09228-506-1	01	1	9101-	●	●
34	WASHER; LK,UNION,OIL PIPE	9-09150-512-0	01	1	9101-9312	●	●
35	NUT; UNION,OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-99111-412-0	01	1	9101-	●	●
35	NUT; UNION,OIL PIPE BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01)	9-09840-280-0	01	1	9101-	●	●
58	PIPE; OIL,HYDROMASTER TO SAFETY VLV BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01)	1-47416-047-0	01	1	9101-	●
58	PIPE; OIL,HYDROMASTER TO SAFETY VLV BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01)	1-47417-037-0	01	1	9101-		●
63	PIPE; OIL,SAFETY VLV TO UNION BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) (A)	1-47416-049-0	01	1	9101-	●
63	PIPE; OIL,SAFETY VLV TO UNION BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) (B)	1-47416-635-0	01	1	9101-	●
63	PIPE; OIL,SAFETY VLV TO UNION BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) (A)	1-47417-038-0	01	1	9101-		●
63	PIPE; OIL,SAFETY VLV TO UNION BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) (B)	1-47417-042-0	01	1	9101-		●
71	GROMMET; OIL PIPE	9-09956-092-1	02	1	9101-	●	●
