Isuzu WW
▶
TRUCKS
▶
FSR
▶
10625 - FSR-LHD
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-45 - CONSOLE BOX
▶

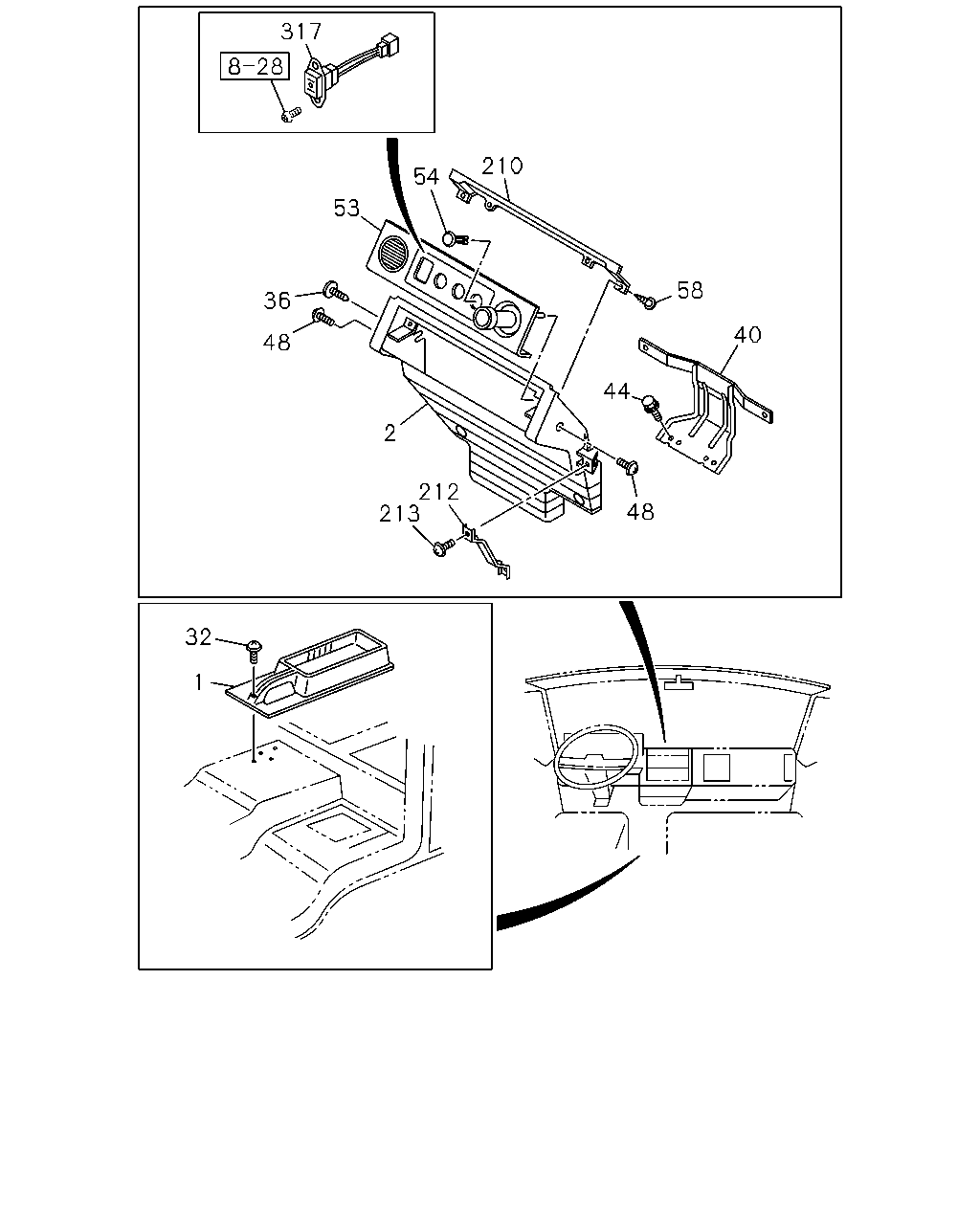

7-45 — CONSOLE BOX
(#266) — 15 parça
317
210
54
53
58
36
40
48
44
2
212
213
48
32
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BOX; PARCEL
DELUXE CAB(W14) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-72538-111-0
01
1
9212-
2
CONSOLE; CENTER
DARK GRAY
1-72448-289-0
01
1
9212-
32
SCREW; PARCEL BOX
DELUXE CAB(W14) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M6X20
1-09981-446-0
04
1
9212-
36
FASTENER; CENTER CONSOLE
BLACK
8-94104-935-0
01
1
9407-
40
BRACKET; SUPPORT,CENTER CONSOLE
1-65680-424-1
01
1
9212-
44
BOLT; SUPPORT,CTR CONSOLE
M6X16 W/LK&PL WASHER
1-09980-458-0
02
1
9212-9307
44
BOLT; SUPPORT,CTR CONSOLE
M6X16 W/LK&PL WASHER
1-09980-586-0
02
1
9308-
48
SCREW; BRKT,CENTER CONSOLE
M6X16 W/LK&PL WASHER
1-09981-367-0
02
1
9212-
53
PANEL; SW,CENTER CONSOLE
1-72448-242-2
01
1
9212-
54
BUTTON; CLIP,CTR CONSOLE
1-72447-390-0
03
1
9212-
58
SCREW; SW PNL
M5X14 W/PL WASHER
5-09981-050-0
04
1
9212-
210
REINFORCEMENT; CTR CONSOLE
1-72448-243-2
01
1
9212-
212
SUPPORT; CONSOLE TO COMPT
1-65680-588-0
01
1
9212-
213
SCREW; CONSOLE TO COMPT
1-09981-388-1
01
1
9212-
317
CONSENT
24V 10A
1-82523-012-2
01
1
9212-
