Sayfa 0-84 - Isuzu EPC

0-84 — FEED PUMP; INJECTION PUMP (#26599) — 226 parça

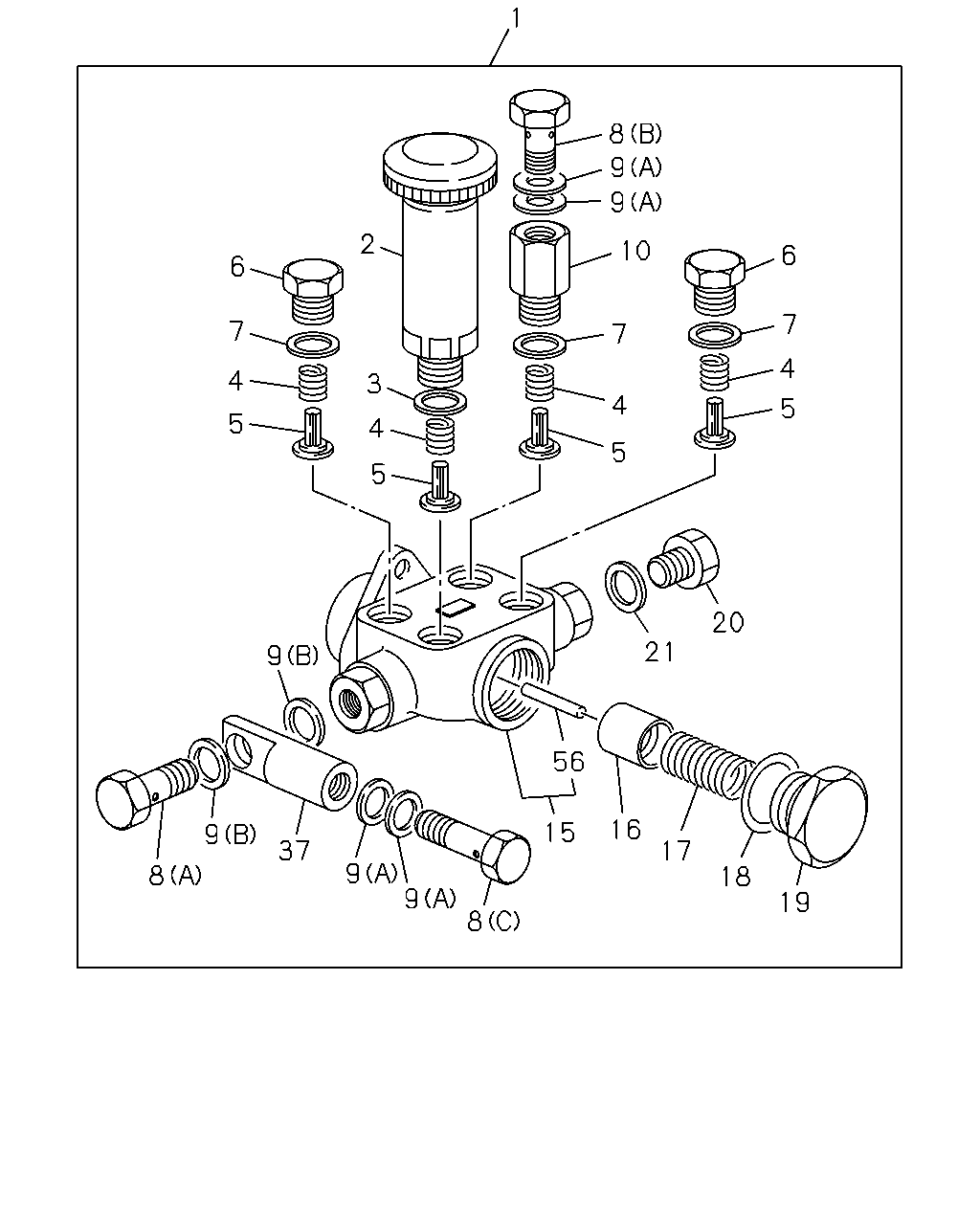

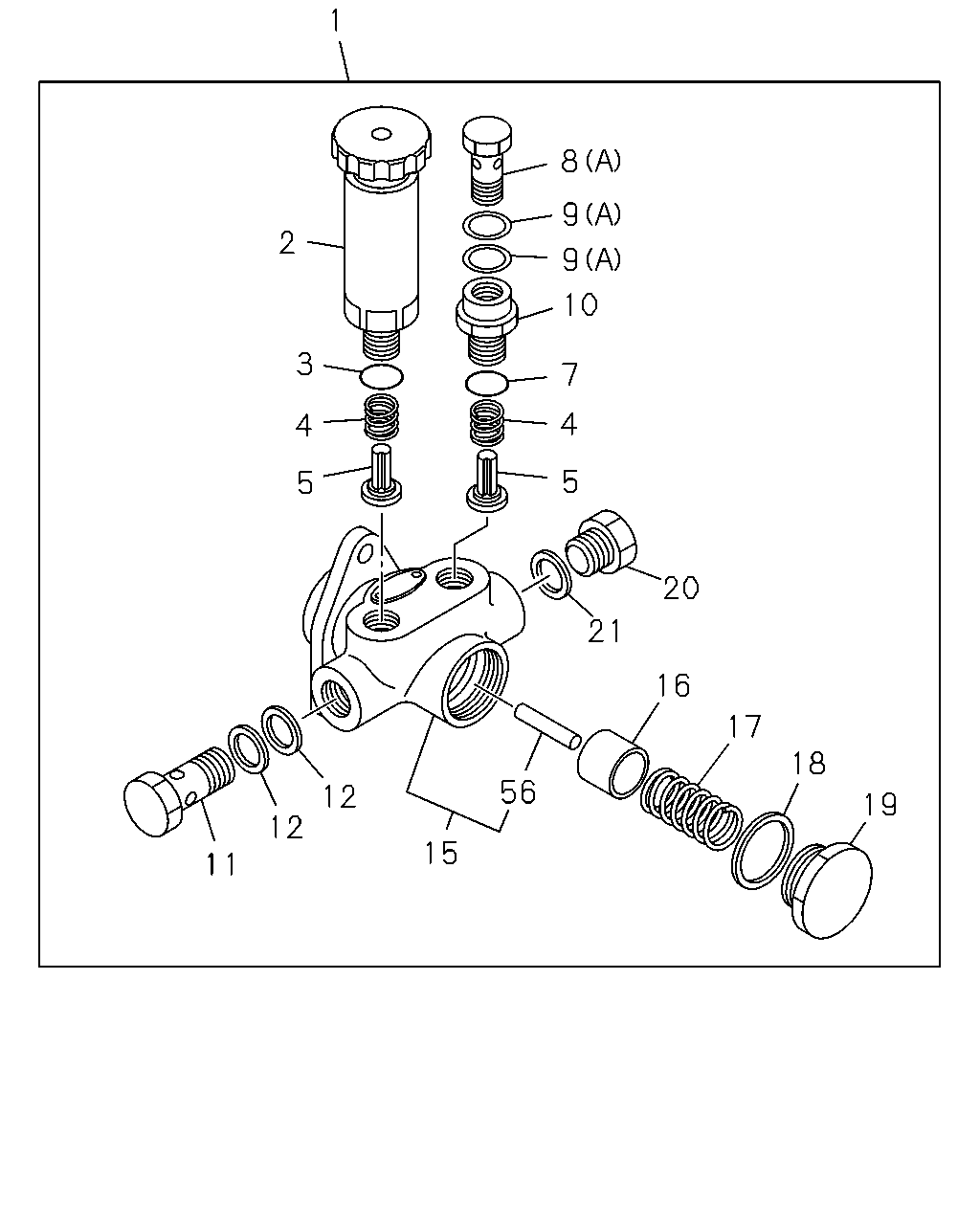

1 8 9 2 9 10 3 7 4 4 5 5 20 21 16 17 18 56 12 19 12 15 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15750-140-0	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: F = 8-94395-904-1	1-15750-148-0	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: D = 1-15603-264-1	1-15750-152-0	01	1	-9803
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: C = 1-15603-160-2	1-15750-152-0	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	1-15750-158-0	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: D = 1-15603-264-1	1-15750-190-0	01	1	9804-
2	PUMP; PRIMING,FUEL FEED PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1, E = 8-94390-618-3, F = 8-94395-904-1, G = 8-97600-665-4	1-15761-006-0	01	1	-
3	GASKET; PRIMING PUMP,FUEL FEED PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1, E = 8-94390-618-3, F = 8-94395-904-1, G = 8-97600-665-4	1-19623-016-0	01	1	-
4	SPRING; VLV,FUEL FEED PUMP ASM PART: F = 8-94395-904-1	9-81351-702-0	02	1	-
4	SPRING; VLV,FUEL FEED PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1, E = 8-94390-618-3, G = 8-97600-665-4	9-81351-702-0	04	1	-
5	VALVE; FUEL FEED PUMP ASM PART: F = 8-94395-904-1	1-15755-002-0	02	1	-
5	VALVE; FUEL FEED PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, E = 8-94390-618-3, G = 8-97600-665-4	1-15755-002-0	04	1	-
5	VALVE; FUEL FEED PUMP ASM PART: D = 1-15603-264-1	1-15755-002-0	04	1	9804-
5	VALVE; FUEL FEED PUMP ASM PART: C = 1-15603-160-2	9-81351-602-0	04	1	-
5	VALVE; FUEL FEED PUMP ASM PART: D = 1-15603-264-1	9-81351-602-0	04	1	-9803
7	GASKET; PLUG,FUEL FEED PUMP ASM PART: F = 8-94395-904-1	1-19623-016-0	01	1	-
7	GASKET; PLUG,FUEL FEED PUMP ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-19623-016-0	03	1	-
7	GASKET; PLUG,FUEL FEED PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	9-81355-031-0	03	1	-
8	BOLT; EYE,FUEL OUTLET,FEED PUMP (A) ASM PART: C = 1-15603-160-2, D = 1-15603-264-1, E = 8-94390-618-3, F = 8-94395-904-1, G = 8-97600-665-4	1-15759-011-0	01	1	-
8	BOLT; EYE,FUEL OUTLET,FEED PUMP (B) ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15759-051-0	01	1	-
8	BOLT; EYE,FUEL OUTLET,FEED PUMP (C), M14X30 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, E = 8-94390-618-3, G = 8-97600-665-4	8-97203-957-0	01	1	-
9	GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP (A), ID=14.2 OD=19.2 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-09630-085-0	04	1	-
9	GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP (A), ID=14.2 OD=19.2 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1, F = 8-94395-904-1	1-09630-085-0	02	1	-
9	GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP (B) ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	9-81215-182-1	02	1	-
10	ADAPTER; EYE BOLT,FUEL FEED PUMP ASM PART: F = 8-94395-904-1	1-15759-003-0	01	1	-
10	ADAPTER; EYE BOLT,FUEL FEED PUMP ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15759-052-0	01	1	-
10	ADAPTER; EYE BOLT,FUEL FEED PUMP ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15759-067-0	01	1	-
11	BOLT; EYE,FUEL INL,FEED PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	1-15751-022-0	01	1	-
11	BOLT; EYE,FUEL INL,FEED PUMP ASM PART: C = 1-15603-160-2, F = 8-94395-904-1	1-15759-029-0	01	1	-
11	BOLT; EYE,FUEL INL,FEED PUMP ASM PART: D = 1-15603-264-1	1-15759-029-0	01	1	-9803
11	BOLT; EYE,FUEL INL,FEED PUMP M14X30 ASM PART: D = 1-15603-264-1	8-97203-957-0	01	1	9804-
12	GASKET; EYE BOLT,INL,FUEL FEED PUMP ID=14.2 OD=19.2 ASM PART: B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1, F = 8-94395-904-1	1-09630-085-0	02	1	-
12	GASKET; EYE BOLT,INL,FUEL FEED PUMP ID=14.2 OD=19.2 ASM PART: A = 1-15603-112-1	1-09630-085-0	01	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	1-15751-010-0	01	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: C = 1-15603-160-2	1-15751-031-0	01	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: D = 1-15603-264-1	1-15751-031-0	01	1	-9803
15	HOUSING; FUEL FEED PUMP ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15751-036-0	01	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: D = 1-15603-264-1	1-15751-046-0	01	1	9804-
15	HOUSING; FUEL FEED PUMP ASM PART: F = 8-94395-904-1	8-97115-989-0	01	1	-
16	PISTON; FUEL FEED PUMP ASM PART: E = 8-94390-618-3, F = 8-94395-904-1, G = 8-97600-665-4	1-15752-001-0	01	1	-
16	PISTON; FUEL FEED PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	9-81351-205-0	01	1	-
17	SPRING; PISTON,FUEL FEED PUMP ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15753-005-0	01	1	-
17	SPRING; PISTON,FUEL FEED PUMP ASM PART: F = 8-94395-904-1	9-81351-302-0	01	1	-
17	SPRING; PISTON,FUEL FEED PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	9-81351-503-0	01	1	-
18	GASKET; PISTON PLUG,FUEL FEED PUMP ASM PART: E = 8-94390-618-3, F = 8-94395-904-1, G = 8-97600-665-4	1-15759-042-0	01	1	-
18	GASKET; PISTON PLUG,FUEL FEED PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	9-81355-035-0	01	1	-
19	PLUG; PISTON SPRING,FUEL FEED PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1, E = 8-94390-618-3, F = 8-94395-904-1, G = 8-97600-665-4	8-94171-185-0	01	1	-
20	PLUG; HSG,FUEL FEED PUMP ASM PART: D = 1-15603-264-1	1-15759-004-0	01	1	-9803
20	PLUG; HSG,FUEL FEED PUMP ASM PART: C = 1-15603-160-2, E = 8-94390-618-3, F = 8-94395-904-1, G = 8-97600-665-4	1-15759-004-0	01	1	-
21	GASKET; PLUG,FUEL FEED PUMP ID=14.2 OD=19.2 ASM PART: D = 1-15603-264-1	1-09630-085-0	01	1	-9803
21	GASKET; PLUG,FUEL FEED PUMP ID=14.2 OD=19.2 ASM PART: C = 1-15603-160-2	1-09630-085-0	01	1	-
21	GASKET; PLUG,FUEL FEED PUMP ASM PART: F = 8-94395-904-1	1-15759-007-0	01	1	-
21	GASKET; PLUG,FUEL FEED PUMP ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	9-81215-182-1	01	1	-
56	PUSH ROD ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15759-074-0	01	1	-
56	PUSH ROD ASM PART: F = 8-94395-904-1	8-97115-990-0	01	1	-

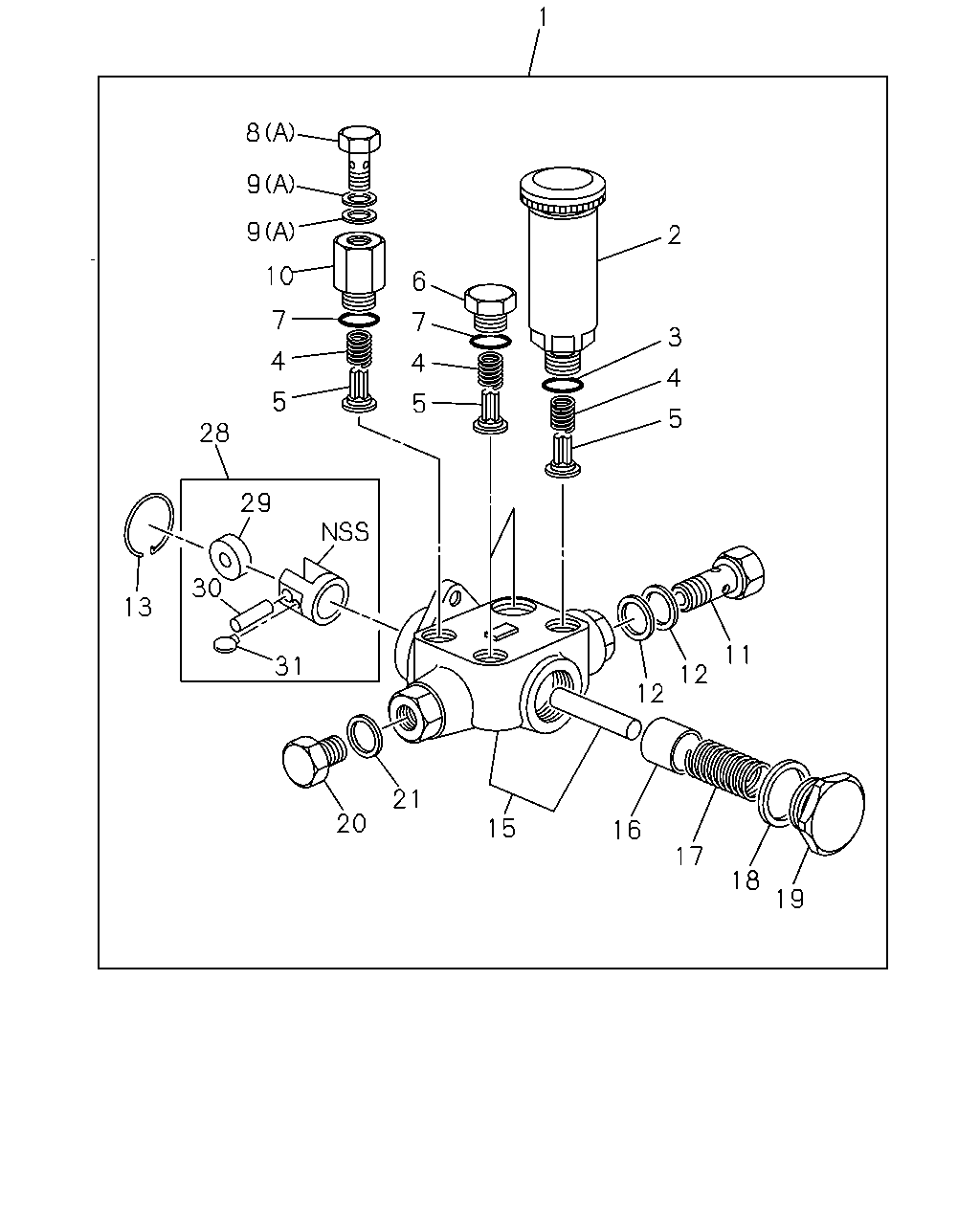

1 8 9 9 2 1 6 7 7 3 4 4 4 5 5 5 28 29 30 13 11 31 12 12 21 20 15 16 17 18 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15750-140-0	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: F = 8-94395-904-1	1-15750-148-0	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: D = 1-15603-264-1	1-15750-152-0	01	1	-9803
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: C = 1-15603-160-2	1-15750-152-0	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	1-15750-158-0	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: D = 1-15603-264-1	1-15750-190-0	01	1	9804-
2	PUMP; PRIMING,FUEL FEED PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1, E = 8-94390-618-3, F = 8-94395-904-1, G = 8-97600-665-4	1-15761-006-0	01	1	-
3	GASKET; PRIMING PUMP,FUEL FEED PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1, E = 8-94390-618-3, F = 8-94395-904-1, G = 8-97600-665-4	1-19623-016-0	01	1	-
4	SPRING; VLV,FUEL FEED PUMP ASM PART: F = 8-94395-904-1	9-81351-702-0	02	1	-
4	SPRING; VLV,FUEL FEED PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1, E = 8-94390-618-3, G = 8-97600-665-4	9-81351-702-0	04	1	-
5	VALVE; FUEL FEED PUMP ASM PART: F = 8-94395-904-1	1-15755-002-0	02	1	-
5	VALVE; FUEL FEED PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, E = 8-94390-618-3, G = 8-97600-665-4	1-15755-002-0	04	1	-
5	VALVE; FUEL FEED PUMP ASM PART: D = 1-15603-264-1	1-15755-002-0	04	1	9804-
5	VALVE; FUEL FEED PUMP ASM PART: C = 1-15603-160-2	9-81351-602-0	04	1	-
5	VALVE; FUEL FEED PUMP ASM PART: D = 1-15603-264-1	9-81351-602-0	04	1	-9803
6	PLUG; VLV SPRING,FUEL FEED PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	1-15759-009-0	03	1	-
6	PLUG; VLV SPRING,FUEL FEED PUMP ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15759-009-0	02	1	-
6	PLUG; VLV SPRING,FUEL FEED PUMP ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15759-066-0	02	1	-
7	GASKET; PLUG,FUEL FEED PUMP ASM PART: F = 8-94395-904-1	1-19623-016-0	01	1	-
7	GASKET; PLUG,FUEL FEED PUMP ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-19623-016-0	03	1	-
7	GASKET; PLUG,FUEL FEED PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	9-81355-031-0	03	1	-
8	BOLT; EYE,FUEL OUTLET,FEED PUMP (A) ASM PART: C = 1-15603-160-2, D = 1-15603-264-1, E = 8-94390-618-3, F = 8-94395-904-1, G = 8-97600-665-4	1-15759-011-0	01	1	-
8	BOLT; EYE,FUEL OUTLET,FEED PUMP (B) ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15759-051-0	01	1	-
8	BOLT; EYE,FUEL OUTLET,FEED PUMP (C), M14X30 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, E = 8-94390-618-3, G = 8-97600-665-4	8-97203-957-0	01	1	-
9	GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP (A), ID=14.2 OD=19.2 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-09630-085-0	04	1	-
9	GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP (A), ID=14.2 OD=19.2 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1, F = 8-94395-904-1	1-09630-085-0	02	1	-
9	GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP (B) ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	9-81215-182-1	02	1	-
11	BOLT; EYE,FUEL INL,FEED PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	1-15751-022-0	01	1	-
11	BOLT; EYE,FUEL INL,FEED PUMP ASM PART: C = 1-15603-160-2, F = 8-94395-904-1	1-15759-029-0	01	1	-
11	BOLT; EYE,FUEL INL,FEED PUMP ASM PART: D = 1-15603-264-1	1-15759-029-0	01	1	-9803
11	BOLT; EYE,FUEL INL,FEED PUMP M14X30 ASM PART: D = 1-15603-264-1	8-97203-957-0	01	1	9804-
12	GASKET; EYE BOLT,INL,FUEL FEED PUMP ID=14.2 OD=19.2 ASM PART: B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1, F = 8-94395-904-1	1-09630-085-0	02	1	-
12	GASKET; EYE BOLT,INL,FUEL FEED PUMP ID=14.2 OD=19.2 ASM PART: A = 1-15603-112-1	1-09630-085-0	01	1	-
13	RING; SNAP,TAPPET,FUEL FEED PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	9-81355-062-0	01	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	1-15751-010-0	01	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: C = 1-15603-160-2	1-15751-031-0	01	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: D = 1-15603-264-1	1-15751-031-0	01	1	-9803
15	HOUSING; FUEL FEED PUMP ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15751-036-0	01	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: D = 1-15603-264-1	1-15751-046-0	01	1	9804-
15	HOUSING; FUEL FEED PUMP ASM PART: F = 8-94395-904-1	8-97115-989-0	01	1	-
16	PISTON; FUEL FEED PUMP ASM PART: E = 8-94390-618-3, F = 8-94395-904-1, G = 8-97600-665-4	1-15752-001-0	01	1	-
16	PISTON; FUEL FEED PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	9-81351-205-0	01	1	-
17	SPRING; PISTON,FUEL FEED PUMP ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15753-005-0	01	1	-
17	SPRING; PISTON,FUEL FEED PUMP ASM PART: F = 8-94395-904-1	9-81351-302-0	01	1	-
17	SPRING; PISTON,FUEL FEED PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	9-81351-503-0	01	1	-
18	GASKET; PISTON PLUG,FUEL FEED PUMP ASM PART: E = 8-94390-618-3, F = 8-94395-904-1, G = 8-97600-665-4	1-15759-042-0	01	1	-
18	GASKET; PISTON PLUG,FUEL FEED PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	9-81355-035-0	01	1	-
19	PLUG; PISTON SPRING,FUEL FEED PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1, E = 8-94390-618-3, F = 8-94395-904-1, G = 8-97600-665-4	8-94171-185-0	01	1	-
20	PLUG; HSG,FUEL FEED PUMP ASM PART: D = 1-15603-264-1	1-15759-004-0	01	1	-9803
20	PLUG; HSG,FUEL FEED PUMP ASM PART: C = 1-15603-160-2, E = 8-94390-618-3, F = 8-94395-904-1, G = 8-97600-665-4	1-15759-004-0	01	1	-
21	GASKET; PLUG,FUEL FEED PUMP ID=14.2 OD=19.2 ASM PART: D = 1-15603-264-1	1-09630-085-0	01	1	-9803
21	GASKET; PLUG,FUEL FEED PUMP ID=14.2 OD=19.2 ASM PART: C = 1-15603-160-2	1-09630-085-0	01	1	-
21	GASKET; PLUG,FUEL FEED PUMP ASM PART: F = 8-94395-904-1	1-15759-007-0	01	1	-
21	GASKET; PLUG,FUEL FEED PUMP ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	9-81215-182-1	01	1	-
28	TAPPET ASM; FUEL FEED PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	1-15754-005-0	01	1	-
28	TAPPET ASM; FUEL FEED PUMP ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15754-006-0	01	1	-
29	ROLLER; TAPPET,FUEL FEED PUMP ASM PART: D = 1-15603-264-1	1-15759-055-0	01	1	9804-
29	ROLLER; TAPPET,FUEL FEED PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	9-81355-059-0	01	1	-
30	PIN; TAPPET ROLLER,FUEL FEED PUMP ASM PART: D = 1-15603-264-1	1-15759-056-0	01	1	9804-
30	PIN; TAPPET ROLLER,FUEL FEED PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	9-81355-060-0	01	1	-
31	GUIDE; TAPPET,FUEL FEED PUMP ASM PART: D = 1-15603-264-1	1-15759-057-0	02	1	9804-
31	GUIDE; TAPPET,FUEL FEED PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	1-15759-078-0	02	1	-

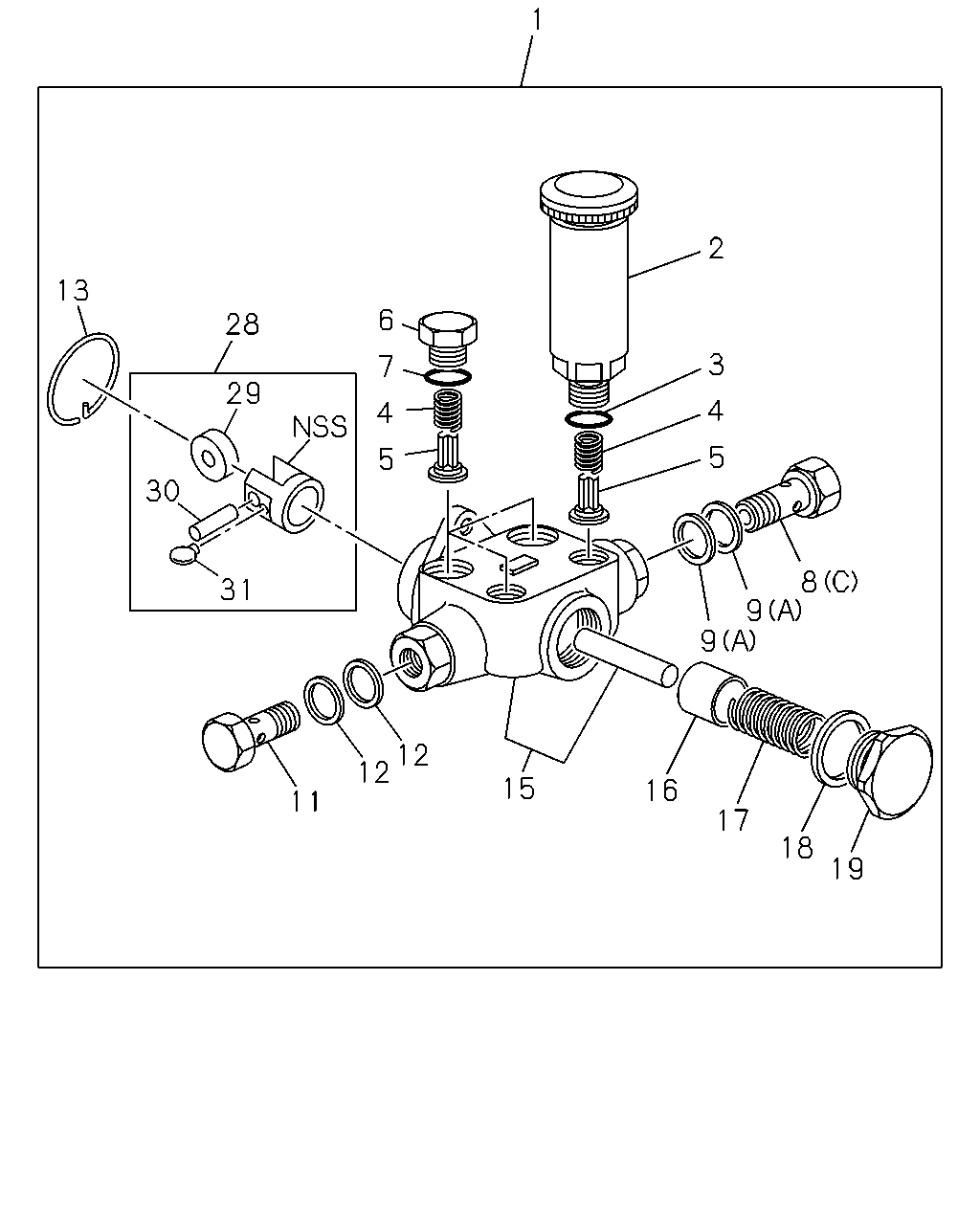

1 2 13 6 28 3 7 29 4 4 5 5 30 8 31 9 9 12 12 15 16 11 17 18 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15750-140-0	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: F = 8-94395-904-1	1-15750-148-0	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: D = 1-15603-264-1	1-15750-152-0	01	1	-9803
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: C = 1-15603-160-2	1-15750-152-0	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	1-15750-158-0	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: D = 1-15603-264-1	1-15750-190-0	01	1	9804-
2	PUMP; PRIMING,FUEL FEED PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1, E = 8-94390-618-3, F = 8-94395-904-1, G = 8-97600-665-4	1-15761-006-0	01	1	-
3	GASKET; PRIMING PUMP,FUEL FEED PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1, E = 8-94390-618-3, F = 8-94395-904-1, G = 8-97600-665-4	1-19623-016-0	01	1	-
4	SPRING; VLV,FUEL FEED PUMP ASM PART: F = 8-94395-904-1	9-81351-702-0	02	1	-
4	SPRING; VLV,FUEL FEED PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1, E = 8-94390-618-3, G = 8-97600-665-4	9-81351-702-0	04	1	-
5	VALVE; FUEL FEED PUMP ASM PART: F = 8-94395-904-1	1-15755-002-0	02	1	-
5	VALVE; FUEL FEED PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, E = 8-94390-618-3, G = 8-97600-665-4	1-15755-002-0	04	1	-
5	VALVE; FUEL FEED PUMP ASM PART: D = 1-15603-264-1	1-15755-002-0	04	1	9804-
5	VALVE; FUEL FEED PUMP ASM PART: C = 1-15603-160-2	9-81351-602-0	04	1	-
5	VALVE; FUEL FEED PUMP ASM PART: D = 1-15603-264-1	9-81351-602-0	04	1	-9803
6	PLUG; VLV SPRING,FUEL FEED PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	1-15759-009-0	03	1	-
6	PLUG; VLV SPRING,FUEL FEED PUMP ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15759-009-0	02	1	-
6	PLUG; VLV SPRING,FUEL FEED PUMP ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15759-066-0	02	1	-
7	GASKET; PLUG,FUEL FEED PUMP ASM PART: F = 8-94395-904-1	1-19623-016-0	01	1	-
7	GASKET; PLUG,FUEL FEED PUMP ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-19623-016-0	03	1	-
7	GASKET; PLUG,FUEL FEED PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	9-81355-031-0	03	1	-
8	BOLT; EYE,FUEL OUTLET,FEED PUMP (A) ASM PART: C = 1-15603-160-2, D = 1-15603-264-1, E = 8-94390-618-3, F = 8-94395-904-1, G = 8-97600-665-4	1-15759-011-0	01	1	-
8	BOLT; EYE,FUEL OUTLET,FEED PUMP (B) ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15759-051-0	01	1	-
8	BOLT; EYE,FUEL OUTLET,FEED PUMP (C), M14X30 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, E = 8-94390-618-3, G = 8-97600-665-4	8-97203-957-0	01	1	-
9	GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP (A), ID=14.2 OD=19.2 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-09630-085-0	04	1	-
9	GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP (A), ID=14.2 OD=19.2 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1, F = 8-94395-904-1	1-09630-085-0	02	1	-
9	GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP (B) ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	9-81215-182-1	02	1	-
11	BOLT; EYE,FUEL INL,FEED PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	1-15751-022-0	01	1	-
11	BOLT; EYE,FUEL INL,FEED PUMP ASM PART: C = 1-15603-160-2, F = 8-94395-904-1	1-15759-029-0	01	1	-
11	BOLT; EYE,FUEL INL,FEED PUMP ASM PART: D = 1-15603-264-1	1-15759-029-0	01	1	-9803
11	BOLT; EYE,FUEL INL,FEED PUMP M14X30 ASM PART: D = 1-15603-264-1	8-97203-957-0	01	1	9804-
12	GASKET; EYE BOLT,INL,FUEL FEED PUMP ID=14.2 OD=19.2 ASM PART: B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1, F = 8-94395-904-1	1-09630-085-0	02	1	-
12	GASKET; EYE BOLT,INL,FUEL FEED PUMP ID=14.2 OD=19.2 ASM PART: A = 1-15603-112-1	1-09630-085-0	01	1	-
13	RING; SNAP,TAPPET,FUEL FEED PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	9-81355-062-0	01	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	1-15751-010-0	01	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: C = 1-15603-160-2	1-15751-031-0	01	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: D = 1-15603-264-1	1-15751-031-0	01	1	-9803
15	HOUSING; FUEL FEED PUMP ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15751-036-0	01	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: D = 1-15603-264-1	1-15751-046-0	01	1	9804-
15	HOUSING; FUEL FEED PUMP ASM PART: F = 8-94395-904-1	8-97115-989-0	01	1	-
16	PISTON; FUEL FEED PUMP ASM PART: E = 8-94390-618-3, F = 8-94395-904-1, G = 8-97600-665-4	1-15752-001-0	01	1	-
16	PISTON; FUEL FEED PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	9-81351-205-0	01	1	-
17	SPRING; PISTON,FUEL FEED PUMP ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15753-005-0	01	1	-
17	SPRING; PISTON,FUEL FEED PUMP ASM PART: F = 8-94395-904-1	9-81351-302-0	01	1	-
17	SPRING; PISTON,FUEL FEED PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	9-81351-503-0	01	1	-
18	GASKET; PISTON PLUG,FUEL FEED PUMP ASM PART: E = 8-94390-618-3, F = 8-94395-904-1, G = 8-97600-665-4	1-15759-042-0	01	1	-
18	GASKET; PISTON PLUG,FUEL FEED PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	9-81355-035-0	01	1	-
19	PLUG; PISTON SPRING,FUEL FEED PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1, E = 8-94390-618-3, F = 8-94395-904-1, G = 8-97600-665-4	8-94171-185-0	01	1	-
28	TAPPET ASM; FUEL FEED PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	1-15754-005-0	01	1	-
28	TAPPET ASM; FUEL FEED PUMP ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15754-006-0	01	1	-
29	ROLLER; TAPPET,FUEL FEED PUMP ASM PART: D = 1-15603-264-1	1-15759-055-0	01	1	9804-
29	ROLLER; TAPPET,FUEL FEED PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	9-81355-059-0	01	1	-
30	PIN; TAPPET ROLLER,FUEL FEED PUMP ASM PART: D = 1-15603-264-1	1-15759-056-0	01	1	9804-
30	PIN; TAPPET ROLLER,FUEL FEED PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	9-81355-060-0	01	1	-
31	GUIDE; TAPPET,FUEL FEED PUMP ASM PART: D = 1-15603-264-1	1-15759-057-0	02	1	9804-
31	GUIDE; TAPPET,FUEL FEED PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	1-15759-078-0	02	1	-

1 8 9 9 2 10 6 6 7 7 7 4 4 3 4 5 5 4 5 5 20 21 9 56 16 15 9 37 17 9 9 8 18 8 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15750-140-0	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: F = 8-94395-904-1	1-15750-148-0	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: D = 1-15603-264-1	1-15750-152-0	01	1	-9803
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: C = 1-15603-160-2	1-15750-152-0	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	1-15750-158-0	01	1	-
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: D = 1-15603-264-1	1-15750-190-0	01	1	9804-
2	PUMP; PRIMING,FUEL FEED PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1, E = 8-94390-618-3, F = 8-94395-904-1, G = 8-97600-665-4	1-15761-006-0	01	1	-
3	GASKET; PRIMING PUMP,FUEL FEED PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1, E = 8-94390-618-3, F = 8-94395-904-1, G = 8-97600-665-4	1-19623-016-0	01	1	-
4	SPRING; VLV,FUEL FEED PUMP ASM PART: F = 8-94395-904-1	9-81351-702-0	02	1	-
4	SPRING; VLV,FUEL FEED PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1, E = 8-94390-618-3, G = 8-97600-665-4	9-81351-702-0	04	1	-
5	VALVE; FUEL FEED PUMP ASM PART: F = 8-94395-904-1	1-15755-002-0	02	1	-
5	VALVE; FUEL FEED PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, E = 8-94390-618-3, G = 8-97600-665-4	1-15755-002-0	04	1	-
5	VALVE; FUEL FEED PUMP ASM PART: D = 1-15603-264-1	1-15755-002-0	04	1	9804-
5	VALVE; FUEL FEED PUMP ASM PART: C = 1-15603-160-2	9-81351-602-0	04	1	-
5	VALVE; FUEL FEED PUMP ASM PART: D = 1-15603-264-1	9-81351-602-0	04	1	-9803
6	PLUG; VLV SPRING,FUEL FEED PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	1-15759-009-0	03	1	-
6	PLUG; VLV SPRING,FUEL FEED PUMP ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15759-009-0	02	1	-
6	PLUG; VLV SPRING,FUEL FEED PUMP ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15759-066-0	02	1	-
7	GASKET; PLUG,FUEL FEED PUMP ASM PART: F = 8-94395-904-1	1-19623-016-0	01	1	-
7	GASKET; PLUG,FUEL FEED PUMP ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-19623-016-0	03	1	-
7	GASKET; PLUG,FUEL FEED PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	9-81355-031-0	03	1	-
8	BOLT; EYE,FUEL OUTLET,FEED PUMP (A) ASM PART: C = 1-15603-160-2, D = 1-15603-264-1, E = 8-94390-618-3, F = 8-94395-904-1, G = 8-97600-665-4	1-15759-011-0	01	1	-
8	BOLT; EYE,FUEL OUTLET,FEED PUMP (B) ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15759-051-0	01	1	-
8	BOLT; EYE,FUEL OUTLET,FEED PUMP (C), M14X30 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, E = 8-94390-618-3, G = 8-97600-665-4	8-97203-957-0	01	1	-
9	GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP (A), ID=14.2 OD=19.2 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-09630-085-0	04	1	-
9	GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP (A), ID=14.2 OD=19.2 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1, F = 8-94395-904-1	1-09630-085-0	02	1	-
9	GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP (B) ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	9-81215-182-1	02	1	-
10	ADAPTER; EYE BOLT,FUEL FEED PUMP ASM PART: F = 8-94395-904-1	1-15759-003-0	01	1	-
10	ADAPTER; EYE BOLT,FUEL FEED PUMP ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15759-052-0	01	1	-
10	ADAPTER; EYE BOLT,FUEL FEED PUMP ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15759-067-0	01	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	1-15751-010-0	01	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: C = 1-15603-160-2	1-15751-031-0	01	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: D = 1-15603-264-1	1-15751-031-0	01	1	-9803
15	HOUSING; FUEL FEED PUMP ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15751-036-0	01	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: D = 1-15603-264-1	1-15751-046-0	01	1	9804-
15	HOUSING; FUEL FEED PUMP ASM PART: F = 8-94395-904-1	8-97115-989-0	01	1	-
16	PISTON; FUEL FEED PUMP ASM PART: E = 8-94390-618-3, F = 8-94395-904-1, G = 8-97600-665-4	1-15752-001-0	01	1	-
16	PISTON; FUEL FEED PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	9-81351-205-0	01	1	-
17	SPRING; PISTON,FUEL FEED PUMP ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15753-005-0	01	1	-
17	SPRING; PISTON,FUEL FEED PUMP ASM PART: F = 8-94395-904-1	9-81351-302-0	01	1	-
17	SPRING; PISTON,FUEL FEED PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	9-81351-503-0	01	1	-
18	GASKET; PISTON PLUG,FUEL FEED PUMP ASM PART: E = 8-94390-618-3, F = 8-94395-904-1, G = 8-97600-665-4	1-15759-042-0	01	1	-
18	GASKET; PISTON PLUG,FUEL FEED PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	9-81355-035-0	01	1	-
19	PLUG; PISTON SPRING,FUEL FEED PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1, E = 8-94390-618-3, F = 8-94395-904-1, G = 8-97600-665-4	8-94171-185-0	01	1	-
20	PLUG; HSG,FUEL FEED PUMP ASM PART: D = 1-15603-264-1	1-15759-004-0	01	1	-9803
20	PLUG; HSG,FUEL FEED PUMP ASM PART: C = 1-15603-160-2, E = 8-94390-618-3, F = 8-94395-904-1, G = 8-97600-665-4	1-15759-004-0	01	1	-
21	GASKET; PLUG,FUEL FEED PUMP ID=14.2 OD=19.2 ASM PART: D = 1-15603-264-1	1-09630-085-0	01	1	-9803
21	GASKET; PLUG,FUEL FEED PUMP ID=14.2 OD=19.2 ASM PART: C = 1-15603-160-2	1-09630-085-0	01	1	-
21	GASKET; PLUG,FUEL FEED PUMP ASM PART: F = 8-94395-904-1	1-15759-007-0	01	1	-
21	GASKET; PLUG,FUEL FEED PUMP ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	9-81215-182-1	01	1	-
37	EYE; FUEL OUTLET,FUEL FEED PUMP ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15759-050-0	01	1	-
56	PUSH ROD ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15759-074-0	01	1	-
56	PUSH ROD ASM PART: F = 8-94395-904-1	8-97115-990-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
