Sayfa 0-80 - Isuzu EPC

0-80 — INJECTION PUMP (#26596) — 1266 parça

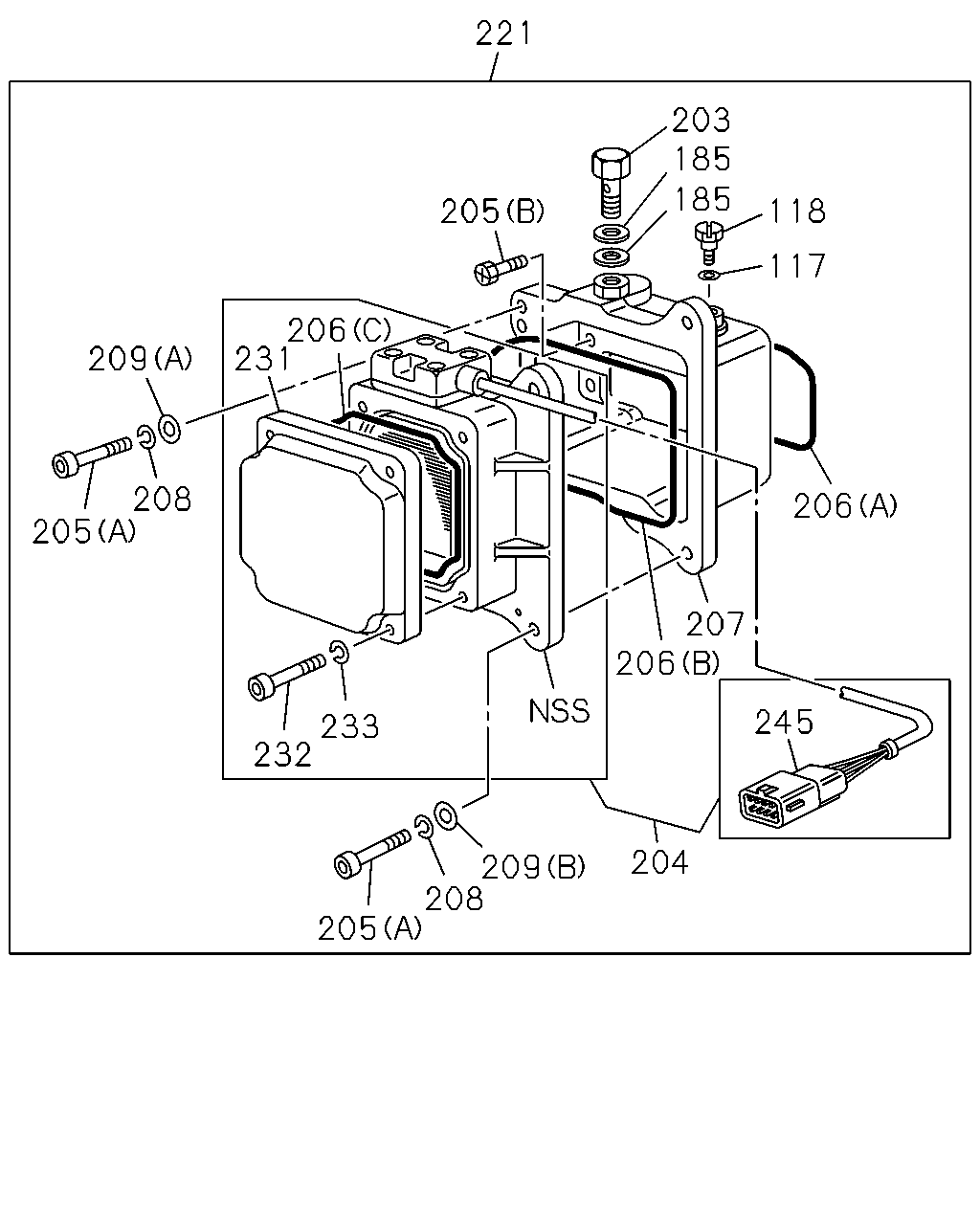

221 203 185 185 118 205 117 206 231 209 208 206 205 207 206 245 233 232 204 209 208 205

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
117	GASKET; EYE BOLT,INJ PUMP ID=14.2 OD=19.2 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, F = 8-94395-904-1	1-09630-085-0	02	1	-
117	GASKET; EYE BOLT,INJ PUMP ASM PART: C = 1-15603-160-2, D = 1-15603-264-1, E = 8-94390-618-3, G = 8-97600-665-4	5-15729-099-0	01	1	-
118	BOLT; EYE,FUEL INL,INJ PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, F = 8-94395-904-1	1-15759-011-0	01	1	-
118	BOLT; EYE,FUEL INL,INJ PUMP ASM PART: C = 1-15603-160-2, D = 1-15603-264-1, E = 8-94390-618-3, G = 8-97600-665-4	9-81215-148-0	01	1	-
185	GASKET; PLUG ID=14.2 OD=19.2 ASM PART: C = 1-15603-160-2, D = 1-15603-264-1, E = 8-94390-618-3, G = 8-97600-665-4	1-09630-085-0	02	1	-
203	BOLT; FUEL INL ASM PART: C = 1-15603-160-2, D = 1-15603-264-1, E = 8-94390-618-3, G = 8-97600-665-4	1-15759-011-0	01	1	-
204	ACTUATOR; INJ PUMP ASM PART: E = 8-94390-618-3	1-15612-064-0	01	1	-9803
204	ACTUATOR; INJ PUMP ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15612-065-1	01	1	-
204	ACTUATOR; INJ PUMP ASM PART: E = 8-94390-618-3	1-15612-116-0	01	1	9804-
204	ACTUATOR; INJ PUMP ASM PART: G = 8-97600-665-4	1-15612-121-3	01	1	-
205	BOLT; ACTUATOR (A) ASM PART: C = 1-15603-160-2, D = 1-15603-264-1, E = 8-94390-618-3, G = 8-97600-665-4	1-09054-032-0	04	1	-
205	BOLT; ACTUATOR (B) ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15619-348-0	04	1	-
205	BOLT; ACTUATOR (B) ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15619-348-0	06	1	-
206	GASKET; ACTUATOR (C) ASM PART: E = 8-94390-618-3	1-15619-379-0	01	1	-9803
206	GASKET; ACTUATOR (A) ASM PART: E = 8-94390-618-3	1-15619-438-0	01	1	-9803
206	GASKET; ACTUATOR (B) ASM PART: E = 8-94390-618-3	1-15619-439-0	01	1	-9803
206	GASKET; ACTUATOR (C) ASM PART: E = 8-94390-618-3	1-15629-140-0	01	1	9804-
206	GASKET; ACTUATOR (C) ASM PART: G = 8-97600-665-4	1-15629-140-0	01	1	-
206	GASKET; ACTUATOR (A) ASM PART: E = 8-94390-618-3	1-15629-141-0	01	1	9804-
206	GASKET; ACTUATOR (A) ASM PART: G = 8-97600-665-4	1-15629-141-0	01	1	-
206	GASKET; ACTUATOR (B) ASM PART: G = 8-97600-665-4	1-15629-143-0	01	1	-
206	GASKET; ACTUATOR (B) ASM PART: E = 8-94390-618-3	1-15629-143-0	01	1	9804-
206	GASKET; ACTUATOR (A) ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15629-145-0	01	1	-
206	GASKET; ACTUATOR (B) ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15629-146-0	01	1	-
206	GASKET; ACTUATOR (C) ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15629-147-0	01	1	-
207	HOUSING; ACTUATOR ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15611-177-1	01	1	-
207	HOUSING; ACTUATOR ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15611-192-0	01	1	-
208	WASHER; LK,ACTUATOR ASM PART: C = 1-15603-160-2, D = 1-15603-264-1, E = 8-94390-618-3, G = 8-97600-665-4	8-94128-928-0	04	1	-
209	WASHER; PL,ACTUATOR (A) ASM PART: C = 1-15603-160-2, D = 1-15603-264-1, E = 8-94390-618-3, G = 8-97600-665-4	1-15619-351-0	01	1	-
209	WASHER; PL,ACTUATOR (B) ASM PART: C = 1-15603-160-2, D = 1-15603-264-1, E = 8-94390-618-3, G = 8-97600-665-4	1-15619-352-0	03	1	-
221	ACTUATOR ASM; INJ PUMP ASM PART: E = 8-94390-618-3	1-15612-062-0	01	1	-9803
221	ACTUATOR ASM; INJ PUMP ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15612-066-1	01	1	-
221	ACTUATOR ASM; INJ PUMP ASM PART: E = 8-94390-618-3	1-15612-117-0	01	1	9804-
221	ACTUATOR ASM; INJ PUMP ASM PART: G = 8-97600-665-4	1-15612-119-3	01	1	-
231	COVER; ACTUATOR ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15619-378-0	01	1	-
231	COVER; ACTUATOR ASM PART: E = 8-94390-618-3	1-15619-440-0	01	1	-
231	COVER; ACTUATOR ASM PART: G = 8-97600-665-4	1-15619-460-0	01	1	-
232	BOLT; ACTUATOR COVER ASM PART: C = 1-15603-160-2, D = 1-15603-264-1, E = 8-94390-618-3, G = 8-97600-665-4	1-09054-032-0	04	1	-
233	WASHER; ACTUATOR COVER ASM PART: C = 1-15603-160-2, D = 1-15603-264-1, E = 8-94390-618-3, G = 8-97600-665-4	8-94128-928-0	04	1	-
245	HOUSING; SOCKET,INJ PUMP ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15619-416-0	01	1	-
245	HOUSING; SOCKET,INJ PUMP ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15619-441-0	01	1	-

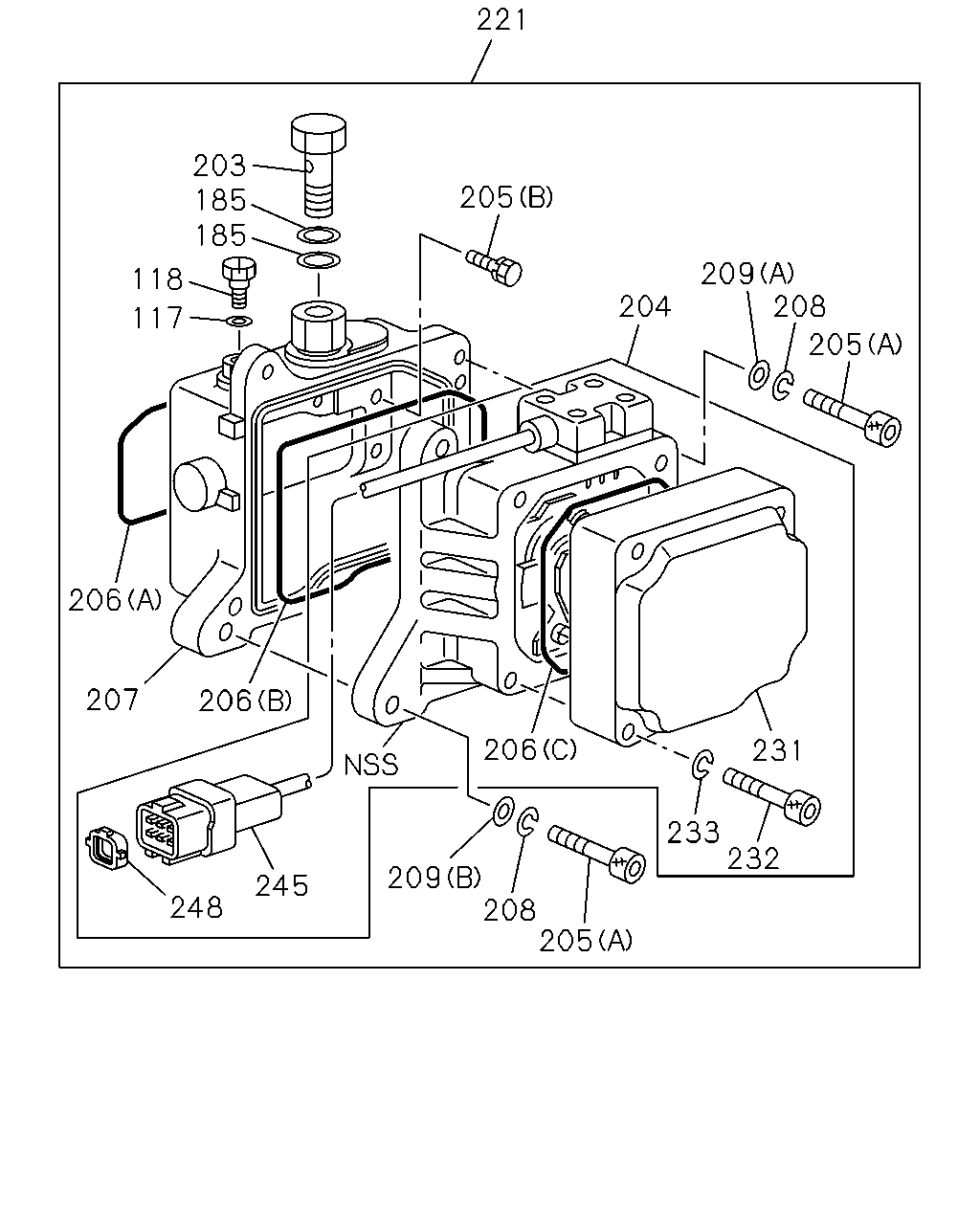

221 203 185 185 205 209 208 118 204 117 205 206 207 206 206 231 233 232 209 208 205 245 248

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
117	GASKET; EYE BOLT,INJ PUMP ID=14.2 OD=19.2 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, F = 8-94395-904-1	1-09630-085-0	02	1	-
117	GASKET; EYE BOLT,INJ PUMP ASM PART: C = 1-15603-160-2, D = 1-15603-264-1, E = 8-94390-618-3, G = 8-97600-665-4	5-15729-099-0	01	1	-
118	BOLT; EYE,FUEL INL,INJ PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, F = 8-94395-904-1	1-15759-011-0	01	1	-
118	BOLT; EYE,FUEL INL,INJ PUMP ASM PART: C = 1-15603-160-2, D = 1-15603-264-1, E = 8-94390-618-3, G = 8-97600-665-4	9-81215-148-0	01	1	-
185	GASKET; PLUG ID=14.2 OD=19.2 ASM PART: C = 1-15603-160-2, D = 1-15603-264-1, E = 8-94390-618-3, G = 8-97600-665-4	1-09630-085-0	02	1	-
203	BOLT; FUEL INL ASM PART: C = 1-15603-160-2, D = 1-15603-264-1, E = 8-94390-618-3, G = 8-97600-665-4	1-15759-011-0	01	1	-
204	ACTUATOR; INJ PUMP ASM PART: E = 8-94390-618-3	1-15612-064-0	01	1	-9803
204	ACTUATOR; INJ PUMP ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15612-065-1	01	1	-
204	ACTUATOR; INJ PUMP ASM PART: E = 8-94390-618-3	1-15612-116-0	01	1	9804-
204	ACTUATOR; INJ PUMP ASM PART: G = 8-97600-665-4	1-15612-121-3	01	1	-
205	BOLT; ACTUATOR (A) ASM PART: C = 1-15603-160-2, D = 1-15603-264-1, E = 8-94390-618-3, G = 8-97600-665-4	1-09054-032-0	04	1	-
205	BOLT; ACTUATOR (B) ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15619-348-0	04	1	-
205	BOLT; ACTUATOR (B) ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15619-348-0	06	1	-
206	GASKET; ACTUATOR (C) ASM PART: E = 8-94390-618-3	1-15619-379-0	01	1	-9803
206	GASKET; ACTUATOR (A) ASM PART: E = 8-94390-618-3	1-15619-438-0	01	1	-9803
206	GASKET; ACTUATOR (B) ASM PART: E = 8-94390-618-3	1-15619-439-0	01	1	-9803
206	GASKET; ACTUATOR (C) ASM PART: E = 8-94390-618-3	1-15629-140-0	01	1	9804-
206	GASKET; ACTUATOR (C) ASM PART: G = 8-97600-665-4	1-15629-140-0	01	1	-
206	GASKET; ACTUATOR (A) ASM PART: E = 8-94390-618-3	1-15629-141-0	01	1	9804-
206	GASKET; ACTUATOR (A) ASM PART: G = 8-97600-665-4	1-15629-141-0	01	1	-
206	GASKET; ACTUATOR (B) ASM PART: G = 8-97600-665-4	1-15629-143-0	01	1	-
206	GASKET; ACTUATOR (B) ASM PART: E = 8-94390-618-3	1-15629-143-0	01	1	9804-
206	GASKET; ACTUATOR (A) ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15629-145-0	01	1	-
206	GASKET; ACTUATOR (B) ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15629-146-0	01	1	-
206	GASKET; ACTUATOR (C) ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15629-147-0	01	1	-
207	HOUSING; ACTUATOR ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15611-177-1	01	1	-
207	HOUSING; ACTUATOR ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15611-192-0	01	1	-
208	WASHER; LK,ACTUATOR ASM PART: C = 1-15603-160-2, D = 1-15603-264-1, E = 8-94390-618-3, G = 8-97600-665-4	8-94128-928-0	04	1	-
209	WASHER; PL,ACTUATOR (A) ASM PART: C = 1-15603-160-2, D = 1-15603-264-1, E = 8-94390-618-3, G = 8-97600-665-4	1-15619-351-0	01	1	-
209	WASHER; PL,ACTUATOR (B) ASM PART: C = 1-15603-160-2, D = 1-15603-264-1, E = 8-94390-618-3, G = 8-97600-665-4	1-15619-352-0	03	1	-
221	ACTUATOR ASM; INJ PUMP ASM PART: E = 8-94390-618-3	1-15612-062-0	01	1	-9803
221	ACTUATOR ASM; INJ PUMP ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15612-066-1	01	1	-
221	ACTUATOR ASM; INJ PUMP ASM PART: E = 8-94390-618-3	1-15612-117-0	01	1	9804-
221	ACTUATOR ASM; INJ PUMP ASM PART: G = 8-97600-665-4	1-15612-119-3	01	1	-
231	COVER; ACTUATOR ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15619-378-0	01	1	-
231	COVER; ACTUATOR ASM PART: E = 8-94390-618-3	1-15619-440-0	01	1	-
231	COVER; ACTUATOR ASM PART: G = 8-97600-665-4	1-15619-460-0	01	1	-
232	BOLT; ACTUATOR COVER ASM PART: C = 1-15603-160-2, D = 1-15603-264-1, E = 8-94390-618-3, G = 8-97600-665-4	1-09054-032-0	04	1	-
233	WASHER; ACTUATOR COVER ASM PART: C = 1-15603-160-2, D = 1-15603-264-1, E = 8-94390-618-3, G = 8-97600-665-4	8-94128-928-0	04	1	-
245	HOUSING; SOCKET,INJ PUMP ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15619-416-0	01	1	-
245	HOUSING; SOCKET,INJ PUMP ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15619-441-0	01	1	-
248	RING; SOCKET HOUSING,INJ PUMP ASM PART: E = 8-94390-618-3	1-15619-442-0	01	1	-

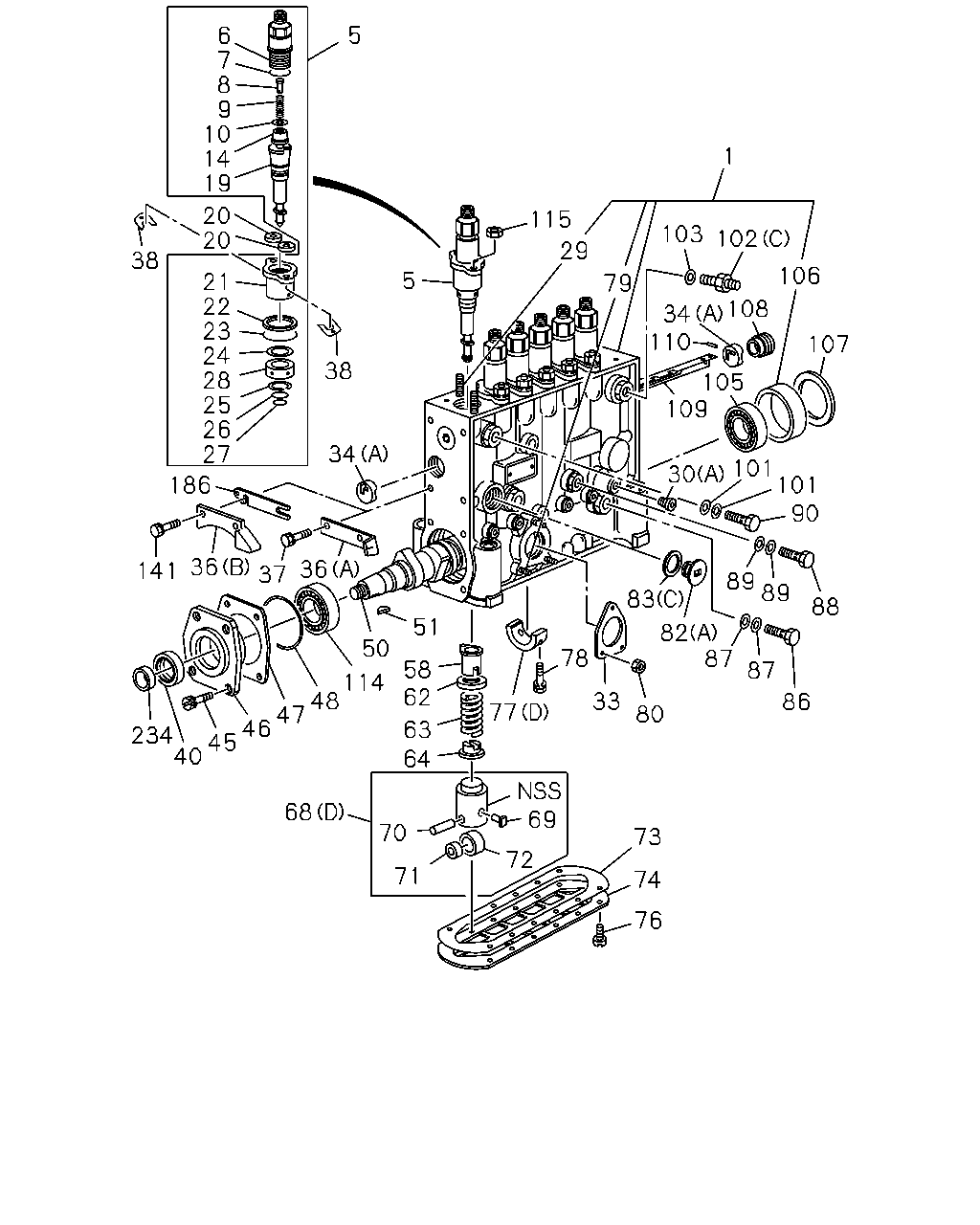

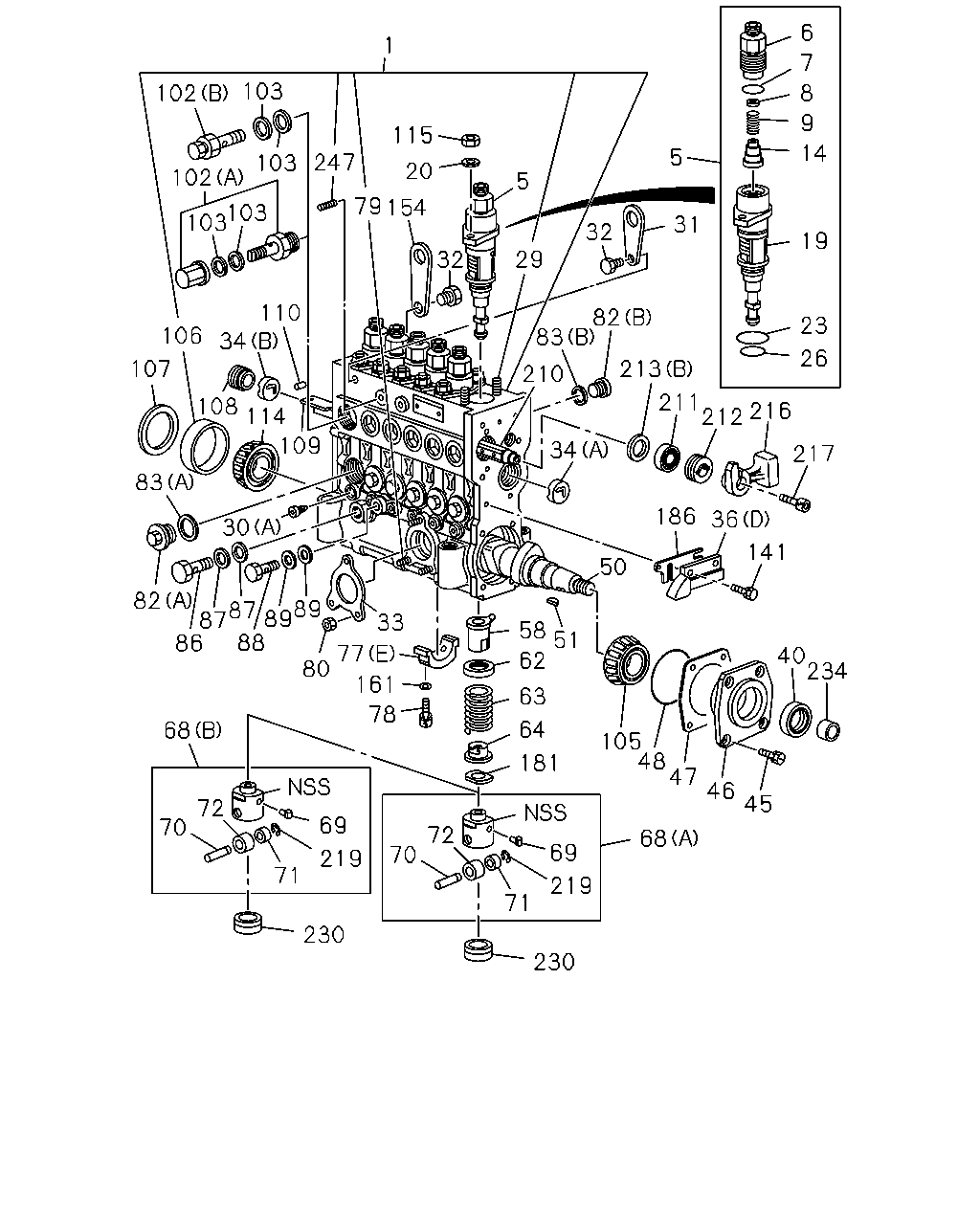

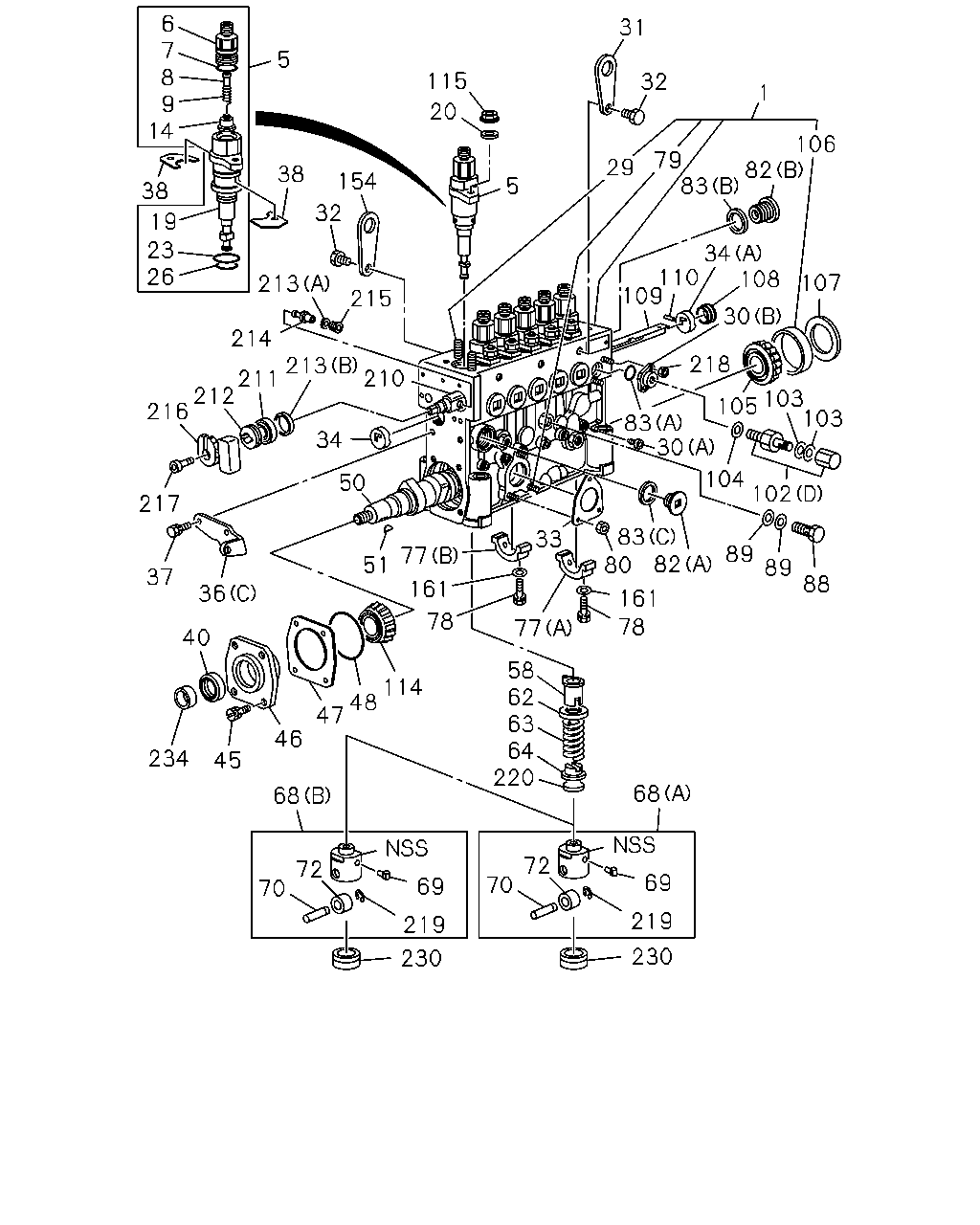

6 7 8 9 14 31 5 115 32 1 20 106 79 82 83 29 38 154 5 38 32 19 23 26 34 110 108 109 107 213 215 30 214 218 213 20 211 212 216 103 105 103 83 30 34 104 102 50 217 83 82 33 89 77 51 80 89 37 88 161 36 161 78 78 77 40 58 62 63 64 220 114 48 47 46 234 45 68 68 72 72 69 70 69 70 219 219 230 230

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOUSING; PUMP,FUEL INJ ASM PART: F = 8-94395-904-1	1-15611-173-1	01	1	-
1	HOUSING; PUMP,FUEL INJ ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	1-15611-178-0	01	1	-
1	HOUSING; PUMP,FUEL INJ ASM PART: E = 8-94390-618-3	1-15611-191-0	01	1	-
1	HOUSING; PUMP,FUEL INJ ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15611-193-0	01	1	-
1	HOUSING; PUMP,FUEL INJ ASM PART: G = 8-97600-665-4	1-15611-212-0	01	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: A = 1-15603-112-1	1-15631-185-0	06	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: B = 1-15603-150-1	1-15631-197-0	06	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: E = 8-94390-618-3	1-15631-203-0	06	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15631-204-0	06	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: G = 8-97600-665-4	1-15631-231-0	06	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: F = 8-94395-904-1	1-15644-009-0	06	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	1-15644-012-0	06	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15644-016-0	06	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15644-018-0	06	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: E = 8-94390-618-3	1-09623-052-0	06	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: G = 8-97600-665-4	1-15619-456-0	06	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	1-15629-088-0	06	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15629-095-0	06	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: F = 8-94395-904-1	9-81235-046-0	06	1	-
8	STOPPER; DELIVERY VLV,INJ PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	1-15639-084-0	06	1	-
8	STOPPER; DELIVERY VLV,INJ PUMP ASM PART: C = 1-15603-160-2, D = 1-15603-264-1, E = 8-94390-618-3, G = 8-97600-665-4	1-15639-104-0	06	1	-
8	STOPPER; DELIVERY VLV,INJ PUMP ASM PART: F = 8-94395-904-1	1-15649-005-0	06	1	-
9	SPRING; DELIVERY VLV ASM PART: F = 8-94395-904-1	1-15634-012-0	06	1	-
9	SPRING; DELIVERY VLV ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15643-012-0	06	1	-
9	SPRING; DELIVERY VLV ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15643-130-0	06	1	-
9	SPRING; DELIVERY VLV ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	1-15723-273-0	06	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: F = 8-94395-904-1	1-15619-401-0	06	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: G = 8-97600-665-4	1-15619-453-0	06	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	1-15641-035-0	06	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15641-041-0	06	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: E = 8-94390-618-3	1-15641-043-0	06	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: F = 8-94395-904-1	1-15632-022-0	06	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	1-15632-028-0	06	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15632-042-0	06	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: E = 8-94390-618-3	1-15632-044-0	06	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: G = 8-97600-665-4	1-15632-066-0	06	1	-
20	WASHER; PLUNGER BARREL ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1, E = 8-94390-618-3, G = 8-97600-665-4	1-15639-020-0	12	1	-
23	GASKET; PLUNGER,BARREL SIDE ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	1-15629-089-0	06	1	-
23	GASKET; PLUNGER,BARREL SIDE ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15629-096-0	06	1	-
23	GASKET; PLUNGER,BARREL SIDE ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15629-131-0	06	1	-
26	GASKET; PLUNGER UPR ASM PART: A = 1-15603-112-1	1-15629-090-0	06	1	-
26	GASKET; PLUNGER UPR ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15629-097-0	06	1	-
26	GASKET; PLUNGER UPR ASM PART: B = 1-15603-150-1	1-15629-113-0	06	1	-
26	GASKET; PLUNGER UPR ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15629-132-0	06	1	-
29	STUD; PLUNGER FIX,PUMP HSG ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15619-328-0	12	1	-
29	STUD; PLUNGER FIX,PUMP HSG ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15619-426-0	12	1	-
29	STUD; PLUNGER FIX,PUMP HSG ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	9-88410-432-0	12	1	-
30	PLUG; SCREW,INJ PUMP HSG (B) ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15619-345-0	01	1	-
30	PLUG; SCREW,INJ PUMP HSG (A) ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1, E = 8-94390-618-3, G = 8-97600-665-4	9-81215-130-0	06	1	-
31	HANGER; FRT,INJ PUMP ASM PART: C = 1-15603-160-2, D = 1-15603-264-1, G = 8-97600-665-4	1-15619-347-0	01	1	-
32	BOLT; HANGER TO INJ PUMP ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15789-098-0	02	1	-
32	BOLT; HANGER TO INJ PUMP ASM PART: G = 8-97600-665-4	9-02341-012-0	02	1	-
32	BOLT; HANGER TO INJ PUMP ASM PART: E = 8-94390-618-3	9-02341-012-0	01	1	-
33	GASKET; FUEL FEED PUMP,INJ PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1, E = 8-94390-618-3, G = 8-97600-665-4	1-15619-320-0	01	1	-
33	GASKET; FUEL FEED PUMP,INJ PUMP ASM PART: F = 8-94395-904-1	1-15629-058-0	01	1	-
34	BUSHING; CONT RACK,INJ PUMP (B) ASM PART: E = 8-94390-618-3	1-15619-429-0	01	1	-
34	BUSHING; CONT RACK,INJ PUMP (A) ASM PART: G = 8-97600-665-4	1-15619-493-0	01	1	-
34	BUSHING; CONT RACK,INJ PUMP (B) ASM PART: G = 8-97600-665-4	1-15619-510-0	01	1	-
34	BUSHING; CONT RACK,INJ PUMP (A) ASM PART: E = 8-94390-618-3	9-81215-123-0	01	1	-
34	BUSHING; CONT RACK,INJ PUMP (A) ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	9-81215-123-0	02	1	-
36	POINTER; TIMING,INJ PUMP (A) ASM PART: A = 1-15603-112-1	1-15619-085-0	01	1	-
36	POINTER; TIMING,INJ PUMP (D) ASM PART: E = 8-94390-618-3, F = 8-94395-904-1, G = 8-97600-665-4	1-15619-304-0	01	1	-
36	POINTER; TIMING,INJ PUMP (C) ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15619-408-0	01	1	-
36	POINTER; TIMING,INJ PUMP (B) ASM PART: B = 1-15603-150-1	1-15619-417-0	01	1	-
37	BOLT; POINTER FIX,INJ PUMP ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	5-15729-063-0	02	1	-
37	BOLT; POINTER FIX,INJ PUMP M6X12 W/LK WASHER ASM PART: A = 1-15603-112-1	9-01910-612-0	02	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.500 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	1-15639-024-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.525 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	1-15639-025-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.550 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	1-15639-026-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.575 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	1-15639-027-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.600 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	1-15639-028-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.625 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	1-15639-029-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.650 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	1-15639-030-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.675 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	1-15639-031-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.700 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	1-15639-032-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.725 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	1-15639-033-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.750 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	1-15639-034-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.775 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	1-15639-035-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.800 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	1-15639-036-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.825 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	1-15639-037-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.850 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	1-15639-038-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.875 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	1-15639-039-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.900 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	1-15639-040-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.925 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	1-15639-041-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.950 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	1-15639-042-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.975 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	1-15639-043-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.000 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	1-15639-044-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.025 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	1-15639-045-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.050 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	1-15639-046-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.075 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	1-15639-047-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.100 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	1-15639-048-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.125 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	1-15639-049-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.150 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	1-15639-050-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.175 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	1-15639-051-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.200 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	1-15639-052-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.225 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	1-15639-053-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.250 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	1-15639-054-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.275 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	1-15639-055-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.300 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	1-15639-056-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.325 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	1-15639-057-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.350 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	1-15639-058-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.375 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	1-15639-059-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.400 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	1-15639-060-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.425 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	1-15639-061-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.450 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	1-15639-062-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.475 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	1-15639-063-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.500 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	1-15639-064-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.525 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	1-15639-065-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.550 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	1-15639-066-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.575 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	1-15639-067-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.600 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	1-15639-068-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.625 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	1-15639-069-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.650 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	1-15639-070-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.675 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	1-15639-071-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.700 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	1-15639-072-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.725 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	1-15639-073-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.750 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	1-15639-074-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.775 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	1-15639-075-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.800 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	1-15639-076-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.825 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	1-15639-077-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.850 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	1-15639-078-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.875 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	1-15639-079-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.900 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	1-15639-080-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.925 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	1-15639-081-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.950 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	1-15639-082-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.975 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	1-15639-083-0	AR	1	-
40	SEAL; OIL,CM/SHF FRT,INJ PUMP ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15629-100-0	01	1	-
40	SEAL; OIL,CM/SHF FRT,INJ PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, E = 8-94390-618-3, G = 8-97600-665-4	1-15749-498-0	01	1	-
40	SEAL; OIL,CM/SHF FRT,INJ PUMP ASM PART: F = 8-94395-904-1	9-81225-071-0	01	1	-
45	BOLT; FRT COVER TO HSG ASM PART: C = 1-15603-160-2, D = 1-15603-264-1, E = 8-94390-618-3, G = 8-97600-665-4	1-15619-338-0	04	1	-
45	BOLT; FRT COVER TO HSG M6X15 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	5-15729-027-0	04	1	-
45	BOLT; FRT COVER TO HSG M6X14 W/LK WASHER ASM PART: F = 8-94395-904-1	9-01900-614-0	04	1	-
46	COVER; FRT,PUMP HSG ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15612-042-0	01	1	-
46	COVER; FRT,PUMP HSG ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15612-063-0	01	1	-
46	COVER; FRT,PUMP HSG ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	1-15629-067-0	01	1	-
46	COVER; FRT,PUMP HSG ASM PART: F = 8-94395-904-1	5-15629-034-0	01	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.10 ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15639-097-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.12 ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15639-098-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.14 ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15639-099-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.16 ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15639-100-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.18 ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15639-101-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.30 ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15639-102-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.50 ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15639-103-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.10 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-166-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.12 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-167-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.14 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-168-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.16 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-169-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.18 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-170-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.30 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-171-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.50 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-172-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.10 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	9-88410-445-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.12 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	9-88410-446-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.14 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	9-88410-447-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.16 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	9-88410-448-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.18 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	9-88410-449-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.30 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	9-88410-450-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.50 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	9-88410-451-0	AR	1	-
48	GASKET; FRT COVER TO HSG ASM PART: G = 8-97600-665-4	1-15619-318-0	01	1	-
48	GASKET; FRT COVER TO HSG ASM PART: F = 8-94395-904-1	1-15629-059-0	01	1	-
48	GASKET; FRT COVER TO HSG ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15629-101-0	01	1	-
48	GASKET; FRT COVER TO HSG ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, E = 8-94390-618-3	9-81215-128-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15621-103-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: F = 8-94395-904-1	1-15621-105-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	1-15621-108-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15621-116-0	01	1	-
51	KEY; DRIVE GEAR,INJ PUMP ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-09735-041-0	01	1	-
51	KEY; DRIVE GEAR,INJ PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, E = 8-94390-618-3, G = 8-97600-665-4	1-15629-009-0	01	1	-
51	KEY; DRIVE GEAR,INJ PUMP ASM PART: F = 8-94395-904-1	5-83539-024-0	01	1	-
58	SLEEVE; CONT,INJ PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	1-15629-085-0	06	1	-
58	SLEEVE; CONT,INJ PUMP ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15635-003-0	06	1	-
58	SLEEVE; CONT,INJ PUMP ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15635-006-0	06	1	-
58	SLEEVE; CONT,INJ PUMP ASM PART: F = 8-94395-904-1	9-81231-523-0	06	1	-
62	SEAT; PLUNGER SPRING,INJ PUMP ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15634-017-1	06	1	-
62	SEAT; PLUNGER SPRING,INJ PUMP ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15634-020-0	06	1	-
62	SEAT; PLUNGER SPRING,INJ PUMP ASM PART: F = 8-94395-904-1	1-15639-022-0	06	1	-
62	SEAT; PLUNGER SPRING,INJ PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	9-81215-136-0	06	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: F = 8-94395-904-1	1-15634-007-0	06	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	1-15634-013-0	06	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15634-019-0	06	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15634-022-0	06	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15634-021-0	06	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: F = 8-94395-904-1	1-15639-023-0	06	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	1-15643-004-0	06	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15643-009-0	06	1	-
68	TAPPET; CM/SHF,INJ PUMP (C) ASM PART: F = 8-94395-904-1	1-15622-006-0	06	1	-
68	TAPPET; CM/SHF,INJ PUMP (D) ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	1-15622-008-0	06	1	-
68	TAPPET; CM/SHF,INJ PUMP (A) PLUNGER NO.2,3 ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15622-009-0	02	1	-
68	TAPPET; CM/SHF,INJ PUMP (B) PLUNGER NO.1,4,5,6 ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15622-010-0	04	1	-
68	TAPPET; CM/SHF,INJ PUMP (A) PLUNGER NO.1,4,5,6 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15622-014-0	04	1	-
68	TAPPET; CM/SHF,INJ PUMP (B) PLUNGER NO.2,3 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15622-015-0	02	1	-
69	GUIDE; TAPPET,INJ PUMP ASM PART: F = 8-94395-904-1	1-15629-018-0	06	1	-
69	GUIDE; TAPPET,INJ PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	1-15629-063-0	06	1	-
69	GUIDE; TAPPET,INJ PUMP ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15629-134-0	06	1	-
70	PIN; TAPPET ROLLER,INJ PUMP ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15619-313-0	06	1	-
70	PIN; TAPPET ROLLER,INJ PUMP ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15619-431-0	06	1	-
70	PIN; TAPPET ROLLER,INJ PUMP ASM PART: F = 8-94395-904-1	9-81215-185-0	06	1	-
70	PIN; TAPPET ROLLER,INJ PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	9-81225-062-0	06	1	-
72	ROLLER; TAPPET,INJ PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	1-15619-288-0	06	1	-
72	ROLLER; TAPPET,INJ PUMP ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15619-312-0	06	1	-
72	ROLLER; TAPPET,INJ PUMP ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15619-430-0	06	1	-
72	ROLLER; TAPPET,INJ PUMP ASM PART: F = 8-94395-904-1	1-15629-010-0	06	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP (C) ASM PART: F = 8-94395-904-1	1-15619-264-0	01	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP (D) ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	1-15619-358-0	01	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP (A) ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15619-396-0	01	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP (B) ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15619-397-0	02	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP (E) ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15619-433-0	03	1	-
78	BOLT; CENTER BRG,INJ PUMP ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-09054-022-0	06	1	-
78	BOLT; CENTER BRG,INJ PUMP ASM PART: G = 8-97600-665-4	1-09054-030-0	06	1	-
78	BOLT; CENTER BRG,INJ PUMP ASM PART: E = 8-94390-618-3	1-15619-434-0	06	1	-
78	BOLT; CENTER BRG,INJ PUMP M6X20 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	9-81325-187-0	02	1	-
79	STUD; FUEL FEED PUMP TO HSG ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1, E = 8-94390-618-3, F = 8-94395-904-1, G = 8-97600-665-4	9-81215-115-0	03	1	-
80	NUT; FUEL FEED PUMP FIX ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1, E = 8-94390-618-3, F = 8-94395-904-1, G = 8-97600-665-4	8-94171-110-0	03	1	-
82	PLUG; HSG,INJ PUMP (C) ASM PART: F = 8-94395-904-1	1-15619-160-0	06	1	-
82	PLUG; HSG,INJ PUMP (B) ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15619-329-0	01	1	-
82	PLUG; HSG,INJ PUMP (A) ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15619-436-0	06	1	-
82	PLUG; HSG,INJ PUMP (B) ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15619-437-0	07	1	-
82	PLUG; HSG,INJ PUMP (A) ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	9-81215-129-0	01	1	-
83	GASKET; HSG PLUG (C) ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	1-15619-067-0	01	1	-
83	GASKET; HSG PLUG (B) ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15619-102-0	07	1	-
83	GASKET; HSG PLUG (A) ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15629-102-0	01	1	-
83	GASKET; HSG PLUG (A) ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	5-15729-021-0	06	1	-
83	GASKET; HSG PLUG (B) ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	5-15729-022-0	01	1	-
88	BOLT; EYE,OIL FEED,INJ PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1, E = 8-94390-618-3, F = 8-94395-904-1, G = 8-97600-665-4	1-15619-092-0	01	1	-
89	GASKET; OIL FEED BOLT,INJ PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1, E = 8-94390-618-3, F = 8-94395-904-1, G = 8-97600-665-4	1-15719-093-0	02	1	-
102	VALVE; OVERFLOW,INJ PUMP (C) ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	1-13260-050-1	01	1	-
102	VALVE; OVERFLOW,INJ PUMP (A) ASM PART: E = 8-94390-618-3	1-15619-363-0	01	1	-
102	VALVE; OVERFLOW,INJ PUMP (B) ASM PART: G = 8-97600-665-4	1-15619-447-0	01	1	-
102	VALVE; OVERFLOW,INJ PUMP (D) ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15719-346-0	01	1	-
103	GASKET; OVERFLOW VLV,INJ PUMP ID=14.2 OD=19.2 ASM PART: C = 1-15603-160-2, D = 1-15603-264-1, E = 8-94390-618-3, G = 8-97600-665-4	1-09630-085-0	02	1	-
103	GASKET; OVERFLOW VLV,INJ PUMP ID=14.2 OD=19.2 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	1-09630-085-0	01	1	-
104	GASKET; OVERFLOW VLV ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15729-850-0	01	1	-
105	BEARING; CM/SHF RR,INJ PUMP NSK ASM PART: F = 8-94395-904-1	1-15629-002-0	01	1	-
105	BEARING; CM/SHF RR,INJ PUMP TOYO ASM PART: F = 8-94395-904-1	1-15629-003-0	01	1	-
105	BEARING; CM/SHF RR,INJ PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1, E = 8-94390-618-3, G = 8-97600-665-4	9-81225-068-0	01	1	-
106	RING; HSG,INJ PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1, E = 8-94390-618-3, G = 8-97600-665-4	9-81225-064-0	01	1	-
107	SHIM; RR BEARING,CM/SHF T=0.30 ASM PART: F = 8-94395-904-1	1-15629-007-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.00 ASM PART: F = 8-94395-904-1	1-15629-008-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.70 ASM PART: F = 8-94395-904-1	1-15629-105-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.60 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, E = 8-94390-618-3, G = 8-97600-665-4	1-15639-019-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.60 ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15639-105-0	01	1	-
107	SHIM; RR BEARING,CM/SHF T=1.50 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, E = 8-94390-618-3, G = 8-97600-665-4	9-81215-176-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.80 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, E = 8-94390-618-3, G = 8-97600-665-4	9-81215-177-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=2.00 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, E = 8-94390-618-3, G = 8-97600-665-4	9-81215-178-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.10 ASM PART: F = 8-94395-904-1	9-81225-049-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.12 ASM PART: F = 8-94395-904-1	9-81225-050-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.14 ASM PART: F = 8-94395-904-1	9-81225-051-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.16 ASM PART: F = 8-94395-904-1	9-81225-052-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.18 ASM PART: F = 8-94395-904-1	9-81225-053-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.50 ASM PART: F = 8-94395-904-1	9-81225-054-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.20 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, E = 8-94390-618-3, G = 8-97600-665-4	9-88410-441-0	AR	1	-
108	BUSHING; CONT RACK END,INJ PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1, E = 8-94390-618-3, G = 8-97600-665-4	9-81215-125-0	01	1	-
109	RACK; CONT,INJ PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	1-15637-017-0	01	1	-
109	RACK; CONT,INJ PUMP ASM PART: E = 8-94390-618-3	1-15637-033-0	01	1	-
109	RACK; CONT,INJ PUMP ASM PART: C = 1-15603-160-2	1-15637-034-0	01	1	-
109	RACK; CONT,INJ PUMP ASM PART: D = 1-15603-264-1	1-15637-040-0	01	1	-
109	RACK; CONT,INJ PUMP ASM PART: G = 8-97600-665-4	1-15637-055-0	01	1	-
109	RACK; CONT,INJ PUMP ASM PART: F = 8-94395-904-1	5-15637-003-0	01	1	-
110	PIN; CONT RACK,INJ PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1, E = 8-94390-618-3, G = 8-97600-665-4	9-88410-440-0	01	1	-
114	BEARING; CM/SHF FRT,INJ PUMP NSK ASM PART: F = 8-94395-904-1	1-15629-002-0	01	1	-
114	BEARING; CM/SHF FRT,INJ PUMP TOYO ASM PART: F = 8-94395-904-1	1-15629-003-0	01	1	-
114	BEARING; CM/SHF FRT,INJ PUMP ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15629-099-0	01	1	-
114	BEARING; CM/SHF FRT,INJ PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, E = 8-94390-618-3, G = 8-97600-665-4	9-81225-068-0	01	1	-
115	NUT; PLUNGER FIX,INJ PUMP ASM PART: C = 1-15603-160-2, D = 1-15603-264-1, E = 8-94390-618-3, G = 8-97600-665-4	1-15619-337-0	12	1	-
115	NUT; PLUNGER FIX,INJ PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	9-88410-456-0	12	1	-
154	HANGER; RR,INJ PUMP ASM PART: C = 1-15603-160-2, D = 1-15603-264-1, E = 8-94390-618-3, G = 8-97600-665-4	1-15619-347-0	01	1	-
161	GASKET; SCREW,CENTER BRG ASM PART: C = 1-15603-160-2, D = 1-15603-264-1, E = 8-94390-618-3, G = 8-97600-665-4	5-15729-099-0	06	1	-
161	GASKET; SCREW,CENTER BRG ASM PART: F = 8-94395-904-1	9-81225-043-0	02	1	-
211	BEARING; CONT ROD ASM PART: C = 1-15603-160-2, D = 1-15603-264-1, E = 8-94390-618-3, G = 8-97600-665-4	1-15629-098-0	01	1	-
212	BUSHING; CONT ROD ASM PART: C = 1-15603-160-2, D = 1-15603-264-1, E = 8-94390-618-3, G = 8-97600-665-4	1-15619-330-0	01	1	-
213	WASHER; CONT ROD (A) ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15619-331-0	06	1	-
213	WASHER; CONT ROD (B) ASM PART: C = 1-15603-160-2, D = 1-15603-264-1, E = 8-94390-618-3, G = 8-97600-665-4	1-15619-336-0	01	1	-
214	PIN; CONT ROD ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15619-332-0	06	1	-
215	SCREW; CONT ROD ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15619-333-0	06	1	-
216	CONNECTOR; CONT ROD ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15619-334-0	01	1	-
216	CONNECTOR; CONT ROD ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15619-428-0	01	1	-
217	BOLT; CONT ROD ASM PART: C = 1-15603-160-2, D = 1-15603-264-1, E = 8-94390-618-3, G = 8-97600-665-4	1-15619-335-0	01	1	-
218	NUT; PLUG ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15619-344-0	02	1	-
219	RING; SNAP,ROLLER ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15619-314-0	06	1	-
219	RING; SNAP,ROLLER ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15619-432-0	06	1	-
220	SEAT; TAPPET ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15619-311-0	06	1	-
230	PLUG; TAPPET ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15619-388-0	06	1	-
230	PLUG; TAPPET ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15619-435-0	06	1	-
234	SLEEVE; FRT COVER ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, E = 8-94390-618-3, G = 8-97600-665-4	1-15635-002-0	01	1	-
234	SLEEVE; FRT COVER ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15635-004-0	01	1	-

176 6 7 8 9 118 117 117 10 45 14 141 19 36 48 40 114 186 74 73 167 46 109 75 148 162 162 49 87 87 86 1 51 159 107 107 89 89 88 33 80 178 58 177 50 1 77 161 127 126 62 105 160 63 64 68 181 69 70 71 72 82 79

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOUSING; PUMP,FUEL INJ ASM PART: F = 8-94395-904-1	1-15611-173-1	01	1	-
1	HOUSING; PUMP,FUEL INJ ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	1-15611-178-0	01	1	-
1	HOUSING; PUMP,FUEL INJ ASM PART: E = 8-94390-618-3	1-15611-191-0	01	1	-
1	HOUSING; PUMP,FUEL INJ ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15611-193-0	01	1	-
1	HOUSING; PUMP,FUEL INJ ASM PART: G = 8-97600-665-4	1-15611-212-0	01	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: F = 8-94395-904-1	1-15644-009-0	06	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	1-15644-012-0	06	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15644-016-0	06	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15644-018-0	06	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: E = 8-94390-618-3	1-09623-052-0	06	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: G = 8-97600-665-4	1-15619-456-0	06	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	1-15629-088-0	06	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15629-095-0	06	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: F = 8-94395-904-1	9-81235-046-0	06	1	-
8	STOPPER; DELIVERY VLV,INJ PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	1-15639-084-0	06	1	-
8	STOPPER; DELIVERY VLV,INJ PUMP ASM PART: C = 1-15603-160-2, D = 1-15603-264-1, E = 8-94390-618-3, G = 8-97600-665-4	1-15639-104-0	06	1	-
8	STOPPER; DELIVERY VLV,INJ PUMP ASM PART: F = 8-94395-904-1	1-15649-005-0	06	1	-
9	SPRING; DELIVERY VLV ASM PART: F = 8-94395-904-1	1-15634-012-0	06	1	-
9	SPRING; DELIVERY VLV ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15643-012-0	06	1	-
9	SPRING; DELIVERY VLV ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15643-130-0	06	1	-
9	SPRING; DELIVERY VLV ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	1-15723-273-0	06	1	-
10	GASKET; DELIVERY VLV,INJ PUMP ASM PART: F = 8-94395-904-1	1-15619-103-0	06	1	-
10	GASKET; DELIVERY VLV,INJ PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	9-81215-174-0	06	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: F = 8-94395-904-1	1-15619-401-0	06	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: G = 8-97600-665-4	1-15619-453-0	06	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	1-15641-035-0	06	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15641-041-0	06	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: E = 8-94390-618-3	1-15641-043-0	06	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: F = 8-94395-904-1	1-15632-022-0	06	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	1-15632-028-0	06	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15632-042-0	06	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: E = 8-94390-618-3	1-15632-044-0	06	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: G = 8-97600-665-4	1-15632-066-0	06	1	-
33	GASKET; FUEL FEED PUMP,INJ PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1, E = 8-94390-618-3, G = 8-97600-665-4	1-15619-320-0	01	1	-
33	GASKET; FUEL FEED PUMP,INJ PUMP ASM PART: F = 8-94395-904-1	1-15629-058-0	01	1	-
36	POINTER; TIMING,INJ PUMP (A) ASM PART: A = 1-15603-112-1	1-15619-085-0	01	1	-
36	POINTER; TIMING,INJ PUMP (D) ASM PART: E = 8-94390-618-3, F = 8-94395-904-1, G = 8-97600-665-4	1-15619-304-0	01	1	-
36	POINTER; TIMING,INJ PUMP (C) ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15619-408-0	01	1	-
36	POINTER; TIMING,INJ PUMP (B) ASM PART: B = 1-15603-150-1	1-15619-417-0	01	1	-
40	SEAL; OIL,CM/SHF FRT,INJ PUMP ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15629-100-0	01	1	-
40	SEAL; OIL,CM/SHF FRT,INJ PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, E = 8-94390-618-3, G = 8-97600-665-4	1-15749-498-0	01	1	-
40	SEAL; OIL,CM/SHF FRT,INJ PUMP ASM PART: F = 8-94395-904-1	9-81225-071-0	01	1	-
45	BOLT; FRT COVER TO HSG ASM PART: C = 1-15603-160-2, D = 1-15603-264-1, E = 8-94390-618-3, G = 8-97600-665-4	1-15619-338-0	04	1	-
45	BOLT; FRT COVER TO HSG M6X15 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	5-15729-027-0	04	1	-
45	BOLT; FRT COVER TO HSG M6X14 W/LK WASHER ASM PART: F = 8-94395-904-1	9-01900-614-0	04	1	-
46	COVER; FRT,PUMP HSG ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15612-042-0	01	1	-
46	COVER; FRT,PUMP HSG ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15612-063-0	01	1	-
46	COVER; FRT,PUMP HSG ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	1-15629-067-0	01	1	-
46	COVER; FRT,PUMP HSG ASM PART: F = 8-94395-904-1	5-15629-034-0	01	1	-
48	GASKET; FRT COVER TO HSG ASM PART: G = 8-97600-665-4	1-15619-318-0	01	1	-
48	GASKET; FRT COVER TO HSG ASM PART: F = 8-94395-904-1	1-15629-059-0	01	1	-
48	GASKET; FRT COVER TO HSG ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15629-101-0	01	1	-
48	GASKET; FRT COVER TO HSG ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, E = 8-94390-618-3	9-81215-128-0	01	1	-
49	RING; FRT BRG,CM/SHF ASM PART: F = 8-94395-904-1	1-15629-004-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15621-103-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: F = 8-94395-904-1	1-15621-105-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	1-15621-108-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15621-116-0	01	1	-
51	KEY; DRIVE GEAR,INJ PUMP ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-09735-041-0	01	1	-
51	KEY; DRIVE GEAR,INJ PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, E = 8-94390-618-3, G = 8-97600-665-4	1-15629-009-0	01	1	-
51	KEY; DRIVE GEAR,INJ PUMP ASM PART: F = 8-94395-904-1	5-83539-024-0	01	1	-
58	SLEEVE; CONT,INJ PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	1-15629-085-0	06	1	-
58	SLEEVE; CONT,INJ PUMP ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15635-003-0	06	1	-
58	SLEEVE; CONT,INJ PUMP ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15635-006-0	06	1	-
58	SLEEVE; CONT,INJ PUMP ASM PART: F = 8-94395-904-1	9-81231-523-0	06	1	-
62	SEAT; PLUNGER SPRING,INJ PUMP ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15634-017-1	06	1	-
62	SEAT; PLUNGER SPRING,INJ PUMP ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15634-020-0	06	1	-
62	SEAT; PLUNGER SPRING,INJ PUMP ASM PART: F = 8-94395-904-1	1-15639-022-0	06	1	-
62	SEAT; PLUNGER SPRING,INJ PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	9-81215-136-0	06	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: F = 8-94395-904-1	1-15634-007-0	06	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	1-15634-013-0	06	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15634-019-0	06	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15634-022-0	06	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15634-021-0	06	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: F = 8-94395-904-1	1-15639-023-0	06	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	1-15643-004-0	06	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15643-009-0	06	1	-
68	TAPPET; CM/SHF,INJ PUMP (C) ASM PART: F = 8-94395-904-1	1-15622-006-0	06	1	-
68	TAPPET; CM/SHF,INJ PUMP (D) ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	1-15622-008-0	06	1	-
68	TAPPET; CM/SHF,INJ PUMP (A) PLUNGER NO.2,3 ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15622-009-0	02	1	-
68	TAPPET; CM/SHF,INJ PUMP (B) PLUNGER NO.1,4,5,6 ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15622-010-0	04	1	-
68	TAPPET; CM/SHF,INJ PUMP (A) PLUNGER NO.1,4,5,6 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15622-014-0	04	1	-
68	TAPPET; CM/SHF,INJ PUMP (B) PLUNGER NO.2,3 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15622-015-0	02	1	-
69	GUIDE; TAPPET,INJ PUMP ASM PART: F = 8-94395-904-1	1-15629-018-0	06	1	-
69	GUIDE; TAPPET,INJ PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	1-15629-063-0	06	1	-
69	GUIDE; TAPPET,INJ PUMP ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15629-134-0	06	1	-
70	PIN; TAPPET ROLLER,INJ PUMP ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15619-313-0	06	1	-
70	PIN; TAPPET ROLLER,INJ PUMP ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15619-431-0	06	1	-
70	PIN; TAPPET ROLLER,INJ PUMP ASM PART: F = 8-94395-904-1	9-81215-185-0	06	1	-
70	PIN; TAPPET ROLLER,INJ PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	9-81225-062-0	06	1	-
71	BUSHING; TAPPET ROLLER,INJ PUMP ASM PART: F = 8-94395-904-1	1-15619-162-0	06	1	-
71	BUSHING; TAPPET ROLLER,INJ PUMP ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15629-133-0	06	1	-
71	BUSHING; TAPPET ROLLER,INJ PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	9-81225-061-0	06	1	-
72	ROLLER; TAPPET,INJ PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	1-15619-288-0	06	1	-
72	ROLLER; TAPPET,INJ PUMP ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15619-312-0	06	1	-
72	ROLLER; TAPPET,INJ PUMP ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15619-430-0	06	1	-
72	ROLLER; TAPPET,INJ PUMP ASM PART: F = 8-94395-904-1	1-15629-010-0	06	1	-
73	GASKET; COVER TO HSG ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	1-15629-094-0	01	1	-
73	GASKET; COVER TO HSG ASM PART: F = 8-94395-904-1	1-15729-960-0	01	1	-
74	COVER; HSG,INJ PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	1-15612-012-0	01	1	-
74	COVER; HSG,INJ PUMP ASM PART: F = 8-94395-904-1	1-15612-050-0	01	1	-
75	SCREW; COVER TO HSG ASM PART: F = 8-94395-904-1	1-15619-003-0	02	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP (C) ASM PART: F = 8-94395-904-1	1-15619-264-0	01	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP (D) ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	1-15619-358-0	01	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP (A) ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15619-396-0	01	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP (B) ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15619-397-0	02	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP (E) ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15619-433-0	03	1	-
79	STUD; FUEL FEED PUMP TO HSG ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1, E = 8-94390-618-3, F = 8-94395-904-1, G = 8-97600-665-4	9-81215-115-0	03	1	-
80	NUT; FUEL FEED PUMP FIX ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1, E = 8-94390-618-3, F = 8-94395-904-1, G = 8-97600-665-4	8-94171-110-0	03	1	-
82	PLUG; HSG,INJ PUMP (C) ASM PART: F = 8-94395-904-1	1-15619-160-0	06	1	-
82	PLUG; HSG,INJ PUMP (B) ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15619-329-0	01	1	-
82	PLUG; HSG,INJ PUMP (A) ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15619-436-0	06	1	-
82	PLUG; HSG,INJ PUMP (B) ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15619-437-0	07	1	-
82	PLUG; HSG,INJ PUMP (A) ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	9-81215-129-0	01	1	-
86	BOLT; EYE,OIL RETURN,INJ PUMP ASM PART: F = 8-94395-904-1	1-15619-091-0	01	1	-
86	BOLT; EYE,OIL RETURN,INJ PUMP ASM PART: B = 1-15603-150-1, E = 8-94390-618-3	1-15619-309-0	01	1	-
86	BOLT; EYE,OIL RETURN,INJ PUMP ASM PART: G = 8-97600-665-4	1-15619-457-0	01	1	-
86	BOLT; EYE,OIL RETURN,INJ PUMP ASM PART: A = 1-15603-112-1	1-15759-011-0	01	1	-
87	GASKET; OIL RETURN BOLT,INJ PUMP ID=14.2 OD=19.2 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, E = 8-94390-618-3, G = 8-97600-665-4	1-09630-085-0	02	1	-
87	GASKET; OIL RETURN BOLT,INJ PUMP L=96 ASM PART: F = 8-94395-904-1	1-15729-066-0	02	1	-
88	BOLT; EYE,OIL FEED,INJ PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1, E = 8-94390-618-3, F = 8-94395-904-1, G = 8-97600-665-4	1-15619-092-0	01	1	-
89	GASKET; OIL FEED BOLT,INJ PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1, E = 8-94390-618-3, F = 8-94395-904-1, G = 8-97600-665-4	1-15719-093-0	02	1	-
105	BEARING; CM/SHF RR,INJ PUMP NSK ASM PART: F = 8-94395-904-1	1-15629-002-0	01	1	-
105	BEARING; CM/SHF RR,INJ PUMP TOYO ASM PART: F = 8-94395-904-1	1-15629-003-0	01	1	-
105	BEARING; CM/SHF RR,INJ PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1, E = 8-94390-618-3, G = 8-97600-665-4	9-81225-068-0	01	1	-
107	SHIM; RR BEARING,CM/SHF T=0.30 ASM PART: F = 8-94395-904-1	1-15629-007-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.00 ASM PART: F = 8-94395-904-1	1-15629-008-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.70 ASM PART: F = 8-94395-904-1	1-15629-105-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.60 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, E = 8-94390-618-3, G = 8-97600-665-4	1-15639-019-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.60 ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15639-105-0	01	1	-
107	SHIM; RR BEARING,CM/SHF T=1.50 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, E = 8-94390-618-3, G = 8-97600-665-4	9-81215-176-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.80 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, E = 8-94390-618-3, G = 8-97600-665-4	9-81215-177-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=2.00 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, E = 8-94390-618-3, G = 8-97600-665-4	9-81215-178-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.10 ASM PART: F = 8-94395-904-1	9-81225-049-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.12 ASM PART: F = 8-94395-904-1	9-81225-050-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.14 ASM PART: F = 8-94395-904-1	9-81225-051-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.16 ASM PART: F = 8-94395-904-1	9-81225-052-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.18 ASM PART: F = 8-94395-904-1	9-81225-053-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.50 ASM PART: F = 8-94395-904-1	9-81225-054-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.20 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, E = 8-94390-618-3, G = 8-97600-665-4	9-88410-441-0	AR	1	-
109	RACK; CONT,INJ PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	1-15637-017-0	01	1	-
109	RACK; CONT,INJ PUMP ASM PART: E = 8-94390-618-3	1-15637-033-0	01	1	-
109	RACK; CONT,INJ PUMP ASM PART: C = 1-15603-160-2	1-15637-034-0	01	1	-
109	RACK; CONT,INJ PUMP ASM PART: D = 1-15603-264-1	1-15637-040-0	01	1	-
109	RACK; CONT,INJ PUMP ASM PART: G = 8-97600-665-4	1-15637-055-0	01	1	-
109	RACK; CONT,INJ PUMP ASM PART: F = 8-94395-904-1	5-15637-003-0	01	1	-
114	BEARING; CM/SHF FRT,INJ PUMP NSK ASM PART: F = 8-94395-904-1	1-15629-002-0	01	1	-
114	BEARING; CM/SHF FRT,INJ PUMP TOYO ASM PART: F = 8-94395-904-1	1-15629-003-0	01	1	-
114	BEARING; CM/SHF FRT,INJ PUMP ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15629-099-0	01	1	-
114	BEARING; CM/SHF FRT,INJ PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, E = 8-94390-618-3, G = 8-97600-665-4	9-81225-068-0	01	1	-
117	GASKET; EYE BOLT,INJ PUMP ID=14.2 OD=19.2 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, F = 8-94395-904-1	1-09630-085-0	02	1	-
117	GASKET; EYE BOLT,INJ PUMP ASM PART: C = 1-15603-160-2, D = 1-15603-264-1, E = 8-94390-618-3, G = 8-97600-665-4	5-15729-099-0	01	1	-
118	BOLT; EYE,FUEL INL,INJ PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, F = 8-94395-904-1	1-15759-011-0	01	1	-
118	BOLT; EYE,FUEL INL,INJ PUMP ASM PART: C = 1-15603-160-2, D = 1-15603-264-1, E = 8-94390-618-3, G = 8-97600-665-4	9-81215-148-0	01	1	-
126	ADAPTER; EYE BOLT,PUMP HSG ASM PART: F = 8-94395-904-1	9-81235-017-0	01	1	-
127	ADAPTER; FUEL PIPE ASM PART: F = 8-94395-904-1	1-15619-190-0	01	1	-
141	BOLT; POINTER ASM PART: E = 8-94390-618-3, F = 8-94395-904-1, G = 8-97600-665-4	1-15729-758-0	02	1	-
141	BOLT; POINTER ASM PART: B = 1-15603-150-1	5-15729-063-0	02	1	-
148	GASKET; COVER FIX BOLT ASM PART: F = 8-94395-904-1	9-81215-144-0	02	1	-
159	RING; RR BEARING,CM/SHF,INJ PUMP ASM PART: F = 8-94395-904-1	1-15629-004-0	01	1	-
160	SCREW; CENTER BRG,INJ PUMP ASM PART: F = 8-94395-904-1	1-15629-017-0	02	1	-
161	GASKET; SCREW,CENTER BRG ASM PART: C = 1-15603-160-2, D = 1-15603-264-1, E = 8-94390-618-3, G = 8-97600-665-4	5-15729-099-0	06	1	-
161	GASKET; SCREW,CENTER BRG ASM PART: F = 8-94395-904-1	9-81225-043-0	02	1	-
162	SHIM; FRT BRG,CM/SHF T=0.30 ASM PART: F = 8-94395-904-1	1-15629-007-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=1.00 ASM PART: F = 8-94395-904-1	1-15629-008-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.70 ASM PART: F = 8-94395-904-1	1-15629-105-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.10 ASM PART: F = 8-94395-904-1	9-81225-049-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.12 ASM PART: F = 8-94395-904-1	9-81225-050-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.14 ASM PART: F = 8-94395-904-1	9-81225-051-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.16 ASM PART: F = 8-94395-904-1	9-81225-052-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.18 ASM PART: F = 8-94395-904-1	9-81225-053-0	AR	1	-
162	SHIM; FRT BRG,CM/SHF T=0.50 ASM PART: F = 8-94395-904-1	9-81225-054-0	AR	1	-
167	BOLT; CONT RACK,INJ PUMP ASM PART: F = 8-94395-904-1	1-15639-003-0	01	1	-
176	PLATE; LK,DELIVERY VLV HOLDER ASM PART: F = 8-94395-904-1	5-15625-001-0	03	1	-
177	PINION; CONT SLEEVE,INJ PUMP ASM PART: F = 8-94395-904-1	9-81225-057-0	06	1	-
178	SCREW; PINION,INJ PUMP ASM PART: F = 8-94395-904-1	9-81235-003-0	06	1	-
181	SHIM; TAPPET,INJ PUMP T=0.500 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-106-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.525 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-107-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.550 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-108-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.575 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-109-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.600 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-110-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.625 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-111-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.650 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-112-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.675 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-113-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.700 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-114-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.725 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-115-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.750 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-116-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.775 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-117-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.800 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-118-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.825 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-119-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.850 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-120-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.875 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-121-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.900 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-122-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.925 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-123-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.950 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-124-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.975 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-125-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.000 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-126-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.025 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-127-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.050 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-128-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.075 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-129-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.100 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-130-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.125 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-131-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.150 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-132-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.175 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-133-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.200 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-134-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.225 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-135-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.250 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-136-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.275 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-137-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.300 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-138-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.325 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-139-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.350 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-140-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.375 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-141-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.400 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-142-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.425 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-143-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.450 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-144-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.475 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-145-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.500 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-146-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.525 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-147-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.550 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-148-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.575 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-149-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.600 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-150-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.625 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-151-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.650 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-152-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.675 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-153-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.700 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-154-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.725 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-155-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.750 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-156-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.775 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-157-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.800 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-158-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.825 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-159-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.850 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-160-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.875 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-161-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.900 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-162-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.925 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-163-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.950 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-164-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.975 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-165-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.60 ASM PART: F = 8-94395-904-1	5-15619-001-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.70 ASM PART: F = 8-94395-904-1	5-15619-002-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.80 ASM PART: F = 8-94395-904-1	5-15619-003-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.90 ASM PART: F = 8-94395-904-1	5-15619-004-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.00 ASM PART: F = 8-94395-904-1	5-15619-005-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.10 ASM PART: F = 8-94395-904-1	5-15619-007-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.20 ASM PART: F = 8-94395-904-1	5-15619-008-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.30 ASM PART: F = 8-94395-904-1	5-15619-009-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.40 ASM PART: F = 8-94395-904-1	5-15619-010-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.55 ASM PART: F = 8-94395-904-1	5-15619-011-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.65 ASM PART: F = 8-94395-904-1	5-15619-012-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.75 ASM PART: F = 8-94395-904-1	5-15619-013-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.85 ASM PART: F = 8-94395-904-1	5-15619-015-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.20 ASM PART: F = 8-94395-904-1	5-15619-025-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.25 ASM PART: F = 8-94395-904-1	5-15619-026-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.35 ASM PART: F = 8-94395-904-1	5-15619-027-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.30 ASM PART: F = 8-94395-904-1	5-15619-034-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.40 ASM PART: F = 8-94395-904-1	5-15619-035-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.50 ASM PART: F = 8-94395-904-1	5-15619-036-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.45 ASM PART: F = 8-94395-904-1	5-15619-037-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.50 ASM PART: F = 8-94395-904-1	5-15619-106-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.60 ASM PART: F = 8-94395-904-1	5-15619-107-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.35 ASM PART: F = 8-94395-904-1	5-15619-108-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.45 ASM PART: F = 8-94395-904-1	5-15619-109-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.55 ASM PART: F = 8-94395-904-1	5-15619-110-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.95 ASM PART: F = 8-94395-904-1	9-81235-042-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.05 ASM PART: F = 8-94395-904-1	9-81235-043-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.15 ASM PART: F = 8-94395-904-1	9-81235-044-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.25 ASM PART: F = 8-94395-904-1	9-81235-045-0	AR	1	-
186	SHIM; POINTER T=0.20 ASM PART: B = 1-15603-150-1	1-15619-302-0	AR	1	-
186	SHIM; POINTER T=0.30 ASM PART: B = 1-15603-150-1	1-15639-089-0	AR	1	-
186	SHIM; POINTER T=0.50 ASM PART: B = 1-15603-150-1	1-15639-090-0	AR	1	-
186	SHIM; POINTER T=1.00 ASM PART: B = 1-15603-150-1	1-15639-091-0	AR	1	-
186	SHIM; POINTER T=1.10 ASM PART: B = 1-15603-150-1	1-15639-092-0	AR	1	-
186	SHIM; POINTER T=0.20 ASM PART: E = 8-94390-618-3, F = 8-94395-904-1, G = 8-97600-665-4	1-15639-093-0	AR	1	-
186	SHIM; POINTER T=0.30 ASM PART: E = 8-94390-618-3, F = 8-94395-904-1, G = 8-97600-665-4	1-15639-094-0	AR	1	-
186	SHIM; POINTER T=0.50 ASM PART: E = 8-94390-618-3, F = 8-94395-904-1, G = 8-97600-665-4	1-15639-095-0	AR	1	-
186	SHIM; POINTER T=1.00 ASM PART: E = 8-94390-618-3, F = 8-94395-904-1, G = 8-97600-665-4	1-15639-096-0	AR	1	-

5 6 7 8 9 10 14 19 1 20 20 115 103 102 29 38 106 5 21 22 23 24 28 25 26 27 79 108 34 110 107 38 105 109 34 30 101 101 90 186 36 37 36 141 89 89 83 88 51 82 87 78 50 58 62 87 114 48 47 46 234 45 40 33 86 77 80 63 64 69 68 70 73 72 71 74 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOUSING; PUMP,FUEL INJ ASM PART: F = 8-94395-904-1	1-15611-173-1	01	1	-
1	HOUSING; PUMP,FUEL INJ ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	1-15611-178-0	01	1	-
1	HOUSING; PUMP,FUEL INJ ASM PART: E = 8-94390-618-3	1-15611-191-0	01	1	-
1	HOUSING; PUMP,FUEL INJ ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15611-193-0	01	1	-
1	HOUSING; PUMP,FUEL INJ ASM PART: G = 8-97600-665-4	1-15611-212-0	01	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: A = 1-15603-112-1	1-15631-185-0	06	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: B = 1-15603-150-1	1-15631-197-0	06	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: E = 8-94390-618-3	1-15631-203-0	06	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15631-204-0	06	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: G = 8-97600-665-4	1-15631-231-0	06	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: F = 8-94395-904-1	1-15644-009-0	06	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	1-15644-012-0	06	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15644-016-0	06	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15644-018-0	06	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: E = 8-94390-618-3	1-09623-052-0	06	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: G = 8-97600-665-4	1-15619-456-0	06	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	1-15629-088-0	06	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15629-095-0	06	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: F = 8-94395-904-1	9-81235-046-0	06	1	-
8	STOPPER; DELIVERY VLV,INJ PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	1-15639-084-0	06	1	-
8	STOPPER; DELIVERY VLV,INJ PUMP ASM PART: C = 1-15603-160-2, D = 1-15603-264-1, E = 8-94390-618-3, G = 8-97600-665-4	1-15639-104-0	06	1	-
8	STOPPER; DELIVERY VLV,INJ PUMP ASM PART: F = 8-94395-904-1	1-15649-005-0	06	1	-
9	SPRING; DELIVERY VLV ASM PART: F = 8-94395-904-1	1-15634-012-0	06	1	-
9	SPRING; DELIVERY VLV ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15643-012-0	06	1	-
9	SPRING; DELIVERY VLV ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15643-130-0	06	1	-
9	SPRING; DELIVERY VLV ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	1-15723-273-0	06	1	-
10	GASKET; DELIVERY VLV,INJ PUMP ASM PART: F = 8-94395-904-1	1-15619-103-0	06	1	-
10	GASKET; DELIVERY VLV,INJ PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	9-81215-174-0	06	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: F = 8-94395-904-1	1-15619-401-0	06	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: G = 8-97600-665-4	1-15619-453-0	06	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	1-15641-035-0	06	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15641-041-0	06	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: E = 8-94390-618-3	1-15641-043-0	06	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: F = 8-94395-904-1	1-15632-022-0	06	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	1-15632-028-0	06	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15632-042-0	06	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: E = 8-94390-618-3	1-15632-044-0	06	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: G = 8-97600-665-4	1-15632-066-0	06	1	-
20	WASHER; PLUNGER BARREL ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1, E = 8-94390-618-3, G = 8-97600-665-4	1-15639-020-0	12	1	-
21	FLANGE; PLUNGER ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	1-15742-082-0	06	1	-
22	RING; PLUNGER,INJ PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	1-15649-008-0	06	1	-
23	GASKET; PLUNGER,BARREL SIDE ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	1-15629-089-0	06	1	-
23	GASKET; PLUNGER,BARREL SIDE ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15629-096-0	06	1	-
23	GASKET; PLUNGER,BARREL SIDE ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15629-131-0	06	1	-
24	WASHER; PLUNGER,INJ PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	9-88410-430-0	06	1	-
25	RING; SNAP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	9-88410-431-0	06	1	-
26	GASKET; PLUNGER UPR ASM PART: A = 1-15603-112-1	1-15629-090-0	06	1	-
26	GASKET; PLUNGER UPR ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15629-097-0	06	1	-
26	GASKET; PLUNGER UPR ASM PART: B = 1-15603-150-1	1-15629-113-0	06	1	-
26	GASKET; PLUNGER UPR ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15629-132-0	06	1	-
27	GASKET; PLUNGER LWR ASM PART: A = 1-15603-112-1	1-15629-090-0	06	1	-
27	GASKET; PLUNGER LWR ASM PART: B = 1-15603-150-1	1-15629-113-0	06	1	-
28	DEFLECTOR; PLUNGER ASM PART: B = 1-15603-150-1	1-15629-093-0	06	1	-
28	DEFLECTOR; PLUNGER ASM PART: A = 1-15603-112-1	1-15639-086-0	06	1	-
29	STUD; PLUNGER FIX,PUMP HSG ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15619-328-0	12	1	-
29	STUD; PLUNGER FIX,PUMP HSG ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15619-426-0	12	1	-
29	STUD; PLUNGER FIX,PUMP HSG ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	9-88410-432-0	12	1	-
30	PLUG; SCREW,INJ PUMP HSG (B) ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15619-345-0	01	1	-
30	PLUG; SCREW,INJ PUMP HSG (A) ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1, E = 8-94390-618-3, G = 8-97600-665-4	9-81215-130-0	06	1	-
33	GASKET; FUEL FEED PUMP,INJ PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1, E = 8-94390-618-3, G = 8-97600-665-4	1-15619-320-0	01	1	-
33	GASKET; FUEL FEED PUMP,INJ PUMP ASM PART: F = 8-94395-904-1	1-15629-058-0	01	1	-
34	BUSHING; CONT RACK,INJ PUMP (B) ASM PART: E = 8-94390-618-3	1-15619-429-0	01	1	-
34	BUSHING; CONT RACK,INJ PUMP (A) ASM PART: G = 8-97600-665-4	1-15619-493-0	01	1	-
34	BUSHING; CONT RACK,INJ PUMP (B) ASM PART: G = 8-97600-665-4	1-15619-510-0	01	1	-
34	BUSHING; CONT RACK,INJ PUMP (A) ASM PART: E = 8-94390-618-3	9-81215-123-0	01	1	-
34	BUSHING; CONT RACK,INJ PUMP (A) ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	9-81215-123-0	02	1	-
36	POINTER; TIMING,INJ PUMP (A) ASM PART: A = 1-15603-112-1	1-15619-085-0	01	1	-
36	POINTER; TIMING,INJ PUMP (D) ASM PART: E = 8-94390-618-3, F = 8-94395-904-1, G = 8-97600-665-4	1-15619-304-0	01	1	-
36	POINTER; TIMING,INJ PUMP (C) ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15619-408-0	01	1	-
36	POINTER; TIMING,INJ PUMP (B) ASM PART: B = 1-15603-150-1	1-15619-417-0	01	1	-
37	BOLT; POINTER FIX,INJ PUMP ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	5-15729-063-0	02	1	-
37	BOLT; POINTER FIX,INJ PUMP M6X12 W/LK WASHER ASM PART: A = 1-15603-112-1	9-01910-612-0	02	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.500 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	1-15639-024-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.525 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	1-15639-025-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.550 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	1-15639-026-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.575 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	1-15639-027-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.600 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	1-15639-028-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.625 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	1-15639-029-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.650 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	1-15639-030-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.675 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	1-15639-031-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.700 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	1-15639-032-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.725 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	1-15639-033-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.750 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	1-15639-034-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.775 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	1-15639-035-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.800 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	1-15639-036-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.825 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	1-15639-037-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.850 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	1-15639-038-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.875 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	1-15639-039-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.900 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	1-15639-040-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.925 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	1-15639-041-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.950 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	1-15639-042-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=0.975 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	1-15639-043-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.000 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	1-15639-044-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.025 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	1-15639-045-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.050 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	1-15639-046-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.075 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	1-15639-047-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.100 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	1-15639-048-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.125 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	1-15639-049-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.150 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	1-15639-050-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.175 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	1-15639-051-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.200 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	1-15639-052-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.225 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	1-15639-053-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.250 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	1-15639-054-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.275 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	1-15639-055-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.300 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	1-15639-056-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.325 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	1-15639-057-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.350 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	1-15639-058-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.375 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	1-15639-059-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.400 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	1-15639-060-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.425 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	1-15639-061-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.450 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	1-15639-062-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.475 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	1-15639-063-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.500 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	1-15639-064-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.525 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	1-15639-065-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.550 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	1-15639-066-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.575 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	1-15639-067-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.600 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	1-15639-068-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.625 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	1-15639-069-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.650 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	1-15639-070-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.675 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	1-15639-071-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.700 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	1-15639-072-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.725 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	1-15639-073-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.750 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	1-15639-074-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.775 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	1-15639-075-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.800 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	1-15639-076-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.825 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	1-15639-077-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.850 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	1-15639-078-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.875 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	1-15639-079-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.900 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	1-15639-080-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.925 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	1-15639-081-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.950 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	1-15639-082-0	AR	1	-
38	SHIM; PLUNGER BARREL,INJ PUMP T=1.975 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	1-15639-083-0	AR	1	-
40	SEAL; OIL,CM/SHF FRT,INJ PUMP ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15629-100-0	01	1	-
40	SEAL; OIL,CM/SHF FRT,INJ PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, E = 8-94390-618-3, G = 8-97600-665-4	1-15749-498-0	01	1	-
40	SEAL; OIL,CM/SHF FRT,INJ PUMP ASM PART: F = 8-94395-904-1	9-81225-071-0	01	1	-
45	BOLT; FRT COVER TO HSG ASM PART: C = 1-15603-160-2, D = 1-15603-264-1, E = 8-94390-618-3, G = 8-97600-665-4	1-15619-338-0	04	1	-
45	BOLT; FRT COVER TO HSG M6X15 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	5-15729-027-0	04	1	-
45	BOLT; FRT COVER TO HSG M6X14 W/LK WASHER ASM PART: F = 8-94395-904-1	9-01900-614-0	04	1	-
46	COVER; FRT,PUMP HSG ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15612-042-0	01	1	-
46	COVER; FRT,PUMP HSG ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15612-063-0	01	1	-
46	COVER; FRT,PUMP HSG ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	1-15629-067-0	01	1	-
46	COVER; FRT,PUMP HSG ASM PART: F = 8-94395-904-1	5-15629-034-0	01	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.10 ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15639-097-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.12 ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15639-098-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.14 ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15639-099-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.16 ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15639-100-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.18 ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15639-101-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.30 ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15639-102-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.50 ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15639-103-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.10 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-166-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.12 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-167-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.14 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-168-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.16 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-169-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.18 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-170-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.30 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-171-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.50 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-172-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.10 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	9-88410-445-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.12 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	9-88410-446-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.14 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	9-88410-447-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.16 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	9-88410-448-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.18 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	9-88410-449-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.30 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	9-88410-450-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.50 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	9-88410-451-0	AR	1	-
48	GASKET; FRT COVER TO HSG ASM PART: G = 8-97600-665-4	1-15619-318-0	01	1	-
48	GASKET; FRT COVER TO HSG ASM PART: F = 8-94395-904-1	1-15629-059-0	01	1	-
48	GASKET; FRT COVER TO HSG ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15629-101-0	01	1	-
48	GASKET; FRT COVER TO HSG ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, E = 8-94390-618-3	9-81215-128-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15621-103-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: F = 8-94395-904-1	1-15621-105-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	1-15621-108-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15621-116-0	01	1	-
51	KEY; DRIVE GEAR,INJ PUMP ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-09735-041-0	01	1	-
51	KEY; DRIVE GEAR,INJ PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, E = 8-94390-618-3, G = 8-97600-665-4	1-15629-009-0	01	1	-
51	KEY; DRIVE GEAR,INJ PUMP ASM PART: F = 8-94395-904-1	5-83539-024-0	01	1	-
58	SLEEVE; CONT,INJ PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	1-15629-085-0	06	1	-
58	SLEEVE; CONT,INJ PUMP ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15635-003-0	06	1	-
58	SLEEVE; CONT,INJ PUMP ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15635-006-0	06	1	-
58	SLEEVE; CONT,INJ PUMP ASM PART: F = 8-94395-904-1	9-81231-523-0	06	1	-
62	SEAT; PLUNGER SPRING,INJ PUMP ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15634-017-1	06	1	-
62	SEAT; PLUNGER SPRING,INJ PUMP ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15634-020-0	06	1	-
62	SEAT; PLUNGER SPRING,INJ PUMP ASM PART: F = 8-94395-904-1	1-15639-022-0	06	1	-
62	SEAT; PLUNGER SPRING,INJ PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	9-81215-136-0	06	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: F = 8-94395-904-1	1-15634-007-0	06	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	1-15634-013-0	06	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15634-019-0	06	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15634-022-0	06	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15634-021-0	06	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: F = 8-94395-904-1	1-15639-023-0	06	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	1-15643-004-0	06	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15643-009-0	06	1	-
68	TAPPET; CM/SHF,INJ PUMP (C) ASM PART: F = 8-94395-904-1	1-15622-006-0	06	1	-
68	TAPPET; CM/SHF,INJ PUMP (D) ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	1-15622-008-0	06	1	-
68	TAPPET; CM/SHF,INJ PUMP (A) PLUNGER NO.2,3 ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15622-009-0	02	1	-
68	TAPPET; CM/SHF,INJ PUMP (B) PLUNGER NO.1,4,5,6 ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15622-010-0	04	1	-
68	TAPPET; CM/SHF,INJ PUMP (A) PLUNGER NO.1,4,5,6 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15622-014-0	04	1	-
68	TAPPET; CM/SHF,INJ PUMP (B) PLUNGER NO.2,3 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15622-015-0	02	1	-
69	GUIDE; TAPPET,INJ PUMP ASM PART: F = 8-94395-904-1	1-15629-018-0	06	1	-
69	GUIDE; TAPPET,INJ PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	1-15629-063-0	06	1	-
69	GUIDE; TAPPET,INJ PUMP ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15629-134-0	06	1	-
70	PIN; TAPPET ROLLER,INJ PUMP ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15619-313-0	06	1	-
70	PIN; TAPPET ROLLER,INJ PUMP ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15619-431-0	06	1	-
70	PIN; TAPPET ROLLER,INJ PUMP ASM PART: F = 8-94395-904-1	9-81215-185-0	06	1	-
70	PIN; TAPPET ROLLER,INJ PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	9-81225-062-0	06	1	-
71	BUSHING; TAPPET ROLLER,INJ PUMP ASM PART: F = 8-94395-904-1	1-15619-162-0	06	1	-
71	BUSHING; TAPPET ROLLER,INJ PUMP ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15629-133-0	06	1	-
71	BUSHING; TAPPET ROLLER,INJ PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	9-81225-061-0	06	1	-
72	ROLLER; TAPPET,INJ PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	1-15619-288-0	06	1	-
72	ROLLER; TAPPET,INJ PUMP ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15619-312-0	06	1	-
72	ROLLER; TAPPET,INJ PUMP ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15619-430-0	06	1	-
72	ROLLER; TAPPET,INJ PUMP ASM PART: F = 8-94395-904-1	1-15629-010-0	06	1	-
73	GASKET; COVER TO HSG ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	1-15629-094-0	01	1	-
73	GASKET; COVER TO HSG ASM PART: F = 8-94395-904-1	1-15729-960-0	01	1	-
74	COVER; HSG,INJ PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	1-15612-012-0	01	1	-
74	COVER; HSG,INJ PUMP ASM PART: F = 8-94395-904-1	1-15612-050-0	01	1	-
76	BOLT; COVER TO HSG ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	1-15619-066-0	12	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP (C) ASM PART: F = 8-94395-904-1	1-15619-264-0	01	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP (D) ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	1-15619-358-0	01	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP (A) ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15619-396-0	01	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP (B) ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15619-397-0	02	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP (E) ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15619-433-0	03	1	-
78	BOLT; CENTER BRG,INJ PUMP ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-09054-022-0	06	1	-
78	BOLT; CENTER BRG,INJ PUMP ASM PART: G = 8-97600-665-4	1-09054-030-0	06	1	-
78	BOLT; CENTER BRG,INJ PUMP ASM PART: E = 8-94390-618-3	1-15619-434-0	06	1	-
78	BOLT; CENTER BRG,INJ PUMP M6X20 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	9-81325-187-0	02	1	-
79	STUD; FUEL FEED PUMP TO HSG ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1, E = 8-94390-618-3, F = 8-94395-904-1, G = 8-97600-665-4	9-81215-115-0	03	1	-
80	NUT; FUEL FEED PUMP FIX ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1, E = 8-94390-618-3, F = 8-94395-904-1, G = 8-97600-665-4	8-94171-110-0	03	1	-
82	PLUG; HSG,INJ PUMP (C) ASM PART: F = 8-94395-904-1	1-15619-160-0	06	1	-
82	PLUG; HSG,INJ PUMP (B) ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15619-329-0	01	1	-
82	PLUG; HSG,INJ PUMP (A) ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15619-436-0	06	1	-
82	PLUG; HSG,INJ PUMP (B) ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15619-437-0	07	1	-
82	PLUG; HSG,INJ PUMP (A) ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	9-81215-129-0	01	1	-
83	GASKET; HSG PLUG (C) ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	1-15619-067-0	01	1	-
83	GASKET; HSG PLUG (B) ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15619-102-0	07	1	-
83	GASKET; HSG PLUG (A) ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15629-102-0	01	1	-
83	GASKET; HSG PLUG (A) ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	5-15729-021-0	06	1	-
83	GASKET; HSG PLUG (B) ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	5-15729-022-0	01	1	-
86	BOLT; EYE,OIL RETURN,INJ PUMP ASM PART: F = 8-94395-904-1	1-15619-091-0	01	1	-
86	BOLT; EYE,OIL RETURN,INJ PUMP ASM PART: B = 1-15603-150-1, E = 8-94390-618-3	1-15619-309-0	01	1	-
86	BOLT; EYE,OIL RETURN,INJ PUMP ASM PART: G = 8-97600-665-4	1-15619-457-0	01	1	-
86	BOLT; EYE,OIL RETURN,INJ PUMP ASM PART: A = 1-15603-112-1	1-15759-011-0	01	1	-
87	GASKET; OIL RETURN BOLT,INJ PUMP ID=14.2 OD=19.2 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, E = 8-94390-618-3, G = 8-97600-665-4	1-09630-085-0	02	1	-
87	GASKET; OIL RETURN BOLT,INJ PUMP L=96 ASM PART: F = 8-94395-904-1	1-15729-066-0	02	1	-
88	BOLT; EYE,OIL FEED,INJ PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1, E = 8-94390-618-3, F = 8-94395-904-1, G = 8-97600-665-4	1-15619-092-0	01	1	-
89	GASKET; OIL FEED BOLT,INJ PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1, E = 8-94390-618-3, F = 8-94395-904-1, G = 8-97600-665-4	1-15719-093-0	02	1	-
102	VALVE; OVERFLOW,INJ PUMP (C) ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	1-13260-050-1	01	1	-
102	VALVE; OVERFLOW,INJ PUMP (A) ASM PART: E = 8-94390-618-3	1-15619-363-0	01	1	-
102	VALVE; OVERFLOW,INJ PUMP (B) ASM PART: G = 8-97600-665-4	1-15619-447-0	01	1	-
102	VALVE; OVERFLOW,INJ PUMP (D) ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15719-346-0	01	1	-
103	GASKET; OVERFLOW VLV,INJ PUMP ID=14.2 OD=19.2 ASM PART: C = 1-15603-160-2, D = 1-15603-264-1, E = 8-94390-618-3, G = 8-97600-665-4	1-09630-085-0	02	1	-
103	GASKET; OVERFLOW VLV,INJ PUMP ID=14.2 OD=19.2 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	1-09630-085-0	01	1	-
105	BEARING; CM/SHF RR,INJ PUMP NSK ASM PART: F = 8-94395-904-1	1-15629-002-0	01	1	-
105	BEARING; CM/SHF RR,INJ PUMP TOYO ASM PART: F = 8-94395-904-1	1-15629-003-0	01	1	-
105	BEARING; CM/SHF RR,INJ PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1, E = 8-94390-618-3, G = 8-97600-665-4	9-81225-068-0	01	1	-
106	RING; HSG,INJ PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1, E = 8-94390-618-3, G = 8-97600-665-4	9-81225-064-0	01	1	-
107	SHIM; RR BEARING,CM/SHF T=0.30 ASM PART: F = 8-94395-904-1	1-15629-007-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.00 ASM PART: F = 8-94395-904-1	1-15629-008-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.70 ASM PART: F = 8-94395-904-1	1-15629-105-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.60 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, E = 8-94390-618-3, G = 8-97600-665-4	1-15639-019-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.60 ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15639-105-0	01	1	-
107	SHIM; RR BEARING,CM/SHF T=1.50 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, E = 8-94390-618-3, G = 8-97600-665-4	9-81215-176-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.80 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, E = 8-94390-618-3, G = 8-97600-665-4	9-81215-177-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=2.00 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, E = 8-94390-618-3, G = 8-97600-665-4	9-81215-178-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.10 ASM PART: F = 8-94395-904-1	9-81225-049-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.12 ASM PART: F = 8-94395-904-1	9-81225-050-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.14 ASM PART: F = 8-94395-904-1	9-81225-051-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.16 ASM PART: F = 8-94395-904-1	9-81225-052-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.18 ASM PART: F = 8-94395-904-1	9-81225-053-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.50 ASM PART: F = 8-94395-904-1	9-81225-054-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.20 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, E = 8-94390-618-3, G = 8-97600-665-4	9-88410-441-0	AR	1	-
108	BUSHING; CONT RACK END,INJ PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1, E = 8-94390-618-3, G = 8-97600-665-4	9-81215-125-0	01	1	-
109	RACK; CONT,INJ PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	1-15637-017-0	01	1	-
109	RACK; CONT,INJ PUMP ASM PART: E = 8-94390-618-3	1-15637-033-0	01	1	-
109	RACK; CONT,INJ PUMP ASM PART: C = 1-15603-160-2	1-15637-034-0	01	1	-
109	RACK; CONT,INJ PUMP ASM PART: D = 1-15603-264-1	1-15637-040-0	01	1	-
109	RACK; CONT,INJ PUMP ASM PART: G = 8-97600-665-4	1-15637-055-0	01	1	-
109	RACK; CONT,INJ PUMP ASM PART: F = 8-94395-904-1	5-15637-003-0	01	1	-
110	PIN; CONT RACK,INJ PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1, E = 8-94390-618-3, G = 8-97600-665-4	9-88410-440-0	01	1	-
114	BEARING; CM/SHF FRT,INJ PUMP NSK ASM PART: F = 8-94395-904-1	1-15629-002-0	01	1	-
114	BEARING; CM/SHF FRT,INJ PUMP TOYO ASM PART: F = 8-94395-904-1	1-15629-003-0	01	1	-
114	BEARING; CM/SHF FRT,INJ PUMP ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15629-099-0	01	1	-
114	BEARING; CM/SHF FRT,INJ PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, E = 8-94390-618-3, G = 8-97600-665-4	9-81225-068-0	01	1	-
115	NUT; PLUNGER FIX,INJ PUMP ASM PART: C = 1-15603-160-2, D = 1-15603-264-1, E = 8-94390-618-3, G = 8-97600-665-4	1-15619-337-0	12	1	-
115	NUT; PLUNGER FIX,INJ PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	9-88410-456-0	12	1	-
141	BOLT; POINTER ASM PART: E = 8-94390-618-3, F = 8-94395-904-1, G = 8-97600-665-4	1-15729-758-0	02	1	-
141	BOLT; POINTER ASM PART: B = 1-15603-150-1	5-15729-063-0	02	1	-
186	SHIM; POINTER T=0.20 ASM PART: B = 1-15603-150-1	1-15619-302-0	AR	1	-
186	SHIM; POINTER T=0.30 ASM PART: B = 1-15603-150-1	1-15639-089-0	AR	1	-
186	SHIM; POINTER T=0.50 ASM PART: B = 1-15603-150-1	1-15639-090-0	AR	1	-
186	SHIM; POINTER T=1.00 ASM PART: B = 1-15603-150-1	1-15639-091-0	AR	1	-
186	SHIM; POINTER T=1.10 ASM PART: B = 1-15603-150-1	1-15639-092-0	AR	1	-
186	SHIM; POINTER T=0.20 ASM PART: E = 8-94390-618-3, F = 8-94395-904-1, G = 8-97600-665-4	1-15639-093-0	AR	1	-
186	SHIM; POINTER T=0.30 ASM PART: E = 8-94390-618-3, F = 8-94395-904-1, G = 8-97600-665-4	1-15639-094-0	AR	1	-
186	SHIM; POINTER T=0.50 ASM PART: E = 8-94390-618-3, F = 8-94395-904-1, G = 8-97600-665-4	1-15639-095-0	AR	1	-
186	SHIM; POINTER T=1.00 ASM PART: E = 8-94390-618-3, F = 8-94395-904-1, G = 8-97600-665-4	1-15639-096-0	AR	1	-
234	SLEEVE; FRT COVER ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, E = 8-94390-618-3, G = 8-97600-665-4	1-15635-002-0	01	1	-
234	SLEEVE; FRT COVER ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15635-004-0	01	1	-

6 1 7 103 8 102 9 115 14 5 247 103 20 102 5 103 103 31 32 19 29 32 110 34 82 83 23 106 26 107 213 210 108 211 216 212 114 34 109 217 83 186 36 30 141 50 82 33 58 51 62 77 80 40 234 161 63 78 64 68 105 48 47 46 45 181 72 69 70 72 68 69 70 219 71 219 71 230 230 79 154 87 87 86 88 89 89

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOUSING; PUMP,FUEL INJ ASM PART: F = 8-94395-904-1	1-15611-173-1	01	1	-
1	HOUSING; PUMP,FUEL INJ ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	1-15611-178-0	01	1	-
1	HOUSING; PUMP,FUEL INJ ASM PART: E = 8-94390-618-3	1-15611-191-0	01	1	-
1	HOUSING; PUMP,FUEL INJ ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15611-193-0	01	1	-
1	HOUSING; PUMP,FUEL INJ ASM PART: G = 8-97600-665-4	1-15611-212-0	01	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: A = 1-15603-112-1	1-15631-185-0	06	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: B = 1-15603-150-1	1-15631-197-0	06	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: E = 8-94390-618-3	1-15631-203-0	06	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15631-204-0	06	1	-
5	PLUNGER COMPL; INJ PUMP ASM PART: G = 8-97600-665-4	1-15631-231-0	06	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: F = 8-94395-904-1	1-15644-009-0	06	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	1-15644-012-0	06	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15644-016-0	06	1	-
6	HOLDER; DELIVERY VLV,INJ PUMP ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15644-018-0	06	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: E = 8-94390-618-3	1-09623-052-0	06	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: G = 8-97600-665-4	1-15619-456-0	06	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	1-15629-088-0	06	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15629-095-0	06	1	-
7	GASKET; HOLDER,DELIVERY VLV ASM PART: F = 8-94395-904-1	9-81235-046-0	06	1	-
8	STOPPER; DELIVERY VLV,INJ PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	1-15639-084-0	06	1	-
8	STOPPER; DELIVERY VLV,INJ PUMP ASM PART: C = 1-15603-160-2, D = 1-15603-264-1, E = 8-94390-618-3, G = 8-97600-665-4	1-15639-104-0	06	1	-
8	STOPPER; DELIVERY VLV,INJ PUMP ASM PART: F = 8-94395-904-1	1-15649-005-0	06	1	-
9	SPRING; DELIVERY VLV ASM PART: F = 8-94395-904-1	1-15634-012-0	06	1	-
9	SPRING; DELIVERY VLV ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15643-012-0	06	1	-
9	SPRING; DELIVERY VLV ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15643-130-0	06	1	-
9	SPRING; DELIVERY VLV ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	1-15723-273-0	06	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: F = 8-94395-904-1	1-15619-401-0	06	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: G = 8-97600-665-4	1-15619-453-0	06	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	1-15641-035-0	06	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15641-041-0	06	1	-
14	VALVE; DELIVERY,INJ PUMP ASM PART: E = 8-94390-618-3	1-15641-043-0	06	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: F = 8-94395-904-1	1-15632-022-0	06	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	1-15632-028-0	06	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15632-042-0	06	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: E = 8-94390-618-3	1-15632-044-0	06	1	-
19	PLUNGER ASM; INJ PUMP ASM PART: G = 8-97600-665-4	1-15632-066-0	06	1	-
20	WASHER; PLUNGER BARREL ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1, E = 8-94390-618-3, G = 8-97600-665-4	1-15639-020-0	12	1	-
23	GASKET; PLUNGER,BARREL SIDE ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	1-15629-089-0	06	1	-
23	GASKET; PLUNGER,BARREL SIDE ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15629-096-0	06	1	-
23	GASKET; PLUNGER,BARREL SIDE ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15629-131-0	06	1	-
26	GASKET; PLUNGER UPR ASM PART: A = 1-15603-112-1	1-15629-090-0	06	1	-
26	GASKET; PLUNGER UPR ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15629-097-0	06	1	-
26	GASKET; PLUNGER UPR ASM PART: B = 1-15603-150-1	1-15629-113-0	06	1	-
26	GASKET; PLUNGER UPR ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15629-132-0	06	1	-
29	STUD; PLUNGER FIX,PUMP HSG ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15619-328-0	12	1	-
29	STUD; PLUNGER FIX,PUMP HSG ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15619-426-0	12	1	-
29	STUD; PLUNGER FIX,PUMP HSG ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	9-88410-432-0	12	1	-
30	PLUG; SCREW,INJ PUMP HSG (B) ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15619-345-0	01	1	-
30	PLUG; SCREW,INJ PUMP HSG (A) ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1, E = 8-94390-618-3, G = 8-97600-665-4	9-81215-130-0	06	1	-
31	HANGER; FRT,INJ PUMP ASM PART: C = 1-15603-160-2, D = 1-15603-264-1, G = 8-97600-665-4	1-15619-347-0	01	1	-
32	BOLT; HANGER TO INJ PUMP ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15789-098-0	02	1	-
32	BOLT; HANGER TO INJ PUMP ASM PART: G = 8-97600-665-4	9-02341-012-0	02	1	-
32	BOLT; HANGER TO INJ PUMP ASM PART: E = 8-94390-618-3	9-02341-012-0	01	1	-
33	GASKET; FUEL FEED PUMP,INJ PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1, E = 8-94390-618-3, G = 8-97600-665-4	1-15619-320-0	01	1	-
33	GASKET; FUEL FEED PUMP,INJ PUMP ASM PART: F = 8-94395-904-1	1-15629-058-0	01	1	-
34	BUSHING; CONT RACK,INJ PUMP (B) ASM PART: E = 8-94390-618-3	1-15619-429-0	01	1	-
34	BUSHING; CONT RACK,INJ PUMP (A) ASM PART: G = 8-97600-665-4	1-15619-493-0	01	1	-
34	BUSHING; CONT RACK,INJ PUMP (B) ASM PART: G = 8-97600-665-4	1-15619-510-0	01	1	-
34	BUSHING; CONT RACK,INJ PUMP (A) ASM PART: E = 8-94390-618-3	9-81215-123-0	01	1	-
34	BUSHING; CONT RACK,INJ PUMP (A) ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	9-81215-123-0	02	1	-
36	POINTER; TIMING,INJ PUMP (A) ASM PART: A = 1-15603-112-1	1-15619-085-0	01	1	-
36	POINTER; TIMING,INJ PUMP (D) ASM PART: E = 8-94390-618-3, F = 8-94395-904-1, G = 8-97600-665-4	1-15619-304-0	01	1	-
36	POINTER; TIMING,INJ PUMP (C) ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15619-408-0	01	1	-
36	POINTER; TIMING,INJ PUMP (B) ASM PART: B = 1-15603-150-1	1-15619-417-0	01	1	-
40	SEAL; OIL,CM/SHF FRT,INJ PUMP ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15629-100-0	01	1	-
40	SEAL; OIL,CM/SHF FRT,INJ PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, E = 8-94390-618-3, G = 8-97600-665-4	1-15749-498-0	01	1	-
40	SEAL; OIL,CM/SHF FRT,INJ PUMP ASM PART: F = 8-94395-904-1	9-81225-071-0	01	1	-
45	BOLT; FRT COVER TO HSG ASM PART: C = 1-15603-160-2, D = 1-15603-264-1, E = 8-94390-618-3, G = 8-97600-665-4	1-15619-338-0	04	1	-
45	BOLT; FRT COVER TO HSG M6X15 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	5-15729-027-0	04	1	-
45	BOLT; FRT COVER TO HSG M6X14 W/LK WASHER ASM PART: F = 8-94395-904-1	9-01900-614-0	04	1	-
46	COVER; FRT,PUMP HSG ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15612-042-0	01	1	-
46	COVER; FRT,PUMP HSG ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15612-063-0	01	1	-
46	COVER; FRT,PUMP HSG ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	1-15629-067-0	01	1	-
46	COVER; FRT,PUMP HSG ASM PART: F = 8-94395-904-1	5-15629-034-0	01	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.10 ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15639-097-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.12 ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15639-098-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.14 ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15639-099-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.16 ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15639-100-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.18 ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15639-101-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.30 ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15639-102-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.50 ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15639-103-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.10 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-166-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.12 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-167-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.14 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-168-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.16 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-169-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.18 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-170-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.30 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-171-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.50 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-172-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.10 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	9-88410-445-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.12 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	9-88410-446-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.14 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	9-88410-447-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.16 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	9-88410-448-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.18 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	9-88410-449-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.30 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	9-88410-450-0	AR	1	-
47	SHIM; FRT COVER,INJ PUMP HSG T=0.50 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	9-88410-451-0	AR	1	-
48	GASKET; FRT COVER TO HSG ASM PART: G = 8-97600-665-4	1-15619-318-0	01	1	-
48	GASKET; FRT COVER TO HSG ASM PART: F = 8-94395-904-1	1-15629-059-0	01	1	-
48	GASKET; FRT COVER TO HSG ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15629-101-0	01	1	-
48	GASKET; FRT COVER TO HSG ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, E = 8-94390-618-3	9-81215-128-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15621-103-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: F = 8-94395-904-1	1-15621-105-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	1-15621-108-0	01	1	-
50	CAMSHAFT; INJ PUMP ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15621-116-0	01	1	-
51	KEY; DRIVE GEAR,INJ PUMP ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-09735-041-0	01	1	-
51	KEY; DRIVE GEAR,INJ PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, E = 8-94390-618-3, G = 8-97600-665-4	1-15629-009-0	01	1	-
51	KEY; DRIVE GEAR,INJ PUMP ASM PART: F = 8-94395-904-1	5-83539-024-0	01	1	-
58	SLEEVE; CONT,INJ PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	1-15629-085-0	06	1	-
58	SLEEVE; CONT,INJ PUMP ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15635-003-0	06	1	-
58	SLEEVE; CONT,INJ PUMP ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15635-006-0	06	1	-
58	SLEEVE; CONT,INJ PUMP ASM PART: F = 8-94395-904-1	9-81231-523-0	06	1	-
62	SEAT; PLUNGER SPRING,INJ PUMP ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15634-017-1	06	1	-
62	SEAT; PLUNGER SPRING,INJ PUMP ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15634-020-0	06	1	-
62	SEAT; PLUNGER SPRING,INJ PUMP ASM PART: F = 8-94395-904-1	1-15639-022-0	06	1	-
62	SEAT; PLUNGER SPRING,INJ PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	9-81215-136-0	06	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: F = 8-94395-904-1	1-15634-007-0	06	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	1-15634-013-0	06	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15634-019-0	06	1	-
63	SPRING; PLUNGER,INJ PUMP ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15634-022-0	06	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15634-021-0	06	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: F = 8-94395-904-1	1-15639-023-0	06	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	1-15643-004-0	06	1	-
64	SEAT; PLUNGER SPRING LWR,INJ PUMP ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15643-009-0	06	1	-
68	TAPPET; CM/SHF,INJ PUMP (C) ASM PART: F = 8-94395-904-1	1-15622-006-0	06	1	-
68	TAPPET; CM/SHF,INJ PUMP (D) ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	1-15622-008-0	06	1	-
68	TAPPET; CM/SHF,INJ PUMP (A) PLUNGER NO.2,3 ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15622-009-0	02	1	-
68	TAPPET; CM/SHF,INJ PUMP (B) PLUNGER NO.1,4,5,6 ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15622-010-0	04	1	-
68	TAPPET; CM/SHF,INJ PUMP (A) PLUNGER NO.1,4,5,6 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15622-014-0	04	1	-
68	TAPPET; CM/SHF,INJ PUMP (B) PLUNGER NO.2,3 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15622-015-0	02	1	-
69	GUIDE; TAPPET,INJ PUMP ASM PART: F = 8-94395-904-1	1-15629-018-0	06	1	-
69	GUIDE; TAPPET,INJ PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	1-15629-063-0	06	1	-
69	GUIDE; TAPPET,INJ PUMP ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15629-134-0	06	1	-
70	PIN; TAPPET ROLLER,INJ PUMP ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15619-313-0	06	1	-
70	PIN; TAPPET ROLLER,INJ PUMP ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15619-431-0	06	1	-
70	PIN; TAPPET ROLLER,INJ PUMP ASM PART: F = 8-94395-904-1	9-81215-185-0	06	1	-
70	PIN; TAPPET ROLLER,INJ PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	9-81225-062-0	06	1	-
71	BUSHING; TAPPET ROLLER,INJ PUMP ASM PART: F = 8-94395-904-1	1-15619-162-0	06	1	-
71	BUSHING; TAPPET ROLLER,INJ PUMP ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15629-133-0	06	1	-
71	BUSHING; TAPPET ROLLER,INJ PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	9-81225-061-0	06	1	-
72	ROLLER; TAPPET,INJ PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	1-15619-288-0	06	1	-
72	ROLLER; TAPPET,INJ PUMP ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15619-312-0	06	1	-
72	ROLLER; TAPPET,INJ PUMP ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15619-430-0	06	1	-
72	ROLLER; TAPPET,INJ PUMP ASM PART: F = 8-94395-904-1	1-15629-010-0	06	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP (C) ASM PART: F = 8-94395-904-1	1-15619-264-0	01	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP (D) ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	1-15619-358-0	01	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP (A) ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15619-396-0	01	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP (B) ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15619-397-0	02	1	-
77	BEARING; CM/SHF CENTER,INJ PUMP (E) ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15619-433-0	03	1	-
78	BOLT; CENTER BRG,INJ PUMP ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-09054-022-0	06	1	-
78	BOLT; CENTER BRG,INJ PUMP ASM PART: G = 8-97600-665-4	1-09054-030-0	06	1	-
78	BOLT; CENTER BRG,INJ PUMP ASM PART: E = 8-94390-618-3	1-15619-434-0	06	1	-
78	BOLT; CENTER BRG,INJ PUMP M6X20 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	9-81325-187-0	02	1	-
79	STUD; FUEL FEED PUMP TO HSG ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1, E = 8-94390-618-3, F = 8-94395-904-1, G = 8-97600-665-4	9-81215-115-0	03	1	-
80	NUT; FUEL FEED PUMP FIX ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1, E = 8-94390-618-3, F = 8-94395-904-1, G = 8-97600-665-4	8-94171-110-0	03	1	-
82	PLUG; HSG,INJ PUMP (C) ASM PART: F = 8-94395-904-1	1-15619-160-0	06	1	-
82	PLUG; HSG,INJ PUMP (B) ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15619-329-0	01	1	-
82	PLUG; HSG,INJ PUMP (A) ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15619-436-0	06	1	-
82	PLUG; HSG,INJ PUMP (B) ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15619-437-0	07	1	-
82	PLUG; HSG,INJ PUMP (A) ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	9-81215-129-0	01	1	-
83	GASKET; HSG PLUG (C) ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1	1-15619-067-0	01	1	-
83	GASKET; HSG PLUG (B) ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15619-102-0	07	1	-
83	GASKET; HSG PLUG (A) ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15629-102-0	01	1	-
83	GASKET; HSG PLUG (A) ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	5-15729-021-0	06	1	-
83	GASKET; HSG PLUG (B) ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	5-15729-022-0	01	1	-
86	BOLT; EYE,OIL RETURN,INJ PUMP ASM PART: F = 8-94395-904-1	1-15619-091-0	01	1	-
86	BOLT; EYE,OIL RETURN,INJ PUMP ASM PART: B = 1-15603-150-1, E = 8-94390-618-3	1-15619-309-0	01	1	-
86	BOLT; EYE,OIL RETURN,INJ PUMP ASM PART: G = 8-97600-665-4	1-15619-457-0	01	1	-
86	BOLT; EYE,OIL RETURN,INJ PUMP ASM PART: A = 1-15603-112-1	1-15759-011-0	01	1	-
87	GASKET; OIL RETURN BOLT,INJ PUMP ID=14.2 OD=19.2 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, E = 8-94390-618-3, G = 8-97600-665-4	1-09630-085-0	02	1	-
87	GASKET; OIL RETURN BOLT,INJ PUMP L=96 ASM PART: F = 8-94395-904-1	1-15729-066-0	02	1	-
88	BOLT; EYE,OIL FEED,INJ PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1, E = 8-94390-618-3, F = 8-94395-904-1, G = 8-97600-665-4	1-15619-092-0	01	1	-
89	GASKET; OIL FEED BOLT,INJ PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1, E = 8-94390-618-3, F = 8-94395-904-1, G = 8-97600-665-4	1-15719-093-0	02	1	-
102	VALVE; OVERFLOW,INJ PUMP (C) ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	1-13260-050-1	01	1	-
102	VALVE; OVERFLOW,INJ PUMP (A) ASM PART: E = 8-94390-618-3	1-15619-363-0	01	1	-
102	VALVE; OVERFLOW,INJ PUMP (B) ASM PART: G = 8-97600-665-4	1-15619-447-0	01	1	-
102	VALVE; OVERFLOW,INJ PUMP (D) ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15719-346-0	01	1	-
103	GASKET; OVERFLOW VLV,INJ PUMP ID=14.2 OD=19.2 ASM PART: C = 1-15603-160-2, D = 1-15603-264-1, E = 8-94390-618-3, G = 8-97600-665-4	1-09630-085-0	02	1	-
103	GASKET; OVERFLOW VLV,INJ PUMP ID=14.2 OD=19.2 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	1-09630-085-0	01	1	-
105	BEARING; CM/SHF RR,INJ PUMP NSK ASM PART: F = 8-94395-904-1	1-15629-002-0	01	1	-
105	BEARING; CM/SHF RR,INJ PUMP TOYO ASM PART: F = 8-94395-904-1	1-15629-003-0	01	1	-
105	BEARING; CM/SHF RR,INJ PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1, E = 8-94390-618-3, G = 8-97600-665-4	9-81225-068-0	01	1	-
106	RING; HSG,INJ PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1, E = 8-94390-618-3, G = 8-97600-665-4	9-81225-064-0	01	1	-
107	SHIM; RR BEARING,CM/SHF T=0.30 ASM PART: F = 8-94395-904-1	1-15629-007-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.00 ASM PART: F = 8-94395-904-1	1-15629-008-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.70 ASM PART: F = 8-94395-904-1	1-15629-105-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.60 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, E = 8-94390-618-3, G = 8-97600-665-4	1-15639-019-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.60 ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15639-105-0	01	1	-
107	SHIM; RR BEARING,CM/SHF T=1.50 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, E = 8-94390-618-3, G = 8-97600-665-4	9-81215-176-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.80 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, E = 8-94390-618-3, G = 8-97600-665-4	9-81215-177-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=2.00 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, E = 8-94390-618-3, G = 8-97600-665-4	9-81215-178-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.10 ASM PART: F = 8-94395-904-1	9-81225-049-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.12 ASM PART: F = 8-94395-904-1	9-81225-050-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.14 ASM PART: F = 8-94395-904-1	9-81225-051-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.16 ASM PART: F = 8-94395-904-1	9-81225-052-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.18 ASM PART: F = 8-94395-904-1	9-81225-053-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=0.50 ASM PART: F = 8-94395-904-1	9-81225-054-0	AR	1	-
107	SHIM; RR BEARING,CM/SHF T=1.20 ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, E = 8-94390-618-3, G = 8-97600-665-4	9-88410-441-0	AR	1	-
108	BUSHING; CONT RACK END,INJ PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1, E = 8-94390-618-3, G = 8-97600-665-4	9-81215-125-0	01	1	-
109	RACK; CONT,INJ PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	1-15637-017-0	01	1	-
109	RACK; CONT,INJ PUMP ASM PART: E = 8-94390-618-3	1-15637-033-0	01	1	-
109	RACK; CONT,INJ PUMP ASM PART: C = 1-15603-160-2	1-15637-034-0	01	1	-
109	RACK; CONT,INJ PUMP ASM PART: D = 1-15603-264-1	1-15637-040-0	01	1	-
109	RACK; CONT,INJ PUMP ASM PART: G = 8-97600-665-4	1-15637-055-0	01	1	-
109	RACK; CONT,INJ PUMP ASM PART: F = 8-94395-904-1	5-15637-003-0	01	1	-
110	PIN; CONT RACK,INJ PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, C = 1-15603-160-2, D = 1-15603-264-1, E = 8-94390-618-3, G = 8-97600-665-4	9-88410-440-0	01	1	-
114	BEARING; CM/SHF FRT,INJ PUMP NSK ASM PART: F = 8-94395-904-1	1-15629-002-0	01	1	-
114	BEARING; CM/SHF FRT,INJ PUMP TOYO ASM PART: F = 8-94395-904-1	1-15629-003-0	01	1	-
114	BEARING; CM/SHF FRT,INJ PUMP ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15629-099-0	01	1	-
114	BEARING; CM/SHF FRT,INJ PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, E = 8-94390-618-3, G = 8-97600-665-4	9-81225-068-0	01	1	-
115	NUT; PLUNGER FIX,INJ PUMP ASM PART: C = 1-15603-160-2, D = 1-15603-264-1, E = 8-94390-618-3, G = 8-97600-665-4	1-15619-337-0	12	1	-
115	NUT; PLUNGER FIX,INJ PUMP ASM PART: A = 1-15603-112-1, B = 1-15603-150-1	9-88410-456-0	12	1	-
141	BOLT; POINTER ASM PART: E = 8-94390-618-3, F = 8-94395-904-1, G = 8-97600-665-4	1-15729-758-0	02	1	-
141	BOLT; POINTER ASM PART: B = 1-15603-150-1	5-15729-063-0	02	1	-
154	HANGER; RR,INJ PUMP ASM PART: C = 1-15603-160-2, D = 1-15603-264-1, E = 8-94390-618-3, G = 8-97600-665-4	1-15619-347-0	01	1	-
161	GASKET; SCREW,CENTER BRG ASM PART: C = 1-15603-160-2, D = 1-15603-264-1, E = 8-94390-618-3, G = 8-97600-665-4	5-15729-099-0	06	1	-
161	GASKET; SCREW,CENTER BRG ASM PART: F = 8-94395-904-1	9-81225-043-0	02	1	-
181	SHIM; TAPPET,INJ PUMP T=0.500 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-106-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.525 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-107-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.550 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-108-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.575 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-109-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.600 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-110-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.625 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-111-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.650 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-112-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.675 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-113-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.700 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-114-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.725 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-115-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.750 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-116-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.775 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-117-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.800 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-118-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.825 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-119-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.850 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-120-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.875 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-121-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.900 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-122-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.925 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-123-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.950 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-124-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.975 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-125-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.000 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-126-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.025 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-127-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.050 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-128-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.075 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-129-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.100 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-130-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.125 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-131-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.150 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-132-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.175 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-133-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.200 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-134-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.225 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-135-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.250 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-136-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.275 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-137-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.300 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-138-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.325 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-139-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.350 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-140-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.375 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-141-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.400 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-142-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.425 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-143-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.450 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-144-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.475 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-145-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.500 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-146-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.525 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-147-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.550 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-148-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.575 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-149-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.600 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-150-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.625 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-151-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.650 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-152-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.675 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-153-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.700 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-154-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.725 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-155-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.750 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-156-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.775 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-157-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.800 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-158-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.825 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-159-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.850 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-160-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.875 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-161-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.900 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-162-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.925 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-163-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.950 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-164-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.975 ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15639-165-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.60 ASM PART: F = 8-94395-904-1	5-15619-001-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.70 ASM PART: F = 8-94395-904-1	5-15619-002-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.80 ASM PART: F = 8-94395-904-1	5-15619-003-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.90 ASM PART: F = 8-94395-904-1	5-15619-004-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.00 ASM PART: F = 8-94395-904-1	5-15619-005-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.10 ASM PART: F = 8-94395-904-1	5-15619-007-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.20 ASM PART: F = 8-94395-904-1	5-15619-008-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.30 ASM PART: F = 8-94395-904-1	5-15619-009-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.40 ASM PART: F = 8-94395-904-1	5-15619-010-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.55 ASM PART: F = 8-94395-904-1	5-15619-011-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.65 ASM PART: F = 8-94395-904-1	5-15619-012-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.75 ASM PART: F = 8-94395-904-1	5-15619-013-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.85 ASM PART: F = 8-94395-904-1	5-15619-015-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.20 ASM PART: F = 8-94395-904-1	5-15619-025-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.25 ASM PART: F = 8-94395-904-1	5-15619-026-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.35 ASM PART: F = 8-94395-904-1	5-15619-027-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.30 ASM PART: F = 8-94395-904-1	5-15619-034-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.40 ASM PART: F = 8-94395-904-1	5-15619-035-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.50 ASM PART: F = 8-94395-904-1	5-15619-036-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.45 ASM PART: F = 8-94395-904-1	5-15619-037-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.50 ASM PART: F = 8-94395-904-1	5-15619-106-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.60 ASM PART: F = 8-94395-904-1	5-15619-107-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.35 ASM PART: F = 8-94395-904-1	5-15619-108-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.45 ASM PART: F = 8-94395-904-1	5-15619-109-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.55 ASM PART: F = 8-94395-904-1	5-15619-110-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=0.95 ASM PART: F = 8-94395-904-1	9-81235-042-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.05 ASM PART: F = 8-94395-904-1	9-81235-043-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.15 ASM PART: F = 8-94395-904-1	9-81235-044-0	AR	1	-
181	SHIM; TAPPET,INJ PUMP T=1.25 ASM PART: F = 8-94395-904-1	9-81235-045-0	AR	1	-
186	SHIM; POINTER T=0.20 ASM PART: B = 1-15603-150-1	1-15619-302-0	AR	1	-
186	SHIM; POINTER T=0.30 ASM PART: B = 1-15603-150-1	1-15639-089-0	AR	1	-
186	SHIM; POINTER T=0.50 ASM PART: B = 1-15603-150-1	1-15639-090-0	AR	1	-
186	SHIM; POINTER T=1.00 ASM PART: B = 1-15603-150-1	1-15639-091-0	AR	1	-
186	SHIM; POINTER T=1.10 ASM PART: B = 1-15603-150-1	1-15639-092-0	AR	1	-
186	SHIM; POINTER T=0.20 ASM PART: E = 8-94390-618-3, F = 8-94395-904-1, G = 8-97600-665-4	1-15639-093-0	AR	1	-
186	SHIM; POINTER T=0.30 ASM PART: E = 8-94390-618-3, F = 8-94395-904-1, G = 8-97600-665-4	1-15639-094-0	AR	1	-
186	SHIM; POINTER T=0.50 ASM PART: E = 8-94390-618-3, F = 8-94395-904-1, G = 8-97600-665-4	1-15639-095-0	AR	1	-
186	SHIM; POINTER T=1.00 ASM PART: E = 8-94390-618-3, F = 8-94395-904-1, G = 8-97600-665-4	1-15639-096-0	AR	1	-
210	ROD; CONT ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15637-019-0	01	1	-
210	ROD; CONT ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15637-032-0	01	1	-
211	BEARING; CONT ROD ASM PART: C = 1-15603-160-2, D = 1-15603-264-1, E = 8-94390-618-3, G = 8-97600-665-4	1-15629-098-0	01	1	-
212	BUSHING; CONT ROD ASM PART: C = 1-15603-160-2, D = 1-15603-264-1, E = 8-94390-618-3, G = 8-97600-665-4	1-15619-330-0	01	1	-
213	WASHER; CONT ROD (A) ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15619-331-0	06	1	-
213	WASHER; CONT ROD (B) ASM PART: C = 1-15603-160-2, D = 1-15603-264-1, E = 8-94390-618-3, G = 8-97600-665-4	1-15619-336-0	01	1	-
216	CONNECTOR; CONT ROD ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15619-334-0	01	1	-
216	CONNECTOR; CONT ROD ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15619-428-0	01	1	-
217	BOLT; CONT ROD ASM PART: C = 1-15603-160-2, D = 1-15603-264-1, E = 8-94390-618-3, G = 8-97600-665-4	1-15619-335-0	01	1	-
219	RING; SNAP,ROLLER ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15619-314-0	06	1	-
219	RING; SNAP,ROLLER ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15619-432-0	06	1	-
230	PLUG; TAPPET ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15619-388-0	06	1	-
230	PLUG; TAPPET ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15619-435-0	06	1	-
234	SLEEVE; FRT COVER ASM PART: A = 1-15603-112-1, B = 1-15603-150-1, E = 8-94390-618-3, G = 8-97600-665-4	1-15635-002-0	01	1	-
234	SLEEVE; FRT COVER ASM PART: C = 1-15603-160-2, D = 1-15603-264-1	1-15635-004-0	01	1	-
247	STUD; HOUSING,INJ PUMP ASM PART: E = 8-94390-618-3, G = 8-97600-665-4	1-15619-427-0	02	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
