0-60 — ENGINE ELECTRICAL CONTROL PARTS (#26592) — 311 parça

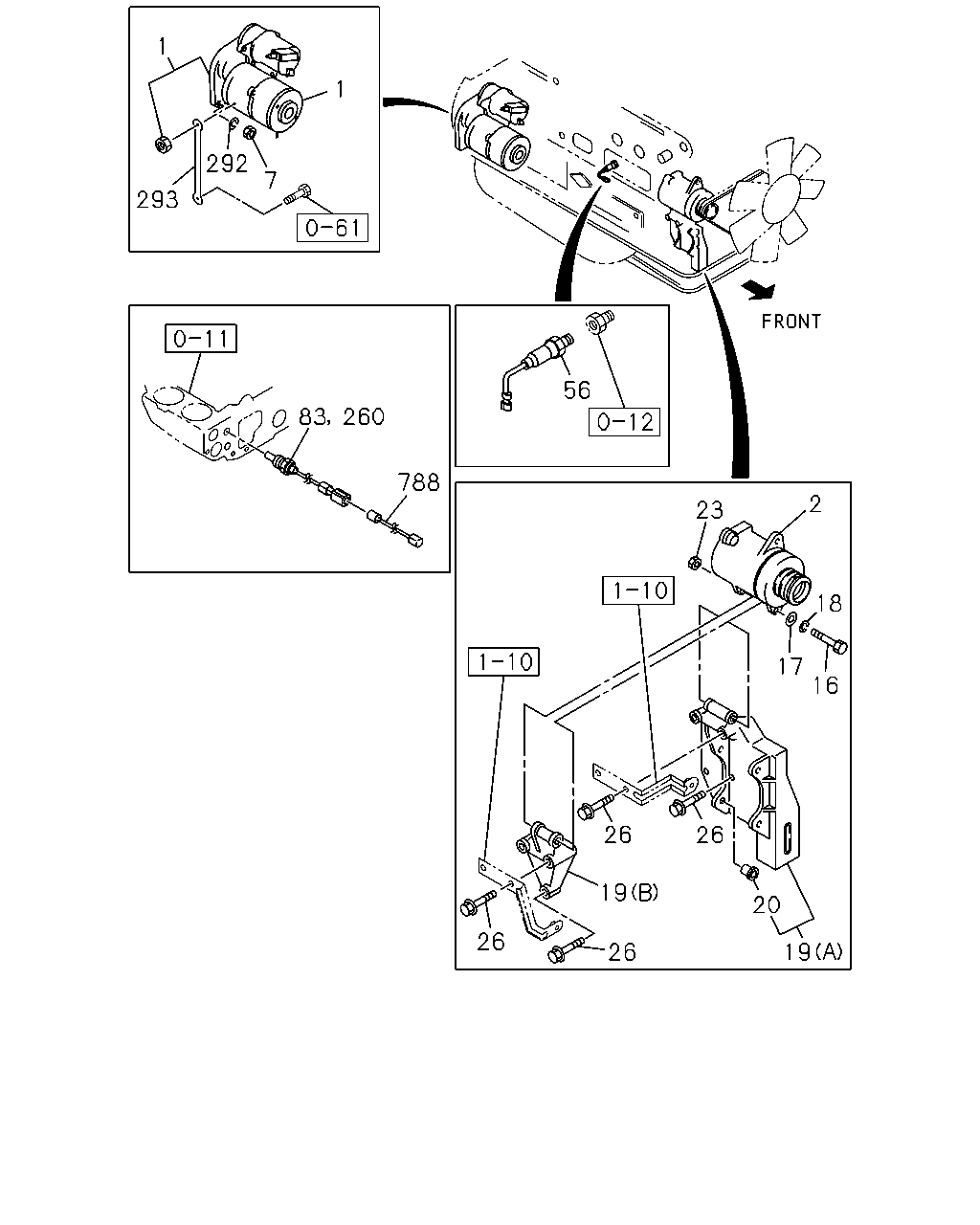

1 1 292 7 293 56 83 260 788 2 23 18 17 16 26 26 19 20 26 19 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW NIKKO	1-81100-308-0	01	1	9601-9708	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW NIKKO	1-81100-324-0	01	1	9709-9803	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 5.5KW DENSO	1-81100-230-2	01	1	9601-0108		●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 5.5KW DENSO	1-81100-422-0	01	1	0109-		●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW DENSO	8-94394-151-2	01	1	9610-0106			●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW DENSO	8-94394-151-2	01	1	0107-0108				●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW DENSO	8-97602-169-1	01	1	0109-				●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A NIKKO	1-81200-416-3	01	1	9601-9609	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A NIKKO	1-81200-416-4	01	1	9610-9803	●		●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A NIKKO	1-81200-416-4	01	1	9804-0106			●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 24V 50A MITSUBISHI	1-81200-599-5	01	1	0107-				●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A DENSO	8-94399-157-1	01	1	9601-		●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A MITSUBISHI	1-81200-521-0	01	1	9904-9905			●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A MITSUBISHI	1-81200-577-0	01	1	9906-9907			●
7	NUT; STARTER M14	9-99110-414-0	02	1	9601-9609	●
7	NUT; STARTER M14	9-99110-414-0	02	1	9610-9803	●		●
7	NUT; STARTER M14	9-99110-414-0	02	1	9804-0106			●
7	NUT; STARTER M14	9-99110-414-0	02	1	0107-0512				●
7	NUT; STARTER M14	0-91110-514-0	02	1	0601-				●
7	NUT; STARTER M14 FLANGE	0-91150-114-0	02	1	9601-		●
16	BOLT; GEN M14X135	1-09000-133-1	01	1	9601-9609	●
16	BOLT; GEN M14X135	1-09000-133-1	01	1	9610-9803	●		●
16	BOLT; GEN M14X135	1-09000-133-1	01	1	9804-0106			●
16	BOLT; GEN M14X135	1-09000-133-1	01	1	0107-				●
16	BOLT; GEN M14X128	9-09801-203-0	01	1	9601-9611		●
16	BOLT; GEN M14X123	9-09801-204-1	01	1	9612-		●
17	WASHER; PL,GEN ID=15	9-09160-514-0	01	1	9601-9609	●	●
17	WASHER; PL,GEN ID=15	9-09160-514-0	01	1	9610-9803	●	●	●
17	WASHER; PL,GEN ID=15	9-09160-514-0	01	1	9804-0106		●	●
17	WASHER; PL,GEN ID=15	9-09160-514-0	01	1	0107-0605		●		●
17	WASHER; PL,GEN ID=15	0-91610-514-0	01	1	0606-		●		●
18	WASHER; LK,GEN ID=14.2	9-09150-514-0	01	1	9601-9609	●
18	WASHER; LK,GEN ID=14.2	9-09150-514-0	01	1	9610-9803	●		●
18	WASHER; LK,GEN ID=14.2	9-09150-514-0	01	1	9804-0106			●
18	WASHER; LK,GEN ID=14.2	9-09150-514-0	01	1	0107-0603				●
18	WASHER; LK,GEN ID=14.2	0-91510-514-0	01	1	0604-				●
19	BRACKET; GEN (B)	8-94396-297-0	01	1	9601-9609	●
19	BRACKET; GEN (B)	8-94396-297-0	01	1	9610-9803	●		●
19	BRACKET; GEN HEATER & DEFROSTER(C41) (B)	8-94396-297-0	01	1	9804-0106			●
19	BRACKET; GEN (C)	1-19711-038-0	01	1	9601-		●
19	BRACKET; GEN AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-94395-470-2	01	1	9804-0106			●
19	BRACKET; GEN (A)	8-94395-470-4	01	1	0107-				●
20	COLLAR; BRKT,GEN AIR CONDITIONER MANUAL CONTROL(C60)	8-94201-057-1	02	1	9804-0106			●
20	COLLAR; BRKT,GEN	8-94201-057-1	02	1	0107-1302				●
23	NUT; GEN M14	9-99110-414-0	01	1	9601-9609	●
23	NUT; GEN M14	9-99110-414-0	01	1	9610-9803	●		●
23	NUT; GEN M14	9-99110-414-0	01	1	9804-0106			●
23	NUT; GEN M14	9-99110-414-0	01	1	0107-0512				●
23	NUT; GEN M14	0-91110-514-0	01	1	0601-				●
23	NUT; GEN M14 FLANGE	0-91150-114-0	01	1	9601-		●
26	BOLT; GEN BRKT M10X80 FLANGE	0-28181-080-0	02	1	9601-9609	●
26	BOLT; GEN BRKT M10X80 FLANGE	0-28181-080-0	02	1	9610-9803	●		●
26	BOLT; GEN BRKT M10X80 FLANGE	0-28181-080-0	02	1	9804-0106			●
26	BOLT; GEN BRKT M10X80 FLANGE	0-28181-080-0	02	1	0107-0512				●
26	BOLT; GEN BRKT M10X80 FLANGE	0-28151-080-0	02	1	0601-				●
26	BOLT; GEN BRKT M10X40 FLANGE	0-28181-040-0	01	1	9601-9609	●	●
26	BOLT; GEN BRKT M10X40 FLANGE	0-28181-040-0	01	1	9610-9803	●	●	●
26	BOLT; GEN BRKT M10X40 FLANGE	0-28181-040-0	01	1	9804-0106		●
26	BOLT; GEN BRKT HEATER & DEFROSTER(C41) M10X40 FLANGE	0-28181-040-0	01	1	9804-0106			●
26	BOLT; GEN BRKT M10X40 FLANGE	0-28181-040-0	01	1	0107-0512		●
26	BOLT; GEN BRKT M10X40 FLANGE	0-28151-040-0	01	1	0601-		●
26	BOLT; GEN BRKT M10X70 FLANGE	0-28181-070-0	02	1	9601-0512		●
26	BOLT; GEN BRKT M10X70 FLANGE	0-28151-070-0	02	1	0601-		●
26	BOLT; GEN BRKT AIR CONDITIONER MANUAL CONTROL(C60) M10X40 FLANGE	0-28181-040-0	02	1	9804-0106			●
26	BOLT; GEN BRKT M10X40 FLANGE	0-28181-040-0	02	1	0107-0512				●
26	BOLT; GEN BRKT M10X40 FLANGE	0-28151-040-0	02	1	0601-				●
56	SWITCH; OIL PRESSURE WARNING	1-82410-170-0	01	1	9601-9609	●	●
56	SWITCH; OIL PRESSURE WARNING	1-82410-170-0	01	1	9610-9803	●	●	●
56	SWITCH; OIL PRESSURE WARNING	1-82410-170-0	01	1	9804-0106		●	●
56	SWITCH; OIL PRESSURE WARNING	1-82410-170-1	01	1	0107-		●		●
83	THERMOMETER UNIT	1-83161-031-1	01	1	9601-9609	●	●
83	THERMOMETER UNIT	1-83161-031-1	01	1	9610-9803	●
83	THERMOMETER UNIT EXC. EURO2 SPECIFICATION<THN>	1-83161-031-1	01	1	9610-9803		●
260	SENSOR; WATER TEMP EURO2 SPECIFICATION<THN>	1-80210-004-0	01	1	9610-9803		●
260	SENSOR; WATER TEMP	1-80210-004-0	01	1	9610-9803			●
260	SENSOR; WATER TEMP	1-80210-004-0	01	1	9804-0106		●	●
260	SENSOR; WATER TEMP	1-80210-005-1	01	1	0107-		●		●
292	WASHER; LK,STARTER ID=14.2	9-09150-514-0	02	1	9601-9609	●
292	WASHER; LK,STARTER ID=14.2	9-09150-514-0	02	1	9610-9803	●		●
292	WASHER; LK,STARTER ID=14.2	9-09150-514-0	02	1	9804-0106			●
292	WASHER; LK,STARTER ID=14.2	9-09150-514-0	02	1	0107-0603				●
292	WASHER; LK,STARTER ID=14.2	0-91510-514-0	02	1	0604-				●
293	CABLE; STARTER EARTH L=350	1-82650-266-0	01	1	9601-9609	●
293	CABLE; STARTER EARTH L=350	1-82650-266-0	01	1	9610-9803	●		●
293	CABLE; STARTER EARTH L=350	1-82650-266-0	01	1	9804-9904			●
293	CABLE; STARTER EARTH L=350	1-82650-266-0	02	1	9905-9907			●
293	CABLE; STARTER EARTH L=350	1-82650-266-0	01	1	9908-0001			●
293	CABLE; STARTER EARTH L=320	1-82650-324-0	01	1	0002-0106			●
293	CABLE; STARTER EARTH L=320	1-82650-324-0	01	1	0107-				●
293	CABLE; STARTER EARTH L=550	1-82650-239-0	01	1	9601-		●
788	HARNESS; EXT,WATER TEMP SENSOR	8-94395-142-1	01	1	9610-9612			●

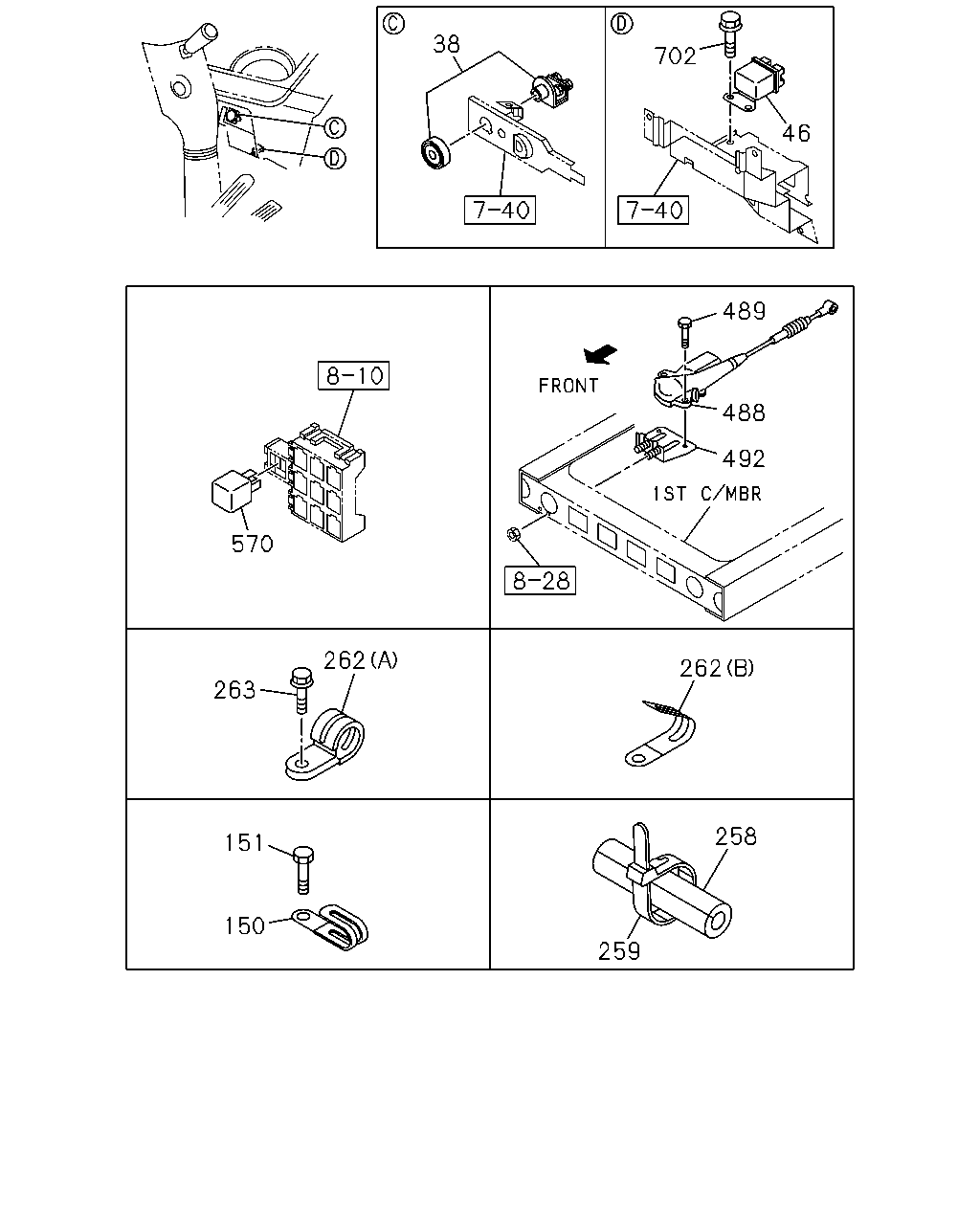

38 702 46 489 488 492 570 262 262 263 258 151 150 259

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
38	RESISTOR; CONT,GLOW PLUG	1-81402-008-0	01	1	9601-9803	●	●	●
38	RESISTOR; CONT,GLOW PLUG	1-81402-008-0	01	1	9804-0106		●	●
38	RESISTOR; CONT,GLOW PLUG	1-81402-008-0	01	1	0107-		●
46	RELAY; GLOW PLUG	8-94258-014-0	01	1	9601-9803	●	●	●
46	RELAY; GLOW PLUG	8-94258-014-0	01	1	9804-0106		●	●
46	RELAY; GLOW PLUG	8-94258-014-0	01	1	0107-		●		●
150	CLIP; HARNESS,SOLENOID VLV ID=18 L=44	8-94225-185-0	02	1	9610-0106			●
151	BOLT; HARNESS CLIP,SOLENOID VLV M8X12 FLANGE	0-28080-812-0	02	1	9610-0106			●
258	SLEEVE; RUBBER OIL PIPE ID=6 L=30	5-09360-352-0	02	1	0107-		●
258	SLEEVE; RUBBER OIL PIPE ID=18 OD=22 L=25	8-94412-773-0	05	1	0107-		●
258	SLEEVE; RUBBER OIL PIPE ID=10 OD=14 L=30	9-09956-682-0	02	1	0107-		●
259	CLIP; BAND,HARNESS TO OIL PIPE L=250	5-09707-030-1	05	1	0107-1205		●
259	CLIP; BAND,HARNESS TO OIL PIPE L=250	8-98216-430-0	05	1	1206-		●
259	CLIP; BAND,HARNESS TO OIL PIPE L=140	5-09707-031-1	05	1	0107-1205		●
259	CLIP; BAND,HARNESS TO OIL PIPE L=140	8-98216-431-0	05	1	1206-		●
262	CLIP; HARNESS (A) ID=31 L=35	1-09700-329-1	06	1	0107-		●
262	CLIP; HARNESS (B) ID=18 L=44	8-94225-185-0	03	1	0107-0304		●
262	CLIP; HARNESS (B) ID=18 L=44	8-94225-185-0	01	1	0305-0801		●
262	CLIP; HARNESS (B) ID=18 L=44	8-97367-985-1	01	1	0802-		●
262	CLIP; HARNESS (A) ID=11 L=20	9-09525-035-0	05	1	0107-0209		●
262	CLIP; HARNESS (A) ID=11 L=20	9-09525-035-0	06	1	0210-0606		●
262	CLIP; HARNESS (A) ID=11 L=20	0-95235-035-0	06	1	0607-		●
262	CLIP; HARNESS (A) ID=19 L=28	9-09525-856-0	03	1	0107-0606		●
262	CLIP; HARNESS (A) ID=19 L=28	0-95235-856-0	03	1	0607-		●
263	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	14	1	0107-0209		●
263	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	16	1	0210-0512		●
263	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	16	1	0601-		●
488	STOPPER; ENG	1-82840-128-1	01	1	9601-9609	●
488	STOPPER; ENG	1-82840-128-1	01	1	9610-9705	●
488	STOPPER; ENG EXC. EURO2 SPECIFICATION<THN>	1-82840-128-1	01	1	9610-9705			●
488	STOPPER; ENG EXC. EURO2 SPECIFICATION<THN>	1-82840-128-1	01	1	9706-9803	●		●
488	STOPPER; ENG	1-82840-150-1	01	1	9601-0106		●
488	STOPPER; ENG EURO2 SPECIFICATION<THN>	1-82840-153-0	01	1	9610-9803			●
488	STOPPER; ENG	1-82840-153-1	01	1	9804-0106			●
489	BOLT; ENG STOPPER M8X25 W/LK&PL WASHER	0-50140-825-0	02	1	9601-9803	●	●	●
489	BOLT; ENG STOPPER M8X25 W/LK&PL WASHER	0-50140-825-0	02	1	9804-0106		●	●
492	BRACKET; ENG STOPPER	1-82849-089-1	01	1	9601-9803	●	●	●
492	BRACKET; ENG STOPPER	1-82849-089-1	01	1	9804-0106		●	●
570	RELAY; EXH SHUTTER 24V 12.5A MITUBA	8-97062-815-1	01	1	0107-0111				●
570	RELAY; EXH SHUTTER 24V 12.5A PANASONIC	8-97262-933-0	01	1	0112-				●
702	BOLT; RELAY M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9601-9803	●	●	●
702	BOLT; RELAY M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9804-0106		●	●
702	BOLT; RELAY M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0107-		●		●

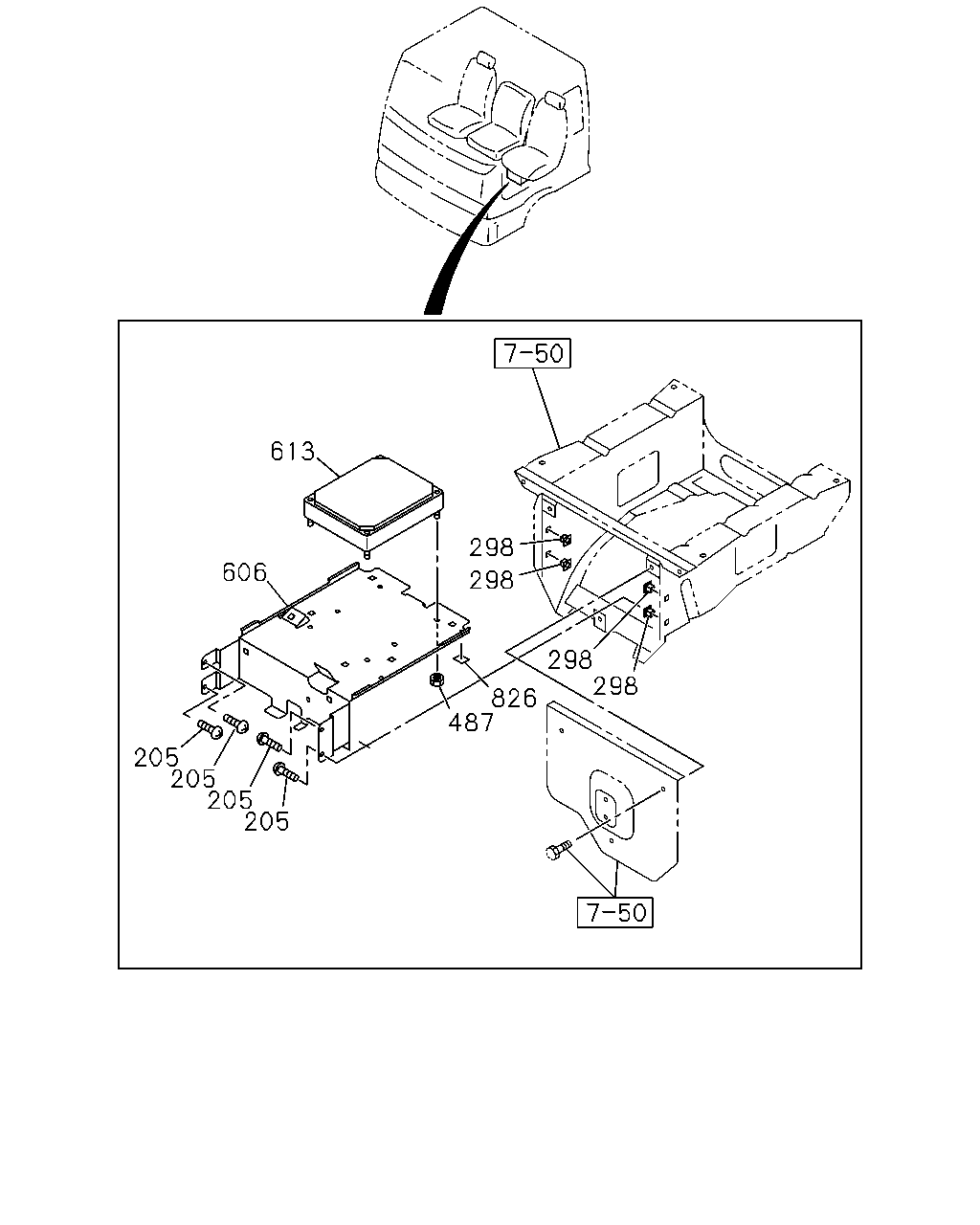

613 298 606 298 298 298 826 487 205 205 205 205

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	C	D
205	SCREW; BRKT EURO2 SPECIFICATION<THN> M6X12 TAPPING W/PL WASHER	0-74100-612-0	04	1	9611-9803	●	●
205	SCREW; BRKT M6X12 TAPPING W/PL WASHER	0-74100-612-0	04	1	9804-0106	●	●
205	SCREW; BRKT M6X12 TAPPING W/PL WASHER	0-74100-612-0	04	1	0107-	●		●
298	GROMMET; SCREW EURO2 SPECIFICATION<THN> D=9.7X9.7 L=8	8-94222-314-0	04	1	9611-9803	●	●
298	GROMMET; SCREW D=9.7X9.7 L=8	8-94222-314-0	04	1	9804-0106	●	●
298	GROMMET; SCREW D=9.7X9.7 L=8	8-94222-314-0	04	1	0107-	●		●
487	NUT EURO2 SPECIFICATION<THN> M6 FLANGE	0-91150-106-0	04	1	9611-9803	●	●
487	NUT M6 FLANGE	0-91150-106-0	04	1	9804-0106	●	●
487	NUT M6 FLANGE	0-91150-106-0	04	1	0107-0602			●
487	NUT M6 FLANGE	0-91180-106-0	04	1	0603-			●
606	BRACKET; CONT UNIT	1-75558-568-4	01	1	0107-	●
606	BRACKET; CONT UNIT EURO2 SPECIFICATION<THN>	1-75558-534-5	01	1	9611-9803	●	●
606	BRACKET; CONT UNIT	1-75558-534-7	01	1	9804-0106	●	●
606	BRACKET; CONT UNIT	1-75558-534-9	01	1	0107-			●
613	CONTROL UNIT; ENG EURO2 SPECIFICATION<THN>	1-80110-099-0	01	1	9610-9612	●
613	CONTROL UNIT; ENG EURO2 SPECIFICATION<THN>	1-80110-131-0	01	1	9701-9701	●
613	CONTROL UNIT; ENG EURO2 SPECIFICATION<THN>	1-80110-177-0	01	1	9702-9803	●
613	CONTROL UNIT; ENG	1-80110-177-0	01	1	9804-0106	●
613	CONTROL UNIT; ENG	1-80110-820-2	01	1	0107-	●
613	CONTROL UNIT; ENG WIDE CAB(FV*F)	1-80110-100-0	01	1	9610-9612		●
613	CONTROL UNIT; ENG WIDE CAB(FV*F)	1-80110-132-0	01	1	9701-9701		●
613	CONTROL UNIT; ENG WIDE CAB(FV*F)	1-80110-178-0	01	1	9702-9705		●
613	CONTROL UNIT; ENG EURO2 SPECIFICATION<THN>	1-80110-178-0	01	1	9706-9803		●
613	CONTROL UNIT; ENG	1-80110-178-0	01	1	9804-0106		●
613	CONTROL UNIT; ENG	8-97601-781-2	01	1	0107-0504			●
613	CONTROL UNIT; ENG	8-98012-977-0	01	1	0505-			●
826	SEAL; NOISE INSULATION EURO2 SPECIFICATION<THN> 30X30	8-97866-626-0	03	1	9611-9803	●	●
826	SEAL; NOISE INSULATION 30X30	8-97866-626-0	03	1	9804-0106	●	●
826	SEAL; NOISE INSULATION 30X30	8-97866-626-0	03	1	0107-0309	●		●
826	SEAL; NOISE INSULATION 30X30	1-74998-128-1	03	1	0310-0908	●		●
826	SEAL; NOISE INSULATION 30X30	8-98142-344-0	03	1	0909-	●		●

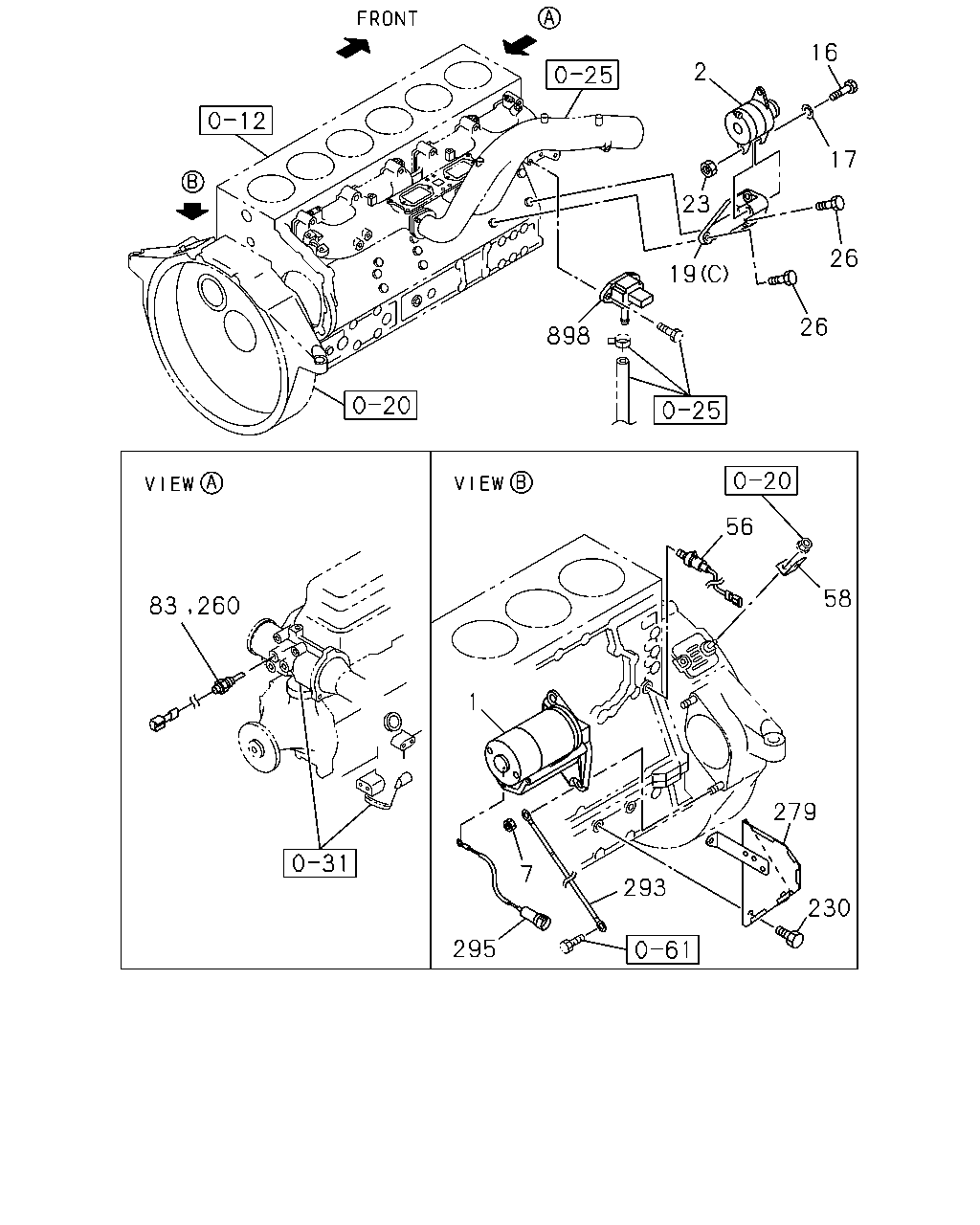

16 2 17 23 26 19 26 898 56 58 83 260 1 279 7 293 230 295

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW NIKKO	1-81100-308-0	01	1	9601-9708	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW NIKKO	1-81100-324-0	01	1	9709-9803	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 5.5KW DENSO	1-81100-230-2	01	1	9601-0108		●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 5.5KW DENSO	1-81100-422-0	01	1	0109-		●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW DENSO	8-94394-151-2	01	1	9610-0106			●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW DENSO	8-94394-151-2	01	1	0107-0108				●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW DENSO	8-97602-169-1	01	1	0109-				●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A NIKKO	1-81200-416-3	01	1	9601-9609	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A NIKKO	1-81200-416-4	01	1	9610-9803	●		●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A NIKKO	1-81200-416-4	01	1	9804-0106			●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 24V 50A MITSUBISHI	1-81200-599-5	01	1	0107-				●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A DENSO	8-94399-157-1	01	1	9601-		●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A MITSUBISHI	1-81200-521-0	01	1	9904-9905			●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A MITSUBISHI	1-81200-577-0	01	1	9906-9907			●
7	NUT; STARTER M14	9-99110-414-0	02	1	9601-9609	●
7	NUT; STARTER M14	9-99110-414-0	02	1	9610-9803	●		●
7	NUT; STARTER M14	9-99110-414-0	02	1	9804-0106			●
7	NUT; STARTER M14	9-99110-414-0	02	1	0107-0512				●
7	NUT; STARTER M14	0-91110-514-0	02	1	0601-				●
7	NUT; STARTER M14 FLANGE	0-91150-114-0	02	1	9601-		●
16	BOLT; GEN M14X135	1-09000-133-1	01	1	9601-9609	●
16	BOLT; GEN M14X135	1-09000-133-1	01	1	9610-9803	●		●
16	BOLT; GEN M14X135	1-09000-133-1	01	1	9804-0106			●
16	BOLT; GEN M14X135	1-09000-133-1	01	1	0107-				●
16	BOLT; GEN M14X128	9-09801-203-0	01	1	9601-9611		●
16	BOLT; GEN M14X123	9-09801-204-1	01	1	9612-		●
17	WASHER; PL,GEN ID=15	9-09160-514-0	01	1	9601-9609	●	●
17	WASHER; PL,GEN ID=15	9-09160-514-0	01	1	9610-9803	●	●	●
17	WASHER; PL,GEN ID=15	9-09160-514-0	01	1	9804-0106		●	●
17	WASHER; PL,GEN ID=15	9-09160-514-0	01	1	0107-0605		●		●
17	WASHER; PL,GEN ID=15	0-91610-514-0	01	1	0606-		●		●
19	BRACKET; GEN (B)	8-94396-297-0	01	1	9601-9609	●
19	BRACKET; GEN (B)	8-94396-297-0	01	1	9610-9803	●		●
19	BRACKET; GEN HEATER & DEFROSTER(C41) (B)	8-94396-297-0	01	1	9804-0106			●
19	BRACKET; GEN (C)	1-19711-038-0	01	1	9601-		●
19	BRACKET; GEN AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-94395-470-2	01	1	9804-0106			●
19	BRACKET; GEN (A)	8-94395-470-4	01	1	0107-				●
23	NUT; GEN M14	9-99110-414-0	01	1	9601-9609	●
23	NUT; GEN M14	9-99110-414-0	01	1	9610-9803	●		●
23	NUT; GEN M14	9-99110-414-0	01	1	9804-0106			●
23	NUT; GEN M14	9-99110-414-0	01	1	0107-0512				●
23	NUT; GEN M14	0-91110-514-0	01	1	0601-				●
23	NUT; GEN M14 FLANGE	0-91150-114-0	01	1	9601-		●
26	BOLT; GEN BRKT M10X80 FLANGE	0-28181-080-0	02	1	9601-9609	●
26	BOLT; GEN BRKT M10X80 FLANGE	0-28181-080-0	02	1	9610-9803	●		●
26	BOLT; GEN BRKT M10X80 FLANGE	0-28181-080-0	02	1	9804-0106			●
26	BOLT; GEN BRKT M10X80 FLANGE	0-28181-080-0	02	1	0107-0512				●
26	BOLT; GEN BRKT M10X80 FLANGE	0-28151-080-0	02	1	0601-				●
26	BOLT; GEN BRKT M10X40 FLANGE	0-28181-040-0	01	1	9601-9609	●	●
26	BOLT; GEN BRKT M10X40 FLANGE	0-28181-040-0	01	1	9610-9803	●	●	●
26	BOLT; GEN BRKT M10X40 FLANGE	0-28181-040-0	01	1	9804-0106		●
26	BOLT; GEN BRKT HEATER & DEFROSTER(C41) M10X40 FLANGE	0-28181-040-0	01	1	9804-0106			●
26	BOLT; GEN BRKT M10X40 FLANGE	0-28181-040-0	01	1	0107-0512		●
26	BOLT; GEN BRKT M10X40 FLANGE	0-28151-040-0	01	1	0601-		●
26	BOLT; GEN BRKT M10X70 FLANGE	0-28181-070-0	02	1	9601-0512		●
26	BOLT; GEN BRKT M10X70 FLANGE	0-28151-070-0	02	1	0601-		●
26	BOLT; GEN BRKT AIR CONDITIONER MANUAL CONTROL(C60) M10X40 FLANGE	0-28181-040-0	02	1	9804-0106			●
26	BOLT; GEN BRKT M10X40 FLANGE	0-28181-040-0	02	1	0107-0512				●
26	BOLT; GEN BRKT M10X40 FLANGE	0-28151-040-0	02	1	0601-				●
56	SWITCH; OIL PRESSURE WARNING	1-82410-170-0	01	1	9601-9609	●	●
56	SWITCH; OIL PRESSURE WARNING	1-82410-170-0	01	1	9610-9803	●	●	●
56	SWITCH; OIL PRESSURE WARNING	1-82410-170-0	01	1	9804-0106		●	●
56	SWITCH; OIL PRESSURE WARNING	1-82410-170-1	01	1	0107-		●		●
58	BRACKET; CLIP L=55	1-47475-304-0	01	1	9601-		●
83	THERMOMETER UNIT	1-83161-031-1	01	1	9601-9609	●	●
83	THERMOMETER UNIT	1-83161-031-1	01	1	9610-9803	●
83	THERMOMETER UNIT EXC. EURO2 SPECIFICATION<THN>	1-83161-031-1	01	1	9610-9803		●
230	BOLT; HEAT PROTECTOR M10X16 FLANGE	0-28181-016-0	02	1	9601-0512		●
230	BOLT; HEAT PROTECTOR M10X16 FLANGE	0-28151-016-0	02	1	0601-		●
260	SENSOR; WATER TEMP EURO2 SPECIFICATION<THN>	1-80210-004-0	01	1	9610-9803		●
260	SENSOR; WATER TEMP	1-80210-004-0	01	1	9610-9803			●
260	SENSOR; WATER TEMP	1-80210-004-0	01	1	9804-0106		●	●
260	SENSOR; WATER TEMP	1-80210-005-1	01	1	0107-		●		●
279	PROTECTOR; STARTER	1-14181-292-0	01	1	9601-		●
293	CABLE; STARTER EARTH L=350	1-82650-266-0	01	1	9601-9609	●
293	CABLE; STARTER EARTH L=350	1-82650-266-0	01	1	9610-9803	●		●
293	CABLE; STARTER EARTH L=350	1-82650-266-0	01	1	9804-9904			●
293	CABLE; STARTER EARTH L=350	1-82650-266-0	02	1	9905-9907			●
293	CABLE; STARTER EARTH L=350	1-82650-266-0	01	1	9908-0001			●
293	CABLE; STARTER EARTH L=320	1-82650-324-0	01	1	0002-0106			●
293	CABLE; STARTER EARTH L=320	1-82650-324-0	01	1	0107-				●
293	CABLE; STARTER EARTH L=550	1-82650-239-0	01	1	9601-		●
295	HARNESS; STARTER	1-82640-527-1	01	1	9601-		●
898	SENSOR; BOOST	1-80220-005-0	01	1	0107-		●

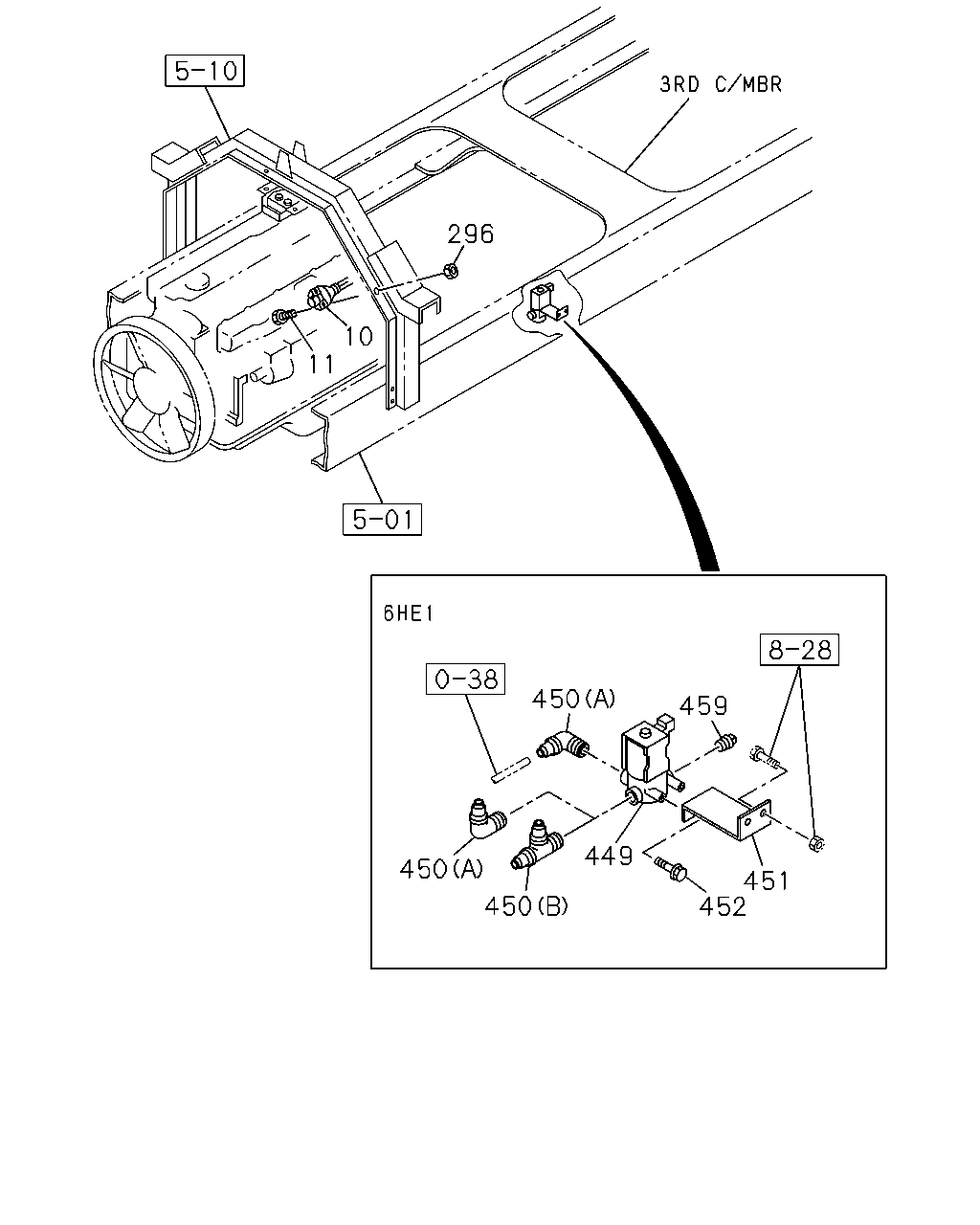

296 10 11 450 459 449 450 451 452 450

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
10	RELAY; STARTER NIKKO	1-81171-067-0	01	1	9601-9608	●
10	RELAY; STARTER NIKKO	1-81171-075-0	01	1	9609-9705	●
10	RELAY; STARTER EXC. STARTER DENSO(RC6) NIKKO	1-81171-075-0	01	1	9706-9803	●
10	RELAY; STARTER DENSO	1-81171-070-0	01	1	9601-9705		●
10	RELAY; STARTER STARTER DENSO(RC6) DENSO	1-81171-070-0	01	1	9706-9803	●
10	RELAY; STARTER DENSO	1-81171-070-0	01	1	9706-9803		●	●
10	RELAY; STARTER DENSO	1-81171-070-0	01	1	9804-0106		●	●
10	RELAY; STARTER DENSO	1-81171-070-0	01	1	0107-		●		●
11	BOLT; RELAY STARTER M8X20 FLANGE	0-28080-820-0	02	1	9601-9606	●	●	●
11	BOLT; RELAY STARTER M8X25 FLANGE	0-28680-825-0	02	1	9607-9801	●	●	●
11	BOLT; RELAY STARTER M8X20 FLANGE	0-28680-820-0	02	1	9802-9803	●	●	●
11	BOLT; RELAY STARTER M8X20 FLANGE	0-28680-820-0	02	1	9804-0106		●	●
11	BOLT; RELAY STARTER M8X20 FLANGE	0-28680-820-0	02	1	0107-0512		●		●
11	BOLT; RELAY STARTER M8X20 FLANGE	0-28650-820-0	02	1	0601-		●		●
296	NUT; RELAY,STARTER M8	9-09110-408-0	02	1	9601-9606	●	●	●
296	NUT; RELAY,STARTER M8 FLANGE	0-91150-108-0	02	1	9607-9803	●	●	●
296	NUT; RELAY,STARTER M8 FLANGE	0-91150-108-0	02	1	9804-0106		●	●
296	NUT; RELAY,STARTER M8 FLANGE	0-91150-108-0	02	1	0107-0602		●		●
296	NUT; RELAY,STARTER M8 FLANGE	0-91180-108-0	02	1	0603-		●		●
449	VALVE; MAG,VARIABLE SWIRL SYSTEM EURO2 SPECIFICATION<THN>	1-82563-600-2	01	1	9610-9706			●
449	VALVE; MAG,VARIABLE SWIRL SYSTEM WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W) EURO2 SPECIFICATION<THN>	1-82563-600-2	01	1	9707-9803			●
449	VALVE; MAG,VARIABLE SWIRL SYSTEM WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W)	1-82563-599-4	01	1	9804-0004			●
449	VALVE; MAG,VARIABLE SWIRL SYSTEM	1-82563-599-4	01	1	0005-0106			●
449	VALVE; MAG,VARIABLE SWIRL SYSTEM WHEEL BASE 5000MM(50W) EURO2 SPECIFICATION<THN>	1-82563-598-2	01	1	9707-9803			●
450	CONNECTOR; MAG VLV,INL PORT EURO2 SPECIFICATION<THN> (A) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9610-9706			●
450	CONNECTOR; MAG VLV,INL PORT WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W) EURO2 SPECIFICATION<THN> (A) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9707-9803			●
450	CONNECTOR; MAG VLV,INL PORT WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W) (B) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	9804-0004			●
450	CONNECTOR; MAG VLV,INL PORT (B) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	0005-0106			●
450	CONNECTOR; MAG VLV,INL PORT EURO2 SPECIFICATION<THN> (B)	1-09660-718-1	01	1	9610-9706			●
450	CONNECTOR; MAG VLV,INL PORT WHEEL BASE 5000MM(50W) EURO2 SPECIFICATION<THN> (A) DIN8 & R1/4 ELBOW	1-09660-649-1	02	1	9707-9803			●
450	CONNECTOR; MAG VLV,INL PORT WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W) EURO2 SPECIFICATION<THN> (B) DIN8 R1/4 STRAIGHT	1-09660-647-1	01	1	9707-9803			●
450	CONNECTOR; MAG VLV,INL PORT WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9804-0004			●
450	CONNECTOR; MAG VLV,INL PORT (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0005-0106			●
451	BRACKET; MAG VLV,VSS EURO2 SPECIFICATION<THN>	1-47477-462-0	01	1	9610-9704			●
451	BRACKET; MAG VLV,VSS EURO2 SPECIFICATION<THN>	1-47477-953-0	01	1	9705-9803			●
451	BRACKET; MAG VLV,VSS WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W)	1-82569-208-0	01	1	9804-0004			●
451	BRACKET; MAG VLV,VSS	1-82569-208-0	01	1	0005-0106			●
452	BOLT; VSS MAG VLV EURO2 SPECIFICATION<THN> M8X20 FLANGE	0-28080-820-0	02	1	9610-9803			●
452	BOLT; VSS MAG VLV WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W) M8X20 FLANGE	0-28080-820-0	02	1	9804-0004			●
452	BOLT; VSS MAG VLV M8X20 FLANGE	0-28080-820-0	02	1	0005-0106			●
459	PLUG EURO2 SPECIFICATION<THN> PT1/4	9-99204-513-0	01	1	9610-9706			●
459	PLUG WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W) EURO2 SPECIFICATION<THN> PT1/4	9-99204-513-0	01	1	9707-9803			●

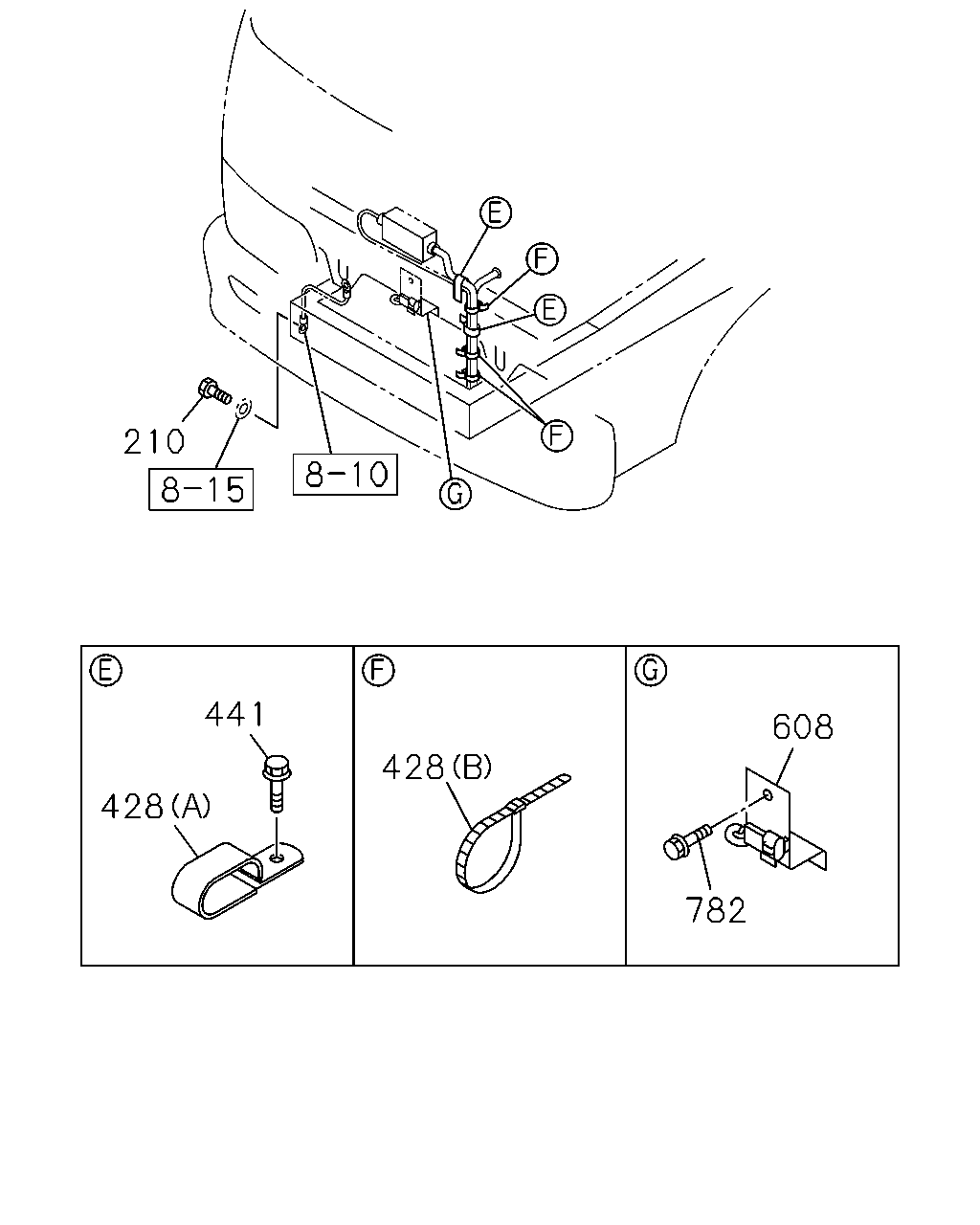

210 441 608 428 428 782

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
210	BOLT; CABLE FIX M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	9601-9803	●	●	●
210	BOLT; CABLE FIX M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	9804-9903		●	●
210	BOLT; CABLE FIX M8X16 W/LK&PL WASHER	8-97087-055-0	01	1	9904-0106		●	●
210	BOLT; CABLE FIX M8X16 W/LK&PL WASHER	8-97087-055-0	01	1	0107-1201		●		●
210	BOLT; CABLE FIX M8X14 W/PL WASHER	8-98164-837-0	01	1	1202-		●		●
428	CLIP; HARNESS (A) ID=35 L=50	1-09701-214-0	02	1	9601-9803	●	●	●
428	CLIP; HARNESS (A) ID=35 L=50	1-09701-214-0	02	1	9804-0106		●	●
428	CLIP; HARNESS (A) ID=35 L=50	1-09701-214-0	02	1	0107-		●		●
428	CLIP; HARNESS (B) L=300	1-09707-001-1	05	1	0107-0202		●
428	CLIP; HARNESS (B) L=300	1-09707-001-1	04	1	0203-		●		●
428	CLIP; HARNESS EURO2 SPECIFICATION<THN> (B) L=300	1-09707-001-0	03	1	9610-9803		●	●
428	CLIP; HARNESS (B) L=300	1-09707-001-1	03	1	9804-0106		●	●
428	CLIP; HARNESS (B) L=300	1-09707-001-1	04	1	0107-0202				●
441	BOLT; HARNESS TO FRAME M8X25 FLANGE	0-28080-825-0	02	1	9601-9606	●	●	●
441	BOLT; HARNESS TO FRAME M8X25 FLANGE	0-28680-825-0	02	1	9607-9803	●	●	●
441	BOLT; HARNESS TO FRAME M8X25 FLANGE	0-28680-825-0	02	1	9804-0106		●	●
441	BOLT; HARNESS TO FRAME M8X25 FLANGE	0-28680-825-0	02	1	0107-0512		●		●
441	BOLT; HARNESS TO FRAME M8X25 FLANGE	0-28650-825-0	02	1	0601-		●		●
608	SENSOR; AIR TEMP	1-83544-031-0	01	1	0107-		●		●
782	BOLT; SENSOR M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	0107-		●		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
