3-50 — BRAKE PIPING; OIL,MASTER CYLINDER (#2659) — 21 parça

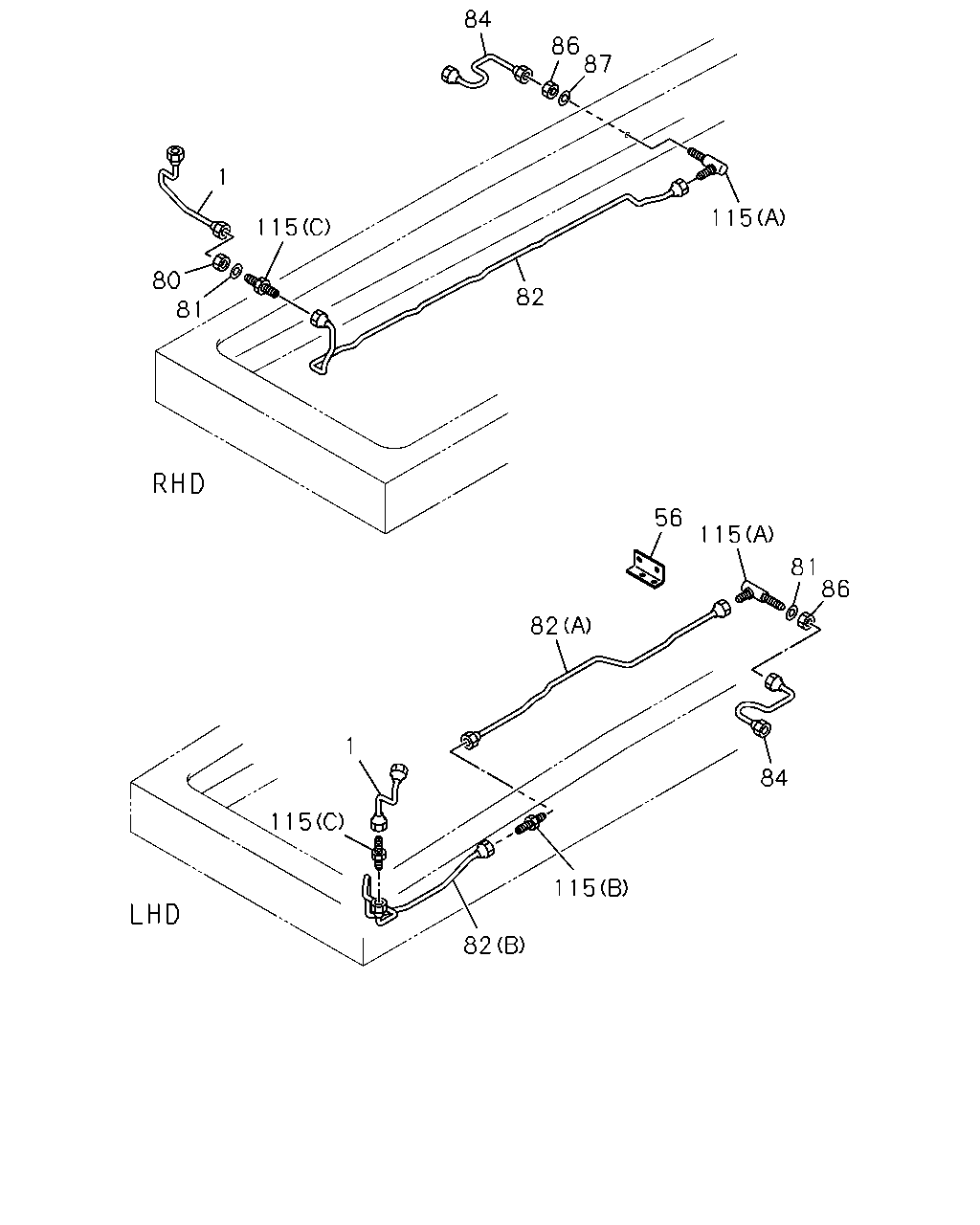

çizim 37133
84 86 87 1 115 115 80 81 82 56 115 81 86 82 1 84 115 115 82
BalonParca AdiParca NoAdetTipApplied Date A B
1 PIPE; OIL,M/CYL TO UNION
BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) L=652 SERVICED BY L=660 		1-47437-954-0 01 1 9101-9212 ●
1 PIPE; OIL,M/CYL TO UNION
BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) L=652 SERVICED BY L=660 		1-47426-381-0 01 1 9301- ●
1 PIPE; OIL,M/CYL TO UNION
BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) L=445 SERVICED BY L=450 		9-47415-379-0 01 1 9101-9212 ●
1 PIPE; OIL,M/CYL TO UNION
BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) L=445 SERVICED BY L=500 		1-47426-376-0 01 1 9301- ●
56 BRACKET; UNION,BRK
BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) 		1-47475-221-0 01 1 9101- ● ●
80 NUT; UNION,OIL PIPE
BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) 		9-99111-414-0 01 1 9101- ● ●
81 WASHER; LK,UNION,OIL PIPE
BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) 		9-09150-514-0 01 1 9101-9312 ● ●
81 WASHER; LK,UNION,OIL PIPE
BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) 		9-09160-614-0 01 1 9101- ● ●
82 PIPE; OIL,UNION TO UNION
BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) L=2107 SERVICED BY L=2150 		1-47437-958-0 01 1 9101-9212 ●
82 PIPE; OIL,UNION TO UNION
BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) L=2107 SERVICED BY L=2150 		1-47426-394-0 01 1 9301- ●
82 PIPE; OIL,UNION TO UNION
BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) (A) 		1-47421-495-0 01 1 9101-9212 ●
82 PIPE; OIL,UNION TO UNION
BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) (A) 		1-47425-370-0 01 1 9301- ●
82 PIPE; OIL,UNION TO UNION
BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) (B) 		1-47421-531-1 01 1 9101-9212 ●
82 PIPE; OIL,UNION TO UNION
BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) (B) 		1-47425-371-0 01 1 9301- ●
84 PIPE; OIL,UNION TO HYDROMASTER
BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) SERVICED BY L=450 		9-47415-379-0 01 1 9101-9212 ● ●
84 PIPE; OIL,UNION TO HYDROMASTER
BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) SERVICED BY L=600 		1-47426-379-0 01 1 9301- ● ●
86 NUT; UNION
BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) 		9-99110-414-0 01 1 9101- ● ●
87 WASHER; LK,UNION
BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) 		9-09150-514-0 01 1 9101-9312 ● ●
115 UNION; OIL PIPE
BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) (C) 		9-09223-208-1 01 1 9101- ● ●
115 UNION; OIL PIPE
BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) (A) 		9-09225-108-1 01 1 9101- ● ●
115 UNION; OIL PIPE
BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) (B) 		9-09223-008-1 01 1 9101- ●
