Sayfa 0-42 - Isuzu EPC

0-42 — FUEL PUMP AND PIPE (#26587) — 492 parça

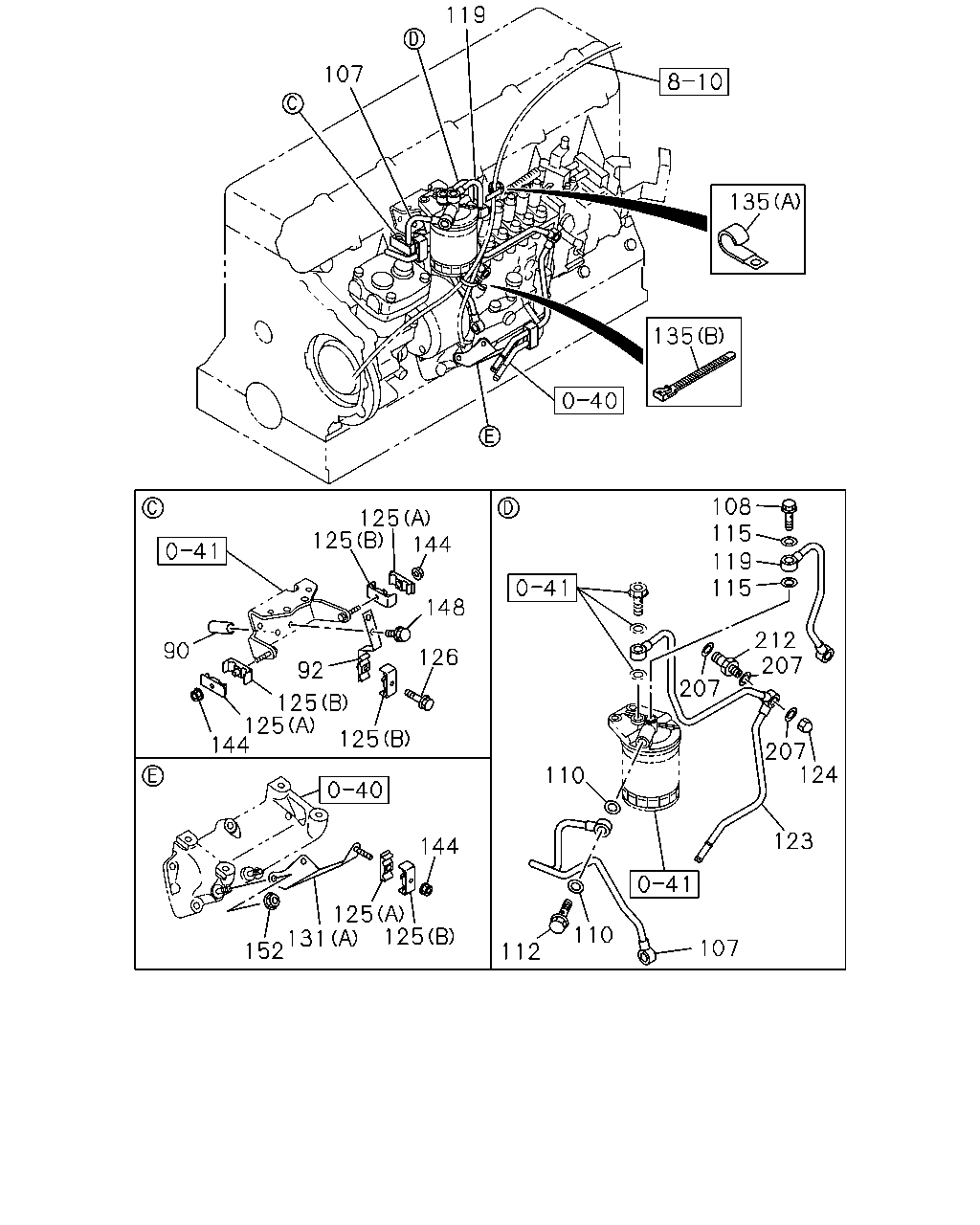

135 123 135 107 112 115 119 207 115 125 125 144 212 207 90 207 124 110 123 144 107 125 125 110 108 131 152

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
90	TUBE; DIST L=43	1-14149-048-1	01	1	9601-0106	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-94396-681-0	01	1	9601-9803		●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	1-15415-779-0	01	1	9601-9609	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER EXC. EURO2 SPECIFICATION<THN>	1-15415-779-0	01	1	9610-9803	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER EURO2 SPECIFICATION<THN>	1-15415-950-0	01	1	9610-9803	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	1-15415-950-0	01	1	9804-0106	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	1-15416-691-0	01	1	0107-	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-94395-042-1	01	1	9610-0106			●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-97600-824-0	01	1	0107-				●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9601-9609	●	●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9610-9803	●	●	●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9804-0004	●		●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0005-0112	●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0201-	●			●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9601-9609	●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9610-9803	●	●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9804-0004	●		●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-0112	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0201-1312	●			●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●			●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9601-9609	●	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9610-9803	●	●	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9804-0106	●		●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0107-	●			●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9601-9609	●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9610-9803	●	●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9804-0106	●		●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0107-1312	●			●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●			●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-94390-343-0	01	1	9601-9803		●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	1-15415-776-0	01	1	9601-9609	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP EXC. EURO2 SPECIFICATION<THN>	1-15415-776-0	01	1	9610-9803	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP EURO2 SPECIFICATION<THN>	1-15415-951-0	01	1	9610-9803	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	1-15415-951-0	01	1	9804-0106	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	1-15416-692-0	01	1	0107-	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-94395-041-0	01	1	9610-0106			●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-97601-120-0	01	1	0107-				●
123	PIPE; FUEL,FUEL FILTER LEAK OFF	8-94394-556-1	01	1	9601-9803		●
123	PIPE; FUEL,FUEL FILTER LEAK OFF	1-15415-775-0	01	1	9601-9609	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF EXC. EURO2 SPECIFICATION<THN>	1-15415-775-0	01	1	9610-9803	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF EURO2 SPECIFICATION<THN>	1-15415-952-0	01	1	9610-9803	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF	1-15415-952-1	01	1	9804-0106	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF	1-15416-690-0	01	1	0107-0411	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF	8-97607-187-0	01	1	0412-	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF	8-94390-831-2	01	1	9610-0106			●
124	NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	9601-9803	●	●
124	NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	9804-0106	●
125	CLIP; FUEL PIPE (F)	1-09701-193-1	01	1	0412-	●
125	CLIP; FUEL PIPE (E)	1-09701-194-1	01	1	0412-	●
125	CLIP; FUEL PIPE (A)	1-09701-180-0	03	1	9601-0106	●
125	CLIP; FUEL PIPE (A)	1-09701-180-0	05	1	0107-0411	●
125	CLIP; FUEL PIPE (A)	1-09701-180-0	04	1	0412-	●
125	CLIP; FUEL PIPE (B) ID=10 & 10 L=25	8-94393-280-1	04	1	9601-9611	●
125	CLIP; FUEL PIPE EURO2 SPECIFICATION<THN> (B) ID=10 & 10 L=25	8-94393-280-1	03	1	9612-9803	●
125	CLIP; FUEL PIPE (B) ID=10 & 10 L=25	8-94393-280-1	03	1	9804-0106	●
125	CLIP; FUEL PIPE (B) ID=10 & 10 L=25	8-94393-280-2	05	1	0107-0411	●
125	CLIP; FUEL PIPE (B) ID=10 & 10 L=25	8-94393-280-3	04	1	0412-	●
125	CLIP; FUEL PIPE (C)	1-09701-172-3	01	1	0107-	●
125	CLIP; FUEL PIPE (D)	1-09701-173-2	01	1	0107-	●
125	CLIP; FUEL PIPE EXC. EURO2 SPECIFICATION<THN> (B) ID=10 & 10 L=25	8-94393-280-1	04	1	9612-9803	●
131	BRACKET; FUEL PIPE CLIP (A)	1-15419-437-0	01	1	9601-0106	●
131	BRACKET; FUEL PIPE CLIP (B)	1-15419-605-1	01	1	0107-	●
131	BRACKET; FUEL PIPE CLIP (C)	1-15419-668-0	01	1	0107-	●
131	BRACKET; FUEL PIPE CLIP (D)	1-15419-669-0	01	1	0107-	●
131	BRACKET; FUEL PIPE CLIP (E)	1-15419-670-0	01	1	0107-	●
131	BRACKET; FUEL PIPE CLIP (F)	1-15419-698-0	01	1	0107-	●
131	BRACKET; FUEL PIPE CLIP (G)	8-97601-488-0	01	1	0107-				●
135	CLIP; HARNESS EURO2 SPECIFICATION<THN> (A) L=110	8-94149-419-0	01	1	9610-9803	●
135	CLIP; HARNESS (A) L=110	8-94149-419-0	01	1	9804-0106	●
135	CLIP; HARNESS EURO2 SPECIFICATION<THN> (B) L=140	5-09707-031-0	01	1	9702-9803	●
135	CLIP; HARNESS (B) L=140	5-09707-031-1	01	1	9804-0106	●
144	NUT; CLIP M6 FLANGE	0-91150-106-0	03	1	9601-0106	●
152	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9601-0106	●
152	NUT; BRKT M6 FLANGE	0-91150-206-0	02	1	0107-0602				●
152	NUT; BRKT M6 FLANGE	0-91180-206-0	02	1	0603-				●
207	GASKET; EYE BOLT ID=14.2 OD=19.2	1-09630-085-0	03	1	9601-0106	●
207	GASKET; EYE BOLT ID=14.2 OD=19.2	1-09630-085-0	02	1	0107-0112	●			●
207	GASKET; EYE BOLT ID=14.2 OD=19.2	1-09630-085-0	02	1	0201-1312	●
207	GASKET; EYE BOLT ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●
207	GASKET; EYE BOLT ID=14.2 OD=19.2	1-09630-085-0	02	1	9610-0106			●
212	VALVE; OVERFLOW	8-94399-087-0	01	1	9601-9803		●

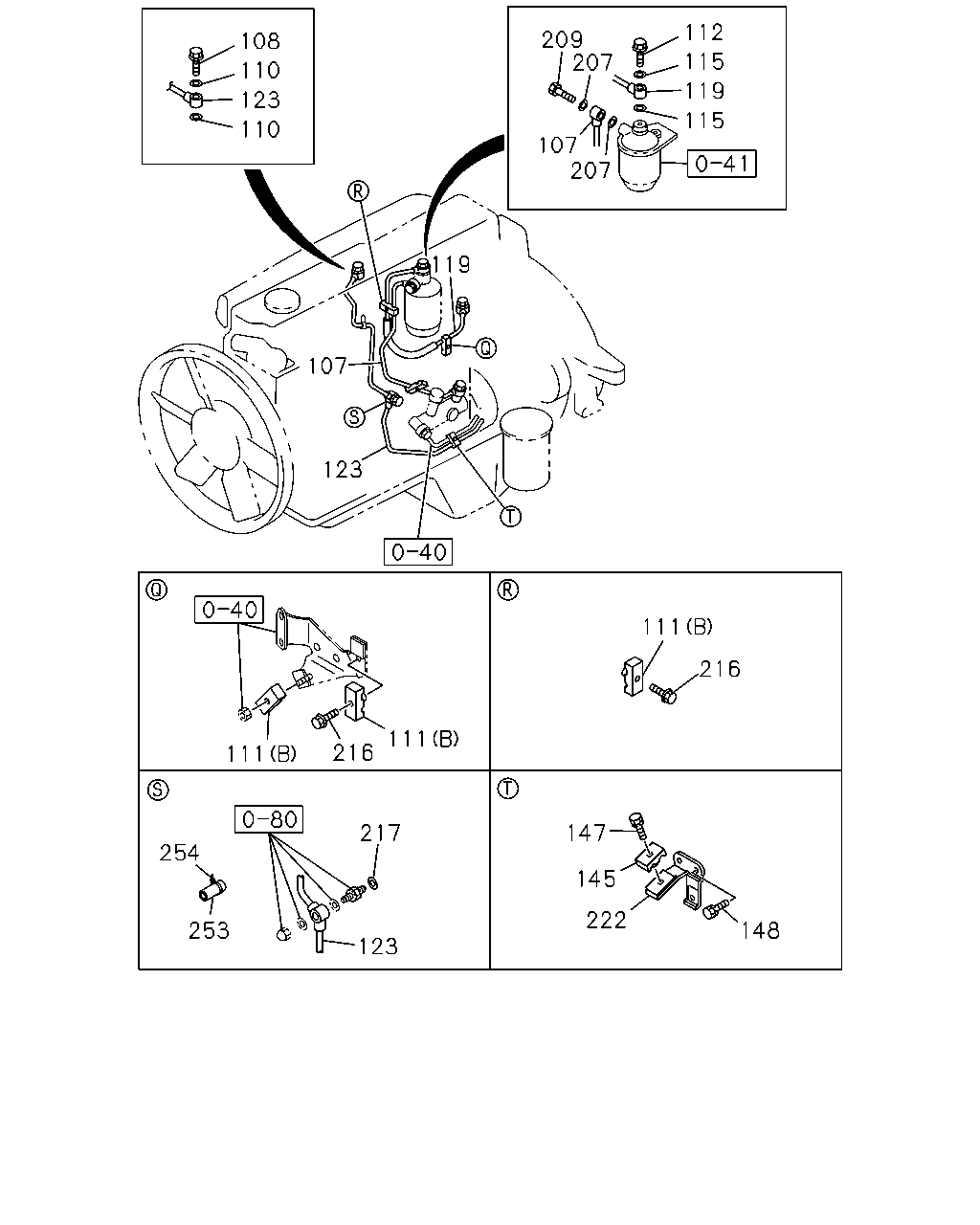

112 209 207 108 115 110 119 123 115 110 107 207 119 107 123 111 216 111 216 111 217 147 254 145 222 253 148 123

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-94396-681-0	01	1	9601-9803		●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	1-15415-779-0	01	1	9601-9609	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER EXC. EURO2 SPECIFICATION<THN>	1-15415-779-0	01	1	9610-9803	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER EURO2 SPECIFICATION<THN>	1-15415-950-0	01	1	9610-9803	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	1-15415-950-0	01	1	9804-0106	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	1-15416-691-0	01	1	0107-	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-94395-042-1	01	1	9610-0106			●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-97600-824-0	01	1	0107-				●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9601-9609	●	●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9610-9803	●	●	●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9804-0004	●		●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0005-0112	●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0201-	●			●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9601-9609	●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9610-9803	●	●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9804-0004	●		●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-0112	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0201-1312	●			●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●			●
111	CLIP; FUEL PIPE (B) L=48	5-09709-103-0	03	1	9601-9609		●
111	CLIP; FUEL PIPE (B) L=48	5-09709-103-0	03	1	9610-9803		●	●
111	CLIP; FUEL PIPE (A) L=45	5-09709-104-0	01	1	9601-9803		●
111	CLIP; FUEL PIPE (B) L=48	5-09709-103-0	03	1	9804-0106			●
111	CLIP; FUEL PIPE (D) L=48	5-09709-103-0	01	1	0107-				●
111	CLIP; FUEL PIPE (C)	1-15419-215-1	01	1	0107-				●
111	CLIP; FUEL PIPE (E) ID=6.0 & 9.5	8-94100-359-0	01	1	0107-				●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9601-9609	●	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9610-9803	●	●	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9804-0106	●		●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0107-	●			●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9601-9609	●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9610-9803	●	●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9804-0106	●		●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0107-1312	●			●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●			●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-94390-343-0	01	1	9601-9803		●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	1-15415-776-0	01	1	9601-9609	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP EXC. EURO2 SPECIFICATION<THN>	1-15415-776-0	01	1	9610-9803	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP EURO2 SPECIFICATION<THN>	1-15415-951-0	01	1	9610-9803	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	1-15415-951-0	01	1	9804-0106	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	1-15416-692-0	01	1	0107-	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-94395-041-0	01	1	9610-0106			●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-97601-120-0	01	1	0107-				●
123	PIPE; FUEL,FUEL FILTER LEAK OFF	8-94394-556-1	01	1	9601-9803		●
123	PIPE; FUEL,FUEL FILTER LEAK OFF	1-15415-775-0	01	1	9601-9609	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF EXC. EURO2 SPECIFICATION<THN>	1-15415-775-0	01	1	9610-9803	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF EURO2 SPECIFICATION<THN>	1-15415-952-0	01	1	9610-9803	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF	1-15415-952-1	01	1	9804-0106	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF	1-15416-690-0	01	1	0107-0411	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF	8-97607-187-0	01	1	0412-	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF	8-94390-831-2	01	1	9610-0106			●
145	CLIP; FUEL PIPE L=48	5-09709-103-0	01	1	9610-0106			●
147	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	01	1	9610-0106			●
148	BOLT; BRKT M8X25 FLANGE	0-28080-825-0	02	1	9601-9611	●
148	BOLT; BRKT EXC. EURO2 SPECIFICATION<THN> M8X25 FLANGE	0-28080-825-0	02	1	9612-9803	●
148	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	02	1	9610-0106			●
148	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	02	1	0107-0512	●			●
148	BOLT; BRKT M8X16 FLANGE	0-28050-816-0	02	1	0601-	●			●
207	GASKET; EYE BOLT ID=14.2 OD=19.2	1-09630-085-0	03	1	9601-0106	●
207	GASKET; EYE BOLT ID=14.2 OD=19.2	1-09630-085-0	02	1	0107-0112	●			●
207	GASKET; EYE BOLT ID=14.2 OD=19.2	1-09630-085-0	02	1	0201-1312	●
207	GASKET; EYE BOLT ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●
207	GASKET; EYE BOLT ID=14.2 OD=19.2	1-09630-085-0	02	1	9610-0106			●
209	BOLT; EYE,FUEL FILTER	1-15619-310-0	01	1	9610-0106			●
209	BOLT; EYE,FUEL FILTER	1-15619-310-0	01	1	0107-0112				●
216	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	03	1	9601-9803		●
216	BOLT; CLIP,FUEL PIPE M6X22 FLANGE	0-28080-622-0	01	1	9610-0106			●
216	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	02	1	9610-0106			●
216	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	03	1	0107-0512				●
216	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50540-630-0	03	1	0601-				●
217	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	01	1	9601-9609		●
217	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	01	1	9610-9803		●	●
217	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	01	1	9804-0106			●
217	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	01	1	0107-1312				●
217	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	01	1	1401-				●
222	BRACKET; CLIP	8-94395-079-2	01	1	9610-0106			●
222	BRACKET; CLIP	8-94395-079-2	01	1	0107-				●
253	COVER; RUBBER ID=6 OD=10 L=70	1-09376-512-0	01	1	0001-0106			●
253	COVER; RUBBER ID=10 OD=14 L=30	9-09956-682-0	01	1	0001-0005			●
253	COVER; RUBBER ID=10 OD=14 L=30	9-09956-682-0	02	1	0006-0106			●
254	CLIP L=250	5-09707-030-1	02	1	0001-0005			●

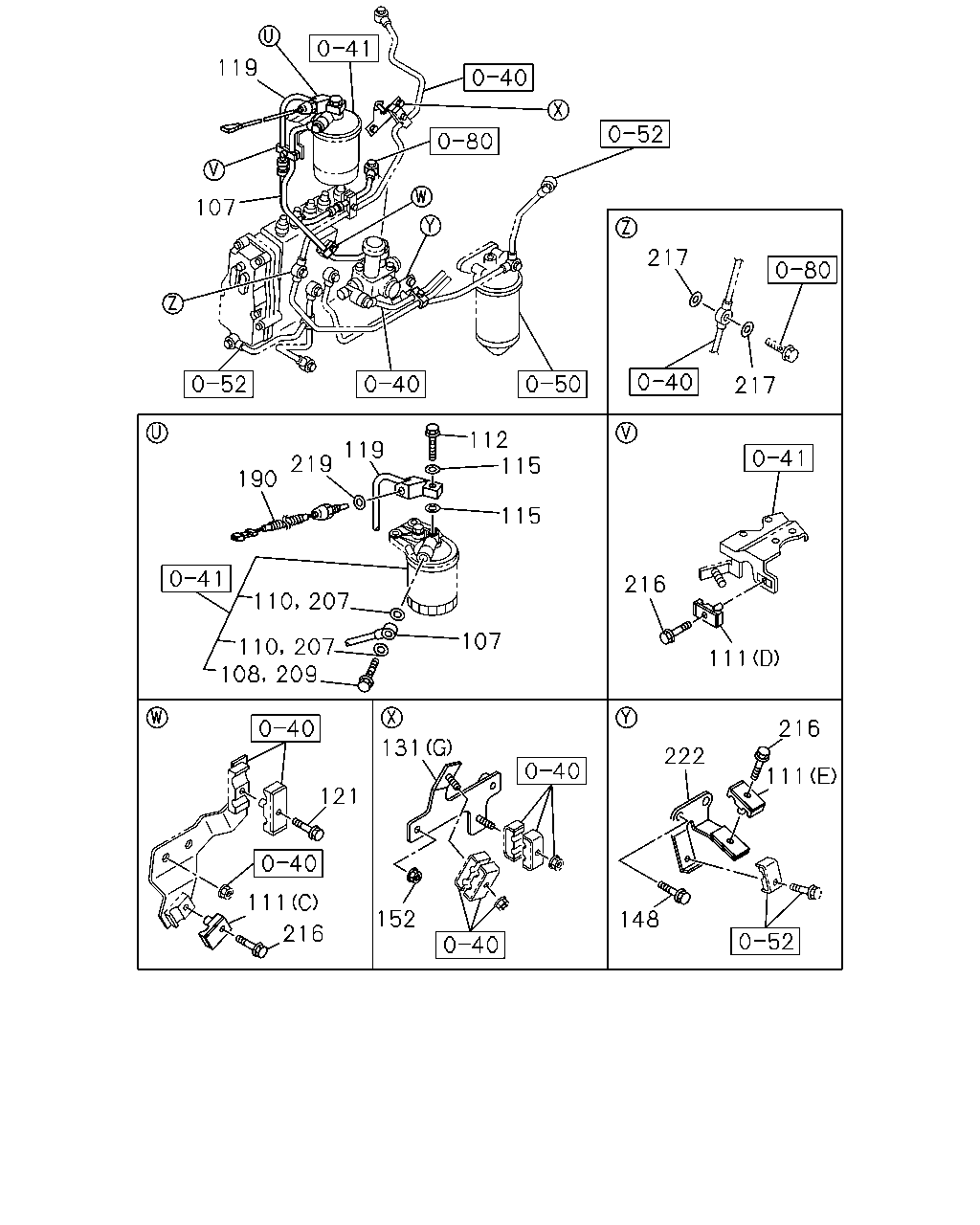

119 107 217 217 112 115 119 219 190 115 216 110 107 110 108 111 216 131 222 111 121 111 152 148 216 209 207 207

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-94396-681-0	01	1	9601-9803		●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	1-15415-779-0	01	1	9601-9609	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER EXC. EURO2 SPECIFICATION<THN>	1-15415-779-0	01	1	9610-9803	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER EURO2 SPECIFICATION<THN>	1-15415-950-0	01	1	9610-9803	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	1-15415-950-0	01	1	9804-0106	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	1-15416-691-0	01	1	0107-	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-94395-042-1	01	1	9610-0106			●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-97600-824-0	01	1	0107-				●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9601-9609	●	●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9610-9803	●	●	●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9804-0004	●		●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0005-0112	●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0201-	●			●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9601-9609	●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9610-9803	●	●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9804-0004	●		●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-0112	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0201-1312	●			●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●			●
111	CLIP; FUEL PIPE (B) L=48	5-09709-103-0	03	1	9601-9609		●
111	CLIP; FUEL PIPE (B) L=48	5-09709-103-0	03	1	9610-9803		●	●
111	CLIP; FUEL PIPE (A) L=45	5-09709-104-0	01	1	9601-9803		●
111	CLIP; FUEL PIPE (B) L=48	5-09709-103-0	03	1	9804-0106			●
111	CLIP; FUEL PIPE (D) L=48	5-09709-103-0	01	1	0107-				●
111	CLIP; FUEL PIPE (C)	1-15419-215-1	01	1	0107-				●
111	CLIP; FUEL PIPE (E) ID=6.0 & 9.5	8-94100-359-0	01	1	0107-				●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9601-9609	●	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9610-9803	●	●	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9804-0106	●		●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0107-	●			●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9601-9609	●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9610-9803	●	●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9804-0106	●		●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0107-1312	●			●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●			●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-94390-343-0	01	1	9601-9803		●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	1-15415-776-0	01	1	9601-9609	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP EXC. EURO2 SPECIFICATION<THN>	1-15415-776-0	01	1	9610-9803	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP EURO2 SPECIFICATION<THN>	1-15415-951-0	01	1	9610-9803	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	1-15415-951-0	01	1	9804-0106	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	1-15416-692-0	01	1	0107-	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-94395-041-0	01	1	9610-0106			●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-97601-120-0	01	1	0107-				●
121	BOLT; CLIP M6X30 W/LK WASHER	0-50040-630-0	01	1	0107-0512				●
121	BOLT; CLIP M6X30 W/LK WASHER	0-50540-630-0	01	1	0601-				●
131	BRACKET; FUEL PIPE CLIP (A)	1-15419-437-0	01	1	9601-0106	●
131	BRACKET; FUEL PIPE CLIP (B)	1-15419-605-1	01	1	0107-	●
131	BRACKET; FUEL PIPE CLIP (C)	1-15419-668-0	01	1	0107-	●
131	BRACKET; FUEL PIPE CLIP (D)	1-15419-669-0	01	1	0107-	●
131	BRACKET; FUEL PIPE CLIP (E)	1-15419-670-0	01	1	0107-	●
131	BRACKET; FUEL PIPE CLIP (F)	1-15419-698-0	01	1	0107-	●
131	BRACKET; FUEL PIPE CLIP (G)	8-97601-488-0	01	1	0107-				●
148	BOLT; BRKT M8X25 FLANGE	0-28080-825-0	02	1	9601-9611	●
148	BOLT; BRKT EXC. EURO2 SPECIFICATION<THN> M8X25 FLANGE	0-28080-825-0	02	1	9612-9803	●
148	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	02	1	9610-0106			●
148	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	02	1	0107-0512	●			●
148	BOLT; BRKT M8X16 FLANGE	0-28050-816-0	02	1	0601-	●			●
152	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9601-0106	●
152	NUT; BRKT M6 FLANGE	0-91150-206-0	02	1	0107-0602				●
152	NUT; BRKT M6 FLANGE	0-91180-206-0	02	1	0603-				●
190	SENSOR; FUEL TEMP	1-81535-040-2	01	1	0303-0304	●
190	SENSOR; FUEL TEMP	1-81535-040-2	01	1	0107-0208	●
190	SENSOR; FUEL TEMP	8-97601-754-3	01	1	0107-				●
207	GASKET; EYE BOLT ID=14.2 OD=19.2	1-09630-085-0	03	1	9601-0106	●
207	GASKET; EYE BOLT ID=14.2 OD=19.2	1-09630-085-0	02	1	0107-0112	●			●
207	GASKET; EYE BOLT ID=14.2 OD=19.2	1-09630-085-0	02	1	0201-1312	●
207	GASKET; EYE BOLT ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●
207	GASKET; EYE BOLT ID=14.2 OD=19.2	1-09630-085-0	02	1	9610-0106			●
209	BOLT; EYE,FUEL FILTER	1-15619-310-0	01	1	9610-0106			●
209	BOLT; EYE,FUEL FILTER	1-15619-310-0	01	1	0107-0112				●
216	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	03	1	9601-9803		●
216	BOLT; CLIP,FUEL PIPE M6X22 FLANGE	0-28080-622-0	01	1	9610-0106			●
216	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	02	1	9610-0106			●
216	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	03	1	0107-0512				●
216	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50540-630-0	03	1	0601-				●
217	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	01	1	9601-9609		●
217	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	01	1	9610-9803		●	●
217	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	01	1	9804-0106			●
217	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	01	1	0107-1312				●
217	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	01	1	1401-				●
219	GASKET; SENSOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=12.2	1-09630-084-0	01	1	0107-0208	●			●
219	GASKET; SENSOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=12.2	1-09630-084-0	01	1	0209-0302				●
219	GASKET; SENSOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=12.2	1-09630-084-0	01	1	0303-0304	●			●
219	GASKET; SENSOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=12.2	1-09630-084-0	01	1	0305-1312				●
219	GASKET; SENSOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=12.2	8-98251-344-0	01	1	1401-				●
222	BRACKET; CLIP	8-94395-079-2	01	1	9610-0106			●
222	BRACKET; CLIP	8-94395-079-2	01	1	0107-				●

123 108 110 123 110 217 150 119 212 124 150 107 115 119 112 115 123 107 111 111 111 216 216

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-94396-681-0	01	1	9601-9803		●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	1-15415-779-0	01	1	9601-9609	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER EXC. EURO2 SPECIFICATION<THN>	1-15415-779-0	01	1	9610-9803	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER EURO2 SPECIFICATION<THN>	1-15415-950-0	01	1	9610-9803	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	1-15415-950-0	01	1	9804-0106	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	1-15416-691-0	01	1	0107-	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-94395-042-1	01	1	9610-0106			●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-97600-824-0	01	1	0107-				●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9601-9609	●	●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9610-9803	●	●	●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9804-0004	●		●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0005-0112	●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0201-	●			●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9601-9609	●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9610-9803	●	●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9804-0004	●		●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-0112	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0201-1312	●			●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●			●
111	CLIP; FUEL PIPE (B) L=48	5-09709-103-0	03	1	9601-9609		●
111	CLIP; FUEL PIPE (B) L=48	5-09709-103-0	03	1	9610-9803		●	●
111	CLIP; FUEL PIPE (A) L=45	5-09709-104-0	01	1	9601-9803		●
111	CLIP; FUEL PIPE (B) L=48	5-09709-103-0	03	1	9804-0106			●
111	CLIP; FUEL PIPE (D) L=48	5-09709-103-0	01	1	0107-				●
111	CLIP; FUEL PIPE (C)	1-15419-215-1	01	1	0107-				●
111	CLIP; FUEL PIPE (E) ID=6.0 & 9.5	8-94100-359-0	01	1	0107-				●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9601-9609	●	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9610-9803	●	●	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9804-0106	●		●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0107-	●			●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9601-9609	●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9610-9803	●	●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9804-0106	●		●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0107-1312	●			●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●			●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-94390-343-0	01	1	9601-9803		●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	1-15415-776-0	01	1	9601-9609	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP EXC. EURO2 SPECIFICATION<THN>	1-15415-776-0	01	1	9610-9803	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP EURO2 SPECIFICATION<THN>	1-15415-951-0	01	1	9610-9803	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	1-15415-951-0	01	1	9804-0106	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	1-15416-692-0	01	1	0107-	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-94395-041-0	01	1	9610-0106			●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-97601-120-0	01	1	0107-				●
123	PIPE; FUEL,FUEL FILTER LEAK OFF	8-94394-556-1	01	1	9601-9803		●
123	PIPE; FUEL,FUEL FILTER LEAK OFF	1-15415-775-0	01	1	9601-9609	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF EXC. EURO2 SPECIFICATION<THN>	1-15415-775-0	01	1	9610-9803	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF EURO2 SPECIFICATION<THN>	1-15415-952-0	01	1	9610-9803	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF	1-15415-952-1	01	1	9804-0106	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF	1-15416-690-0	01	1	0107-0411	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF	8-97607-187-0	01	1	0412-	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF	8-94390-831-2	01	1	9610-0106			●
124	NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	9601-9803	●	●
124	NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	9804-0106	●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9601-9803		●
212	VALVE; OVERFLOW	8-94399-087-0	01	1	9601-9803		●
216	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	03	1	9601-9803		●
216	BOLT; CLIP,FUEL PIPE M6X22 FLANGE	0-28080-622-0	01	1	9610-0106			●
216	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	02	1	9610-0106			●
216	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	03	1	0107-0512				●
216	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50540-630-0	03	1	0601-				●
217	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	01	1	9601-9609		●
217	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	01	1	9610-9803		●	●
217	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	01	1	9804-0106			●
217	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	01	1	0107-1312				●
217	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	01	1	1401-				●

123 107 119 126 148 125 207 207 125 125 125 123 126 131 131 125 125 110 110 126 131 107 125 125 108 190 219 126 148 131 119 125 125 125 115 125 131 115 112 126

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-94396-681-0	01	1	9601-9803		●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	1-15415-779-0	01	1	9601-9609	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER EXC. EURO2 SPECIFICATION<THN>	1-15415-779-0	01	1	9610-9803	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER EURO2 SPECIFICATION<THN>	1-15415-950-0	01	1	9610-9803	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	1-15415-950-0	01	1	9804-0106	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	1-15416-691-0	01	1	0107-	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-94395-042-1	01	1	9610-0106			●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-97600-824-0	01	1	0107-				●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9601-9609	●	●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9610-9803	●	●	●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9804-0004	●		●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0005-0112	●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0201-	●			●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9601-9609	●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9610-9803	●	●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9804-0004	●		●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-0112	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0201-1312	●			●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●			●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9601-9609	●	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9610-9803	●	●	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9804-0106	●		●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0107-	●			●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9601-9609	●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9610-9803	●	●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9804-0106	●		●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0107-1312	●			●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●			●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-94390-343-0	01	1	9601-9803		●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	1-15415-776-0	01	1	9601-9609	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP EXC. EURO2 SPECIFICATION<THN>	1-15415-776-0	01	1	9610-9803	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP EURO2 SPECIFICATION<THN>	1-15415-951-0	01	1	9610-9803	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	1-15415-951-0	01	1	9804-0106	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	1-15416-692-0	01	1	0107-	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-94395-041-0	01	1	9610-0106			●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-97601-120-0	01	1	0107-				●
123	PIPE; FUEL,FUEL FILTER LEAK OFF	8-94394-556-1	01	1	9601-9803		●
123	PIPE; FUEL,FUEL FILTER LEAK OFF	1-15415-775-0	01	1	9601-9609	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF EXC. EURO2 SPECIFICATION<THN>	1-15415-775-0	01	1	9610-9803	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF EURO2 SPECIFICATION<THN>	1-15415-952-0	01	1	9610-9803	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF	1-15415-952-1	01	1	9804-0106	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF	1-15416-690-0	01	1	0107-0411	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF	8-97607-187-0	01	1	0412-	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF	8-94390-831-2	01	1	9610-0106			●
125	CLIP; FUEL PIPE (F)	1-09701-193-1	01	1	0412-	●
125	CLIP; FUEL PIPE (E)	1-09701-194-1	01	1	0412-	●
125	CLIP; FUEL PIPE (A)	1-09701-180-0	03	1	9601-0106	●
125	CLIP; FUEL PIPE (A)	1-09701-180-0	05	1	0107-0411	●
125	CLIP; FUEL PIPE (A)	1-09701-180-0	04	1	0412-	●
125	CLIP; FUEL PIPE (B) ID=10 & 10 L=25	8-94393-280-1	04	1	9601-9611	●
125	CLIP; FUEL PIPE EURO2 SPECIFICATION<THN> (B) ID=10 & 10 L=25	8-94393-280-1	03	1	9612-9803	●
125	CLIP; FUEL PIPE (B) ID=10 & 10 L=25	8-94393-280-1	03	1	9804-0106	●
125	CLIP; FUEL PIPE (B) ID=10 & 10 L=25	8-94393-280-2	05	1	0107-0411	●
125	CLIP; FUEL PIPE (B) ID=10 & 10 L=25	8-94393-280-3	04	1	0412-	●
125	CLIP; FUEL PIPE (C)	1-09701-172-3	01	1	0107-	●
125	CLIP; FUEL PIPE (D)	1-09701-173-2	01	1	0107-	●
125	CLIP; FUEL PIPE EXC. EURO2 SPECIFICATION<THN> (B) ID=10 & 10 L=25	8-94393-280-1	04	1	9612-9803	●
126	BOLT; CLIP,FUEL PIPE M6X35 FLANGE	0-28080-635-0	01	1	9601-9611	●
126	BOLT; CLIP,FUEL PIPE EXC. EURO2 SPECIFICATION<THN> M6X35 FLANGE	0-28080-635-0	01	1	9612-9803	●
126	BOLT; CLIP,FUEL PIPE M6X35 FLANGE	0-28680-635-0	06	1	0107-0512	●
126	BOLT; CLIP,FUEL PIPE M6X35 FLANGE	0-28650-635-0	06	1	0601-	●
131	BRACKET; FUEL PIPE CLIP (A)	1-15419-437-0	01	1	9601-0106	●
131	BRACKET; FUEL PIPE CLIP (B)	1-15419-605-1	01	1	0107-	●
131	BRACKET; FUEL PIPE CLIP (C)	1-15419-668-0	01	1	0107-	●
131	BRACKET; FUEL PIPE CLIP (D)	1-15419-669-0	01	1	0107-	●
131	BRACKET; FUEL PIPE CLIP (E)	1-15419-670-0	01	1	0107-	●
131	BRACKET; FUEL PIPE CLIP (F)	1-15419-698-0	01	1	0107-	●
131	BRACKET; FUEL PIPE CLIP (G)	8-97601-488-0	01	1	0107-				●
148	BOLT; BRKT M8X25 FLANGE	0-28080-825-0	02	1	9601-9611	●
148	BOLT; BRKT EXC. EURO2 SPECIFICATION<THN> M8X25 FLANGE	0-28080-825-0	02	1	9612-9803	●
148	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	02	1	9610-0106			●
148	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	02	1	0107-0512	●			●
148	BOLT; BRKT M8X16 FLANGE	0-28050-816-0	02	1	0601-	●			●
190	SENSOR; FUEL TEMP	1-81535-040-2	01	1	0303-0304	●
190	SENSOR; FUEL TEMP	1-81535-040-2	01	1	0107-0208	●
190	SENSOR; FUEL TEMP	8-97601-754-3	01	1	0107-				●
207	GASKET; EYE BOLT ID=14.2 OD=19.2	1-09630-085-0	03	1	9601-0106	●
207	GASKET; EYE BOLT ID=14.2 OD=19.2	1-09630-085-0	02	1	0107-0112	●			●
207	GASKET; EYE BOLT ID=14.2 OD=19.2	1-09630-085-0	02	1	0201-1312	●
207	GASKET; EYE BOLT ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●
207	GASKET; EYE BOLT ID=14.2 OD=19.2	1-09630-085-0	02	1	9610-0106			●
219	GASKET; SENSOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=12.2	1-09630-084-0	01	1	0107-0208	●			●
219	GASKET; SENSOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=12.2	1-09630-084-0	01	1	0209-0302				●
219	GASKET; SENSOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=12.2	1-09630-084-0	01	1	0303-0304	●			●
219	GASKET; SENSOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=12.2	1-09630-084-0	01	1	0305-1312				●
219	GASKET; SENSOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=12.2	8-98251-344-0	01	1	1401-				●

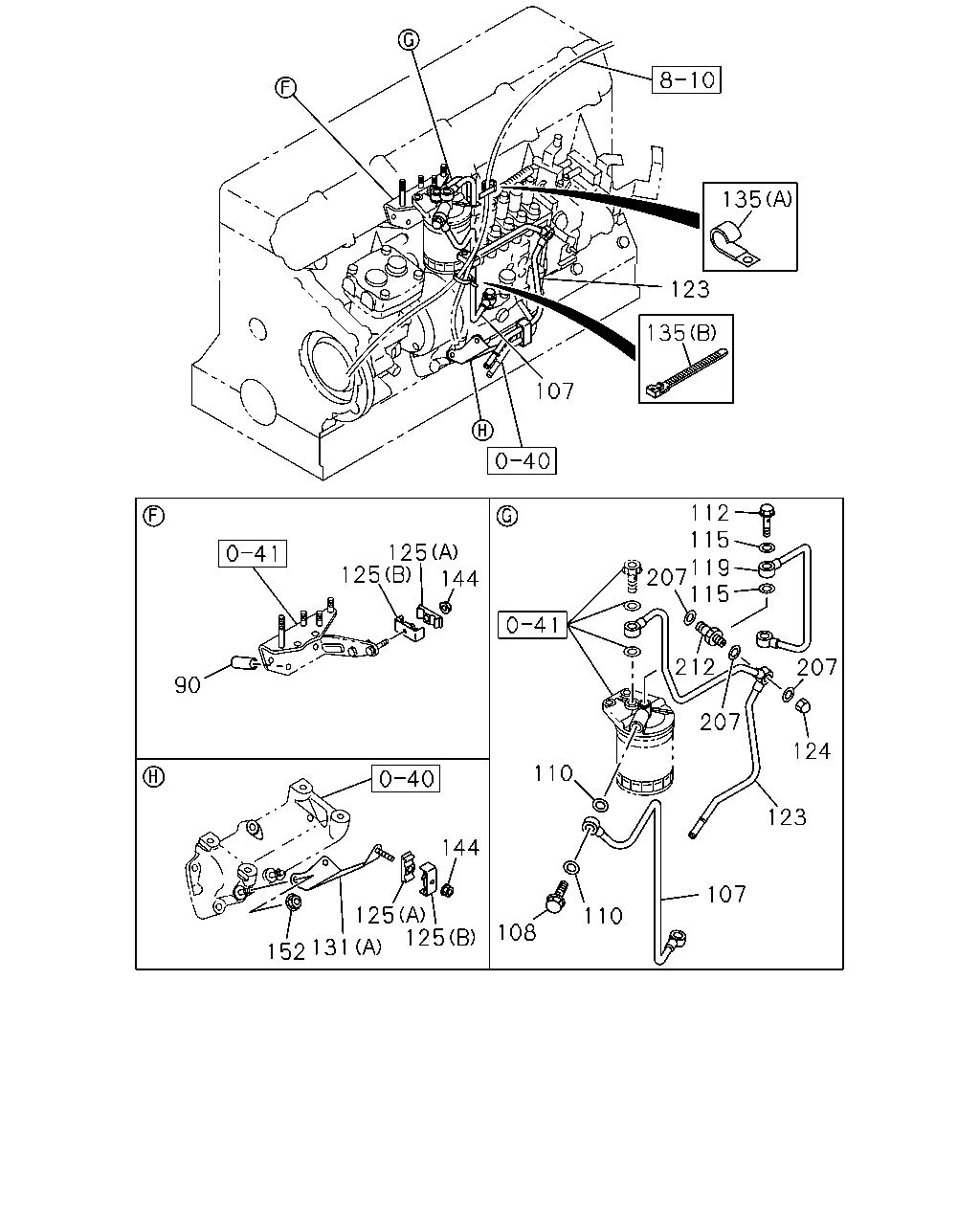

119 107 135 135 108 115 119 115 125 125 144 148 212 207 90 126 92 207 125 125 144 125 207 124 110 123 144 125 131 125 152 110 107 112

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
90	TUBE; DIST L=43	1-14149-048-1	01	1	9601-0106	●
92	BRACKET; FUEL PIPE	1-15419-433-0	01	1	9601-9611	●
92	BRACKET; FUEL PIPE EXC. EURO2 SPECIFICATION<THN>	1-15419-433-0	01	1	9612-9803	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-94396-681-0	01	1	9601-9803		●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	1-15415-779-0	01	1	9601-9609	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER EXC. EURO2 SPECIFICATION<THN>	1-15415-779-0	01	1	9610-9803	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER EURO2 SPECIFICATION<THN>	1-15415-950-0	01	1	9610-9803	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	1-15415-950-0	01	1	9804-0106	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	1-15416-691-0	01	1	0107-	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-94395-042-1	01	1	9610-0106			●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-97600-824-0	01	1	0107-				●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9601-9609	●	●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9610-9803	●	●	●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9804-0004	●		●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0005-0112	●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0201-	●			●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9601-9609	●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9610-9803	●	●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9804-0004	●		●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-0112	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0201-1312	●			●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●			●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9601-9609	●	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9610-9803	●	●	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9804-0106	●		●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0107-	●			●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9601-9609	●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9610-9803	●	●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9804-0106	●		●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0107-1312	●			●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●			●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-94390-343-0	01	1	9601-9803		●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	1-15415-776-0	01	1	9601-9609	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP EXC. EURO2 SPECIFICATION<THN>	1-15415-776-0	01	1	9610-9803	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP EURO2 SPECIFICATION<THN>	1-15415-951-0	01	1	9610-9803	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	1-15415-951-0	01	1	9804-0106	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	1-15416-692-0	01	1	0107-	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-94395-041-0	01	1	9610-0106			●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-97601-120-0	01	1	0107-				●
123	PIPE; FUEL,FUEL FILTER LEAK OFF	8-94394-556-1	01	1	9601-9803		●
123	PIPE; FUEL,FUEL FILTER LEAK OFF	1-15415-775-0	01	1	9601-9609	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF EXC. EURO2 SPECIFICATION<THN>	1-15415-775-0	01	1	9610-9803	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF EURO2 SPECIFICATION<THN>	1-15415-952-0	01	1	9610-9803	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF	1-15415-952-1	01	1	9804-0106	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF	1-15416-690-0	01	1	0107-0411	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF	8-97607-187-0	01	1	0412-	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF	8-94390-831-2	01	1	9610-0106			●
124	NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	9601-9803	●	●
124	NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	9804-0106	●
125	CLIP; FUEL PIPE (F)	1-09701-193-1	01	1	0412-	●
125	CLIP; FUEL PIPE (E)	1-09701-194-1	01	1	0412-	●
125	CLIP; FUEL PIPE (A)	1-09701-180-0	03	1	9601-0106	●
125	CLIP; FUEL PIPE (A)	1-09701-180-0	05	1	0107-0411	●
125	CLIP; FUEL PIPE (A)	1-09701-180-0	04	1	0412-	●
125	CLIP; FUEL PIPE (B) ID=10 & 10 L=25	8-94393-280-1	04	1	9601-9611	●
125	CLIP; FUEL PIPE EURO2 SPECIFICATION<THN> (B) ID=10 & 10 L=25	8-94393-280-1	03	1	9612-9803	●
125	CLIP; FUEL PIPE (B) ID=10 & 10 L=25	8-94393-280-1	03	1	9804-0106	●
125	CLIP; FUEL PIPE (B) ID=10 & 10 L=25	8-94393-280-2	05	1	0107-0411	●
125	CLIP; FUEL PIPE (B) ID=10 & 10 L=25	8-94393-280-3	04	1	0412-	●
125	CLIP; FUEL PIPE (C)	1-09701-172-3	01	1	0107-	●
125	CLIP; FUEL PIPE (D)	1-09701-173-2	01	1	0107-	●
125	CLIP; FUEL PIPE EXC. EURO2 SPECIFICATION<THN> (B) ID=10 & 10 L=25	8-94393-280-1	04	1	9612-9803	●
126	BOLT; CLIP,FUEL PIPE M6X35 FLANGE	0-28080-635-0	01	1	9601-9611	●
126	BOLT; CLIP,FUEL PIPE EXC. EURO2 SPECIFICATION<THN> M6X35 FLANGE	0-28080-635-0	01	1	9612-9803	●
126	BOLT; CLIP,FUEL PIPE M6X35 FLANGE	0-28680-635-0	06	1	0107-0512	●
126	BOLT; CLIP,FUEL PIPE M6X35 FLANGE	0-28650-635-0	06	1	0601-	●
131	BRACKET; FUEL PIPE CLIP (A)	1-15419-437-0	01	1	9601-0106	●
131	BRACKET; FUEL PIPE CLIP (B)	1-15419-605-1	01	1	0107-	●
131	BRACKET; FUEL PIPE CLIP (C)	1-15419-668-0	01	1	0107-	●
131	BRACKET; FUEL PIPE CLIP (D)	1-15419-669-0	01	1	0107-	●
131	BRACKET; FUEL PIPE CLIP (E)	1-15419-670-0	01	1	0107-	●
131	BRACKET; FUEL PIPE CLIP (F)	1-15419-698-0	01	1	0107-	●
131	BRACKET; FUEL PIPE CLIP (G)	8-97601-488-0	01	1	0107-				●
135	CLIP; HARNESS EURO2 SPECIFICATION<THN> (A) L=110	8-94149-419-0	01	1	9610-9803	●
135	CLIP; HARNESS (A) L=110	8-94149-419-0	01	1	9804-0106	●
135	CLIP; HARNESS EURO2 SPECIFICATION<THN> (B) L=140	5-09707-031-0	01	1	9702-9803	●
135	CLIP; HARNESS (B) L=140	5-09707-031-1	01	1	9804-0106	●
144	NUT; CLIP M6 FLANGE	0-91150-106-0	03	1	9601-0106	●
148	BOLT; BRKT M8X25 FLANGE	0-28080-825-0	02	1	9601-9611	●
148	BOLT; BRKT EXC. EURO2 SPECIFICATION<THN> M8X25 FLANGE	0-28080-825-0	02	1	9612-9803	●
148	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	02	1	9610-0106			●
148	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	02	1	0107-0512	●			●
148	BOLT; BRKT M8X16 FLANGE	0-28050-816-0	02	1	0601-	●			●
152	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9601-0106	●
152	NUT; BRKT M6 FLANGE	0-91150-206-0	02	1	0107-0602				●
152	NUT; BRKT M6 FLANGE	0-91180-206-0	02	1	0603-				●
207	GASKET; EYE BOLT ID=14.2 OD=19.2	1-09630-085-0	03	1	9601-0106	●
207	GASKET; EYE BOLT ID=14.2 OD=19.2	1-09630-085-0	02	1	0107-0112	●			●
207	GASKET; EYE BOLT ID=14.2 OD=19.2	1-09630-085-0	02	1	0201-1312	●
207	GASKET; EYE BOLT ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●
207	GASKET; EYE BOLT ID=14.2 OD=19.2	1-09630-085-0	02	1	9610-0106			●
212	VALVE; OVERFLOW	8-94399-087-0	01	1	9601-9803		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
