0-41 — FUEL FILTER AND BRACKET (#26586) — 167 parça

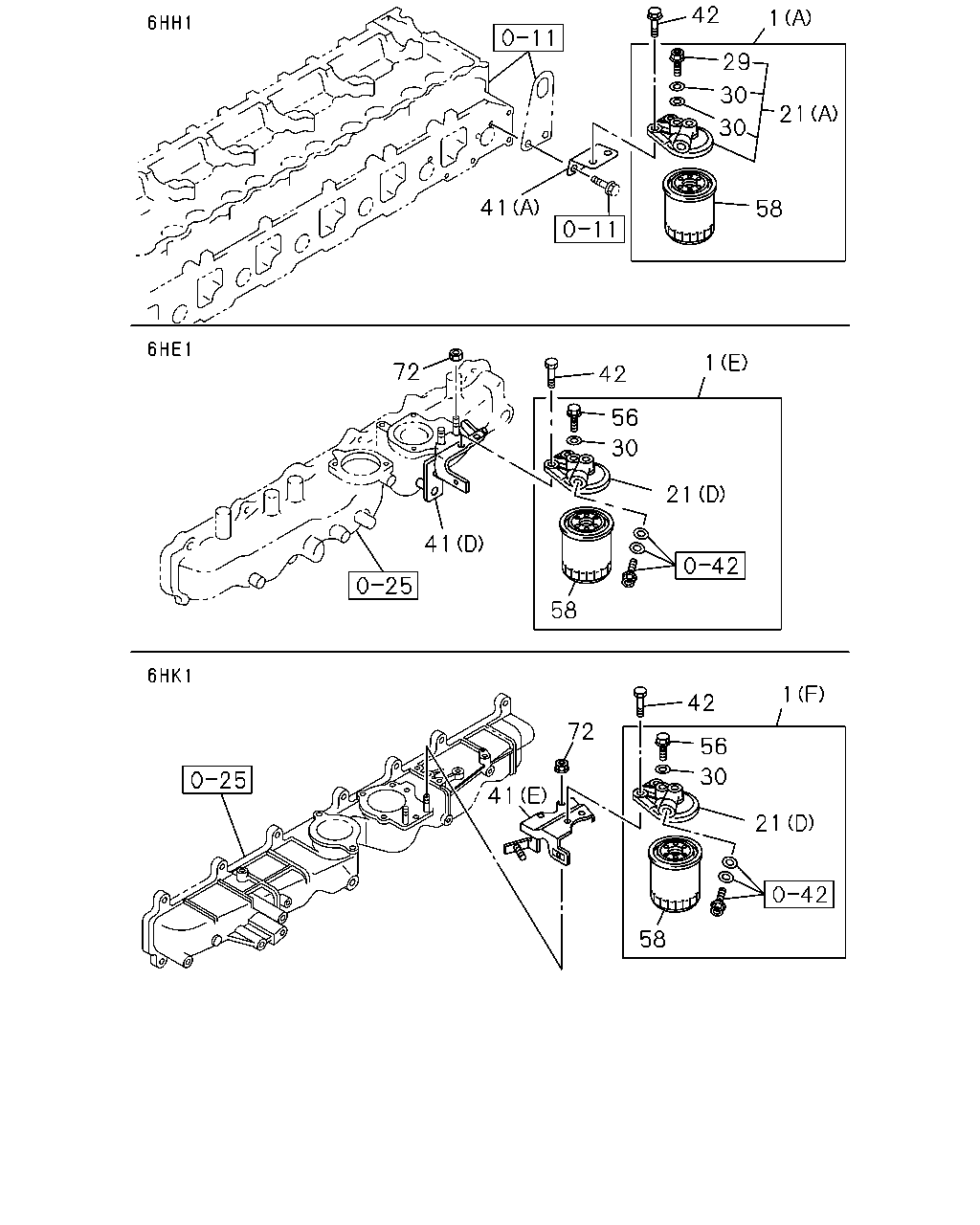

42 1 29 30 21 30 41 58 1 72 42 56 30 21 41 58 1 42 72 56 30 41 21 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	FILTER ASM; FUEL (A)	8-94393-449-1	01	1	9601-9803	●
1	FILTER ASM; FUEL (B)	1-13200-701-1	01	1	9601-9609		●
1	FILTER ASM; FUEL EXC. EURO2 SPECIFICATION<THN> (B)	1-13200-701-1	01	1	9610-9803		●
1	FILTER ASM; FUEL EURO2 SPECIFICATION<THN> (C)	1-13200-973-0	01	1	9610-9803		●
1	FILTER ASM; FUEL (C)	1-13200-973-0	01	1	9804-0106		●
1	FILTER ASM; FUEL (D)	1-13200-996-1	01	1	0107-1106		●
1	FILTER ASM; FUEL (D)	8-98175-166-0	01	1	1107-		●
1	FILTER ASM; FUEL (E)	1-13200-890-0	01	1	9610-0106			●
1	FILTER ASM; FUEL (F)	1-13200-890-4	01	1	0107-				●
21	COVER; UPR,FUEL FILTER (A)	8-94396-669-0	01	1	9601-9803	●
21	COVER; UPR,FUEL FILTER (B)	1-13212-087-0	01	1	9601-9609		●
21	COVER; UPR,FUEL FILTER EXC. EURO2 SPECIFICATION<THN> (B)	1-13212-087-0	01	1	9610-9803		●
21	COVER; UPR,FUEL FILTER (C)	1-13212-049-1	01	1	0107-		●
21	COVER; UPR,FUEL FILTER EURO2 SPECIFICATION<THN> (D)	1-13212-108-0	01	1	9610-9803		●
21	COVER; UPR,FUEL FILTER (D)	1-13212-108-0	01	1	9610-9803			●
21	COVER; UPR,FUEL FILTER (D)	1-13212-108-0	01	1	9804-0106		●	●
21	COVER; UPR,FUEL FILTER (D)	1-13212-108-1	01	1	0107-0710				●
29	VALVE; OVERFLOW	8-94399-170-0	01	1	9601-9609	●
29	VALVE; OVERFLOW	8-94399-170-0	01	1	9610-9803	●
29	VALVE; OVERFLOW EURO2 SPECIFICATION<THN>	8-94399-170-0	01	1	9610-9803		●
29	VALVE; OVERFLOW	1-13260-047-0	01	1	9601-9609		●
29	VALVE; OVERFLOW EXC. EURO2 SPECIFICATION<THN>	1-13260-047-0	01	1	9610-9803		●
29	VALVE; OVERFLOW	8-94399-170-0	01	1	9804-0106		●
29	VALVE; OVERFLOW	1-13260-115-0	01	1	0107-		●
30	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	1107-		●
30	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9601-9803	●	●
30	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9804-0212		●
30	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	01	1	9610-0106			●
30	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	01	1	0107-0206				●
41	BRACKET; FUEL FILTER (A)	8-94399-441-0	01	1	9601-9803	●
41	BRACKET; FUEL FILTER (B)	1-13219-312-1	01	1	9601-9609		●
41	BRACKET; FUEL FILTER EXC. EURO2 SPECIFICATION<THN> (B)	1-13219-312-1	01	1	9610-9803		●
41	BRACKET; FUEL FILTER EURO2 SPECIFICATION<THN> (C)	1-13219-318-1	01	1	9610-9612		●
41	BRACKET; FUEL FILTER EURO2 SPECIFICATION<THN> (C)	1-13219-330-0	01	1	9701-9803		●
41	BRACKET; FUEL FILTER (C)	1-13219-330-0	01	1	9804-0106		●
41	BRACKET; FUEL FILTER (D)	8-94395-066-1	01	1	9610-0106			●
41	BRACKET; FUEL FILTER (E)	8-97602-219-0	01	1	0107-				●
42	BOLT; FUEL FILTER M10X35 FLANGE	0-28081-035-0	02	1	9601-9609	●
42	BOLT; FUEL FILTER M10X35 FLANGE	0-28081-035-0	02	1	9610-9709	●		●
42	BOLT; FUEL FILTER M10X35 FLANGE	0-28681-035-0	02	1	9710-9803	●		●
42	BOLT; FUEL FILTER M10X35 FLANGE	0-28681-035-0	02	1	9804-0106			●
42	BOLT; FUEL FILTER M10X35 FLANGE	0-28081-035-0	02	1	0107-0112				●
42	BOLT; FUEL FILTER M10X35 FLANGE	0-28681-035-0	02	1	0201-0512				●
42	BOLT; FUEL FILTER M10X35 FLANGE	0-28651-035-0	02	1	0601-				●
42	BOLT; FUEL FILTER M10X35 W/LK&PL WASHER	0-50141-035-0	02	1	9601-0106		●
42	BOLT; FUEL FILTER M10X35 FLANGE	0-28681-035-0	04	1	0107-0512		●
42	BOLT; FUEL FILTER M10X35 FLANGE	0-28651-035-0	04	1	0601-		●
56	PLUG; FUEL FILTER M14X9	9-99202-314-0	01	1	9610-0106			●
56	PLUG; FUEL FILTER M14X9	9-99202-314-0	01	1	0107-0206				●
58	ELEMENT; FUEL FILTER	8-94394-079-1	01	1	9601-9803	●
58	ELEMENT; FUEL FILTER	1-13240-079-1	01	1	9601-9609		●
58	ELEMENT; FUEL FILTER	1-13240-079-1	01	1	9610-0106		●	●
58	ELEMENT; FUEL FILTER	1-13240-079-1	01	1	0107-0711				●
58	ELEMENT; FUEL FILTER	8-98036-654-0	01	1	0712-				●
72	NUT; BRKT,FUEL FILTER M8 FLANGE	0-91150-108-0	03	1	9601-0106		●
72	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91150-110-0	02	1	9610-0106			●
72	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91150-110-0	02	1	0107-0602				●
72	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91180-110-0	02	1	0603-				●

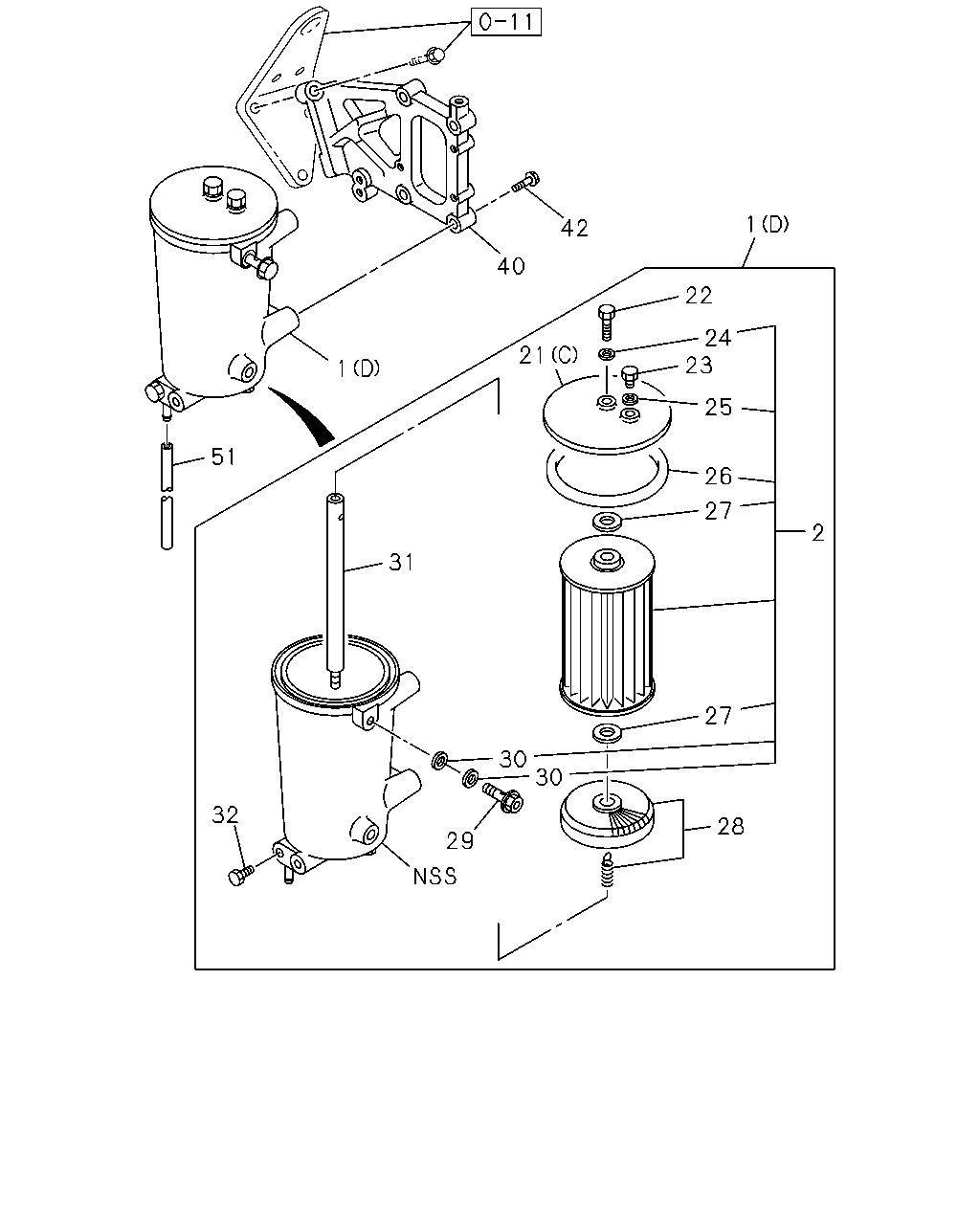

1 42 40 22 24 23 21 1 25 51 26 27 2 31 27 30 30 32 28 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	FILTER ASM; FUEL (A)	8-94393-449-1	01	1	9601-9803	●
1	FILTER ASM; FUEL (B)	1-13200-701-1	01	1	9601-9609		●
1	FILTER ASM; FUEL EXC. EURO2 SPECIFICATION<THN> (B)	1-13200-701-1	01	1	9610-9803		●
1	FILTER ASM; FUEL EURO2 SPECIFICATION<THN> (C)	1-13200-973-0	01	1	9610-9803		●
1	FILTER ASM; FUEL (C)	1-13200-973-0	01	1	9804-0106		●
1	FILTER ASM; FUEL (D)	1-13200-996-1	01	1	0107-1106		●
1	FILTER ASM; FUEL (D)	8-98175-166-0	01	1	1107-		●
1	FILTER ASM; FUEL (E)	1-13200-890-0	01	1	9610-0106			●
1	FILTER ASM; FUEL (F)	1-13200-890-4	01	1	0107-				●
2	ELEMENT KIT; FUEL FILTER	1-87810-976-0	01	1	0107-1106		●
2	ELEMENT KIT; FUEL FILTER	8-98174-903-0	02	1	1107-		●
21	COVER; UPR,FUEL FILTER (A)	8-94396-669-0	01	1	9601-9803	●
21	COVER; UPR,FUEL FILTER (B)	1-13212-087-0	01	1	9601-9609		●
21	COVER; UPR,FUEL FILTER EXC. EURO2 SPECIFICATION<THN> (B)	1-13212-087-0	01	1	9610-9803		●
21	COVER; UPR,FUEL FILTER (C)	1-13212-049-1	01	1	0107-		●
21	COVER; UPR,FUEL FILTER EURO2 SPECIFICATION<THN> (D)	1-13212-108-0	01	1	9610-9803		●
21	COVER; UPR,FUEL FILTER (D)	1-13212-108-0	01	1	9610-9803			●
21	COVER; UPR,FUEL FILTER (D)	1-13212-108-0	01	1	9804-0106		●	●
21	COVER; UPR,FUEL FILTER (D)	1-13212-108-1	01	1	0107-0710				●
22	BOLT; CENTER TUBE,COVER	1-13219-045-0	01	1	0107-		●
23	PLUG; COVER	1-13219-074-0	01	1	0107-		●
24	GASKET; CENTER TUBE BOLT ID=10.2 OD=15.2	1-09630-083-0	01	1	0107-		●
25	GASKET; AIR DRAIN PLUG ID=10.2 OD=15.2	1-09630-083-0	01	1	0107-		●
26	GASKET; COVER TO BODY	9-09720-797-0	01	1	0107-		●
27	GASKET; ELEMENT	1-09630-007-0	02	1	0107-		●
28	STRAINER; WATER,FUEL FILTER	1-13251-001-0	01	1	0107-		●
29	VALVE; OVERFLOW	8-94399-170-0	01	1	9601-9609	●
29	VALVE; OVERFLOW	8-94399-170-0	01	1	9610-9803	●
29	VALVE; OVERFLOW EURO2 SPECIFICATION<THN>	8-94399-170-0	01	1	9610-9803		●
29	VALVE; OVERFLOW	1-13260-047-0	01	1	9601-9609		●
29	VALVE; OVERFLOW EXC. EURO2 SPECIFICATION<THN>	1-13260-047-0	01	1	9610-9803		●
29	VALVE; OVERFLOW	8-94399-170-0	01	1	9804-0106		●
29	VALVE; OVERFLOW	1-13260-115-0	01	1	0107-		●
30	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	1107-		●
30	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9601-9803	●	●
30	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9804-0212		●
30	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	01	1	9610-0106			●
30	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	01	1	0107-0206				●
31	TUBE; CENTER BOLT	1-13231-026-0	01	1	0107-		●
32	BOLT; DRAIN,FUEL FILTER	1-13219-030-0	01	1	0107-		●
40	BRACKET; FUEL FILTER	1-13219-352-1	01	1	0107-		●
42	BOLT; FUEL FILTER M10X35 FLANGE	0-28081-035-0	02	1	9601-9609	●
42	BOLT; FUEL FILTER M10X35 FLANGE	0-28081-035-0	02	1	9610-9709	●		●
42	BOLT; FUEL FILTER M10X35 FLANGE	0-28681-035-0	02	1	9710-9803	●		●
42	BOLT; FUEL FILTER M10X35 FLANGE	0-28681-035-0	02	1	9804-0106			●
42	BOLT; FUEL FILTER M10X35 FLANGE	0-28081-035-0	02	1	0107-0112				●
42	BOLT; FUEL FILTER M10X35 FLANGE	0-28681-035-0	02	1	0201-0512				●
42	BOLT; FUEL FILTER M10X35 FLANGE	0-28651-035-0	02	1	0601-				●
42	BOLT; FUEL FILTER M10X35 W/LK&PL WASHER	0-50141-035-0	02	1	9601-0106		●
42	BOLT; FUEL FILTER M10X35 FLANGE	0-28681-035-0	04	1	0107-0512		●
42	BOLT; FUEL FILTER M10X35 FLANGE	0-28651-035-0	04	1	0601-		●
51	PIPE; VINYL L=1000 SERVICED BY L=10000	9-09914-909-0	01	1	0107-0209		●
51	PIPE; VINYL L=800 SERVICED BY L=10000	9-09914-909-0	01	1	0210-		●

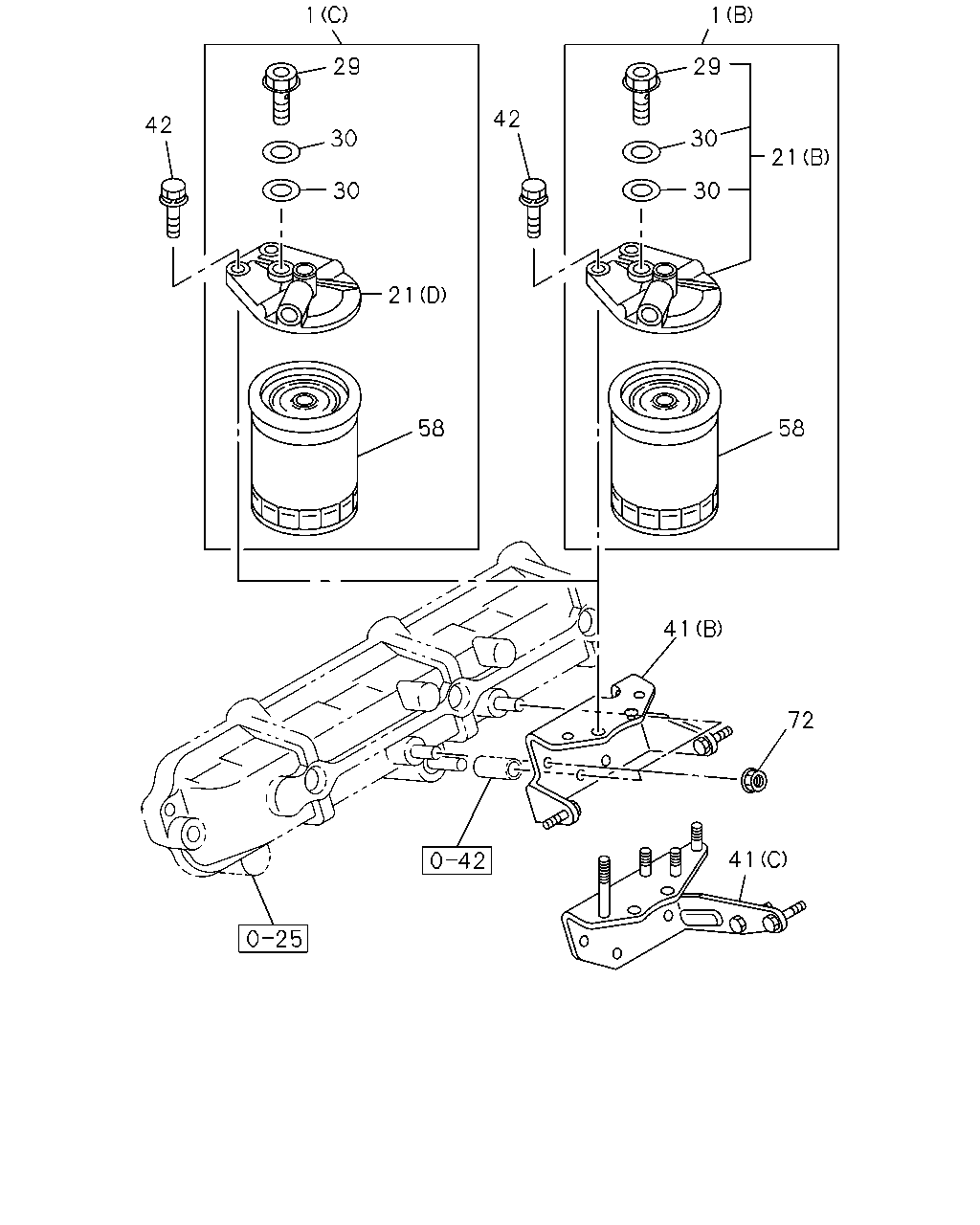

1 1 29 29 42 42 30 30 21 30 30 21 58 58 41 72 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	FILTER ASM; FUEL (A)	8-94393-449-1	01	1	9601-9803	●
1	FILTER ASM; FUEL (B)	1-13200-701-1	01	1	9601-9609		●
1	FILTER ASM; FUEL EXC. EURO2 SPECIFICATION<THN> (B)	1-13200-701-1	01	1	9610-9803		●
1	FILTER ASM; FUEL EURO2 SPECIFICATION<THN> (C)	1-13200-973-0	01	1	9610-9803		●
1	FILTER ASM; FUEL (C)	1-13200-973-0	01	1	9804-0106		●
1	FILTER ASM; FUEL (D)	1-13200-996-1	01	1	0107-1106		●
1	FILTER ASM; FUEL (D)	8-98175-166-0	01	1	1107-		●
1	FILTER ASM; FUEL (E)	1-13200-890-0	01	1	9610-0106			●
1	FILTER ASM; FUEL (F)	1-13200-890-4	01	1	0107-				●
21	COVER; UPR,FUEL FILTER (A)	8-94396-669-0	01	1	9601-9803	●
21	COVER; UPR,FUEL FILTER (B)	1-13212-087-0	01	1	9601-9609		●
21	COVER; UPR,FUEL FILTER EXC. EURO2 SPECIFICATION<THN> (B)	1-13212-087-0	01	1	9610-9803		●
21	COVER; UPR,FUEL FILTER (C)	1-13212-049-1	01	1	0107-		●
21	COVER; UPR,FUEL FILTER EURO2 SPECIFICATION<THN> (D)	1-13212-108-0	01	1	9610-9803		●
21	COVER; UPR,FUEL FILTER (D)	1-13212-108-0	01	1	9610-9803			●
21	COVER; UPR,FUEL FILTER (D)	1-13212-108-0	01	1	9804-0106		●	●
21	COVER; UPR,FUEL FILTER (D)	1-13212-108-1	01	1	0107-0710				●
29	VALVE; OVERFLOW	8-94399-170-0	01	1	9601-9609	●
29	VALVE; OVERFLOW	8-94399-170-0	01	1	9610-9803	●
29	VALVE; OVERFLOW EURO2 SPECIFICATION<THN>	8-94399-170-0	01	1	9610-9803		●
29	VALVE; OVERFLOW	1-13260-047-0	01	1	9601-9609		●
29	VALVE; OVERFLOW EXC. EURO2 SPECIFICATION<THN>	1-13260-047-0	01	1	9610-9803		●
29	VALVE; OVERFLOW	8-94399-170-0	01	1	9804-0106		●
29	VALVE; OVERFLOW	1-13260-115-0	01	1	0107-		●
30	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	1107-		●
30	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9601-9803	●	●
30	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9804-0212		●
30	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	01	1	9610-0106			●
30	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	01	1	0107-0206				●
41	BRACKET; FUEL FILTER (A)	8-94399-441-0	01	1	9601-9803	●
41	BRACKET; FUEL FILTER (B)	1-13219-312-1	01	1	9601-9609		●
41	BRACKET; FUEL FILTER EXC. EURO2 SPECIFICATION<THN> (B)	1-13219-312-1	01	1	9610-9803		●
41	BRACKET; FUEL FILTER EURO2 SPECIFICATION<THN> (C)	1-13219-318-1	01	1	9610-9612		●
41	BRACKET; FUEL FILTER EURO2 SPECIFICATION<THN> (C)	1-13219-330-0	01	1	9701-9803		●
41	BRACKET; FUEL FILTER (C)	1-13219-330-0	01	1	9804-0106		●
41	BRACKET; FUEL FILTER (D)	8-94395-066-1	01	1	9610-0106			●
41	BRACKET; FUEL FILTER (E)	8-97602-219-0	01	1	0107-				●
42	BOLT; FUEL FILTER M10X35 FLANGE	0-28081-035-0	02	1	9601-9609	●
42	BOLT; FUEL FILTER M10X35 FLANGE	0-28081-035-0	02	1	9610-9709	●		●
42	BOLT; FUEL FILTER M10X35 FLANGE	0-28681-035-0	02	1	9710-9803	●		●
42	BOLT; FUEL FILTER M10X35 FLANGE	0-28681-035-0	02	1	9804-0106			●
42	BOLT; FUEL FILTER M10X35 FLANGE	0-28081-035-0	02	1	0107-0112				●
42	BOLT; FUEL FILTER M10X35 FLANGE	0-28681-035-0	02	1	0201-0512				●
42	BOLT; FUEL FILTER M10X35 FLANGE	0-28651-035-0	02	1	0601-				●
42	BOLT; FUEL FILTER M10X35 W/LK&PL WASHER	0-50141-035-0	02	1	9601-0106		●
42	BOLT; FUEL FILTER M10X35 FLANGE	0-28681-035-0	04	1	0107-0512		●
42	BOLT; FUEL FILTER M10X35 FLANGE	0-28651-035-0	04	1	0601-		●
58	ELEMENT; FUEL FILTER	8-94394-079-1	01	1	9601-9803	●
58	ELEMENT; FUEL FILTER	1-13240-079-1	01	1	9601-9609		●
58	ELEMENT; FUEL FILTER	1-13240-079-1	01	1	9610-0106		●	●
58	ELEMENT; FUEL FILTER	1-13240-079-1	01	1	0107-0711				●
58	ELEMENT; FUEL FILTER	8-98036-654-0	01	1	0712-				●
72	NUT; BRKT,FUEL FILTER M8 FLANGE	0-91150-108-0	03	1	9601-0106		●
72	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91150-110-0	02	1	9610-0106			●
72	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91150-110-0	02	1	0107-0602				●
72	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91180-110-0	02	1	0603-				●
