Sayfa 0-38 - Isuzu EPC

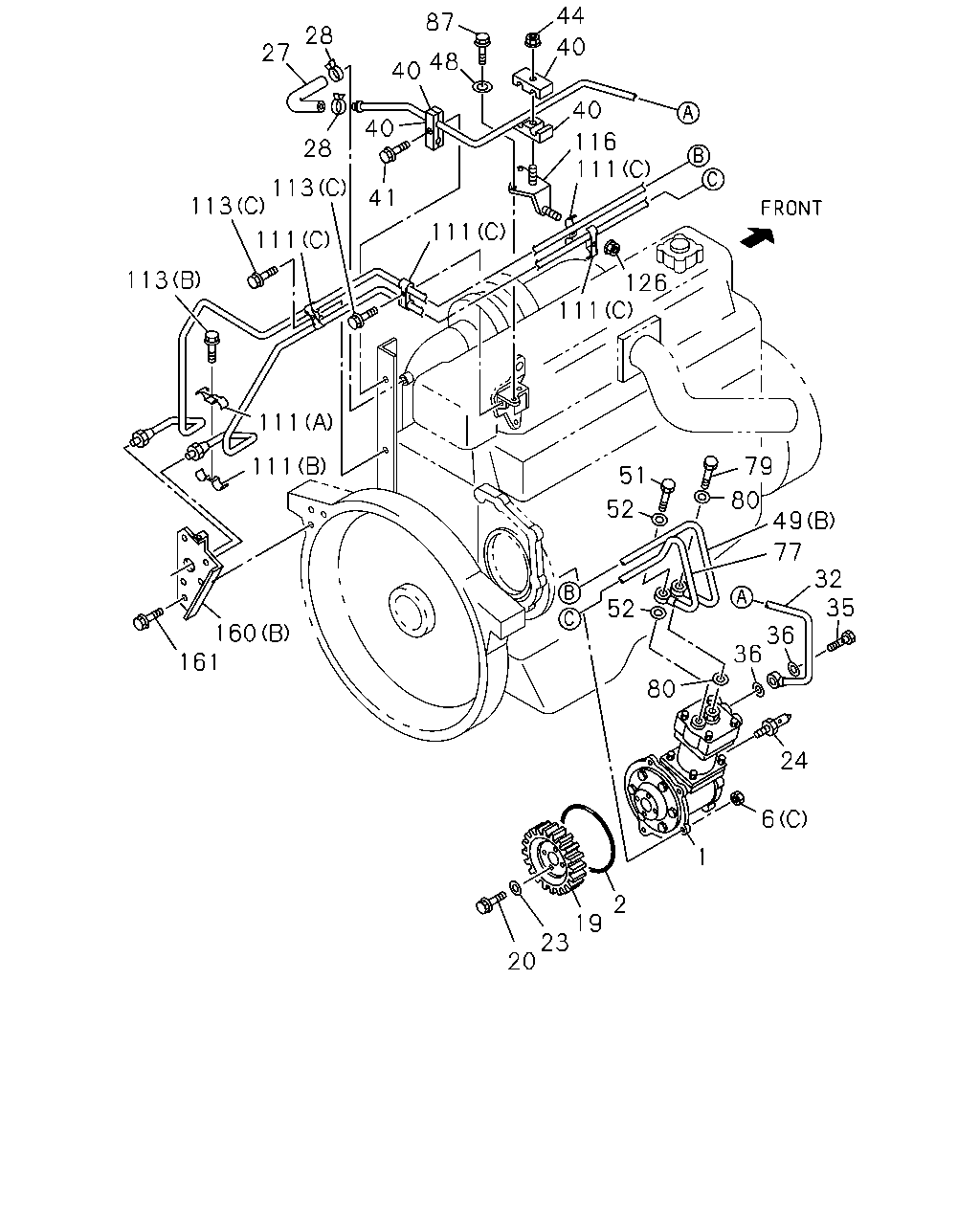

0-38 — AIR COMPRESSOR PIPING; ENGINE SIDE (#26583) — 662 parça

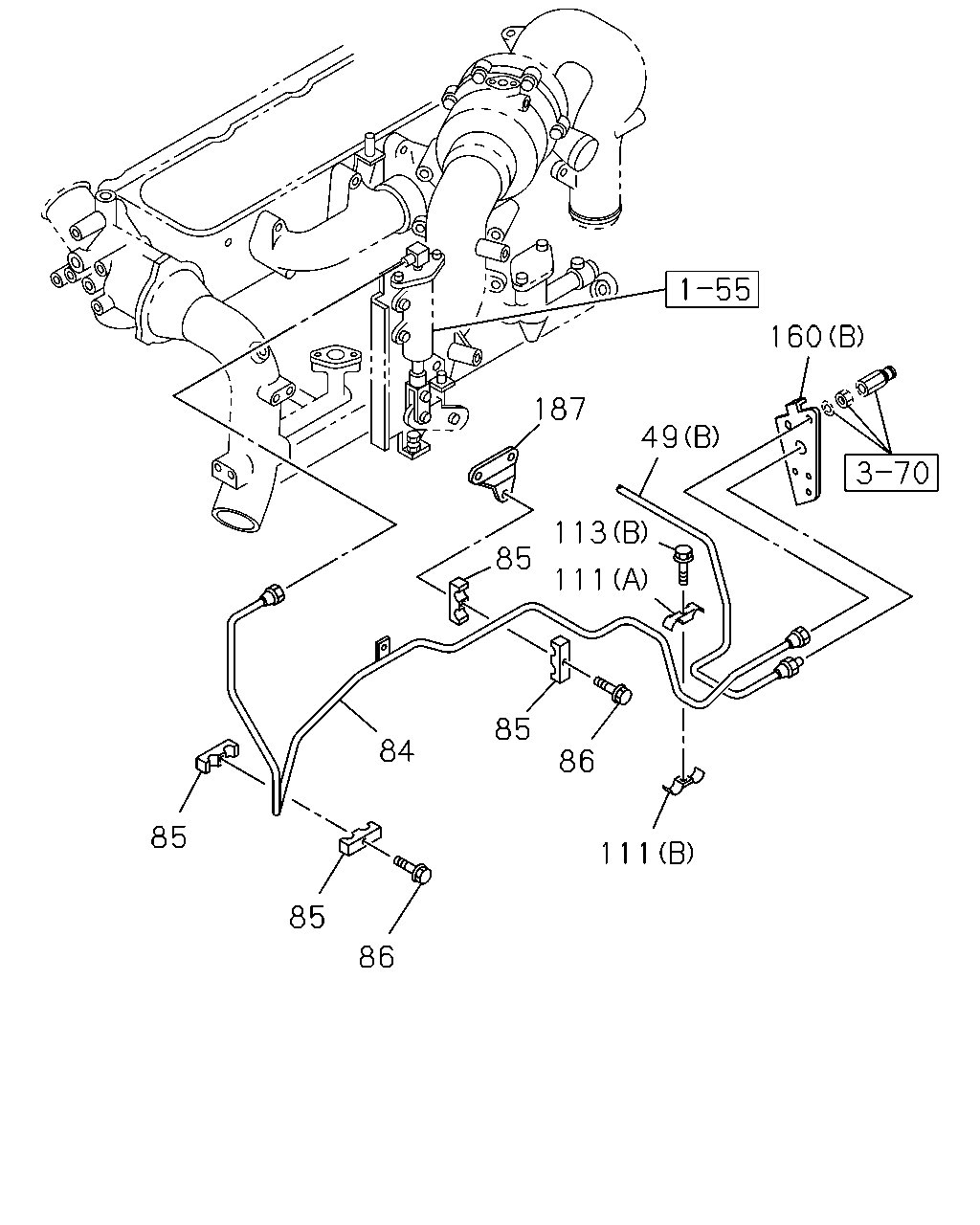

160 187 49 113 85 111 85 84 86 85 111 85 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
49	PIPE; AIR,CHARGE (A)	8-94395-087-2	01	1	9601-9803	●
49	PIPE; AIR,CHARGE (B)	1-19192-963-0	01	1	9601-0106		●
49	PIPE; AIR,CHARGE (C)	1-19193-350-0	01	1	0107-		●
49	PIPE; AIR,CHARGE (D)	1-19193-357-0	01	1	0107-		●
49	PIPE; AIR,CHARGE (E)	8-94395-723-0	01	1	9610-0106			●
49	PIPE; AIR,CHARGE (F)	8-97600-675-1	01	1	0107-0107				●
49	PIPE; AIR,CHARGE (F)	8-97602-182-0	01	1	0108-				●
84	PIPE; AIR	1-19192-964-0	01	1	9601-0106		●
84	PIPE; AIR	1-19193-354-0	01	1	0107-		●
85	CLIP; PIPE	1-09701-240-0	04	1	9601-0106		●
86	BOLT; CLIP M6X35 FLANGE	0-28080-635-0	02	1	9601-0106		●
111	CLIP; AIR PIPE (A) WO/NUT	1-09700-547-0	02	1	9601-0106		●
111	CLIP; AIR PIPE (B) W/NUT	1-09700-550-0	02	1	9601-0106		●
111	CLIP; AIR PIPE (C)	1-09701-208-0	06	1	9601-0106		●
111	CLIP; AIR PIPE (D)	1-09701-091-0	01	1	9610-0106			●
111	CLIP; AIR PIPE (E)	8-94396-371-0	01	1	0107-				●
113	BOLT; CLIP,AIR PIPE (A) M6X40 W/LK&PL WASHER	0-50140-640-0	01	1	9601-9709	●
113	BOLT; CLIP,AIR PIPE (A) M6X40 FLANGE	0-28080-640-0	01	1	9710-9803	●
113	BOLT; CLIP,AIR PIPE (B) M6X25 FLANGE	0-28080-625-0	02	1	9601-0106		●
113	BOLT; CLIP,AIR PIPE (C) M6X40 FLANGE	0-28080-640-0	02	1	9601-9709		●
113	BOLT; CLIP,AIR PIPE (C) M6X40 FLANGE	0-28080-640-0	02	1	9710-0106		●	●
113	BOLT; CLIP,AIR PIPE (D) M6X40 FLANGE	0-28080-640-0	01	1	0107-0512				●
113	BOLT; CLIP,AIR PIPE (D) M6X40 FLANGE	0-28050-640-0	01	1	0601-				●
113	BOLT; CLIP,AIR PIPE (E) M6X20 FLANGE	0-28680-620-0	01	1	9610-0106			●
113	BOLT; CLIP,AIR PIPE (F) M6X20 FLANGE	0-28080-620-0	01	1	0107-0512				●
113	BOLT; CLIP,AIR PIPE (F) M6X20 FLANGE	0-28050-620-0	01	1	0601-				●
113	BOLT; CLIP,AIR PIPE (C) M6X40 W/LK&PL WASHER	0-50140-640-0	02	1	9610-9709			●
160	BRACKET; AIR PIPE (A)	8-94394-569-0	01	1	9601-9803	●
160	BRACKET; AIR PIPE (B)	1-19199-251-0	01	1	9601-0106		●
160	BRACKET; AIR PIPE (C)	1-19199-378-0	01	1	0107-		●
160	BRACKET; AIR PIPE (D)	8-94391-073-0	01	1	9610-0106			●
160	BRACKET; AIR PIPE (E)	8-97601-489-0	01	1	0107-				●
187	BRACKET; AIR PIPE	1-19199-261-0	01	1	9601-0106		●

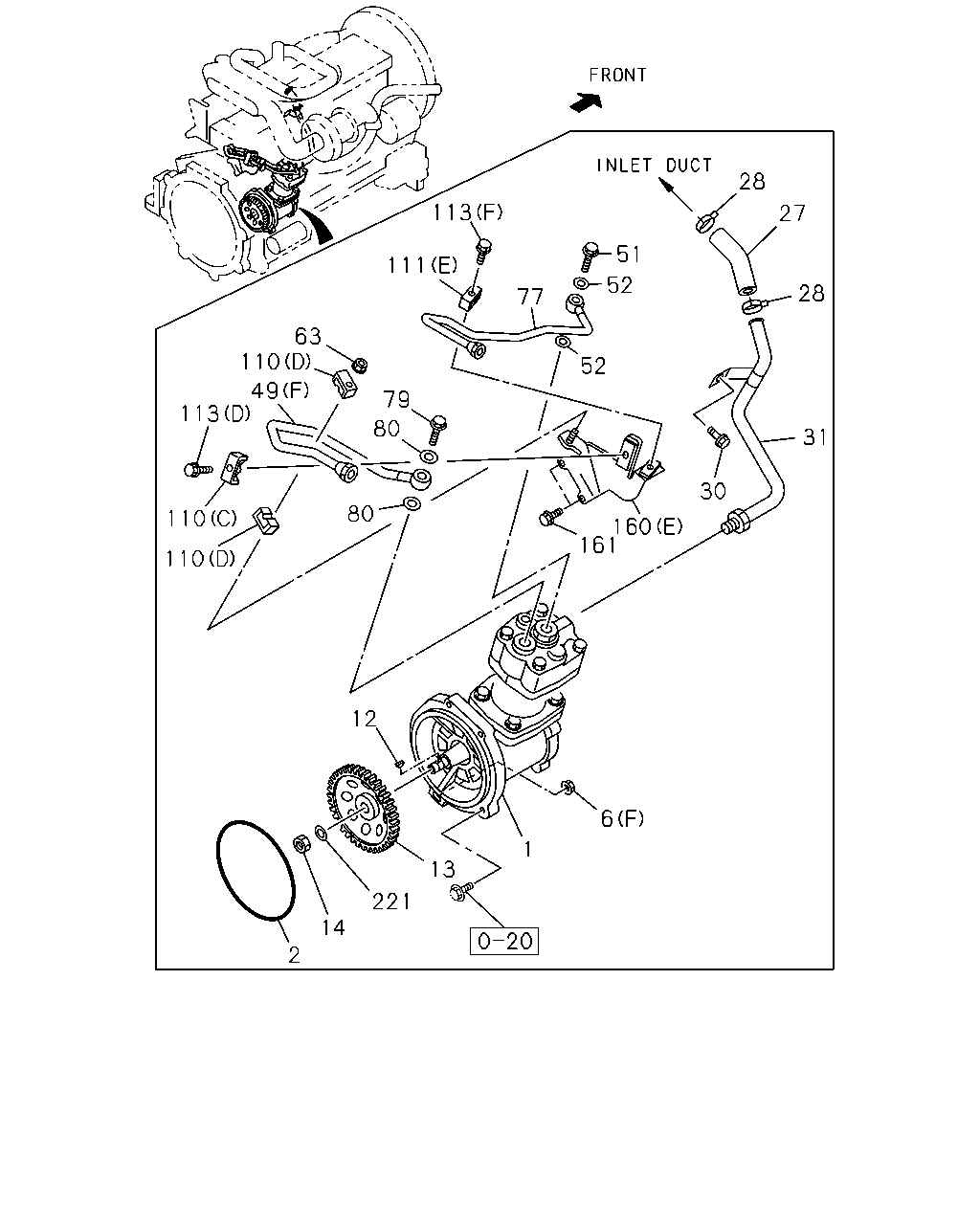

28 113 111 77 27 51 52 28 49 116 31 79 80 30 52 87 110 113 80 12 6 1 13 221 14 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94396-892-7	01	1	9601-9803	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-286-3	01	1	9601-9810		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-319-3	01	1	9811-		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94394-039-3	01	1	9610-0106			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94394-039-4	01	1	0107-1107				●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98187-298-0	01	1	1108-1202				●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-97642-294-0	01	1	1203-				●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	9601-9803	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-449-0	01	1	9601-		●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162.6	1-09623-570-0	01	1	9610-0106			●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162.6	1-09623-570-0	01	1	0107-				●
6	NUT; AIR CMPR (A) M10 FLANGE	0-91150-110-0	02	1	9601-9803	●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91150-112-0	01	1	9601-9803	●
6	NUT; AIR CMPR (C) M12 FLANGE	0-91150-112-0	04	1	9601-0106		●
6	NUT; AIR CMPR (D) M12 FLANGE	0-91150-112-0	02	1	0107-0602		●
6	NUT; AIR CMPR (D) M12 FLANGE	0-91180-112-0	02	1	0603-		●
6	NUT; AIR CMPR (E) M12 FLANGE	0-91150-212-0	01	1	9610-0106			●
6	NUT; AIR CMPR (F) M12 FLANGE	0-91150-212-0	01	1	0107-0602				●
6	NUT; AIR CMPR (F) M12 FLANGE	0-91180-212-0	01	1	0603-				●
12	KEY; AIR CMPR GEAR	9-08055-516-0	01	1	9610-0106			●
12	KEY; AIR CMPR GEAR	9-08055-516-0	01	1	0107-				●
13	GEAR; AIR CMPR DRIVE Z=49	8-94394-511-4	01	1	9610-0106			●
13	GEAR; AIR CMPR DRIVE Z=49	8-94394-511-4	01	1	0107-				●
14	NUT; GEAR M20	9-99110-520-0	01	1	9601-9609	●
14	NUT; GEAR M20	9-99110-520-0	01	1	9610-9803	●		●
14	NUT; GEAR M20	9-99110-520-0	01	1	9804-0106			●
14	NUT; GEAR M20	9-99110-520-0	01	1	0107-0512				●
14	NUT; GEAR M20	0-91110-520-0	01	1	0601-				●
27	HOSE; AIR CMPR,SUCTION	8-94394-967-0	01	1	9601-9803	●
27	HOSE; AIR CMPR,SUCTION	1-09360-916-0	01	1	9601-0106		●
27	HOSE; AIR CMPR,SUCTION L=55	1-09360-784-0	02	1	0107-		●
27	HOSE; AIR CMPR,SUCTION L=80 SERVICED BY L=1500	1-09360-476-0	01	1	9610-0106			●
27	HOSE; AIR CMPR,SUCTION	8-97602-063-1	01	1	0107-				●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	9601-9609	●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	9610-9803	●		●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	9804-0106			●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	0107-				●
28	CLIP; HOSE,AIR CMPR ID=22.7	8-94466-382-0	02	1	9601-0106		●
28	CLIP; HOSE,AIR CMPR ID=28.5	1-09707-150-0	04	1	0107-		●
30	BOLT; PIPE CLIP M8X12 FLANGE	0-28080-812-0	01	1	9610-0106			●
30	BOLT; PIPE CLIP M8X12 FLANGE	0-28080-812-0	01	1	0107-0512				●
30	BOLT; PIPE CLIP M8X12 FLANGE	0-28050-812-0	01	1	0601-				●
31	PIPE; AIR,AIR CMPR SUCTION	8-94399-954-0	01	1	9601-9803	●
31	PIPE; AIR,AIR CMPR SUCTION	8-94390-405-0	01	1	9610-0106			●
31	PIPE; AIR,AIR CMPR SUCTION	8-97602-059-0	01	1	0107-				●
49	PIPE; AIR,CHARGE (A)	8-94395-087-2	01	1	9601-9803	●
49	PIPE; AIR,CHARGE (B)	1-19192-963-0	01	1	9601-0106		●
49	PIPE; AIR,CHARGE (C)	1-19193-350-0	01	1	0107-		●
49	PIPE; AIR,CHARGE (D)	1-19193-357-0	01	1	0107-		●
49	PIPE; AIR,CHARGE (E)	8-94395-723-0	01	1	9610-0106			●
49	PIPE; AIR,CHARGE (F)	8-97600-675-1	01	1	0107-0107				●
49	PIPE; AIR,CHARGE (F)	8-97602-182-0	01	1	0108-				●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-0	01	1	9601-9609	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-0	01	1	9610-9803	●		●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-0	01	1	9804-0106			●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-1	01	1	0107-1404				●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	9601-1404		●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	1405-		●		●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	9601-9609	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	9610-9803	●	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	9804-0106		●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0107-		●		●
77	PIPE; AIR,GOV	1-19192-962-0	01	1	9601-0106		●
77	PIPE; AIR,GOV	1-19193-351-0	01	1	0107-		●
77	PIPE; AIR,GOV	8-94394-960-1	01	1	9610-0106			●
77	PIPE; AIR,GOV	8-97600-676-1	01	1	0107-0107				●
77	PIPE; AIR,GOV	8-97602-183-0	01	1	0108-				●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	9601-9609	●	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	9610-9803	●	●	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	9804-0106		●	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	0107-		●		●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9601-9609	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9610-9803	●	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9804-0106		●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0107-1312		●		●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-		●		●
87	BOLT; BRKT FIX M10X25 FLANGE	0-28081-025-0	02	1	9601-0003		●
87	BOLT; BRKT FIX M10X20 FLANGE	0-28081-020-0	02	1	0004-0106		●
87	BOLT; BRKT FIX M8X16 FLANGE	0-28080-816-0	02	1	9610-0106			●
110	CLIP; AIR PIPE (A)	8-94393-037-0	01	1	9601-9803	●
110	CLIP; AIR PIPE (B)	8-94393-037-0	02	1	9610-0106			●
110	CLIP; AIR PIPE (C)	8-94393-037-0	01	1	0107-				●
110	CLIP; AIR PIPE (D)	1-09701-282-0	02	1	0107-				●
111	CLIP; AIR PIPE (A) WO/NUT	1-09700-547-0	02	1	9601-0106		●
111	CLIP; AIR PIPE (B) W/NUT	1-09700-550-0	02	1	9601-0106		●
111	CLIP; AIR PIPE (C)	1-09701-208-0	06	1	9601-0106		●
111	CLIP; AIR PIPE (D)	1-09701-091-0	01	1	9610-0106			●
111	CLIP; AIR PIPE (E)	8-94396-371-0	01	1	0107-				●
113	BOLT; CLIP,AIR PIPE (A) M6X40 W/LK&PL WASHER	0-50140-640-0	01	1	9601-9709	●
113	BOLT; CLIP,AIR PIPE (A) M6X40 FLANGE	0-28080-640-0	01	1	9710-9803	●
113	BOLT; CLIP,AIR PIPE (B) M6X25 FLANGE	0-28080-625-0	02	1	9601-0106		●
113	BOLT; CLIP,AIR PIPE (C) M6X40 FLANGE	0-28080-640-0	02	1	9601-9709		●
113	BOLT; CLIP,AIR PIPE (C) M6X40 FLANGE	0-28080-640-0	02	1	9710-0106		●	●
113	BOLT; CLIP,AIR PIPE (D) M6X40 FLANGE	0-28080-640-0	01	1	0107-0512				●
113	BOLT; CLIP,AIR PIPE (D) M6X40 FLANGE	0-28050-640-0	01	1	0601-				●
113	BOLT; CLIP,AIR PIPE (E) M6X20 FLANGE	0-28680-620-0	01	1	9610-0106			●
113	BOLT; CLIP,AIR PIPE (F) M6X20 FLANGE	0-28080-620-0	01	1	0107-0512				●
113	BOLT; CLIP,AIR PIPE (F) M6X20 FLANGE	0-28050-620-0	01	1	0601-				●
113	BOLT; CLIP,AIR PIPE (C) M6X40 W/LK&PL WASHER	0-50140-640-0	02	1	9610-9709			●
116	BRACKET; AIR PIPE	1-19199-249-1	01	1	9601-0106		●
116	BRACKET; AIR PIPE	1-14119-455-0	02	1	0107-0203		●
116	BRACKET; AIR PIPE	1-14119-468-0	02	1	0204-		●
116	BRACKET; AIR PIPE	8-94394-594-1	01	1	9610-0106			●
221	WASHER; PL,GEAR ID=21	9-09160-520-0	01	1	9601-9609	●
221	WASHER; PL,GEAR ID=21	9-09160-520-0	01	1	9610-9803	●		●
221	WASHER; PL,GEAR ID=21	9-09160-520-0	01	1	9804-0106			●
221	WASHER; PL,GEAR ID=21	9-09160-520-0	01	1	0107-0605				●
221	WASHER; PL,GEAR ID=21	0-91610-520-0	01	1	0606-				●

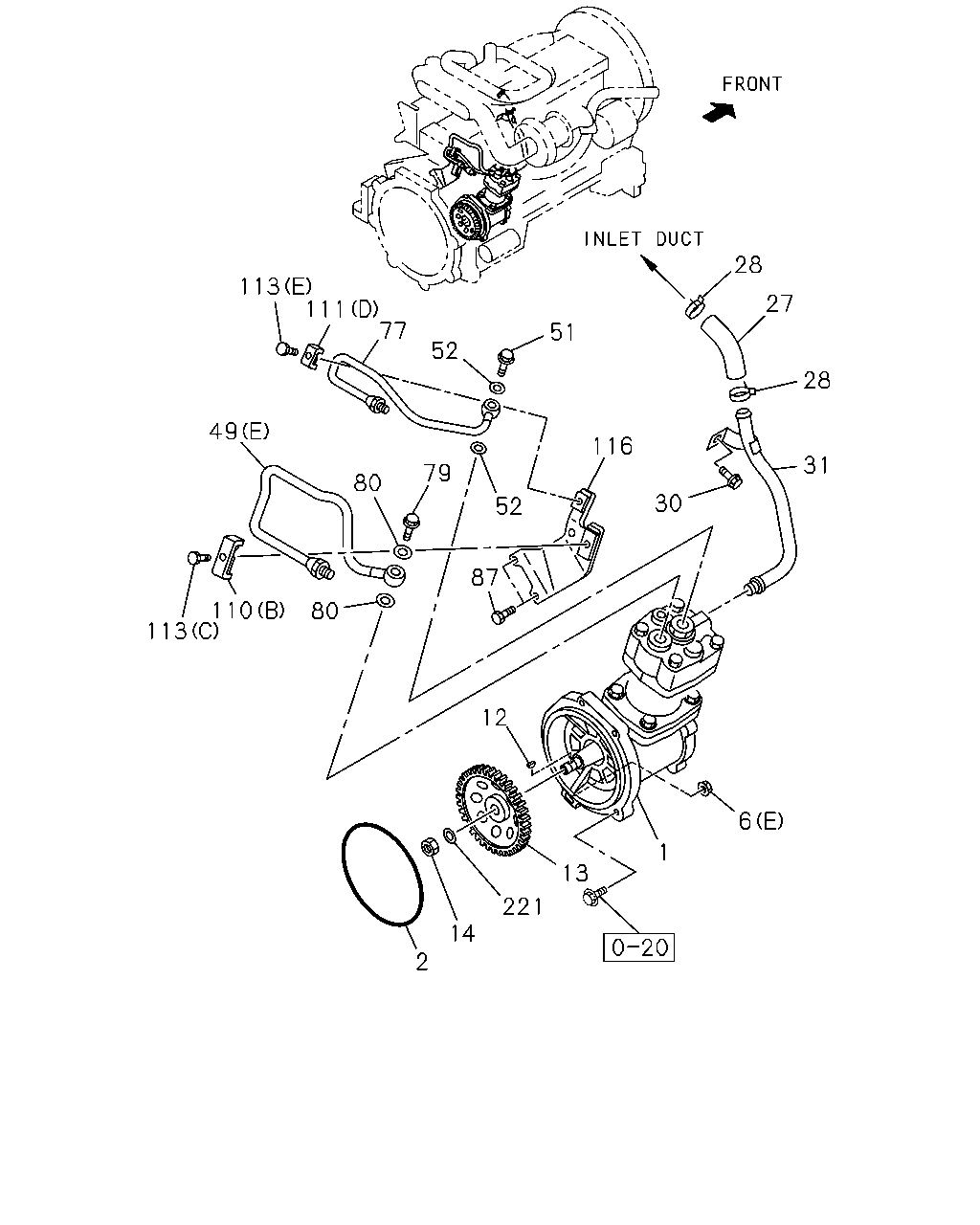

28 113 27 51 111 52 28 77 63 110 52 49 113 79 80 31 30 80 110 160 161 110 12 6 1 13 221 14 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94396-892-7	01	1	9601-9803	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-286-3	01	1	9601-9810		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-319-3	01	1	9811-		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94394-039-3	01	1	9610-0106			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94394-039-4	01	1	0107-1107				●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98187-298-0	01	1	1108-1202				●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-97642-294-0	01	1	1203-				●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	9601-9803	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-449-0	01	1	9601-		●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162.6	1-09623-570-0	01	1	9610-0106			●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162.6	1-09623-570-0	01	1	0107-				●
6	NUT; AIR CMPR (A) M10 FLANGE	0-91150-110-0	02	1	9601-9803	●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91150-112-0	01	1	9601-9803	●
6	NUT; AIR CMPR (C) M12 FLANGE	0-91150-112-0	04	1	9601-0106		●
6	NUT; AIR CMPR (D) M12 FLANGE	0-91150-112-0	02	1	0107-0602		●
6	NUT; AIR CMPR (D) M12 FLANGE	0-91180-112-0	02	1	0603-		●
6	NUT; AIR CMPR (E) M12 FLANGE	0-91150-212-0	01	1	9610-0106			●
6	NUT; AIR CMPR (F) M12 FLANGE	0-91150-212-0	01	1	0107-0602				●
6	NUT; AIR CMPR (F) M12 FLANGE	0-91180-212-0	01	1	0603-				●
12	KEY; AIR CMPR GEAR	9-08055-516-0	01	1	9610-0106			●
12	KEY; AIR CMPR GEAR	9-08055-516-0	01	1	0107-				●
13	GEAR; AIR CMPR DRIVE Z=49	8-94394-511-4	01	1	9610-0106			●
13	GEAR; AIR CMPR DRIVE Z=49	8-94394-511-4	01	1	0107-				●
14	NUT; GEAR M20	9-99110-520-0	01	1	9601-9609	●
14	NUT; GEAR M20	9-99110-520-0	01	1	9610-9803	●		●
14	NUT; GEAR M20	9-99110-520-0	01	1	9804-0106			●
14	NUT; GEAR M20	9-99110-520-0	01	1	0107-0512				●
14	NUT; GEAR M20	0-91110-520-0	01	1	0601-				●
27	HOSE; AIR CMPR,SUCTION	8-94394-967-0	01	1	9601-9803	●
27	HOSE; AIR CMPR,SUCTION	1-09360-916-0	01	1	9601-0106		●
27	HOSE; AIR CMPR,SUCTION L=55	1-09360-784-0	02	1	0107-		●
27	HOSE; AIR CMPR,SUCTION L=80 SERVICED BY L=1500	1-09360-476-0	01	1	9610-0106			●
27	HOSE; AIR CMPR,SUCTION	8-97602-063-1	01	1	0107-				●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	9601-9609	●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	9610-9803	●		●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	9804-0106			●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	0107-				●
28	CLIP; HOSE,AIR CMPR ID=22.7	8-94466-382-0	02	1	9601-0106		●
28	CLIP; HOSE,AIR CMPR ID=28.5	1-09707-150-0	04	1	0107-		●
30	BOLT; PIPE CLIP M8X12 FLANGE	0-28080-812-0	01	1	9610-0106			●
30	BOLT; PIPE CLIP M8X12 FLANGE	0-28080-812-0	01	1	0107-0512				●
30	BOLT; PIPE CLIP M8X12 FLANGE	0-28050-812-0	01	1	0601-				●
31	PIPE; AIR,AIR CMPR SUCTION	8-94399-954-0	01	1	9601-9803	●
31	PIPE; AIR,AIR CMPR SUCTION	8-94390-405-0	01	1	9610-0106			●
31	PIPE; AIR,AIR CMPR SUCTION	8-97602-059-0	01	1	0107-				●
49	PIPE; AIR,CHARGE (A)	8-94395-087-2	01	1	9601-9803	●
49	PIPE; AIR,CHARGE (B)	1-19192-963-0	01	1	9601-0106		●
49	PIPE; AIR,CHARGE (C)	1-19193-350-0	01	1	0107-		●
49	PIPE; AIR,CHARGE (D)	1-19193-357-0	01	1	0107-		●
49	PIPE; AIR,CHARGE (E)	8-94395-723-0	01	1	9610-0106			●
49	PIPE; AIR,CHARGE (F)	8-97600-675-1	01	1	0107-0107				●
49	PIPE; AIR,CHARGE (F)	8-97602-182-0	01	1	0108-				●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-0	01	1	9601-9609	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-0	01	1	9610-9803	●		●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-0	01	1	9804-0106			●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-1	01	1	0107-1404				●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	9601-1404		●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	1405-		●		●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	9601-9609	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	9610-9803	●	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	9804-0106		●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0107-		●		●
63	NUT; CLIP M6 FLANGE	0-91150-106-0	01	1	0107-0602				●
63	NUT; CLIP M6 FLANGE	0-91180-106-0	01	1	0603-				●

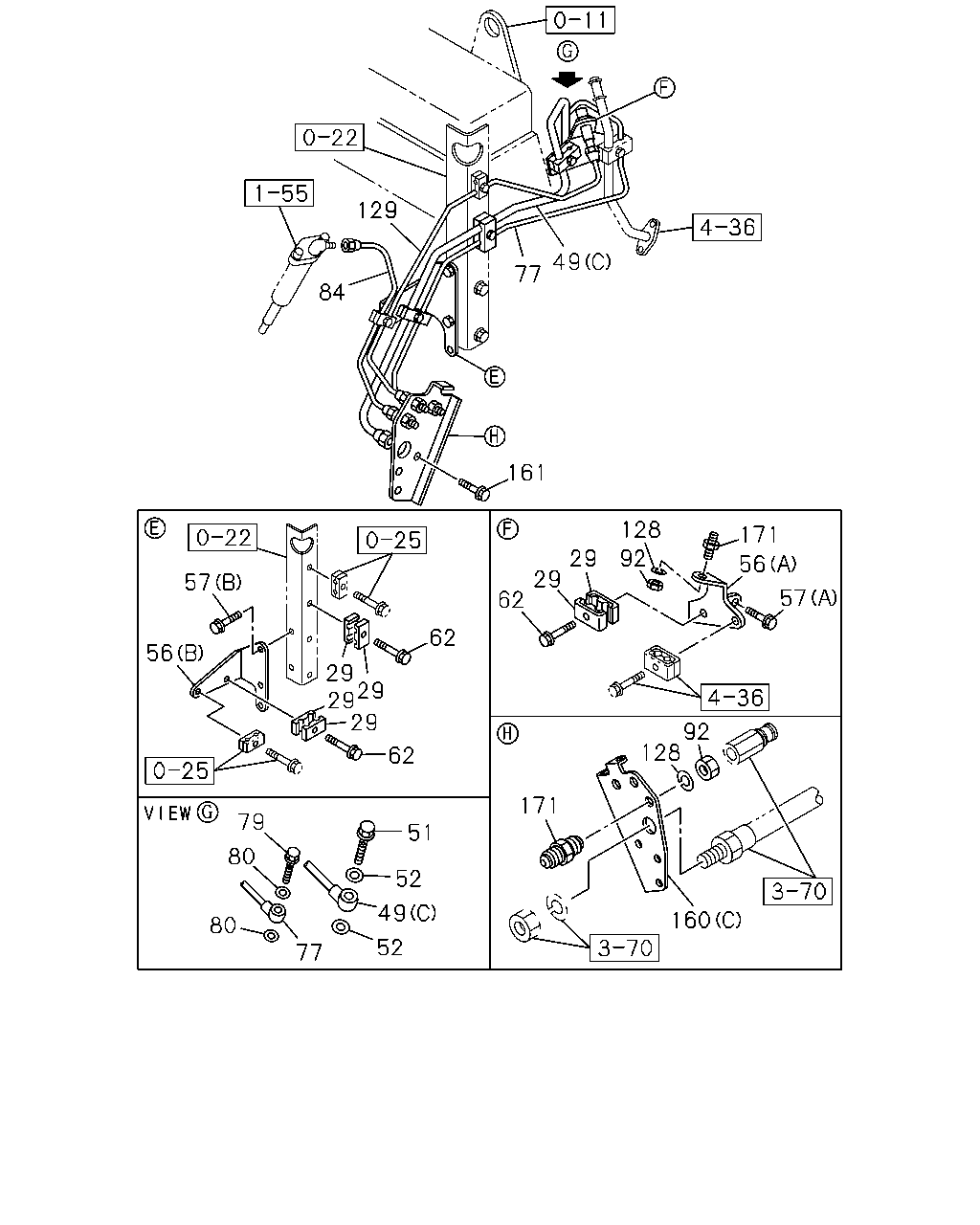

77	PIPE; AIR,GOV	1-19192-962-0	01	1	9601-0106		●
77	PIPE; AIR,GOV	1-19193-351-0	01	1	0107-		●
77	PIPE; AIR,GOV	8-94394-960-1	01	1	9610-0106			●
77	PIPE; AIR,GOV	8-97600-676-1	01	1	0107-0107				●
77	PIPE; AIR,GOV	8-97602-183-0	01	1	0108-				●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	9601-9609	●	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	9610-9803	●	●	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	9804-0106		●	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	0107-		●		●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9601-9609	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9610-9803	●	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9804-0106		●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0107-1312		●		●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-		●		●
110	CLIP; AIR PIPE (A)	8-94393-037-0	01	1	9601-9803	●
110	CLIP; AIR PIPE (B)	8-94393-037-0	02	1	9610-0106			●
110	CLIP; AIR PIPE (C)	8-94393-037-0	01	1	0107-				●
110	CLIP; AIR PIPE (D)	1-09701-282-0	02	1	0107-				●
111	CLIP; AIR PIPE (A) WO/NUT	1-09700-547-0	02	1	9601-0106		●
111	CLIP; AIR PIPE (B) W/NUT	1-09700-550-0	02	1	9601-0106		●
111	CLIP; AIR PIPE (C)	1-09701-208-0	06	1	9601-0106		●
111	CLIP; AIR PIPE (D)	1-09701-091-0	01	1	9610-0106			●
111	CLIP; AIR PIPE (E)	8-94396-371-0	01	1	0107-				●
113	BOLT; CLIP,AIR PIPE (A) M6X40 W/LK&PL WASHER	0-50140-640-0	01	1	9601-9709	●
113	BOLT; CLIP,AIR PIPE (A) M6X40 FLANGE	0-28080-640-0	01	1	9710-9803	●
113	BOLT; CLIP,AIR PIPE (B) M6X25 FLANGE	0-28080-625-0	02	1	9601-0106		●
113	BOLT; CLIP,AIR PIPE (C) M6X40 FLANGE	0-28080-640-0	02	1	9601-9709		●
113	BOLT; CLIP,AIR PIPE (C) M6X40 FLANGE	0-28080-640-0	02	1	9710-0106		●	●
113	BOLT; CLIP,AIR PIPE (D) M6X40 FLANGE	0-28080-640-0	01	1	0107-0512				●
113	BOLT; CLIP,AIR PIPE (D) M6X40 FLANGE	0-28050-640-0	01	1	0601-				●
113	BOLT; CLIP,AIR PIPE (E) M6X20 FLANGE	0-28680-620-0	01	1	9610-0106			●
113	BOLT; CLIP,AIR PIPE (F) M6X20 FLANGE	0-28080-620-0	01	1	0107-0512				●
113	BOLT; CLIP,AIR PIPE (F) M6X20 FLANGE	0-28050-620-0	01	1	0601-				●
113	BOLT; CLIP,AIR PIPE (C) M6X40 W/LK&PL WASHER	0-50140-640-0	02	1	9610-9709			●
160	BRACKET; AIR PIPE (A)	8-94394-569-0	01	1	9601-9803	●
160	BRACKET; AIR PIPE (B)	1-19199-251-0	01	1	9601-0106		●
160	BRACKET; AIR PIPE (C)	1-19199-378-0	01	1	0107-		●
160	BRACKET; AIR PIPE (D)	8-94391-073-0	01	1	9610-0106			●
160	BRACKET; AIR PIPE (E)	8-97601-489-0	01	1	0107-				●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28080-816-0	02	1	9601-9803	●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28080-816-0	03	1	9601-0512		●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28050-816-0	03	1	0601-		●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28080-816-0	02	1	0107-0512				●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28050-816-0	02	1	0601-				●
221	WASHER; PL,GEAR ID=21	9-09160-520-0	01	1	9601-9609	●
221	WASHER; PL,GEAR ID=21	9-09160-520-0	01	1	9610-9803	●		●
221	WASHER; PL,GEAR ID=21	9-09160-520-0	01	1	9804-0106			●
221	WASHER; PL,GEAR ID=21	9-09160-520-0	01	1	0107-0605				●
221	WASHER; PL,GEAR ID=21	0-91610-520-0	01	1	0606-				●

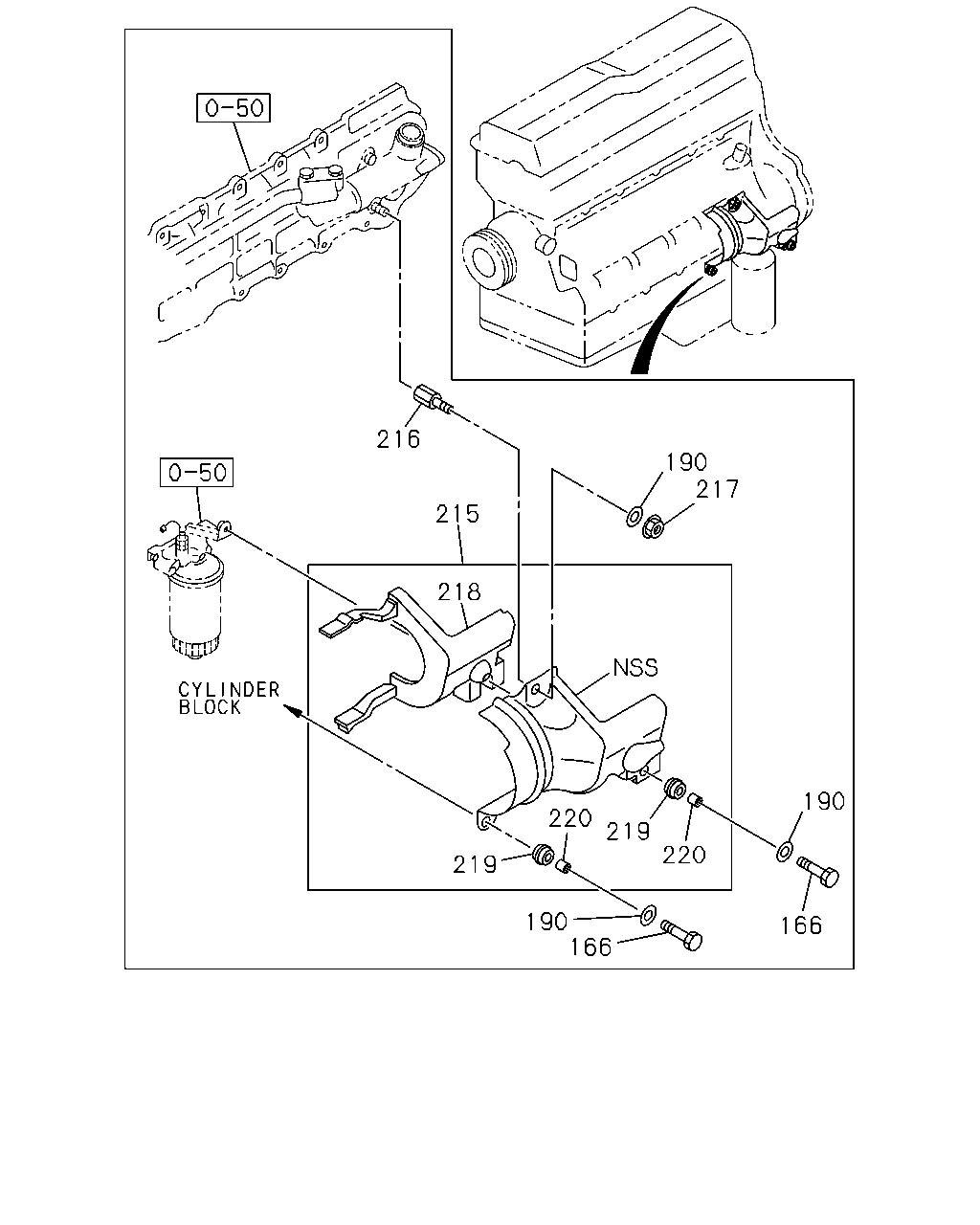

216 190 217 215 218 190 220 219 220 219 190 166 166

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
166	BOLT; COVER FIX M10X25 FLANGE	0-28181-025-0	02	1	9601-9803	●
190	WASHER; PL,COVER ID=10.5 OD=26	9-09160-710-0	03	1	9601-9803	●
215	COVER; AIR CMPR	8-94394-993-2	01	1	9601-9608	●
215	COVER; AIR CMPR	8-94390-408-0	01	1	9609-9803	●
216	SPACER; COVER	8-94394-990-1	01	1	9601-9803	●
217	NUT; COVER M10	9-09110-410-0	01	1	9601-9803	●
218	INSULATOR; COVER	8-94394-995-2	01	1	9601-9803	●
219	RUBBER; MTG OD=22	8-94140-428-1	03	1	9601-9608	●
220	TUBE; DIST OD=13 T=9.5	8-94140-427-1	03	1	9601-9803	●

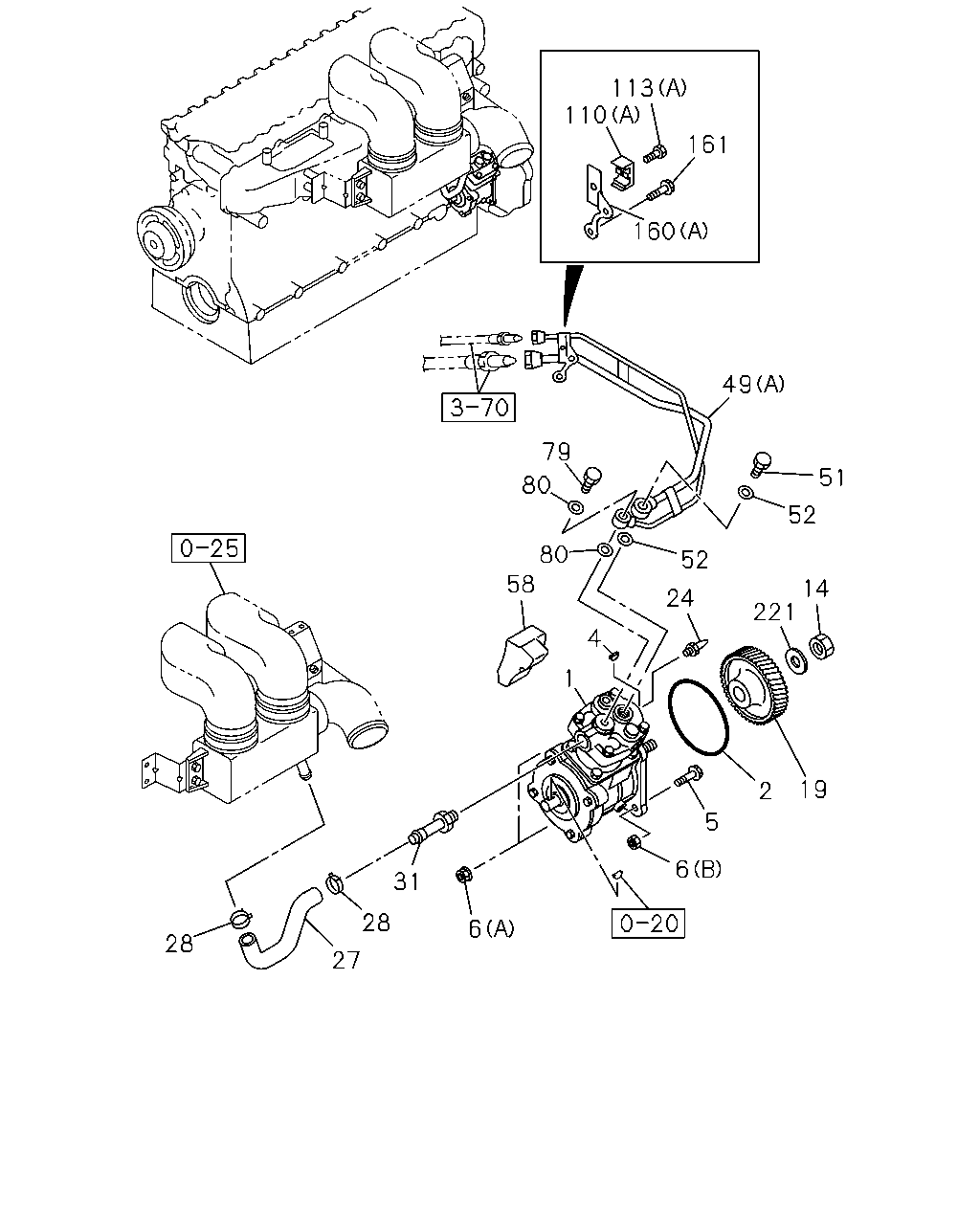

113 110 161 160 49 79 51 80 52 80 58 52 14 24 221 4 1 19 2 5 6 31 28 6 28 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D

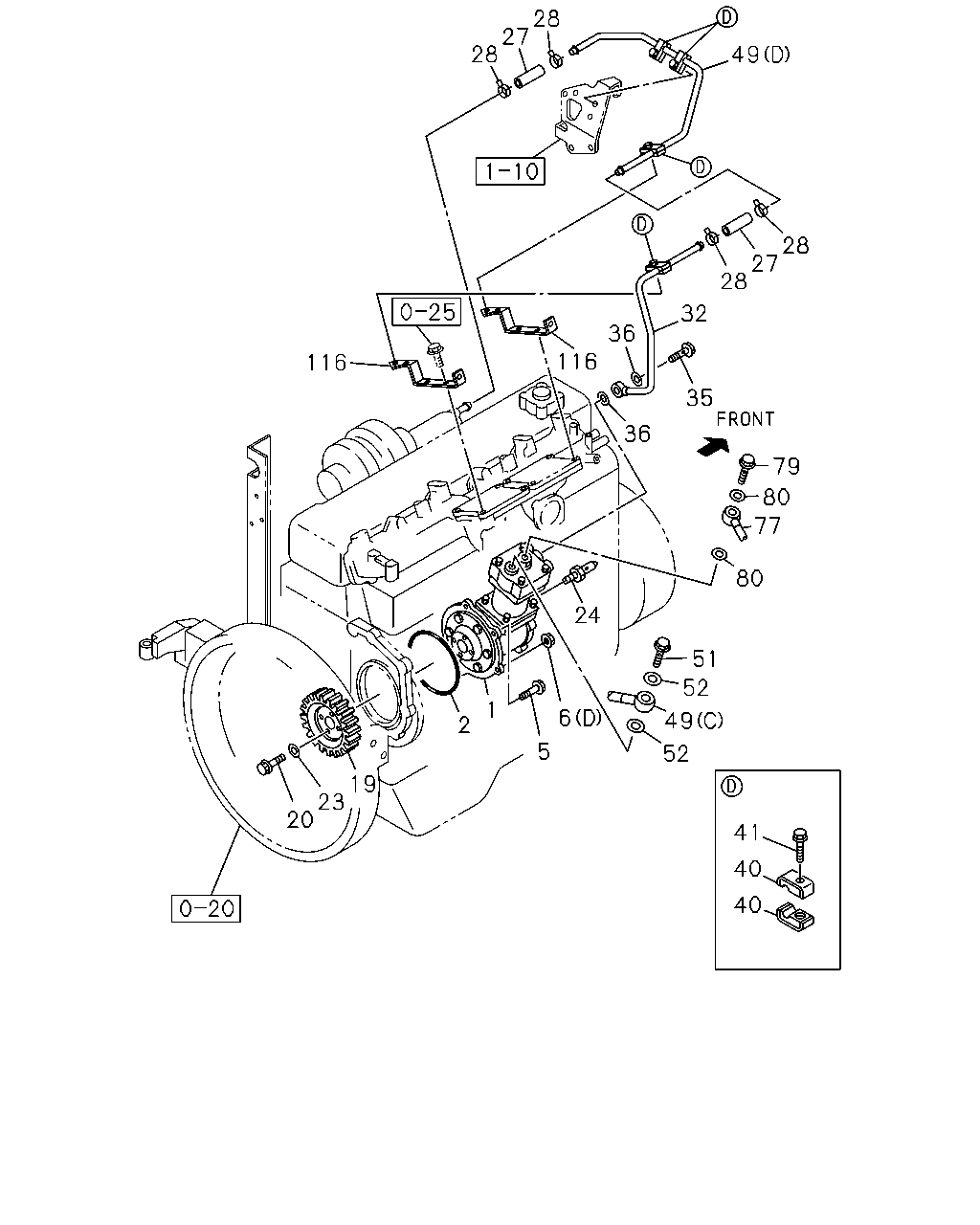

1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94396-892-7	01	1	9601-9803	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-286-3	01	1	9601-9810		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-319-3	01	1	9811-		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94394-039-3	01	1	9610-0106			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94394-039-4	01	1	0107-1107				●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98187-298-0	01	1	1108-1202				●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-97642-294-0	01	1	1203-				●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	9601-9803	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-449-0	01	1	9601-		●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162.6	1-09623-570-0	01	1	9610-0106			●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162.6	1-09623-570-0	01	1	0107-				●
4	KEY; INJ PUMP GEAR	9-08055-516-0	01	1	9601-9803	●
5	BOLT; AIR CMPR FIX M12X95 FLANGE	8-94396-485-1	01	1	9601-9803	●
5	BOLT; AIR CMPR FIX M12X70 FLANGE	0-28181-270-0	02	1	0107-0512		●
5	BOLT; AIR CMPR FIX M12X70 FLANGE	0-28151-270-0	02	1	0601-		●
6	NUT; AIR CMPR (A) M10 FLANGE	0-91150-110-0	02	1	9601-9803	●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91150-112-0	01	1	9601-9803	●
6	NUT; AIR CMPR (C) M12 FLANGE	0-91150-112-0	04	1	9601-0106		●
6	NUT; AIR CMPR (D) M12 FLANGE	0-91150-112-0	02	1	0107-0602		●
6	NUT; AIR CMPR (D) M12 FLANGE	0-91180-112-0	02	1	0603-		●
6	NUT; AIR CMPR (E) M12 FLANGE	0-91150-212-0	01	1	9610-0106			●
6	NUT; AIR CMPR (F) M12 FLANGE	0-91150-212-0	01	1	0107-0602				●
6	NUT; AIR CMPR (F) M12 FLANGE	0-91180-212-0	01	1	0603-				●
14	NUT; GEAR M20	9-99110-520-0	01	1	9601-9609	●
14	NUT; GEAR M20	9-99110-520-0	01	1	9610-9803	●		●
14	NUT; GEAR M20	9-99110-520-0	01	1	9804-0106			●
14	NUT; GEAR M20	9-99110-520-0	01	1	0107-0512				●
14	NUT; GEAR M20	0-91110-520-0	01	1	0601-				●
19	GEAR; INJ PUMP Z=35	8-94336-157-4	01	1	9601-9803	●
19	GEAR; INJ PUMP Z=36	1-12524-098-1	01	1	9601-		●
24	POINTER; AIR CMPR L=21	9-11327-602-0	01	1	9601-9803	●
24	POINTER; AIR CMPR	9-11327-031-0	01	1	9601-		●
27	HOSE; AIR CMPR,SUCTION	8-94394-967-0	01	1	9601-9803	●
27	HOSE; AIR CMPR,SUCTION	1-09360-916-0	01	1	9601-0106		●
27	HOSE; AIR CMPR,SUCTION L=55	1-09360-784-0	02	1	0107-		●
27	HOSE; AIR CMPR,SUCTION L=80 SERVICED BY L=1500	1-09360-476-0	01	1	9610-0106			●
27	HOSE; AIR CMPR,SUCTION	8-97602-063-1	01	1	0107-				●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	9601-9609	●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	9610-9803	●		●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	9804-0106			●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	0107-				●
28	CLIP; HOSE,AIR CMPR ID=22.7	8-94466-382-0	02	1	9601-0106		●
28	CLIP; HOSE,AIR CMPR ID=28.5	1-09707-150-0	04	1	0107-		●
31	PIPE; AIR,AIR CMPR SUCTION	8-94399-954-0	01	1	9601-9803	●
31	PIPE; AIR,AIR CMPR SUCTION	8-94390-405-0	01	1	9610-0106			●
31	PIPE; AIR,AIR CMPR SUCTION	8-97602-059-0	01	1	0107-				●
49	PIPE; AIR,CHARGE (A)	8-94395-087-2	01	1	9601-9803	●
49	PIPE; AIR,CHARGE (B)	1-19192-963-0	01	1	9601-0106		●
49	PIPE; AIR,CHARGE (C)	1-19193-350-0	01	1	0107-		●
49	PIPE; AIR,CHARGE (D)	1-19193-357-0	01	1	0107-		●
49	PIPE; AIR,CHARGE (E)	8-94395-723-0	01	1	9610-0106			●
49	PIPE; AIR,CHARGE (F)	8-97600-675-1	01	1	0107-0107				●
49	PIPE; AIR,CHARGE (F)	8-97602-182-0	01	1	0108-				●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-0	01	1	9601-9609	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-0	01	1	9610-9803	●		●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-0	01	1	9804-0106			●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-1	01	1	0107-1404				●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	9601-1404		●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	1405-		●		●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	9601-9609	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	9610-9803	●	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	9804-0106		●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0107-		●		●
58	SPACER; AIR CMPR	8-94395-675-1	01	1	9601-9803	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	9601-9609	●	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	9610-9803	●	●	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	9804-0106		●	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	0107-		●		●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9601-9609	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9610-9803	●	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9804-0106		●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0107-1312		●		●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-		●		●
110	CLIP; AIR PIPE (A)	8-94393-037-0	01	1	9601-9803	●
110	CLIP; AIR PIPE (B)	8-94393-037-0	02	1	9610-0106			●
110	CLIP; AIR PIPE (C)	8-94393-037-0	01	1	0107-				●
110	CLIP; AIR PIPE (D)	1-09701-282-0	02	1	0107-				●
113	BOLT; CLIP,AIR PIPE (A) M6X40 W/LK&PL WASHER	0-50140-640-0	01	1	9601-9709	●
113	BOLT; CLIP,AIR PIPE (A) M6X40 FLANGE	0-28080-640-0	01	1	9710-9803	●
113	BOLT; CLIP,AIR PIPE (B) M6X25 FLANGE	0-28080-625-0	02	1	9601-0106		●
113	BOLT; CLIP,AIR PIPE (C) M6X40 FLANGE	0-28080-640-0	02	1	9601-9709		●
113	BOLT; CLIP,AIR PIPE (C) M6X40 FLANGE	0-28080-640-0	02	1	9710-0106		●	●
113	BOLT; CLIP,AIR PIPE (D) M6X40 FLANGE	0-28080-640-0	01	1	0107-0512				●
113	BOLT; CLIP,AIR PIPE (D) M6X40 FLANGE	0-28050-640-0	01	1	0601-				●
113	BOLT; CLIP,AIR PIPE (E) M6X20 FLANGE	0-28680-620-0	01	1	9610-0106			●
113	BOLT; CLIP,AIR PIPE (F) M6X20 FLANGE	0-28080-620-0	01	1	0107-0512				●
113	BOLT; CLIP,AIR PIPE (F) M6X20 FLANGE	0-28050-620-0	01	1	0601-				●
113	BOLT; CLIP,AIR PIPE (C) M6X40 W/LK&PL WASHER	0-50140-640-0	02	1	9610-9709			●
160	BRACKET; AIR PIPE (A)	8-94394-569-0	01	1	9601-9803	●
160	BRACKET; AIR PIPE (B)	1-19199-251-0	01	1	9601-0106		●
160	BRACKET; AIR PIPE (C)	1-19199-378-0	01	1	0107-		●
160	BRACKET; AIR PIPE (D)	8-94391-073-0	01	1	9610-0106			●
160	BRACKET; AIR PIPE (E)	8-97601-489-0	01	1	0107-				●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28080-816-0	02	1	9601-9803	●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28080-816-0	03	1	9601-0512		●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28050-816-0	03	1	0601-		●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28080-816-0	02	1	0107-0512				●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28050-816-0	02	1	0601-				●
221	WASHER; PL,GEAR ID=21	9-09160-520-0	01	1	9601-9609	●
221	WASHER; PL,GEAR ID=21	9-09160-520-0	01	1	9610-9803	●		●
221	WASHER; PL,GEAR ID=21	9-09160-520-0	01	1	9804-0106			●
221	WASHER; PL,GEAR ID=21	9-09160-520-0	01	1	0107-0605				●
221	WASHER; PL,GEAR ID=21	0-91610-520-0	01	1	0606-				●

129 49 77 84 161 128 171 29 29 62 92 56 57 57 62 56 29 29 29 29 92 128 62 171 79 51 80 52 49 160 80 52 77

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
29	CLIP; AIR PIPE	1-09701-208-0	06	1	0107-		●
49	PIPE; AIR,CHARGE (A)	8-94395-087-2	01	1	9601-9803	●
49	PIPE; AIR,CHARGE (B)	1-19192-963-0	01	1	9601-0106		●
49	PIPE; AIR,CHARGE (C)	1-19193-350-0	01	1	0107-		●
49	PIPE; AIR,CHARGE (D)	1-19193-357-0	01	1	0107-		●
49	PIPE; AIR,CHARGE (E)	8-94395-723-0	01	1	9610-0106			●
49	PIPE; AIR,CHARGE (F)	8-97600-675-1	01	1	0107-0107				●
49	PIPE; AIR,CHARGE (F)	8-97602-182-0	01	1	0108-				●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-0	01	1	9601-9609	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-0	01	1	9610-9803	●		●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-0	01	1	9804-0106			●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-1	01	1	0107-1404				●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	9601-1404		●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	1405-		●		●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	9601-9609	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	9610-9803	●	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	9804-0106		●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0107-		●		●
56	BRACKET; AIR PIPE FIX (A)	1-19193-353-0	01	1	0107-		●
56	BRACKET; AIR PIPE FIX (B)	1-19199-379-0	01	1	0107-		●
57	BOLT; BRKT,AIR PIPE (A) M8X16 FLANGE	0-28080-816-0	02	1	0107-0512		●
57	BOLT; BRKT,AIR PIPE (A) M8X16 FLANGE	0-28050-816-0	02	1	0601-		●
57	BOLT; BRKT,AIR PIPE (B) M8X20 FLANGE	0-28680-820-0	02	1	0107-0512		●
57	BOLT; BRKT,AIR PIPE (B) M8X20 FLANGE	0-28650-820-0	02	1	0601-		●
62	BOLT; CLIP M6X40 FLANGE	0-28680-640-0	03	1	0107-0512		●
62	BOLT; CLIP M6X40 FLANGE	0-28650-640-0	03	1	0601-		●
77	PIPE; AIR,GOV	1-19192-962-0	01	1	9601-0106		●
77	PIPE; AIR,GOV	1-19193-351-0	01	1	0107-		●
77	PIPE; AIR,GOV	8-94394-960-1	01	1	9610-0106			●
77	PIPE; AIR,GOV	8-97600-676-1	01	1	0107-0107				●
77	PIPE; AIR,GOV	8-97602-183-0	01	1	0108-				●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	9601-9609	●	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	9610-9803	●	●	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	9804-0106		●	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	0107-		●		●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9601-9609	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9610-9803	●	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9804-0106		●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0107-1312		●		●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-		●		●
84	PIPE; AIR	1-19192-964-0	01	1	9601-0106		●
84	PIPE; AIR	1-19193-354-0	01	1	0107-		●
92	NUT; UNION EURO2 SPECIFICATION<THN> M12	9-09840-280-0	01	1	9610-9803			●
92	NUT; UNION M12	9-09840-280-0	01	1	9804-0106			●
92	NUT; UNION M12	9-09840-280-0	04	1	0107-		●
128	WASHER; LK,UNION EURO2 SPECIFICATION<THN> ID=12.2	9-09150-512-0	01	1	9610-9803			●
128	WASHER; LK,UNION ID=12.2	9-09150-512-0	01	1	9804-0106			●
128	WASHER; LK,UNION ID=12.2	9-09150-512-0	04	1	0107-0603		●
128	WASHER; LK,UNION ID=12.2	0-91510-512-0	04	1	0604-		●
129	PIPE; AIR,VGS	1-19193-355-0	01	1	0107-		●
160	BRACKET; AIR PIPE (A)	8-94394-569-0	01	1	9601-9803	●
160	BRACKET; AIR PIPE (B)	1-19199-251-0	01	1	9601-0106		●
160	BRACKET; AIR PIPE (C)	1-19199-378-0	01	1	0107-		●
160	BRACKET; AIR PIPE (D)	8-94391-073-0	01	1	9610-0106			●
160	BRACKET; AIR PIPE (E)	8-97601-489-0	01	1	0107-				●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28080-816-0	02	1	9601-9803	●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28080-816-0	03	1	9601-0512		●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28050-816-0	03	1	0601-		●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28080-816-0	02	1	0107-0512				●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28050-816-0	02	1	0601-				●
171	UNION EURO2 SPECIFICATION<THN>	1-09654-185-1	01	1	9610-9803			●
171	UNION	1-09654-185-1	01	1	9804-9901			●
171	UNION M12 L=56.5	9-09223-106-1	01	1	9902-0106			●
171	UNION M12 L=66.5	9-09223-306-1	04	1	0107-0607		●
171	UNION M12 L=66.5	0-92113-306-0	04	1	0608-		●

28 27 28 49 28 27 28 32 36 116 116 35 36 79 80 77 80 24 51 52 1 6 49 2 5 52 19 23 20 41 40 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94396-892-7	01	1	9601-9803	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-286-3	01	1	9601-9810		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-319-3	01	1	9811-		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94394-039-3	01	1	9610-0106			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94394-039-4	01	1	0107-1107				●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98187-298-0	01	1	1108-1202				●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-97642-294-0	01	1	1203-				●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	9601-9803	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-449-0	01	1	9601-		●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162.6	1-09623-570-0	01	1	9610-0106			●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162.6	1-09623-570-0	01	1	0107-				●
5	BOLT; AIR CMPR FIX M12X95 FLANGE	8-94396-485-1	01	1	9601-9803	●
5	BOLT; AIR CMPR FIX M12X70 FLANGE	0-28181-270-0	02	1	0107-0512		●
5	BOLT; AIR CMPR FIX M12X70 FLANGE	0-28151-270-0	02	1	0601-		●
6	NUT; AIR CMPR (A) M10 FLANGE	0-91150-110-0	02	1	9601-9803	●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91150-112-0	01	1	9601-9803	●
6	NUT; AIR CMPR (C) M12 FLANGE	0-91150-112-0	04	1	9601-0106		●
6	NUT; AIR CMPR (D) M12 FLANGE	0-91150-112-0	02	1	0107-0602		●
6	NUT; AIR CMPR (D) M12 FLANGE	0-91180-112-0	02	1	0603-		●
6	NUT; AIR CMPR (E) M12 FLANGE	0-91150-212-0	01	1	9610-0106			●
6	NUT; AIR CMPR (F) M12 FLANGE	0-91150-212-0	01	1	0107-0602				●
6	NUT; AIR CMPR (F) M12 FLANGE	0-91180-212-0	01	1	0603-				●
19	GEAR; INJ PUMP Z=35	8-94336-157-4	01	1	9601-9803	●
19	GEAR; INJ PUMP Z=36	1-12524-098-1	01	1	9601-		●
20	BOLT; GEAR TO SHAFT M10X60 FLANGE	1-09070-076-0	04	1	9601-		●
23	WASHER; PL,PUMP GEAR ID=10.5	9-09851-866-0	04	1	9601-		●
24	POINTER; AIR CMPR L=21	9-11327-602-0	01	1	9601-9803	●
24	POINTER; AIR CMPR	9-11327-031-0	01	1	9601-		●
27	HOSE; AIR CMPR,SUCTION	8-94394-967-0	01	1	9601-9803	●
27	HOSE; AIR CMPR,SUCTION	1-09360-916-0	01	1	9601-0106		●
27	HOSE; AIR CMPR,SUCTION L=55	1-09360-784-0	02	1	0107-		●
27	HOSE; AIR CMPR,SUCTION L=80 SERVICED BY L=1500	1-09360-476-0	01	1	9610-0106			●
27	HOSE; AIR CMPR,SUCTION	8-97602-063-1	01	1	0107-				●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	9601-9609	●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	9610-9803	●		●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	9804-0106			●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	0107-				●
28	CLIP; HOSE,AIR CMPR ID=22.7	8-94466-382-0	02	1	9601-0106		●
28	CLIP; HOSE,AIR CMPR ID=28.5	1-09707-150-0	04	1	0107-		●
32	PIPE; AIR,AIR CMPR	1-19192-892-0	01	1	9601-0106		●
32	PIPE; AIR,AIR CMPR	1-19193-356-0	01	1	0107-		●
35	BOLT; EYE,AIR PIPE M24X39	1-09675-175-2	01	1	9601-		●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	9601-		●
40	CLIP; AIR PIPE	1-09701-210-0	04	1	9601-0106		●
40	CLIP; AIR PIPE	1-09701-281-1	08	1	0107-		●
41	BOLT; CLIP M6X40 FLANGE	0-28080-640-0	01	1	9601-0003		●
41	BOLT; CLIP M6X50 FLANGE	0-28080-650-0	01	1	0004-0106		●
41	BOLT; CLIP M8X50 FLANGE	0-28080-850-0	04	1	0107-0512		●
41	BOLT; CLIP M8X50 FLANGE	0-28050-850-0	04	1	0601-		●
49	PIPE; AIR,CHARGE (A)	8-94395-087-2	01	1	9601-9803	●
49	PIPE; AIR,CHARGE (B)	1-19192-963-0	01	1	9601-0106		●
49	PIPE; AIR,CHARGE (C)	1-19193-350-0	01	1	0107-		●
49	PIPE; AIR,CHARGE (D)	1-19193-357-0	01	1	0107-		●
49	PIPE; AIR,CHARGE (E)	8-94395-723-0	01	1	9610-0106			●
49	PIPE; AIR,CHARGE (F)	8-97600-675-1	01	1	0107-0107				●
49	PIPE; AIR,CHARGE (F)	8-97602-182-0	01	1	0108-				●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-0	01	1	9601-9609	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-0	01	1	9610-9803	●		●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-0	01	1	9804-0106			●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-1	01	1	0107-1404				●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	9601-1404		●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	1405-		●		●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	9601-9609	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	9610-9803	●	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	9804-0106		●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0107-		●		●
77	PIPE; AIR,GOV	1-19192-962-0	01	1	9601-0106		●
77	PIPE; AIR,GOV	1-19193-351-0	01	1	0107-		●
77	PIPE; AIR,GOV	8-94394-960-1	01	1	9610-0106			●
77	PIPE; AIR,GOV	8-97600-676-1	01	1	0107-0107				●
77	PIPE; AIR,GOV	8-97602-183-0	01	1	0108-				●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	9601-9609	●	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	9610-9803	●	●	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	9804-0106		●	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	0107-		●		●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9601-9609	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9610-9803	●	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9804-0106		●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0107-1312		●		●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-		●		●
116	BRACKET; AIR PIPE	1-19199-249-1	01	1	9601-0106		●
116	BRACKET; AIR PIPE	1-14119-455-0	02	1	0107-0203		●
116	BRACKET; AIR PIPE	1-14119-468-0	02	1	0204-		●
116	BRACKET; AIR PIPE	8-94394-594-1	01	1	9610-0106			●

44 87 28 40 27 48 40 40 40 116 111 28 113 113 4 111 111 113 126 111 111 111 79 51 80 52 49 77 32 35 52 160 161 36 36 80 24 6 1 2 19 23 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94396-892-7	01	1	9601-9803	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-286-3	01	1	9601-9810		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-319-3	01	1	9811-		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94394-039-3	01	1	9610-0106			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94394-039-4	01	1	0107-1107				●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98187-298-0	01	1	1108-1202				●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-97642-294-0	01	1	1203-				●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	9601-9803	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-449-0	01	1	9601-		●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162.6	1-09623-570-0	01	1	9610-0106			●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162.6	1-09623-570-0	01	1	0107-				●
4	KEY; INJ PUMP GEAR	9-08055-516-0	01	1	9601-9803	●
6	NUT; AIR CMPR (A) M10 FLANGE	0-91150-110-0	02	1	9601-9803	●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91150-112-0	01	1	9601-9803	●
6	NUT; AIR CMPR (C) M12 FLANGE	0-91150-112-0	04	1	9601-0106		●
6	NUT; AIR CMPR (D) M12 FLANGE	0-91150-112-0	02	1	0107-0602		●
6	NUT; AIR CMPR (D) M12 FLANGE	0-91180-112-0	02	1	0603-		●
6	NUT; AIR CMPR (E) M12 FLANGE	0-91150-212-0	01	1	9610-0106			●
6	NUT; AIR CMPR (F) M12 FLANGE	0-91150-212-0	01	1	0107-0602				●
6	NUT; AIR CMPR (F) M12 FLANGE	0-91180-212-0	01	1	0603-				●
19	GEAR; INJ PUMP Z=35	8-94336-157-4	01	1	9601-9803	●
19	GEAR; INJ PUMP Z=36	1-12524-098-1	01	1	9601-		●
20	BOLT; GEAR TO SHAFT M10X60 FLANGE	1-09070-076-0	04	1	9601-		●
23	WASHER; PL,PUMP GEAR ID=10.5	9-09851-866-0	04	1	9601-		●
24	POINTER; AIR CMPR L=21	9-11327-602-0	01	1	9601-9803	●
24	POINTER; AIR CMPR	9-11327-031-0	01	1	9601-		●
27	HOSE; AIR CMPR,SUCTION	8-94394-967-0	01	1	9601-9803	●
27	HOSE; AIR CMPR,SUCTION	1-09360-916-0	01	1	9601-0106		●
27	HOSE; AIR CMPR,SUCTION L=55	1-09360-784-0	02	1	0107-		●
27	HOSE; AIR CMPR,SUCTION L=80 SERVICED BY L=1500	1-09360-476-0	01	1	9610-0106			●
27	HOSE; AIR CMPR,SUCTION	8-97602-063-1	01	1	0107-				●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	9601-9609	●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	9610-9803	●		●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	9804-0106			●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	0107-				●
28	CLIP; HOSE,AIR CMPR ID=22.7	8-94466-382-0	02	1	9601-0106		●
28	CLIP; HOSE,AIR CMPR ID=28.5	1-09707-150-0	04	1	0107-		●
32	PIPE; AIR,AIR CMPR	1-19192-892-0	01	1	9601-0106		●
32	PIPE; AIR,AIR CMPR	1-19193-356-0	01	1	0107-		●
35	BOLT; EYE,AIR PIPE M24X39	1-09675-175-2	01	1	9601-		●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	9601-		●
40	CLIP; AIR PIPE	1-09701-210-0	04	1	9601-0106		●
40	CLIP; AIR PIPE	1-09701-281-1	08	1	0107-		●
44	NUT M6 FLANGE	0-91150-106-0	01	1	9601-0106		●
48	WASHER; PL,BRKT ID=10.5 OD=18	9-09160-510-0	02	1	0004-0106		●
49	PIPE; AIR,CHARGE (A)	8-94395-087-2	01	1	9601-9803	●
49	PIPE; AIR,CHARGE (B)	1-19192-963-0	01	1	9601-0106		●
49	PIPE; AIR,CHARGE (C)	1-19193-350-0	01	1	0107-		●
49	PIPE; AIR,CHARGE (D)	1-19193-357-0	01	1	0107-		●
49	PIPE; AIR,CHARGE (E)	8-94395-723-0	01	1	9610-0106			●
49	PIPE; AIR,CHARGE (F)	8-97600-675-1	01	1	0107-0107				●
49	PIPE; AIR,CHARGE (F)	8-97602-182-0	01	1	0108-				●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-0	01	1	9601-9609	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-0	01	1	9610-9803	●		●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-0	01	1	9804-0106			●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-1	01	1	0107-1404				●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	9601-1404		●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	1405-		●		●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	9601-9609	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	9610-9803	●	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	9804-0106		●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0107-		●		●
77	PIPE; AIR,GOV	1-19192-962-0	01	1	9601-0106		●
77	PIPE; AIR,GOV	1-19193-351-0	01	1	0107-		●
77	PIPE; AIR,GOV	8-94394-960-1	01	1	9610-0106			●
77	PIPE; AIR,GOV	8-97600-676-1	01	1	0107-0107				●
77	PIPE; AIR,GOV	8-97602-183-0	01	1	0108-				●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	9601-9609	●	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	9610-9803	●	●	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	9804-0106		●	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	0107-		●		●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9601-9609	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9610-9803	●	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9804-0106		●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0107-1312		●		●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-		●		●
87	BOLT; BRKT FIX M10X25 FLANGE	0-28081-025-0	02	1	9601-0003		●
87	BOLT; BRKT FIX M10X20 FLANGE	0-28081-020-0	02	1	0004-0106		●
87	BOLT; BRKT FIX M8X16 FLANGE	0-28080-816-0	02	1	9610-0106			●
111	CLIP; AIR PIPE (A) WO/NUT	1-09700-547-0	02	1	9601-0106		●
111	CLIP; AIR PIPE (B) W/NUT	1-09700-550-0	02	1	9601-0106		●
111	CLIP; AIR PIPE (C)	1-09701-208-0	06	1	9601-0106		●
111	CLIP; AIR PIPE (D)	1-09701-091-0	01	1	9610-0106			●
111	CLIP; AIR PIPE (E)	8-94396-371-0	01	1	0107-				●
113	BOLT; CLIP,AIR PIPE (A) M6X40 W/LK&PL WASHER	0-50140-640-0	01	1	9601-9709	●
113	BOLT; CLIP,AIR PIPE (A) M6X40 FLANGE	0-28080-640-0	01	1	9710-9803	●
113	BOLT; CLIP,AIR PIPE (B) M6X25 FLANGE	0-28080-625-0	02	1	9601-0106		●
113	BOLT; CLIP,AIR PIPE (C) M6X40 FLANGE	0-28080-640-0	02	1	9601-9709		●
113	BOLT; CLIP,AIR PIPE (C) M6X40 FLANGE	0-28080-640-0	02	1	9710-0106		●	●
113	BOLT; CLIP,AIR PIPE (D) M6X40 FLANGE	0-28080-640-0	01	1	0107-0512				●
113	BOLT; CLIP,AIR PIPE (D) M6X40 FLANGE	0-28050-640-0	01	1	0601-				●
113	BOLT; CLIP,AIR PIPE (E) M6X20 FLANGE	0-28680-620-0	01	1	9610-0106			●
113	BOLT; CLIP,AIR PIPE (F) M6X20 FLANGE	0-28080-620-0	01	1	0107-0512				●
113	BOLT; CLIP,AIR PIPE (F) M6X20 FLANGE	0-28050-620-0	01	1	0601-				●
113	BOLT; CLIP,AIR PIPE (C) M6X40 W/LK&PL WASHER	0-50140-640-0	02	1	9610-9709			●
116	BRACKET; AIR PIPE	1-19199-249-1	01	1	9601-0106		●
116	BRACKET; AIR PIPE	1-14119-455-0	02	1	0107-0203		●
116	BRACKET; AIR PIPE	1-14119-468-0	02	1	0204-		●
116	BRACKET; AIR PIPE	8-94394-594-1	01	1	9610-0106			●
126	NUT; CLIP FIX M6 FLANGE	0-91150-106-0	01	1	9601-0106		●
160	BRACKET; AIR PIPE (A)	8-94394-569-0	01	1	9601-9803	●
160	BRACKET; AIR PIPE (B)	1-19199-251-0	01	1	9601-0106		●
160	BRACKET; AIR PIPE (C)	1-19199-378-0	01	1	0107-		●
160	BRACKET; AIR PIPE (D)	8-94391-073-0	01	1	9610-0106			●
160	BRACKET; AIR PIPE (E)	8-97601-489-0	01	1	0107-				●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28080-816-0	02	1	9601-9803	●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28080-816-0	03	1	9601-0512		●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28050-816-0	03	1	0601-		●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28080-816-0	02	1	0107-0512				●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28050-816-0	02	1	0601-				●

228 16 182 171 128 92 228 229 258 230 160 229

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
16	ADAPTER EURO2 SPECIFICATION<THN> DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	9610-9803			●
16	ADAPTER DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	9804-9901			●
16	ADAPTER DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	9902-0004			●
16	ADAPTER DIN8 & M12 STRAIGHT	1-09661-093-0	01	1	0005-0005			●
16	ADAPTER DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0006-0106			●
92	NUT; UNION EURO2 SPECIFICATION<THN> M12	9-09840-280-0	01	1	9610-9803			●
92	NUT; UNION M12	9-09840-280-0	01	1	9804-0106			●
92	NUT; UNION M12	9-09840-280-0	04	1	0107-		●
128	WASHER; LK,UNION EURO2 SPECIFICATION<THN> ID=12.2	9-09150-512-0	01	1	9610-9803			●
128	WASHER; LK,UNION ID=12.2	9-09150-512-0	01	1	9804-0106			●
128	WASHER; LK,UNION ID=12.2	9-09150-512-0	04	1	0107-0603		●
128	WASHER; LK,UNION ID=12.2	0-91510-512-0	04	1	0604-		●
160	BRACKET; AIR PIPE (A)	8-94394-569-0	01	1	9601-9803	●
160	BRACKET; AIR PIPE (B)	1-19199-251-0	01	1	9601-0106		●
160	BRACKET; AIR PIPE (C)	1-19199-378-0	01	1	0107-		●
160	BRACKET; AIR PIPE (D)	8-94391-073-0	01	1	9610-0106			●
160	BRACKET; AIR PIPE (E)	8-97601-489-0	01	1	0107-				●
171	UNION EURO2 SPECIFICATION<THN>	1-09654-185-1	01	1	9610-9803			●
171	UNION	1-09654-185-1	01	1	9804-9901			●
171	UNION M12 L=56.5	9-09223-106-1	01	1	9902-0106			●
171	UNION M12 L=66.5	9-09223-306-1	04	1	0107-0607		●
171	UNION M12 L=66.5	0-92113-306-0	04	1	0608-		●
182	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<THN> ID=11 OD=18	9-09572-510-0	01	1	9610-9803			●
182	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 OD=18	9-09572-510-0	01	1	9804-9901			●
228	TUBE; NYLON WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W) EURO2 SPECIFICATION<THN> L=730 SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9709-9803			●
228	TUBE; NYLON WHEEL BASE 5000MM(50W) EURO2 SPECIFICATION<THN> L=1000 SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9707-9803			●
229	TUBE; NYLON EURO2 SPECIFICATION<THN> SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9610-9706			●
229	TUBE; NYLON WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W) EURO2 SPECIFICATION<THN> SERVICED BY L=2000 OD=8	1-87410-073-0	02	1	9707-9708			●
229	TUBE; NYLON EURO2 SPECIFICATION<THN> SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9709-9803			●
229	TUBE; NYLON WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9804-0004			●
229	TUBE; NYLON WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	0005-0106			●
229	TUBE; NYLON WHEEL BASE 5000MM(50W) EURO2 SPECIFICATION<THN> SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	9707-9708			●
230	TUBE; CORRUGATE EURO2 SPECIFICATION<THN> SERVICED BY L=2000 ID=10	1-87410-088-0	01	1	9610-9803			●
230	TUBE; CORRUGATE WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W) SERVICED BY L=2000 ID=10	1-87410-088-0	01	1	9804-0004			●
230	TUBE; CORRUGATE WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) SERVICED BY L=2000 ID=10	1-87410-088-0	01	1	0005-0102			●
230	TUBE; CORRUGATE WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W) SERVICED BY L=2000 ID=10	1-87410-088-0	02	1	0103-0106			●
258	CLIP; BAND,NYLON TUBE L=250	1-09707-126-0	01	1	9804-0106			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
