6-20 — SIDE PANEL AND STEP (#26572) — 355 parça

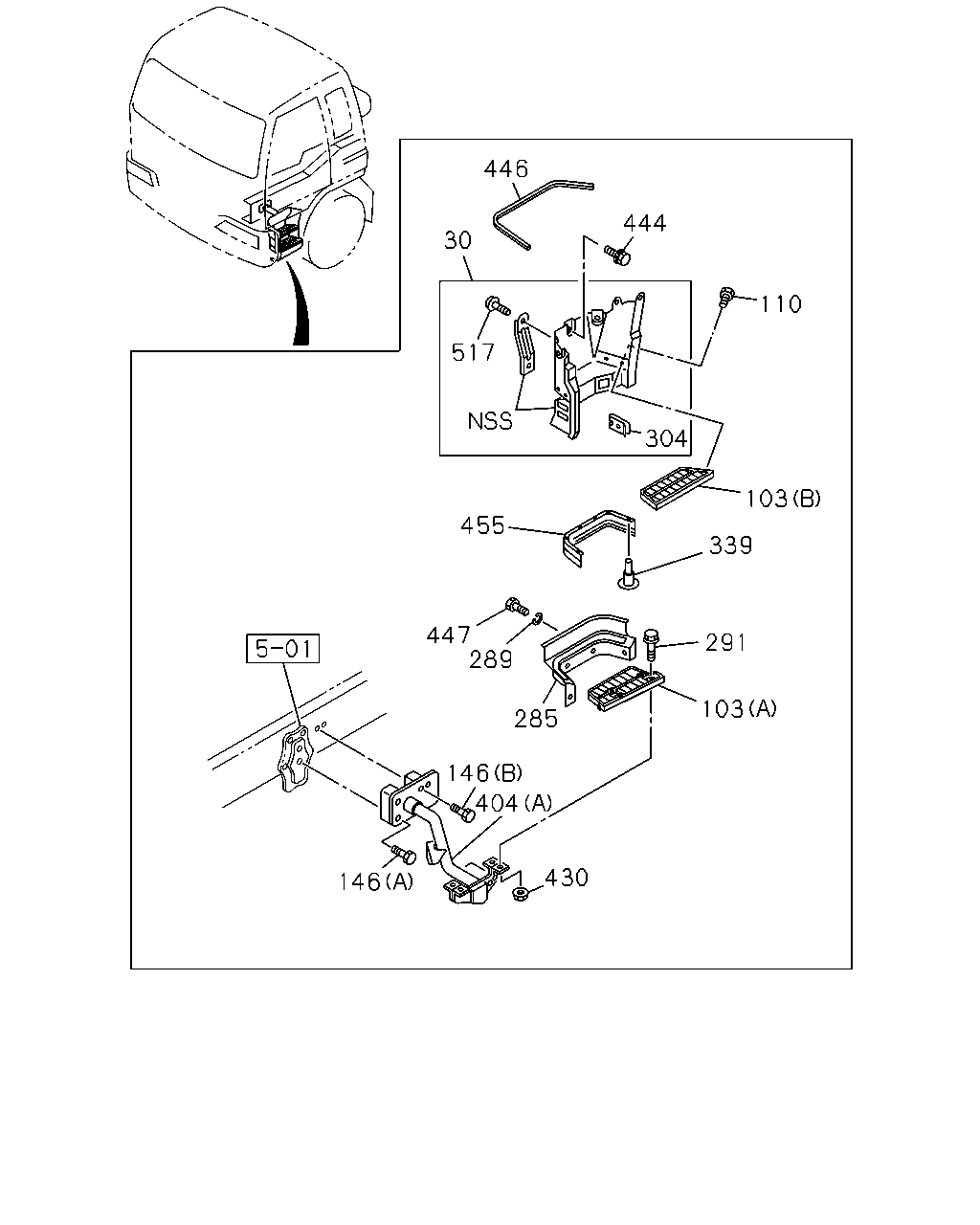

446 444 30 110 517 304 103 455 339 447 289 291 285 103 146 404 430 146

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
30	CLOSING; SIDE STEP ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT)	8-98125-809-4	01	1	0906-
30	CLOSING; SIDE STEP ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT)	8-98125-810-4	01	1	0906-
30	CLOSING; SIDE STEP FACE LIFT<6NL>	1-71907-816-1	01	1	0806-0905
30	CLOSING; SIDE STEP FACE LIFT<6NL> EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT)	1-71907-816-1	01	1	0906-0910
30	CLOSING; SIDE STEP FACE LIFT<6NL> EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT)	8-98156-847-0	01	1	0911-
30	CLOSING; SIDE STEP FACE LIFT<6NL>	1-71907-817-1	01	1	0806-0905
30	CLOSING; SIDE STEP FACE LIFT<6NL> EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT)	1-71907-817-1	01	1	0906-0910
30	CLOSING; SIDE STEP FACE LIFT<6NL> EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT)	8-98156-848-0	01	1	0911-
30	CLOSING; SIDE STEP	1-71907-464-0	01	1	0610-0805
30	CLOSING; SIDE STEP EXC. FACE LIFT<6NL>	1-71907-464-0	01	1	0806-0905
30	CLOSING; SIDE STEP EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) ,FACE LIFT<6NL>	1-71907-464-0	01	1	0906-0910
30	CLOSING; SIDE STEP EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) ,FACE LIFT<6NL>	8-98156-823-0	01	1	0911-
30	CLOSING; SIDE STEP	1-71907-465-0	01	1	0610-0805
30	CLOSING; SIDE STEP EXC. FACE LIFT<6NL>	1-71907-465-0	01	1	0806-0905
30	CLOSING; SIDE STEP EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) ,FACE LIFT<6NL>	1-71907-465-0	01	1	0906-0910
30	CLOSING; SIDE STEP EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) ,FACE LIFT<6NL>	8-98156-824-0	01	1	0911-
103	PLATE; STEP EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (B)	1-71907-174-1	01	1	0906-
103	PLATE; STEP EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (B)	1-71907-249-1	01	1	0906-
103	PLATE; STEP (A)	1-53414-180-0	01	1	0610-
103	PLATE; STEP (A)	1-53414-181-0	01	1	0610-
103	PLATE; STEP (B)	1-71907-174-1	01	1	0610-0905
103	PLATE; STEP ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (B)	1-71907-174-1	02	1	0906-
103	PLATE; STEP (B)	1-71907-249-1	01	1	0610-0905
103	PLATE; STEP ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (B)	1-71907-249-1	02	1	0906-
110	BOLT; 1ST STEP PLATE M8X29.5 W/LK+PL WASHER	8-94279-218-0	08	1	0610-0905
110	BOLT; 1ST STEP PLATE EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) M8X29.5 W/LK+PL WASHER	8-94279-218-0	08	1	0906-
146	BOLT; STEP BRKT DUMP TRUCK<RA1>,MIXER TRUCK<RA2> EXC. FRONT SPOILER<VP1> (C) M12X35 FLANGE	0-28651-235-0	03	1	0610-
146	BOLT; STEP BRKT FRONT SPOILER<VP1> (C) M12X35 FLANGE	0-28651-235-0	02	1	0610-
146	BOLT; STEP BRKT EXC. DUMP TRUCK<RA1>,MIXER TRUCK<RA2>,FRONT SPOILER<VP1> (C) M12X35 FLANGE	0-28651-235-0	02	1	0610-
146	BOLT; STEP BRKT (A) M12X30 FLANGE	0-28051-230-0	02	1	0610-
146	BOLT; STEP BRKT (B) M12X70 FLANGE	0-28051-270-0	02	1	0610-
210	PANEL; DOOR STRIKER REINF	8-97851-446-1	01	1	0610-
285	PLATE; STEP,1ST STEP ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) FACE LIFT<6NL>	8-98160-091-0	01	1	0911-
285	PLATE; STEP,1ST STEP ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) FACE LIFT<6NL>	8-98160-094-0	01	1	0911-
285	PLATE; STEP,1ST STEP FACE LIFT<6NL>	8-97619-528-0	01	1	0806-0910
285	PLATE; STEP,1ST STEP FACE LIFT<6NL> EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT)	8-97619-528-0	01	1	0911-
285	PLATE; STEP,1ST STEP FACE LIFT<6NL>	8-97619-529-0	01	1	0806-0910
285	PLATE; STEP,1ST STEP FACE LIFT<6NL> EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT)	8-97619-529-0	01	1	0911-
285	PLATE; STEP,1ST STEP	1-53414-047-2	01	1	0610-0805
285	PLATE; STEP,1ST STEP EXC. FACE LIFT<6NL>	1-53414-047-2	01	1	0806-
285	PLATE; STEP,1ST STEP	1-53414-182-0	01	1	0610-0805
285	PLATE; STEP,1ST STEP EXC. FACE LIFT<6NL>	1-53414-182-0	01	1	0806-
289	WASHER; PL,STEP ID=6.4 OD=18	0-91610-706-0	08	1	0610-
291	BOLT; STEP PLATE M8X40 FLANGE	0-28050-840-0	08	1	0610-
304	NUT; SPIRE M6	1-09984-182-0	04	1	0610-0905
304	NUT; SPIRE EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) M6	1-09984-182-0	04	1	0906-
339	FASTENER; SIDE EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) ID=6X6 OD=8	1-09987-194-0	12	1	0906-
339	FASTENER; SIDE ID=6X6 OD=8	1-09987-194-0	12	1	0610-0905
339	FASTENER; SIDE ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) FACE LIFT<6NL> ID=6X6 OD=8	1-09987-194-0	10	1	0906-
404	BRACKET DUMP TRUCK<RA1>,MIXER TRUCK<RA2> ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) EXC. FRONT SPOILER<VP1> (B)	8-98128-702-1	01	1	0906-
404	BRACKET ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (A)	1-53414-158-4	01	1	0906-
404	BRACKET ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) EXC. DUMP TRUCK<RA1>,MIXER TRUCK<RA2>,FRONT SPOILER<VP1> (C)	8-97629-747-1	01	1	0906-
404	BRACKET ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) FRONT SPOILER<VP1> (C)	8-97629-747-1	01	1	0906-
404	BRACKET DUMP TRUCK<RA1>,MIXER TRUCK<RA2> EXC. FRONT SPOILER<VP1> (B)	8-97609-965-0	01	1	0610-0905
404	BRACKET DUMP TRUCK<RA1>,MIXER TRUCK<RA2> EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) ,FRONT SPOILER<VP1> (B)	8-97609-965-1	01	1	0906-
404	BRACKET FRONT SPOILER<VP1> (C)	8-97609-131-2	01	1	0610-0905
404	BRACKET EXC. DUMP TRUCK<RA1>,MIXER TRUCK<RA2>,FRONT SPOILER<VP1> (C)	8-97609-131-2	01	1	0610-0905
404	BRACKET FRONT SPOILER<VP1> EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (C)	8-97609-131-3	01	1	0906-
404	BRACKET EXC. DUMP TRUCK<RA1>,MIXER TRUCK<RA2>,ECE R11; DOORLATCHES AND DOOR RETENTION (VNT),FRONT SPOILER<VP1> (C)	8-97609-131-3	01	1	0906-
404	BRACKET (A)	1-53414-159-3	01	1	0610-0905
404	BRACKET EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (A)	1-53414-159-4	01	1	0906-
430	NUT; PANEL M8 FLANGE	0-91180-108-0	08	1	0610-
444	BOLT; CLOSING M8X24.5 W/LK&PL WASHER	8-94279-208-0	06	1	0610-0904
444	BOLT; CLOSING M8X24.5 W/LK&PL WASHER	8-98059-720-0	06	1	0905-
446	FINISHER; STEP ID=18 L=80	1-71996-051-0	02	1	0610-
447	BOLT; PANEL M6X12 FLANGE	0-28050-612-0	08	1	0610-
455	PROTECTOR; STEP ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) FACE LIFT<6NL>	8-98125-807-2	01	1	0906-
455	PROTECTOR; STEP ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) FACE LIFT<6NL>	8-98125-808-2	01	1	0906-
455	PROTECTOR; STEP FACE LIFT<6NL>	1-71907-837-0	01	1	0806-0905
455	PROTECTOR; STEP FACE LIFT<6NL> EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT)	1-71907-837-1	01	1	0906-
455	PROTECTOR; STEP FACE LIFT<6NL>	1-71907-838-0	01	1	0806-0905
455	PROTECTOR; STEP FACE LIFT<6NL> EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT)	1-71907-838-1	01	1	0906-
455	PROTECTOR; STEP	1-71907-186-1	01	1	0610-0805
455	PROTECTOR; STEP EXC. FACE LIFT<6NL>	1-71907-186-1	01	1	0806-0905
455	PROTECTOR; STEP EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) ,FACE LIFT<6NL>	1-71907-186-2	01	1	0906-
455	PROTECTOR; STEP	1-71907-187-1	01	1	0610-0805
455	PROTECTOR; STEP EXC. FACE LIFT<6NL>	1-71907-187-1	01	1	0806-0905
455	PROTECTOR; STEP EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) ,FACE LIFT<6NL>	1-71907-187-2	01	1	0906-
517	SCREW; TAP M5X10 TAPPING W/PL WASHER	0-74160-510-0	04	1	0610-0905
517	SCREW; TAP EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) M5X10 TAPPING W/PL WASHER	0-74160-510-0	04	1	0906-

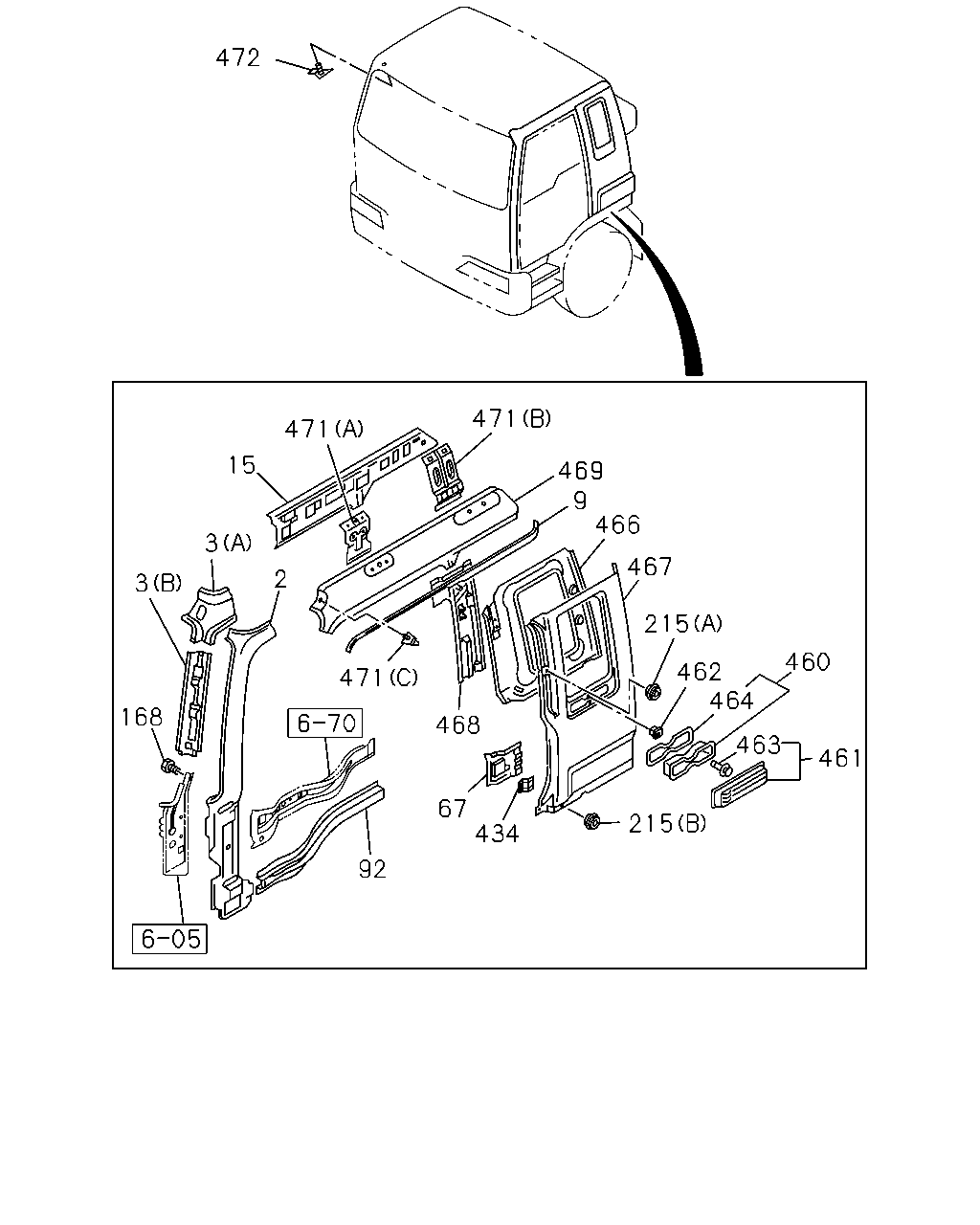

472 471 471 15 469 9 466 3 467 2 3 215 460 462 464 471 168 468 463 461 67 434 215 92

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	PILLAR; FRT	1-61281-155-4	01	1	0610-
2	PILLAR; FRT	1-61281-156-4	01	1	0610-
3	PANEL; CLOSING,FRT PILLAR (A)	1-61281-169-5	01	1	0610-
3	PANEL; CLOSING,FRT PILLAR (A)	1-61281-170-5	01	1	0610-
3	PANEL; CLOSING,FRT PILLAR (B)	1-61281-343-5	01	1	0610-
3	PANEL; CLOSING,FRT PILLAR (B)	1-61281-344-5	01	1	0610-
9	MOLDING; DRIP,CAB SIDE	1-61281-280-5	01	1	0610-
9	MOLDING; DRIP,CAB SIDE	1-61281-281-5	01	1	0610-
15	PANEL; CANT RAIL SIDE	1-61281-177-8	01	1	0610-
15	PANEL; CANT RAIL SIDE	1-61281-178-8	01	1	0610-
67	PANEL; INNER,RR PILLAR LWR	1-61281-194-5	01	1	0610-
67	PANEL; INNER,RR PILLAR LWR	1-61281-195-5	01	1	0610-
92	PANEL; SIDE SILL,CAB	1-61281-211-9	01	1	0610-
92	PANEL; SIDE SILL,CAB	1-61281-212-8	01	1	0610-
168	BOLT; BODY SIDE PANEL M6X10 FLANGE	0-28050-610-0	04	1	0610-
210	PANEL; DOOR STRIKER REINF	8-97851-446-1	01	1	0610-
215	GROMMET; RR PILLAR (A) OD=23.5	1-09983-101-0	02	1	0610-
215	GROMMET; RR PILLAR (B) OD=28.5	8-94279-711-0	02	1	0610-
434	PATCH; ASSIST GRIP	1-61270-763-1	02	1	0610-
460	VENTILATOR; BODY SIDE	1-76378-292-4	02	1	0610-
461	ORNAMENT; VENTILATOR	1-76378-302-6	01	1	0610-
461	ORNAMENT; VENTILATOR	1-76378-303-6	01	1	0610-
462	GROMMET; VENTILATOR OD=7.9X7.9 ID=4.2X4.2	1-09983-151-1	08	1	0610-
463	PIN; ORNAMENT D4.2X13	1-09983-161-0	08	1	0610-
464	SEAL; VENTILATOR	1-76378-299-0	02	1	0610-
466	PANEL; INNER,BACK CORNER	1-61281-415-1	01	1	0610-
466	PANEL; INNER,BACK CORNER	1-61281-416-1	01	1	0610-
467	PANEL; OUTER,BACK CORNER	1-61281-203-4	01	1	0610-
467	PANEL; OUTER,BACK CORNER	1-61281-204-4	01	1	0610-
468	REINFORCEMENT; SEAT BELT ANCHOR	1-61281-417-2	01	1	0610-
468	REINFORCEMENT; SEAT BELT ANCHOR	1-61281-418-2	01	1	0610-
469	ROOF; SIDE	1-61281-198-8	01	1	0610-
469	ROOF; SIDE	1-61281-199-8	01	1	0610-
471	PATCH; AIR DEFLECTOR (A)	1-61281-200-3	01	1	0610-
471	PATCH; AIR DEFLECTOR (A)	1-61281-201-3	01	1	0610-
471	PATCH; AIR DEFLECTOR (B)	1-61281-202-3	02	1	0610-
471	PATCH; AIR DEFLECTOR (C)	1-61281-233-4	01	1	0610-0812
471	PATCH; AIR DEFLECTOR (C)	8-98132-463-0	01	1	0901-
472	PATCH; STAY,ROOF	1-61270-943-1	01	1	0610-

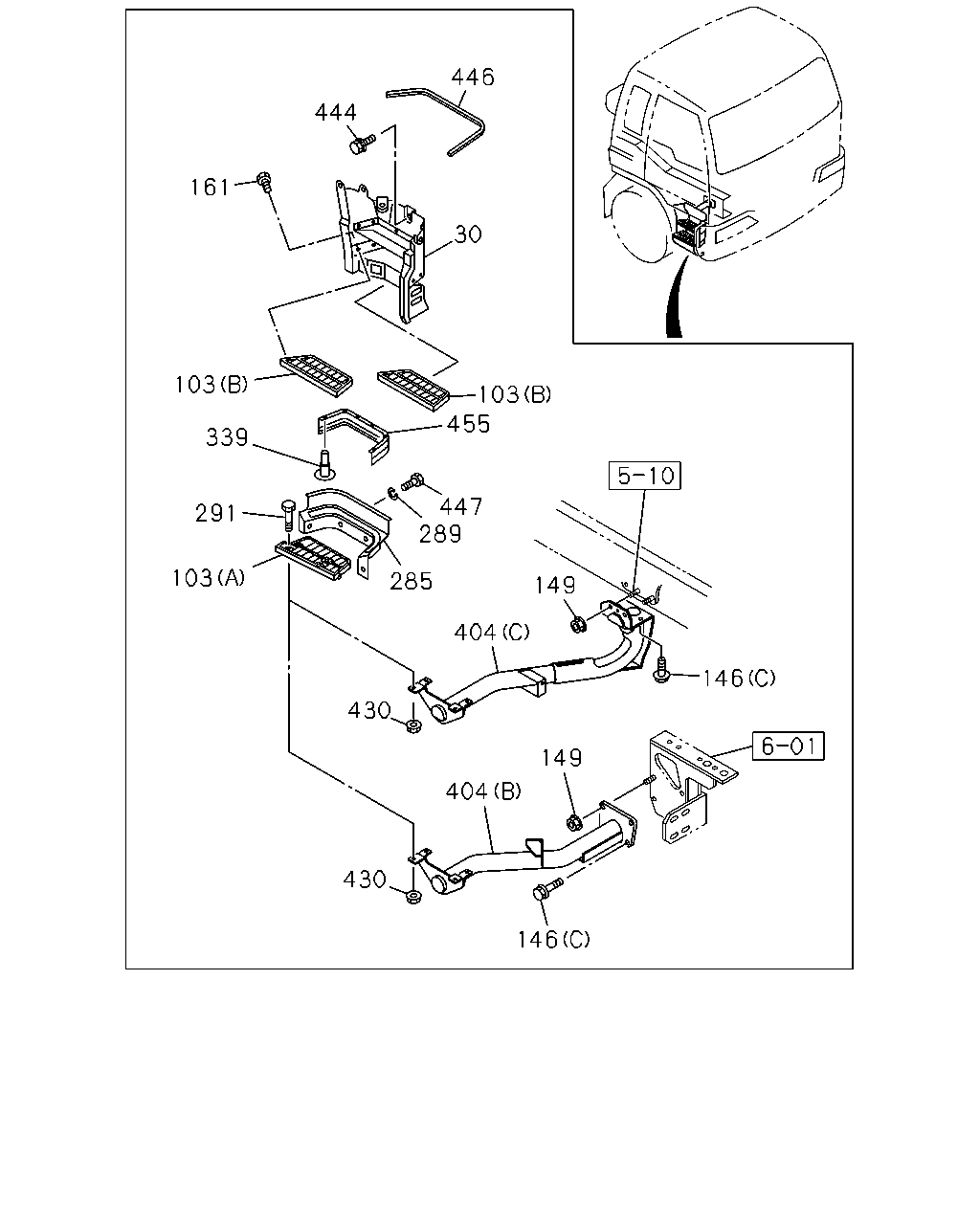

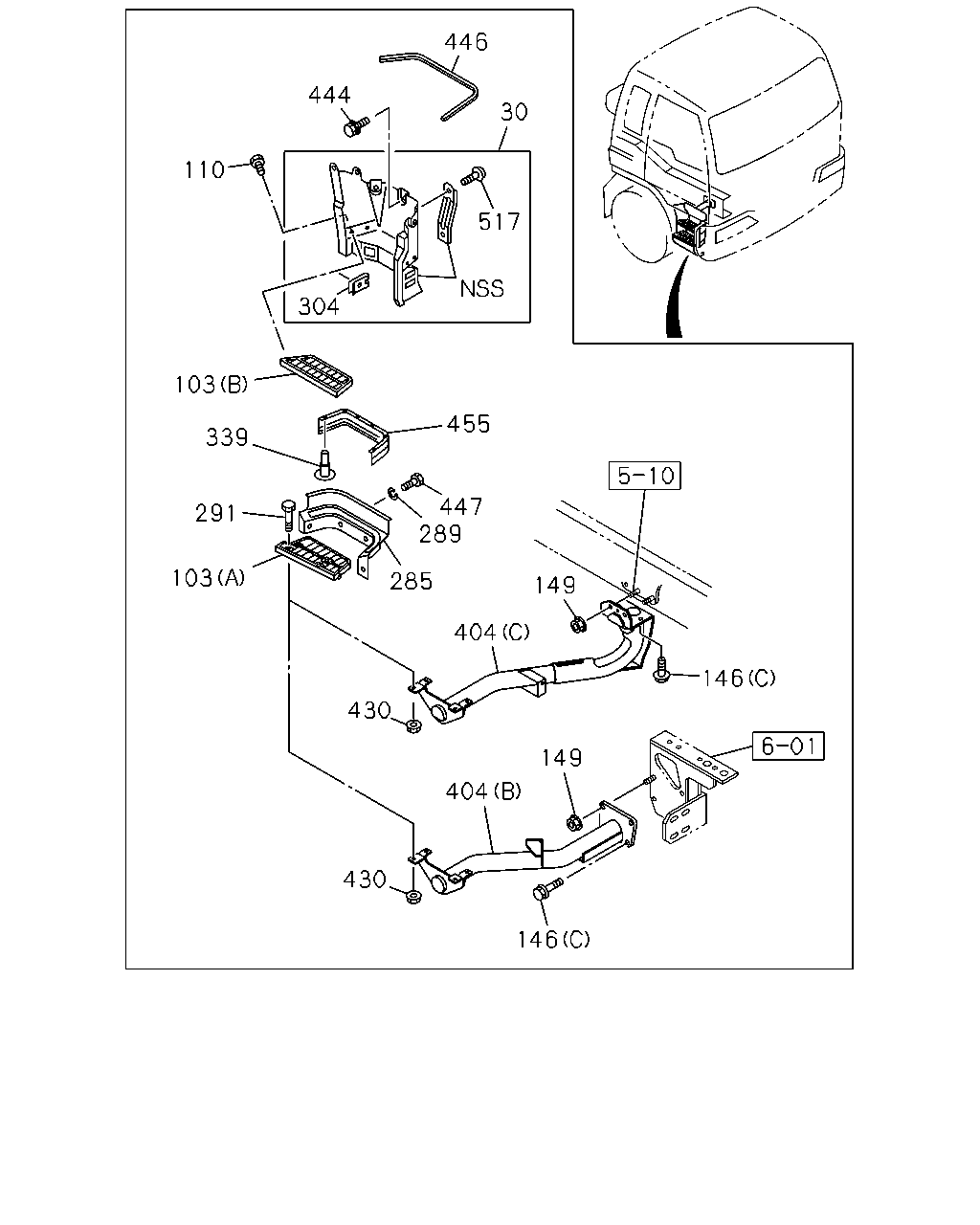

446 444 30 110 517 304 103 455 339 447 289 291 103 285 149 404 146 149 404 430 146 430

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
30	CLOSING; SIDE STEP ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT)	8-98125-809-4	01	1	0906-
30	CLOSING; SIDE STEP ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT)	8-98125-810-4	01	1	0906-
30	CLOSING; SIDE STEP FACE LIFT<6NL>	1-71907-816-1	01	1	0806-0905
30	CLOSING; SIDE STEP FACE LIFT<6NL> EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT)	1-71907-816-1	01	1	0906-0910
30	CLOSING; SIDE STEP FACE LIFT<6NL> EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT)	8-98156-847-0	01	1	0911-
30	CLOSING; SIDE STEP FACE LIFT<6NL>	1-71907-817-1	01	1	0806-0905
30	CLOSING; SIDE STEP FACE LIFT<6NL> EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT)	1-71907-817-1	01	1	0906-0910
30	CLOSING; SIDE STEP FACE LIFT<6NL> EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT)	8-98156-848-0	01	1	0911-
30	CLOSING; SIDE STEP	1-71907-464-0	01	1	0610-0805
30	CLOSING; SIDE STEP EXC. FACE LIFT<6NL>	1-71907-464-0	01	1	0806-0905
30	CLOSING; SIDE STEP EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) ,FACE LIFT<6NL>	1-71907-464-0	01	1	0906-0910
30	CLOSING; SIDE STEP EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) ,FACE LIFT<6NL>	8-98156-823-0	01	1	0911-
30	CLOSING; SIDE STEP	1-71907-465-0	01	1	0610-0805
30	CLOSING; SIDE STEP EXC. FACE LIFT<6NL>	1-71907-465-0	01	1	0806-0905
30	CLOSING; SIDE STEP EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) ,FACE LIFT<6NL>	1-71907-465-0	01	1	0906-0910
30	CLOSING; SIDE STEP EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) ,FACE LIFT<6NL>	8-98156-824-0	01	1	0911-
103	PLATE; STEP EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (B)	1-71907-174-1	01	1	0906-
103	PLATE; STEP EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (B)	1-71907-249-1	01	1	0906-
103	PLATE; STEP (A)	1-53414-180-0	01	1	0610-
103	PLATE; STEP (A)	1-53414-181-0	01	1	0610-
103	PLATE; STEP (B)	1-71907-174-1	01	1	0610-0905
103	PLATE; STEP ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (B)	1-71907-174-1	02	1	0906-
103	PLATE; STEP (B)	1-71907-249-1	01	1	0610-0905
103	PLATE; STEP ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (B)	1-71907-249-1	02	1	0906-
110	BOLT; 1ST STEP PLATE M8X29.5 W/LK+PL WASHER	8-94279-218-0	08	1	0610-0905
110	BOLT; 1ST STEP PLATE EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) M8X29.5 W/LK+PL WASHER	8-94279-218-0	08	1	0906-
146	BOLT; STEP BRKT DUMP TRUCK<RA1>,MIXER TRUCK<RA2> EXC. FRONT SPOILER<VP1> (C) M12X35 FLANGE	0-28651-235-0	03	1	0610-
146	BOLT; STEP BRKT FRONT SPOILER<VP1> (C) M12X35 FLANGE	0-28651-235-0	02	1	0610-
146	BOLT; STEP BRKT EXC. DUMP TRUCK<RA1>,MIXER TRUCK<RA2>,FRONT SPOILER<VP1> (C) M12X35 FLANGE	0-28651-235-0	02	1	0610-
146	BOLT; STEP BRKT (A) M12X30 FLANGE	0-28051-230-0	02	1	0610-
146	BOLT; STEP BRKT (B) M12X70 FLANGE	0-28051-270-0	02	1	0610-
149	NUT; STEP BRKT DUMP TRUCK<RA1>,MIXER TRUCK<RA2> EXC. FRONT SPOILER<VP1> M12 FLANGE	0-91180-212-0	01	1	0610-
149	NUT; STEP BRKT FRONT SPOILER<VP1> M12 FLANGE	0-91180-212-0	02	1	0610-
149	NUT; STEP BRKT EXC. DUMP TRUCK<RA1>,MIXER TRUCK<RA2>,FRONT SPOILER<VP1> M12 FLANGE	0-91180-212-0	02	1	0610-
210	PANEL; DOOR STRIKER REINF	8-97851-446-1	01	1	0610-
285	PLATE; STEP,1ST STEP ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) FACE LIFT<6NL>	8-98160-091-0	01	1	0911-
285	PLATE; STEP,1ST STEP ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) FACE LIFT<6NL>	8-98160-094-0	01	1	0911-
285	PLATE; STEP,1ST STEP FACE LIFT<6NL>	8-97619-528-0	01	1	0806-0910
285	PLATE; STEP,1ST STEP FACE LIFT<6NL> EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT)	8-97619-528-0	01	1	0911-
285	PLATE; STEP,1ST STEP FACE LIFT<6NL>	8-97619-529-0	01	1	0806-0910
285	PLATE; STEP,1ST STEP FACE LIFT<6NL> EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT)	8-97619-529-0	01	1	0911-
285	PLATE; STEP,1ST STEP	1-53414-047-2	01	1	0610-0805
285	PLATE; STEP,1ST STEP EXC. FACE LIFT<6NL>	1-53414-047-2	01	1	0806-
285	PLATE; STEP,1ST STEP	1-53414-182-0	01	1	0610-0805
285	PLATE; STEP,1ST STEP EXC. FACE LIFT<6NL>	1-53414-182-0	01	1	0806-
289	WASHER; PL,STEP ID=6.4 OD=18	0-91610-706-0	08	1	0610-
291	BOLT; STEP PLATE M8X40 FLANGE	0-28050-840-0	08	1	0610-
304	NUT; SPIRE M6	1-09984-182-0	04	1	0610-0905
304	NUT; SPIRE EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) M6	1-09984-182-0	04	1	0906-
339	FASTENER; SIDE EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) ID=6X6 OD=8	1-09987-194-0	12	1	0906-
339	FASTENER; SIDE ID=6X6 OD=8	1-09987-194-0	12	1	0610-0905
339	FASTENER; SIDE ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) FACE LIFT<6NL> ID=6X6 OD=8	1-09987-194-0	10	1	0906-
404	BRACKET DUMP TRUCK<RA1>,MIXER TRUCK<RA2> ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) EXC. FRONT SPOILER<VP1> (B)	8-98128-702-1	01	1	0906-
404	BRACKET ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (A)	1-53414-158-4	01	1	0906-
404	BRACKET ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) EXC. DUMP TRUCK<RA1>,MIXER TRUCK<RA2>,FRONT SPOILER<VP1> (C)	8-97629-747-1	01	1	0906-
404	BRACKET ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) FRONT SPOILER<VP1> (C)	8-97629-747-1	01	1	0906-
404	BRACKET DUMP TRUCK<RA1>,MIXER TRUCK<RA2> EXC. FRONT SPOILER<VP1> (B)	8-97609-965-0	01	1	0610-0905
404	BRACKET DUMP TRUCK<RA1>,MIXER TRUCK<RA2> EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) ,FRONT SPOILER<VP1> (B)	8-97609-965-1	01	1	0906-
404	BRACKET FRONT SPOILER<VP1> (C)	8-97609-131-2	01	1	0610-0905
404	BRACKET EXC. DUMP TRUCK<RA1>,MIXER TRUCK<RA2>,FRONT SPOILER<VP1> (C)	8-97609-131-2	01	1	0610-0905
404	BRACKET FRONT SPOILER<VP1> EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (C)	8-97609-131-3	01	1	0906-
404	BRACKET EXC. DUMP TRUCK<RA1>,MIXER TRUCK<RA2>,ECE R11; DOORLATCHES AND DOOR RETENTION (VNT),FRONT SPOILER<VP1> (C)	8-97609-131-3	01	1	0906-
404	BRACKET (A)	1-53414-159-3	01	1	0610-0905
404	BRACKET EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (A)	1-53414-159-4	01	1	0906-
430	NUT; PANEL M8 FLANGE	0-91180-108-0	08	1	0610-
444	BOLT; CLOSING M8X24.5 W/LK&PL WASHER	8-94279-208-0	06	1	0610-0904
444	BOLT; CLOSING M8X24.5 W/LK&PL WASHER	8-98059-720-0	06	1	0905-
446	FINISHER; STEP ID=18 L=80	1-71996-051-0	02	1	0610-
447	BOLT; PANEL M6X12 FLANGE	0-28050-612-0	08	1	0610-
455	PROTECTOR; STEP ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) FACE LIFT<6NL>	8-98125-807-2	01	1	0906-
455	PROTECTOR; STEP ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) FACE LIFT<6NL>	8-98125-808-2	01	1	0906-
455	PROTECTOR; STEP FACE LIFT<6NL>	1-71907-837-0	01	1	0806-0905
455	PROTECTOR; STEP FACE LIFT<6NL> EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT)	1-71907-837-1	01	1	0906-
455	PROTECTOR; STEP FACE LIFT<6NL>	1-71907-838-0	01	1	0806-0905
455	PROTECTOR; STEP FACE LIFT<6NL> EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT)	1-71907-838-1	01	1	0906-
455	PROTECTOR; STEP	1-71907-186-1	01	1	0610-0805
455	PROTECTOR; STEP EXC. FACE LIFT<6NL>	1-71907-186-1	01	1	0806-0905
455	PROTECTOR; STEP EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) ,FACE LIFT<6NL>	1-71907-186-2	01	1	0906-
455	PROTECTOR; STEP	1-71907-187-1	01	1	0610-0805
455	PROTECTOR; STEP EXC. FACE LIFT<6NL>	1-71907-187-1	01	1	0806-0905
455	PROTECTOR; STEP EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) ,FACE LIFT<6NL>	1-71907-187-2	01	1	0906-
517	SCREW; TAP M5X10 TAPPING W/PL WASHER	0-74160-510-0	04	1	0610-0905
517	SCREW; TAP EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) M5X10 TAPPING W/PL WASHER	0-74160-510-0	04	1	0906-

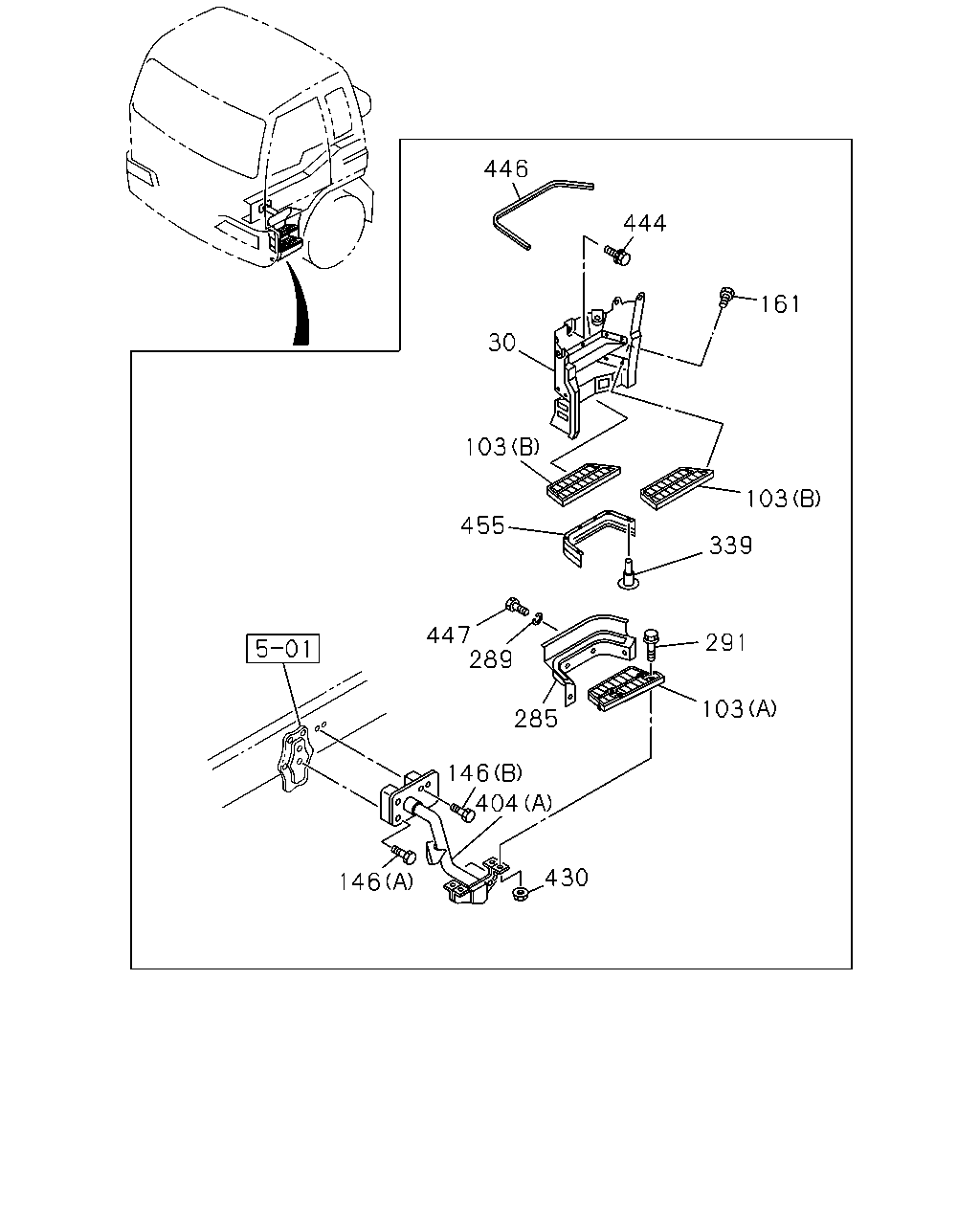

446 444 161 30 103 103 455 339 447 289 291 103 285 149 404 146 149 404 430 146 430

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
30	CLOSING; SIDE STEP ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT)	8-98125-809-4	01	1	0906-
30	CLOSING; SIDE STEP ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT)	8-98125-810-4	01	1	0906-
30	CLOSING; SIDE STEP FACE LIFT<6NL>	1-71907-816-1	01	1	0806-0905
30	CLOSING; SIDE STEP FACE LIFT<6NL> EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT)	1-71907-816-1	01	1	0906-0910
30	CLOSING; SIDE STEP FACE LIFT<6NL> EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT)	8-98156-847-0	01	1	0911-
30	CLOSING; SIDE STEP FACE LIFT<6NL>	1-71907-817-1	01	1	0806-0905
30	CLOSING; SIDE STEP FACE LIFT<6NL> EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT)	1-71907-817-1	01	1	0906-0910
30	CLOSING; SIDE STEP FACE LIFT<6NL> EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT)	8-98156-848-0	01	1	0911-
30	CLOSING; SIDE STEP	1-71907-464-0	01	1	0610-0805
30	CLOSING; SIDE STEP EXC. FACE LIFT<6NL>	1-71907-464-0	01	1	0806-0905
30	CLOSING; SIDE STEP EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) ,FACE LIFT<6NL>	1-71907-464-0	01	1	0906-0910
30	CLOSING; SIDE STEP EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) ,FACE LIFT<6NL>	8-98156-823-0	01	1	0911-
30	CLOSING; SIDE STEP	1-71907-465-0	01	1	0610-0805
30	CLOSING; SIDE STEP EXC. FACE LIFT<6NL>	1-71907-465-0	01	1	0806-0905
30	CLOSING; SIDE STEP EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) ,FACE LIFT<6NL>	1-71907-465-0	01	1	0906-0910
30	CLOSING; SIDE STEP EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) ,FACE LIFT<6NL>	8-98156-824-0	01	1	0911-
103	PLATE; STEP EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (B)	1-71907-174-1	01	1	0906-
103	PLATE; STEP EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (B)	1-71907-249-1	01	1	0906-
103	PLATE; STEP (A)	1-53414-180-0	01	1	0610-
103	PLATE; STEP (A)	1-53414-181-0	01	1	0610-
103	PLATE; STEP (B)	1-71907-174-1	01	1	0610-0905
103	PLATE; STEP ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (B)	1-71907-174-1	02	1	0906-
103	PLATE; STEP (B)	1-71907-249-1	01	1	0610-0905
103	PLATE; STEP ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (B)	1-71907-249-1	02	1	0906-
146	BOLT; STEP BRKT DUMP TRUCK<RA1>,MIXER TRUCK<RA2> EXC. FRONT SPOILER<VP1> (C) M12X35 FLANGE	0-28651-235-0	03	1	0610-
146	BOLT; STEP BRKT FRONT SPOILER<VP1> (C) M12X35 FLANGE	0-28651-235-0	02	1	0610-
146	BOLT; STEP BRKT EXC. DUMP TRUCK<RA1>,MIXER TRUCK<RA2>,FRONT SPOILER<VP1> (C) M12X35 FLANGE	0-28651-235-0	02	1	0610-
146	BOLT; STEP BRKT (A) M12X30 FLANGE	0-28051-230-0	02	1	0610-
146	BOLT; STEP BRKT (B) M12X70 FLANGE	0-28051-270-0	02	1	0610-
149	NUT; STEP BRKT DUMP TRUCK<RA1>,MIXER TRUCK<RA2> EXC. FRONT SPOILER<VP1> M12 FLANGE	0-91180-212-0	01	1	0610-
149	NUT; STEP BRKT FRONT SPOILER<VP1> M12 FLANGE	0-91180-212-0	02	1	0610-
149	NUT; STEP BRKT EXC. DUMP TRUCK<RA1>,MIXER TRUCK<RA2>,FRONT SPOILER<VP1> M12 FLANGE	0-91180-212-0	02	1	0610-
161	BOLT; FIX ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) M8X29.5 W/LK+PL WASHER	8-94279-218-0	16	1	0906-
210	PANEL; DOOR STRIKER REINF	8-97851-446-1	01	1	0610-
285	PLATE; STEP,1ST STEP ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) FACE LIFT<6NL>	8-98160-091-0	01	1	0911-
285	PLATE; STEP,1ST STEP ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) FACE LIFT<6NL>	8-98160-094-0	01	1	0911-
285	PLATE; STEP,1ST STEP FACE LIFT<6NL>	8-97619-528-0	01	1	0806-0910
285	PLATE; STEP,1ST STEP FACE LIFT<6NL> EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT)	8-97619-528-0	01	1	0911-
285	PLATE; STEP,1ST STEP FACE LIFT<6NL>	8-97619-529-0	01	1	0806-0910
285	PLATE; STEP,1ST STEP FACE LIFT<6NL> EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT)	8-97619-529-0	01	1	0911-
285	PLATE; STEP,1ST STEP	1-53414-047-2	01	1	0610-0805
285	PLATE; STEP,1ST STEP EXC. FACE LIFT<6NL>	1-53414-047-2	01	1	0806-
285	PLATE; STEP,1ST STEP	1-53414-182-0	01	1	0610-0805
285	PLATE; STEP,1ST STEP EXC. FACE LIFT<6NL>	1-53414-182-0	01	1	0806-
289	WASHER; PL,STEP ID=6.4 OD=18	0-91610-706-0	08	1	0610-
291	BOLT; STEP PLATE M8X40 FLANGE	0-28050-840-0	08	1	0610-
339	FASTENER; SIDE EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) ID=6X6 OD=8	1-09987-194-0	12	1	0906-
339	FASTENER; SIDE ID=6X6 OD=8	1-09987-194-0	12	1	0610-0905
339	FASTENER; SIDE ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) FACE LIFT<6NL> ID=6X6 OD=8	1-09987-194-0	10	1	0906-
404	BRACKET DUMP TRUCK<RA1>,MIXER TRUCK<RA2> ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) EXC. FRONT SPOILER<VP1> (B)	8-98128-702-1	01	1	0906-
404	BRACKET ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (A)	1-53414-158-4	01	1	0906-
404	BRACKET ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) EXC. DUMP TRUCK<RA1>,MIXER TRUCK<RA2>,FRONT SPOILER<VP1> (C)	8-97629-747-1	01	1	0906-
404	BRACKET ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) FRONT SPOILER<VP1> (C)	8-97629-747-1	01	1	0906-
404	BRACKET DUMP TRUCK<RA1>,MIXER TRUCK<RA2> EXC. FRONT SPOILER<VP1> (B)	8-97609-965-0	01	1	0610-0905
404	BRACKET DUMP TRUCK<RA1>,MIXER TRUCK<RA2> EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) ,FRONT SPOILER<VP1> (B)	8-97609-965-1	01	1	0906-
404	BRACKET FRONT SPOILER<VP1> (C)	8-97609-131-2	01	1	0610-0905
404	BRACKET EXC. DUMP TRUCK<RA1>,MIXER TRUCK<RA2>,FRONT SPOILER<VP1> (C)	8-97609-131-2	01	1	0610-0905
404	BRACKET FRONT SPOILER<VP1> EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (C)	8-97609-131-3	01	1	0906-
404	BRACKET EXC. DUMP TRUCK<RA1>,MIXER TRUCK<RA2>,ECE R11; DOORLATCHES AND DOOR RETENTION (VNT),FRONT SPOILER<VP1> (C)	8-97609-131-3	01	1	0906-
404	BRACKET (A)	1-53414-159-3	01	1	0610-0905
404	BRACKET EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (A)	1-53414-159-4	01	1	0906-
430	NUT; PANEL M8 FLANGE	0-91180-108-0	08	1	0610-
444	BOLT; CLOSING M8X24.5 W/LK&PL WASHER	8-94279-208-0	06	1	0610-0904
444	BOLT; CLOSING M8X24.5 W/LK&PL WASHER	8-98059-720-0	06	1	0905-
446	FINISHER; STEP ID=18 L=80	1-71996-051-0	02	1	0610-
447	BOLT; PANEL M6X12 FLANGE	0-28050-612-0	08	1	0610-
455	PROTECTOR; STEP ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) FACE LIFT<6NL>	8-98125-807-2	01	1	0906-
455	PROTECTOR; STEP ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) FACE LIFT<6NL>	8-98125-808-2	01	1	0906-
455	PROTECTOR; STEP FACE LIFT<6NL>	1-71907-837-0	01	1	0806-0905
455	PROTECTOR; STEP FACE LIFT<6NL> EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT)	1-71907-837-1	01	1	0906-
455	PROTECTOR; STEP FACE LIFT<6NL>	1-71907-838-0	01	1	0806-0905
455	PROTECTOR; STEP FACE LIFT<6NL> EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT)	1-71907-838-1	01	1	0906-
455	PROTECTOR; STEP	1-71907-186-1	01	1	0610-0805
455	PROTECTOR; STEP EXC. FACE LIFT<6NL>	1-71907-186-1	01	1	0806-0905
455	PROTECTOR; STEP EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) ,FACE LIFT<6NL>	1-71907-186-2	01	1	0906-
455	PROTECTOR; STEP	1-71907-187-1	01	1	0610-0805
455	PROTECTOR; STEP EXC. FACE LIFT<6NL>	1-71907-187-1	01	1	0806-0905
455	PROTECTOR; STEP EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) ,FACE LIFT<6NL>	1-71907-187-2	01	1	0906-

446 444 161 30 103 103 455 339 447 289 291 285 103 146 404 430 146

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
30	CLOSING; SIDE STEP ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT)	8-98125-809-4	01	1	0906-
30	CLOSING; SIDE STEP ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT)	8-98125-810-4	01	1	0906-
30	CLOSING; SIDE STEP FACE LIFT<6NL>	1-71907-816-1	01	1	0806-0905
30	CLOSING; SIDE STEP FACE LIFT<6NL> EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT)	1-71907-816-1	01	1	0906-0910
30	CLOSING; SIDE STEP FACE LIFT<6NL> EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT)	8-98156-847-0	01	1	0911-
30	CLOSING; SIDE STEP FACE LIFT<6NL>	1-71907-817-1	01	1	0806-0905
30	CLOSING; SIDE STEP FACE LIFT<6NL> EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT)	1-71907-817-1	01	1	0906-0910
30	CLOSING; SIDE STEP FACE LIFT<6NL> EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT)	8-98156-848-0	01	1	0911-
30	CLOSING; SIDE STEP	1-71907-464-0	01	1	0610-0805
30	CLOSING; SIDE STEP EXC. FACE LIFT<6NL>	1-71907-464-0	01	1	0806-0905
30	CLOSING; SIDE STEP EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) ,FACE LIFT<6NL>	1-71907-464-0	01	1	0906-0910
30	CLOSING; SIDE STEP EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) ,FACE LIFT<6NL>	8-98156-823-0	01	1	0911-
30	CLOSING; SIDE STEP	1-71907-465-0	01	1	0610-0805
30	CLOSING; SIDE STEP EXC. FACE LIFT<6NL>	1-71907-465-0	01	1	0806-0905
30	CLOSING; SIDE STEP EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) ,FACE LIFT<6NL>	1-71907-465-0	01	1	0906-0910
30	CLOSING; SIDE STEP EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) ,FACE LIFT<6NL>	8-98156-824-0	01	1	0911-
103	PLATE; STEP EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (B)	1-71907-174-1	01	1	0906-
103	PLATE; STEP EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (B)	1-71907-249-1	01	1	0906-
103	PLATE; STEP (A)	1-53414-180-0	01	1	0610-
103	PLATE; STEP (A)	1-53414-181-0	01	1	0610-
103	PLATE; STEP (B)	1-71907-174-1	01	1	0610-0905
103	PLATE; STEP ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (B)	1-71907-174-1	02	1	0906-
103	PLATE; STEP (B)	1-71907-249-1	01	1	0610-0905
103	PLATE; STEP ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (B)	1-71907-249-1	02	1	0906-
146	BOLT; STEP BRKT DUMP TRUCK<RA1>,MIXER TRUCK<RA2> EXC. FRONT SPOILER<VP1> (C) M12X35 FLANGE	0-28651-235-0	03	1	0610-
146	BOLT; STEP BRKT FRONT SPOILER<VP1> (C) M12X35 FLANGE	0-28651-235-0	02	1	0610-
146	BOLT; STEP BRKT EXC. DUMP TRUCK<RA1>,MIXER TRUCK<RA2>,FRONT SPOILER<VP1> (C) M12X35 FLANGE	0-28651-235-0	02	1	0610-
146	BOLT; STEP BRKT (A) M12X30 FLANGE	0-28051-230-0	02	1	0610-
146	BOLT; STEP BRKT (B) M12X70 FLANGE	0-28051-270-0	02	1	0610-
161	BOLT; FIX ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) M8X29.5 W/LK+PL WASHER	8-94279-218-0	16	1	0906-
210	PANEL; DOOR STRIKER REINF	8-97851-446-1	01	1	0610-
285	PLATE; STEP,1ST STEP ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) FACE LIFT<6NL>	8-98160-091-0	01	1	0911-
285	PLATE; STEP,1ST STEP ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) FACE LIFT<6NL>	8-98160-094-0	01	1	0911-
285	PLATE; STEP,1ST STEP FACE LIFT<6NL>	8-97619-528-0	01	1	0806-0910
285	PLATE; STEP,1ST STEP FACE LIFT<6NL> EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT)	8-97619-528-0	01	1	0911-
285	PLATE; STEP,1ST STEP FACE LIFT<6NL>	8-97619-529-0	01	1	0806-0910
285	PLATE; STEP,1ST STEP FACE LIFT<6NL> EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT)	8-97619-529-0	01	1	0911-
285	PLATE; STEP,1ST STEP	1-53414-047-2	01	1	0610-0805
285	PLATE; STEP,1ST STEP EXC. FACE LIFT<6NL>	1-53414-047-2	01	1	0806-
285	PLATE; STEP,1ST STEP	1-53414-182-0	01	1	0610-0805
285	PLATE; STEP,1ST STEP EXC. FACE LIFT<6NL>	1-53414-182-0	01	1	0806-
289	WASHER; PL,STEP ID=6.4 OD=18	0-91610-706-0	08	1	0610-
291	BOLT; STEP PLATE M8X40 FLANGE	0-28050-840-0	08	1	0610-
339	FASTENER; SIDE EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) ID=6X6 OD=8	1-09987-194-0	12	1	0906-
339	FASTENER; SIDE ID=6X6 OD=8	1-09987-194-0	12	1	0610-0905
339	FASTENER; SIDE ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) FACE LIFT<6NL> ID=6X6 OD=8	1-09987-194-0	10	1	0906-
404	BRACKET DUMP TRUCK<RA1>,MIXER TRUCK<RA2> ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) EXC. FRONT SPOILER<VP1> (B)	8-98128-702-1	01	1	0906-
404	BRACKET ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (A)	1-53414-158-4	01	1	0906-
404	BRACKET ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) EXC. DUMP TRUCK<RA1>,MIXER TRUCK<RA2>,FRONT SPOILER<VP1> (C)	8-97629-747-1	01	1	0906-
404	BRACKET ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) FRONT SPOILER<VP1> (C)	8-97629-747-1	01	1	0906-
404	BRACKET DUMP TRUCK<RA1>,MIXER TRUCK<RA2> EXC. FRONT SPOILER<VP1> (B)	8-97609-965-0	01	1	0610-0905
404	BRACKET DUMP TRUCK<RA1>,MIXER TRUCK<RA2> EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) ,FRONT SPOILER<VP1> (B)	8-97609-965-1	01	1	0906-
404	BRACKET FRONT SPOILER<VP1> (C)	8-97609-131-2	01	1	0610-0905
404	BRACKET EXC. DUMP TRUCK<RA1>,MIXER TRUCK<RA2>,FRONT SPOILER<VP1> (C)	8-97609-131-2	01	1	0610-0905
404	BRACKET FRONT SPOILER<VP1> EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (C)	8-97609-131-3	01	1	0906-
404	BRACKET EXC. DUMP TRUCK<RA1>,MIXER TRUCK<RA2>,ECE R11; DOORLATCHES AND DOOR RETENTION (VNT),FRONT SPOILER<VP1> (C)	8-97609-131-3	01	1	0906-
404	BRACKET (A)	1-53414-159-3	01	1	0610-0905
404	BRACKET EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (A)	1-53414-159-4	01	1	0906-
430	NUT; PANEL M8 FLANGE	0-91180-108-0	08	1	0610-
444	BOLT; CLOSING M8X24.5 W/LK&PL WASHER	8-94279-208-0	06	1	0610-0904
444	BOLT; CLOSING M8X24.5 W/LK&PL WASHER	8-98059-720-0	06	1	0905-
446	FINISHER; STEP ID=18 L=80	1-71996-051-0	02	1	0610-
447	BOLT; PANEL M6X12 FLANGE	0-28050-612-0	08	1	0610-
455	PROTECTOR; STEP ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) FACE LIFT<6NL>	8-98125-807-2	01	1	0906-
455	PROTECTOR; STEP ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) FACE LIFT<6NL>	8-98125-808-2	01	1	0906-
455	PROTECTOR; STEP FACE LIFT<6NL>	1-71907-837-0	01	1	0806-0905
455	PROTECTOR; STEP FACE LIFT<6NL> EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT)	1-71907-837-1	01	1	0906-
455	PROTECTOR; STEP FACE LIFT<6NL>	1-71907-838-0	01	1	0806-0905
455	PROTECTOR; STEP FACE LIFT<6NL> EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT)	1-71907-838-1	01	1	0906-
455	PROTECTOR; STEP	1-71907-186-1	01	1	0610-0805
455	PROTECTOR; STEP EXC. FACE LIFT<6NL>	1-71907-186-1	01	1	0806-0905
455	PROTECTOR; STEP EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) ,FACE LIFT<6NL>	1-71907-186-2	01	1	0906-
455	PROTECTOR; STEP	1-71907-187-1	01	1	0610-0805
455	PROTECTOR; STEP EXC. FACE LIFT<6NL>	1-71907-187-1	01	1	0806-0905
455	PROTECTOR; STEP EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) ,FACE LIFT<6NL>	1-71907-187-2	01	1	0906-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
