◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11035 - CYH RHD EURO4 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-05 - FRONT PANEL ▶
6-05 — FRONT PANEL (#26570) — 514 parça

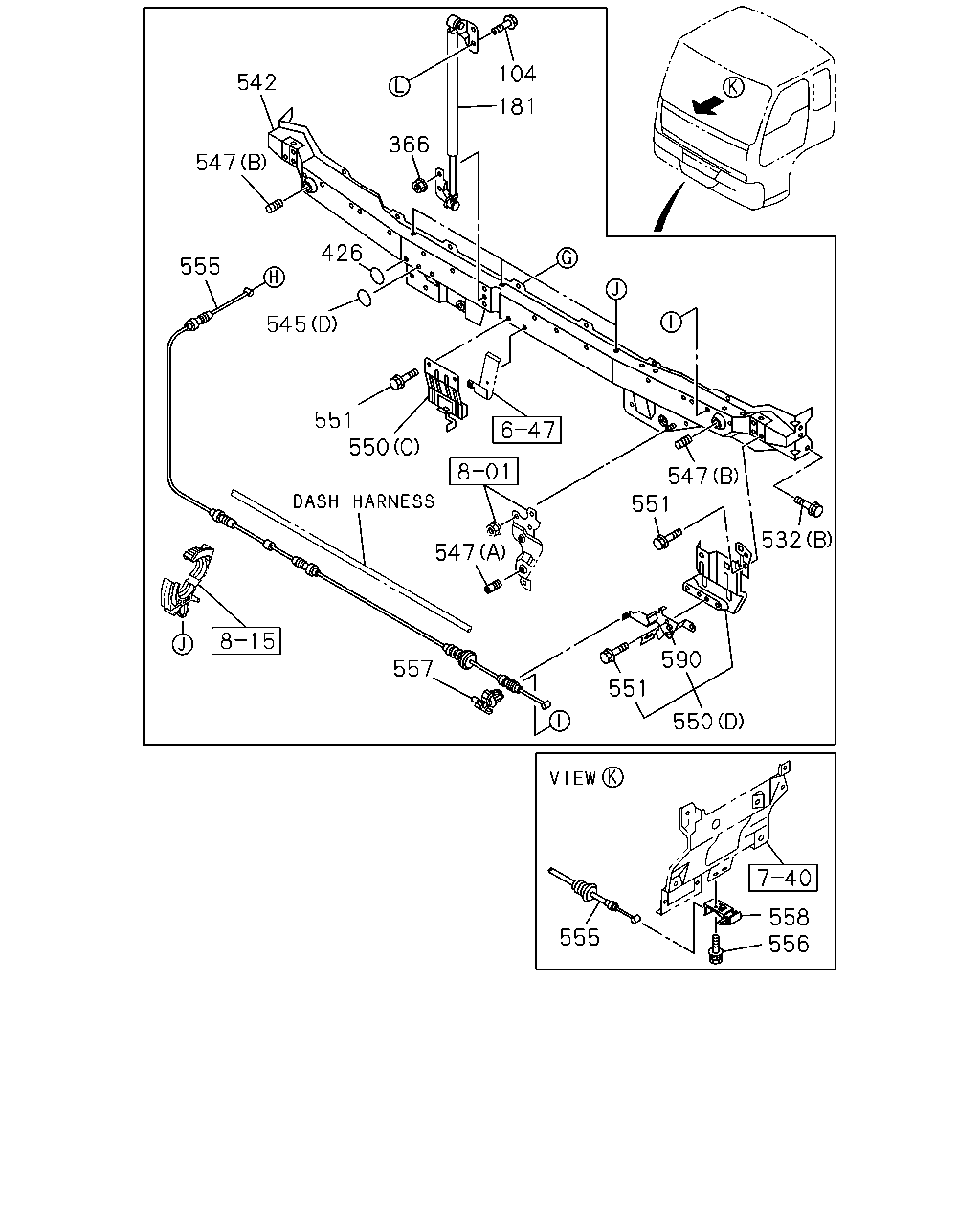

çizim 139302
104 542 181 366 547 426 555 545 551 550 547 551 547 532 590 557 551 550 558 556 555
BalonParca AdiParca NoAdetTipApplied Date
104 BOLT; SUPPORT BAR
M6X20 W/LK&PL WASHER 		8-94279-203-0 02 1 0610-
181 SUPPORT ASM; DOOR CHECK,FRT 1-71107-864-0 01 1 0610-
366 NUT; SUPPORT
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 02 1 0610-
426 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK 		1-76798-019-0 01 1 0610-
426 GASKET
EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK 		1-76798-019-0 02 1 0610-
532 BOLT; FRT PANEL
(A) M8X20 		1-79198-002-0 02 1 0610-
532 BOLT; FRT PANEL
(C) M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 0610-
532 BOLT; FRT PANEL
(B) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 0610-
542 RAIL; FRT MOUNTING 1-61470-721-1 01 1 0610-
545 SEAL; FRT LID
FACE LIFT<6NL> (E) L=135 		1-71907-800-0 02 1 0806-
545 SEAL; FRT LID
FACE LIFT<6NL> (F) L=145 		1-71907-801-0 01 1 0806-
545 SEAL; FRT LID
FACE LIFT<6NL> (F) L=145 		1-71907-802-0 01 1 0806-
545 SEAL; FRT LID
FACE LIFT<6NL> (G) L=40 		1-71907-803-0 02 1 0806-
545 SEAL; FRT LID
(A) 		1-71907-472-0 02 1 0610-0805
545 SEAL; FRT LID
EXC. FACE LIFT<6NL> (A) 		1-71907-472-0 02 1 0806-
545 SEAL; FRT LID
(B) L=2038 		1-71907-481-1 01 1 0610-
545 SEAL; FRT LID
(C) 		1-71907-578-0 02 1 0610-0805
545 SEAL; FRT LID
EXC. FACE LIFT<6NL> (C) 		1-71907-578-0 02 1 0806-
545 SEAL; FRT LID
(D) OD=25 BLACK 		1-76798-019-0 01 1 0610-
547 RUBBER; CUSHION
FACE LIFT<6NL> (D) 		1-71907-804-2 01 1 0806-
547 RUBBER; CUSHION
(A) OD=22 L=39 		1-71907-419-0 02 1 0610-
547 RUBBER; CUSHION
(C) L=1825 		1-71907-581-0 01 1 0610-0805
547 RUBBER; CUSHION
EXC. FACE LIFT<6NL> (C) L=1825 		1-71907-581-1 01 1 0806-
547 RUBBER; CUSHION
(B) OD=22 L=29 		8-94324-556-2 02 1 0610-
550 LOCK ASM; FRT LID
FACE LIFT<6NL> (C) 		1-79317-020-1 01 1 0806-
550 LOCK ASM; FRT LID
FACE LIFT<6NL> (D) 		1-79317-025-1 01 1 0806-
550 LOCK ASM; FRT LID
FACE LIFT<6NL> (D) 		1-79317-026-1 01 1 0806-
550 LOCK ASM; FRT LID
(A) 		1-79317-011-1 01 1 0610-0805
550 LOCK ASM; FRT LID
EXC. FACE LIFT<6NL> (A) 		1-79317-011-1 01 1 0806-
550 LOCK ASM; FRT LID
(A) 		1-79317-012-1 01 1 0610-0805
550 LOCK ASM; FRT LID
EXC. FACE LIFT<6NL> (A) 		1-79317-012-1 01 1 0806-
550 LOCK ASM; FRT LID
(B) 		1-79317-013-1 01 1 0610-0805
550 LOCK ASM; FRT LID
EXC. FACE LIFT<6NL> (B) 		1-79317-013-1 01 1 0806-
551 BOLT; LOCK
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 06 1 0806-
551 BOLT; LOCK
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 10 1 0610-0805
551 BOLT; LOCK
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 04 1 0806-
555 CABLE; FRT LID
L=2512 		1-79347-007-3 01 1 0610-
556 BOLT; CABLE
M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 0610-
557 CLIP; CABLE
EXC. FACE LIFT<6NL> ID=4.8 		8-94128-483-0 01 1 0806-
557 CLIP; CABLE
ID=4.8 		8-94128-483-0 01 1 0610-0805
557 CLIP; CABLE
FACE LIFT<6NL> ID=4.8 		8-94128-483-0 02 1 0806-
558 LEVER; FRT LID 1-79338-007-1 01 1 0610-
590 LOCK; FRT LID 1-79318-009-4 01 1 0610-
590 LOCK; FRT LID 1-79318-010-2 01 1 0610-
çizim 139557
544 547 544 560 545 548 545 545 548 532 548
BalonParca AdiParca NoAdetTipApplied Date
532 BOLT; FRT PANEL
(A) M8X20 		1-79198-002-0 02 1 0610-
532 BOLT; FRT PANEL
(C) M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 0610-
532 BOLT; FRT PANEL
(B) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 0610-
544 LID; FRT
FACE LIFT<6NL> (B) WHITE 		1-71101-023-1 01 1 0806-
544 LID; FRT
(A) 		1-71107-403-0 01 1 0610-0805
544 LID; FRT
EXC. FACE LIFT<6NL> (A) 		1-71107-403-0 01 1 0806-
545 SEAL; FRT LID
FACE LIFT<6NL> (E) L=135 		1-71907-800-0 02 1 0806-
545 SEAL; FRT LID
FACE LIFT<6NL> (F) L=145 		1-71907-801-0 01 1 0806-
545 SEAL; FRT LID
FACE LIFT<6NL> (F) L=145 		1-71907-802-0 01 1 0806-
545 SEAL; FRT LID
FACE LIFT<6NL> (G) L=40 		1-71907-803-0 02 1 0806-
545 SEAL; FRT LID
(A) 		1-71907-472-0 02 1 0610-0805
545 SEAL; FRT LID
EXC. FACE LIFT<6NL> (A) 		1-71907-472-0 02 1 0806-
545 SEAL; FRT LID
(B) L=2038 		1-71907-481-1 01 1 0610-
545 SEAL; FRT LID
(C) 		1-71907-578-0 02 1 0610-0805
545 SEAL; FRT LID
EXC. FACE LIFT<6NL> (C) 		1-71907-578-0 02 1 0806-
545 SEAL; FRT LID
(D) OD=25 BLACK 		1-76798-019-0 01 1 0610-
547 RUBBER; CUSHION
FACE LIFT<6NL> (D) 		1-71907-804-2 01 1 0806-
547 RUBBER; CUSHION
(A) OD=22 L=39 		1-71907-419-0 02 1 0610-
547 RUBBER; CUSHION
(C) L=1825 		1-71907-581-0 01 1 0610-0805
547 RUBBER; CUSHION
EXC. FACE LIFT<6NL> (C) L=1825 		1-71907-581-1 01 1 0806-
547 RUBBER; CUSHION
(B) OD=22 L=29 		8-94324-556-2 02 1 0610-
548 STRIKER; FRT LID PANEL
(A) 		1-79317-003-1 01 1 0610-
548 STRIKER; FRT LID PANEL
(B) 		1-79318-008-1 02 1 0610-
560 SEAL; COVER
(A) 		1-71998-827-1 01 1 0610-
560 SEAL; COVER
(B) OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0610-1105
560 SEAL; COVER
(B) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0610-1105
560 SEAL; COVER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (B) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0610-1105
560 SEAL; COVER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (B) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 1106-
560 SEAL; COVER
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 0610-

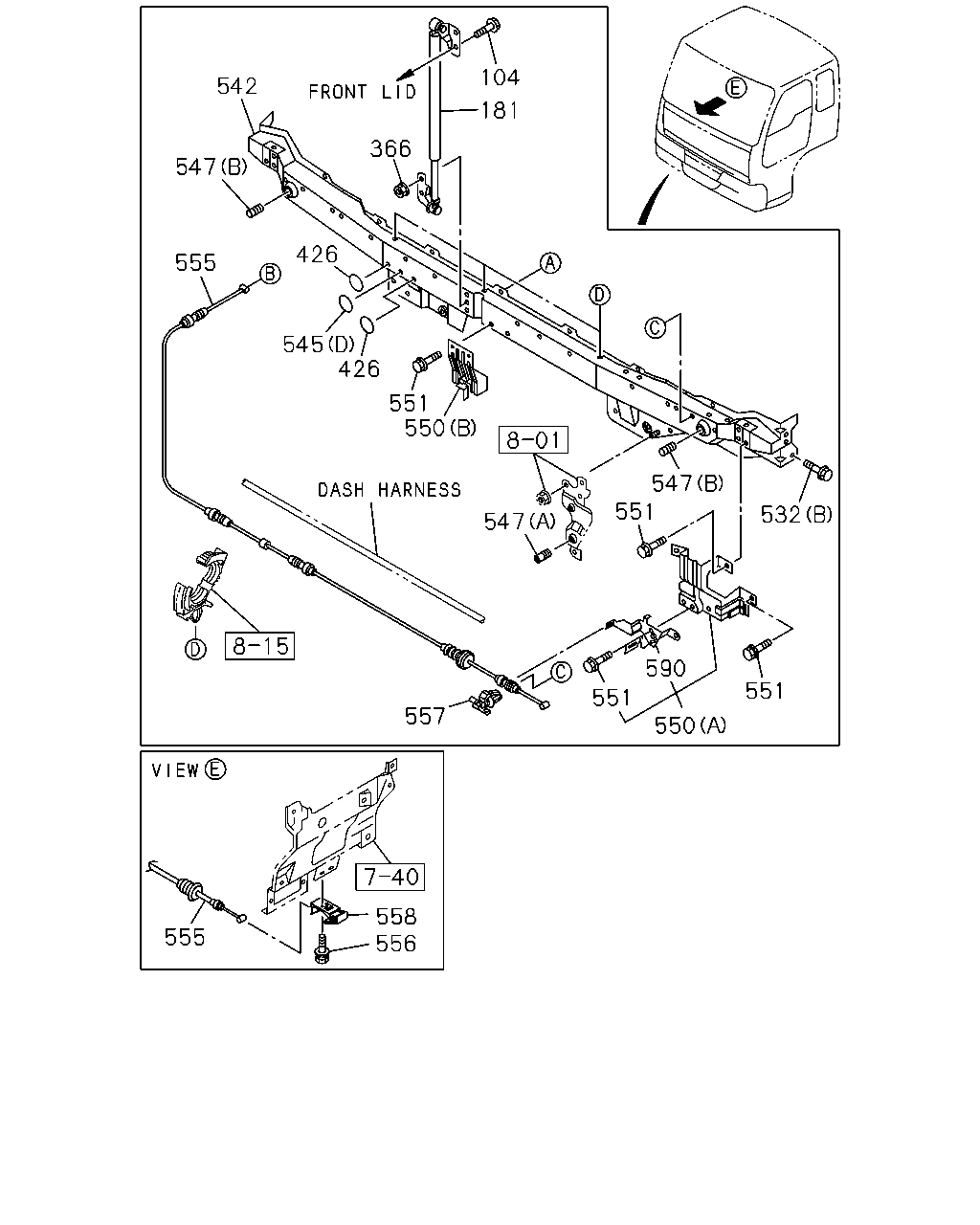

çizim 139559
104 542 181 366 547 426 555 545 426 551 550 547 551 547 532 590 551 551 557 550 558 556 555
BalonParca AdiParca NoAdetTipApplied Date
104 BOLT; SUPPORT BAR
M6X20 W/LK&PL WASHER 		8-94279-203-0 02 1 0610-
181 SUPPORT ASM; DOOR CHECK,FRT 1-71107-864-0 01 1 0610-
366 NUT; SUPPORT
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 02 1 0610-
426 GASKET
AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK 		1-76798-019-0 01 1 0610-
426 GASKET
EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK 		1-76798-019-0 02 1 0610-
532 BOLT; FRT PANEL
(A) M8X20 		1-79198-002-0 02 1 0610-
532 BOLT; FRT PANEL
(C) M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 0610-
532 BOLT; FRT PANEL
(B) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 0610-
542 RAIL; FRT MOUNTING 1-61470-721-1 01 1 0610-
545 SEAL; FRT LID
FACE LIFT<6NL> (E) L=135 		1-71907-800-0 02 1 0806-
545 SEAL; FRT LID
FACE LIFT<6NL> (F) L=145 		1-71907-801-0 01 1 0806-
545 SEAL; FRT LID
FACE LIFT<6NL> (F) L=145 		1-71907-802-0 01 1 0806-
545 SEAL; FRT LID
FACE LIFT<6NL> (G) L=40 		1-71907-803-0 02 1 0806-
545 SEAL; FRT LID
(A) 		1-71907-472-0 02 1 0610-0805
545 SEAL; FRT LID
EXC. FACE LIFT<6NL> (A) 		1-71907-472-0 02 1 0806-
545 SEAL; FRT LID
(B) L=2038 		1-71907-481-1 01 1 0610-
545 SEAL; FRT LID
(C) 		1-71907-578-0 02 1 0610-0805
545 SEAL; FRT LID
EXC. FACE LIFT<6NL> (C) 		1-71907-578-0 02 1 0806-
545 SEAL; FRT LID
(D) OD=25 BLACK 		1-76798-019-0 01 1 0610-
547 RUBBER; CUSHION
FACE LIFT<6NL> (D) 		1-71907-804-2 01 1 0806-
547 RUBBER; CUSHION
(A) OD=22 L=39 		1-71907-419-0 02 1 0610-
547 RUBBER; CUSHION
(C) L=1825 		1-71907-581-0 01 1 0610-0805
547 RUBBER; CUSHION
EXC. FACE LIFT<6NL> (C) L=1825 		1-71907-581-1 01 1 0806-
547 RUBBER; CUSHION
(B) OD=22 L=29 		8-94324-556-2 02 1 0610-
550 LOCK ASM; FRT LID
FACE LIFT<6NL> (C) 		1-79317-020-1 01 1 0806-
550 LOCK ASM; FRT LID
FACE LIFT<6NL> (D) 		1-79317-025-1 01 1 0806-
550 LOCK ASM; FRT LID
FACE LIFT<6NL> (D) 		1-79317-026-1 01 1 0806-
550 LOCK ASM; FRT LID
(A) 		1-79317-011-1 01 1 0610-0805
550 LOCK ASM; FRT LID
EXC. FACE LIFT<6NL> (A) 		1-79317-011-1 01 1 0806-
550 LOCK ASM; FRT LID
(A) 		1-79317-012-1 01 1 0610-0805
550 LOCK ASM; FRT LID
EXC. FACE LIFT<6NL> (A) 		1-79317-012-1 01 1 0806-
550 LOCK ASM; FRT LID
(B) 		1-79317-013-1 01 1 0610-0805
550 LOCK ASM; FRT LID
EXC. FACE LIFT<6NL> (B) 		1-79317-013-1 01 1 0806-
551 BOLT; LOCK
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 06 1 0806-
551 BOLT; LOCK
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 10 1 0610-0805
551 BOLT; LOCK
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 04 1 0806-
555 CABLE; FRT LID
L=2512 		1-79347-007-3 01 1 0610-
556 BOLT; CABLE
M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 0610-
557 CLIP; CABLE
EXC. FACE LIFT<6NL> ID=4.8 		8-94128-483-0 01 1 0806-
557 CLIP; CABLE
ID=4.8 		8-94128-483-0 01 1 0610-0805
557 CLIP; CABLE
FACE LIFT<6NL> ID=4.8 		8-94128-483-0 02 1 0806-
558 LEVER; FRT LID 1-79338-007-1 01 1 0610-
590 LOCK; FRT LID 1-79318-009-4 01 1 0610-
590 LOCK; FRT LID 1-79318-010-2 01 1 0610-

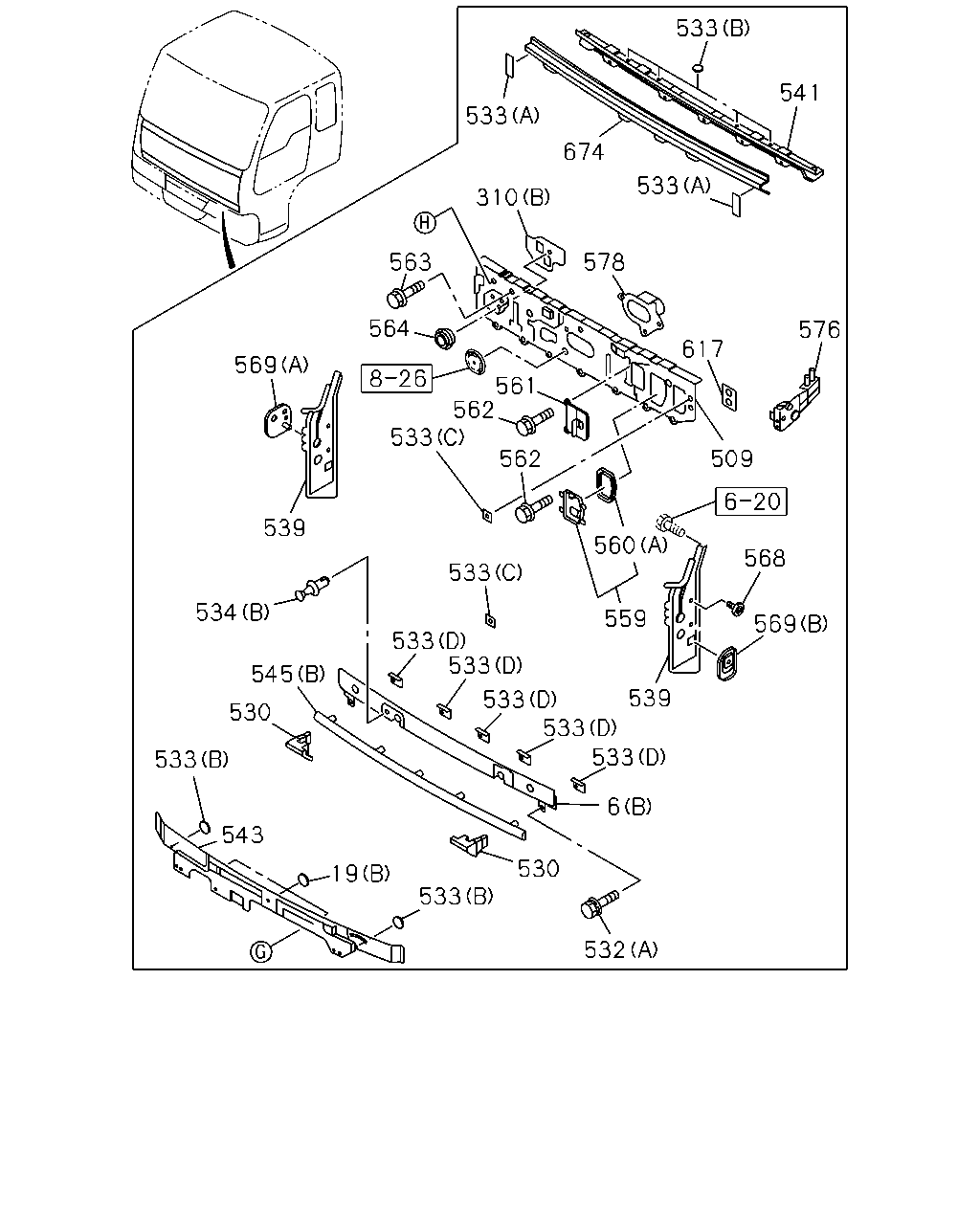

çizim 139566
533 541 533 674 533 310 563 578 564 576 617 569 561 562 533 509 562 539 560 568 533 534 559 569 533 533 545 539 533 533 530 533 533 6 543 530 19 533 532
BalonParca AdiParca NoAdetTipApplied Date
6 PANEL; FRONT
FACE LIFT<6NL> (B) 		1-65473-144-0 01 1 0806-
6 PANEL; FRONT
(A) 		1-65472-549-4 01 1 0610-0805
6 PANEL; FRONT
EXC. FACE LIFT<6NL> (A) 		1-65472-549-4 01 1 0806-
19 SEAL; FRT SIDE PANEL
(C) 		1-71907-410-0 01 1 0610-
19 SEAL; FRT SIDE PANEL
(C) 		1-71907-411-0 01 1 0610-
19 SEAL; FRT SIDE PANEL
(A) 		1-71907-579-1 01 1 0610-1111
19 SEAL; FRT SIDE PANEL
(A) 		8-98208-433-0 01 1 1112-
19 SEAL; FRT SIDE PANEL
(A) 		1-71907-580-1 01 1 0610-1111
19 SEAL; FRT SIDE PANEL
(A) 		8-98208-434-0 01 1 1112-
19 SEAL; FRT SIDE PANEL
(B) OD=45 BLACK 		1-76798-017-0 03 1 0610-
310 SILENCER; FRT PANEL
(A) 		1-72377-007-1 01 1 0610-
310 SILENCER; FRT PANEL
(B) 		1-72377-008-1 01 1 0610-
509 PANEL; DASH 1-62270-478-6 01 1 0610-
530 STOPPER; FRT PANEL,SIDE 1-71907-482-1 01 1 0610-
530 STOPPER; FRT PANEL,SIDE 1-71907-487-0 01 1 0610-
532 BOLT; FRT PANEL
(A) M8X20 		1-79198-002-0 02 1 0610-
532 BOLT; FRT PANEL
(C) M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 0610-
532 BOLT; FRT PANEL
(B) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 0610-
533 SEAL; FRT PANEL
(D) L=30 		1-71996-079-2 07 1 0610-
533 SEAL; FRT PANEL
(A) 20X65 		1-76778-046-3 02 1 0610-
533 SEAL; FRT PANEL
(B) OD=36 T=0.05 BLACK 		5-76777-035-0 12 1 0610-
533 SEAL; FRT PANEL
(C) 25X25 		8-94272-533-0 02 1 0610-
534 FASTENER
(A) ID=5.4 OD=6.8 		1-09989-021-0 08 1 0610-1302
534 FASTENER
(A) ID=5.4 OD=6.8 		8-98241-984-0 08 1 1303-
534 FASTENER
(B) D6X12.5 		8-94146-425-0 02 1 0610-
539 CLOSING; PILLAR 1-61480-673-6 01 1 0610-
539 CLOSING; PILLAR 1-61480-674-6 01 1 0610-
541 PANEL; FRONT,INNER 1-61470-690-0 01 1 0610-
543 CLOSING; FRT MTG RAIL 1-61470-727-0 01 1 0610-
545 SEAL; FRT LID
FACE LIFT<6NL> (E) L=135 		1-71907-800-0 02 1 0806-
545 SEAL; FRT LID
FACE LIFT<6NL> (F) L=145 		1-71907-801-0 01 1 0806-
545 SEAL; FRT LID
FACE LIFT<6NL> (F) L=145 		1-71907-802-0 01 1 0806-
545 SEAL; FRT LID
FACE LIFT<6NL> (G) L=40 		1-71907-803-0 02 1 0806-
545 SEAL; FRT LID
(A) 		1-71907-472-0 02 1 0610-0805
545 SEAL; FRT LID
EXC. FACE LIFT<6NL> (A) 		1-71907-472-0 02 1 0806-
545 SEAL; FRT LID
(B) L=2038 		1-71907-481-1 01 1 0610-
545 SEAL; FRT LID
(C) 		1-71907-578-0 02 1 0610-0805
545 SEAL; FRT LID
EXC. FACE LIFT<6NL> (C) 		1-71907-578-0 02 1 0806-
545 SEAL; FRT LID
(D) OD=25 BLACK 		1-76798-019-0 01 1 0610-
559 COVER; EVAPOLATOR 1-71996-194-1 01 1 0610-
560 SEAL; COVER
(A) 		1-71998-827-1 01 1 0610-
560 SEAL; COVER
(B) OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0610-1105
560 SEAL; COVER
(B) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0610-1105
560 SEAL; COVER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (B) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0610-1105
560 SEAL; COVER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (B) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 1106-
560 SEAL; COVER
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 0610-
561 COVER; HEATER CORE 1-71998-829-1 01 1 0610-
562 BOLT; COVER
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 0610-
563 BOLT; DASH PANEL
M8X20 		1-79198-002-0 16 1 0610-
563 BOLT; DASH PANEL
M8X29.5 W/LK+PL WASHER 		8-94279-209-0 02 1 0610-
564 GROMMET; DASH PANEL
OD=23.5 		1-09983-101-0 02 1 0610-
568 PATCH; INST REINF 1-61480-675-2 02 1 0610-
569 PATCH; LWR GRIP
(A) 		1-61480-689-2 01 1 0610-
569 PATCH; LWR GRIP
(B) 		1-61480-736-2 01 1 0610-
576 FRAME; INST SIDE 1-62280-176-6 01 1 0610-
576 FRAME; INST SIDE 1-62280-177-7 01 1 0610-
578 COVER; WIPER MOTOR 1-62280-254-1 01 1 0610-
617 SEAL; DASH 1-61281-497-1 02 1 0610-
674 PANEL; UPR 1-61470-688-2 01 1 0610-

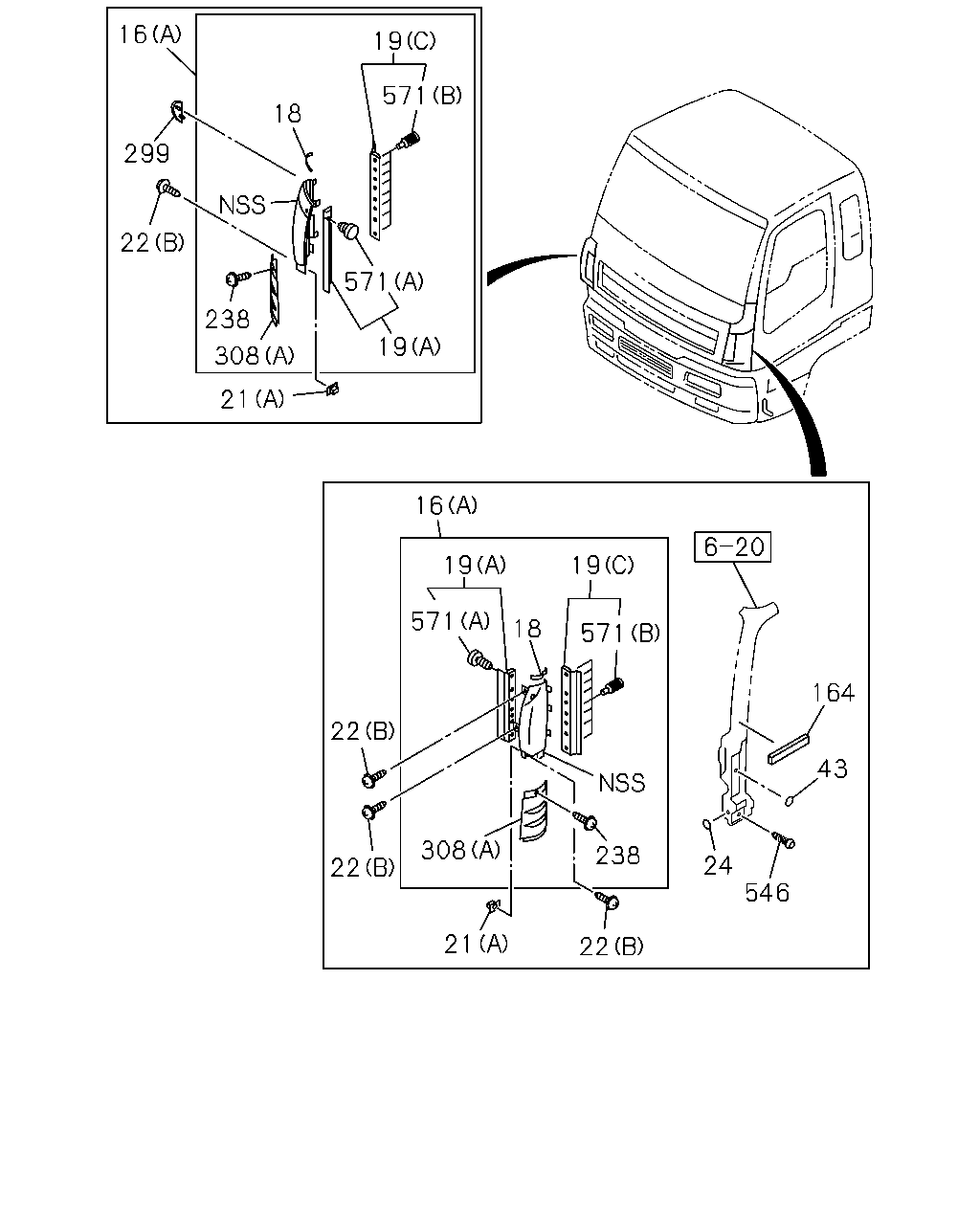

çizim 139567
16 19 571 18 299 22 571 238 19 308 21 16 19 19 571 18 571 164 22 43 308 238 24 22 546 21 22
BalonParca AdiParca NoAdetTipApplied Date
16 PANEL; FRONT,SIDE
FACE LIFT<6NL> (B) WHITE 		1-65473-182-4 01 1 0806-
16 PANEL; FRONT,SIDE
FACE LIFT<6NL> (B) WHITE 		1-65473-185-4 01 1 0806-
16 PANEL; FRONT,SIDE
(A) WHITE 		1-65472-648-3 01 1 0610-0805
16 PANEL; FRONT,SIDE
EXC. FACE LIFT<6NL> (A) WHITE 		1-65472-648-4 01 1 0806-
16 PANEL; FRONT,SIDE
(A) WHITE 		1-65472-649-3 01 1 0610-0805
16 PANEL; FRONT,SIDE
EXC. FACE LIFT<6NL> (A) WHITE 		1-65472-649-4 01 1 0806-
18 SEAL; A-POST UPR,FRT SIDE PANEL 1-71998-898-2 01 1 0610-
18 SEAL; A-POST UPR,FRT SIDE PANEL 1-71998-899-2 01 1 0610-
19 SEAL; FRT SIDE PANEL
(C) 		1-71907-410-0 01 1 0610-
19 SEAL; FRT SIDE PANEL
(C) 		1-71907-411-0 01 1 0610-
19 SEAL; FRT SIDE PANEL
(A) 		1-71907-579-1 01 1 0610-1111
19 SEAL; FRT SIDE PANEL
(A) 		8-98208-433-0 01 1 1112-
19 SEAL; FRT SIDE PANEL
(A) 		1-71907-580-1 01 1 0610-1111
19 SEAL; FRT SIDE PANEL
(A) 		8-98208-434-0 01 1 1112-
19 SEAL; FRT SIDE PANEL
(B) OD=45 BLACK 		1-76798-017-0 03 1 0610-
21 GROMMET; SCREW,FRT SIDE PANEL
(A) D=10.5X7 L=10.5 M5 		1-09983-160-3 14 1 0610-
21 GROMMET; SCREW,FRT SIDE PANEL
(B) D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 0610-0905
21 GROMMET; SCREW,FRT SIDE PANEL
EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (B) D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 0906-
22 SCREW; FRT PANEL SIDE
FACE LIFT<6NL> (A) M5X16 W/PL WASHER 		1-09981-532-0 04 1 0806-
22 SCREW; FRT PANEL SIDE
(B) M5X20 W/PL WASHER TAPPING 		8-97893-344-0 14 1 0610-0810
22 SCREW; FRT PANEL SIDE
(B) M5X16 W/PL WASHER TAPPING 		8-94279-123-0 14 1 0811-1010
22 SCREW; FRT PANEL SIDE
(B) M5X20 W/PL WASHER TAPPING 		8-97893-344-0 14 1 1011-
24 SEAL; FRT PANEL LWR
AUTO DOOR LOCK<AU4> OD=25 BLACK 		1-76798-019-0 05 1 0610-
24 SEAL; FRT PANEL LWR
EXC. AUTO DOOR LOCK<AU4> OD=25 BLACK 		1-76798-019-0 09 1 0610-
43 GROMMET; LOCATION HOLE,A-POST
OD=45 BLACK 		1-76798-017-0 02 1 0610-
164 SEAL; FRT PILLAR 1-71907-414-0 02 1 0610-
238 SCREW
EXC. FACE LIFT<6NL> M5X16 W/PL WASHER TAPPING 		8-94279-123-0 06 1 0806-
238 SCREW
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 06 1 0610-0805
238 SCREW
FACE LIFT<6NL> M5X16 W/PL WASHER TAPPING 		8-94279-123-0 02 1 0806-
299 COVER; FRT PANEL SIDE 1-71998-995-1 01 1 0610-0805
299 COVER; FRT PANEL SIDE
EXC. FACE LIFT<6NL> 		1-71998-995-1 01 1 0806-
308 PLATE; FRT PANEL
FACE LIFT<6NL> (B) 		1-65473-181-3 01 1 0806-
308 PLATE; FRT PANEL
FACE LIFT<6NL> (B) 		1-65473-184-3 01 1 0806-
308 PLATE; FRT PANEL
(A) 		1-65472-568-1 01 1 0610-0805
308 PLATE; FRT PANEL
EXC. FACE LIFT<6NL> (A) 		1-65472-568-1 01 1 0806-
308 PLATE; FRT PANEL
(A) 		1-65472-569-1 01 1 0610-0805
308 PLATE; FRT PANEL
EXC. FACE LIFT<6NL> (A) 		1-65472-569-1 01 1 0806-
546 PLUG; DUMMY HOLE
OD=16 L=11 		1-76378-155-0 02 1 0610-
571 CLIP; SEAL
(A) 		1-09987-228-0 16 1 0610-
571 CLIP; SEAL
(B) PINK 		1-09987-256-0 08 1 0610-
571 CLIP; SEAL
(B) NATURAL 		1-09987-257-0 08 1 0610-

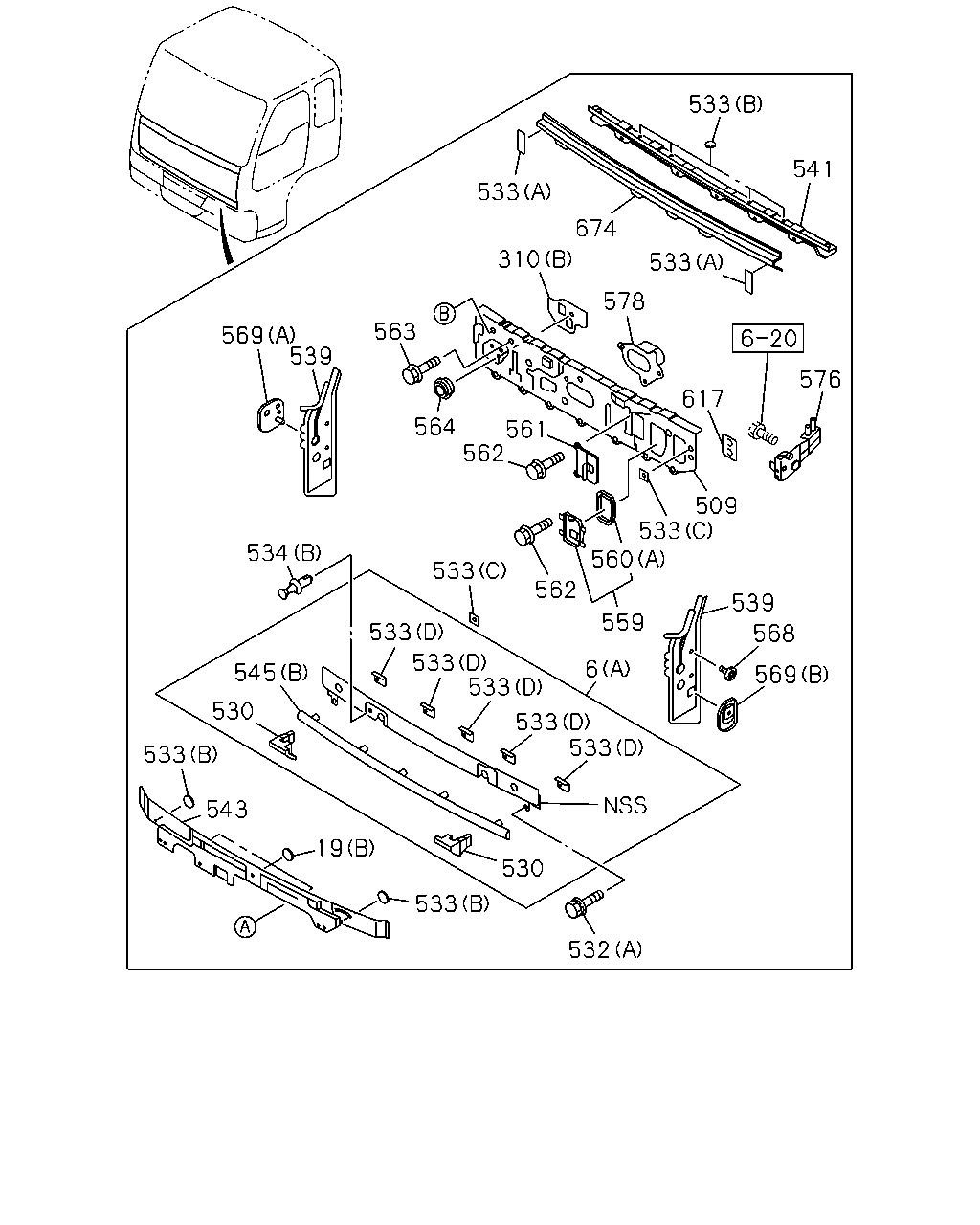

çizim 139571
533 541 533 674 310 533 578 563 569 539 576 617 564 561 562 509 533 560 534 533 562 539 559 533 568 533 533 6 545 569 530 533 533 533 543 19 530 533 532
BalonParca AdiParca NoAdetTipApplied Date
6 PANEL; FRONT
FACE LIFT<6NL> (B) 		1-65473-144-0 01 1 0806-
6 PANEL; FRONT
(A) 		1-65472-549-4 01 1 0610-0805
6 PANEL; FRONT
EXC. FACE LIFT<6NL> (A) 		1-65472-549-4 01 1 0806-
19 SEAL; FRT SIDE PANEL
(C) 		1-71907-410-0 01 1 0610-
19 SEAL; FRT SIDE PANEL
(C) 		1-71907-411-0 01 1 0610-
19 SEAL; FRT SIDE PANEL
(A) 		1-71907-579-1 01 1 0610-1111
19 SEAL; FRT SIDE PANEL
(A) 		8-98208-433-0 01 1 1112-
19 SEAL; FRT SIDE PANEL
(A) 		1-71907-580-1 01 1 0610-1111
19 SEAL; FRT SIDE PANEL
(A) 		8-98208-434-0 01 1 1112-
19 SEAL; FRT SIDE PANEL
(B) OD=45 BLACK 		1-76798-017-0 03 1 0610-
310 SILENCER; FRT PANEL
(A) 		1-72377-007-1 01 1 0610-
310 SILENCER; FRT PANEL
(B) 		1-72377-008-1 01 1 0610-
509 PANEL; DASH 1-62270-478-6 01 1 0610-
530 STOPPER; FRT PANEL,SIDE 1-71907-482-1 01 1 0610-
530 STOPPER; FRT PANEL,SIDE 1-71907-487-0 01 1 0610-
532 BOLT; FRT PANEL
(A) M8X20 		1-79198-002-0 02 1 0610-
532 BOLT; FRT PANEL
(C) M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 0610-
532 BOLT; FRT PANEL
(B) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 0610-
533 SEAL; FRT PANEL
(D) L=30 		1-71996-079-2 07 1 0610-
533 SEAL; FRT PANEL
(A) 20X65 		1-76778-046-3 02 1 0610-
533 SEAL; FRT PANEL
(B) OD=36 T=0.05 BLACK 		5-76777-035-0 12 1 0610-
533 SEAL; FRT PANEL
(C) 25X25 		8-94272-533-0 02 1 0610-
534 FASTENER
(A) ID=5.4 OD=6.8 		1-09989-021-0 08 1 0610-1302
534 FASTENER
(A) ID=5.4 OD=6.8 		8-98241-984-0 08 1 1303-
534 FASTENER
(B) D6X12.5 		8-94146-425-0 02 1 0610-
539 CLOSING; PILLAR 1-61480-673-6 01 1 0610-
539 CLOSING; PILLAR 1-61480-674-6 01 1 0610-
541 PANEL; FRONT,INNER 1-61470-690-0 01 1 0610-
543 CLOSING; FRT MTG RAIL 1-61470-727-0 01 1 0610-
545 SEAL; FRT LID
FACE LIFT<6NL> (E) L=135 		1-71907-800-0 02 1 0806-
545 SEAL; FRT LID
FACE LIFT<6NL> (F) L=145 		1-71907-801-0 01 1 0806-
545 SEAL; FRT LID
FACE LIFT<6NL> (F) L=145 		1-71907-802-0 01 1 0806-
545 SEAL; FRT LID
FACE LIFT<6NL> (G) L=40 		1-71907-803-0 02 1 0806-
545 SEAL; FRT LID
(A) 		1-71907-472-0 02 1 0610-0805
545 SEAL; FRT LID
EXC. FACE LIFT<6NL> (A) 		1-71907-472-0 02 1 0806-
545 SEAL; FRT LID
(B) L=2038 		1-71907-481-1 01 1 0610-
545 SEAL; FRT LID
(C) 		1-71907-578-0 02 1 0610-0805
545 SEAL; FRT LID
EXC. FACE LIFT<6NL> (C) 		1-71907-578-0 02 1 0806-
545 SEAL; FRT LID
(D) OD=25 BLACK 		1-76798-019-0 01 1 0610-
559 COVER; EVAPOLATOR 1-71996-194-1 01 1 0610-
560 SEAL; COVER
(A) 		1-71998-827-1 01 1 0610-
560 SEAL; COVER
(B) OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0610-1105
560 SEAL; COVER
(B) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0610-1105
560 SEAL; COVER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (B) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0610-1105
560 SEAL; COVER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (B) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 1106-
560 SEAL; COVER
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 0610-
561 COVER; HEATER CORE 1-71998-829-1 01 1 0610-
562 BOLT; COVER
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 0610-
563 BOLT; DASH PANEL
M8X20 		1-79198-002-0 16 1 0610-
563 BOLT; DASH PANEL
M8X29.5 W/LK+PL WASHER 		8-94279-209-0 02 1 0610-
564 GROMMET; DASH PANEL
OD=23.5 		1-09983-101-0 02 1 0610-
568 PATCH; INST REINF 1-61480-675-2 02 1 0610-
569 PATCH; LWR GRIP
(A) 		1-61480-689-2 01 1 0610-
569 PATCH; LWR GRIP
(B) 		1-61480-736-2 01 1 0610-
576 FRAME; INST SIDE 1-62280-176-6 01 1 0610-
576 FRAME; INST SIDE 1-62280-177-7 01 1 0610-
578 COVER; WIPER MOTOR 1-62280-254-1 01 1 0610-
617 SEAL; DASH 1-61281-497-1 02 1 0610-
674 PANEL; UPR 1-61470-688-2 01 1 0610-

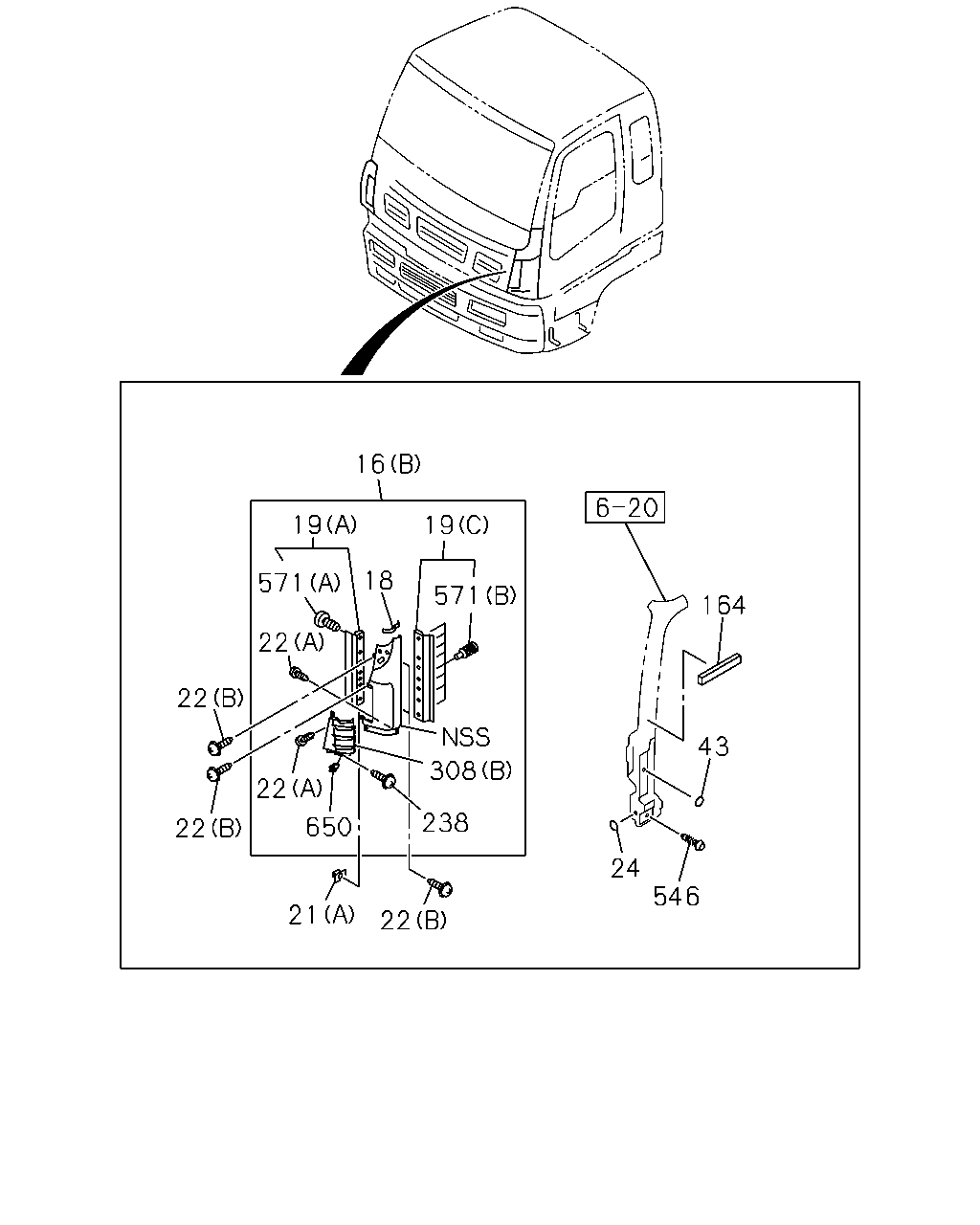

çizim 139624
16 19 19 18 571 571 164 22 22 43 308 22 238 650 22 24 546 21 22
BalonParca AdiParca NoAdetTipApplied Date
16 PANEL; FRONT,SIDE
FACE LIFT<6NL> (B) WHITE 		1-65473-182-4 01 1 0806-
16 PANEL; FRONT,SIDE
FACE LIFT<6NL> (B) WHITE 		1-65473-185-4 01 1 0806-
16 PANEL; FRONT,SIDE
(A) WHITE 		1-65472-648-3 01 1 0610-0805
16 PANEL; FRONT,SIDE
EXC. FACE LIFT<6NL> (A) WHITE 		1-65472-648-4 01 1 0806-
16 PANEL; FRONT,SIDE
(A) WHITE 		1-65472-649-3 01 1 0610-0805
16 PANEL; FRONT,SIDE
EXC. FACE LIFT<6NL> (A) WHITE 		1-65472-649-4 01 1 0806-
18 SEAL; A-POST UPR,FRT SIDE PANEL 1-71998-898-2 01 1 0610-
18 SEAL; A-POST UPR,FRT SIDE PANEL 1-71998-899-2 01 1 0610-
19 SEAL; FRT SIDE PANEL
(C) 		1-71907-410-0 01 1 0610-
19 SEAL; FRT SIDE PANEL
(C) 		1-71907-411-0 01 1 0610-
19 SEAL; FRT SIDE PANEL
(A) 		1-71907-579-1 01 1 0610-1111
19 SEAL; FRT SIDE PANEL
(A) 		8-98208-433-0 01 1 1112-
19 SEAL; FRT SIDE PANEL
(A) 		1-71907-580-1 01 1 0610-1111
19 SEAL; FRT SIDE PANEL
(A) 		8-98208-434-0 01 1 1112-
19 SEAL; FRT SIDE PANEL
(B) OD=45 BLACK 		1-76798-017-0 03 1 0610-
21 GROMMET; SCREW,FRT SIDE PANEL
(A) D=10.5X7 L=10.5 M5 		1-09983-160-3 14 1 0610-
21 GROMMET; SCREW,FRT SIDE PANEL
(B) D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 0610-0905
21 GROMMET; SCREW,FRT SIDE PANEL
EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (B) D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 0906-
22 SCREW; FRT PANEL SIDE
FACE LIFT<6NL> (A) M5X16 W/PL WASHER 		1-09981-532-0 04 1 0806-
22 SCREW; FRT PANEL SIDE
(B) M5X20 W/PL WASHER TAPPING 		8-97893-344-0 14 1 0610-0810
22 SCREW; FRT PANEL SIDE
(B) M5X16 W/PL WASHER TAPPING 		8-94279-123-0 14 1 0811-1010
22 SCREW; FRT PANEL SIDE
(B) M5X20 W/PL WASHER TAPPING 		8-97893-344-0 14 1 1011-
24 SEAL; FRT PANEL LWR
AUTO DOOR LOCK<AU4> OD=25 BLACK 		1-76798-019-0 05 1 0610-
24 SEAL; FRT PANEL LWR
EXC. AUTO DOOR LOCK<AU4> OD=25 BLACK 		1-76798-019-0 09 1 0610-
43 GROMMET; LOCATION HOLE,A-POST
OD=45 BLACK 		1-76798-017-0 02 1 0610-
164 SEAL; FRT PILLAR 1-71907-414-0 02 1 0610-
238 SCREW
EXC. FACE LIFT<6NL> M5X16 W/PL WASHER TAPPING 		8-94279-123-0 06 1 0806-
238 SCREW
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 06 1 0610-0805
238 SCREW
FACE LIFT<6NL> M5X16 W/PL WASHER TAPPING 		8-94279-123-0 02 1 0806-
308 PLATE; FRT PANEL
FACE LIFT<6NL> (B) 		1-65473-181-3 01 1 0806-
308 PLATE; FRT PANEL
FACE LIFT<6NL> (B) 		1-65473-184-3 01 1 0806-
308 PLATE; FRT PANEL
(A) 		1-65472-568-1 01 1 0610-0805
308 PLATE; FRT PANEL
EXC. FACE LIFT<6NL> (A) 		1-65472-568-1 01 1 0806-
308 PLATE; FRT PANEL
(A) 		1-65472-569-1 01 1 0610-0805
308 PLATE; FRT PANEL
EXC. FACE LIFT<6NL> (A) 		1-65472-569-1 01 1 0806-
546 PLUG; DUMMY HOLE
OD=16 L=11 		1-76378-155-0 02 1 0610-
571 CLIP; SEAL
(A) 		1-09987-228-0 16 1 0610-
571 CLIP; SEAL
(B) PINK 		1-09987-256-0 08 1 0610-
571 CLIP; SEAL
(B) NATURAL 		1-09987-257-0 08 1 0610-
650 NUT; SPIRE
FACE LIFT<6NL> M5 		1-09984-162-0 04 1 0806-

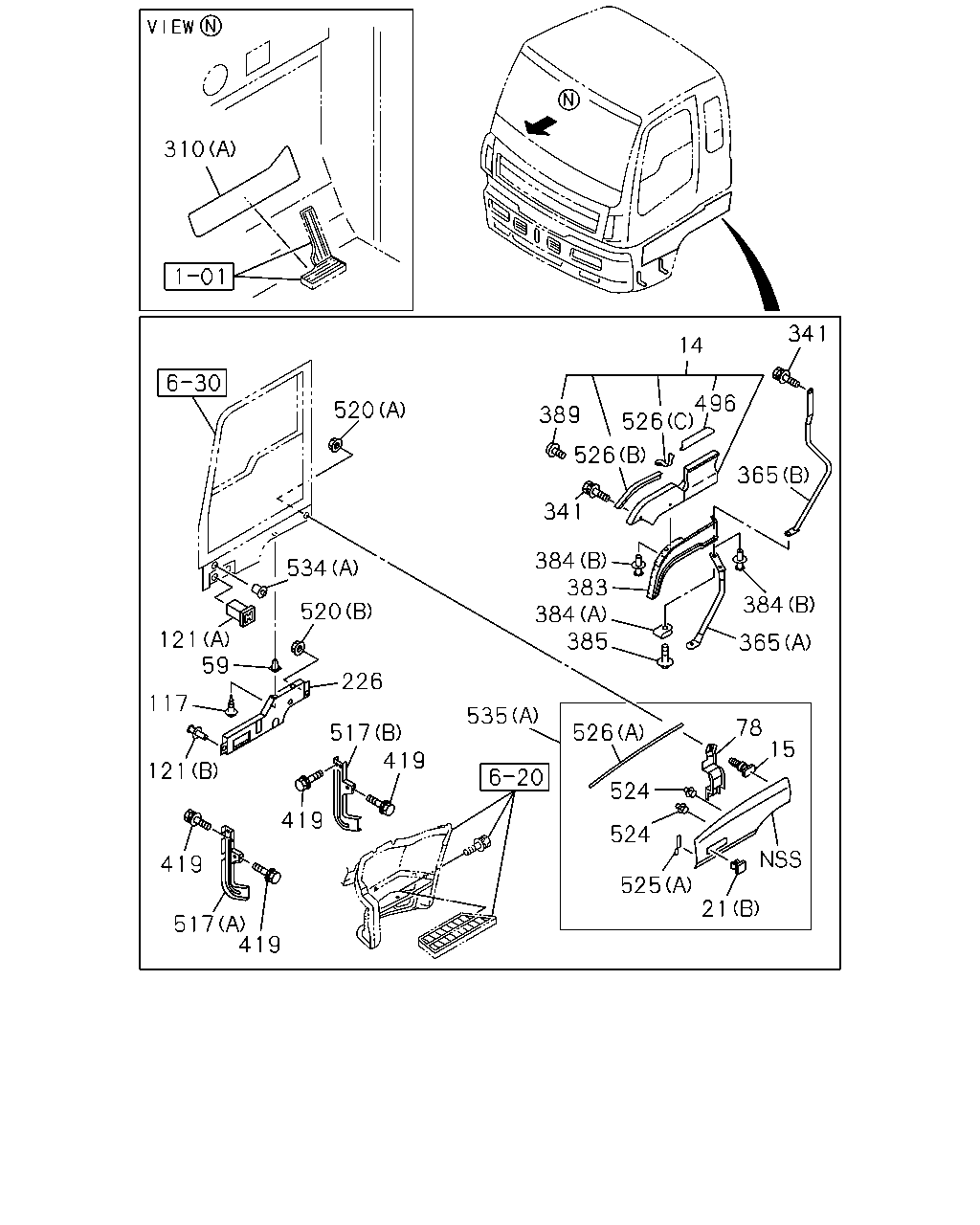

çizim 139625
310 341 14 496 526 520 389 526 365 341 384 383 384 385 534 384 520 121 59 365 226 117 535 78 15 526 517 121 419 524 419 524 419 525 21 517 419
BalonParca AdiParca NoAdetTipApplied Date
14 FENDER; FRT
ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) 		8-98154-744-0 01 1 0909-0910
14 FENDER; FRT 8-98154-744-1 01 1 0911-
14 FENDER; FRT
ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) 		8-98154-745-0 01 1 0909-0910
14 FENDER; FRT 8-98154-745-1 01 1 0911-
14 FENDER; FRT 1-65472-874-9 01 1 0610-0901
14 FENDER; FRT 8-98137-383-0 01 1 0902-0908
14 FENDER; FRT
EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) 		8-98137-383-0 01 1 0909-0910
14 FENDER; FRT 1-65472-875-9 01 1 0610-0901
14 FENDER; FRT 8-98137-384-0 01 1 0902-0908
14 FENDER; FRT
EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) 		8-98137-384-0 01 1 0909-0910
15 BOLT; FENDER
M6X7 		1-71268-294-0 04 1 0610-
21 GROMMET; SCREW,FRT SIDE PANEL
(A) D=10.5X7 L=10.5 M5 		1-09983-160-3 14 1 0610-
21 GROMMET; SCREW,FRT SIDE PANEL
(B) D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 0610-0905
21 GROMMET; SCREW,FRT SIDE PANEL
EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (B) D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 0906-
59 GROMMET; SCREW
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 10 1 0610-
78 BRACKET; FENDER 1-71267-214-0 01 1 0610-
78 BRACKET; FENDER 1-71267-215-0 01 1 0610-
117 SCREW; COVER
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 10 1 0610-
121 GROMMET; FENDER
ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (C) 		8-98111-356-0 02 1 0906-1306
121 GROMMET; FENDER
(B) D8X13.5 		1-09987-248-1 08 1 0610-
121 GROMMET; FENDER
(A) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 0610-
226 PROTECTOR; FRT
ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) 		8-98109-132-1 01 1 0906-1306
226 PROTECTOR; FRT
ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) 		8-98234-709-0 01 1 1307-
226 PROTECTOR; FRT
ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) 		8-98109-134-1 01 1 0906-1306
226 PROTECTOR; FRT
ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) 		8-98234-710-0 01 1 1307-
226 PROTECTOR; FRT 1-71267-268-1 01 1 0610-0905
226 PROTECTOR; FRT
EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) 		1-71267-268-1 01 1 0906-
226 PROTECTOR; FRT 1-71267-269-1 01 1 0610-0905
226 PROTECTOR; FRT
EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) 		1-71267-269-1 01 1 0906-
310 SILENCER; FRT PANEL
(A) 		1-72377-007-1 01 1 0610-
310 SILENCER; FRT PANEL
(B) 		1-72377-008-1 01 1 0610-
341 BOLT; FENDER TO COWL
EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) M6X20 W/LK&PL WASHER 		1-09980-495-0 16 1 0909-0910
341 BOLT; FENDER TO COWL
M6X16 W/LK&PL WASHER 		1-09980-492-0 16 1 0610-0810
341 BOLT; FENDER TO COWL
M6X20 W/LK&PL WASHER 		1-09980-495-0 16 1 0811-0908
341 BOLT; FENDER TO COWL
ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) M6X20 W/LK&PL WASHER 		1-09980-495-0 14 1 0909-0910
341 BOLT; FENDER TO COWL
M6X20 W/LK&PL WASHER 		1-09980-495-0 14 1 0911-
365 SUPPORT; FENDER
(A) 		1-71907-417-1 01 1 0610-0810
365 SUPPORT; FENDER
(B) 		8-98120-231-0 01 1 0811-
365 SUPPORT; FENDER
(A) 		1-71907-418-1 01 1 0610-0810
365 SUPPORT; FENDER
(B) 		8-98120-232-0 01 1 0811-
383 GUARD; MUD,FENDER LWR 1-71907-456-2 01 1 0610-
383 GUARD; MUD,FENDER LWR 1-71907-457-2 01 1 0610-
384 CLIP; FENDER LWR
(B) D8X13.5 		1-09987-248-1 09 1 0610-0810
384 CLIP; FENDER LWR
(B) D8X13.5 		1-09987-248-1 13 1 0811-
384 CLIP; FENDER LWR
(A) ID=6 		1-09987-266-0 04 1 0610-0810
385 SCREW; FENDER LWR
M6X25 		1-65481-736-0 04 1 0610-0810
389 SCREW; STAND,FENDER
M6X22 		1-65481-386-0 06 1 0610-
419 BOLT; STEP
EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 10 1 0906-
419 BOLT; STEP
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 10 1 0610-0904
419 BOLT; STEP
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 10 1 0905-0905
419 BOLT; STEP
ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 11 1 0906-
496 RUBBER; STEP 1-71998-861-2 01 1 0610-
496 RUBBER; STEP 1-71998-862-2 01 1 0610-
517 SUPPORT; STEP PANEL
ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (C) 		8-98125-814-2 01 1 0906-
517 SUPPORT; STEP PANEL
ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (C) 		8-98125-815-1 01 1 0906-
517 SUPPORT; STEP PANEL
ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (D) 		8-98125-816-2 01 1 0906-
517 SUPPORT; STEP PANEL
ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (D) 		8-98125-817-2 01 1 0906-
517 SUPPORT; STEP PANEL
(B) 		1-65671-530-1 01 1 0610-0905
517 SUPPORT; STEP PANEL
EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (B) 		1-65671-530-1 01 1 0906-
517 SUPPORT; STEP PANEL
(B) 		1-65671-531-1 01 1 0610-0905
517 SUPPORT; STEP PANEL
EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (B) 		1-65671-531-1 01 1 0906-
517 SUPPORT; STEP PANEL
(A) 		1-65671-766-1 01 1 0610-0905
517 SUPPORT; STEP PANEL
EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (A) 		1-65671-766-1 01 1 0906-
517 SUPPORT; STEP PANEL
(A) 		1-65671-774-0 01 1 0610-0905
517 SUPPORT; STEP PANEL
EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (A) 		1-65671-774-0 01 1 0906-
520 NUT; FENDER
(A) M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 0610-
520 NUT; FENDER
(B) M6 		8-94343-366-1 02 1 0610-
524 CLIP; FENDER COVER
D5.4X8 		1-09983-154-0 08 1 0610-
525 SEAL; FENDER
ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (B) 10X30 		8-97631-981-0 02 1 0906-
525 SEAL; FENDER
(A) 10X145 		1-71267-342-0 02 1 0610-
526 FINISHER; FENDER
(A) 		1-71268-275-1 02 1 0610-
526 FINISHER; FENDER
(B) 		1-71907-641-0 02 1 0610-
526 FINISHER; FENDER
(C) 		1-71907-642-0 01 1 0610-
526 FINISHER; FENDER
(C) 		1-71907-643-0 01 1 0610-
534 FASTENER
(A) ID=5.4 OD=6.8 		1-09989-021-0 08 1 0610-1302
534 FASTENER
(A) ID=5.4 OD=6.8 		8-98241-984-0 08 1 1303-
534 FASTENER
(B) D6X12.5 		8-94146-425-0 02 1 0610-
535 FENDER; BLISTER
ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (B) WHITE 		8-98105-663-1 01 1 0906-1303
535 FENDER; BLISTER
ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (B) WHITE 		8-98234-066-0 01 1 1304-
535 FENDER; BLISTER
ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (B) WHITE 		8-98105-664-1 01 1 0906-1303
535 FENDER; BLISTER
ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (B) WHITE 		8-98234-067-0 01 1 1304-
535 FENDER; BLISTER
(A) 		1-71267-293-1 01 1 0610-0905
535 FENDER; BLISTER
EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (A) 		1-71267-293-1 01 1 0906-
535 FENDER; BLISTER
(A) 		1-71267-294-1 01 1 0610-0905
535 FENDER; BLISTER
EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (A) 		1-71267-294-1 01 1 0906-

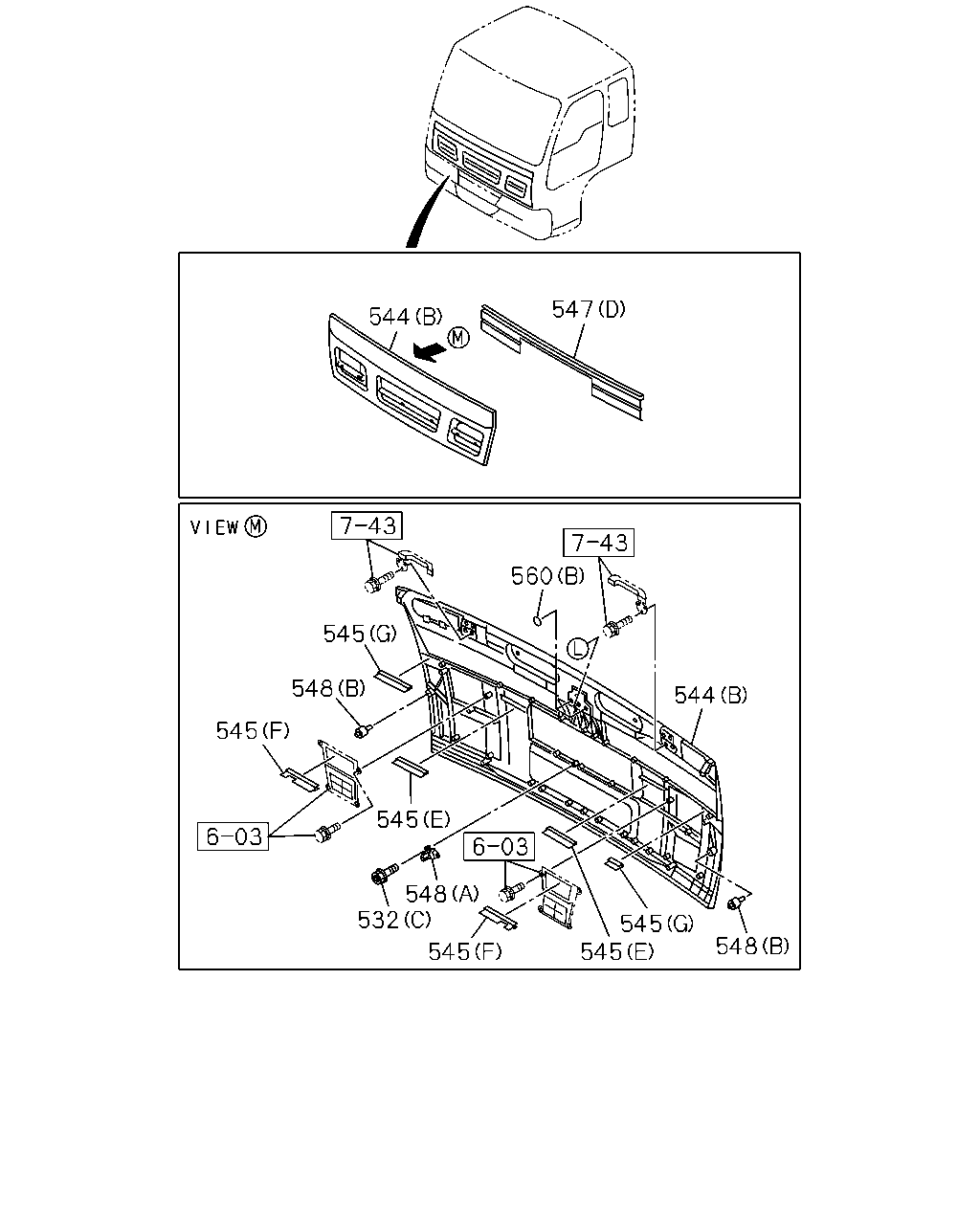

çizim 139628
547 544 560 545 548 544 545 545 548 532 545 545 548 545
BalonParca AdiParca NoAdetTipApplied Date
532 BOLT; FRT PANEL
(A) M8X20 		1-79198-002-0 02 1 0610-
532 BOLT; FRT PANEL
(C) M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 0610-
532 BOLT; FRT PANEL
(B) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 0610-
544 LID; FRT
FACE LIFT<6NL> (B) WHITE 		1-71101-023-1 01 1 0806-
544 LID; FRT
(A) 		1-71107-403-0 01 1 0610-0805
544 LID; FRT
EXC. FACE LIFT<6NL> (A) 		1-71107-403-0 01 1 0806-
545 SEAL; FRT LID
FACE LIFT<6NL> (E) L=135 		1-71907-800-0 02 1 0806-
545 SEAL; FRT LID
FACE LIFT<6NL> (F) L=145 		1-71907-801-0 01 1 0806-
545 SEAL; FRT LID
FACE LIFT<6NL> (F) L=145 		1-71907-802-0 01 1 0806-
545 SEAL; FRT LID
FACE LIFT<6NL> (G) L=40 		1-71907-803-0 02 1 0806-
545 SEAL; FRT LID
(A) 		1-71907-472-0 02 1 0610-0805
545 SEAL; FRT LID
EXC. FACE LIFT<6NL> (A) 		1-71907-472-0 02 1 0806-
545 SEAL; FRT LID
(B) L=2038 		1-71907-481-1 01 1 0610-
545 SEAL; FRT LID
(C) 		1-71907-578-0 02 1 0610-0805
545 SEAL; FRT LID
EXC. FACE LIFT<6NL> (C) 		1-71907-578-0 02 1 0806-
545 SEAL; FRT LID
(D) OD=25 BLACK 		1-76798-019-0 01 1 0610-
547 RUBBER; CUSHION
FACE LIFT<6NL> (D) 		1-71907-804-2 01 1 0806-
547 RUBBER; CUSHION
(A) OD=22 L=39 		1-71907-419-0 02 1 0610-
547 RUBBER; CUSHION
(C) L=1825 		1-71907-581-0 01 1 0610-0805
547 RUBBER; CUSHION
EXC. FACE LIFT<6NL> (C) L=1825 		1-71907-581-1 01 1 0806-
547 RUBBER; CUSHION
(B) OD=22 L=29 		8-94324-556-2 02 1 0610-
548 STRIKER; FRT LID PANEL
(A) 		1-79317-003-1 01 1 0610-
548 STRIKER; FRT LID PANEL
(B) 		1-79318-008-1 02 1 0610-
560 SEAL; COVER
(A) 		1-71998-827-1 01 1 0610-
560 SEAL; COVER
(B) OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0610-1105
560 SEAL; COVER
(B) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0610-1105
560 SEAL; COVER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (B) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0610-1105
560 SEAL; COVER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (B) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 1106-
560 SEAL; COVER
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 0610-

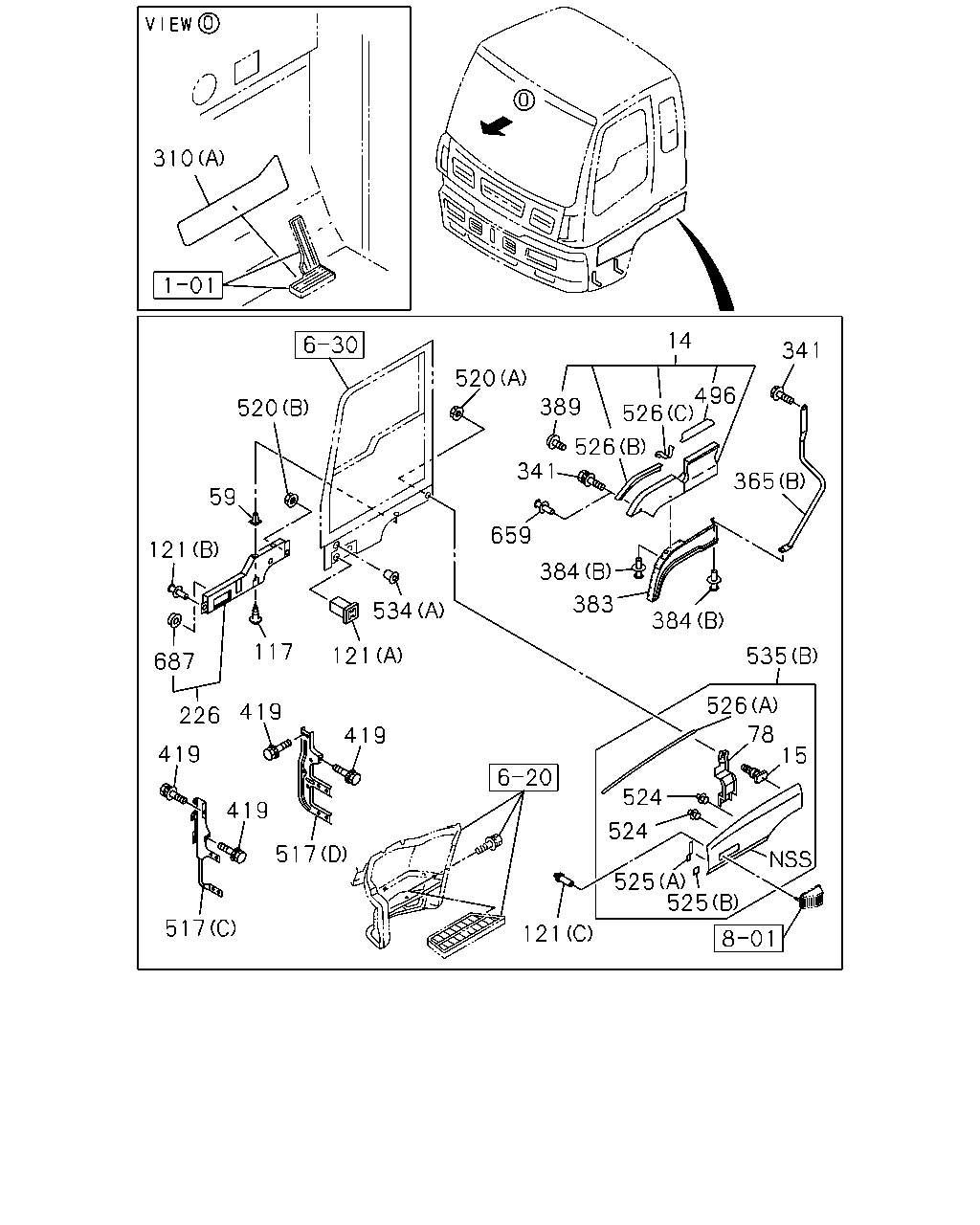

çizim 139629
310 520 59 121 117 419 226 687 419 419 517 419 517 121 525 525 524 15 524 526 78 535 384 383 384 659 365 341 496 526 14 526 341 389 520 534 121
BalonParca AdiParca NoAdetTipApplied Date
14 FENDER; FRT
ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) 		8-98154-744-0 01 1 0909-0910
14 FENDER; FRT 8-98154-744-1 01 1 0911-
14 FENDER; FRT
ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) 		8-98154-745-0 01 1 0909-0910
14 FENDER; FRT 8-98154-745-1 01 1 0911-
14 FENDER; FRT 1-65472-874-9 01 1 0610-0901
14 FENDER; FRT 8-98137-383-0 01 1 0902-0908
14 FENDER; FRT
EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) 		8-98137-383-0 01 1 0909-0910
14 FENDER; FRT 1-65472-875-9 01 1 0610-0901
14 FENDER; FRT 8-98137-384-0 01 1 0902-0908
14 FENDER; FRT
EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) 		8-98137-384-0 01 1 0909-0910
15 BOLT; FENDER
M6X7 		1-71268-294-0 04 1 0610-
59 GROMMET; SCREW
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 10 1 0610-
78 BRACKET; FENDER 1-71267-214-0 01 1 0610-
78 BRACKET; FENDER 1-71267-215-0 01 1 0610-
117 SCREW; COVER
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 10 1 0610-
121 GROMMET; FENDER
ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (C) 		8-98111-356-0 02 1 0906-1306
121 GROMMET; FENDER
(B) D8X13.5 		1-09987-248-1 08 1 0610-
121 GROMMET; FENDER
(A) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 0610-
226 PROTECTOR; FRT
ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) 		8-98109-132-1 01 1 0906-1306
226 PROTECTOR; FRT
ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) 		8-98234-709-0 01 1 1307-
226 PROTECTOR; FRT
ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) 		8-98109-134-1 01 1 0906-1306
226 PROTECTOR; FRT
ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) 		8-98234-710-0 01 1 1307-
226 PROTECTOR; FRT 1-71267-268-1 01 1 0610-0905
226 PROTECTOR; FRT
EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) 		1-71267-268-1 01 1 0906-
226 PROTECTOR; FRT 1-71267-269-1 01 1 0610-0905
226 PROTECTOR; FRT
EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) 		1-71267-269-1 01 1 0906-
310 SILENCER; FRT PANEL
(A) 		1-72377-007-1 01 1 0610-
310 SILENCER; FRT PANEL
(B) 		1-72377-008-1 01 1 0610-
341 BOLT; FENDER TO COWL
EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) M6X20 W/LK&PL WASHER 		1-09980-495-0 16 1 0909-0910
341 BOLT; FENDER TO COWL
M6X16 W/LK&PL WASHER 		1-09980-492-0 16 1 0610-0810
341 BOLT; FENDER TO COWL
M6X20 W/LK&PL WASHER 		1-09980-495-0 16 1 0811-0908
341 BOLT; FENDER TO COWL
ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) M6X20 W/LK&PL WASHER 		1-09980-495-0 14 1 0909-0910
341 BOLT; FENDER TO COWL
M6X20 W/LK&PL WASHER 		1-09980-495-0 14 1 0911-
365 SUPPORT; FENDER
(A) 		1-71907-417-1 01 1 0610-0810
365 SUPPORT; FENDER
(B) 		8-98120-231-0 01 1 0811-
365 SUPPORT; FENDER
(A) 		1-71907-418-1 01 1 0610-0810
365 SUPPORT; FENDER
(B) 		8-98120-232-0 01 1 0811-
383 GUARD; MUD,FENDER LWR 1-71907-456-2 01 1 0610-
383 GUARD; MUD,FENDER LWR 1-71907-457-2 01 1 0610-
384 CLIP; FENDER LWR
(B) D8X13.5 		1-09987-248-1 09 1 0610-0810
384 CLIP; FENDER LWR
(B) D8X13.5 		1-09987-248-1 13 1 0811-
384 CLIP; FENDER LWR
(A) ID=6 		1-09987-266-0 04 1 0610-0810
389 SCREW; STAND,FENDER
M6X22 		1-65481-386-0 06 1 0610-
419 BOLT; STEP
EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 10 1 0906-
419 BOLT; STEP
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 10 1 0610-0904
419 BOLT; STEP
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 10 1 0905-0905
419 BOLT; STEP
ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 11 1 0906-
496 RUBBER; STEP 1-71998-861-2 01 1 0610-
496 RUBBER; STEP 1-71998-862-2 01 1 0610-
517 SUPPORT; STEP PANEL
ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (C) 		8-98125-814-2 01 1 0906-
517 SUPPORT; STEP PANEL
ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (C) 		8-98125-815-1 01 1 0906-
517 SUPPORT; STEP PANEL
ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (D) 		8-98125-816-2 01 1 0906-
517 SUPPORT; STEP PANEL
ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (D) 		8-98125-817-2 01 1 0906-
517 SUPPORT; STEP PANEL
(B) 		1-65671-530-1 01 1 0610-0905
517 SUPPORT; STEP PANEL
EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (B) 		1-65671-530-1 01 1 0906-
517 SUPPORT; STEP PANEL
(B) 		1-65671-531-1 01 1 0610-0905
517 SUPPORT; STEP PANEL
EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (B) 		1-65671-531-1 01 1 0906-
517 SUPPORT; STEP PANEL
(A) 		1-65671-766-1 01 1 0610-0905
517 SUPPORT; STEP PANEL
EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (A) 		1-65671-766-1 01 1 0906-
517 SUPPORT; STEP PANEL
(A) 		1-65671-774-0 01 1 0610-0905
517 SUPPORT; STEP PANEL
EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (A) 		1-65671-774-0 01 1 0906-
520 NUT; FENDER
(A) M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 0610-
520 NUT; FENDER
(B) M6 		8-94343-366-1 02 1 0610-
524 CLIP; FENDER COVER
D5.4X8 		1-09983-154-0 08 1 0610-
525 SEAL; FENDER
ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (B) 10X30 		8-97631-981-0 02 1 0906-
525 SEAL; FENDER
(A) 10X145 		1-71267-342-0 02 1 0610-
526 FINISHER; FENDER
(A) 		1-71268-275-1 02 1 0610-
526 FINISHER; FENDER
(B) 		1-71907-641-0 02 1 0610-
526 FINISHER; FENDER
(C) 		1-71907-642-0 01 1 0610-
526 FINISHER; FENDER
(C) 		1-71907-643-0 01 1 0610-
534 FASTENER
(A) ID=5.4 OD=6.8 		1-09989-021-0 08 1 0610-1302
534 FASTENER
(A) ID=5.4 OD=6.8 		8-98241-984-0 08 1 1303-
534 FASTENER
(B) D6X12.5 		8-94146-425-0 02 1 0610-
535 FENDER; BLISTER
ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (B) WHITE 		8-98105-663-1 01 1 0906-1303
535 FENDER; BLISTER
ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (B) WHITE 		8-98234-066-0 01 1 1304-
535 FENDER; BLISTER
ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (B) WHITE 		8-98105-664-1 01 1 0906-1303
535 FENDER; BLISTER
ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (B) WHITE 		8-98234-067-0 01 1 1304-
535 FENDER; BLISTER
(A) 		1-71267-293-1 01 1 0610-0905
535 FENDER; BLISTER
EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (A) 		1-71267-293-1 01 1 0906-
535 FENDER; BLISTER
(A) 		1-71267-294-1 01 1 0610-0905
535 FENDER; BLISTER
EXC. ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (A) 		1-71267-294-1 01 1 0906-
659 CLIP; FENDER
ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) D8X13.5 		1-09987-248-1 02 1 0909-0910
659 CLIP; FENDER
D8X13.5 		1-09987-248-1 02 1 0911-
687 COVER; FENDER
ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) 		8-98234-587-0 02 1 1307-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
