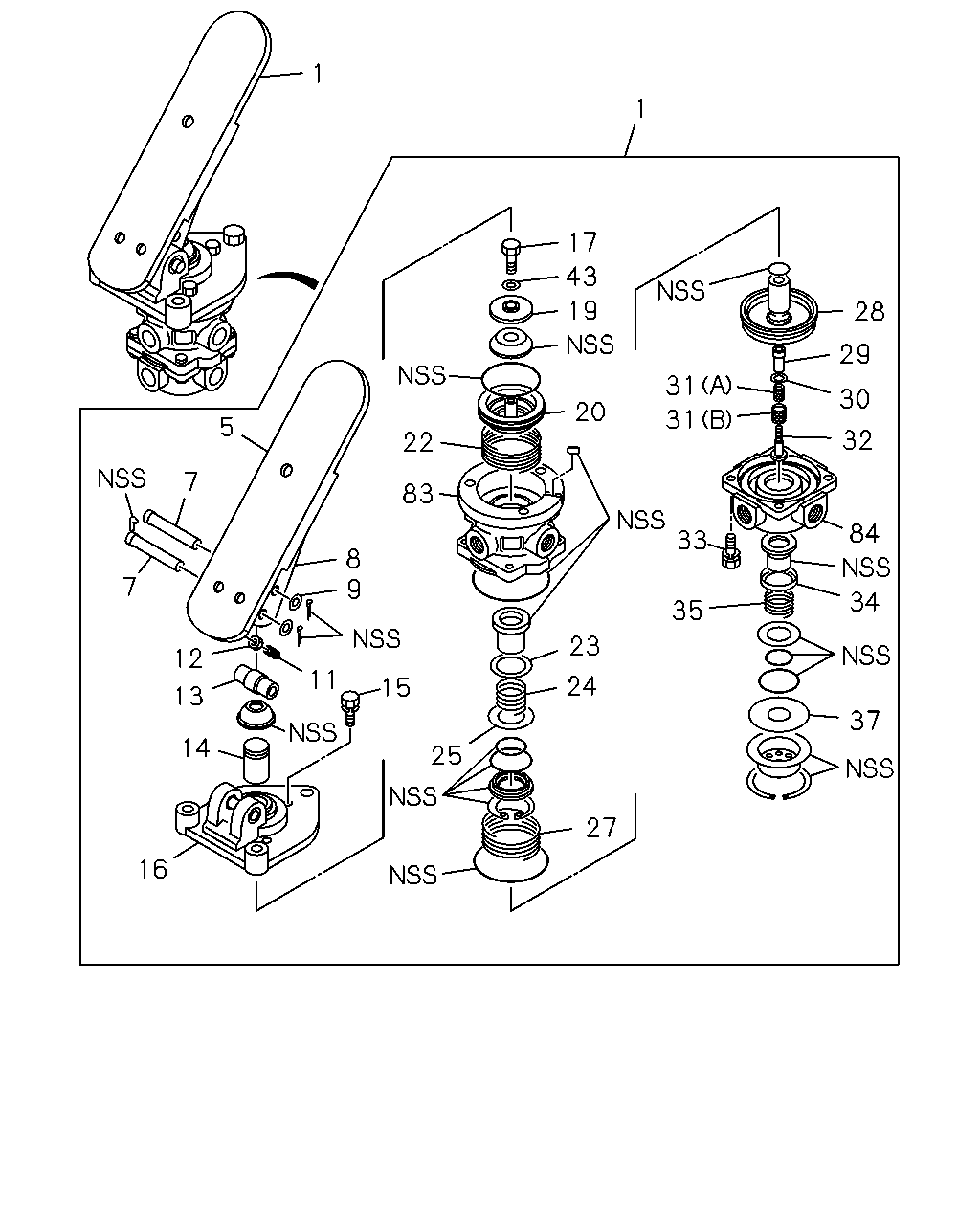

3-34 — BRAKE VALVE; AIR (#2657) — 39 parça

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

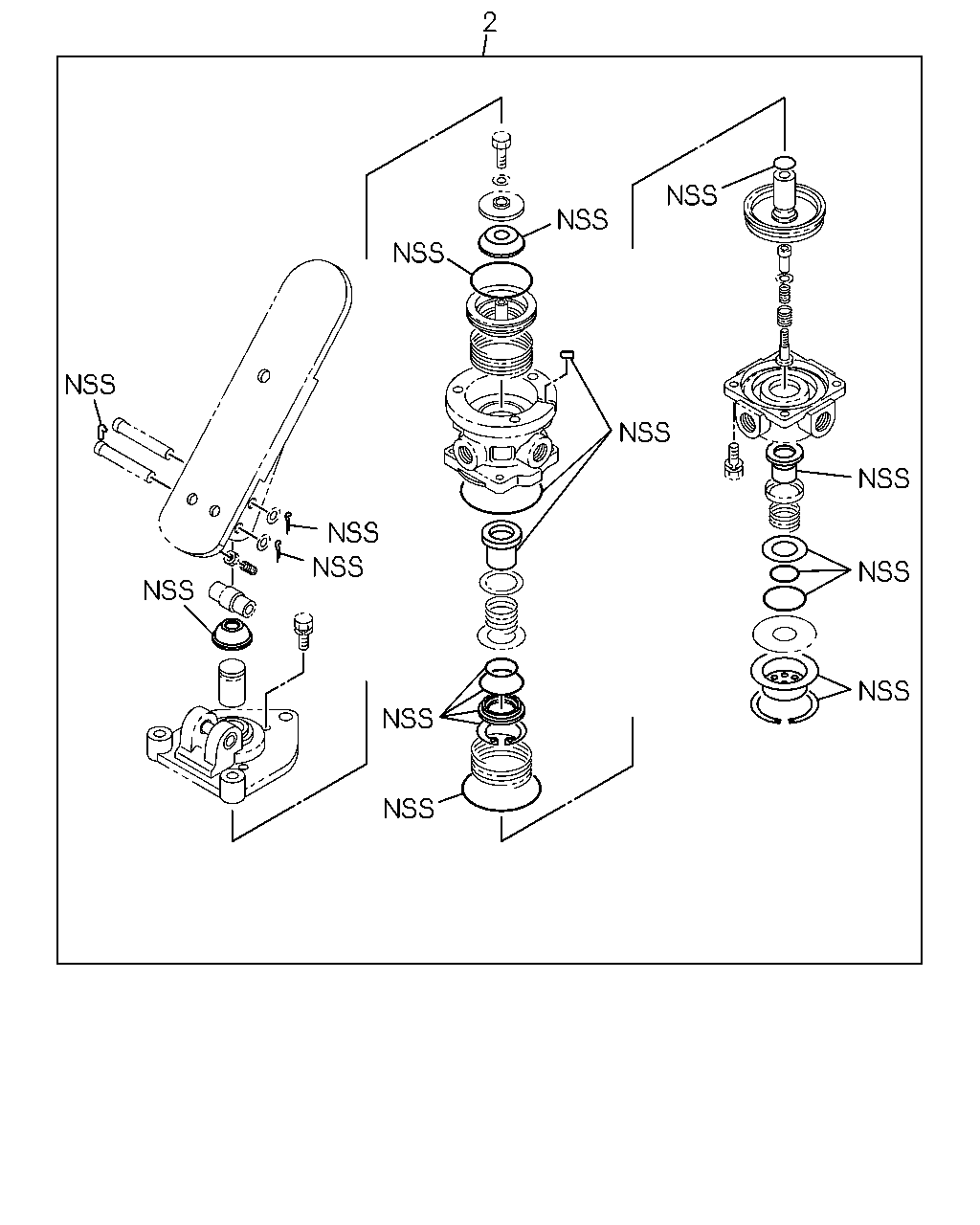

	2	REPAIR KIT; BRK VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-85576-053-0	01	1	9101-	●	●

1 1 17 43 19 28 29 31 30 20 31 5 32 22 7 83 33 84 8 9 7 34 35 23 12 11 24 15 13 37 14 25 27 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	VALVE; BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48100-611-1	01	1	9101-9501	●	●
1	VALVE; BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48100-601-0	01	1	9502-	●	●
5	COVER; PEDAL,BRK VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48119-246-0	01	1	9101-9501	●	●
5	COVER; PEDAL,BRK VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48119-359-0	01	1	9502-	●	●
7	PIN; PEDAL,BRK VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48119-244-0	02	1	9101-	●	●
8	PEDAL; BRK VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48129-174-0	01	1	9101-9501	●	●
8	PEDAL; BRK VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48119-357-0	01	1	9502-	●	●
9	WASHER; PIN,BRK VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48119-106-0	02	1	9101-	●	●
11	SCREW; SET,BRK VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48119-300-0	01	1	9101-	●	●
12	NUT; SCREW,PEDAL,BRK VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-88510-123-0	01	1	9101-	●	●
13	ROLLER; PEDAL,BRK VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48119-243-0	01	1	9101-	●	●
14	PLUNGER; BRK VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48119-277-0	01	1	9101-	●	●
15	BOLT; PLATE,BRK VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48219-039-0	03	1	9101-	●	●
16	PLATE; MTG,BRKT VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48119-268-0	01	1	9101-	●	●
17	BOLT; LK,PISTON,BRK VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48129-137-0	01	1	9101-	●	●
19	SEAT; SPRING,BRK VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48119-270-0	01	1	9101-	●	●
20	PISTON; UPR,BRK VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48119-272-0	01	1	9101-	●	●
22	SPRING; PISTON,LWR,BRK VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48143-009-0	01	1	9101-	●	●
23	WASHER; UPR,BRK VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48129-145-0	01	1	9101-	●	●
24	SPRING; UPR,BRK VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48123-018-0	01	1	9101-	●	●
25	WASHER; PISTON,BRK VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48129-287-0	01	1	9101-9501	●	●
25	WASHER; PISTON,BRK VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48129-138-0	01	1	9502-	●	●
27	SPRING; PISTON,LWR,BRK VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48123-055-0	01	1	9101-	●	●
28	PISTON; LWR,BRK VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48129-140-0	01	1	9101-	●	●
29	SLEEVE; VLV,BRK VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48129-083-1	01	1	9101-	●	●
30	WASHER; SLEEVE,BRK VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48129-082-0	01	1	9101-	●	●
31	SPRING; VLV,BRK VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-48123-032-0	01	1	9101-	●	●
31	SPRING; VLV,BRK VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-48123-064-0	01	1	9101-9501	●	●
31	SPRING; VLV,BRK VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-48123-033-0	01	1	9502-	●	●
32	SCREW; BRK VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48129-146-0	01	1	9101-	●	●
33	BOLT; BODY,BRK VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48119-213-0	04	1	9101-	●	●
34	RETAINER; VLV,BRK VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48129-144-0	01	1	9101-	●	●
35	SPRING; VLV,BRK VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48129-019-0	01	1	9101-9501	●	●
35	SPRING; VLV,BRK VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48123-019-0	01	1	9502-	●	●
37	WASHER; VLV LWR,BRK VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48129-080-0	01	1	9101-	●	●
43	WASHER; SPR SEAT,BRK VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48419-002-0	01	1	9101-	●	●
83	BODY ASM; UPR,BRK VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48111-039-0	01	1	9101-	●	●
84	BODY ASM; LWR,BRK VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48129-286-0	01	1	9101-	●	●
