Sayfa 5-10 - Isuzu EPC

5-10 — CAB MOUNTING; FRAME SIDE (#26562) — 336 parça

202 202 294 203 204 205 204 203 201 173 203 204 205 174 205 204 203 202 202

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
173	MEMBER; CAB MTG RR FULL FLOATING CAB(W16) EXC. HONG KONG EQUIPMENT(PQ1)	8-98166-139-0	01	1	1004-1005
173	MEMBER; CAB MTG RR FULL FLOATING CAB(W16) EXC. HONG KONG EQUIPMENT(PQ1)	8-98166-349-0	01	1	1006-
173	MEMBER; CAB MTG RR FULL FLOATING CAB(W16)	1-53450-675-1	01	1	0610-0610
173	MEMBER; CAB MTG RR FULL FLOATING CAB(W16)	8-97619-389-0	01	1	0611-1003
173	MEMBER; CAB MTG RR HONG KONG EQUIPMENT(PQ1) FULL FLOATING CAB(W16)	8-97619-389-0	01	1	1004-
174	OUTRIGGER	1-53456-278-3	01	1	0610-1003
174	OUTRIGGER	8-98158-646-0	01	1	1004-
174	OUTRIGGER	1-53456-418-3	01	1	0610-
201	ABSORBER ASM; SHOCK,RR MTG	1-51630-728-1	02	1	0610-
202	NUT; S/ABS (C) M10 FLANGE	0-91150-110-0	02	1	0610-1007
202	NUT; S/ABS (C) M10 FLANGE	0-91180-110-0	02	1	1008-
202	NUT; S/ABS (A) M10	9-09110-410-0	04	1	0610-
202	NUT; S/ABS (B) M10	9-09111-410-0	06	1	0610-
203	WASHER; RUBBER,SHOCK (A) ID=10.8 OD=38 T=6	1-51631-005-0	10	1	0610-
203	WASHER; RUBBER,SHOCK (B) ID=10 OD=38 T=5	1-51631-104-0	02	1	0610-
204	RUBBER; CUSHION,SHOCK	1-51631-004-0	12	1	0610-
205	WASHER; RUBBER,SHOCK	1-51631-079-0	08	1	0610-
294	MEMBER; FLOATING	8-97613-760-1	01	1	0610-

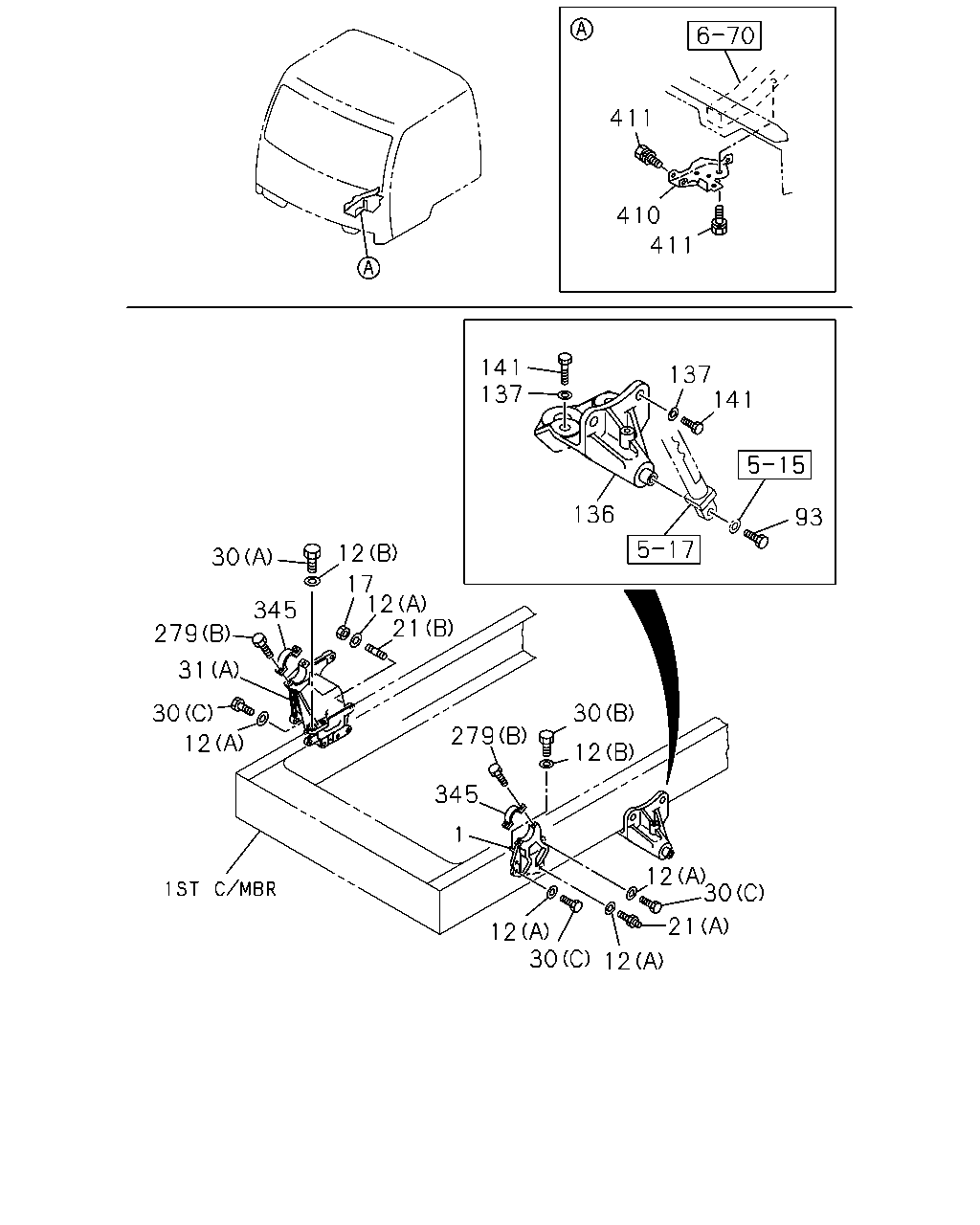

411 410 411 141 137 137 141 136 93 12 30 17 12 21 345 279 31 30 30 279 12 12 345 1 12 30 21 12 30 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BRACKET; CAB MTG	1-53453-312-0	01	1	0610-0802
1	BRACKET; CAB MTG	8-98094-536-0	01	1	0803-
12	WASHER; LK,BRKT (A) ID=16.2	1-09503-223-0	11	1	0610-
12	WASHER; LK,BRKT (B) ID=15	9-09651-069-0	04	1	0610-1201
12	WASHER; LK,BRKT (B) ID=15	8-98010-627-1	04	1	1202-
17	NUT; BRKT,CAB TILT M16	0-91110-516-0	01	1	0610-
21	STUD; BRKT,CAB TILT (B) M16X50 L=74	1-09300-117-0	01	1	0610-
21	STUD; BRKT,CAB TILT (A) M12X20,M16X45 L=76	1-09029-090-0	02	1	0610-0610
21	STUD; BRKT,CAB TILT DUMP TRUCK<RA1>,MIXER TRUCK<RA2> (A) M12X20,M16X45 L=76	1-09029-090-0	02	1	0610-0610
21	STUD; BRKT,CAB TILT (A) M12X20,M16X45 L=76	1-09029-090-0	02	1	0610-
21	STUD; BRKT,CAB TILT EXC. DUMP TRUCK<RA1>,MIXER TRUCK<RA2> (A) M12X20,M16X45 L=76	1-09029-090-0	02	1	0610-
30	BOLT; CAB FRT FOOT (A) M14X60	0-20951-460-0	02	1	0610-
30	BOLT; CAB FRT FOOT (B) M14X45	9-92061-445-0	02	1	0610-
30	BOLT; CAB FRT FOOT DUMP TRUCK<RA1>,MIXER TRUCK<RA2> (C) M16X45	9-92061-645-0	05	1	0610-
30	BOLT; CAB FRT FOOT (C) M16X45	9-92061-645-0	03	1	0610-
30	BOLT; CAB FRT FOOT EXC. DUMP TRUCK<RA1>,MIXER TRUCK<RA2> (C) M16X45	9-92061-645-0	03	1	0610-
31	BRACKET; CAB FACE LIFT<6NL> EXC. TRANSMISSION CONTROL LINK TYPE(B2A) (E)	8-97619-220-1	01	1	0810-
31	BRACKET; CAB TRANSMISSION CONTROL LINK TYPE(B2A) FACE LIFT<6NL> (C)	8-98079-059-0	01	1	0806-0807
31	BRACKET; CAB FACE LIFT<6NL> (C)	8-98079-059-0	01	1	0808-0809
31	BRACKET; CAB TRANSMISSION CONTROL LINK TYPE(B2A) FACE LIFT<6NL> (C)	8-98079-059-0	01	1	0810-
31	BRACKET; CAB FACE LIFT<6NL> EXC. TRANSMISSION CONTROL LINK TYPE(B2A) (E)	8-97619-220-0	01	1	0806-0807
31	BRACKET; CAB FULL FLOATING CAB(W16) (B)	1-53458-374-1	01	1	0610-
31	BRACKET; CAB FULL FLOATING CAB(W16) (C)	8-97606-793-0	01	1	0610-0805
31	BRACKET; CAB FULL FLOATING CAB(W16) EXC. FACE LIFT<6NL> (C)	8-97606-793-0	01	1	0806-
31	BRACKET; CAB (A)	1-44226-178-1	01	1	0610-
31	BRACKET; CAB (D)	1-53453-224-5	01	1	0610-
31	BRACKET; CAB (D)	1-53453-225-3	01	1	0610-
93	BOLT; PIN M10X30	1-09000-283-0	01	1	0610-
136	BRACKET; OIL CYL	1-53458-829-0	01	1	0610-
137	WASHER; PL,BRKT WHEEL BASE 6300MM(63W) FUEL TANK 300L AL<EBF> ID=15	8-98010-627-1	04	1	0909-1201
137	WASHER; PL,BRKT ID=15	8-98010-627-1	04	1	1202-
137	WASHER; PL,BRKT ID=15	9-09651-069-0	04	1	0610-0908
137	WASHER; PL,BRKT WHEEL BASE 6300MM(63W) EXC. FUEL TANK 300L AL<EBF> ID=15	9-09651-069-0	04	1	0909-1201
137	WASHER; PL,BRKT WHEEL BASE 6600MM(66W) ID=15	9-09651-069-0	04	1	0909-1201
141	BOLT; BRKT M14X50	0-20951-450-0	04	1	0610-
279	BOLT FACE LIFT<6NL> (F) M8X25 W/LK&PL WASHER	1-09980-548-0	01	1	0806-
279	BOLT HONG KONG EQUIPMENT(PQ1) (A) M8X25 FLANGE	0-28650-825-0	02	1	0610-
279	BOLT FULL FLOATING CAB(W16) (C) M8X16 FLANGE	0-28050-816-0	04	1	0610-
279	BOLT FULL FLOATING CAB(W16) (E) M8X60 FLANGE	0-28050-860-0	02	1	0610-
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28650-820-0	05	1	0610-
279	BOLT FULL FLOATING CAB(W16) (F) M8X25 W/LK&PL WASHER	1-09980-548-0	02	1	0610-0805
279	BOLT FULL FLOATING CAB(W16) EXC. FACE LIFT<6NL> (F) M8X25 W/LK&PL WASHER	1-09980-548-0	02	1	0806-
279	BOLT (B) M12X40 FLANGE	0-28061-240-0	04	1	0610-1510
279	BOLT (B) M12X40 FLANGE	8-98270-173-0	04	1	1511-
345	CAP; CAB	1-53458-336-3	02	1	0610-
410	REINFORCEMENT; CAB TILT	1-62570-864-0	01	1	0610-
411	BOLT; REINFORCEMENT M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	0610-0904
411	BOLT; REINFORCEMENT M8X24.5 W/LK&PL WASHER	8-98059-720-0	04	1	0905-
411	BOLT; REINFORCEMENT M10X20 W/LK&PL WASHER	8-94279-211-0	01	1	0610-

202 69 72 204 205 70 65 204 203 202 203

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
65	ABSORBER; SHOCK,CAB FRT SUSPENSION	1-51630-604-1	02	1	0610-
69	BOLT; S/ABS,CAB FRT SUSPENSION (A) M12X60	0-20801-260-0	02	1	0610-
69	BOLT; S/ABS,CAB FRT SUSPENSION (B) M10X105	1-79198-008-1	08	1	0610-
70	BRACKET; S/ABS,CAB FRT SUSP	1-53458-492-1	01	1	0610-
70	BRACKET; S/ABS,CAB FRT SUSP	1-53458-493-1	01	1	0610-
72	WASHER; PL,BRKT TO FRAME MJX12P M/T SMOOTHER-G(Y4S) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	0610-0805
72	WASHER; PL,BRKT TO FRAME EXC. TRANSMISSION CONTROL LINK TYPE(B2A),FACE LIFT<6NL> ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	0806-0807
72	WASHER; PL,BRKT TO FRAME EXC. TRANSMISSION CONTROL LINK TYPE(B2A) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	0808-0809
72	WASHER; PL,BRKT TO FRAME EXC. TRANSMISSION CONTROL LINK TYPE(B2A),FACE LIFT<6NL> ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	0810-
72	WASHER; PL,BRKT TO FRAME ID=10.5 OD=26 T=2.6	1-09985-184-0	23	1	0610-
202	NUT; S/ABS (C) M10 FLANGE	0-91150-110-0	02	1	0610-1007
202	NUT; S/ABS (C) M10 FLANGE	0-91180-110-0	02	1	1008-
202	NUT; S/ABS (A) M10	9-09110-410-0	04	1	0610-
202	NUT; S/ABS (B) M10	9-09111-410-0	06	1	0610-
203	WASHER; RUBBER,SHOCK (A) ID=10.8 OD=38 T=6	1-51631-005-0	10	1	0610-
203	WASHER; RUBBER,SHOCK (B) ID=10 OD=38 T=5	1-51631-104-0	02	1	0610-
204	RUBBER; CUSHION,SHOCK	1-51631-004-0	12	1	0610-
205	WASHER; RUBBER,SHOCK	1-51631-079-0	08	1	0610-

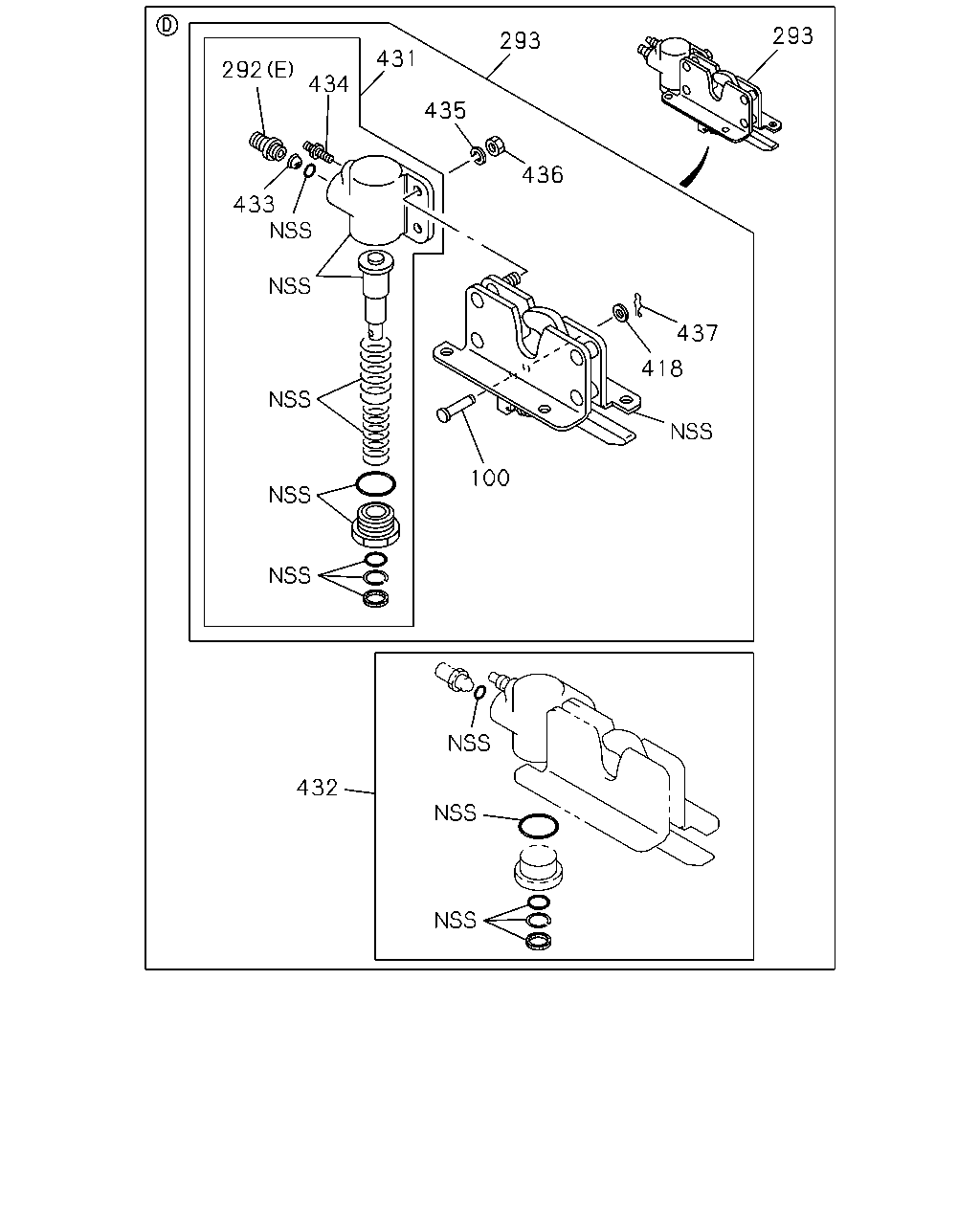

293 293 431 292 434 435 436 433 437 418 100 432

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
100	PIN; JOINT	1-53458-831-0	01	1	0610-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0610-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (B) DIN6 R1/8 STRAIGHT	1-09660-759-1	02	1	0610-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (C) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0610-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (D)	1-09661-577-0	01	1	0610-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (F) PT1/8 ELBOW	8-94338-418-1	01	1	0610-
292	CONNECTOR; CAB SUSPENSION (E) M12	1-53458-941-0	01	1	0610-
293	RATCH; CAB SUSP,RR	1-53458-918-0	01	1	0610-
418	WASHER; PL,PIN	1-53458-059-0	01	1	0610-
431	CYLINDER; AIR,RATCH	1-53457-013-0	01	1	0610-
432	REPAIR KIT; AIR CYL	1-85579-052-0	01	1	0610-
433	FILTER; AIR CYL	1-53458-048-0	01	1	0610-
434	SCREW; AIR BLEEDER	1-53458-529-0	01	1	0610-
435	WASHER; LK,AIR CYL ID=10.2	9-09150-510-0	02	1	0610-
436	NUT; AIR CYL	1-53458-528-0	02	1	0610-
437	PIN; SNAP	1-53458-526-0	01	1	0610-

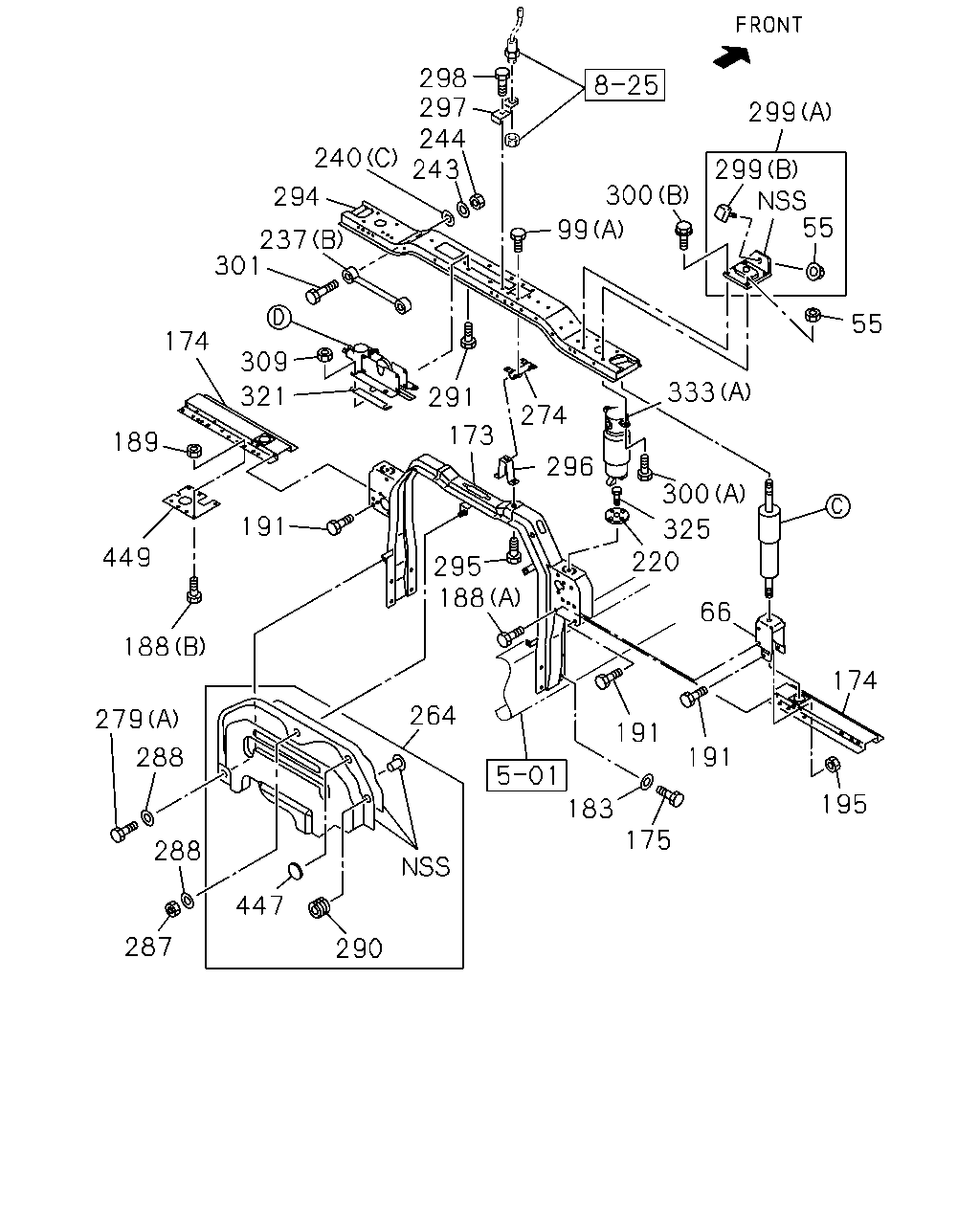

298 297 244 243 299 240 299 55 300 294 99 237 301 55 174 309 333 321 291 274 173 189 296 300 191 325 220 449 295 188 66 188 174 264 279 191 191 288 195 183 175 288 447 287 290

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
55	NUT; RUBBER M8 FLANGE	0-91180-108-0	06	1	0610-
66	BRACKET; S/ABS	1-53458-755-1	01	1	0610-1204
66	BRACKET; S/ABS	8-98214-572-0	01	1	1205-
66	BRACKET; S/ABS	1-53458-786-0	01	1	0610-
99	BOLT; BRKT EXC. TRANSMISSION CONTROL LINK TYPE(B2A),FACE LIFT<6NL> (B) M10X30 W/SP WASHER	1-09980-546-0	02	1	0810-
99	BOLT; BRKT EXC. TRANSMISSION CONTROL LINK TYPE(B2A),FACE LIFT<6NL> (B) M10X30 W/SP WASHER	1-09980-546-0	02	1	0806-0807
99	BOLT; BRKT MJX M/T<Y9N> FULL FLOATING CAB(W16) (B) M10X30 W/SP WASHER	1-09980-546-0	02	1	0610-0805
99	BOLT; BRKT FACE LIFT<6NL> EXC. TRANSMISSION CONTROL LINK TYPE(B2A) (B) M10X30 W/SP WASHER	1-09980-546-0	01	1	0806-0807
99	BOLT; BRKT EXC. TRANSMISSION CONTROL LINK TYPE(B2A) (B) M10X30 W/SP WASHER	1-09980-546-0	02	1	0808-0809
99	BOLT; BRKT FACE LIFT<6NL> EXC. TRANSMISSION CONTROL LINK TYPE(B2A) (B) M10X30 W/SP WASHER	1-09980-546-0	01	1	0810-
99	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	04	1	0610-
173	MEMBER; CAB MTG RR FULL FLOATING CAB(W16) EXC. HONG KONG EQUIPMENT(PQ1)	8-98166-139-0	01	1	1004-1005
173	MEMBER; CAB MTG RR FULL FLOATING CAB(W16) EXC. HONG KONG EQUIPMENT(PQ1)	8-98166-349-0	01	1	1006-
173	MEMBER; CAB MTG RR FULL FLOATING CAB(W16)	1-53450-675-1	01	1	0610-0610
173	MEMBER; CAB MTG RR FULL FLOATING CAB(W16)	8-97619-389-0	01	1	0611-1003
173	MEMBER; CAB MTG RR HONG KONG EQUIPMENT(PQ1) FULL FLOATING CAB(W16)	8-97619-389-0	01	1	1004-
174	OUTRIGGER	1-53456-278-3	01	1	0610-1003
174	OUTRIGGER	8-98158-646-0	01	1	1004-
174	OUTRIGGER	1-53456-418-3	01	1	0610-
175	BOLT; MEMBER TO FRAME M14X40	0-20951-440-0	08	1	0610-0610
175	BOLT; MEMBER TO FRAME M14X35	0-20951-435-0	08	1	0611-
183	WASHER; PL,MEMBER ID=15	9-09651-069-0	08	1	0610-1201
183	WASHER; PL,MEMBER ID=15	8-98010-627-1	08	1	1202-
188	BOLT; OUTRIGGER (B) M10X20 FLANGE	0-28651-020-0	04	1	0610-
188	BOLT; OUTRIGGER (A) M10X25 FLANGE	0-28651-025-0	08	1	0610-
189	NUT; OUTRIGGER M10 FLANGE	0-91180-210-0	04	1	0610-
191	BOLT; BRKT FIX M10X25 FLANGE	0-28651-025-0	07	1	0610-
195	NUT; BRKT FIX M10 FLANGE	0-91180-210-0	04	1	0610-
220	GUIDE; SPR	1-53458-648-1	02	1	0610-
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (A)	1-33670-407-0	01	1	0610-
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (C)	1-33671-987-0	01	1	0610-
237	ROD ASM; LATERAL (B)	1-53458-343-0	01	1	0610-
240	WASHER; PL,BRKT FULL FLOATING CAB(W16) (A) ID=10.5 OD=18	1-09985-173-0	01	1	0610-0805
240	WASHER; PL,BRKT FACE LIFT<6NL> EXC. TRANSMISSION CONTROL LINK TYPE(B2A) (A) ID=10.5 OD=18	1-09985-173-0	01	1	0806-0807
240	WASHER; PL,BRKT EXC. FACE LIFT<6NL> (A) ID=10.5 OD=18	1-09985-173-0	01	1	0806-0807
240	WASHER; PL,BRKT (A) ID=10.5 OD=18	1-09985-173-0	01	1	0808-0809
240	WASHER; PL,BRKT FACE LIFT<6NL> EXC. TRANSMISSION CONTROL LINK TYPE(B2A) (A) ID=10.5 OD=18	1-09985-173-0	01	1	0810-
240	WASHER; PL,BRKT EXC. FACE LIFT<6NL> (A) ID=10.5 OD=18	1-09985-173-0	01	1	0810-
240	WASHER; PL,BRKT (C) ID=12.5 OD=22	0-91610-512-0	02	1	0610-
240	WASHER; PL,BRKT (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0610-
243	WASHER; LK,LATERAL ROD ID=12.2	0-91510-512-0	02	1	0610-
244	NUT; LATERAL ROD M12	0-91110-512-0	02	1	0610-
264	PANEL; BACK HONG KONG EQUIPMENT(PQ1)	1-53194-511-2	01	1	0610-0610
264	PANEL; BACK HONG KONG EQUIPMENT(PQ1)	8-98063-674-0	01	1	0610-
274	PIN	1-53458-996-0	01	1	0610-
279	BOLT FACE LIFT<6NL> (F) M8X25 W/LK&PL WASHER	1-09980-548-0	01	1	0806-
279	BOLT HONG KONG EQUIPMENT(PQ1) (A) M8X25 FLANGE	0-28650-825-0	02	1	0610-
279	BOLT FULL FLOATING CAB(W16) (C) M8X16 FLANGE	0-28050-816-0	04	1	0610-
279	BOLT FULL FLOATING CAB(W16) (E) M8X60 FLANGE	0-28050-860-0	02	1	0610-
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28650-820-0	05	1	0610-
279	BOLT FULL FLOATING CAB(W16) (F) M8X25 W/LK&PL WASHER	1-09980-548-0	02	1	0610-0805
279	BOLT FULL FLOATING CAB(W16) EXC. FACE LIFT<6NL> (F) M8X25 W/LK&PL WASHER	1-09980-548-0	02	1	0806-
279	BOLT (B) M12X40 FLANGE	0-28061-240-0	04	1	0610-1510
279	BOLT (B) M12X40 FLANGE	8-98270-173-0	04	1	1511-
287	NUT HONG KONG EQUIPMENT(PQ1) M8 FLANGE	0-91180-108-0	01	1	0610-
288	WASHER; PL HONG KONG EQUIPMENT(PQ1) ID=8.4 OD=26	0-91614-808-0	03	1	0610-
290	RUBBER; MTG HONG KONG EQUIPMENT(PQ1)	1-53459-702-1	03	1	0610-
291	BOLT; RATCH M10X25 FLANGE	0-28651-025-0	04	1	0610-
294	MEMBER; FLOATING	8-97613-760-1	01	1	0610-
295	BOLT; STOPPER,UPR M10X20 FLANGE	0-28651-020-0	02	1	0610-
296	STOPPER; UPR	1-53458-973-1	01	1	0610-
297	BRACKET; LIMIT SW	1-53458-782-0	01	1	0610-
298	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	01	1	0610-
299	RUBBER; MTG (B)	1-53366-155-0	02	1	0610-
299	RUBBER; MTG (A)	1-53366-194-0	02	1	0610-
300	BOLT; MTG RUBBER (B) M8X16 FLANGE	0-28050-816-0	04	1	0610-
300	BOLT; MTG RUBBER (A) M8X25 W/LK&PL WASHER	1-09030-027-0	04	1	0610-
301	PIN; LATERAL ROD M12X57.5	1-53459-498-1	02	1	0610-
309	NUT M10 FLANGE	0-91180-210-0	04	1	0610-
321	SHIM; FRT CAB MTG	1-53458-629-1	04	1	0610-
325	BOLT; GUIDE NUT FULL FLOATING CAB(W16) M8X20 FLANGE	0-28650-820-0	02	1	0610-
333	SPRING FULL FLOATING CAB(W16) (B)	1-52110-142-4	02	1	0610-
333	SPRING FULL FLOATING CAB(W16) (A)	1-52110-143-4	02	1	0610-
447	SEAL HONG KONG EQUIPMENT(PQ1) OD=45 BLACK	1-76798-017-0	02	1	0610-
449	BRACKET; OUTRIGGER	1-53456-279-0	01	1	0610-

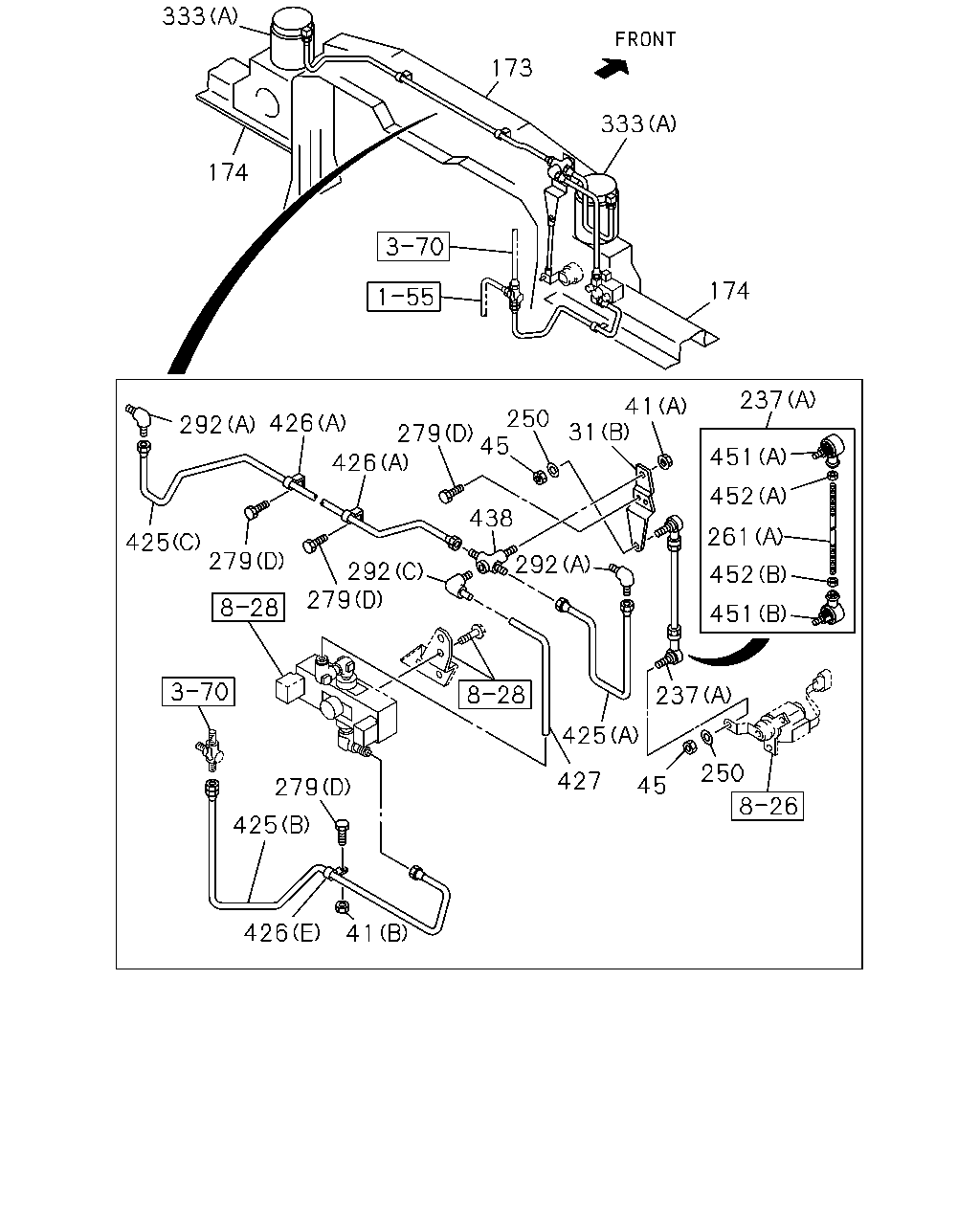

333 173 333 174 174 237 41 31 250 279 45 426 292 451 426 452 438 261 425 279 292 292 279 452 451 237 425 250 427 45 279 425 426 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
31	BRACKET; CAB FACE LIFT<6NL> EXC. TRANSMISSION CONTROL LINK TYPE(B2A) (E)	8-97619-220-1	01	1	0810-
31	BRACKET; CAB TRANSMISSION CONTROL LINK TYPE(B2A) FACE LIFT<6NL> (C)	8-98079-059-0	01	1	0806-0807
31	BRACKET; CAB FACE LIFT<6NL> (C)	8-98079-059-0	01	1	0808-0809
31	BRACKET; CAB TRANSMISSION CONTROL LINK TYPE(B2A) FACE LIFT<6NL> (C)	8-98079-059-0	01	1	0810-
31	BRACKET; CAB FACE LIFT<6NL> EXC. TRANSMISSION CONTROL LINK TYPE(B2A) (E)	8-97619-220-0	01	1	0806-0807
31	BRACKET; CAB FULL FLOATING CAB(W16) (B)	1-53458-374-1	01	1	0610-
31	BRACKET; CAB FULL FLOATING CAB(W16) (C)	8-97606-793-0	01	1	0610-0805
31	BRACKET; CAB FULL FLOATING CAB(W16) EXC. FACE LIFT<6NL> (C)	8-97606-793-0	01	1	0806-
31	BRACKET; CAB (A)	1-44226-178-1	01	1	0610-
31	BRACKET; CAB (D)	1-53453-224-5	01	1	0610-
31	BRACKET; CAB (D)	1-53453-225-3	01	1	0610-
41	NUT FULL FLOATING CAB(W16) (B) M8 FLANGE	0-91180-108-0	01	1	0610-
41	NUT FULL FLOATING CAB(W16) (A) M12 FLANGE	0-91180-212-0	01	1	0610-
45	NUT FULL FLOATING CAB(W16) M5	0-91110-505-0	04	1	0610-
173	MEMBER; CAB MTG RR FULL FLOATING CAB(W16) EXC. HONG KONG EQUIPMENT(PQ1)	8-98166-139-0	01	1	1004-1005
173	MEMBER; CAB MTG RR FULL FLOATING CAB(W16) EXC. HONG KONG EQUIPMENT(PQ1)	8-98166-349-0	01	1	1006-
173	MEMBER; CAB MTG RR FULL FLOATING CAB(W16)	1-53450-675-1	01	1	0610-0610
173	MEMBER; CAB MTG RR FULL FLOATING CAB(W16)	8-97619-389-0	01	1	0611-1003
173	MEMBER; CAB MTG RR HONG KONG EQUIPMENT(PQ1) FULL FLOATING CAB(W16)	8-97619-389-0	01	1	1004-
174	OUTRIGGER	1-53456-278-3	01	1	0610-1003
174	OUTRIGGER	8-98158-646-0	01	1	1004-
174	OUTRIGGER	1-53456-418-3	01	1	0610-
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (A)	1-33670-407-0	01	1	0610-
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (C)	1-33671-987-0	01	1	0610-
237	ROD ASM; LATERAL (B)	1-53458-343-0	01	1	0610-
250	WASHER; LK FULL FLOATING CAB(W16) ID=5.1	0-91510-505-0	04	1	0610-
261	ROD; LINK FULL FLOATING CAB(W16) (B)	0-84100-506-0	01	1	0610-
261	ROD; LINK FULL FLOATING CAB(W16) (A)	9-08410-514-0	01	1	0610-
279	BOLT FACE LIFT<6NL> (F) M8X25 W/LK&PL WASHER	1-09980-548-0	01	1	0806-
279	BOLT HONG KONG EQUIPMENT(PQ1) (A) M8X25 FLANGE	0-28650-825-0	02	1	0610-
279	BOLT FULL FLOATING CAB(W16) (C) M8X16 FLANGE	0-28050-816-0	04	1	0610-
279	BOLT FULL FLOATING CAB(W16) (E) M8X60 FLANGE	0-28050-860-0	02	1	0610-
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28650-820-0	05	1	0610-
279	BOLT FULL FLOATING CAB(W16) (F) M8X25 W/LK&PL WASHER	1-09980-548-0	02	1	0610-0805
279	BOLT FULL FLOATING CAB(W16) EXC. FACE LIFT<6NL> (F) M8X25 W/LK&PL WASHER	1-09980-548-0	02	1	0806-
279	BOLT (B) M12X40 FLANGE	0-28061-240-0	04	1	0610-1510
279	BOLT (B) M12X40 FLANGE	8-98270-173-0	04	1	1511-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0610-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (B) DIN6 R1/8 STRAIGHT	1-09660-759-1	02	1	0610-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (C) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0610-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (D)	1-09661-577-0	01	1	0610-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (F) PT1/8 ELBOW	8-94338-418-1	01	1	0610-
292	CONNECTOR; CAB SUSPENSION (E) M12	1-53458-941-0	01	1	0610-
333	SPRING FULL FLOATING CAB(W16) (B)	1-52110-142-4	02	1	0610-
333	SPRING FULL FLOATING CAB(W16) (A)	1-52110-143-4	02	1	0610-
425	PIPE ASM; AIR MIXER TRUCK<RA2> FULL FLOATING CAB(W16) (B) L=367	1-49124-343-0	01	1	0610-
425	PIPE ASM; AIR FULL FLOATING CAB(W16) (A) L=298	1-47494-961-1	01	1	0610-
425	PIPE ASM; AIR FULL FLOATING CAB(W16) (C) L=1149 SERVICED BY L=1200	1-47428-816-0	01	1	0610-
425	PIPE ASM; AIR FULL FLOATING CAB(W16) EXC. MIXER TRUCK<RA2> (B) L=566 SERVICED BY L=600	1-47428-809-0	01	1	0610-
426	CLIP FULL FLOATING CAB(W16) FACE LIFT<6NL> (F) ID=5-12 L=14.5	1-09987-221-0	01	1	0806-
426	CLIP FULL FLOATING CAB(W16) (E) ID=7 L=32	0-95234-665-0	01	1	0610-
426	CLIP FULL FLOATING CAB(W16) (D) ID=11 L=16	0-95235-025-0	01	1	0610-0805
426	CLIP FULL FLOATING CAB(W16) EXC. FACE LIFT<6NL> (D) ID=11 L=16	0-95235-025-0	01	1	0806-
426	CLIP FULL FLOATING CAB(W16) (A) ID=6 H=20 L=20	1-09700-603-0	02	1	0610-
426	CLIP FULL FLOATING CAB(W16) (C) ID=11 H=20 L=20	5-09700-351-0	01	1	0610-0707
426	CLIP FULL FLOATING CAB(W16) (C) ID=11 H=20 L=20	8-98033-780-0	01	1	0708-
426	CLIP FULL FLOATING CAB(W16) (B) ID=9.5	5-09709-020-0	01	1	0610-
427	TUBE FULL FLOATING CAB(W16) SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0610-
427	TUBE FULL FLOATING CAB(W16) SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0610-
438	UNION FULL FLOATING CAB(W16) M12X2 & PT1/8 3WAY	1-09656-655-0	01	1	0610-
451	JOINT; BALL FULL FLOATING CAB(W16) (B)	1-09760-103-2	02	1	0610-
451	JOINT; BALL FULL FLOATING CAB(W16) (A)	1-09760-104-2	02	1	0610-
452	NUT; BALL JOINT FULL FLOATING CAB(W16) (A) M5	0-91110-505-0	02	1	0610-
452	NUT; BALL JOINT FULL FLOATING CAB(W16) (B) M5 LH THREAD	9-09840-277-0	02	1	0610-

237 451 452 333 279 261 292 452 31 451 192 427 278 45 240 99 72 69 72 73 71 237 250 105 45 250 31 72 112 45 250 72 426 73 279 71 426 279 69 72 105 67 279 426 279 240 426 98 333 192 112 292 31 292 120 31 118 27 292 279 315 113 315 27 113 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
27	BOLT; BUSHING (B) M18X120	1-09000-442-1	02	1	0610-
27	BOLT; BUSHING (A) M18X90	9-91066-890-0	02	1	0610-
31	BRACKET; CAB FACE LIFT<6NL> EXC. TRANSMISSION CONTROL LINK TYPE(B2A) (E)	8-97619-220-1	01	1	0810-
31	BRACKET; CAB TRANSMISSION CONTROL LINK TYPE(B2A) FACE LIFT<6NL> (C)	8-98079-059-0	01	1	0806-0807
31	BRACKET; CAB FACE LIFT<6NL> (C)	8-98079-059-0	01	1	0808-0809
31	BRACKET; CAB TRANSMISSION CONTROL LINK TYPE(B2A) FACE LIFT<6NL> (C)	8-98079-059-0	01	1	0810-
31	BRACKET; CAB FACE LIFT<6NL> EXC. TRANSMISSION CONTROL LINK TYPE(B2A) (E)	8-97619-220-0	01	1	0806-0807
31	BRACKET; CAB FULL FLOATING CAB(W16) (B)	1-53458-374-1	01	1	0610-
31	BRACKET; CAB FULL FLOATING CAB(W16) (C)	8-97606-793-0	01	1	0610-0805
31	BRACKET; CAB FULL FLOATING CAB(W16) EXC. FACE LIFT<6NL> (C)	8-97606-793-0	01	1	0806-
31	BRACKET; CAB (A)	1-44226-178-1	01	1	0610-
31	BRACKET; CAB (D)	1-53453-224-5	01	1	0610-
31	BRACKET; CAB (D)	1-53453-225-3	01	1	0610-
45	NUT FULL FLOATING CAB(W16) M5	0-91110-505-0	04	1	0610-
67	NUT; S/ABS,CAB FRT SUSPENSION M12 FLANGE	0-91180-212-0	02	1	0610-
69	BOLT; S/ABS,CAB FRT SUSPENSION (A) M12X60	0-20801-260-0	02	1	0610-
69	BOLT; S/ABS,CAB FRT SUSPENSION (B) M10X105	1-79198-008-1	08	1	0610-
71	NUT; BRKT TO CAB FRAME M10	1-09984-142-0	06	1	0610-
72	WASHER; PL,BRKT TO FRAME MJX12P M/T SMOOTHER-G(Y4S) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	0610-0805
72	WASHER; PL,BRKT TO FRAME EXC. TRANSMISSION CONTROL LINK TYPE(B2A),FACE LIFT<6NL> ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	0806-0807
72	WASHER; PL,BRKT TO FRAME EXC. TRANSMISSION CONTROL LINK TYPE(B2A) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	0808-0809
72	WASHER; PL,BRKT TO FRAME EXC. TRANSMISSION CONTROL LINK TYPE(B2A),FACE LIFT<6NL> ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	0810-
72	WASHER; PL,BRKT TO FRAME ID=10.5 OD=26 T=2.6	1-09985-184-0	23	1	0610-
73	WASHER; LK,BRKT TO CAB FRAME ID=10	1-09985-185-0	12	1	0610-
98	WASHER; LK,BRKT ID=10	1-09985-185-0	04	1	0610-
99	BOLT; BRKT EXC. TRANSMISSION CONTROL LINK TYPE(B2A),FACE LIFT<6NL> (B) M10X30 W/SP WASHER	1-09980-546-0	02	1	0810-
99	BOLT; BRKT EXC. TRANSMISSION CONTROL LINK TYPE(B2A),FACE LIFT<6NL> (B) M10X30 W/SP WASHER	1-09980-546-0	02	1	0806-0807
99	BOLT; BRKT MJX M/T<Y9N> FULL FLOATING CAB(W16) (B) M10X30 W/SP WASHER	1-09980-546-0	02	1	0610-0805
99	BOLT; BRKT FACE LIFT<6NL> EXC. TRANSMISSION CONTROL LINK TYPE(B2A) (B) M10X30 W/SP WASHER	1-09980-546-0	01	1	0806-0807
99	BOLT; BRKT EXC. TRANSMISSION CONTROL LINK TYPE(B2A) (B) M10X30 W/SP WASHER	1-09980-546-0	02	1	0808-0809
99	BOLT; BRKT FACE LIFT<6NL> EXC. TRANSMISSION CONTROL LINK TYPE(B2A) (B) M10X30 W/SP WASHER	1-09980-546-0	01	1	0810-
99	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	04	1	0610-
105	BOLT; BRKT TO CAB FRAME M10X30 W/SP WASHER	1-09980-546-0	08	1	0610-
112	ARM ASM; LINK,CAB FRT SUSP FACE LIFT<6NL>	8-98077-409-2	01	1	0806-
112	ARM ASM; LINK,CAB FRT SUSP	1-53450-684-0	01	1	0610-0805
112	ARM ASM; LINK,CAB FRT SUSP EXC. FACE LIFT<6NL>	1-53450-684-2	01	1	0806-
113	BUSHING; RUBBER,FLOATING LINK ARM,W/PI	1-53458-714-0	04	1	0610-
118	WASHER; PL,STOPPER RUBBER,LINK ARM ID=19 OD=30	1-09503-279-0	04	1	0610-
120	NUT; STOPPER RUBBER,LINK ARM M18	0-91110-518-0	02	1	0610-
192	NUT; BRKT FIX TRANSMISSION CONTROL LINK TYPE(B2A) FACE LIFT<6NL> M10	1-09984-142-0	02	1	0810-
192	NUT; BRKT FIX EXC. FACE LIFT<6NL> M10	1-09984-142-0	02	1	0810-
192	NUT; BRKT FIX FACE LIFT<6NL> EXC. TRANSMISSION CONTROL LINK TYPE(B2A) M10	1-09984-142-0	01	1	0810-
192	NUT; BRKT FIX FACE LIFT<6NL> EXC. TRANSMISSION CONTROL LINK TYPE(B2A) M10	1-09984-142-0	01	1	0806-0807
192	NUT; BRKT FIX FULL FLOATING CAB(W16) M10	1-09984-142-0	02	1	0610-0805
192	NUT; BRKT FIX TRANSMISSION CONTROL LINK TYPE(B2A) FACE LIFT<6NL> M10	1-09984-142-0	02	1	0806-0807
192	NUT; BRKT FIX EXC. FACE LIFT<6NL> M10	1-09984-142-0	02	1	0806-0807
192	NUT; BRKT FIX M10	1-09984-142-0	04	1	0610-0807
192	NUT; BRKT FIX M10	1-09984-142-0	06	1	0808-0809
192	NUT; BRKT FIX M10	1-09984-142-0	04	1	0810-
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (A)	1-33670-407-0	01	1	0610-
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (C)	1-33671-987-0	01	1	0610-
237	ROD ASM; LATERAL (B)	1-53458-343-0	01	1	0610-
240	WASHER; PL,BRKT FULL FLOATING CAB(W16) (A) ID=10.5 OD=18	1-09985-173-0	01	1	0610-0805
240	WASHER; PL,BRKT FACE LIFT<6NL> EXC. TRANSMISSION CONTROL LINK TYPE(B2A) (A) ID=10.5 OD=18	1-09985-173-0	01	1	0806-0807
240	WASHER; PL,BRKT EXC. FACE LIFT<6NL> (A) ID=10.5 OD=18	1-09985-173-0	01	1	0806-0807
240	WASHER; PL,BRKT (A) ID=10.5 OD=18	1-09985-173-0	01	1	0808-0809
240	WASHER; PL,BRKT FACE LIFT<6NL> EXC. TRANSMISSION CONTROL LINK TYPE(B2A) (A) ID=10.5 OD=18	1-09985-173-0	01	1	0810-
240	WASHER; PL,BRKT EXC. FACE LIFT<6NL> (A) ID=10.5 OD=18	1-09985-173-0	01	1	0810-
240	WASHER; PL,BRKT (C) ID=12.5 OD=22	0-91610-512-0	02	1	0610-
240	WASHER; PL,BRKT (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0610-
250	WASHER; LK FULL FLOATING CAB(W16) ID=5.1	0-91510-505-0	04	1	0610-
261	ROD; LINK FULL FLOATING CAB(W16) (B)	0-84100-506-0	01	1	0610-
261	ROD; LINK FULL FLOATING CAB(W16) (A)	9-08410-514-0	01	1	0610-
278	COVER FULL FLOATING CAB(W16) L=1200 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0610-
279	BOLT FACE LIFT<6NL> (F) M8X25 W/LK&PL WASHER	1-09980-548-0	01	1	0806-
279	BOLT HONG KONG EQUIPMENT(PQ1) (A) M8X25 FLANGE	0-28650-825-0	02	1	0610-
279	BOLT FULL FLOATING CAB(W16) (C) M8X16 FLANGE	0-28050-816-0	04	1	0610-
279	BOLT FULL FLOATING CAB(W16) (E) M8X60 FLANGE	0-28050-860-0	02	1	0610-
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28650-820-0	05	1	0610-
279	BOLT FULL FLOATING CAB(W16) (F) M8X25 W/LK&PL WASHER	1-09980-548-0	02	1	0610-0805
279	BOLT FULL FLOATING CAB(W16) EXC. FACE LIFT<6NL> (F) M8X25 W/LK&PL WASHER	1-09980-548-0	02	1	0806-
279	BOLT (B) M12X40 FLANGE	0-28061-240-0	04	1	0610-1510
279	BOLT (B) M12X40 FLANGE	8-98270-173-0	04	1	1511-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0610-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (B) DIN6 R1/8 STRAIGHT	1-09660-759-1	02	1	0610-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (C) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0610-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (D)	1-09661-577-0	01	1	0610-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (F) PT1/8 ELBOW	8-94338-418-1	01	1	0610-
292	CONNECTOR; CAB SUSPENSION (E) M12	1-53458-941-0	01	1	0610-
315	WASHER; CAB MTG ID=34.5	1-53458-281-1	04	1	0610-
333	SPRING FULL FLOATING CAB(W16) (B)	1-52110-142-4	02	1	0610-
333	SPRING FULL FLOATING CAB(W16) (A)	1-52110-143-4	02	1	0610-
426	CLIP FULL FLOATING CAB(W16) FACE LIFT<6NL> (F) ID=5-12 L=14.5	1-09987-221-0	01	1	0806-
426	CLIP FULL FLOATING CAB(W16) (E) ID=7 L=32	0-95234-665-0	01	1	0610-
426	CLIP FULL FLOATING CAB(W16) (D) ID=11 L=16	0-95235-025-0	01	1	0610-0805
426	CLIP FULL FLOATING CAB(W16) EXC. FACE LIFT<6NL> (D) ID=11 L=16	0-95235-025-0	01	1	0806-
426	CLIP FULL FLOATING CAB(W16) (A) ID=6 H=20 L=20	1-09700-603-0	02	1	0610-
426	CLIP FULL FLOATING CAB(W16) (C) ID=11 H=20 L=20	5-09700-351-0	01	1	0610-0707
426	CLIP FULL FLOATING CAB(W16) (C) ID=11 H=20 L=20	8-98033-780-0	01	1	0708-
426	CLIP FULL FLOATING CAB(W16) (B) ID=9.5	5-09709-020-0	01	1	0610-
427	TUBE FULL FLOATING CAB(W16) SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0610-
427	TUBE FULL FLOATING CAB(W16) SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0610-
451	JOINT; BALL FULL FLOATING CAB(W16) (B)	1-09760-103-2	02	1	0610-
451	JOINT; BALL FULL FLOATING CAB(W16) (A)	1-09760-104-2	02	1	0610-
452	NUT; BALL JOINT FULL FLOATING CAB(W16) (A) M5	0-91110-505-0	02	1	0610-
452	NUT; BALL JOINT FULL FLOATING CAB(W16) (B) M5 LH THREAD	9-09840-277-0	02	1	0610-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
