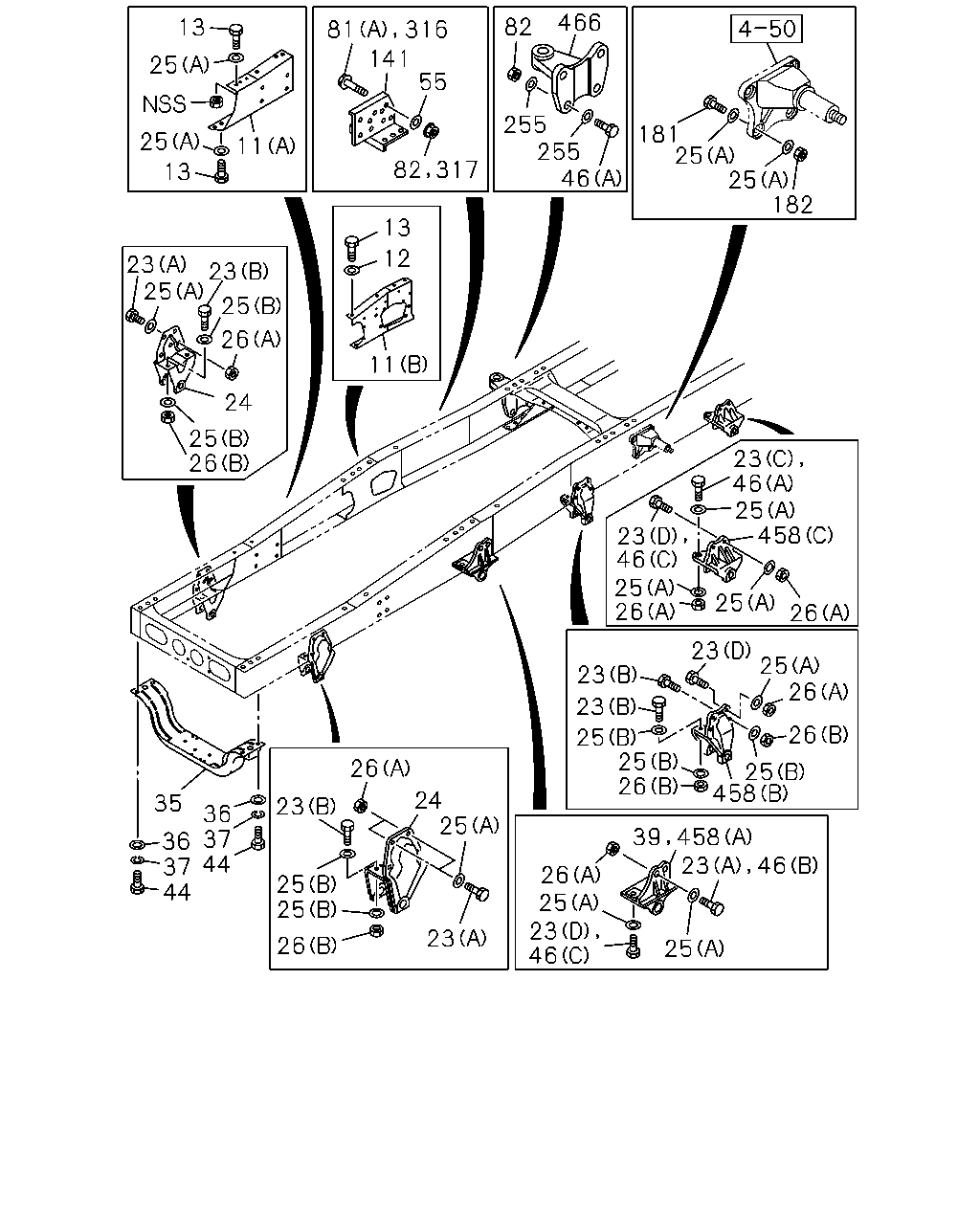

5-01 — FRAME AND OTHER PARTS (#26561) — 169 parça

466 82 13 81 316 141 25 55 255 255 46 11 181 25 25 25 182 82 13 13 12 23 25 23 25 26 11 24 25 26 23 46 25 458 23 46 25 26 25 26 23 25 26 23 23 26 25 25 26 26 25 458 24 25 35 23 36 37 44 36 37 44 26 25 23 46 25 25 23 26 25 317 39 458 23 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	BRACKET; ENG MTG DUMP TRUCK<RA1> (B)	1-53221-226-4	01	1	0610-	●
11	BRACKET; ENG MTG (B)	1-53221-226-4	01	1	0610-		●
11	BRACKET; ENG MTG DUMP TRUCK<RA1> (B)	1-53221-227-4	01	1	0610-	●
11	BRACKET; ENG MTG (B)	1-53221-227-4	01	1	0610-		●
11	BRACKET; ENG MTG (A)	1-53211-367-1	01	1	0610-	●	●
11	BRACKET; ENG MTG (A)	1-53211-368-1	01	1	0610-	●	●
11	BRACKET; ENG MTG MIXER TRUCK<RA2> (B)	1-53221-238-0	01	1	0610-	●
11	BRACKET; ENG MTG MIXER TRUCK<RA2> (B)	1-53221-239-2	01	1	0610-	●
12	WASHER; PL,BRKT,ENG MTG ID=15	9-09651-069-0	02	1	0610-0908	●	●
12	WASHER; PL,BRKT,ENG MTG EXC. FUEL TANK 300L AL<EBF> ID=15	9-09651-069-0	02	1	0909-1201	●
12	WASHER; PL,BRKT,ENG MTG ID=15	9-09651-069-0	02	1	0909-1201		●
12	WASHER; PL,BRKT,ENG MTG EXC. FUEL TANK 300L AL<EBF> ID=15	8-98010-627-1	02	1	1202-	●
12	WASHER; PL,BRKT,ENG MTG ID=15	8-98010-627-1	02	1	1202-		●
13	BOLT; BRKT,ENG MTG M14X40	0-20951-440-0	06	1	0610-	●	●
23	BOLT; BRKT,SPR EXC. FUEL TANK 300L AL<EBF> (A) M14X40	0-20951-440-0	12	1	0909-	●
23	BOLT; BRKT,SPR (A) M14X40	0-20951-440-0	12	1	0909-		●
23	BOLT; BRKT,SPR EXC. FUEL TANK 300L AL<EBF> (D) M14X50	0-20951-450-0	12	1	0909-	●
23	BOLT; BRKT,SPR (D) M14X50	0-20951-450-0	12	1	0909-		●
23	BOLT; BRKT,SPR (A) M14X40	0-20951-440-0	12	1	0610-0908	●	●
23	BOLT; BRKT,SPR FUEL TANK 300L AL<EBF> (A) M14X40	0-20951-440-0	08	1	0909-	●
23	BOLT; BRKT,SPR (D) M14X50	0-20951-450-0	12	1	0610-0908	●	●
23	BOLT; BRKT,SPR FUEL TANK 300L AL<EBF> (D) M14X50	0-20951-450-0	04	1	0909-	●
23	BOLT; BRKT,SPR (C) M14X60	0-20951-460-0	04	1	0610-0908	●	●
23	BOLT; BRKT,SPR EXC. FUEL TANK 300L AL<EBF> (C) M14X60	0-20951-460-0	04	1	0909-	●
23	BOLT; BRKT,SPR (C) M14X60	0-20951-460-0	04	1	0909-		●
23	BOLT; BRKT,SPR (B) M16X50	0-20951-650-0	12	1	0610-	●	●
24	BRACKET; FRT SPR,FRT	1-53351-237-1	01	1	0610-	●	●
24	BRACKET; FRT SPR,FRT	1-53351-238-1	01	1	0610-	●	●
25	WASHER; PL,BRKT FUEL TANK 300L AL<EBF> (B) ID=16.2	1-09503-316-0	20	1	0909-	●
25	WASHER; PL,BRKT FUEL TANK 300L AL<EBF> (A) ID=15	8-98010-627-1	48	1	0909-	●
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-223-0	20	1	0610-0908	●	●
25	WASHER; PL,BRKT EXC. FUEL TANK 300L AL<EBF> (B) ID=16.2	1-09503-223-0	20	1	0909-	●
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-223-0	20	1	0909-		●
25	WASHER; PL,BRKT (A) ID=15	9-09651-069-0	52	1	0610-0908	●	●
25	WASHER; PL,BRKT EXC. FUEL TANK 300L AL<EBF> (A) ID=15	9-09651-069-0	52	1	0909-1201	●
25	WASHER; PL,BRKT (A) ID=15	9-09651-069-0	52	1	0909-1201		●
25	WASHER; PL,BRKT EXC. FUEL TANK 300L AL<EBF> (A) ID=15	8-98010-627-1	52	1	1202-	●
25	WASHER; PL,BRKT (A) ID=15	8-98010-627-1	52	1	1202-		●
26	NUT; BRKT,SPR (A) M14	0-91110-514-0	24	1	0610-	●	●
26	NUT; BRKT,SPR (B) M16	0-91110-516-0	12	1	0610-	●	●
35	MEMBER; UNDER	1-53174-263-2	01	1	0610-	●	●
36	WASHER; PL,UNDER MBR ID=17	9-09164-516-0	04	1	0610-	●	●
37	WASHER; LK,UNDER MBR ID=16.2	0-91510-816-0	04	1	0610-	●	●
39	BRACKET; FRT SPR,RR FUEL TANK 300L AL<EBF>	1-53352-179-0	01	1	0909-	●
39	BRACKET; FRT SPR,RR FUEL TANK 300L AL<EBF>	1-53352-180-0	01	1	0909-	●
44	BOLT; UNDER MBR M16X60	0-20951-660-0	04	1	0610-	●	●
46	BOLT; BRKT FIX FUEL TANK 300L AL<EBF> (B) M14X40	0-20951-440-0	04	1	0909-	●
46	BOLT; BRKT FIX FUEL TANK 300L AL<EBF> (C) M14X50	0-20951-450-0	08	1	0909-	●
46	BOLT; BRKT FIX EXC. FUEL TANK 300L AL<EBF> (A) M14X60	0-20951-460-0	04	1	0909-	●
46	BOLT; BRKT FIX (A) M14X60	0-20951-460-0	04	1	0909-		●
46	BOLT; BRKT FIX (A) M14X60	0-20951-460-0	04	1	0610-0908	●	●
46	BOLT; BRKT FIX FUEL TANK 300L AL<EBF> (A) M14X60	0-20951-460-0	08	1	0909-	●
55	WASHER; PL FUEL TANK 300L AL<EBF> ID=15	8-98010-627-1	10	1	0909-1201	●
55	WASHER; PL ID=15	8-98010-627-1	10	1	1202-	●	●
55	WASHER; PL ID=15	9-09651-069-0	10	1	0610-0908	●	●
55	WASHER; PL EXC. FUEL TANK 300L AL<EBF> ID=15	9-09651-069-0	10	1	0909-1201	●
55	WASHER; PL ID=15	9-09651-069-0	10	1	0909-1201		●
81	BOLT; BRKT FUEL TANK 300L AL<EBF> (A) M14X50	0-20951-450-0	07	1	0909-	●
81	BOLT; BRKT FUEL TANK 300L AL<EBF> (A) M14X205	1-09000-147-0	02	1	0909-	●
81	BOLT; BRKT (A) M14X100	9-91066-400-0	04	1	0610-0908	●	●
81	BOLT; BRKT EXC. FUEL TANK 300L AL<EBF> (A) M14X100	9-91066-400-0	04	1	0909-	●
81	BOLT; BRKT (A) M14X100	9-91066-400-0	04	1	0909-		●
81	BOLT; BRKT (B) M14X55	9-91066-455-0	04	1	0610-	●	●
81	BOLT; BRKT (B) M14X45	9-92061-445-0	08	1	0610-	●	●
82	NUT; BRKT EXC. FUEL TANK 300L AL<EBF> M14	0-91110-514-0	08	1	0909-	●
82	NUT; BRKT M14	0-91110-514-0	08	1	0909-		●
82	NUT; BRKT M14	0-91110-514-0	08	1	0610-0908	●	●
82	NUT; BRKT FUEL TANK 300L AL<EBF> M14	0-91110-514-0	13	1	0909-	●
82	NUT; BRKT M14	0-91110-514-0	12	1	0610-	●	●
141	STIFFENER	1-53151-833-1	01	1	0610-	●	●
181	BOLT; S/ABS BRKT TO FRAME M14X50	0-20951-450-0	08	1	0610-	●	●
182	NUT; S/ABS BRKT TO FRAME M14	0-91110-514-0	08	1	0610-	●	●
255	WASHER; PL,BRKT FUEL TANK 300L AL<EBF> ID=15	8-98010-627-1	14	1	0909-	●
255	WASHER; PL,BRKT ID=15	9-09651-069-0	08	1	0610-0908	●	●
255	WASHER; PL,BRKT EXC. FUEL TANK 300L AL<EBF> ID=15	9-09651-069-0	08	1	0909-1201	●
255	WASHER; PL,BRKT ID=15	9-09651-069-0	08	1	0909-1201		●
255	WASHER; PL,BRKT EXC. FUEL TANK 300L AL<EBF> ID=15	8-98010-627-1	08	1	1202-	●
255	WASHER; PL,BRKT ID=15	8-98010-627-1	08	1	1202-		●
316	BOLT; STIFFENER M14X50	0-20951-450-0	05	1	0610-0908	●	●
316	BOLT; STIFFENER EXC. FUEL TANK 300L AL<EBF> M14X50	0-20951-450-0	05	1	0909-	●
316	BOLT; STIFFENER M14X50	0-20951-450-0	05	1	0909-		●
317	NUT; STIFFENER M14	0-91110-514-0	05	1	0610-0908	●	●
317	NUT; STIFFENER EXC. FUEL TANK 300L AL<EBF> M14	0-91110-514-0	05	1	0909-	●
317	NUT; STIFFENER M14	0-91110-514-0	05	1	0909-		●
458	BRACKET; LEAF SPRING (B)	1-53351-217-0	01	1	0610-	●	●
458	BRACKET; LEAF SPRING (B)	1-53351-218-0	01	1	0610-	●	●
458	BRACKET; LEAF SPRING (C)	1-53352-067-3	02	1	0610-	●	●
458	BRACKET; LEAF SPRING (A)	1-53352-179-0	01	1	0610-0908	●	●
458	BRACKET; LEAF SPRING EXC. FUEL TANK 300L AL<EBF> (A)	1-53352-179-0	01	1	0909-	●
458	BRACKET; LEAF SPRING (A)	1-53352-179-0	01	1	0909-		●
458	BRACKET; LEAF SPRING (A)	1-53352-180-0	01	1	0610-0908	●	●
458	BRACKET; LEAF SPRING EXC. FUEL TANK 300L AL<EBF> (A)	1-53352-180-0	01	1	0909-	●
458	BRACKET; LEAF SPRING (A)	1-53352-180-0	01	1	0909-		●
466	BRACKET; BOOSTER	1-44515-073-0	01	1	0610-	●	●

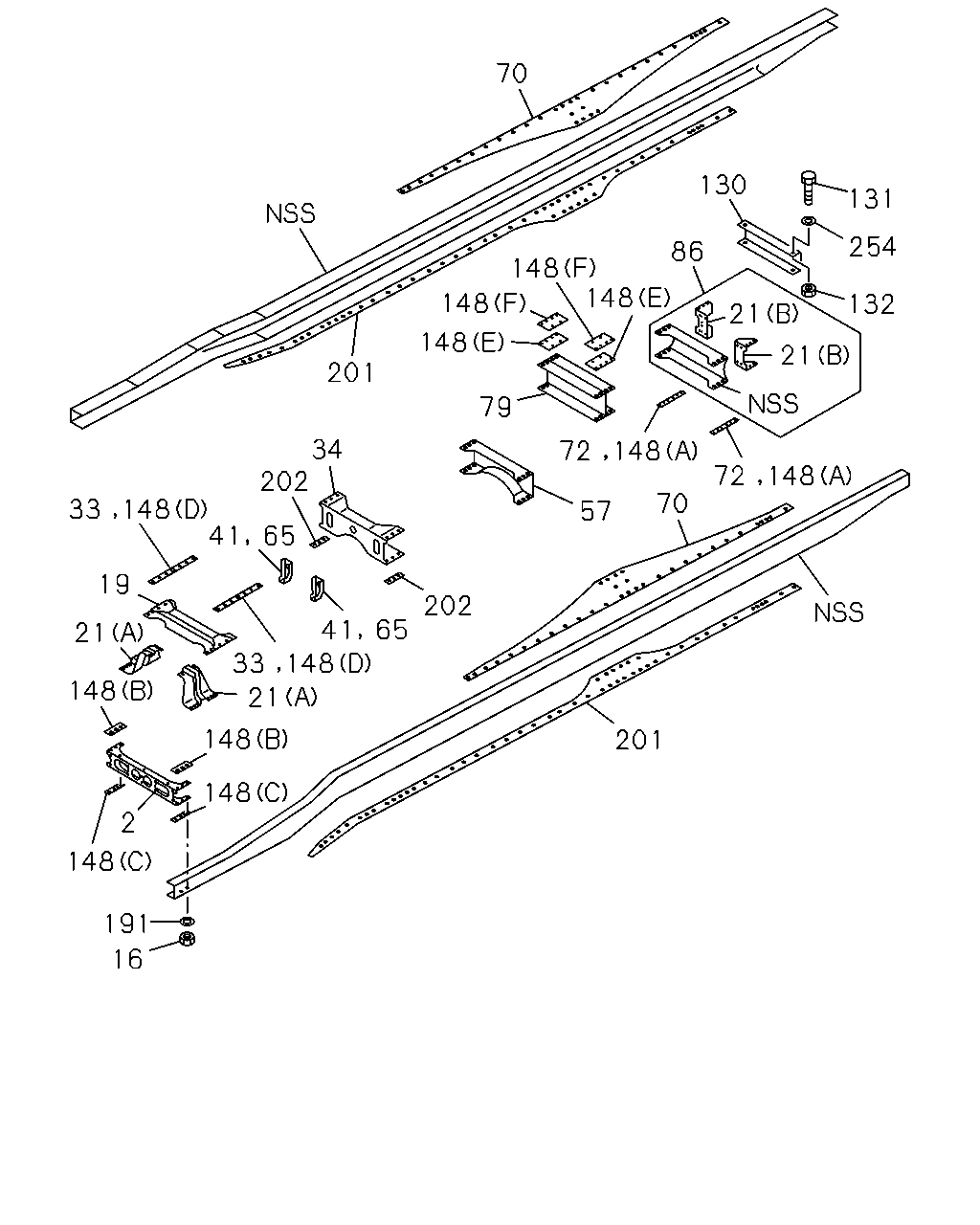

70 130 131 254 86 148 148 21 148 132 148 21 201 79 34 202 148 72 72 148 70 33 148 41 57 65 19 202 41 148 21 33 148 21 148 201 148 2 148 191 16 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	MEMBER; CROSS,1ST	8-97604-959-3	01	1	0610-	●	●
16	BOLT; 1ST C/MBR TO S/MBR M16X40	0-20951-640-0	02	1	0610-		●
19	MEMBER; CROSS,2ND	1-53174-221-0	01	1	0610-	●	●
21	GUSSET; 2ND CROSS (A)	1-53164-225-0	02	1	0610-	●	●
21	GUSSET; 2ND CROSS (B)	1-53167-287-3	02	1	0610-0908	●	●
21	GUSSET; 2ND CROSS EXC. FUEL TANK 300L AL<EBF> (B)	1-53167-287-3	02	1	0909-	●
21	GUSSET; 2ND CROSS (B)	1-53167-287-3	02	1	0909-		●
33	SPACER; 2ND C/MBR,UPR FUEL TANK 300L AL<EBF>	1-53168-443-0	02	1	0909-	●
34	MEMBER; CROSS,3RD FUEL TANK 300L AL<EBF>	8-98154-174-1	01	1	0910-	●
34	MEMBER; CROSS,3RD	1-53182-095-2	01	1	0610-0909	●	●
34	MEMBER; CROSS,3RD EXC. FUEL TANK 300L AL<EBF>	1-53182-095-3	01	1	0910-	●
34	MEMBER; CROSS,3RD	1-53182-095-3	01	1	0910-		●
41	BRACKET; CENTER BRG,FRAME SIDE L=330	1-53271-263-2	02	1	0610-0908	●
41	BRACKET; CENTER BRG,FRAME SIDE MJT7S M/T(Y3E) L=330	1-53271-263-2	02	1	0610-0908		●
41	BRACKET; CENTER BRG,FRAME SIDE EXC. FUEL TANK 300L AL<EBF> L=330	1-53271-263-2	02	1	0909-	●
41	BRACKET; CENTER BRG,FRAME SIDE MJT7S M/T(Y3E) L=330	1-53271-263-2	02	1	0909-		●
41	BRACKET; CENTER BRG,FRAME SIDE MJX12P M/T SMOOTHER-G(Y4S) L=325	1-53271-341-0	02	1	0610-		●
57	MEMBER; CROSS,RR SUSP FRT	1-53181-994-1	01	1	0610-	●	●
65	BRACKET; CENTER BRG FUEL TANK 300L AL<EBF> L=330	1-53271-263-2	02	1	0909-	●
70	GUSSET; TRUNNION,UPR	1-53182-056-2	02	1	0610-	●
70	GUSSET; TRUNNION,UPR	1-53182-058-2	02	1	0610-		●
72	SPACER; TRUNNION FUEL TANK 300L AL<EBF>	1-53168-493-0	02	1	0909-	●
79	MEMBER; CROSS,TRUNNION ASM	1-53182-054-1	01	1	0610-	●	●
86	MEMBER; CROSS,RR SUSP RR	1-53181-134-2	01	1	0610-	●	●
130	MEMBER; CROSS,END	1-53181-537-2	01	1	0610-		●
131	BOLT; END C/MBR M14X40	0-20951-440-0	04	1	0610-		●
132	NUT; END C/MBR M14	0-91110-514-0	04	1	0610-		●
148	SPACER; C/MBR (A)	1-53168-493-0	02	1	0610-0908	●
148	SPACER; C/MBR EXC. FUEL TANK 300L AL<EBF> (A)	1-53168-493-0	02	1	0909-	●
148	SPACER; C/MBR (B)	1-53168-400-1	02	1	0610-	●	●
148	SPACER; C/MBR (C)	1-53168-403-1	02	1	0610-	●	●
148	SPACER; C/MBR (D)	1-53168-443-0	02	1	0610-0908	●	●
148	SPACER; C/MBR EXC. FUEL TANK 300L AL<EBF> (D)	1-53168-443-0	02	1	0909-	●
148	SPACER; C/MBR (D)	1-53168-443-0	02	1	0909-		●
148	SPACER; C/MBR (E) T=7.0	1-53168-486-0	02	1	0610-	●	●
148	SPACER; C/MBR (E) T=7.0	1-53168-486-0	02	1	0909-	●	●
148	SPACER; C/MBR (F) T=7.5	1-53168-487-0	02	1	0610-0908	●	●
148	SPACER; C/MBR (F) T=7.5	1-53168-487-0	02	1	0909-	●	●
191	WASHER; PL,1ST C/MBR TO S/MBR ID=16.2	1-09503-223-0	02	1	0610-		●
201	GUSSET; C/MBR	1-53182-057-1	02	1	0610-	●
201	GUSSET; C/MBR	1-53182-059-3	02	1	0610-		●
202	SPACER; 3RD C/MBR	1-53168-506-0	02	1	0610-	●	●
254	WASHER; PL,C/MBR ID=15	9-09651-069-0	04	1	0610-1201		●
254	WASHER; PL,C/MBR ID=15	8-98010-627-1	04	1	1202-		●

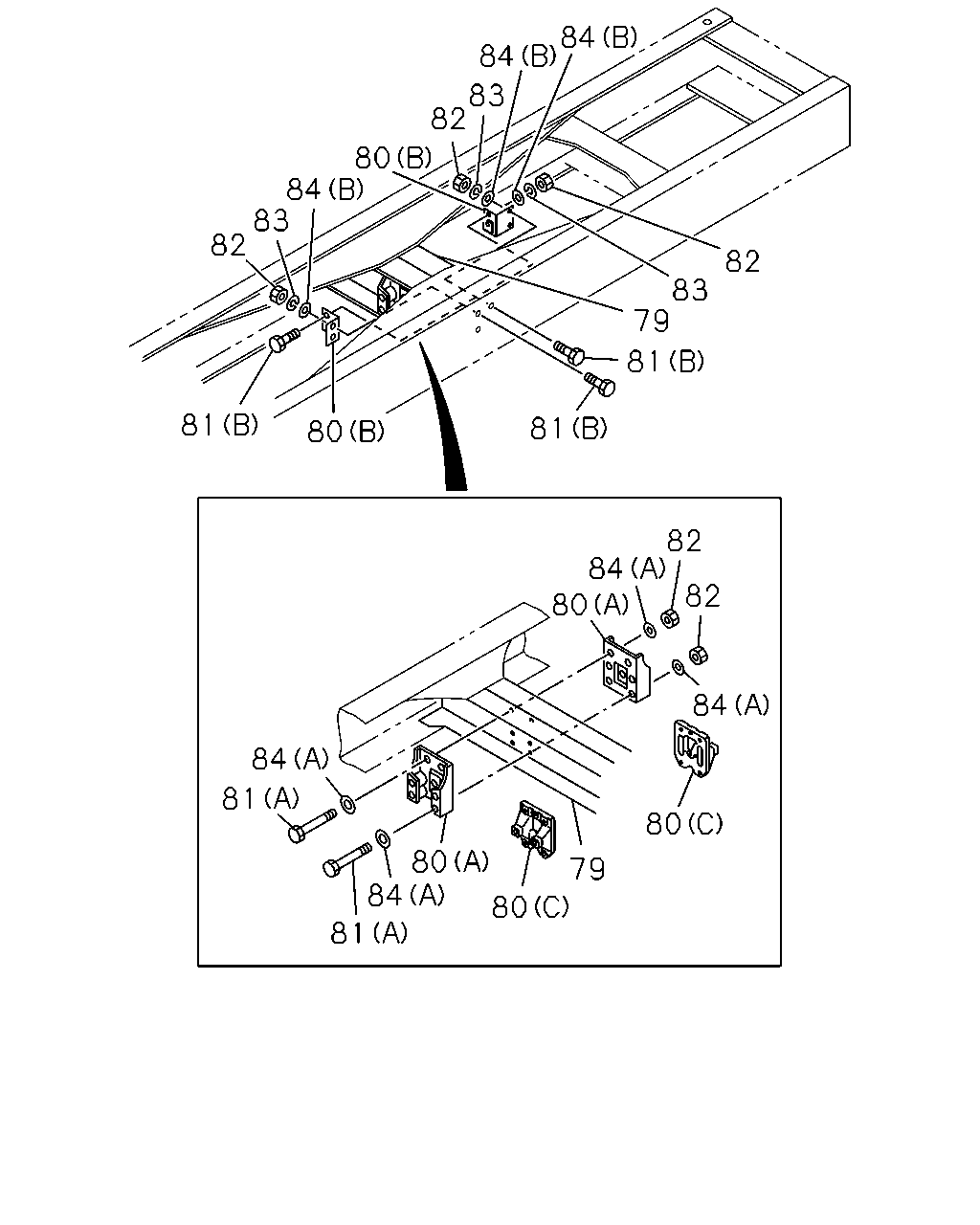

84 84 83 82 80 84 83 82 82 83 79 81 81 81 80 82 84 80 82 84 84 81 80 80 84 79 80 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
79	MEMBER; CROSS,TRUNNION ASM	1-53182-054-1	01	1	0610-	●	●
80	BRACKET; C/MBR (A)	1-53363-031-2	02	1	0610-	●
80	BRACKET; C/MBR MJT7S M/T(Y3E) (A)	1-53363-031-2	02	1	0610-		●
80	BRACKET; C/MBR MJX12P M/T SMOOTHER-G(Y4S) (C)	1-53363-076-0	02	1	0610-		●
80	BRACKET; C/MBR (B)	1-53167-665-1	02	1	0610-	●	●
80	BRACKET; C/MBR (B)	1-53167-666-1	02	1	0610-	●	●
81	BOLT; BRKT FUEL TANK 300L AL<EBF> (A) M14X50	0-20951-450-0	07	1	0909-	●
81	BOLT; BRKT FUEL TANK 300L AL<EBF> (A) M14X205	1-09000-147-0	02	1	0909-	●
81	BOLT; BRKT (A) M14X100	9-91066-400-0	04	1	0610-0908	●	●
81	BOLT; BRKT EXC. FUEL TANK 300L AL<EBF> (A) M14X100	9-91066-400-0	04	1	0909-	●
81	BOLT; BRKT (A) M14X100	9-91066-400-0	04	1	0909-		●
81	BOLT; BRKT (B) M14X55	9-91066-455-0	04	1	0610-	●	●
81	BOLT; BRKT (B) M14X45	9-92061-445-0	08	1	0610-	●	●
82	NUT; BRKT EXC. FUEL TANK 300L AL<EBF> M14	0-91110-514-0	08	1	0909-	●
82	NUT; BRKT M14	0-91110-514-0	08	1	0909-		●
82	NUT; BRKT M14	0-91110-514-0	08	1	0610-0908	●	●
82	NUT; BRKT FUEL TANK 300L AL<EBF> M14	0-91110-514-0	13	1	0909-	●
82	NUT; BRKT M14	0-91110-514-0	12	1	0610-	●	●
83	WASHER; LK,BRKT ID=14.2	0-91510-614-0	12	1	0610-	●	●
84	WASHER; PL,BRKT FUEL TANK 300L AL<EBF> (A) ID=15	8-98010-627-1	08	1	0909-1201	●
84	WASHER; PL,BRKT FUEL TANK 300L AL<EBF> (A) ID=15	8-98010-627-1	08	1	1202-	●
84	WASHER; PL,BRKT MJX12P M/T SMOOTHER-G(Y4S) (A) ID=15	8-98010-627-1	08	1	1202-		●
84	WASHER; PL,BRKT (A) ID=15	9-09651-069-0	04	1	0610-0908	●
84	WASHER; PL,BRKT MJT7S M/T(Y3E) (A) ID=15	9-09651-069-0	04	1	0610-0908		●
84	WASHER; PL,BRKT EXC. FUEL TANK 300L AL<EBF> (A) ID=15	9-09651-069-0	04	1	0909-1201	●
84	WASHER; PL,BRKT MJT7S M/T(Y3E) (A) ID=15	9-09651-069-0	04	1	0909-1201		●
84	WASHER; PL,BRKT EXC. FUEL TANK 300L AL<EBF> (A) ID=15	8-98010-627-1	04	1	1202-	●
84	WASHER; PL,BRKT MJT7S M/T(Y3E) (A) ID=15	8-98010-627-1	04	1	1202-		●
84	WASHER; PL,BRKT MJX12P M/T SMOOTHER-G(Y4S) (A) ID=15	9-09651-069-0	08	1	0610-1201		●
84	WASHER; PL,BRKT (B) ID=15 OD=26	9-09164-514-0	16	1	0610-1104	●	●
84	WASHER; PL,BRKT (B) ID=15 OD=26	0-91614-514-0	16	1	1105-	●	●
