4-80 — ROAD WHEEL (#26560) — 76 parça

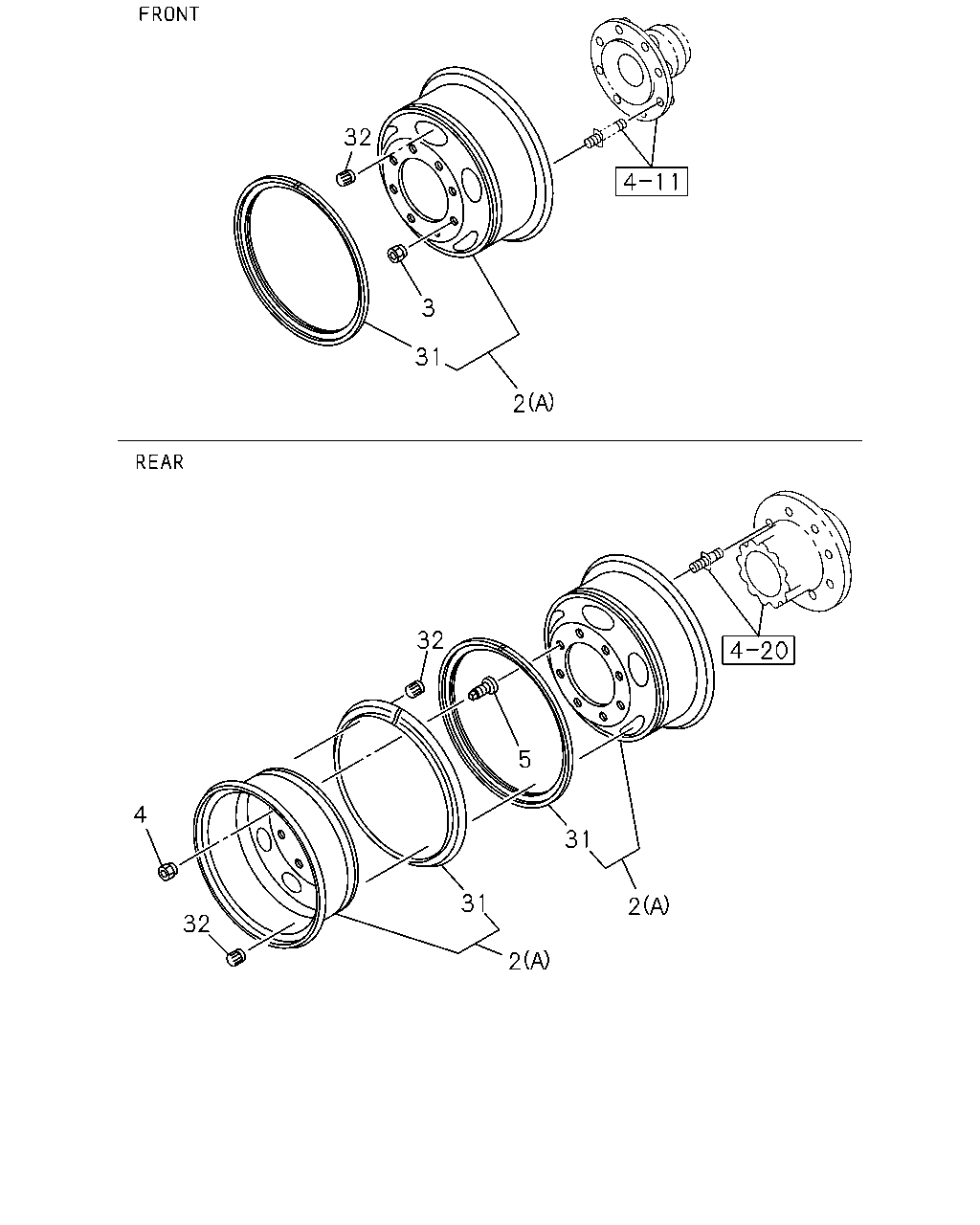

32 3 31 2 32 5 4 31 31 2 32 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-22AL(SHB) (D)	1-42350-694-0	12	1	0706-
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-22AL(SHB) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (D) SPARE	1-42350-694-0	01	1	0706-
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (B)	1-42350-730-0	12	1	0610-1205
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (B)	8-98217-247-0	12	1	1206-1407
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (B)	8-98281-497-0	12	1	1408-
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B) SPARE	1-42350-730-0	01	1	0610-1205
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B) SPARE	8-98217-247-0	01	1	1206-1407
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B) SPARE	8-98281-497-0	01	1	1408-
2	WHEEL; DISC WHEEL 8STUD 7.50VX20 165-13(Q62) (A)	1-42350-635-0	12	1	0610-0803
2	WHEEL; DISC WHEEL 8STUD 7.50VX20 165-13(Q62) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE	1-42350-635-0	01	1	0610-0803
2	WHEEL; DISC WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (C)	1-42350-667-0	12	1	0610-
2	WHEEL; DISC WHEEL 8STUD 8.25X22.5 165-13TC(SKV) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (C) SPARE	1-42350-667-0	01	1	0610-
3	NUT; WHEEL,FRT AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> M22X1.5	1-42333-050-1	40	1	0610-0907
3	NUT; WHEEL,FRT AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> M22X1.5	1-42333-055-0	40	1	0908-
3	NUT; WHEEL,FRT AXLE DISC WHEEL STEEL<SDN> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> M24	1-42333-022-3	16	1	0610-
3	NUT; WHEEL,FRT AXLE DISC WHEEL STEEL<SDN> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> M24 LH THREAD	1-42334-022-3	16	1	0610-
4	NUT; WHEEL,RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> M22X1.5	1-42333-050-1	40	1	0610-0907
4	NUT; WHEEL,RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> M22X1.5	1-42333-055-0	40	1	0908-
4	NUT; WHEEL,RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> M30	1-42333-023-0	16	1	0610-0610
4	NUT; WHEEL,RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> M30 RH THREAD	8-97359-809-0	16	1	0611-
4	NUT; WHEEL,RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> M30 LH THREAD	1-42334-023-0	16	1	0610-0610
4	NUT; WHEEL,RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> M30 LH THREAD	8-97359-810-0	16	1	0611-
5	NUT; WHEEL,INNER,RR AXLE DISC WHEEL STEEL<SDN> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> OUTER M30,INNER M20 RH THREAD	1-42335-005-1	16	1	0610-0610
5	NUT; WHEEL,INNER,RR AXLE DISC WHEEL STEEL<SDN> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> OUTER M30,INNER M20 RH THREAD	8-97359-805-0	16	1	0611-
5	NUT; WHEEL,INNER,RR AXLE DISC WHEEL STEEL<SDN> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> OUTER M30,INNER M20 LH THREAD	1-42336-005-1	16	1	0610-0610
5	NUT; WHEEL,INNER,RR AXLE DISC WHEEL STEEL<SDN> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> OUTER M30,INNER M20 LH THREAD	8-97359-806-0	16	1	0611-
31	RING; SIDE,DISC WHEEL WHEEL 8STUD 7.50VX20 165-13(Q62)	1-42355-033-1	12	1	0610-0803
31	RING; SIDE,DISC WHEEL WHEEL 8STUD 7.50VX20 165-13(Q62) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2>	1-42355-033-1	01	1	0610-0803
32	CAP; VALVE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)	1-42374-001-0	12	1	0610-
32	CAP; VALVE EXC. DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2>	1-42374-001-0	12	1	0610-
32	CAP; VALVE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2>	1-42374-001-0	01	1	0610-
32	CAP; VALVE SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)	1-42374-001-0	13	1	0610-

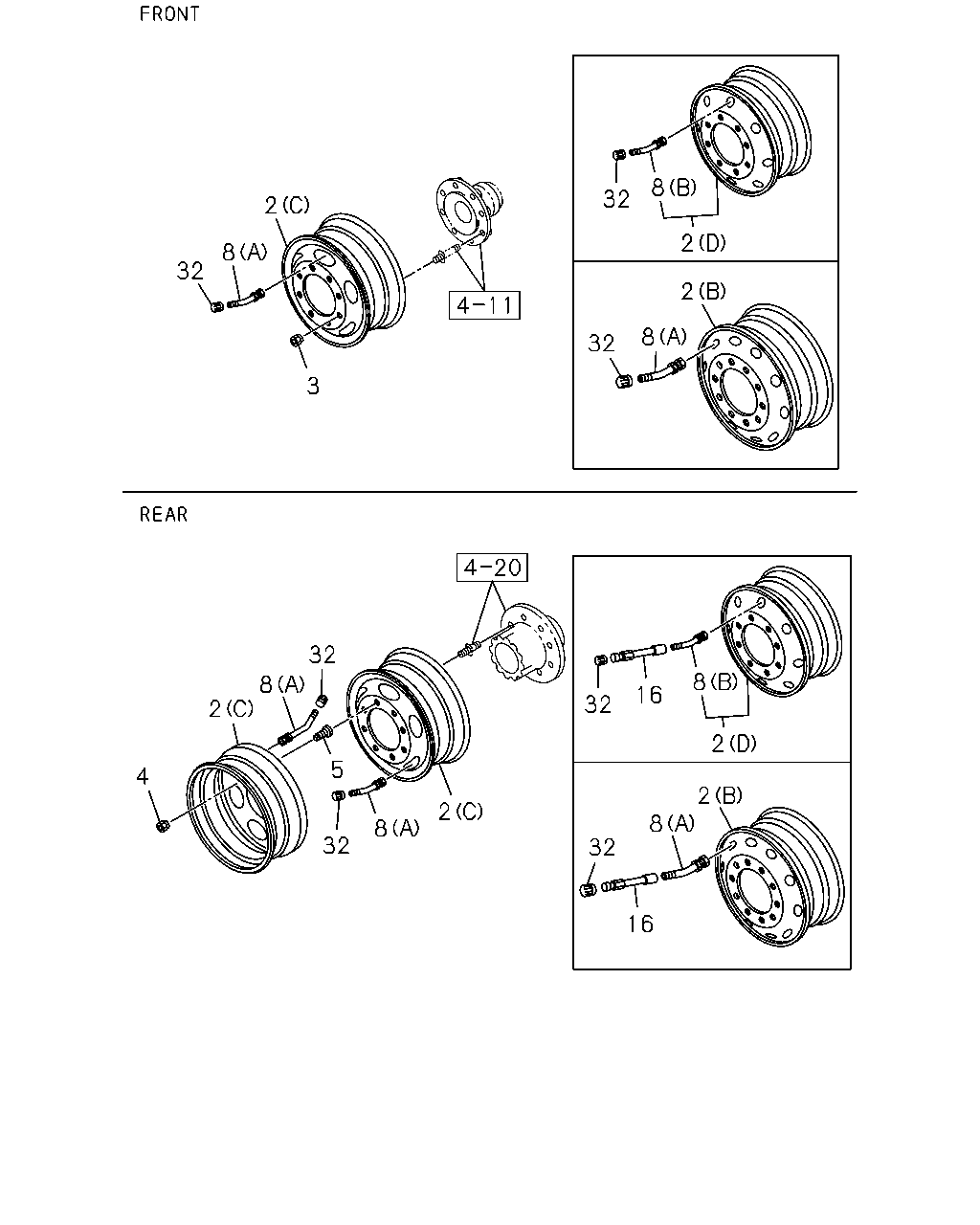

8 32 2 2 8 32 2 8 32 3 32 8 8 2 16 32 2 5 4 2 2 8 8 32 32 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-22AL(SHB) (D)	1-42350-694-0	12	1	0706-
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-22AL(SHB) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (D) SPARE	1-42350-694-0	01	1	0706-
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (B)	1-42350-730-0	12	1	0610-1205
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (B)	8-98217-247-0	12	1	1206-1407
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (B)	8-98281-497-0	12	1	1408-
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B) SPARE	1-42350-730-0	01	1	0610-1205
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B) SPARE	8-98217-247-0	01	1	1206-1407
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B) SPARE	8-98281-497-0	01	1	1408-
2	WHEEL; DISC WHEEL 8STUD 7.50VX20 165-13(Q62) (A)	1-42350-635-0	12	1	0610-0803
2	WHEEL; DISC WHEEL 8STUD 7.50VX20 165-13(Q62) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A) SPARE	1-42350-635-0	01	1	0610-0803
2	WHEEL; DISC WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (C)	1-42350-667-0	12	1	0610-
2	WHEEL; DISC WHEEL 8STUD 8.25X22.5 165-13TC(SKV) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (C) SPARE	1-42350-667-0	01	1	0610-
3	NUT; WHEEL,FRT AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> M22X1.5	1-42333-050-1	40	1	0610-0907
3	NUT; WHEEL,FRT AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> M22X1.5	1-42333-055-0	40	1	0908-
3	NUT; WHEEL,FRT AXLE DISC WHEEL STEEL<SDN> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> M24	1-42333-022-3	16	1	0610-
3	NUT; WHEEL,FRT AXLE DISC WHEEL STEEL<SDN> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> M24 LH THREAD	1-42334-022-3	16	1	0610-
4	NUT; WHEEL,RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> M22X1.5	1-42333-050-1	40	1	0610-0907
4	NUT; WHEEL,RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> M22X1.5	1-42333-055-0	40	1	0908-
4	NUT; WHEEL,RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> M30	1-42333-023-0	16	1	0610-0610
4	NUT; WHEEL,RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> M30 RH THREAD	8-97359-809-0	16	1	0611-
4	NUT; WHEEL,RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> M30 LH THREAD	1-42334-023-0	16	1	0610-0610
4	NUT; WHEEL,RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> M30 LH THREAD	8-97359-810-0	16	1	0611-
5	NUT; WHEEL,INNER,RR AXLE DISC WHEEL STEEL<SDN> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> OUTER M30,INNER M20 RH THREAD	1-42335-005-1	16	1	0610-0610
5	NUT; WHEEL,INNER,RR AXLE DISC WHEEL STEEL<SDN> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> OUTER M30,INNER M20 RH THREAD	8-97359-805-0	16	1	0611-
5	NUT; WHEEL,INNER,RR AXLE DISC WHEEL STEEL<SDN> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> OUTER M30,INNER M20 LH THREAD	1-42336-005-1	16	1	0610-0610
5	NUT; WHEEL,INNER,RR AXLE DISC WHEEL STEEL<SDN> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> OUTER M30,INNER M20 LH THREAD	8-97359-806-0	16	1	0611-
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (B)	1-42370-048-0	12	1	1206-1407
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (B)	1-42370-019-3	12	1	1408-
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B)	1-42370-048-0	01	1	1206-1407
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B)	1-42370-019-3	01	1	1408-
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-22AL(SHB) (B)	1-42370-044-0	12	1	0706-
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-22AL(SHB) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B)	1-42370-044-0	01	1	0706-
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 8STUD8.25X22.5 165-13TC(SKV) (A)	1-42370-020-3	12	1	0610-1205
8	VALVE; TIRE WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (A)	1-42370-020-3	12	1	1206-
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 8STUD8.25X22.5 165-13TC(SKV) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A)	1-42370-020-3	01	1	0610-1205
8	VALVE; TIRE WHEEL 8STUD 8.25X22.5 165-13TC(SKV) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (A)	1-42370-020-3	01	1	1206-
16	HOLDER; TIRE VALVE,DISC WHEEL DISC WHEEL 10STUD 8.25X22.5 165-22AL(SHB) L=115	1-42370-015-2	04	1	0706-1003
16	HOLDER; TIRE VALVE,DISC WHEEL DISC WHEEL 10STUD 8.25X22.5 165-22AL(SHB) L=115	8-98167-051-0	04	1	1004-
16	HOLDER; TIRE VALVE,DISC WHEEL DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) L=170	1-42370-024-0	04	1	0610-1003
16	HOLDER; TIRE VALVE,DISC WHEEL DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) L=170	8-98167-052-0	04	1	1004-
32	CAP; VALVE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)	1-42374-001-0	12	1	0610-
32	CAP; VALVE EXC. DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2>	1-42374-001-0	12	1	0610-
32	CAP; VALVE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2>	1-42374-001-0	01	1	0610-
32	CAP; VALVE SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)	1-42374-001-0	13	1	0610-
