3-33 — AIR MASTER (#2656) — 38 parça

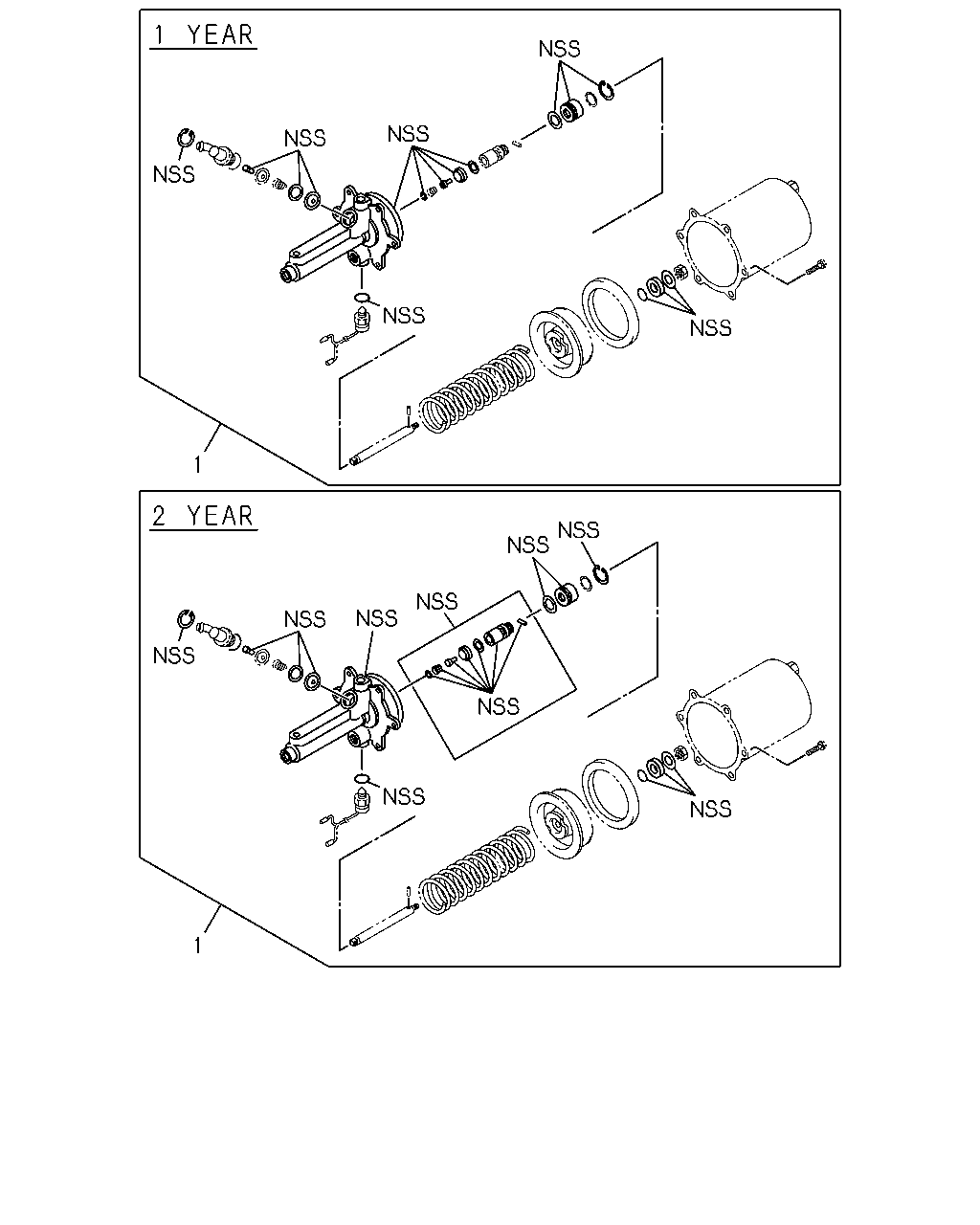

çizim 3365
1 1
BalonParca AdiParca NoAdetTipApplied Date
1 REPAIR KIT; AIR MASTER
1 YEAR ASM PART: A = 1-47800-351-1 		1-87830-393-0 01 1 -
1 REPAIR KIT; AIR MASTER
2 YEAR ASM PART: A = 1-47800-351-1 		1-87830-394-0 01 1 -

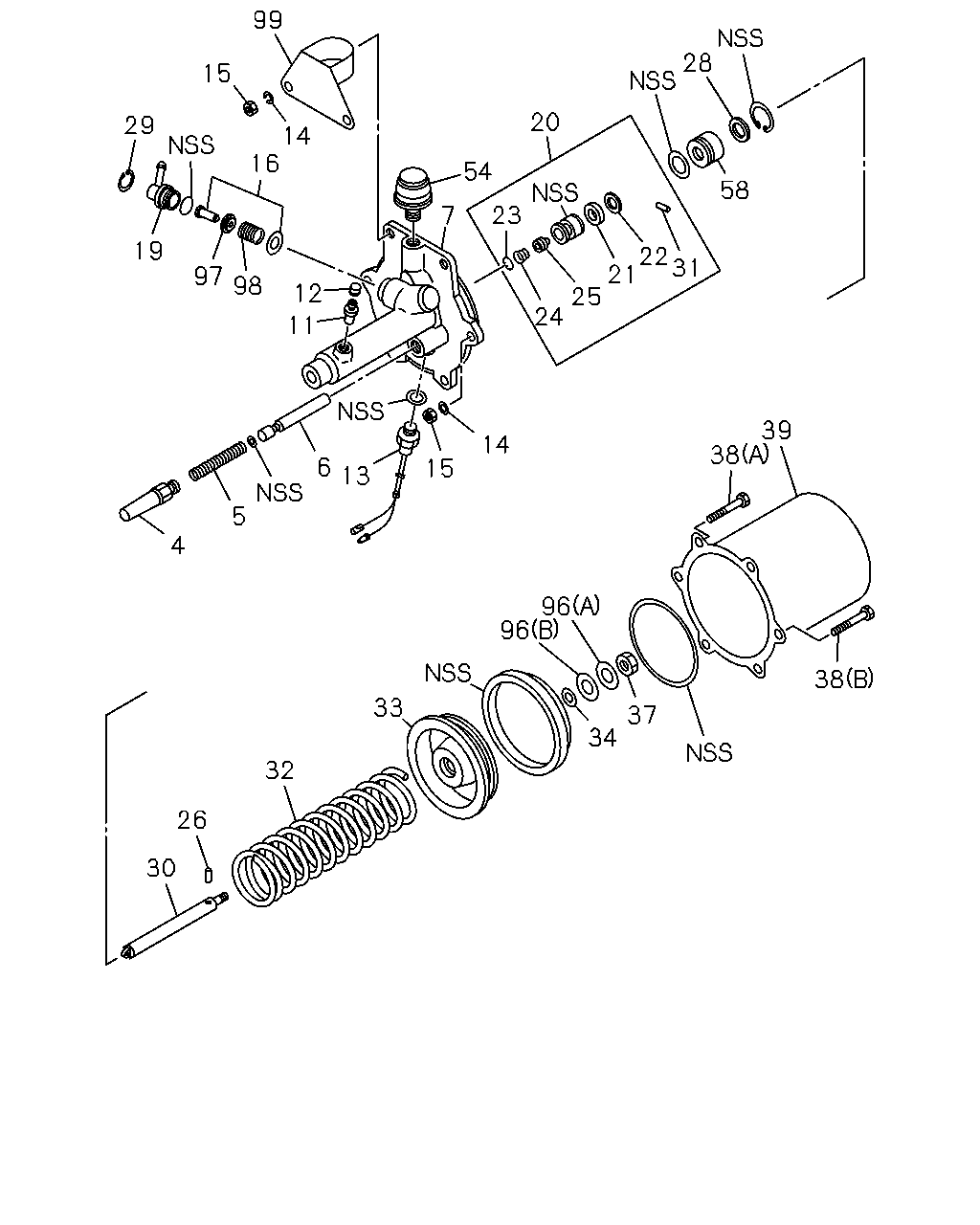

çizim 4847
99 28 15 20 29 14 16 54 58 23 7 19 22 31 21 25 24 97 98 12 11 39 14 38 6 15 13 5 4 96 96 38 33 37 34 32 26 30
BalonParca AdiParca NoAdetTipApplied Date
4 RETAINER; PUSH ROD,WARNING SW,AIR MAST
ASM PART: A = 1-47800-351-1 		1-47829-022-0 01 1 -
5 SPRING; PUSH ROD,WARNING SW,AIR MASTER
ASM PART: A = 1-47800-351-1 		1-47824-019-0 01 1 -
6 ROD; PUSH,WARNING SW,AIR MASTER
ASM PART: A = 1-47800-351-1 		1-47829-043-0 01 1 -
7 PLATE; END,AIR MASTER
ASM PART: A = 1-47800-351-1 		1-47841-052-0 01 1 -
11 PLUG; CAP,AIR MASTER
ASM PART: A = 1-47800-351-1 		9-83331-704-0 01 1 -
12 PROTECTOR; CAP,AIR MASTER
ASM PART: A = 1-47800-351-1 		9-83335-044-0 01 1 -
13 SWITCH; WARNING,AIR MASTER
ASM PART: A = 1-47800-351-1 		1-47819-157-0 01 1 -
14 WASHER; END PLATE TO SHELL,AIR MASTER
ASM PART: A = 1-47800-351-1 		9-09150-508-0 07 1 -
15 NUT; END PLATE TO SHELL,AIR MASTER
ASM PART: A = 1-47800-351-1 		9-83315-085-0 07 1 -
16 VALVE ASM
ASM PART: A = 1-47800-351-1 		1-47842-009-0 01 1 -
19 CONNECTOR; END PLATE,AIR MASTER
ASM PART: A = 1-47800-351-1 		1-47849-025-0 01 1 -
20 PISTON ASM; HYDRAULIC
ASM PART: A = 1-47800-351-1 		1-47821-019-0 01 1 -
21 GASKET; CUP
ASM PART: A = 1-47800-351-1 		1-47829-037-0 01 1 -
22 RING; PISTON,HYDRAULIC
ASM PART: A = 1-47800-351-1 		1-47829-036-0 01 1 -
23 RING; RET
ASM PART: A = 1-47800-351-1 		9-83315-102-0 01 1 -
24 SPRING; HYD PISTON,AIR MASTER
ASM PART: A = 1-47800-351-1 		1-47824-017-0 01 1 -
25 SEAL; VALVE
ASM PART: A = 1-47800-351-1 		1-47829-038-0 01 1 -
26 PIN; HYD PISTON,AIR MASTER
ASM PART: A = 1-47800-351-1 		1-47829-058-0 01 1 -
28 WASHER; OIL SEAL,HYD PISTON,AIR MASTER
ASM PART: A = 1-47800-351-1 		1-47819-139-0 01 1 -
29 RING; RET,VLV,AIR MASTER
ASM PART: A = 1-47800-351-1 		1-47829-057-0 01 1 -
30 ROD; PUSH,AIR MASTER
ASM PART: A = 1-47800-351-1 		1-47825-021-0 01 1 -
31 PIN; STRAIGHT
ASM PART: A = 1-47800-351-1 		1-47829-054-0 01 1 -
32 SPRING; CYL SHELL,AIR MASTER
ASM PART: A = 1-47800-351-1 		1-47824-018-0 01 1 -
33 PLATE; PISTON,SHELL,AIR MASTER
ASM PART: A = 1-47800-351-1 		1-47821-028-0 01 1 -
34 GASKET
ASM PART: A = 1-47800-351-1 		9-09561-111-0 01 1 -
37 NUT; PUSH ROD,SHELL,AIR MASTER
ASM PART: A = 1-47800-351-1 		9-99111-412-0 01 1 -
38 BOLT; END PLATE TO SHELL,AIR MASTER
(A) ASM PART: A = 1-47800-351-1 		1-31829-015-0 05 1 -
38 BOLT; END PLATE TO SHELL,AIR MASTER
(B) ASM PART: A = 1-47800-351-1 		1-47829-065-0 01 1 -
39 SHELL; CYL,AIR MASTER
ASM PART: A = 1-47800-351-1 		1-47811-095-0 01 1 -
54 COVER; EXH,END PLATE,AIR MASTER
ASM PART: A = 1-47800-351-1 		1-47819-039-0 01 1 -
58 RETAINER; HYD PISTON,AIR MASTER
ASM PART: A = 1-47800-351-1 		1-47829-056-0 01 1 -
96 WASHER
(A) ASM PART: A = 1-47800-351-1 		1-47829-032-0 01 1 -
96 WASHER
(B) ASM PART: A = 1-47800-351-1 		1-47829-064-0 01 1 -
97 RETAINER; VALVE
ASM PART: A = 1-47800-351-1 		1-47824-023-0 01 1 -
98 SPRING; VALVE
ASM PART: A = 1-47800-351-1 		1-47843-006-0 01 1 -
99 BRACKET; AIR MASTER
ASM PART: A = 1-47800-351-1 		1-47819-123-0 01 1 -
