Sayfa 4-55 - Isuzu EPC

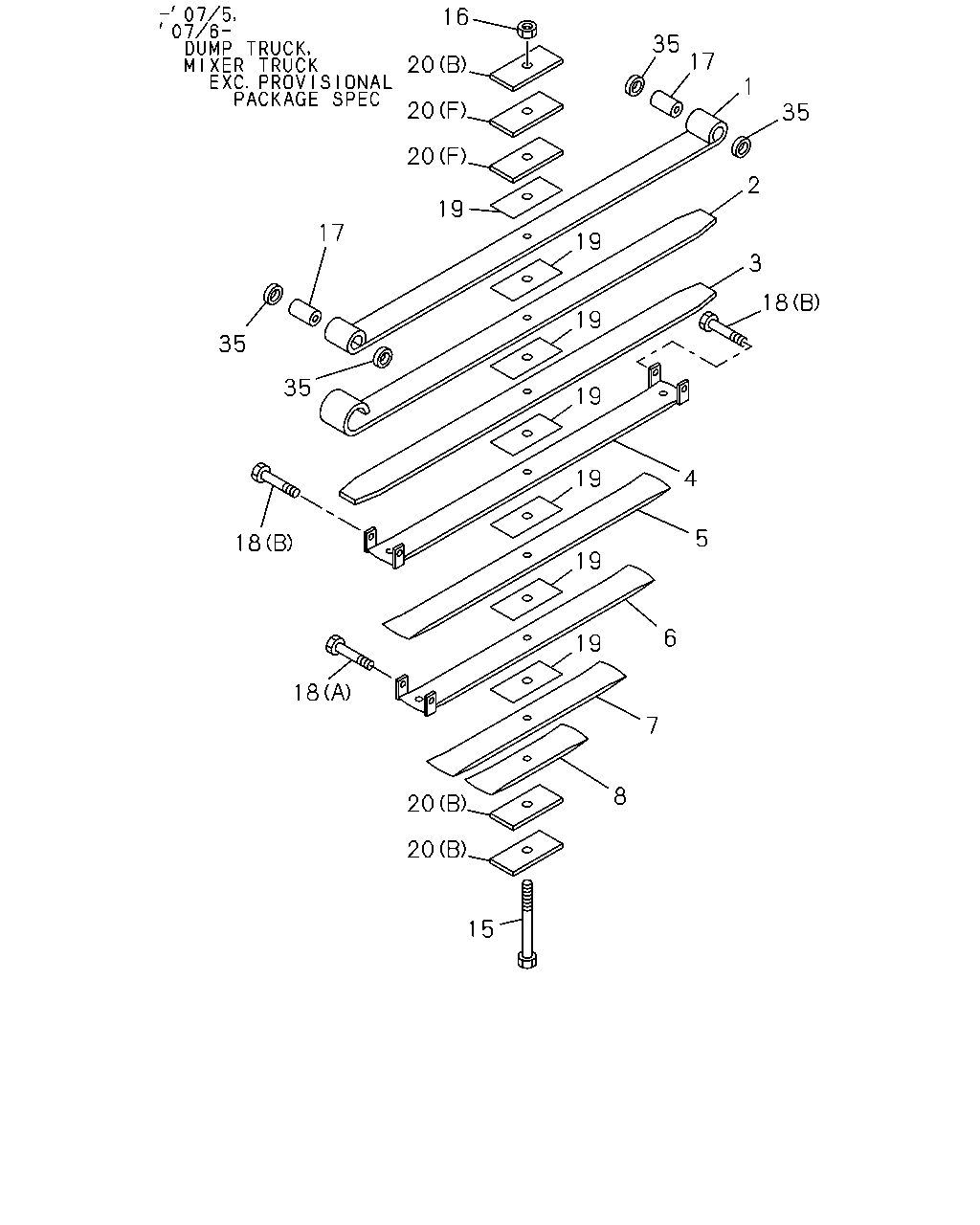

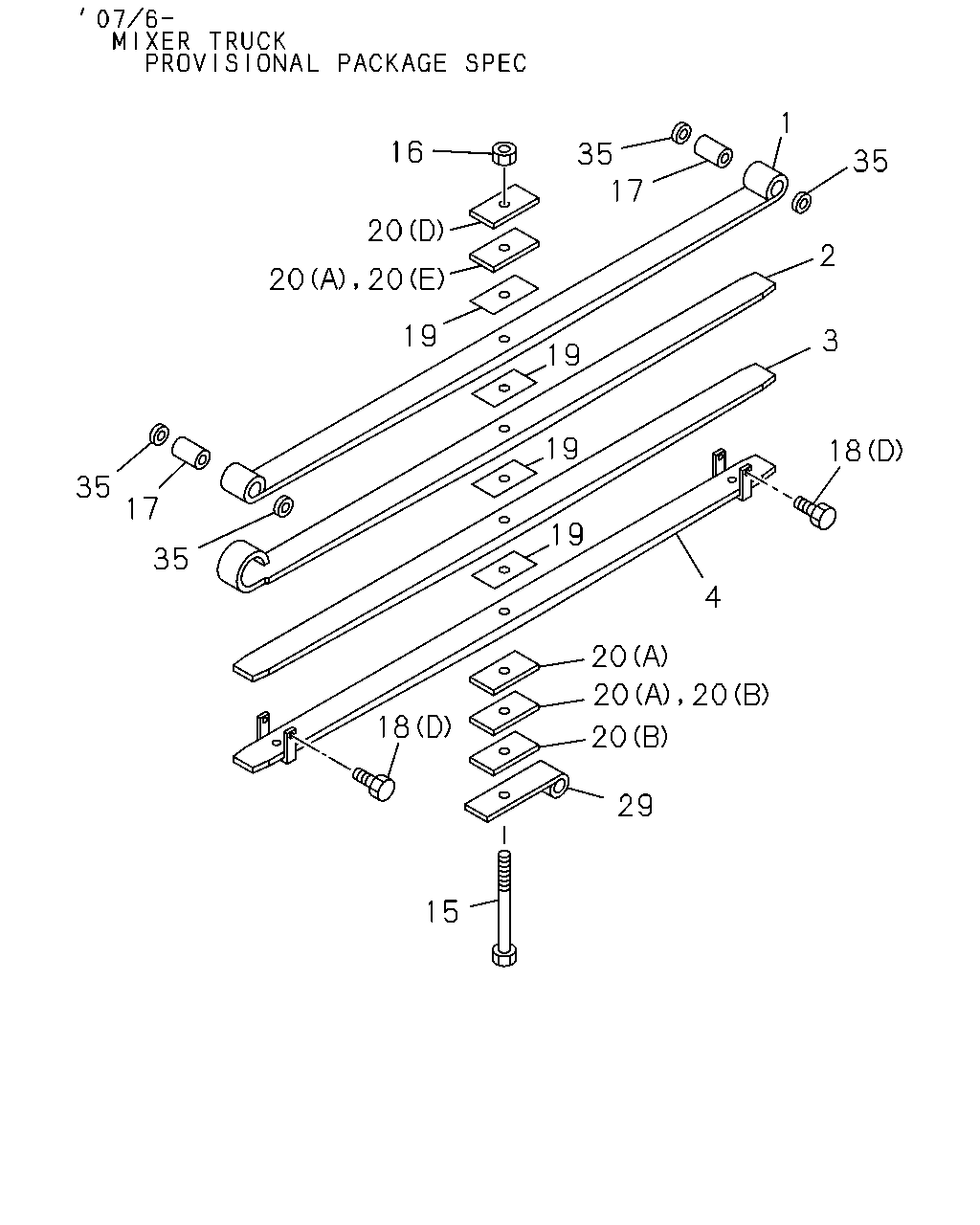

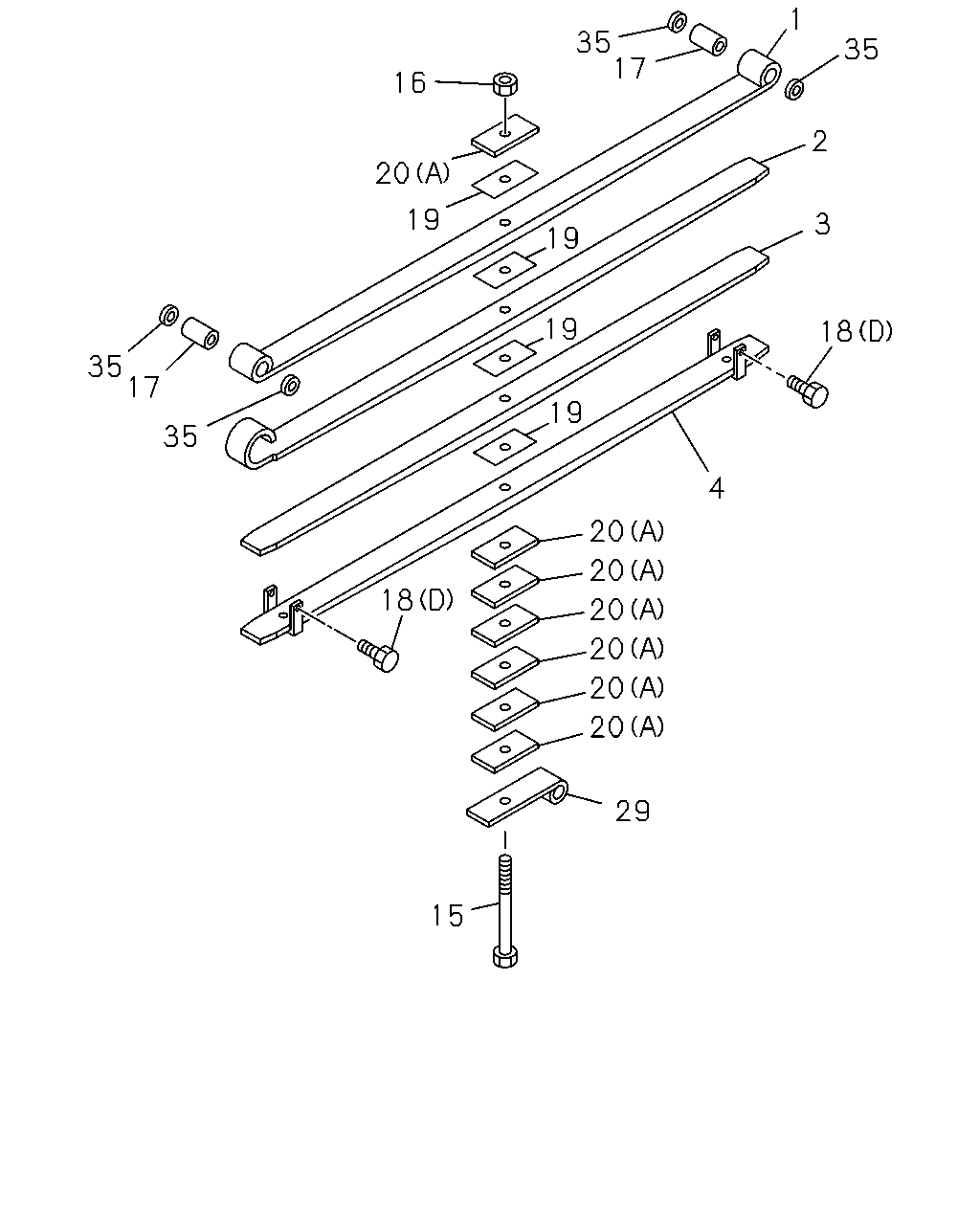

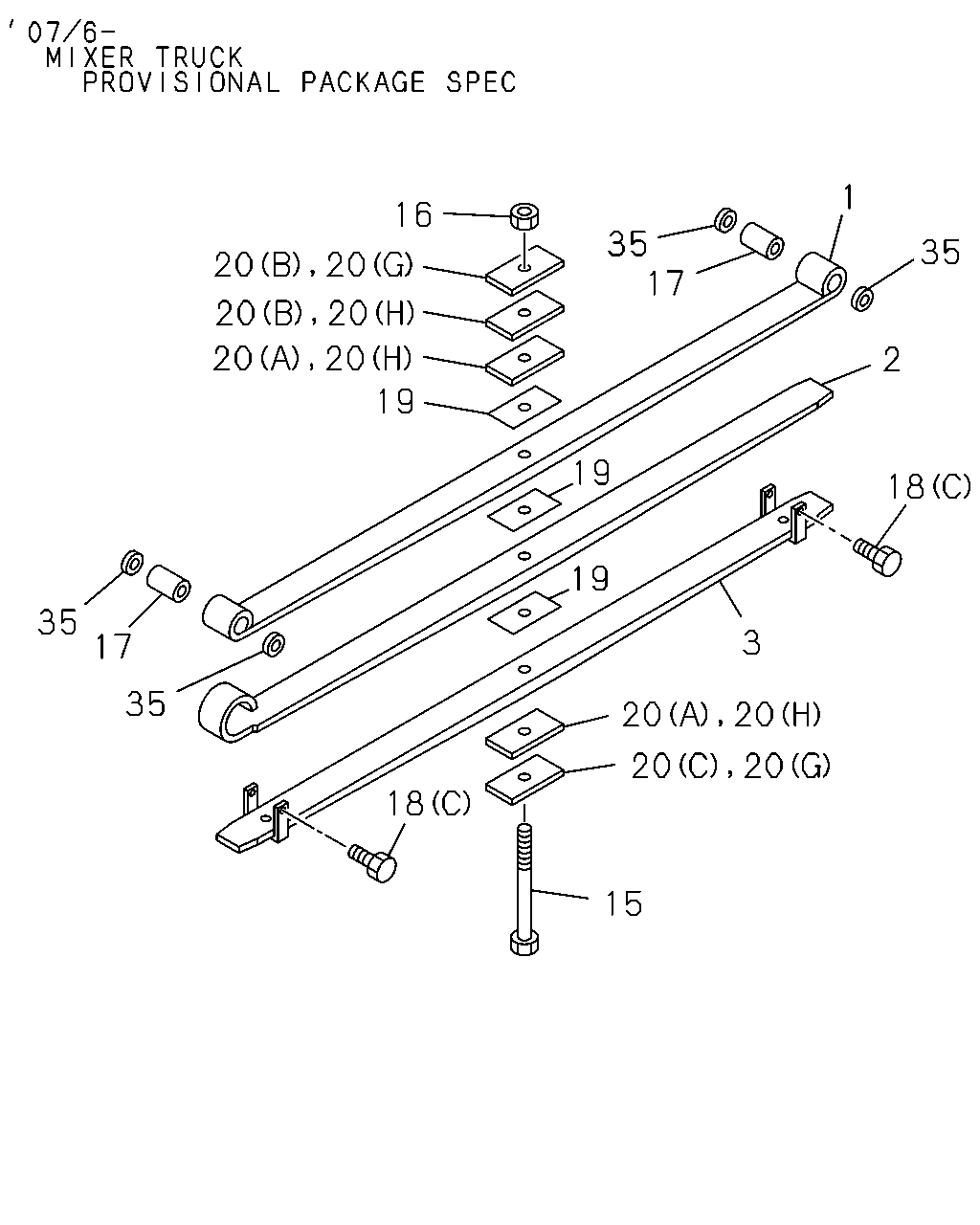

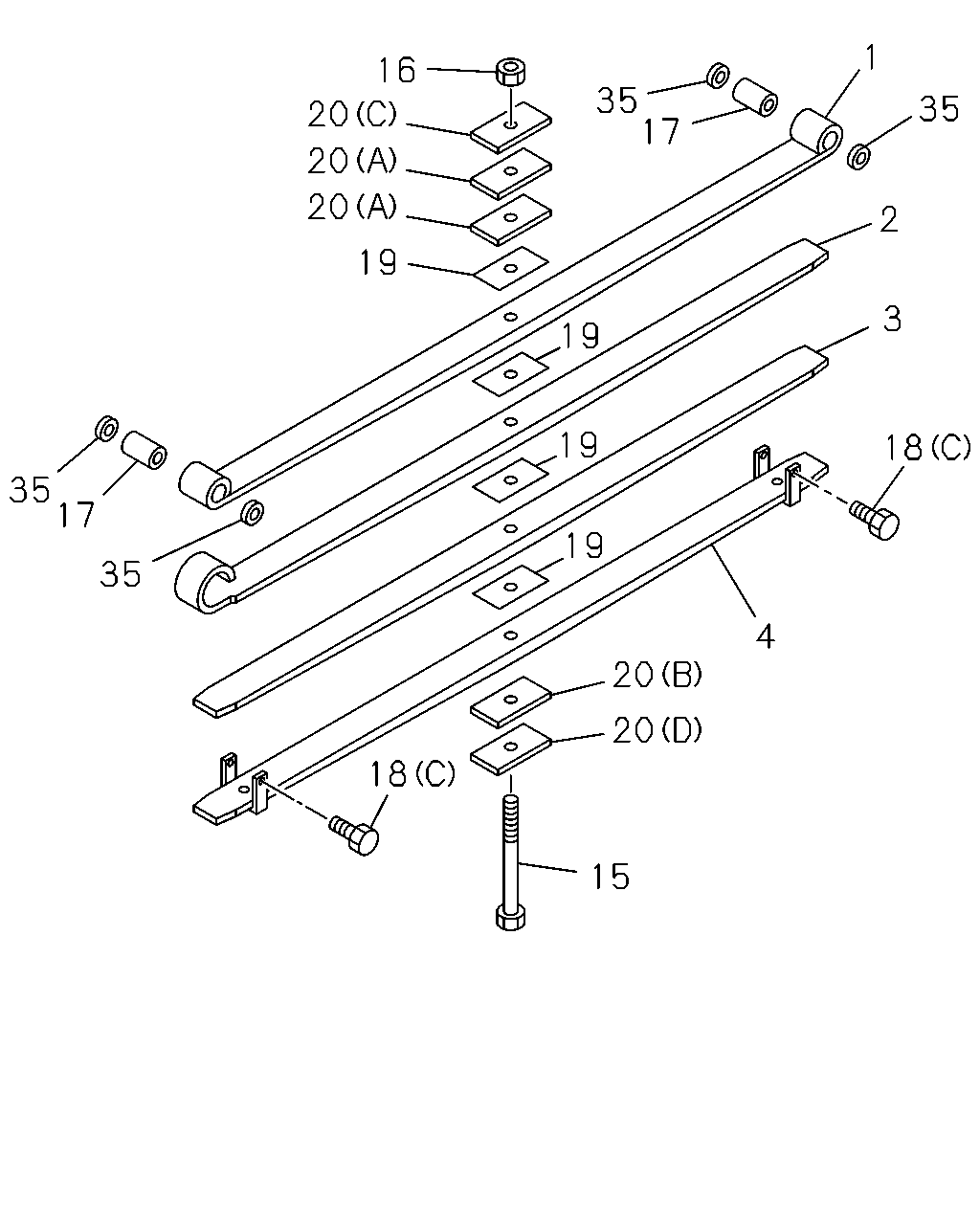

4-55 — FRONT LEAF SPRING (#26557) — 354 parça

1 35 17 35 16 2 20 19 3 19 19 18 35 17 19 35 4 20 20 18 20 20 20 20 29 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING; LEAF,NO 1,FRT ASM PART: E = 8-98090-276-0, I = 8-98241-419-0	1-51131-888-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: B = 1-51130-936-0	1-51131-890-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: A = 1-51130-929-0, F = 8-98090-277-0, J = 8-98241-420-0	1-51131-929-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: C = 1-51130-940-0	1-51131-966-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: D = 8-97614-075-0	8-97615-388-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: G = 8-98159-650-0	8-98165-018-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: H = 8-98159-653-0	8-98165-027-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: E = 8-98090-276-0, I = 8-98241-419-0	1-51132-888-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: B = 1-51130-936-0	1-51132-890-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: A = 1-51130-929-0, F = 8-98090-277-0, J = 8-98241-420-0	1-51132-929-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: C = 1-51130-940-0	1-51132-966-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: D = 8-97614-075-0	8-97615-389-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: G = 8-98159-650-0	8-98165-019-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: H = 8-98159-653-0	8-98165-028-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: E = 8-98090-276-0, I = 8-98241-419-0	1-51133-888-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: B = 1-51130-936-0	1-51133-890-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: A = 1-51130-929-0, F = 8-98090-277-0, J = 8-98241-420-0	1-51133-929-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: C = 1-51130-940-0, H = 8-98159-653-0	1-51133-966-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: D = 8-97614-075-0, G = 8-98159-650-0	8-97615-390-0	01	1	-
4	SPRING; LEAF,NO 4,FRT W/CLIP ASM PART: B = 1-51130-936-0	1-51134-890-0	01	1	-
4	SPRING; LEAF,NO 4,FRT W/CLIP ASM PART: A = 1-51130-929-0, F = 8-98090-277-0, J = 8-98241-420-0	1-51134-929-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: C = 1-51130-940-0, H = 8-98159-653-0	1-51134-966-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: D = 8-97614-075-0, G = 8-98159-650-0	8-97615-391-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=170 ASM PART: J = 8-98241-420-0	1-51156-305-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=155 ASM PART: E = 8-98090-276-0, I = 8-98241-419-0	1-51156-336-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=210 ASM PART: A = 1-51130-929-0	1-51156-347-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=165 ASM PART: B = 1-51130-936-0, F = 8-98090-277-0	1-51156-366-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=205 ASM PART: D = 8-97614-075-0, G = 8-98159-650-0	1-51156-425-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=225 ASM PART: C = 1-51130-940-0, H = 8-98159-653-0	1-51156-426-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT M16 ASM PART: A = 1-51130-929-0, B = 1-51130-936-0, C = 1-51130-940-0, D = 8-97614-075-0, E = 8-98090-276-0, F = 8-98090-277-0, G = 8-98159-650-0, H = 8-98159-653-0, I = 8-98241-419-0, J = 8-98241-420-0	1-09400-054-0	01	1	-
17	BUSHING; LEAF SPR,FRT OD=38 ASM PART: G = 8-98159-650-0, H = 8-98159-653-0	1-51351-009-0	02	1	-
17	BUSHING; LEAF SPR,FRT OD=42 ASM PART: A = 1-51130-929-0, B = 1-51130-936-0, C = 1-51130-940-0, D = 8-97614-075-0, E = 8-98090-276-0, F = 8-98090-277-0, I = 8-98241-419-0, J = 8-98241-420-0	1-51351-044-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (D), M10X99 ASM PART: C = 1-51130-940-0, H = 8-98159-653-0	1-09000-328-0	04	1	-
18	BOLT; CLIP,LEAF SPR,FRT (D), M10X99 ASM PART: A = 1-51130-929-0, F = 8-98090-277-0, J = 8-98241-420-0	1-09000-328-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (C), M10X103 ASM PART: B = 1-51130-936-0, E = 8-98090-276-0, I = 8-98241-419-0	1-09000-536-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (B), M10X103 ASM PART: D = 8-97614-075-0, G = 8-98159-650-0	8-97615-331-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (A), M10X99 ASM PART: D = 8-97614-075-0, G = 8-98159-650-0	8-97615-895-0	01	1	-
19	SPACER; LEAF SPRING,FRT T=1 ASM PART: A = 1-51130-929-0, B = 1-51130-936-0, F = 8-98090-277-0	1-51177-071-0	04	1	-
19	SPACER; LEAF SPRING,FRT T=1 ASM PART: D = 8-97614-075-0, G = 8-98159-650-0	1-51177-071-0	07	1	-
19	SPACER; LEAF SPRING,FRT T=1 ASM PART: E = 8-98090-276-0	1-51177-071-0	03	1	-
19	SPACER; LEAF SPRING,FRT T=1 ASM PART: C = 1-51130-940-0, H = 8-98159-653-0	1-51177-071-0	06	1	-
19	SPACER; LEAF SPRING,FRT T=3.2 ASM PART: J = 8-98241-420-0	8-98227-421-0	04	1	-
19	SPACER; LEAF SPRING,FRT T=3.2 ASM PART: I = 8-98241-419-0	8-98227-421-0	03	1	-
20	SEAT; LEAF SPR,FRT (F), T=12 ASM PART: D = 8-97614-075-0, G = 8-98159-650-0	1-51177-069-0	02	1	-
20	SEAT; LEAF SPR,FRT (G), T=6 ASM PART: I = 8-98241-419-0	1-51177-070-0	02	1	-
20	SEAT; LEAF SPR,FRT (D), T=7 ASM PART: B = 1-51130-936-0, F = 8-98090-277-0	1-51177-074-0	01	1	-
20	SEAT; LEAF SPR,FRT (B), T=10 ASM PART: E = 8-98090-276-0, F = 8-98090-277-0	1-51177-078-0	02	1	-
20	SEAT; LEAF SPR,FRT (B), T=10 ASM PART: D = 8-97614-075-0, G = 8-98159-650-0	1-51177-078-0	03	1	-
20	SEAT; LEAF SPR,FRT (B), T=10 ASM PART: B = 1-51130-936-0	1-51177-078-0	01	1	-
20	SEAT; LEAF SPR,FRT (C), T=9 ASM PART: B = 1-51130-936-0, C = 1-51130-940-0, E = 8-98090-276-0, H = 8-98159-653-0	1-51177-085-0	01	1	-
20	SEAT; LEAF SPR,FRT (A), T=14 ASM PART: A = 1-51130-929-0	1-51177-097-0	07	1	-
20	SEAT; LEAF SPR,FRT (A), T=14 ASM PART: B = 1-51130-936-0, E = 8-98090-276-0, F = 8-98090-277-0, J = 8-98241-420-0	1-51177-097-0	02	1	-
20	SEAT; LEAF SPR,FRT (H), T=13 ASM PART: I = 8-98241-419-0	1-51177-346-0	03	1	-
20	SEAT; LEAF SPR,FRT (E), T=11 ASM PART: J = 8-98241-420-0	1-51177-347-0	01	1	-
20	SEAT; LEAF SPR,FRT (E), T=11 ASM PART: C = 1-51130-940-0, H = 8-98159-653-0	1-51177-347-0	07	1	-
20	SEAT; LEAF SPR,FRT (D), T=8 ASM PART: J = 8-98241-420-0	1-51177-353-0	01	1	-
29	SUPPORTER; LEAF SPR,FRT ASM PART: A = 1-51130-929-0, C = 1-51130-940-0, F = 8-98090-277-0, H = 8-98159-653-0, J = 8-98241-420-0	1-51681-650-0	01	1	-
35	SEAL; DUST ASM PART: A = 1-51130-929-0, B = 1-51130-936-0, C = 1-51130-940-0, D = 8-97614-075-0, E = 8-98090-276-0, F = 8-98090-277-0, I = 8-98241-419-0, J = 8-98241-420-0	1-51177-321-0	04	1	-

1 2 35 18 3 20 20 20 20 15 18 35 17 35 19 19 17 35 16 20 20 19 20 20 20 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING; LEAF,NO 1,FRT ASM PART: E = 8-98090-276-0, I = 8-98241-419-0	1-51131-888-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: B = 1-51130-936-0	1-51131-890-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: A = 1-51130-929-0, F = 8-98090-277-0, J = 8-98241-420-0	1-51131-929-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: C = 1-51130-940-0	1-51131-966-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: D = 8-97614-075-0	8-97615-388-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: G = 8-98159-650-0	8-98165-018-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: H = 8-98159-653-0	8-98165-027-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: E = 8-98090-276-0, I = 8-98241-419-0	1-51132-888-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: B = 1-51130-936-0	1-51132-890-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: A = 1-51130-929-0, F = 8-98090-277-0, J = 8-98241-420-0	1-51132-929-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: C = 1-51130-940-0	1-51132-966-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: D = 8-97614-075-0	8-97615-389-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: G = 8-98159-650-0	8-98165-019-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: H = 8-98159-653-0	8-98165-028-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: E = 8-98090-276-0, I = 8-98241-419-0	1-51133-888-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: B = 1-51130-936-0	1-51133-890-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: A = 1-51130-929-0, F = 8-98090-277-0, J = 8-98241-420-0	1-51133-929-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: C = 1-51130-940-0, H = 8-98159-653-0	1-51133-966-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: D = 8-97614-075-0, G = 8-98159-650-0	8-97615-390-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=170 ASM PART: J = 8-98241-420-0	1-51156-305-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=155 ASM PART: E = 8-98090-276-0, I = 8-98241-419-0	1-51156-336-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=210 ASM PART: A = 1-51130-929-0	1-51156-347-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=165 ASM PART: B = 1-51130-936-0, F = 8-98090-277-0	1-51156-366-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=205 ASM PART: D = 8-97614-075-0, G = 8-98159-650-0	1-51156-425-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=225 ASM PART: C = 1-51130-940-0, H = 8-98159-653-0	1-51156-426-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT M16 ASM PART: A = 1-51130-929-0, B = 1-51130-936-0, C = 1-51130-940-0, D = 8-97614-075-0, E = 8-98090-276-0, F = 8-98090-277-0, G = 8-98159-650-0, H = 8-98159-653-0, I = 8-98241-419-0, J = 8-98241-420-0	1-09400-054-0	01	1	-
17	BUSHING; LEAF SPR,FRT OD=38 ASM PART: G = 8-98159-650-0, H = 8-98159-653-0	1-51351-009-0	02	1	-
17	BUSHING; LEAF SPR,FRT OD=42 ASM PART: A = 1-51130-929-0, B = 1-51130-936-0, C = 1-51130-940-0, D = 8-97614-075-0, E = 8-98090-276-0, F = 8-98090-277-0, I = 8-98241-419-0, J = 8-98241-420-0	1-51351-044-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (D), M10X99 ASM PART: C = 1-51130-940-0, H = 8-98159-653-0	1-09000-328-0	04	1	-
18	BOLT; CLIP,LEAF SPR,FRT (D), M10X99 ASM PART: A = 1-51130-929-0, F = 8-98090-277-0, J = 8-98241-420-0	1-09000-328-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (C), M10X103 ASM PART: B = 1-51130-936-0, E = 8-98090-276-0, I = 8-98241-419-0	1-09000-536-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (B), M10X103 ASM PART: D = 8-97614-075-0, G = 8-98159-650-0	8-97615-331-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (A), M10X99 ASM PART: D = 8-97614-075-0, G = 8-98159-650-0	8-97615-895-0	01	1	-
19	SPACER; LEAF SPRING,FRT T=1 ASM PART: A = 1-51130-929-0, B = 1-51130-936-0, F = 8-98090-277-0	1-51177-071-0	04	1	-
19	SPACER; LEAF SPRING,FRT T=1 ASM PART: D = 8-97614-075-0, G = 8-98159-650-0	1-51177-071-0	07	1	-
19	SPACER; LEAF SPRING,FRT T=1 ASM PART: E = 8-98090-276-0	1-51177-071-0	03	1	-
19	SPACER; LEAF SPRING,FRT T=1 ASM PART: C = 1-51130-940-0, H = 8-98159-653-0	1-51177-071-0	06	1	-
19	SPACER; LEAF SPRING,FRT T=3.2 ASM PART: J = 8-98241-420-0	8-98227-421-0	04	1	-
19	SPACER; LEAF SPRING,FRT T=3.2 ASM PART: I = 8-98241-419-0	8-98227-421-0	03	1	-
20	SEAT; LEAF SPR,FRT (F), T=12 ASM PART: D = 8-97614-075-0, G = 8-98159-650-0	1-51177-069-0	02	1	-
20	SEAT; LEAF SPR,FRT (G), T=6 ASM PART: I = 8-98241-419-0	1-51177-070-0	02	1	-
20	SEAT; LEAF SPR,FRT (D), T=7 ASM PART: B = 1-51130-936-0, F = 8-98090-277-0	1-51177-074-0	01	1	-
20	SEAT; LEAF SPR,FRT (B), T=10 ASM PART: E = 8-98090-276-0, F = 8-98090-277-0	1-51177-078-0	02	1	-
20	SEAT; LEAF SPR,FRT (B), T=10 ASM PART: D = 8-97614-075-0, G = 8-98159-650-0	1-51177-078-0	03	1	-
20	SEAT; LEAF SPR,FRT (B), T=10 ASM PART: B = 1-51130-936-0	1-51177-078-0	01	1	-
20	SEAT; LEAF SPR,FRT (C), T=9 ASM PART: B = 1-51130-936-0, C = 1-51130-940-0, E = 8-98090-276-0, H = 8-98159-653-0	1-51177-085-0	01	1	-
20	SEAT; LEAF SPR,FRT (A), T=14 ASM PART: A = 1-51130-929-0	1-51177-097-0	07	1	-
20	SEAT; LEAF SPR,FRT (A), T=14 ASM PART: B = 1-51130-936-0, E = 8-98090-276-0, F = 8-98090-277-0, J = 8-98241-420-0	1-51177-097-0	02	1	-
20	SEAT; LEAF SPR,FRT (H), T=13 ASM PART: I = 8-98241-419-0	1-51177-346-0	03	1	-
20	SEAT; LEAF SPR,FRT (E), T=11 ASM PART: J = 8-98241-420-0	1-51177-347-0	01	1	-
20	SEAT; LEAF SPR,FRT (E), T=11 ASM PART: C = 1-51130-940-0, H = 8-98159-653-0	1-51177-347-0	07	1	-
20	SEAT; LEAF SPR,FRT (D), T=8 ASM PART: J = 8-98241-420-0	1-51177-353-0	01	1	-
35	SEAL; DUST ASM PART: A = 1-51130-929-0, B = 1-51130-936-0, C = 1-51130-940-0, D = 8-97614-075-0, E = 8-98090-276-0, F = 8-98090-277-0, I = 8-98241-419-0, J = 8-98241-420-0	1-51177-321-0	04	1	-

1 16 35 17 35 20 20 20 2 19 3 19 19 18 35 17 19 3 4 20 20 18 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING; LEAF,NO 1,FRT ASM PART: E = 8-98090-276-0, I = 8-98241-419-0	1-51131-888-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: B = 1-51130-936-0	1-51131-890-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: A = 1-51130-929-0, F = 8-98090-277-0, J = 8-98241-420-0	1-51131-929-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: C = 1-51130-940-0	1-51131-966-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: D = 8-97614-075-0	8-97615-388-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: G = 8-98159-650-0	8-98165-018-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: H = 8-98159-653-0	8-98165-027-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: E = 8-98090-276-0, I = 8-98241-419-0	1-51132-888-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: B = 1-51130-936-0	1-51132-890-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: A = 1-51130-929-0, F = 8-98090-277-0, J = 8-98241-420-0	1-51132-929-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: C = 1-51130-940-0	1-51132-966-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: D = 8-97614-075-0	8-97615-389-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: G = 8-98159-650-0	8-98165-019-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: H = 8-98159-653-0	8-98165-028-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: E = 8-98090-276-0, I = 8-98241-419-0	1-51133-888-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: B = 1-51130-936-0	1-51133-890-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: A = 1-51130-929-0, F = 8-98090-277-0, J = 8-98241-420-0	1-51133-929-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: C = 1-51130-940-0, H = 8-98159-653-0	1-51133-966-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: D = 8-97614-075-0, G = 8-98159-650-0	8-97615-390-0	01	1	-
4	SPRING; LEAF,NO 4,FRT W/CLIP ASM PART: B = 1-51130-936-0	1-51134-890-0	01	1	-
4	SPRING; LEAF,NO 4,FRT W/CLIP ASM PART: A = 1-51130-929-0, F = 8-98090-277-0, J = 8-98241-420-0	1-51134-929-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: C = 1-51130-940-0, H = 8-98159-653-0	1-51134-966-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: D = 8-97614-075-0, G = 8-98159-650-0	8-97615-391-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=170 ASM PART: J = 8-98241-420-0	1-51156-305-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=155 ASM PART: E = 8-98090-276-0, I = 8-98241-419-0	1-51156-336-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=210 ASM PART: A = 1-51130-929-0	1-51156-347-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=165 ASM PART: B = 1-51130-936-0, F = 8-98090-277-0	1-51156-366-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=205 ASM PART: D = 8-97614-075-0, G = 8-98159-650-0	1-51156-425-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=225 ASM PART: C = 1-51130-940-0, H = 8-98159-653-0	1-51156-426-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT M16 ASM PART: A = 1-51130-929-0, B = 1-51130-936-0, C = 1-51130-940-0, D = 8-97614-075-0, E = 8-98090-276-0, F = 8-98090-277-0, G = 8-98159-650-0, H = 8-98159-653-0, I = 8-98241-419-0, J = 8-98241-420-0	1-09400-054-0	01	1	-
17	BUSHING; LEAF SPR,FRT OD=38 ASM PART: G = 8-98159-650-0, H = 8-98159-653-0	1-51351-009-0	02	1	-
17	BUSHING; LEAF SPR,FRT OD=42 ASM PART: A = 1-51130-929-0, B = 1-51130-936-0, C = 1-51130-940-0, D = 8-97614-075-0, E = 8-98090-276-0, F = 8-98090-277-0, I = 8-98241-419-0, J = 8-98241-420-0	1-51351-044-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (D), M10X99 ASM PART: C = 1-51130-940-0, H = 8-98159-653-0	1-09000-328-0	04	1	-
18	BOLT; CLIP,LEAF SPR,FRT (D), M10X99 ASM PART: A = 1-51130-929-0, F = 8-98090-277-0, J = 8-98241-420-0	1-09000-328-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (C), M10X103 ASM PART: B = 1-51130-936-0, E = 8-98090-276-0, I = 8-98241-419-0	1-09000-536-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (B), M10X103 ASM PART: D = 8-97614-075-0, G = 8-98159-650-0	8-97615-331-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (A), M10X99 ASM PART: D = 8-97614-075-0, G = 8-98159-650-0	8-97615-895-0	01	1	-
19	SPACER; LEAF SPRING,FRT T=1 ASM PART: A = 1-51130-929-0, B = 1-51130-936-0, F = 8-98090-277-0	1-51177-071-0	04	1	-
19	SPACER; LEAF SPRING,FRT T=1 ASM PART: D = 8-97614-075-0, G = 8-98159-650-0	1-51177-071-0	07	1	-
19	SPACER; LEAF SPRING,FRT T=1 ASM PART: E = 8-98090-276-0	1-51177-071-0	03	1	-
19	SPACER; LEAF SPRING,FRT T=1 ASM PART: C = 1-51130-940-0, H = 8-98159-653-0	1-51177-071-0	06	1	-
19	SPACER; LEAF SPRING,FRT T=3.2 ASM PART: J = 8-98241-420-0	8-98227-421-0	04	1	-
19	SPACER; LEAF SPRING,FRT T=3.2 ASM PART: I = 8-98241-419-0	8-98227-421-0	03	1	-
20	SEAT; LEAF SPR,FRT (F), T=12 ASM PART: D = 8-97614-075-0, G = 8-98159-650-0	1-51177-069-0	02	1	-
20	SEAT; LEAF SPR,FRT (G), T=6 ASM PART: I = 8-98241-419-0	1-51177-070-0	02	1	-
20	SEAT; LEAF SPR,FRT (D), T=7 ASM PART: B = 1-51130-936-0, F = 8-98090-277-0	1-51177-074-0	01	1	-
20	SEAT; LEAF SPR,FRT (B), T=10 ASM PART: E = 8-98090-276-0, F = 8-98090-277-0	1-51177-078-0	02	1	-
20	SEAT; LEAF SPR,FRT (B), T=10 ASM PART: D = 8-97614-075-0, G = 8-98159-650-0	1-51177-078-0	03	1	-
20	SEAT; LEAF SPR,FRT (B), T=10 ASM PART: B = 1-51130-936-0	1-51177-078-0	01	1	-
20	SEAT; LEAF SPR,FRT (C), T=9 ASM PART: B = 1-51130-936-0, C = 1-51130-940-0, E = 8-98090-276-0, H = 8-98159-653-0	1-51177-085-0	01	1	-
20	SEAT; LEAF SPR,FRT (A), T=14 ASM PART: A = 1-51130-929-0	1-51177-097-0	07	1	-
20	SEAT; LEAF SPR,FRT (A), T=14 ASM PART: B = 1-51130-936-0, E = 8-98090-276-0, F = 8-98090-277-0, J = 8-98241-420-0	1-51177-097-0	02	1	-
20	SEAT; LEAF SPR,FRT (H), T=13 ASM PART: I = 8-98241-419-0	1-51177-346-0	03	1	-
20	SEAT; LEAF SPR,FRT (E), T=11 ASM PART: J = 8-98241-420-0	1-51177-347-0	01	1	-
20	SEAT; LEAF SPR,FRT (E), T=11 ASM PART: C = 1-51130-940-0, H = 8-98159-653-0	1-51177-347-0	07	1	-
20	SEAT; LEAF SPR,FRT (D), T=8 ASM PART: J = 8-98241-420-0	1-51177-353-0	01	1	-
35	SEAL; DUST ASM PART: A = 1-51130-929-0, B = 1-51130-936-0, C = 1-51130-940-0, D = 8-97614-075-0, E = 8-98090-276-0, F = 8-98090-277-0, I = 8-98241-419-0, J = 8-98241-420-0	1-51177-321-0	04	1	-

16 35 35 2 1 17 3 20 20 20 19 19 19 19 19 19 19 4 6 5 7 8 15 20 18 20 18 35 17 35 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING; LEAF,NO 1,FRT ASM PART: E = 8-98090-276-0, I = 8-98241-419-0	1-51131-888-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: B = 1-51130-936-0	1-51131-890-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: A = 1-51130-929-0, F = 8-98090-277-0, J = 8-98241-420-0	1-51131-929-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: C = 1-51130-940-0	1-51131-966-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: D = 8-97614-075-0	8-97615-388-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: G = 8-98159-650-0	8-98165-018-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: H = 8-98159-653-0	8-98165-027-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: E = 8-98090-276-0, I = 8-98241-419-0	1-51132-888-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: B = 1-51130-936-0	1-51132-890-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: A = 1-51130-929-0, F = 8-98090-277-0, J = 8-98241-420-0	1-51132-929-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: C = 1-51130-940-0	1-51132-966-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: D = 8-97614-075-0	8-97615-389-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: G = 8-98159-650-0	8-98165-019-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: H = 8-98159-653-0	8-98165-028-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: E = 8-98090-276-0, I = 8-98241-419-0	1-51133-888-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: B = 1-51130-936-0	1-51133-890-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: A = 1-51130-929-0, F = 8-98090-277-0, J = 8-98241-420-0	1-51133-929-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: C = 1-51130-940-0, H = 8-98159-653-0	1-51133-966-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: D = 8-97614-075-0, G = 8-98159-650-0	8-97615-390-0	01	1	-
4	SPRING; LEAF,NO 4,FRT W/CLIP ASM PART: B = 1-51130-936-0	1-51134-890-0	01	1	-
4	SPRING; LEAF,NO 4,FRT W/CLIP ASM PART: A = 1-51130-929-0, F = 8-98090-277-0, J = 8-98241-420-0	1-51134-929-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: C = 1-51130-940-0, H = 8-98159-653-0	1-51134-966-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: D = 8-97614-075-0, G = 8-98159-650-0	8-97615-391-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: C = 1-51130-940-0, H = 8-98159-653-0	1-51135-966-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: D = 8-97614-075-0, G = 8-98159-650-0	8-97615-392-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: C = 1-51130-940-0, H = 8-98159-653-0	1-51136-966-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: D = 8-97614-075-0, G = 8-98159-650-0	8-97615-393-0	01	1	-
7	SPRING; LEAF,NO 7,FRT ASM PART: C = 1-51130-940-0, H = 8-98159-653-0	1-51137-966-0	01	1	-
7	SPRING; LEAF,NO 7,FRT ASM PART: D = 8-97614-075-0, G = 8-98159-650-0	8-97615-394-0	01	1	-
8	SPRING; LEAF,NO 8,FRT ASM PART: D = 8-97614-075-0, G = 8-98159-650-0	8-97615-395-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=170 ASM PART: J = 8-98241-420-0	1-51156-305-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=155 ASM PART: E = 8-98090-276-0, I = 8-98241-419-0	1-51156-336-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=210 ASM PART: A = 1-51130-929-0	1-51156-347-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=165 ASM PART: B = 1-51130-936-0, F = 8-98090-277-0	1-51156-366-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=205 ASM PART: D = 8-97614-075-0, G = 8-98159-650-0	1-51156-425-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=225 ASM PART: C = 1-51130-940-0, H = 8-98159-653-0	1-51156-426-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT M16 ASM PART: A = 1-51130-929-0, B = 1-51130-936-0, C = 1-51130-940-0, D = 8-97614-075-0, E = 8-98090-276-0, F = 8-98090-277-0, G = 8-98159-650-0, H = 8-98159-653-0, I = 8-98241-419-0, J = 8-98241-420-0	1-09400-054-0	01	1	-
17	BUSHING; LEAF SPR,FRT OD=38 ASM PART: G = 8-98159-650-0, H = 8-98159-653-0	1-51351-009-0	02	1	-
17	BUSHING; LEAF SPR,FRT OD=42 ASM PART: A = 1-51130-929-0, B = 1-51130-936-0, C = 1-51130-940-0, D = 8-97614-075-0, E = 8-98090-276-0, F = 8-98090-277-0, I = 8-98241-419-0, J = 8-98241-420-0	1-51351-044-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (D), M10X99 ASM PART: C = 1-51130-940-0, H = 8-98159-653-0	1-09000-328-0	04	1	-
18	BOLT; CLIP,LEAF SPR,FRT (D), M10X99 ASM PART: A = 1-51130-929-0, F = 8-98090-277-0, J = 8-98241-420-0	1-09000-328-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (C), M10X103 ASM PART: B = 1-51130-936-0, E = 8-98090-276-0, I = 8-98241-419-0	1-09000-536-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (B), M10X103 ASM PART: D = 8-97614-075-0, G = 8-98159-650-0	8-97615-331-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (A), M10X99 ASM PART: D = 8-97614-075-0, G = 8-98159-650-0	8-97615-895-0	01	1	-
19	SPACER; LEAF SPRING,FRT T=1 ASM PART: A = 1-51130-929-0, B = 1-51130-936-0, F = 8-98090-277-0	1-51177-071-0	04	1	-
19	SPACER; LEAF SPRING,FRT T=1 ASM PART: D = 8-97614-075-0, G = 8-98159-650-0	1-51177-071-0	07	1	-
19	SPACER; LEAF SPRING,FRT T=1 ASM PART: E = 8-98090-276-0	1-51177-071-0	03	1	-
19	SPACER; LEAF SPRING,FRT T=1 ASM PART: C = 1-51130-940-0, H = 8-98159-653-0	1-51177-071-0	06	1	-
19	SPACER; LEAF SPRING,FRT T=3.2 ASM PART: J = 8-98241-420-0	8-98227-421-0	04	1	-
19	SPACER; LEAF SPRING,FRT T=3.2 ASM PART: I = 8-98241-419-0	8-98227-421-0	03	1	-
20	SEAT; LEAF SPR,FRT (F), T=12 ASM PART: D = 8-97614-075-0, G = 8-98159-650-0	1-51177-069-0	02	1	-
20	SEAT; LEAF SPR,FRT (G), T=6 ASM PART: I = 8-98241-419-0	1-51177-070-0	02	1	-
20	SEAT; LEAF SPR,FRT (D), T=7 ASM PART: B = 1-51130-936-0, F = 8-98090-277-0	1-51177-074-0	01	1	-
20	SEAT; LEAF SPR,FRT (B), T=10 ASM PART: E = 8-98090-276-0, F = 8-98090-277-0	1-51177-078-0	02	1	-
20	SEAT; LEAF SPR,FRT (B), T=10 ASM PART: D = 8-97614-075-0, G = 8-98159-650-0	1-51177-078-0	03	1	-
20	SEAT; LEAF SPR,FRT (B), T=10 ASM PART: B = 1-51130-936-0	1-51177-078-0	01	1	-
20	SEAT; LEAF SPR,FRT (C), T=9 ASM PART: B = 1-51130-936-0, C = 1-51130-940-0, E = 8-98090-276-0, H = 8-98159-653-0	1-51177-085-0	01	1	-
20	SEAT; LEAF SPR,FRT (A), T=14 ASM PART: A = 1-51130-929-0	1-51177-097-0	07	1	-
20	SEAT; LEAF SPR,FRT (A), T=14 ASM PART: B = 1-51130-936-0, E = 8-98090-276-0, F = 8-98090-277-0, J = 8-98241-420-0	1-51177-097-0	02	1	-
20	SEAT; LEAF SPR,FRT (H), T=13 ASM PART: I = 8-98241-419-0	1-51177-346-0	03	1	-
20	SEAT; LEAF SPR,FRT (E), T=11 ASM PART: J = 8-98241-420-0	1-51177-347-0	01	1	-
20	SEAT; LEAF SPR,FRT (E), T=11 ASM PART: C = 1-51130-940-0, H = 8-98159-653-0	1-51177-347-0	07	1	-
20	SEAT; LEAF SPR,FRT (D), T=8 ASM PART: J = 8-98241-420-0	1-51177-353-0	01	1	-
35	SEAL; DUST ASM PART: A = 1-51130-929-0, B = 1-51130-936-0, C = 1-51130-940-0, D = 8-97614-075-0, E = 8-98090-276-0, F = 8-98090-277-0, I = 8-98241-419-0, J = 8-98241-420-0	1-51177-321-0	04	1	-

1 2 35 3 17 35 18 16 20 20 19 20 4 19 19 19 35 18 17 15 35 20 29 20 20 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING; LEAF,NO 1,FRT ASM PART: E = 8-98090-276-0, I = 8-98241-419-0	1-51131-888-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: B = 1-51130-936-0	1-51131-890-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: A = 1-51130-929-0, F = 8-98090-277-0, J = 8-98241-420-0	1-51131-929-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: C = 1-51130-940-0	1-51131-966-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: D = 8-97614-075-0	8-97615-388-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: G = 8-98159-650-0	8-98165-018-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: H = 8-98159-653-0	8-98165-027-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: E = 8-98090-276-0, I = 8-98241-419-0	1-51132-888-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: B = 1-51130-936-0	1-51132-890-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: A = 1-51130-929-0, F = 8-98090-277-0, J = 8-98241-420-0	1-51132-929-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: C = 1-51130-940-0	1-51132-966-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: D = 8-97614-075-0	8-97615-389-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: G = 8-98159-650-0	8-98165-019-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: H = 8-98159-653-0	8-98165-028-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: E = 8-98090-276-0, I = 8-98241-419-0	1-51133-888-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: B = 1-51130-936-0	1-51133-890-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: A = 1-51130-929-0, F = 8-98090-277-0, J = 8-98241-420-0	1-51133-929-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: C = 1-51130-940-0, H = 8-98159-653-0	1-51133-966-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: D = 8-97614-075-0, G = 8-98159-650-0	8-97615-390-0	01	1	-
4	SPRING; LEAF,NO 4,FRT W/CLIP ASM PART: B = 1-51130-936-0	1-51134-890-0	01	1	-
4	SPRING; LEAF,NO 4,FRT W/CLIP ASM PART: A = 1-51130-929-0, F = 8-98090-277-0, J = 8-98241-420-0	1-51134-929-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: C = 1-51130-940-0, H = 8-98159-653-0	1-51134-966-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: D = 8-97614-075-0, G = 8-98159-650-0	8-97615-391-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=170 ASM PART: J = 8-98241-420-0	1-51156-305-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=155 ASM PART: E = 8-98090-276-0, I = 8-98241-419-0	1-51156-336-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=210 ASM PART: A = 1-51130-929-0	1-51156-347-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=165 ASM PART: B = 1-51130-936-0, F = 8-98090-277-0	1-51156-366-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=205 ASM PART: D = 8-97614-075-0, G = 8-98159-650-0	1-51156-425-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=225 ASM PART: C = 1-51130-940-0, H = 8-98159-653-0	1-51156-426-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT M16 ASM PART: A = 1-51130-929-0, B = 1-51130-936-0, C = 1-51130-940-0, D = 8-97614-075-0, E = 8-98090-276-0, F = 8-98090-277-0, G = 8-98159-650-0, H = 8-98159-653-0, I = 8-98241-419-0, J = 8-98241-420-0	1-09400-054-0	01	1	-
17	BUSHING; LEAF SPR,FRT OD=38 ASM PART: G = 8-98159-650-0, H = 8-98159-653-0	1-51351-009-0	02	1	-
17	BUSHING; LEAF SPR,FRT OD=42 ASM PART: A = 1-51130-929-0, B = 1-51130-936-0, C = 1-51130-940-0, D = 8-97614-075-0, E = 8-98090-276-0, F = 8-98090-277-0, I = 8-98241-419-0, J = 8-98241-420-0	1-51351-044-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (D), M10X99 ASM PART: C = 1-51130-940-0, H = 8-98159-653-0	1-09000-328-0	04	1	-
18	BOLT; CLIP,LEAF SPR,FRT (D), M10X99 ASM PART: A = 1-51130-929-0, F = 8-98090-277-0, J = 8-98241-420-0	1-09000-328-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (C), M10X103 ASM PART: B = 1-51130-936-0, E = 8-98090-276-0, I = 8-98241-419-0	1-09000-536-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (B), M10X103 ASM PART: D = 8-97614-075-0, G = 8-98159-650-0	8-97615-331-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (A), M10X99 ASM PART: D = 8-97614-075-0, G = 8-98159-650-0	8-97615-895-0	01	1	-
19	SPACER; LEAF SPRING,FRT T=1 ASM PART: A = 1-51130-929-0, B = 1-51130-936-0, F = 8-98090-277-0	1-51177-071-0	04	1	-
19	SPACER; LEAF SPRING,FRT T=1 ASM PART: D = 8-97614-075-0, G = 8-98159-650-0	1-51177-071-0	07	1	-
19	SPACER; LEAF SPRING,FRT T=1 ASM PART: E = 8-98090-276-0	1-51177-071-0	03	1	-
19	SPACER; LEAF SPRING,FRT T=1 ASM PART: C = 1-51130-940-0, H = 8-98159-653-0	1-51177-071-0	06	1	-
19	SPACER; LEAF SPRING,FRT T=3.2 ASM PART: J = 8-98241-420-0	8-98227-421-0	04	1	-
19	SPACER; LEAF SPRING,FRT T=3.2 ASM PART: I = 8-98241-419-0	8-98227-421-0	03	1	-
20	SEAT; LEAF SPR,FRT (F), T=12 ASM PART: D = 8-97614-075-0, G = 8-98159-650-0	1-51177-069-0	02	1	-
20	SEAT; LEAF SPR,FRT (G), T=6 ASM PART: I = 8-98241-419-0	1-51177-070-0	02	1	-
20	SEAT; LEAF SPR,FRT (D), T=7 ASM PART: B = 1-51130-936-0, F = 8-98090-277-0	1-51177-074-0	01	1	-
20	SEAT; LEAF SPR,FRT (B), T=10 ASM PART: E = 8-98090-276-0, F = 8-98090-277-0	1-51177-078-0	02	1	-
20	SEAT; LEAF SPR,FRT (B), T=10 ASM PART: D = 8-97614-075-0, G = 8-98159-650-0	1-51177-078-0	03	1	-
20	SEAT; LEAF SPR,FRT (B), T=10 ASM PART: B = 1-51130-936-0	1-51177-078-0	01	1	-
20	SEAT; LEAF SPR,FRT (C), T=9 ASM PART: B = 1-51130-936-0, C = 1-51130-940-0, E = 8-98090-276-0, H = 8-98159-653-0	1-51177-085-0	01	1	-
20	SEAT; LEAF SPR,FRT (A), T=14 ASM PART: A = 1-51130-929-0	1-51177-097-0	07	1	-
20	SEAT; LEAF SPR,FRT (A), T=14 ASM PART: B = 1-51130-936-0, E = 8-98090-276-0, F = 8-98090-277-0, J = 8-98241-420-0	1-51177-097-0	02	1	-
20	SEAT; LEAF SPR,FRT (H), T=13 ASM PART: I = 8-98241-419-0	1-51177-346-0	03	1	-
20	SEAT; LEAF SPR,FRT (E), T=11 ASM PART: J = 8-98241-420-0	1-51177-347-0	01	1	-
20	SEAT; LEAF SPR,FRT (E), T=11 ASM PART: C = 1-51130-940-0, H = 8-98159-653-0	1-51177-347-0	07	1	-
20	SEAT; LEAF SPR,FRT (D), T=8 ASM PART: J = 8-98241-420-0	1-51177-353-0	01	1	-
29	SUPPORTER; LEAF SPR,FRT ASM PART: A = 1-51130-929-0, C = 1-51130-940-0, F = 8-98090-277-0, H = 8-98159-653-0, J = 8-98241-420-0	1-51681-650-0	01	1	-
35	SEAL; DUST ASM PART: A = 1-51130-929-0, B = 1-51130-936-0, C = 1-51130-940-0, D = 8-97614-075-0, E = 8-98090-276-0, F = 8-98090-277-0, I = 8-98241-419-0, J = 8-98241-420-0	1-51177-321-0	04	1	-

16 35 20 17 20 19 17 35 18 2 35 1 5 4 3 6 19 18 18 35 20 7 18 20 29 15 20 20 19 19 19 19 20 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING; LEAF,NO 1,FRT ASM PART: E = 8-98090-276-0, I = 8-98241-419-0	1-51131-888-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: B = 1-51130-936-0	1-51131-890-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: A = 1-51130-929-0, F = 8-98090-277-0, J = 8-98241-420-0	1-51131-929-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: C = 1-51130-940-0	1-51131-966-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: D = 8-97614-075-0	8-97615-388-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: G = 8-98159-650-0	8-98165-018-0	01	1	-
1	SPRING; LEAF,NO 1,FRT ASM PART: H = 8-98159-653-0	8-98165-027-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: E = 8-98090-276-0, I = 8-98241-419-0	1-51132-888-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: B = 1-51130-936-0	1-51132-890-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: A = 1-51130-929-0, F = 8-98090-277-0, J = 8-98241-420-0	1-51132-929-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: C = 1-51130-940-0	1-51132-966-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: D = 8-97614-075-0	8-97615-389-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: G = 8-98159-650-0	8-98165-019-0	01	1	-
2	SPRING; LEAF,NO 2,FRT ASM PART: H = 8-98159-653-0	8-98165-028-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: E = 8-98090-276-0, I = 8-98241-419-0	1-51133-888-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: B = 1-51130-936-0	1-51133-890-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: A = 1-51130-929-0, F = 8-98090-277-0, J = 8-98241-420-0	1-51133-929-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: C = 1-51130-940-0, H = 8-98159-653-0	1-51133-966-0	01	1	-
3	SPRING; LEAF,NO 3,FRT ASM PART: D = 8-97614-075-0, G = 8-98159-650-0	8-97615-390-0	01	1	-
4	SPRING; LEAF,NO 4,FRT W/CLIP ASM PART: B = 1-51130-936-0	1-51134-890-0	01	1	-
4	SPRING; LEAF,NO 4,FRT W/CLIP ASM PART: A = 1-51130-929-0, F = 8-98090-277-0, J = 8-98241-420-0	1-51134-929-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: C = 1-51130-940-0, H = 8-98159-653-0	1-51134-966-0	01	1	-
4	SPRING; LEAF,NO 4,FRT ASM PART: D = 8-97614-075-0, G = 8-98159-650-0	8-97615-391-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: C = 1-51130-940-0, H = 8-98159-653-0	1-51135-966-0	01	1	-
5	SPRING; LEAF,NO 5,FRT ASM PART: D = 8-97614-075-0, G = 8-98159-650-0	8-97615-392-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: C = 1-51130-940-0, H = 8-98159-653-0	1-51136-966-0	01	1	-
6	SPRING; LEAF,NO 6,FRT ASM PART: D = 8-97614-075-0, G = 8-98159-650-0	8-97615-393-0	01	1	-
7	SPRING; LEAF,NO 7,FRT ASM PART: C = 1-51130-940-0, H = 8-98159-653-0	1-51137-966-0	01	1	-
7	SPRING; LEAF,NO 7,FRT ASM PART: D = 8-97614-075-0, G = 8-98159-650-0	8-97615-394-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=170 ASM PART: J = 8-98241-420-0	1-51156-305-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=155 ASM PART: E = 8-98090-276-0, I = 8-98241-419-0	1-51156-336-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=210 ASM PART: A = 1-51130-929-0	1-51156-347-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=165 ASM PART: B = 1-51130-936-0, F = 8-98090-277-0	1-51156-366-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=205 ASM PART: D = 8-97614-075-0, G = 8-98159-650-0	1-51156-425-0	01	1	-
15	BOLT; CENTER,LEAF SPR,FRT L=225 ASM PART: C = 1-51130-940-0, H = 8-98159-653-0	1-51156-426-0	01	1	-
16	NUT; CENTER BOLT,LEAF SPR,FRT M16 ASM PART: A = 1-51130-929-0, B = 1-51130-936-0, C = 1-51130-940-0, D = 8-97614-075-0, E = 8-98090-276-0, F = 8-98090-277-0, G = 8-98159-650-0, H = 8-98159-653-0, I = 8-98241-419-0, J = 8-98241-420-0	1-09400-054-0	01	1	-
17	BUSHING; LEAF SPR,FRT OD=38 ASM PART: G = 8-98159-650-0, H = 8-98159-653-0	1-51351-009-0	02	1	-
17	BUSHING; LEAF SPR,FRT OD=42 ASM PART: A = 1-51130-929-0, B = 1-51130-936-0, C = 1-51130-940-0, D = 8-97614-075-0, E = 8-98090-276-0, F = 8-98090-277-0, I = 8-98241-419-0, J = 8-98241-420-0	1-51351-044-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (D), M10X99 ASM PART: C = 1-51130-940-0, H = 8-98159-653-0	1-09000-328-0	04	1	-
18	BOLT; CLIP,LEAF SPR,FRT (D), M10X99 ASM PART: A = 1-51130-929-0, F = 8-98090-277-0, J = 8-98241-420-0	1-09000-328-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (C), M10X103 ASM PART: B = 1-51130-936-0, E = 8-98090-276-0, I = 8-98241-419-0	1-09000-536-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (B), M10X103 ASM PART: D = 8-97614-075-0, G = 8-98159-650-0	8-97615-331-0	02	1	-
18	BOLT; CLIP,LEAF SPR,FRT (A), M10X99 ASM PART: D = 8-97614-075-0, G = 8-98159-650-0	8-97615-895-0	01	1	-
19	SPACER; LEAF SPRING,FRT T=1 ASM PART: A = 1-51130-929-0, B = 1-51130-936-0, F = 8-98090-277-0	1-51177-071-0	04	1	-
19	SPACER; LEAF SPRING,FRT T=1 ASM PART: D = 8-97614-075-0, G = 8-98159-650-0	1-51177-071-0	07	1	-
19	SPACER; LEAF SPRING,FRT T=1 ASM PART: E = 8-98090-276-0	1-51177-071-0	03	1	-
19	SPACER; LEAF SPRING,FRT T=1 ASM PART: C = 1-51130-940-0, H = 8-98159-653-0	1-51177-071-0	06	1	-
19	SPACER; LEAF SPRING,FRT T=3.2 ASM PART: J = 8-98241-420-0	8-98227-421-0	04	1	-
19	SPACER; LEAF SPRING,FRT T=3.2 ASM PART: I = 8-98241-419-0	8-98227-421-0	03	1	-
20	SEAT; LEAF SPR,FRT (F), T=12 ASM PART: D = 8-97614-075-0, G = 8-98159-650-0	1-51177-069-0	02	1	-
20	SEAT; LEAF SPR,FRT (G), T=6 ASM PART: I = 8-98241-419-0	1-51177-070-0	02	1	-
20	SEAT; LEAF SPR,FRT (D), T=7 ASM PART: B = 1-51130-936-0, F = 8-98090-277-0	1-51177-074-0	01	1	-
20	SEAT; LEAF SPR,FRT (B), T=10 ASM PART: E = 8-98090-276-0, F = 8-98090-277-0	1-51177-078-0	02	1	-
20	SEAT; LEAF SPR,FRT (B), T=10 ASM PART: D = 8-97614-075-0, G = 8-98159-650-0	1-51177-078-0	03	1	-
20	SEAT; LEAF SPR,FRT (B), T=10 ASM PART: B = 1-51130-936-0	1-51177-078-0	01	1	-
20	SEAT; LEAF SPR,FRT (C), T=9 ASM PART: B = 1-51130-936-0, C = 1-51130-940-0, E = 8-98090-276-0, H = 8-98159-653-0	1-51177-085-0	01	1	-
20	SEAT; LEAF SPR,FRT (A), T=14 ASM PART: A = 1-51130-929-0	1-51177-097-0	07	1	-
20	SEAT; LEAF SPR,FRT (A), T=14 ASM PART: B = 1-51130-936-0, E = 8-98090-276-0, F = 8-98090-277-0, J = 8-98241-420-0	1-51177-097-0	02	1	-
20	SEAT; LEAF SPR,FRT (H), T=13 ASM PART: I = 8-98241-419-0	1-51177-346-0	03	1	-
20	SEAT; LEAF SPR,FRT (E), T=11 ASM PART: J = 8-98241-420-0	1-51177-347-0	01	1	-
20	SEAT; LEAF SPR,FRT (E), T=11 ASM PART: C = 1-51130-940-0, H = 8-98159-653-0	1-51177-347-0	07	1	-
20	SEAT; LEAF SPR,FRT (D), T=8 ASM PART: J = 8-98241-420-0	1-51177-353-0	01	1	-
29	SUPPORTER; LEAF SPR,FRT ASM PART: A = 1-51130-929-0, C = 1-51130-940-0, F = 8-98090-277-0, H = 8-98159-653-0, J = 8-98241-420-0	1-51681-650-0	01	1	-
35	SEAL; DUST ASM PART: A = 1-51130-929-0, B = 1-51130-936-0, C = 1-51130-940-0, D = 8-97614-075-0, E = 8-98090-276-0, F = 8-98090-277-0, I = 8-98241-419-0, J = 8-98241-420-0	1-51177-321-0	04	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
