4-50 — FRONT SUSPENSION (#26556) — 200 parça

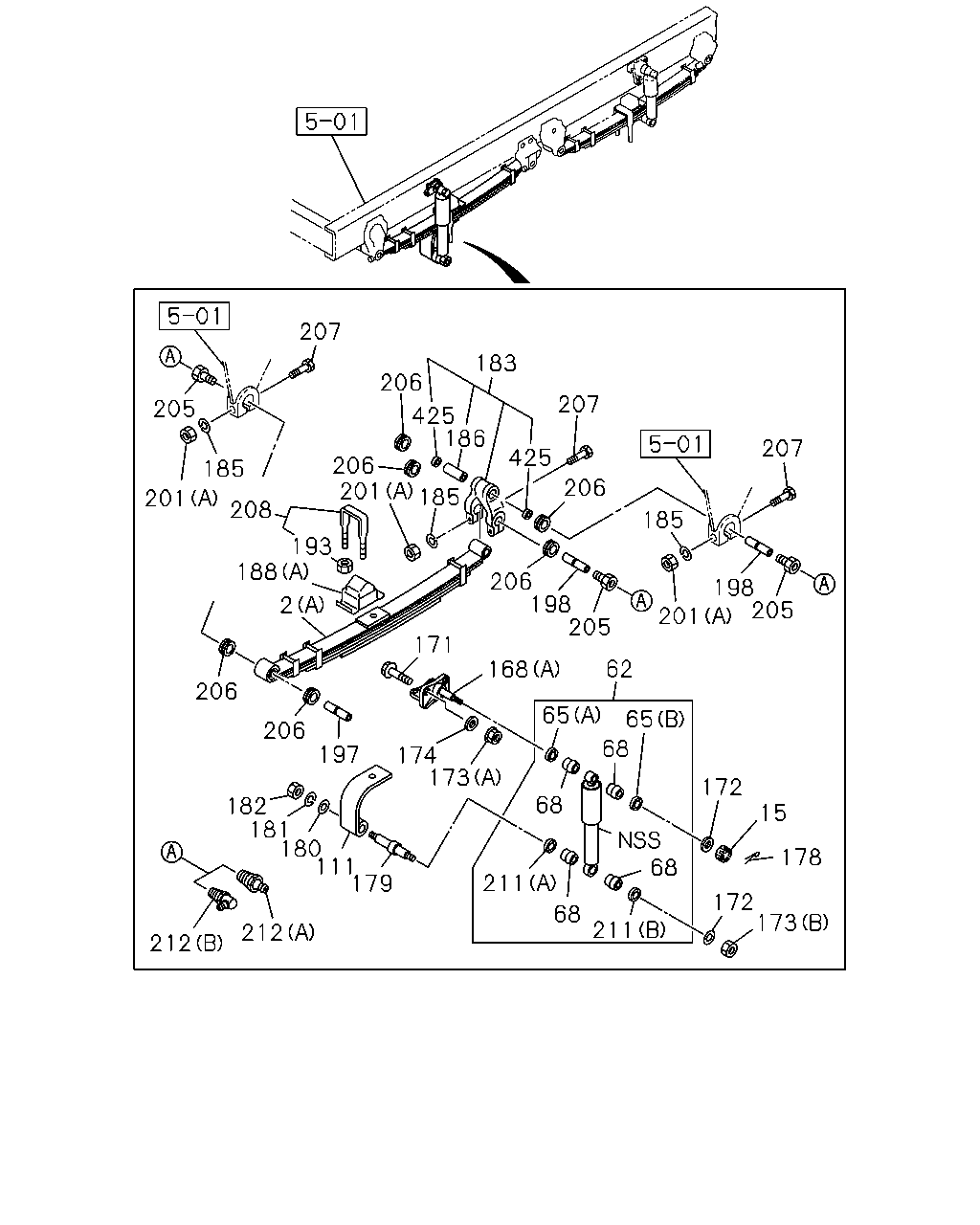

çizim 139506
207 183 206 207 205 425 186 207 425 206 201 185 185 206 201 208 185 193 188 206 198 205 198 205 2 201 171 62 168 206 65 65 206 68 197 174 173 172 68 182 181 180 111 179 15 68 178 211 172 173 68 211 212 212
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. MIXER TRUCK<RA2> PROVISIONAL PACKAGE SPEC<BCC> (A) 3-LEAF 		8-98090-276-0 02 1 0706-1305
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. MIXER TRUCK<RA2> PROVISIONAL PACKAGE SPEC<BCC> (A) 3-LEAF 		8-98241-419-0 02 1 1306-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. MIXER TRUCK<RA2> PROVISIONAL PACKAGE SPEC<BCC> (B) 4-LEAF 		8-98090-277-0 02 1 0706-1305
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. MIXER TRUCK<RA2> PROVISIONAL PACKAGE SPEC<BCC> (B) 4-LEAF 		8-98241-420-0 02 1 1306-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. DUMP TRUCK<RA1>,MIXER TRUCK<RA2> (B) 7-LEAF 		1-51130-940-0 02 1 0610-0705
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. MIXER TRUCK<RA2> EXC. PROVISIONAL PACKAGE SPEC<BCC> (B) 7-LEAF 		1-51130-940-0 02 1 0706-0912
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. DUMP TRUCK<RA1> (B) 7-LEAF 		1-51130-940-0 02 1 0706-0912
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. MIXER TRUCK<RA2> EXC. PROVISIONAL PACKAGE SPEC<BCC> (B) 7-LEAF 		8-98159-653-0 02 1 1001-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. DUMP TRUCK<RA1> (B) 7-LEAF 		8-98159-653-0 02 1 1001-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. DUMP TRUCK<RA1>,MIXER TRUCK<RA2> (A) 8-LEAF 		8-97614-075-0 02 1 0610-0705
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. MIXER TRUCK<RA2> EXC. PROVISIONAL PACKAGE SPEC<BCC> (A) 8-LEAF 		8-97614-075-0 02 1 0706-0912
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. DUMP TRUCK<RA1> (A) 8-LEAF 		8-97614-075-0 02 1 0706-0912
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. MIXER TRUCK<RA2> EXC. PROVISIONAL PACKAGE SPEC<BCC> (A) 8-LEAF 		8-98159-650-0 02 1 1001-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. DUMP TRUCK<RA1> (A) 8-LEAF 		8-98159-650-0 02 1 1001-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. DUMP TRUCK<RA1>,MIXER TRUCK<RA2> (B) 4-LEAF 		1-51130-929-0 02 1 0610-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. DUMP TRUCK<RA1>,MIXER TRUCK<RA2> (A) 4-LEAF 		1-51130-936-0 02 1 0610-
15 NUT; S/ABS,UPR
M20 SLOTTED 		9-99116-420-0 04 1 0610-1107
15 NUT; S/ABS,UPR
M20 		0-91110-520-0 04 1 1108-
62 ABSORBER ASM; SHOCK,FRT
MIXER TRUCK<RA2> PROVISIONAL PACKAGE SPEC<BCC> 		1-51630-816-0 02 1 0706-
62 ABSORBER ASM; SHOCK,FRT
DUMP TRUCK<RA1>,MIXER TRUCK<RA2> 		1-51630-444-0 02 1 0610-0705
62 ABSORBER ASM; SHOCK,FRT
MIXER TRUCK<RA2> EXC. PROVISIONAL PACKAGE SPEC<BCC> 		1-51630-444-0 02 1 0706-
62 ABSORBER ASM; SHOCK,FRT
DUMP TRUCK<RA1> 		1-51630-444-0 02 1 0706-
62 ABSORBER ASM; SHOCK,FRT
EXC. DUMP TRUCK<RA1>,MIXER TRUCK<RA2> 		1-51630-809-1 02 1 0610-
65 WASHER; S/ABS
(A) ID=27 		9-51631-027-0 02 1 0610-
65 WASHER; S/ABS
(B) ID=21 		9-51631-028-0 02 1 0610-
68 BUSHING; S/ABS 9-51631-026-0 16 1 0610-
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-627-0 02 1 0610-
168 BRACKET; S/ABS,FRT SUSP
WHEEL BASE 6300MM(63W) FUEL TANK 300L AL<EBF> DUMP TRUCK<RA1>,MIXER TRUCK<RA2> (B) 		8-98182-384-0 02 1 1101-1309
168 BRACKET; S/ABS,FRT SUSP
(B) 		8-98182-384-0 02 1 1310-
168 BRACKET; S/ABS,FRT SUSP
(B) 		1-51681-746-0 02 1 0610-1012
168 BRACKET; S/ABS,FRT SUSP
WHEEL BASE 6600MM(66W) (B) 		1-51681-746-0 02 1 1101-1309
168 BRACKET; S/ABS,FRT SUSP
WHEEL BASE 6300MM(63W) DUMP TRUCK<RA1>,MIXER TRUCK<RA2> EXC. FUEL TANK 300L AL<EBF> (B) 		1-51681-746-0 02 1 1101-1309
168 BRACKET; S/ABS,FRT SUSP
(A) 		1-51681-745-0 02 1 0610-1012
168 BRACKET; S/ABS,FRT SUSP
(A) 		8-98182-383-0 02 1 1101-
171 BOLT; S/ABS BRKT
M14X45 		9-92061-445-0 08 1 0610-
172 WASHER; PL,S/ABS BRKT
ID=21 		0-91610-520-0 04 1 0610-
173 NUT; S/ABS
(A) M14 		0-91110-514-0 08 1 0610-
173 NUT; S/ABS
(B) M20 		0-91110-520-0 04 1 0610-
174 WASHER; LK,S/ABS
ID=14.2 		0-91510-614-0 08 1 0610-
178 PIN; SPLIT,S/ABS
OD=3.7 L=35 		0-81124-035-0 06 1 0610-1011
179 PIN 1-51682-094-1 04 1 0610-
180 WASHER; PL,PIN
ID=25 		1-09503-169-0 04 1 0610-
181 WASHER; LK,PIN
ID=24.5 		0-91510-524-0 04 1 0610-
182 NUT; S/ABS LWR
M24 		0-91110-524-0 02 1 0610-
183 SHACKLE; FRT SUSP 1-51162-071-0 04 1 0610-1005
183 SHACKLE; FRT SUSP 1-51162-029-5 04 1 1006-
185 WASHER; LK,PIN
ID=12.2 		0-91510-612-0 24 1 0610-
186 BUSHING; SHACKLE
OD=42 		1-51351-044-0 04 1 0610-1005
186 BUSHING; SHACKLE
OD=38 		8-98081-829-0 04 1 1006-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
DUMP TRUCK<RA1>,MIXER TRUCK<RA2> (B) 		1-51172-081-1 02 1 0610-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
(A) 		1-51172-085-2 02 1 0610-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
EXC. DUMP TRUCK<RA1>,MIXER TRUCK<RA2> (B) 		1-51172-097-1 02 1 0610-
193 NUT; U BOLT
M22 		0-91112-822-0 16 1 0610-1206
193 NUT; U BOLT
M22 		8-98179-318-0 16 1 1207-
197 PIN; FRT SPR,FRT 1-51161-031-0 04 1 0610-
198 PIN; FRT SPR & SHACKLE,FWD FRT 1-51161-031-0 08 1 0610-
201 NUT; PIN LK
(A) M12 		0-91110-512-0 24 1 0610-
201 NUT; PIN LK
(B) M24 		0-91110-524-0 02 1 0610-
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 12 1 0610-
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 24 1 0610-
207 BOLT; SPR TO SHACKLE
M12X80 		0-10856-280-0 24 1 0610-
208 U-BOLT SET; FRT SPRING
MIXER TRUCK<RA2> FRONT AXLE F075(FH5) EXC. PROVISIONAL PACKAGE SPEC<BCC> L=315 		1-87870-421-2 04 1 0802-
208 U-BOLT SET; FRT SPRING
FRONT AXLE F075(FH5) DUMP TRUCK<RA1> L=315 		1-87870-421-2 04 1 0802-
208 U-BOLT SET; FRT SPRING
MIXER TRUCK<RA2> PROVISIONAL PACKAGE SPEC<BCC> FORWARD L=210 		1-87870-380-1 04 1 0706-0711
208 U-BOLT SET; FRT SPRING
MIXER TRUCK<RA2> PROVISIONAL PACKAGE SPEC<BCC> L=230 		1-87870-269-2 08 1 0712-1206
208 U-BOLT SET; FRT SPRING
MIXER TRUCK<RA2> PROVISIONAL PACKAGE SPEC<BCC> L=230 		1-87870-493-0 08 1 1207-
208 U-BOLT SET; FRT SPRING
FRONT AXLE F075(FH5) EXC. DUMP TRUCK<RA1>,MIXER TRUCK<RA2> FORWARD L=250 		1-87870-343-1 04 1 0610-1206
208 U-BOLT SET; FRT SPRING
FRONT AXLE F075(FH5) EXC. DUMP TRUCK<RA1>,MIXER TRUCK<RA2> FORWARD L=250 		1-87870-494-0 04 1 1207-
208 U-BOLT SET; FRT SPRING
FRONT AXLE F075(FH5) EXC. DUMP TRUCK<RA1>,MIXER TRUCK<RA2> L=290 		1-87870-437-1 04 1 0712-0712
208 U-BOLT SET; FRT SPRING
MIXER TRUCK<RA2> EXC. PROVISIONAL PACKAGE SPEC<BCC> L=290 		1-87870-437-1 04 1 0712-0712
208 U-BOLT SET; FRT SPRING
DUMP TRUCK<RA1> L=290 		1-87870-437-1 04 1 0712-0712
208 U-BOLT SET; FRT SPRING
MIXER TRUCK<RA2> FRONT AXLE F063(FS7) EXC. PROVISIONAL PACKAGE SPEC<BCC> L=290 		1-87870-437-1 04 1 0712-0712
208 U-BOLT SET; FRT SPRING
FRONT AXLE F063(FS7) DUMP TRUCK<RA1> L=290 		1-87870-437-1 04 1 0712-0712
208 U-BOLT SET; FRT SPRING
MIXER TRUCK<RA2> EXC. PROVISIONAL PACKAGE SPEC<BCC> L=290 		1-87870-437-1 08 1 0801-0801
208 U-BOLT SET; FRT SPRING
DUMP TRUCK<RA1> L=290 		1-87870-437-1 08 1 0801-0801
208 U-BOLT SET; FRT SPRING
MIXER TRUCK<RA2> EXC. PROVISIONAL PACKAGE SPEC<BCC> L=290 		1-87870-437-2 04 1 0802-
208 U-BOLT SET; FRT SPRING
DUMP TRUCK<RA1> L=290 		1-87870-437-2 04 1 0802-
208 U-BOLT SET; FRT SPRING
MIXER TRUCK<RA2> FRONT AXLE F063(FS7) EXC. PROVISIONAL PACKAGE SPEC<BCC> L=290 		1-87870-437-2 04 1 0802-
208 U-BOLT SET; FRT SPRING
FRONT AXLE F075(FH5) EXC. DUMP TRUCK<RA1>,MIXER TRUCK<RA2> L=290 		1-87870-437-2 04 1 0802-
208 U-BOLT SET; FRT SPRING
FRONT AXLE F063(FS7) DUMP TRUCK<RA1> L=290 		1-87870-437-2 04 1 0802-
208 U-BOLT SET; FRT SPRING
FRONT AXLE F063(FS7) EXC. DUMP TRUCK<RA1>,MIXER TRUCK<RA2> L=230 		1-87870-269-2 04 1 0712-1206
208 U-BOLT SET; FRT SPRING
FRONT AXLE F063(FS7) EXC. DUMP TRUCK<RA1>,MIXER TRUCK<RA2> L=230 		1-87870-493-0 04 1 1207-
208 U-BOLT SET; FRT SPRING
FRONT AXLE F063(FS7) EXC. DUMP TRUCK<RA1>,MIXER TRUCK<RA2> REARWARD L=270 		1-87870-327-1 04 1 0610-0712
208 U-BOLT SET; FRT SPRING
EXC. DUMP TRUCK<RA1>,MIXER TRUCK<RA2> REARWARD L=270 		1-87870-327-1 04 1 0801-0801
208 U-BOLT SET; FRT SPRING
FRONT AXLE F063(FS7) EXC. DUMP TRUCK<RA1>,MIXER TRUCK<RA2> REARWARD L=270 		1-87870-327-2 04 1 0802-
208 U-BOLT SET; FRT SPRING
DUMP TRUCK<RA1>,MIXER TRUCK<RA2> REARWARD L=315 		1-87870-421-1 04 1 0610-0705
208 U-BOLT SET; FRT SPRING
MIXER TRUCK<RA2> EXC. PROVISIONAL PACKAGE SPEC<BCC> REARWARD L=315 		1-87870-421-1 04 1 0706-0711
208 U-BOLT SET; FRT SPRING
DUMP TRUCK<RA1> REARWARD L=315 		1-87870-421-1 04 1 0706-0711
208 U-BOLT SET; FRT SPRING
MIXER TRUCK<RA2> FRONT AXLE F075(FH5) EXC. PROVISIONAL PACKAGE SPEC<BCC> REARWARD L=315 		1-87870-421-1 04 1 0712-0712
208 U-BOLT SET; FRT SPRING
FRONT AXLE F075(FH5) DUMP TRUCK<RA1> REARWARD L=315 		1-87870-421-1 04 1 0712-0712
208 U-BOLT SET; FRT SPRING
DUMP TRUCK<RA1>,MIXER TRUCK<RA2> FORWARD L=290 		1-87870-437-1 04 1 0610-0705
208 U-BOLT SET; FRT SPRING
DUMP TRUCK<RA1> FORWARD L=290 		1-87870-437-1 04 1 0706-
208 U-BOLT SET; FRT SPRING
MIXER TRUCK<RA2> EXC. PROVISIONAL PACKAGE SPEC<BCC> FORWARD L=290 		1-87870-437-1 04 1 0706-
208 U-BOLT SET; FRT SPRING
FRONT AXLE F075(FH5) EXC. DUMP TRUCK<RA1>,MIXER TRUCK<RA2> REARWARD L=290 		1-87870-437-1 04 1 0610-
208 U-BOLT SET; FRT SPRING
FRONT AXLE F063(FS7) EXC. DUMP TRUCK<RA1>,MIXER TRUCK<RA2> FORWARD L=230 		1-87870-269-2 04 1 0610-
208 U-BOLT SET; FRT SPRING
MIXER TRUCK<RA2> PROVISIONAL PACKAGE SPEC<BCC> REARWARD L=230 		1-87870-269-2 04 1 0706-
211 WASHER; BRKT,SHOCK
(A) ID=27 		9-51631-027-0 02 1 0610-
211 WASHER; BRKT,SHOCK
(B) ID=21 		9-51631-028-0 02 1 0610-
212 NIPPLE; GREASE,ELBOW
(A) PT1/8 STRAIGHT 		0-90301-410-0 05 1 0610-
212 NIPPLE; GREASE,ELBOW
(B) PT1/8 ELBOW 		0-90301-610-0 07 1 0610-
425 SEAL; DUST 1-51177-321-0 08 1 0610-1005

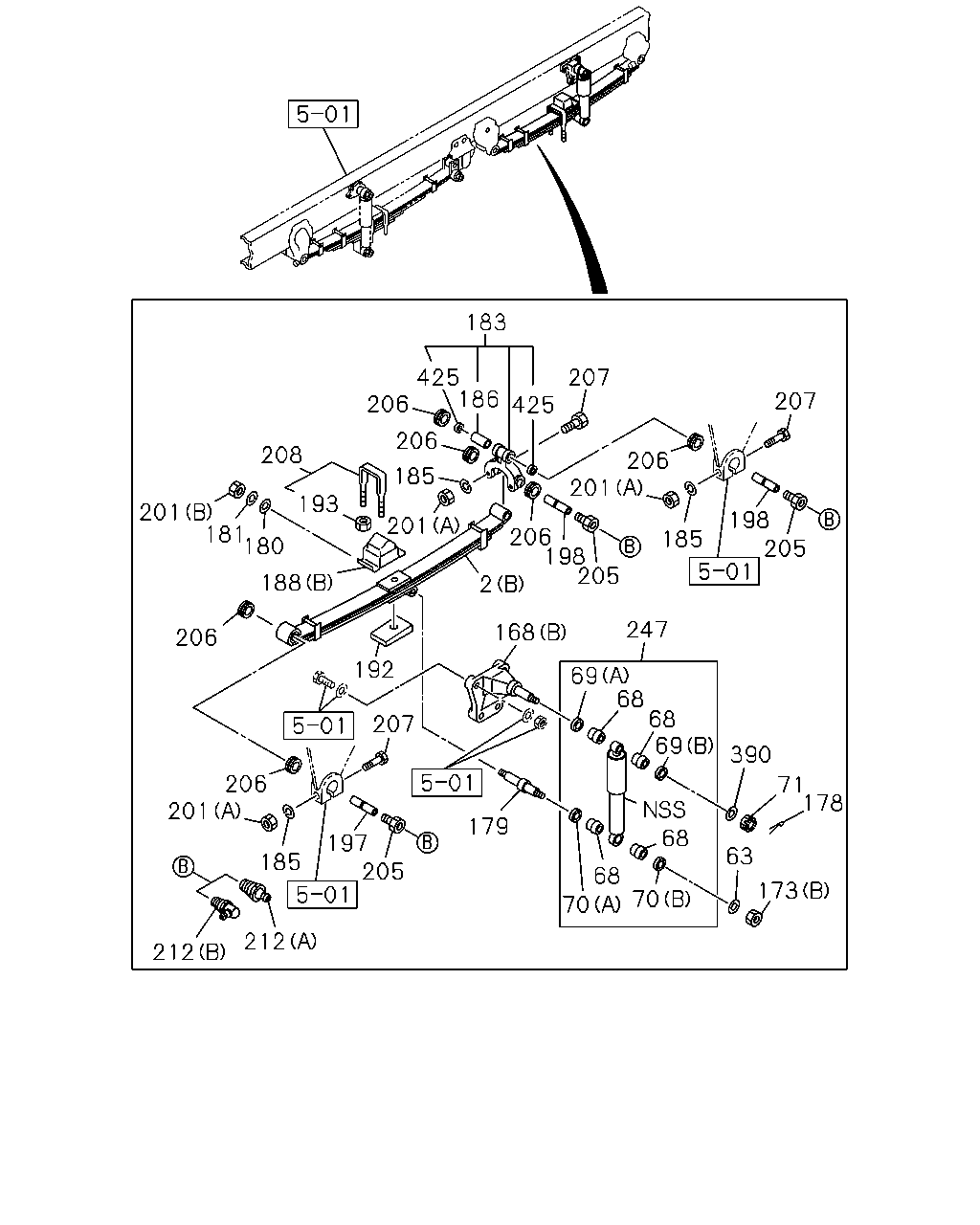

çizim 139554
183 207 425 186 206 207 425 206 208 206 201 185 193 201 181 180 198 205 201 206 198 205 185 188 2 247 168 206 192 69 68 68 69 207 390 206 201 71 178 68 179 197 205 63 185 68 70 173 70 212 212
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. MIXER TRUCK<RA2> PROVISIONAL PACKAGE SPEC<BCC> (A) 3-LEAF 		8-98090-276-0 02 1 0706-1305
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. MIXER TRUCK<RA2> PROVISIONAL PACKAGE SPEC<BCC> (A) 3-LEAF 		8-98241-419-0 02 1 1306-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. MIXER TRUCK<RA2> PROVISIONAL PACKAGE SPEC<BCC> (B) 4-LEAF 		8-98090-277-0 02 1 0706-1305
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. MIXER TRUCK<RA2> PROVISIONAL PACKAGE SPEC<BCC> (B) 4-LEAF 		8-98241-420-0 02 1 1306-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. DUMP TRUCK<RA1>,MIXER TRUCK<RA2> (B) 7-LEAF 		1-51130-940-0 02 1 0610-0705
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. MIXER TRUCK<RA2> EXC. PROVISIONAL PACKAGE SPEC<BCC> (B) 7-LEAF 		1-51130-940-0 02 1 0706-0912
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. DUMP TRUCK<RA1> (B) 7-LEAF 		1-51130-940-0 02 1 0706-0912
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. MIXER TRUCK<RA2> EXC. PROVISIONAL PACKAGE SPEC<BCC> (B) 7-LEAF 		8-98159-653-0 02 1 1001-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. DUMP TRUCK<RA1> (B) 7-LEAF 		8-98159-653-0 02 1 1001-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. DUMP TRUCK<RA1>,MIXER TRUCK<RA2> (A) 8-LEAF 		8-97614-075-0 02 1 0610-0705
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. MIXER TRUCK<RA2> EXC. PROVISIONAL PACKAGE SPEC<BCC> (A) 8-LEAF 		8-97614-075-0 02 1 0706-0912
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. DUMP TRUCK<RA1> (A) 8-LEAF 		8-97614-075-0 02 1 0706-0912
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. MIXER TRUCK<RA2> EXC. PROVISIONAL PACKAGE SPEC<BCC> (A) 8-LEAF 		8-98159-650-0 02 1 1001-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. DUMP TRUCK<RA1> (A) 8-LEAF 		8-98159-650-0 02 1 1001-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. DUMP TRUCK<RA1>,MIXER TRUCK<RA2> (B) 4-LEAF 		1-51130-929-0 02 1 0610-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. DUMP TRUCK<RA1>,MIXER TRUCK<RA2> (A) 4-LEAF 		1-51130-936-0 02 1 0610-
63 WASHER; PL,S/ABS,LWR
ID=21 		0-91610-520-0 02 1 0610-
68 BUSHING; S/ABS 9-51631-026-0 16 1 0610-
69 WASHER; UPR,S/ABS
(A) ID=27 		9-51631-027-0 02 1 0610-
69 WASHER; UPR,S/ABS
(B) ID=21 		9-51631-028-0 02 1 0610-
70 WASHER; LWR,S/ABS
(A) ID=27 		9-51631-027-0 02 1 0610-
70 WASHER; LWR,S/ABS
(B) ID=21 		9-51631-028-0 02 1 0610-
71 NUT; LK,S/ABS,UPR
M20 SLOTTED 		9-99116-420-0 02 1 0610-1010
168 BRACKET; S/ABS,FRT SUSP
WHEEL BASE 6300MM(63W) FUEL TANK 300L AL<EBF> DUMP TRUCK<RA1>,MIXER TRUCK<RA2> (B) 		8-98182-384-0 02 1 1101-1309
168 BRACKET; S/ABS,FRT SUSP
(B) 		8-98182-384-0 02 1 1310-
168 BRACKET; S/ABS,FRT SUSP
(B) 		1-51681-746-0 02 1 0610-1012
168 BRACKET; S/ABS,FRT SUSP
WHEEL BASE 6600MM(66W) (B) 		1-51681-746-0 02 1 1101-1309
168 BRACKET; S/ABS,FRT SUSP
WHEEL BASE 6300MM(63W) DUMP TRUCK<RA1>,MIXER TRUCK<RA2> EXC. FUEL TANK 300L AL<EBF> (B) 		1-51681-746-0 02 1 1101-1309
168 BRACKET; S/ABS,FRT SUSP
(A) 		1-51681-745-0 02 1 0610-1012
168 BRACKET; S/ABS,FRT SUSP
(A) 		8-98182-383-0 02 1 1101-
173 NUT; S/ABS
(A) M14 		0-91110-514-0 08 1 0610-
173 NUT; S/ABS
(B) M20 		0-91110-520-0 04 1 0610-
178 PIN; SPLIT,S/ABS
OD=3.7 L=35 		0-81124-035-0 06 1 0610-1011
179 PIN 1-51682-094-1 04 1 0610-
180 WASHER; PL,PIN
ID=25 		1-09503-169-0 04 1 0610-
181 WASHER; LK,PIN
ID=24.5 		0-91510-524-0 04 1 0610-
183 SHACKLE; FRT SUSP 1-51162-071-0 04 1 0610-1005
183 SHACKLE; FRT SUSP 1-51162-029-5 04 1 1006-
185 WASHER; LK,PIN
ID=12.2 		0-91510-612-0 24 1 0610-
186 BUSHING; SHACKLE
OD=42 		1-51351-044-0 04 1 0610-1005
186 BUSHING; SHACKLE
OD=38 		8-98081-829-0 04 1 1006-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
DUMP TRUCK<RA1>,MIXER TRUCK<RA2> (B) 		1-51172-081-1 02 1 0610-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
(A) 		1-51172-085-2 02 1 0610-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
EXC. DUMP TRUCK<RA1>,MIXER TRUCK<RA2> (B) 		1-51172-097-1 02 1 0610-
192 PIECE; DIST 1-51177-281-1 02 1 0610-1308
192 PIECE; DIST 8-98200-748-0 02 1 1309-
193 NUT; U BOLT
M22 		0-91112-822-0 16 1 0610-1206
193 NUT; U BOLT
M22 		8-98179-318-0 16 1 1207-
197 PIN; FRT SPR,FRT 1-51161-031-0 04 1 0610-
198 PIN; FRT SPR & SHACKLE,FWD FRT 1-51161-031-0 08 1 0610-
201 NUT; PIN LK
(A) M12 		0-91110-512-0 24 1 0610-
201 NUT; PIN LK
(B) M24 		0-91110-524-0 02 1 0610-
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 12 1 0610-
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 24 1 0610-
207 BOLT; SPR TO SHACKLE
M12X80 		0-10856-280-0 24 1 0610-
208 U-BOLT SET; FRT SPRING
MIXER TRUCK<RA2> FRONT AXLE F075(FH5) EXC. PROVISIONAL PACKAGE SPEC<BCC> L=315 		1-87870-421-2 04 1 0802-
208 U-BOLT SET; FRT SPRING
FRONT AXLE F075(FH5) DUMP TRUCK<RA1> L=315 		1-87870-421-2 04 1 0802-
208 U-BOLT SET; FRT SPRING
MIXER TRUCK<RA2> PROVISIONAL PACKAGE SPEC<BCC> FORWARD L=210 		1-87870-380-1 04 1 0706-0711
208 U-BOLT SET; FRT SPRING
MIXER TRUCK<RA2> PROVISIONAL PACKAGE SPEC<BCC> L=230 		1-87870-269-2 08 1 0712-1206
208 U-BOLT SET; FRT SPRING
MIXER TRUCK<RA2> PROVISIONAL PACKAGE SPEC<BCC> L=230 		1-87870-493-0 08 1 1207-
208 U-BOLT SET; FRT SPRING
FRONT AXLE F075(FH5) EXC. DUMP TRUCK<RA1>,MIXER TRUCK<RA2> FORWARD L=250 		1-87870-343-1 04 1 0610-1206
208 U-BOLT SET; FRT SPRING
FRONT AXLE F075(FH5) EXC. DUMP TRUCK<RA1>,MIXER TRUCK<RA2> FORWARD L=250 		1-87870-494-0 04 1 1207-
208 U-BOLT SET; FRT SPRING
FRONT AXLE F075(FH5) EXC. DUMP TRUCK<RA1>,MIXER TRUCK<RA2> L=290 		1-87870-437-1 04 1 0712-0712
208 U-BOLT SET; FRT SPRING
MIXER TRUCK<RA2> EXC. PROVISIONAL PACKAGE SPEC<BCC> L=290 		1-87870-437-1 04 1 0712-0712
208 U-BOLT SET; FRT SPRING
DUMP TRUCK<RA1> L=290 		1-87870-437-1 04 1 0712-0712
208 U-BOLT SET; FRT SPRING
MIXER TRUCK<RA2> FRONT AXLE F063(FS7) EXC. PROVISIONAL PACKAGE SPEC<BCC> L=290 		1-87870-437-1 04 1 0712-0712
208 U-BOLT SET; FRT SPRING
FRONT AXLE F063(FS7) DUMP TRUCK<RA1> L=290 		1-87870-437-1 04 1 0712-0712
208 U-BOLT SET; FRT SPRING
MIXER TRUCK<RA2> EXC. PROVISIONAL PACKAGE SPEC<BCC> L=290 		1-87870-437-1 08 1 0801-0801
208 U-BOLT SET; FRT SPRING
DUMP TRUCK<RA1> L=290 		1-87870-437-1 08 1 0801-0801
208 U-BOLT SET; FRT SPRING
MIXER TRUCK<RA2> EXC. PROVISIONAL PACKAGE SPEC<BCC> L=290 		1-87870-437-2 04 1 0802-
208 U-BOLT SET; FRT SPRING
DUMP TRUCK<RA1> L=290 		1-87870-437-2 04 1 0802-
208 U-BOLT SET; FRT SPRING
MIXER TRUCK<RA2> FRONT AXLE F063(FS7) EXC. PROVISIONAL PACKAGE SPEC<BCC> L=290 		1-87870-437-2 04 1 0802-
208 U-BOLT SET; FRT SPRING
FRONT AXLE F075(FH5) EXC. DUMP TRUCK<RA1>,MIXER TRUCK<RA2> L=290 		1-87870-437-2 04 1 0802-
208 U-BOLT SET; FRT SPRING
FRONT AXLE F063(FS7) DUMP TRUCK<RA1> L=290 		1-87870-437-2 04 1 0802-
208 U-BOLT SET; FRT SPRING
FRONT AXLE F063(FS7) EXC. DUMP TRUCK<RA1>,MIXER TRUCK<RA2> L=230 		1-87870-269-2 04 1 0712-1206
208 U-BOLT SET; FRT SPRING
FRONT AXLE F063(FS7) EXC. DUMP TRUCK<RA1>,MIXER TRUCK<RA2> L=230 		1-87870-493-0 04 1 1207-
208 U-BOLT SET; FRT SPRING
FRONT AXLE F063(FS7) EXC. DUMP TRUCK<RA1>,MIXER TRUCK<RA2> REARWARD L=270 		1-87870-327-1 04 1 0610-0712
208 U-BOLT SET; FRT SPRING
EXC. DUMP TRUCK<RA1>,MIXER TRUCK<RA2> REARWARD L=270 		1-87870-327-1 04 1 0801-0801
208 U-BOLT SET; FRT SPRING
FRONT AXLE F063(FS7) EXC. DUMP TRUCK<RA1>,MIXER TRUCK<RA2> REARWARD L=270 		1-87870-327-2 04 1 0802-
208 U-BOLT SET; FRT SPRING
DUMP TRUCK<RA1>,MIXER TRUCK<RA2> REARWARD L=315 		1-87870-421-1 04 1 0610-0705
208 U-BOLT SET; FRT SPRING
MIXER TRUCK<RA2> EXC. PROVISIONAL PACKAGE SPEC<BCC> REARWARD L=315 		1-87870-421-1 04 1 0706-0711
208 U-BOLT SET; FRT SPRING
DUMP TRUCK<RA1> REARWARD L=315 		1-87870-421-1 04 1 0706-0711
208 U-BOLT SET; FRT SPRING
MIXER TRUCK<RA2> FRONT AXLE F075(FH5) EXC. PROVISIONAL PACKAGE SPEC<BCC> REARWARD L=315 		1-87870-421-1 04 1 0712-0712
208 U-BOLT SET; FRT SPRING
FRONT AXLE F075(FH5) DUMP TRUCK<RA1> REARWARD L=315 		1-87870-421-1 04 1 0712-0712
208 U-BOLT SET; FRT SPRING
DUMP TRUCK<RA1>,MIXER TRUCK<RA2> FORWARD L=290 		1-87870-437-1 04 1 0610-0705
208 U-BOLT SET; FRT SPRING
DUMP TRUCK<RA1> FORWARD L=290 		1-87870-437-1 04 1 0706-
208 U-BOLT SET; FRT SPRING
MIXER TRUCK<RA2> EXC. PROVISIONAL PACKAGE SPEC<BCC> FORWARD L=290 		1-87870-437-1 04 1 0706-
208 U-BOLT SET; FRT SPRING
FRONT AXLE F075(FH5) EXC. DUMP TRUCK<RA1>,MIXER TRUCK<RA2> REARWARD L=290 		1-87870-437-1 04 1 0610-
208 U-BOLT SET; FRT SPRING
FRONT AXLE F063(FS7) EXC. DUMP TRUCK<RA1>,MIXER TRUCK<RA2> FORWARD L=230 		1-87870-269-2 04 1 0610-
208 U-BOLT SET; FRT SPRING
MIXER TRUCK<RA2> PROVISIONAL PACKAGE SPEC<BCC> REARWARD L=230 		1-87870-269-2 04 1 0706-
212 NIPPLE; GREASE,ELBOW
(A) PT1/8 STRAIGHT 		0-90301-410-0 05 1 0610-
212 NIPPLE; GREASE,ELBOW
(B) PT1/8 ELBOW 		0-90301-610-0 07 1 0610-
247 ABSORBER ASM; SHOCK,RWD FRT
MIXER TRUCK<RA2> PROVISIONAL PACKAGE SPEC<BCC> 		1-51630-809-1 02 1 0706-
247 ABSORBER ASM; SHOCK,RWD FRT
DUMP TRUCK<RA1>,MIXER TRUCK<RA2> 		1-51630-444-0 02 1 0610-0705
247 ABSORBER ASM; SHOCK,RWD FRT
MIXER TRUCK<RA2> EXC. PROVISIONAL PACKAGE SPEC<BCC> 		1-51630-444-0 02 1 0706-
247 ABSORBER ASM; SHOCK,RWD FRT
DUMP TRUCK<RA1> 		1-51630-444-0 02 1 0706-
247 ABSORBER ASM; SHOCK,RWD FRT
EXC. DUMP TRUCK<RA1>,MIXER TRUCK<RA2> 		1-51630-810-0 02 1 0610-
390 WASHER; PL,S/ABS,UPR
ID=21 		0-91610-520-0 02 1 0610-
425 SEAL; DUST 1-51177-321-0 08 1 0610-1005
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
