3-32 — HYDRO BOOSTING SYSTEM (#2655) — 43 parça

1 1

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

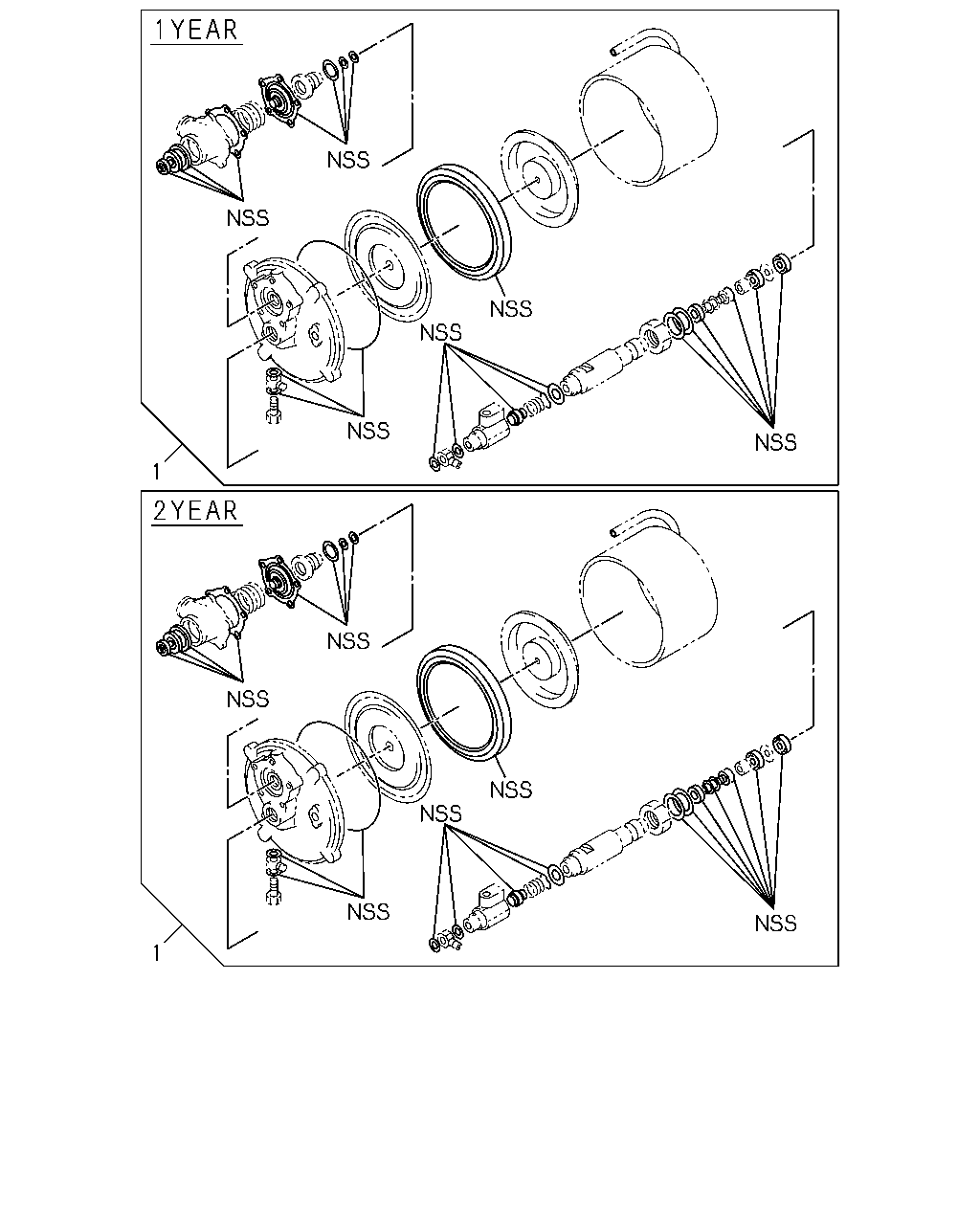

	1	REPAIR KIT; HYDROMASTER 1 YEAR ASM PART: A = 1-47800-338-0	1-87520-202-0	01	1	-
	1	REPAIR KIT; HYDROMASTER 2 YEAR ASM PART: A = 1-47800-338-0	1-87520-203-0	01	1	-

12 11 10 8 9 24 25 24 5 4 3 7 23 6 27 26 20 21 15 14 21 20 19 18 13 39 40 42 38 17 37 16 36 41 31 45 35 34 33 32 30 29 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

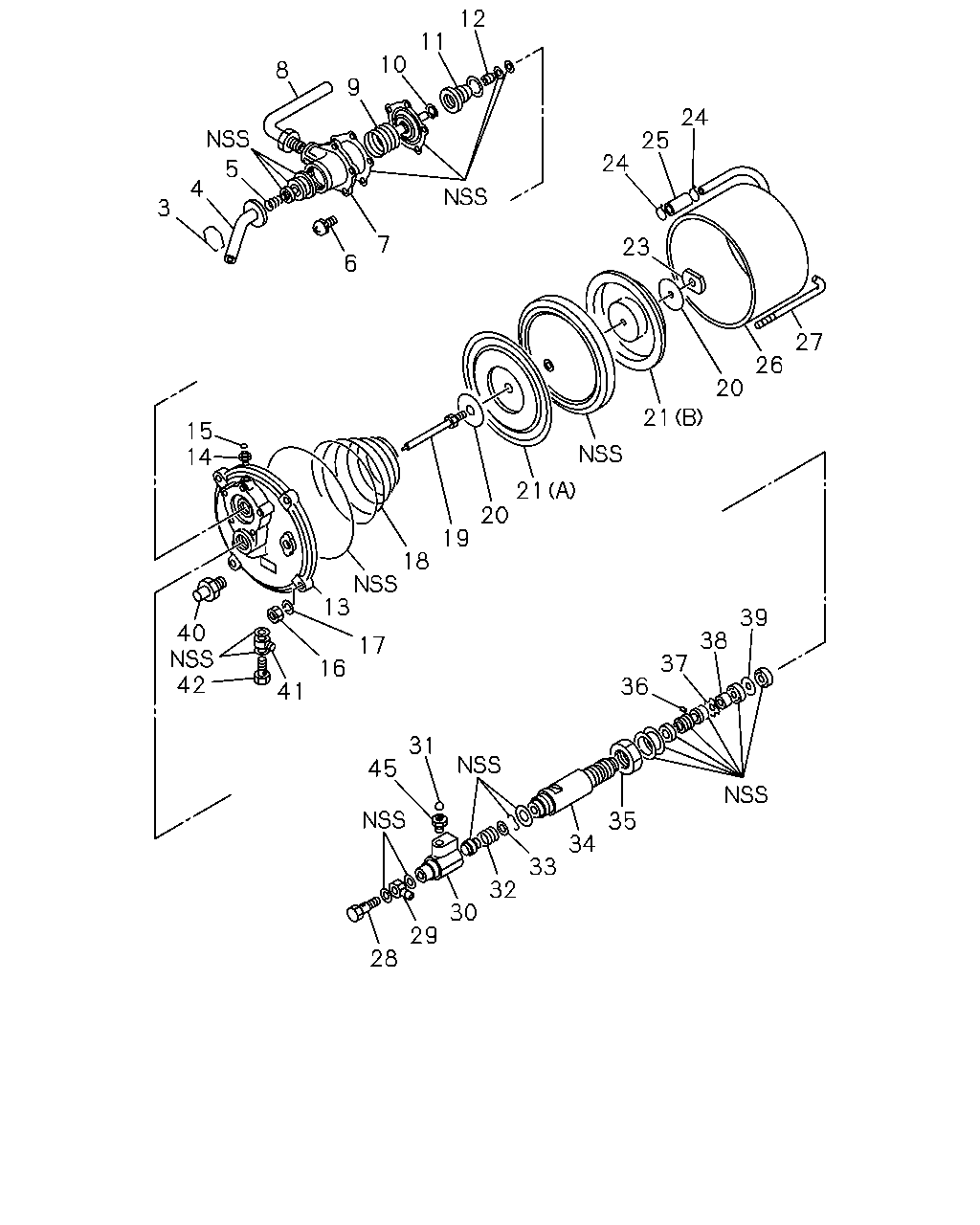

3	RETAINER; POPPET VLV,HYDROMASTER ASM PART: A = 1-47800-338-0	1-47819-061-0	01	1	-
4	PIPE; HYDROMASTER ASM PART: A = 1-47800-338-0	1-47849-004-0	01	1	-
5	SPRING; POPPET VLV,HYDROMASTER ASM PART: A = 1-47800-338-0	9-83341-308-0	01	1	-
6	SCREW; POPPET VLV,HYDROMASTER ASM PART: A = 1-47800-338-0	9-88510-210-0	06	1	-
7	BODY; POPPET VLV,HYDROMASTER ASM PART: A = 1-47800-338-0	1-47811-052-0	01	1	-
8	ELBOW; SHELL,HYDROMASTER ASM PART: A = 1-47800-338-0	1-47811-065-0	01	1	-
9	SPRING; DIAPH,HYDROMASTER ASM PART: A = 1-47800-338-0	1-47811-056-0	01	1	-
10	RING; RET,FITTING,HYDROMASTER ASM PART: A = 1-47800-338-0	1-47811-067-0	01	1	-
11	FITTING; POPPET VLV,HYDROMASTER ASM PART: A = 1-47800-338-0	1-47811-069-0	01	1	-
12	PISTON; POPPET VLV,HYDROMASTER ASM PART: A = 1-47800-338-0	1-47811-071-0	01	1	-
13	PLATE; END,HYDROMASTER ASM PART: A = 1-47800-338-0	1-47811-054-0	01	1	-
14	PLUG; CAP,HYDROMASTER ASM PART: A = 1-47800-338-0	9-83331-704-0	01	1	-
15	PROTECTOR; END PLATE,HYDROMASTER ASM PART: A = 1-47800-338-0	9-83335-044-0	01	1	-
16	NUT; END PLATE TO SHELL,HYDROMASTER ASM PART: A = 1-47800-338-0	9-83315-080-0	04	1	-
17	WASHER; END PLATE TO SHELL,HYDROMASTER ASM PART: A = 1-47800-338-0	9-09150-510-0	04	1	-
18	SPRING; CYL SHELL,HYDROMASTER ASM PART: A = 1-47800-338-0	1-47811-058-0	01	1	-
19	ROD; PUSH,HYDROMASTER ASM PART: A = 1-47800-338-0	1-47811-061-0	01	1	-
20	WASHER; LK,HYDROMASTER ASM PART: A = 1-47800-338-0	9-83325-031-0	02	1	-
21	PLATE; PISTON,SHELL,HYDROMASTER (B) ASM PART: A = 1-47800-338-0	1-47811-084-0	01	1	-
21	PLATE; PISTON,SHELL,HYDROMASTER (A) ASM PART: A = 1-47800-338-0	1-47811-085-0	01	1	-
23	NUT; PUSH ROD,SHELL,HYDROMASTER ASM PART: A = 1-47800-338-0	9-83325-032-0	01	1	-
24	CLAMP; HOSE,HYDROMASTER ASM PART: A = 1-47800-338-0	9-83315-027-0	02	1	-
25	HOSE; SHELL TO ELBOW,HYDROMASTER ASM PART: A = 1-47800-338-0	9-09913-039-0	01	1	-
26	SHELL; CYL,HYDROMASTER ASM PART: A = 1-47800-338-0	1-47811-089-0	01	1	-
27	BOLT; HOOK,HYDROMASTER ASM PART: A = 1-47800-338-0	1-47811-059-0	04	1	-
28	BOLT; EYE,CAP,HYDROMASTER ASM PART: A = 1-47800-338-0	9-83315-047-0	01	1	-
29	CONNECTOR; EYE,CAP,HYDROMASTER ASM PART: A = 1-47800-338-0	1-47819-118-0	01	1	-
30	CAP; CYL,HYDROMASTER ASM PART: A = 1-47800-338-0	1-47819-062-0	01	1	-
31	PROTECTOR; CAP,HYDROMASTER ASM PART: A = 1-47800-338-0	9-83335-044-0	01	1	-
32	SPRING; OUTLET VLV,HYDROMASTER ASM PART: A = 1-47800-338-0	9-83331-303-0	01	1	-
33	WASHER; OUTLET VLV,HYDROMASTER ASM PART: A = 1-47800-338-0	9-83335-009-0	01	1	-
34	CYLINDER; HYDROMASTER ASM PART: A = 1-47800-338-0	1-47811-064-0	01	1	-
35	NUT; CYL,HYDROMASTER ASM PART: A = 1-47800-338-0	9-83335-012-0	01	1	-
36	PIN; PISTON,HYDROMASTER ASM PART: A = 1-47800-338-0	9-83325-023-0	01	1	-
37	WASHER; PISTON,HYDROMASTER ASM PART: A = 1-47800-338-0	1-47819-028-0	01	1	-
38	RETAINER; PISTON,HYDROMASTER ASM PART: A = 1-47800-338-0	1-47819-029-0	01	1	-
39	WASHER; OIL SEAL,PISTON,HYDROMASTER ASM PART: A = 1-47800-338-0	1-47819-031-0	01	1	-
40	CONNECTOR; HOSE,HYDROMASTER ASM PART: A = 1-47800-338-0	1-47811-047-0	01	1	-
41	CONNECTOR; EYE,END PLATE,HYDROMASTER ASM PART: A = 1-47800-338-0	1-47819-119-0	01	1	-
42	BOLT; EYE,END PLATE,HYDROMASTER ASM PART: A = 1-47800-338-0	1-47811-088-0	01	1	-
45	PLUG; END PLATE,HYDROMASTER ASM PART: A = 1-47800-338-0	9-83331-704-0	01	1	-
