◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11035 - CYH RHD EURO4 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-30 - STEERING WHEEL AND COWL ▶
4-30 — STEERING WHEEL AND COWL (#26548) — 25 parça

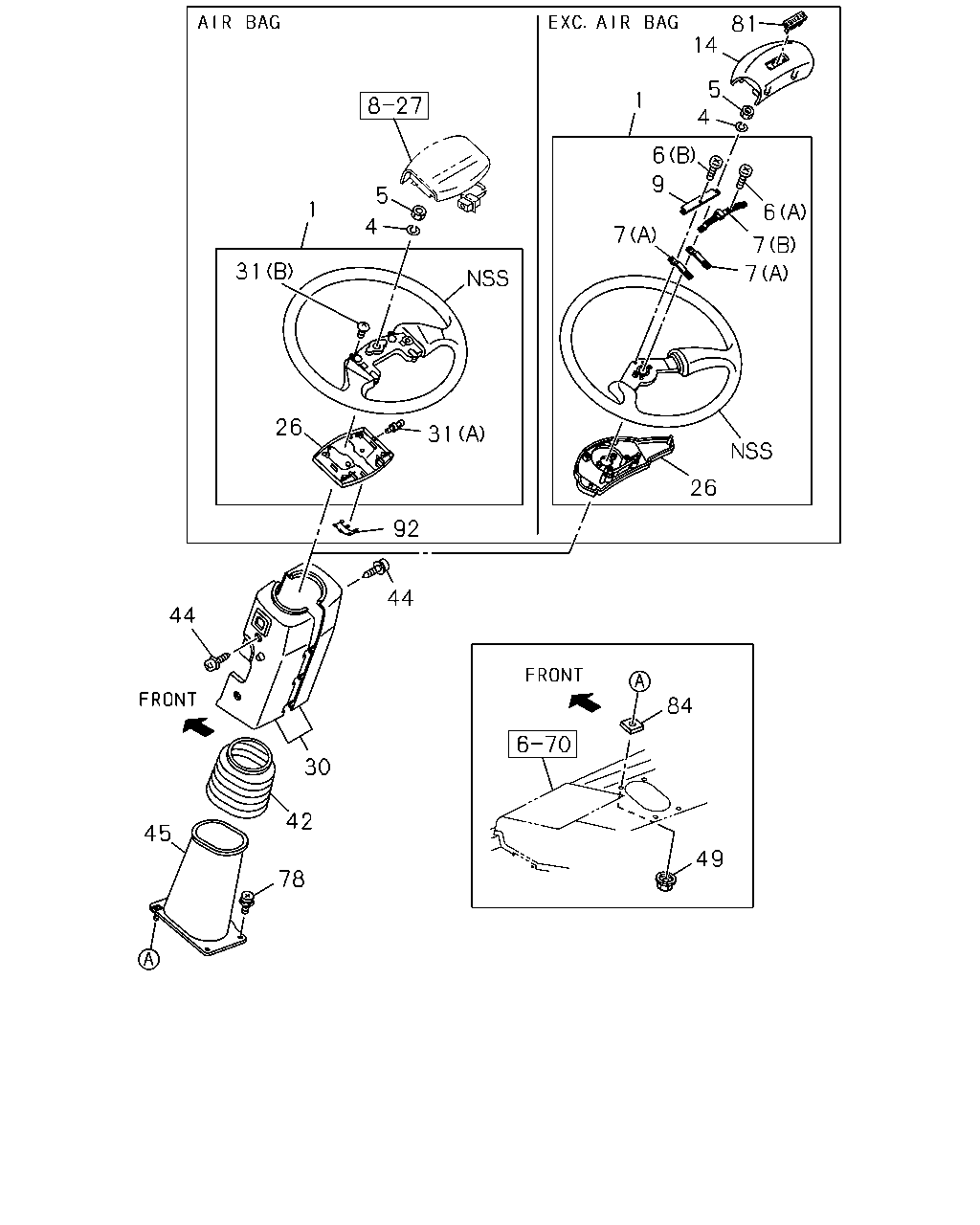

çizim 139501
81 14 5 1 4 6 9 5 1 6 4 7 7 31 7 26 31 26 92 44 44 84 30 42 45 49 78
BalonParca AdiParca NoAdetTipApplied Date
1 WHEEL; STRG
AIR BAG(TFQ) 		1-44110-166-2 01 1 0610-
1 WHEEL; STRG
EXC. AIR BAG(TFQ) 		1-44110-146-1 01 1 0610-
4 WASHER; LK,STRG WHEEL
ID=20.2 		0-91510-520-0 01 1 0610-
5 NUT; STRG WHEEL TO SHAFT
M20 		0-91111-520-0 01 1 0610-
6 SCREW; HORN SPR CONTACT
EXC. AIR BAG(TFQ) (B) M4X10 		1-44129-034-0 01 1 0610-
6 SCREW; HORN SPR CONTACT
EXC. AIR BAG(TFQ) (A) M4X16 		1-44129-036-0 04 1 0610-
7 SPRING; HORN CONTACT
EXC. AIR BAG(TFQ) (A) 		1-44129-033-0 02 1 0610-
7 SPRING; HORN CONTACT
EXC. AIR BAG(TFQ) (B) 		1-44129-037-0 01 1 0610-
9 PLATE; HORN CONTACT
EXC. AIR BAG(TFQ) 		1-44129-038-0 01 1 0610-
14 BUTTON; HORN,STRG WHEEL
EXC. AIR BAG(TFQ) 		1-44120-045-2 01 1 0610-
26 COVER; STRG WHEEL,LWR
AIR BAG(TFQ) 		1-44129-057-1 01 1 0610-
26 COVER; STRG WHEEL,LWR
EXC. AIR BAG(TFQ) 		1-44129-039-1 01 1 0610-
30 COWL; STEERING
AIR BAG(TFQ) 		1-79907-070-0 01 1 0610-
30 COWL; STEERING
EXC. AIR BAG(TFQ) 		1-79997-342-3 01 1 0610-
31 SCREW; BOSS TO COVER
AIR BAG(TFQ) (A) 		1-09169-005-0 02 1 0610-
31 SCREW; BOSS TO COVER
AIR BAG(TFQ) (B) M4X14 TAPPING 		9-07066-414-0 04 1 0610-
42 BOOT; STEERING COLUMN 1-79996-385-1 01 1 0610-
44 SCREW; STRG COWL
M6X12 		8-97094-854-0 04 1 0610-
45 BOOT; STRG SHAFT 1-79998-738-2 01 1 0610-
49 NUT; BOOT,STRG SHAFT
M6 FLANGE 		1-09984-141-0 02 1 0610-1205
49 NUT; BOOT,STRG SHAFT
M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 1206-
78 BOLT; STRG
M6X28 W/LK&PL WASHER 		1-09980-543-0 02 1 0610-
81 EMBLEM; STRG WHEEL
EXC. AIR BAG(TFQ) 		1-76210-638-1 01 1 0610-
84 SEAL; WATER
25X25 		8-94272-533-0 02 1 0610-1205
92 LID; WHEEL COVER
AIR BAG(TFQ) 		1-44119-001-1 01 1 0610-
