4-20 — REAR AXLE CASE AND SHAFT (#26546) — 81 parça

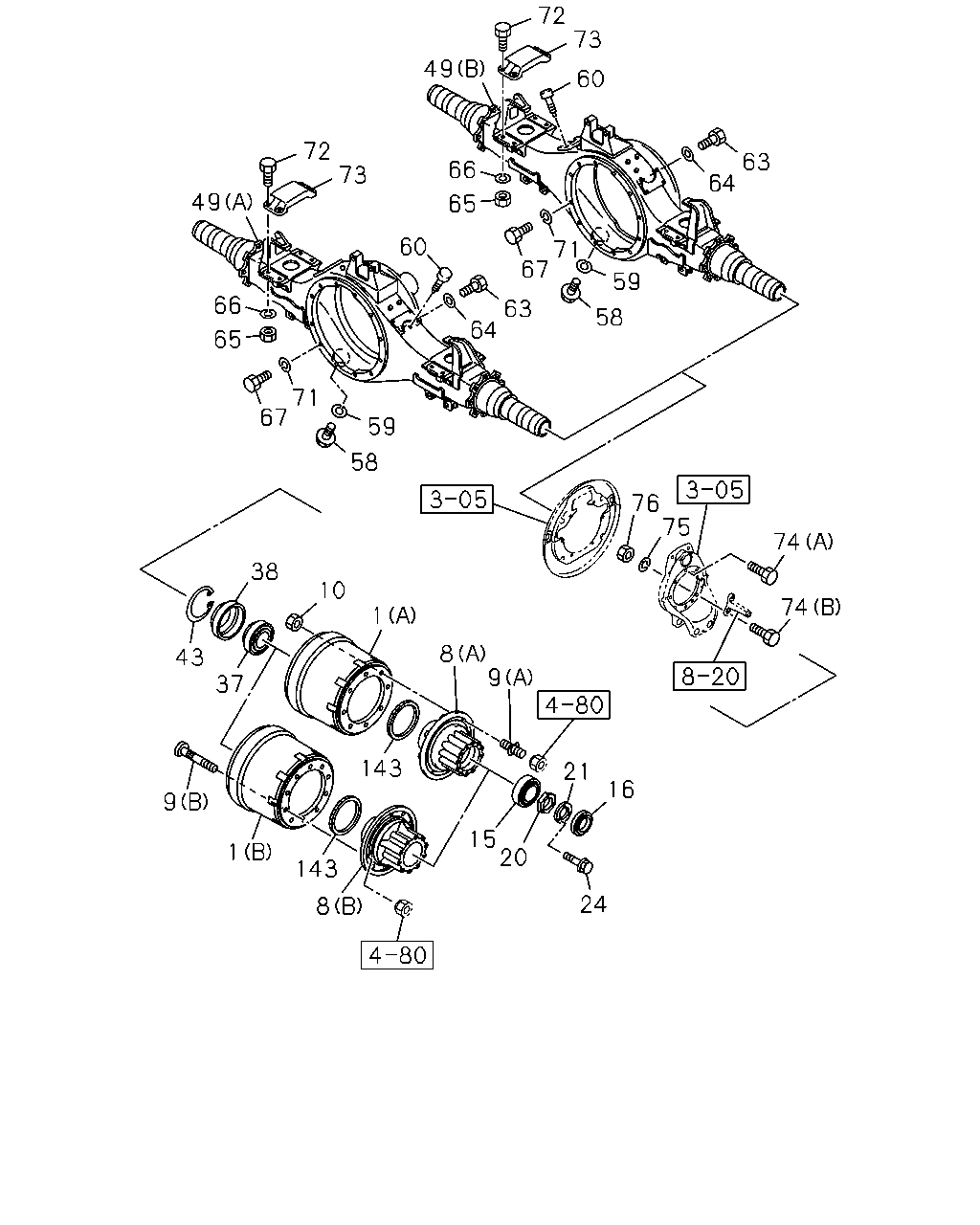

72 73 49 60 72 73 63 64 66 49 65 71 67 60 59 66 63 64 58 65 71 67 59 58 76 75 74 38 10 74 1 8 9 43 37 143 21 16 9 15 20 1 143 24 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DRUM; BRK,RR INTERNATIONAL STANDARD ISO 10STUD<B3V> (B)	1-42315-377-2	04	1	0610-
1	DRUM; BRK,RR EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (A)	1-42315-358-0	04	1	0610-
8	HUB; RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> (B) FORWARD	1-42311-085-0	02	1	0610-
8	HUB; RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> (B) REARWARD	1-42311-094-0	02	1	0610-
8	HUB; RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (A) FORWARD	1-42311-104-0	02	1	0610-
8	HUB; RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (A) REARWARD	1-42311-105-0	02	1	0610-
9	PIN; WHEEL,RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> (B) M22X93 RH THREAD	1-42337-066-2	40	1	0610-0705
9	PIN; WHEEL,RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL STEEL<SDN> (B) M22X93 RH THREAD	1-42337-066-2	40	1	0706-
9	PIN; WHEEL,RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (A) M20X34.5,M22X51.5 RH THREAD	1-42331-110-2	16	1	0610-
9	PIN; WHEEL,RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (A) M20X34.5 LH THREAD,M22X51.5 RH THREAD	1-42332-110-2	16	1	0610-
9	PIN; WHEEL,RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> DISC WHEEL AL<SDM> (B) M22X109 RH THREAD	1-42337-076-1	40	1	0706-
10	NUT; WHEEL PIN,RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> M22 FLANGE	1-09440-065-0	32	1	0610-
15	BEARING; HUB OUTER,RR AXLE SKF	1-09812-256-0	02	1	1209-
15	BEARING; HUB OUTER,RR AXLE JTEKT	1-09812-232-0	04	1	0610-
15	BEARING; HUB OUTER,RR AXLE BEST VALUE PARTS	1-87610-136-0	02	1	1209-
16	SEAL; OIL,RR HUB,OUTER TKK	1-09625-444-0	04	1	0610-
20	NUT; BRG,RR HUB FINAL GEAR 41/8 17.5"(W4A) TAPER LEAF SUSP RR<SAT> M88	9-09843-062-2	02	1	0610-0705
20	NUT; BRG,RR HUB FINAL GEAR 41/8 17.5"(W4A) TAPER LEAF SUSP RR<SAT> M88	9-09843-062-2	02	1	0610-0705
20	NUT; BRG,RR HUB FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 39/9 16.5"(W4Q) M88	9-09843-062-2	02	1	0610-0705
20	NUT; BRG,RR HUB FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 39/9 16.5"(W4Q) M88	9-09843-062-2	02	1	0610-0705
20	NUT; BRG,RR HUB FINAL GEAR 41/8 17.5"(W4A) TAPER LEAF SUSP RR<SAT> M88	9-09843-062-2	02	1	0706-
20	NUT; BRG,RR HUB FINAL GEAR 41/8 17.5"(W4A) TAPER LEAF SUSP RR<SAT> M88	9-09843-062-2	02	1	0706-
20	NUT; BRG,RR HUB FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 39/9 16.5"(W4Q) M88	9-09843-062-2	02	1	0706-
20	NUT; BRG,RR HUB FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 39/9 16.5"(W4Q) M88	9-09843-062-2	02	1	0706-
20	NUT; BRG,RR HUB FINAL GEAR 41/8 17.5"(W4A) MULTI LEAF SUSP RR<SAS> M88	9-09843-062-2	04	1	0610-
21	WASHER; LK,BRG NUT ID=88	9-09854-112-0	04	1	0610-
24	BOLT; LK WASHER M6X16 FLANGE	0-28650-616-0	12	1	0610-
37	BEARING; HUB INNER,RR AXLE BEST VALUE PARTS	1-87610-138-0	02	1	1209-
37	BEARING; HUB INNER,RR AXLE SKF	1-09812-257-0	02	1	1209-
37	BEARING; HUB INNER,RR AXLE JTEKT	1-09812-233-0	04	1	0610-
38	SEAL; OIL,RR HUB,INNER NOK	1-09625-265-0	04	1	0610-
38	SEAL; OIL,RR HUB,INNER TKK	1-09625-350-0	04	1	0610-
43	RING; SNAP,HUB SEAL,RR AXLE OD=179	1-09587-057-0	04	1	0610-
49	CASE; RR AXLE FINAL GEAR 41/8 17.5"(W4A) MULTI LEAF SUSP RR<SAS> (A)	1-42190-489-2	01	1	0610-
49	CASE; RR AXLE FINAL GEAR 41/8 17.5"(W4A) MULTI LEAF SUSP RR<SAS> (B)	1-42190-538-2	01	1	0610-
49	CASE; RR AXLE FINAL GEAR 41/8 17.5"(W4A) TAPER LEAF SUSP RR<SAT> (A)	1-42190-477-1	01	1	0610-
49	CASE; RR AXLE FINAL GEAR 39/8 17.5"(W4B) (A)	1-42190-477-1	01	1	0610-
49	CASE; RR AXLE FINAL GEAR 41/8 17.5"(W4A) TAPER LEAF SUSP RR<SAT> (B)	1-42190-565-0	01	1	0610-0705
49	CASE; RR AXLE FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 39/9 16.5"(W4Q) (B)	1-42190-565-0	01	1	0610-0705
49	CASE; RR AXLE FINAL GEAR 41/8 17.5"(W4A) TAPER LEAF SUSP RR<SAT> (B)	1-42190-565-1	01	1	0706-
49	CASE; RR AXLE FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 39/9 16.5"(W4Q) (B)	1-42190-565-1	01	1	0706-
49	CASE; RR AXLE FINAL GEAR 39/9 16.5"(W4Q) (A)	1-42190-670-0	01	1	0610-0705
49	CASE; RR AXLE FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q) (A)	1-42190-670-1	01	1	0706-
58	PLUG; DRAIN,AXLE CASE M24X17 FLANGE	1-09604-023-0	02	1	0610-
59	GASKET; DRAIN PLUG ID=26.8	9-09920-605-0	02	1	0610-
60	BREATHER; RR AXLE CASE	1-09893-011-1	02	1	0610-1412
60	BREATHER; RR AXLE CASE	1-09893-003-0	02	1	1501-1509
60	BREATHER; RR AXLE CASE	1-09893-011-1	02	1	1510-
63	PLUG; OIL FILLER,AXLE CASE M24X17 FLANGE	1-09604-022-0	02	1	0610-
64	GASKET; OIL FILLER,AXLE CASE ID=26.8	9-09920-605-0	02	1	0610-0703
64	GASKET; OIL FILLER,AXLE CASE ID=26.8	9-09920-605-0	01	1	0704-
65	NUT M14	0-91110-514-0	16	1	0610-
66	WASHER; LK ID=14.2	0-91510-814-0	16	1	0610-
67	BOLT; FINAL DRIVE SETTING FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B) M16X40	0-20951-640-0	07	1	0610-
67	BOLT; FINAL DRIVE SETTING M16X70	0-10956-670-0	08	1	0610-
67	BOLT; FINAL DRIVE SETTING M16X40	0-20951-640-0	08	1	0610-
67	BOLT; FINAL DRIVE SETTING FINAL GEAR 39/9 16.5"(W4Q) M16X40	0-20951-640-0	06	1	0610-0705
67	BOLT; FINAL DRIVE SETTING FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q) M16X40	0-20951-640-0	06	1	0706-
71	WASHER; LK,FINAL DRIVE SETTING ID=16.2	0-91510-816-0	24	1	0610-
72	BOLT; PAD FIX M14X45	9-92061-445-0	16	1	0610-0805
72	BOLT; PAD FIX M14X40	0-20951-440-0	16	1	0806-
73	PAD; RR SPR CONTACT	1-42124-101-0	04	1	0610-
74	BOLT; RR BRK ASM SETTING (B) REARWARD M14X80	9-92621-480-0	04	1	0610-1504
74	BOLT; RR BRK ASM SETTING (B) REARWARD M14X60	1-09040-084-0	04	1	1505-
74	BOLT; RR BRK ASM SETTING (A) REARWARD M14X50	1-09040-066-0	12	1	0610-
74	BOLT; RR BRK ASM SETTING (A) FORWARD M14X50	1-09040-066-0	16	1	0610-
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	0-91510-814-0	32	1	0610-
76	NUT; RR BRK ASM SETTING M14	0-91110-514-0	32	1	0610-
143	RING; EXCITER REARWARD	1-42319-173-0	02	1	0610-

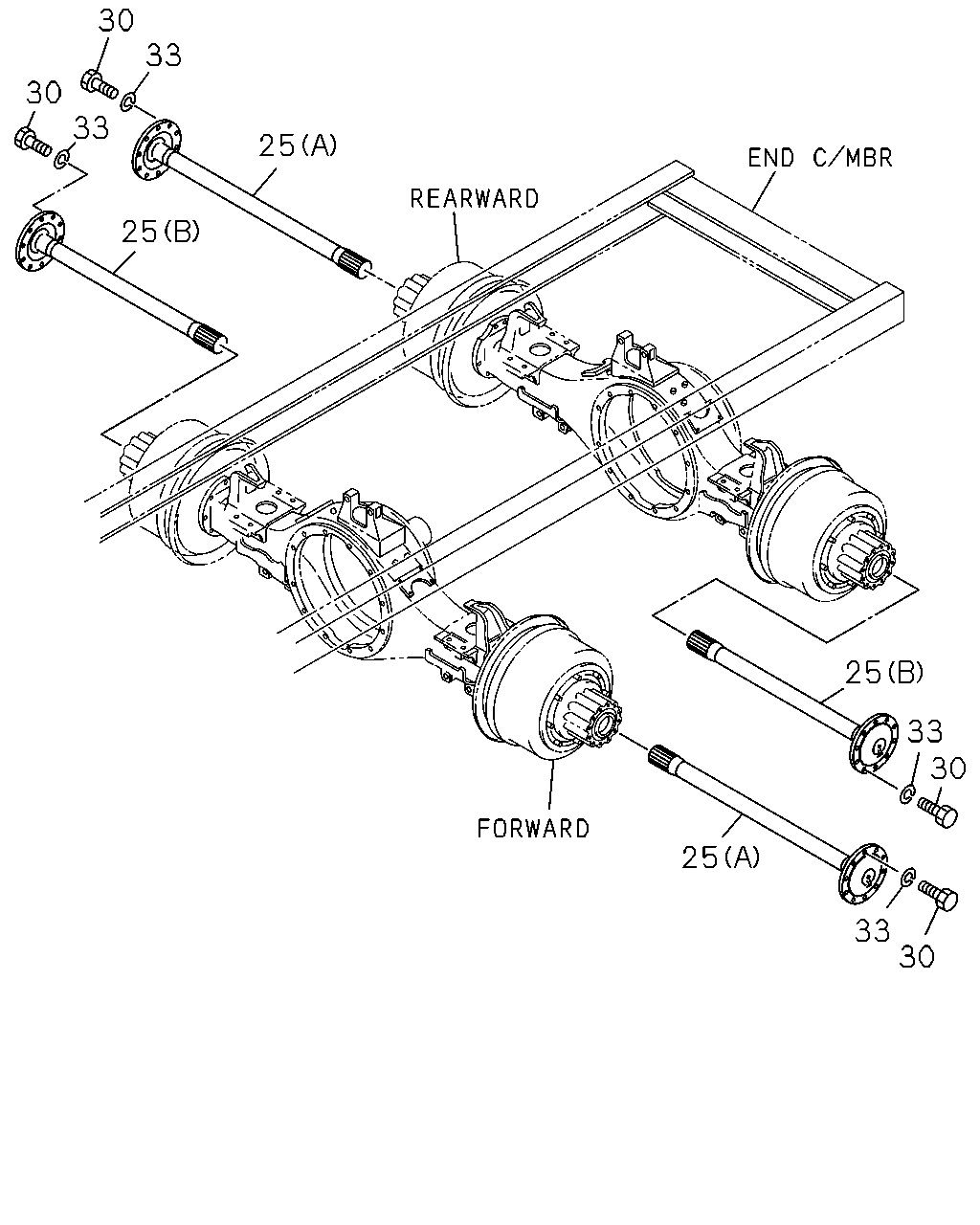

30 33 30 33 25 25 25 33 30 25 33 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
25	SHAFT; AXLE,RR FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B) (B) L=976	1-42171-356-0	02	1	0610-0910
25	SHAFT; AXLE,RR FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B) (B) L=990	8-98146-166-0	02	1	0911-
25	SHAFT; AXLE,RR FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B) (A) L=1106	1-42171-357-0	02	1	0610-0910
25	SHAFT; AXLE,RR FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B) (A) L=1110	8-98146-167-0	02	1	0911-
25	SHAFT; AXLE,RR FINAL GEAR 39/9 16.5"(W4Q) (A) L=1111	1-42171-384-0	02	1	0610-0705
25	SHAFT; AXLE,RR FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q) (A) L=1111	1-42171-384-0	02	1	0706-0910
25	SHAFT; AXLE,RR FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q) (A) L=1121	8-98146-160-0	02	1	0911-
25	SHAFT; AXLE,RR FINAL GEAR 39/9 16.5"(W4Q) (B) L=960	1-42171-385-0	02	1	0610-0705
25	SHAFT; AXLE,RR FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q) (B) L=960	1-42171-385-0	02	1	0706-0910
25	SHAFT; AXLE,RR FINAL GEAR 41/8 16.5"(W3P),FINAL GEAR 39/9 16.5"(W4Q) (B) L=976	8-98146-161-0	02	1	0911-
30	BOLT; HUB TO AXLE SHAFT M14X58	1-09000-582-0	40	1	0610-
33	WASHER; AXLE SHAFT ID=14.2	0-91510-814-0	40	1	0610-
