Sayfa 3-78 - Isuzu EPC

3-78 — FIXING PARTS; AIR PIPING (#26542) — 275 parça

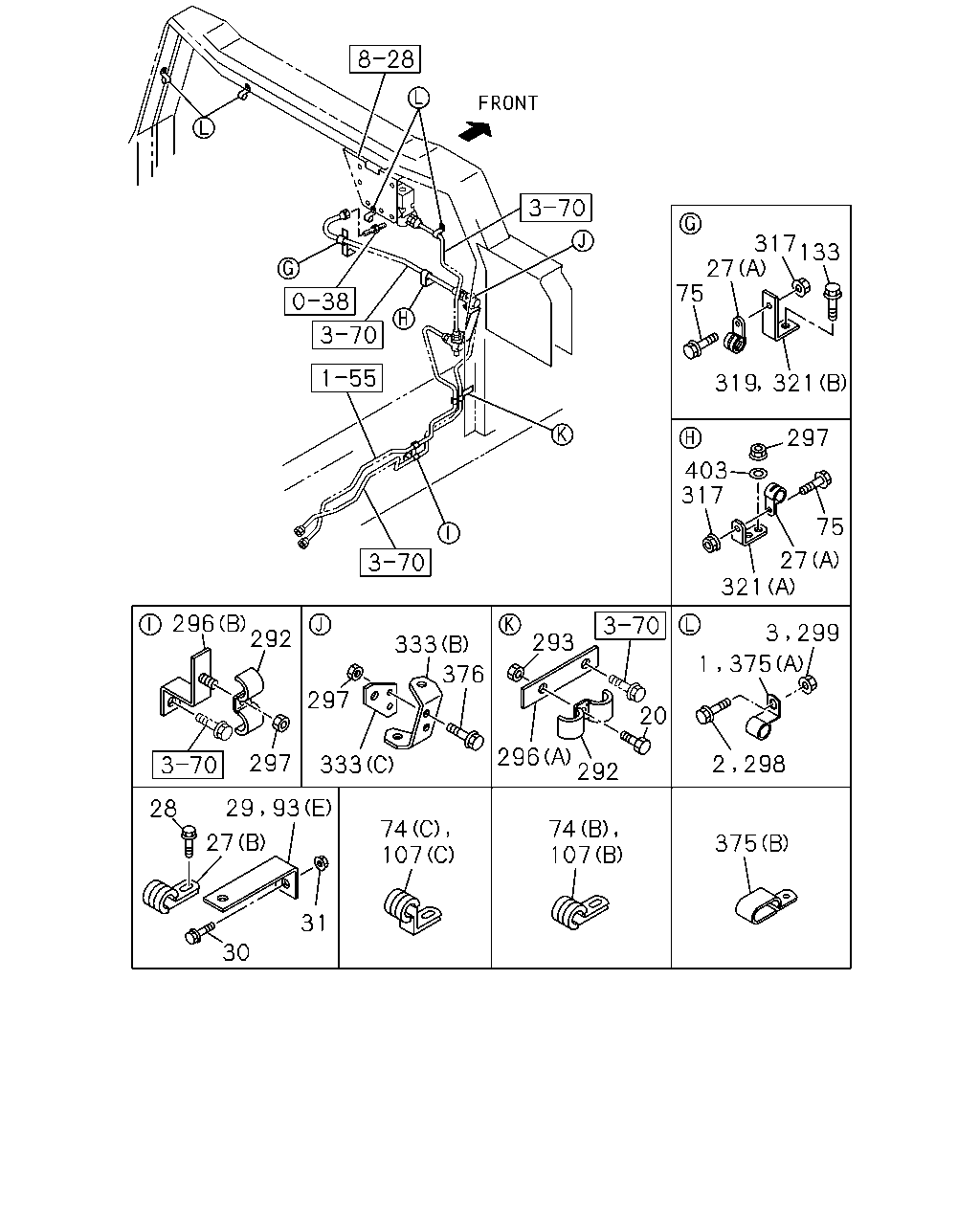

30 31 74 107 74 107 375 2 298 27 29 93 28 297 333 297 292 296 333 376 293 20 292 296 1 375 3 299 321 27 75 403 317 319 321 133 317 27 75 297

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CLIP; AIR PIPE ID=6 H=20 L=20	1-09700-603-0	01	1	0610-
2	BOLT; CLIP FIX M8X20 FLANGE	0-28650-820-0	02	1	0610-
3	NUT; CLIP,AIR PIPE M8 FLANGE	0-91180-108-0	01	1	0610-
20	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	0610-
20	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	06	1	0610-
27	CLIP; FLEX HOSE (B) ID=26 L=27	1-09701-006-0	01	1	0610-
27	CLIP; FLEX HOSE EXC. MIXER TRUCK<RA2> (A) ID=15 L=28	1-09701-216-0	02	1	0610-
28	BOLT; CLIP,FLEX HOSE M8X20 FLANGE	0-28650-820-0	01	1	0610-
29	BRACKET; CLIP,AIR PIPE L=145 B=25	1-47479-123-0	01	1	0610-
30	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	01	1	0610-
31	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	01	1	0610-
74	CLIP; NYLON TUBE EXC. BRAKE SYSTEM HSA<SLD> (A) L=350	1-09707-183-0	01	1	0611-
74	CLIP; NYLON TUBE WHEEL BASE 6600MM(66W) (A) L=350	1-09707-183-0	19	1	0610-0610
74	CLIP; NYLON TUBE WHEEL BASE 6600MM(66W) (A) L=350	1-09707-183-0	20	1	0611-0803
74	CLIP; NYLON TUBE WHEEL BASE 6600MM(66W) (A) L=350	1-09707-183-0	21	1	0804-
74	CLIP; NYLON TUBE (C) ID=31 H=30 L=35	1-09700-994-0	02	1	0610-
74	CLIP; NYLON TUBE (B) ID=13	1-09701-030-1	03	1	0610-
74	CLIP; NYLON TUBE (C) ID=45 H=31 L=35	1-09701-308-0	03	1	0610-
74	CLIP; NYLON TUBE WHEEL BASE 6300MM(63W) (A) L=350	1-09707-183-0	16	1	0610-0610
74	CLIP; NYLON TUBE WHEEL BASE 6300MM(63W) (A) L=350	1-09707-183-0	17	1	0610-
75	BOLT; CLIP EXC. MIXER TRUCK<RA2> M8X20 FLANGE	0-28650-820-0	02	1	0610-
93	BRACKET; PIPE CLIP (B) L=85 H=40	1-47476-676-0	01	1	0610-
93	BRACKET; PIPE CLIP (A) L=175 H=30	1-47479-386-1	01	1	0610-
93	BRACKET; PIPE CLIP (C) L=95	1-82699-085-0	02	1	0610-
93	BRACKET; PIPE CLIP (D)	1-82698-358-0	02	1	0610-
93	BRACKET; PIPE CLIP (E) L=80 H=20	1-82699-304-0	02	1	0610-
107	CLIP; NYLON TUBE (C) ID=25 H=30 L=35	1-09700-875-0	03	1	0610-
107	CLIP; NYLON TUBE (B) ID=26 L=27	1-09701-006-0	01	1	0610-
107	CLIP; NYLON TUBE (B) ID=28 L=40	1-09701-261-0	01	1	0610-
107	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	11	1	0610-
133	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	01	1	0610-
133	BOLT; BRKT MIXER TRUCK<RA2> M8X20 FLANGE	0-28650-820-0	01	1	0610-
133	BOLT; BRKT WHEEL BASE 6300MM(63W) M8X35 FLANGE	0-28650-835-0	03	1	0610-
133	BOLT; BRKT WHEEL BASE 6600MM(66W) M8X25 FLANGE	0-28650-825-0	03	1	0610-
133	BOLT; BRKT WHEEL BASE 6600MM(66W) M8X30 FLANGE	0-28650-830-0	02	1	0610-
133	BOLT; BRKT M8X12 FLANGE	0-28050-812-0	02	1	0610-
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	17	1	0610-
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	07	1	0610-
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	01	1	0610-
133	BOLT; BRKT EXC. MIXER TRUCK<RA2> M6X10 FLANGE	0-28050-610-0	01	1	0610-
292	CLIP; AIR PIPE ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	02	1	0610-
293	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0610-
296	BRACKET; CLIP (A)	1-47475-648-0	01	1	0610-
296	BRACKET; CLIP (B) L=85 H=40	1-47476-676-0	01	1	0610-
297	NUT; BRKT MIXER TRUCK<RA2> M8 FLANGE	0-91180-108-0	01	1	0610-
297	NUT; BRKT WHEEL BASE 6300MM(63W) M8 FLANGE	0-91180-108-0	17	1	0610-
297	NUT; BRKT WHEEL BASE 6600MM(66W) M8 FLANGE	0-91180-108-0	18	1	0610-
297	NUT; BRKT M8 FLANGE	0-91180-108-0	05	1	0610-
297	NUT; BRKT EXC. MIXER TRUCK<RA2> M12 FLANGE	0-91180-212-0	01	1	0610-
298	BOLT; CLIP MIXER TRUCK<RA2> M8X20 FLANGE	0-28650-820-0	03	1	0610-
299	NUT; CLIP MIXER TRUCK<RA2> M8 FLANGE	0-91180-108-0	03	1	0610-
317	NUT; CLIP EXC. MIXER TRUCK<RA2> M8 FLANGE	0-91180-108-0	02	1	0610-
319	BRACKET; CLIP MIXER TRUCK<RA2> L=75	1-47477-119-0	01	1	0610-
321	BRACKET; CLIP EXC. MIXER TRUCK<RA2> (A)	1-47477-337-1	01	1	0610-
321	BRACKET; CLIP EXC. MIXER TRUCK<RA2> (B) L=75	1-47478-328-0	01	1	0610-
333	BRACKET; BRK AIR PIPE MIXER TRUCK<RA2> (C)	1-47479-480-0	01	1	0610-
333	BRACKET; BRK AIR PIPE (B)	1-47477-045-0	01	1	0610-
333	BRACKET; BRK AIR PIPE (A)	1-79997-339-6	01	1	0610-0702
333	BRACKET; BRK AIR PIPE (A)	1-79907-131-0	01	1	0703-0801
333	BRACKET; BRK AIR PIPE (A)	1-79907-150-0	01	1	0802-
375	CLIP; AIR PIPE MIXER TRUCK<RA2> (B) ID=7 L=20	0-95234-635-0	02	1	0610-
375	CLIP; AIR PIPE MIXER TRUCK<RA2> (A) ID=6 H=20 L=20	1-09700-603-0	01	1	0610-
376	BOLT; BRKT ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) M8X20 FLANGE	0-28650-820-0	01	1	0908-
376	BOLT; BRKT MIXER TRUCK<RA2> M8X25 FLANGE	0-28650-825-0	02	1	0610-
376	BOLT; BRKT EXC. MIXER TRUCK<RA2> M8X20 FLANGE	0-28650-820-0	02	1	0610-
403	WASHER; PL SMOOTHER-G(C1W) D=12	0-91614-612-0	01	1	1212-

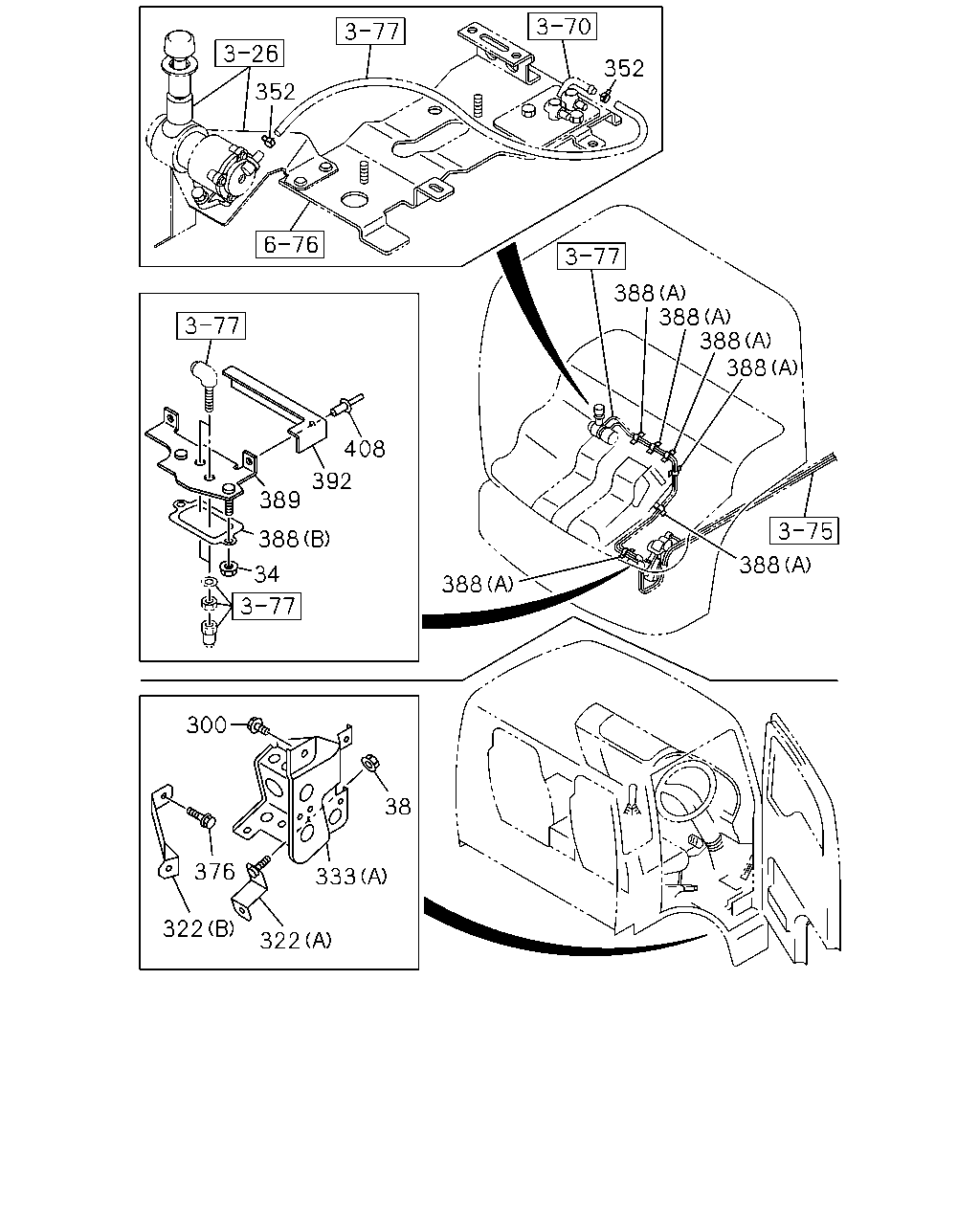

352 352 388 388 388 388 408 392 389 388 388 34 388 300 38 376 333 322 322

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	NUT; BRKT M8 CUTTING NUT W/FLANGE	1-09985-340-0	02	1	0610-
34	NUT; BRKT WHEEL BASE 6600MM(66W) M8 FLANGE	0-91180-108-0	01	1	0610-0610
34	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0610-
38	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0610-0702
300	BOLT; TUBE CLIP M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	0610-0904
300	BOLT; TUBE CLIP M8X24.5 W/LK&PL WASHER	8-98059-720-0	03	1	0905-
322	BRACKET; CLIP ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) (B)	8-98152-740-1	01	1	0908-
322	BRACKET; CLIP (A)	1-79996-659-1	01	1	0610-0702
333	BRACKET; BRK AIR PIPE MIXER TRUCK<RA2> (C)	1-47479-480-0	01	1	0610-
333	BRACKET; BRK AIR PIPE (B)	1-47477-045-0	01	1	0610-
333	BRACKET; BRK AIR PIPE (A)	1-79997-339-6	01	1	0610-0702
333	BRACKET; BRK AIR PIPE (A)	1-79907-131-0	01	1	0703-0801
333	BRACKET; BRK AIR PIPE (A)	1-79907-150-0	01	1	0802-
352	CLIP; EXH HOSE ID=14	8-94238-572-0	02	1	0610-
376	BOLT; BRKT ECE R11; DOOR LATCHES AND DOOR RETENTION (VNT) M8X20 FLANGE	0-28650-820-0	01	1	0908-
376	BOLT; BRKT MIXER TRUCK<RA2> M8X25 FLANGE	0-28650-825-0	02	1	0610-
376	BOLT; BRKT EXC. MIXER TRUCK<RA2> M8X20 FLANGE	0-28650-820-0	02	1	0610-
388	SEAL (B)	1-47478-174-1	01	1	0610-
388	SEAL (A) 180X40	1-72498-019-1	07	1	0610-
389	BRACKET; UNION	1-47479-166-1	01	1	0610-
392	COVER; BRKT	1-79907-090-0	01	1	0610-
408	FASTENER; COVER D8X13.5	1-09987-248-1	02	1	0610-

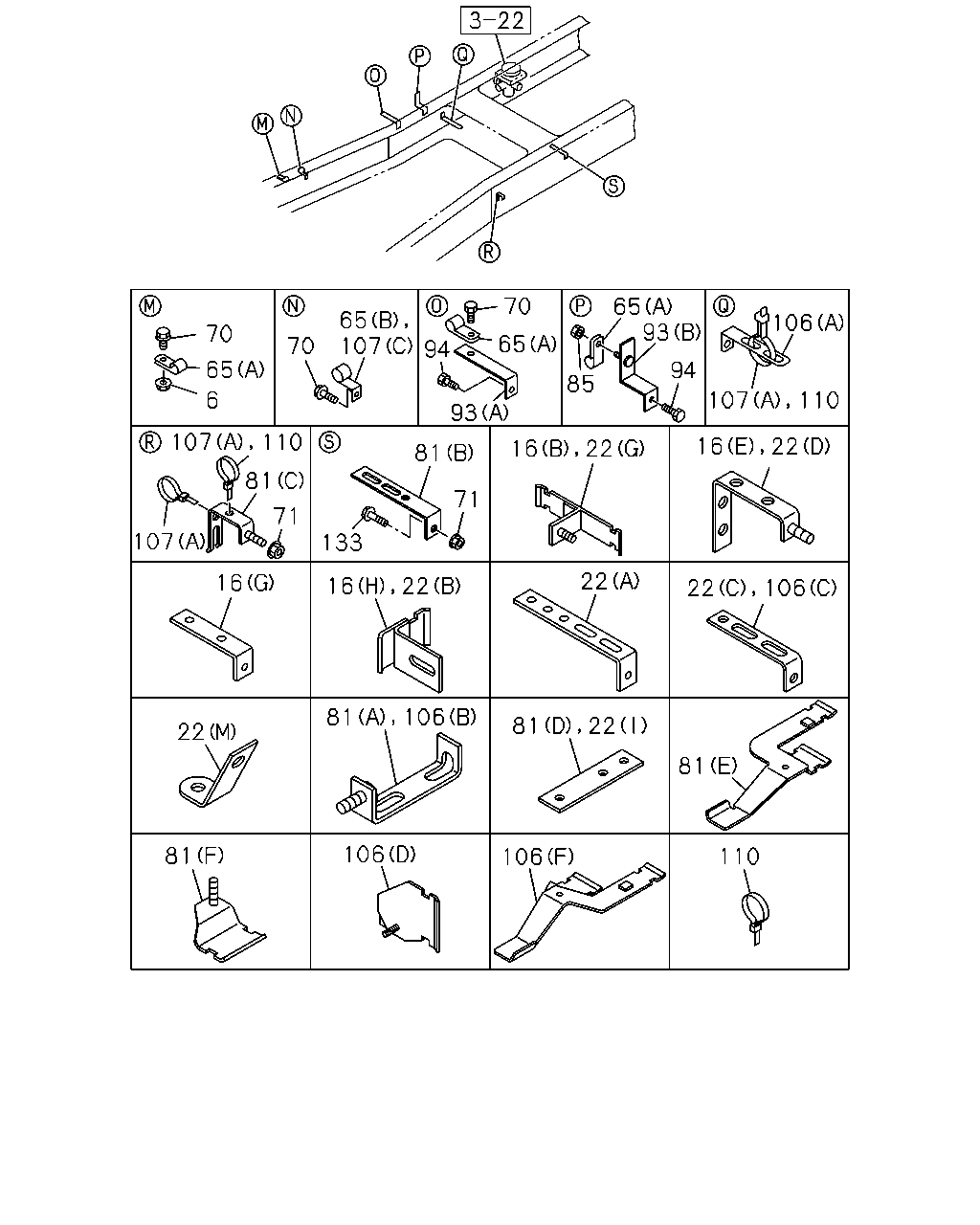

70 65 93 65 107 106 70 65 70 94 65 94 85 6 107 110 93 107 110 81 81 71 71 107 133 22 16 22 106 81 106 22 81 106 81 110 106 16 22 22 16 16 22 81 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	06	1	0610-0610
6	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	08	1	0610-
16	BRACKET; PIPE CLIP WHEEL BASE 6300MM(63W) (I)	1-47479-381-2	04	1	0610-
16	BRACKET; PIPE CLIP WHEEL BASE 6600MM(66W) (I)	1-47479-381-2	07	1	0610-0610
16	BRACKET; PIPE CLIP WHEEL BASE 6600MM(66W) (I)	1-47479-381-2	05	1	0611-
16	BRACKET; PIPE CLIP (G) L=30	1-47479-481-0	01	1	0610-
16	BRACKET; PIPE CLIP (A)	1-47479-546-0	01	1	0610-
16	BRACKET; PIPE CLIP (B)	1-47479-554-0	01	1	0610-
16	BRACKET; PIPE CLIP (H)	1-47479-693-0	01	1	0610-
16	BRACKET; PIPE CLIP (F)	1-47479-720-0	01	1	0610-
16	BRACKET; PIPE CLIP (J)	1-47479-721-0	02	1	0610-
16	BRACKET; PIPE CLIP (D)	1-47479-722-1	01	1	0610-
16	BRACKET; PIPE CLIP (E)	1-47479-800-0	01	1	0610-
16	BRACKET; PIPE CLIP (C)	1-47479-898-0	01	1	0610-
22	BRACKET; CLIP WHEEL BASE 6300MM(63W) (H)	1-47479-381-2	07	1	0610-
22	BRACKET; CLIP WHEEL BASE 6600MM(66W) (H)	1-47479-381-2	08	1	0610-
22	BRACKET; CLIP (I) L=130	1-47478-959-0	02	1	0610-
22	BRACKET; CLIP (F)	1-47479-329-0	01	1	0610-
22	BRACKET; CLIP (J)	1-47479-546-0	01	1	0610-
22	BRACKET; CLIP (G)	1-47479-554-0	01	1	0610-
22	BRACKET; CLIP (B)	1-47479-693-0	02	1	0610-
22	BRACKET; CLIP (K)	1-47479-720-0	01	1	0610-
22	BRACKET; CLIP (L)	1-47479-722-1	01	1	0610-
22	BRACKET; CLIP (C)	1-47479-754-0	01	1	0610-
22	BRACKET; CLIP (A) L=160 H=30	1-47479-759-0	07	1	0610-
22	BRACKET; CLIP (D)	1-47479-800-0	01	1	0610-
22	BRACKET; CLIP (E)	1-47479-898-0	01	1	0610-
22	BRACKET; CLIP WHEEL BASE 6600MM(66W) (M)	1-47477-571-3	01	1	0610-0610
22	BRACKET; CLIP (M)	1-47477-571-3	01	1	0610-
65	CLIP; AIR PIPE (A) ID=19 L=28	0-95235-856-0	02	1	0610-
65	CLIP; AIR PIPE (B) ID=12 H=24 L=20	1-09700-605-0	02	1	0610-
65	CLIP; AIR PIPE (A) ID=13 L=20	0-95235-235-0	04	1	0610-0610
65	CLIP; AIR PIPE (A) ID=13 L=20	0-95235-235-0	06	1	0610-
70	BOLT; CLIP,AIR PIPE M8X30 FLANGE	0-28650-830-0	02	1	0610-
70	BOLT; CLIP,AIR PIPE M8X25 FLANGE	0-28650-825-0	06	1	0610-0610
70	BOLT; CLIP,AIR PIPE M8X25 FLANGE	0-28650-825-0	08	1	0610-
71	NUT; BRKT M8 FLANGE	0-91180-108-0	08	1	0610-0610
71	NUT; BRKT M8 FLANGE	0-91180-108-0	07	1	0610-
81	BRACKET; CLIP (A)	1-47471-274-0	01	1	0610-
81	BRACKET; CLIP (B) L=100 H=30	1-47477-645-2	03	1	0610-
81	BRACKET; CLIP (C)	1-47479-381-2	03	1	0610-
81	BRACKET; CLIP (E)	8-98043-314-0	01	1	0610-
81	BRACKET; CLIP (F)	8-98046-950-0	01	1	0610-
81	BRACKET; CLIP (D) L=150	1-47471-217-0	02	1	0610-0610
81	BRACKET; CLIP (D) L=130	1-47478-959-0	02	1	0610-
85	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	06	1	0610-0610
85	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	10	1	0610-
93	BRACKET; PIPE CLIP (B) L=85 H=40	1-47476-676-0	01	1	0610-
93	BRACKET; PIPE CLIP (A) L=175 H=30	1-47479-386-1	01	1	0610-
93	BRACKET; PIPE CLIP (C) L=95	1-82699-085-0	02	1	0610-
93	BRACKET; PIPE CLIP (D)	1-82698-358-0	02	1	0610-
93	BRACKET; PIPE CLIP (E) L=80 H=20	1-82699-304-0	02	1	0610-
94	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	04	1	0610-0610
94	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	08	1	0610-
106	BRACKET; TUBE CLIP (B)	1-47471-274-0	01	1	0610-
106	BRACKET; TUBE CLIP (E)	1-47477-514-3	01	1	0610-
106	BRACKET; TUBE CLIP (A) L=100 H=30	1-47477-645-2	04	1	0610-
106	BRACKET; TUBE CLIP (C)	1-47479-598-0	01	1	0610-
106	BRACKET; TUBE CLIP (F)	8-98043-312-0	01	1	0610-
106	BRACKET; TUBE CLIP (D)	8-98046-949-0	01	1	0610-
107	CLIP; NYLON TUBE (C) ID=25 H=30 L=35	1-09700-875-0	03	1	0610-
107	CLIP; NYLON TUBE (B) ID=26 L=27	1-09701-006-0	01	1	0610-
107	CLIP; NYLON TUBE (B) ID=28 L=40	1-09701-261-0	01	1	0610-
107	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	11	1	0610-
110	CLIP; BAND,NYLON TUBE L=350	1-09707-183-0	05	1	0610-0610
110	CLIP; BAND,NYLON TUBE L=350	1-09707-183-0	06	1	0610-
133	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	01	1	0610-
133	BOLT; BRKT MIXER TRUCK<RA2> M8X20 FLANGE	0-28650-820-0	01	1	0610-
133	BOLT; BRKT WHEEL BASE 6300MM(63W) M8X35 FLANGE	0-28650-835-0	03	1	0610-
133	BOLT; BRKT WHEEL BASE 6600MM(66W) M8X25 FLANGE	0-28650-825-0	03	1	0610-
133	BOLT; BRKT WHEEL BASE 6600MM(66W) M8X30 FLANGE	0-28650-830-0	02	1	0610-
133	BOLT; BRKT M8X12 FLANGE	0-28050-812-0	02	1	0610-
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	17	1	0610-
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	07	1	0610-
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	01	1	0610-
133	BOLT; BRKT EXC. MIXER TRUCK<RA2> M6X10 FLANGE	0-28050-610-0	01	1	0610-

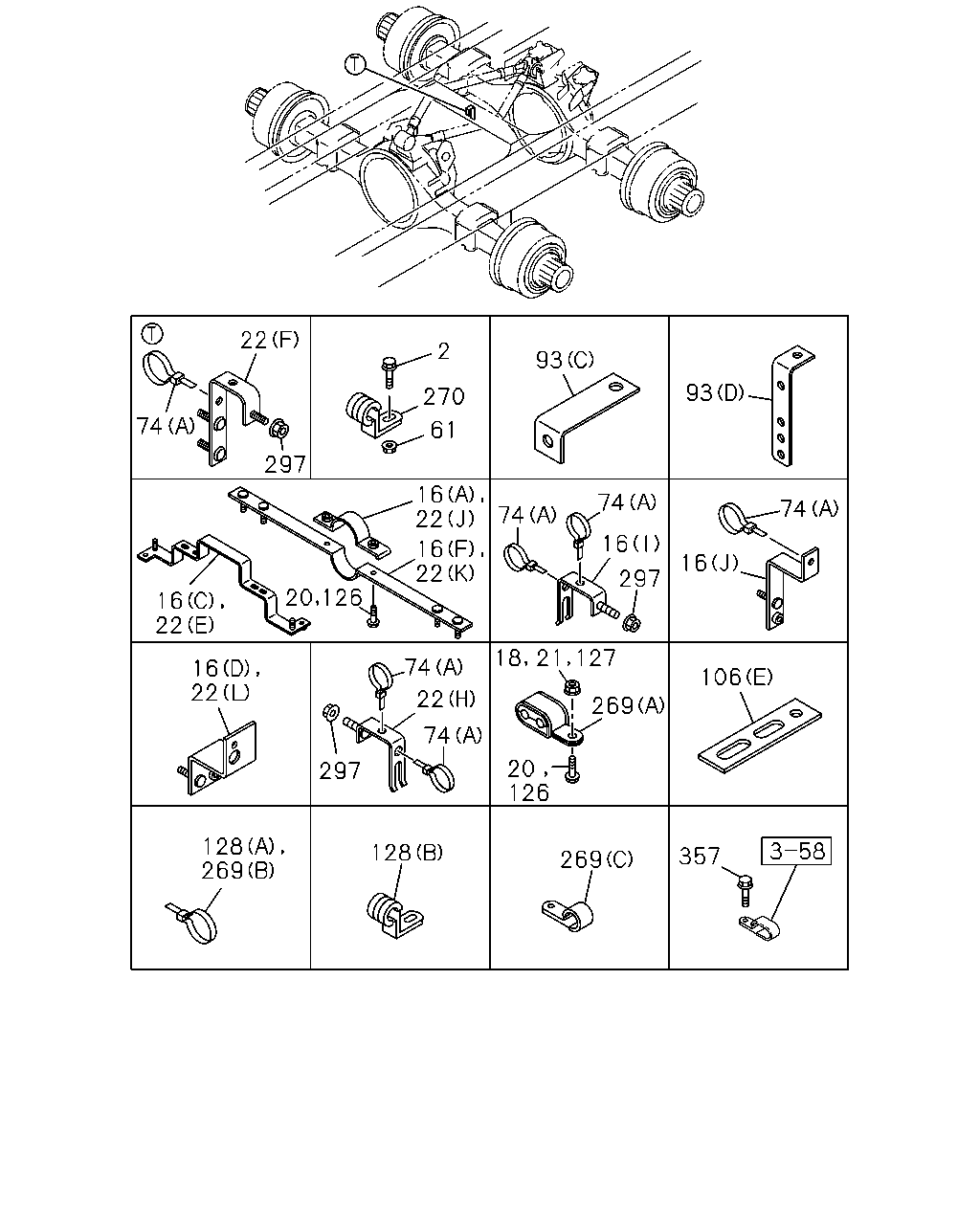

22 2 93 93 270 74 61 297 16 22 74 74 74 16 16 22 16 297 126 16 22 18 127 74 16 22 106 269 22 74 20 126 297 128 269 128 357 269 21 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	BOLT; CLIP FIX M8X20 FLANGE	0-28650-820-0	02	1	0610-
16	BRACKET; PIPE CLIP WHEEL BASE 6300MM(63W) (I)	1-47479-381-2	04	1	0610-
16	BRACKET; PIPE CLIP WHEEL BASE 6600MM(66W) (I)	1-47479-381-2	07	1	0610-0610
16	BRACKET; PIPE CLIP WHEEL BASE 6600MM(66W) (I)	1-47479-381-2	05	1	0611-
16	BRACKET; PIPE CLIP (G) L=30	1-47479-481-0	01	1	0610-
16	BRACKET; PIPE CLIP (A)	1-47479-546-0	01	1	0610-
16	BRACKET; PIPE CLIP (B)	1-47479-554-0	01	1	0610-
16	BRACKET; PIPE CLIP (H)	1-47479-693-0	01	1	0610-
16	BRACKET; PIPE CLIP (F)	1-47479-720-0	01	1	0610-
16	BRACKET; PIPE CLIP (J)	1-47479-721-0	02	1	0610-
16	BRACKET; PIPE CLIP (D)	1-47479-722-1	01	1	0610-
16	BRACKET; PIPE CLIP (E)	1-47479-800-0	01	1	0610-
16	BRACKET; PIPE CLIP (C)	1-47479-898-0	01	1	0610-
18	NUT; CLIP M8 FLANGE	0-91180-108-0	09	1	0610-
20	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	0610-
20	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	06	1	0610-
21	NUT; CLIP M8 FLANGE	0-91180-108-0	10	1	0610-
22	BRACKET; CLIP WHEEL BASE 6300MM(63W) (H)	1-47479-381-2	07	1	0610-
22	BRACKET; CLIP WHEEL BASE 6600MM(66W) (H)	1-47479-381-2	08	1	0610-
22	BRACKET; CLIP (I) L=130	1-47478-959-0	02	1	0610-
22	BRACKET; CLIP (F)	1-47479-329-0	01	1	0610-
22	BRACKET; CLIP (J)	1-47479-546-0	01	1	0610-
22	BRACKET; CLIP (G)	1-47479-554-0	01	1	0610-
22	BRACKET; CLIP (B)	1-47479-693-0	02	1	0610-
22	BRACKET; CLIP (K)	1-47479-720-0	01	1	0610-
22	BRACKET; CLIP (L)	1-47479-722-1	01	1	0610-
22	BRACKET; CLIP (C)	1-47479-754-0	01	1	0610-
22	BRACKET; CLIP (A) L=160 H=30	1-47479-759-0	07	1	0610-
22	BRACKET; CLIP (D)	1-47479-800-0	01	1	0610-
22	BRACKET; CLIP (E)	1-47479-898-0	01	1	0610-
22	BRACKET; CLIP WHEEL BASE 6600MM(66W) (M)	1-47477-571-3	01	1	0610-0610
22	BRACKET; CLIP (M)	1-47477-571-3	01	1	0610-
61	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	03	1	0610-
74	CLIP; NYLON TUBE EXC. BRAKE SYSTEM HSA<SLD> (A) L=350	1-09707-183-0	01	1	0611-
74	CLIP; NYLON TUBE WHEEL BASE 6600MM(66W) (A) L=350	1-09707-183-0	19	1	0610-0610
74	CLIP; NYLON TUBE WHEEL BASE 6600MM(66W) (A) L=350	1-09707-183-0	20	1	0611-0803
74	CLIP; NYLON TUBE WHEEL BASE 6600MM(66W) (A) L=350	1-09707-183-0	21	1	0804-
74	CLIP; NYLON TUBE (C) ID=31 H=30 L=35	1-09700-994-0	02	1	0610-
74	CLIP; NYLON TUBE (B) ID=13	1-09701-030-1	03	1	0610-
74	CLIP; NYLON TUBE (C) ID=45 H=31 L=35	1-09701-308-0	03	1	0610-
74	CLIP; NYLON TUBE WHEEL BASE 6300MM(63W) (A) L=350	1-09707-183-0	16	1	0610-0610
74	CLIP; NYLON TUBE WHEEL BASE 6300MM(63W) (A) L=350	1-09707-183-0	17	1	0610-
93	BRACKET; PIPE CLIP (B) L=85 H=40	1-47476-676-0	01	1	0610-
93	BRACKET; PIPE CLIP (A) L=175 H=30	1-47479-386-1	01	1	0610-
93	BRACKET; PIPE CLIP (C) L=95	1-82699-085-0	02	1	0610-
93	BRACKET; PIPE CLIP (D)	1-82698-358-0	02	1	0610-
93	BRACKET; PIPE CLIP (E) L=80 H=20	1-82699-304-0	02	1	0610-
106	BRACKET; TUBE CLIP (B)	1-47471-274-0	01	1	0610-
106	BRACKET; TUBE CLIP (E)	1-47477-514-3	01	1	0610-
106	BRACKET; TUBE CLIP (A) L=100 H=30	1-47477-645-2	04	1	0610-
106	BRACKET; TUBE CLIP (C)	1-47479-598-0	01	1	0610-
106	BRACKET; TUBE CLIP (F)	8-98043-312-0	01	1	0610-
106	BRACKET; TUBE CLIP (D)	8-98046-949-0	01	1	0610-
126	BOLT; CLIP BRKT M8X12 FLANGE	0-28050-812-0	02	1	0610-
126	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	02	1	0610-
126	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	01	1	0610-
126	BOLT; CLIP BRKT M8X35 FLANGE	0-28650-835-0	03	1	0610-
127	NUT; CLIP BRKT WHEEL BASE 6300MM(63W) M8 FLANGE	0-91180-108-0	10	1	0610-0610
127	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	10	1	0611-
127	NUT; CLIP BRKT WHEEL BASE 6600MM(66W) M8 FLANGE	0-91180-108-0	12	1	0610-0610
127	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	02	1	0610-
128	CLIP; NYLON TUBE WHEEL BASE 6300MM(63W) (A) L=350	1-09707-183-0	06	1	0610-
128	CLIP; NYLON TUBE WHEEL BASE 6600MM(66W) (A) L=350	1-09707-183-0	12	1	0610-0610
128	CLIP; NYLON TUBE WHEEL BASE 6600MM(66W) (A) L=350	1-09707-183-0	10	1	0611-
128	CLIP; NYLON TUBE (B) ID=35 H=45 L=33	1-09700-947-0	03	1	0610-
269	CLIP; BAND,NYLON TUBE (C) ID=13	1-09701-030-1	03	1	0610-
269	CLIP; BAND,NYLON TUBE (A) ID=11X2 L=42	1-09701-306-0	06	1	0610-
269	CLIP; BAND,NYLON TUBE (B) L=350	1-09707-183-0	03	1	0610-
270	CLIP; NYLON TUBE ID=16 H=25 L=25	1-09701-162-0	02	1	0610-
297	NUT; BRKT MIXER TRUCK<RA2> M8 FLANGE	0-91180-108-0	01	1	0610-
297	NUT; BRKT WHEEL BASE 6300MM(63W) M8 FLANGE	0-91180-108-0	17	1	0610-
297	NUT; BRKT WHEEL BASE 6600MM(66W) M8 FLANGE	0-91180-108-0	18	1	0610-
297	NUT; BRKT M8 FLANGE	0-91180-108-0	05	1	0610-
297	NUT; BRKT EXC. MIXER TRUCK<RA2> M12 FLANGE	0-91180-212-0	01	1	0610-
357	BOLT; CLIP FIX M8X10 FLANGE	0-28050-810-0	02	1	0610-

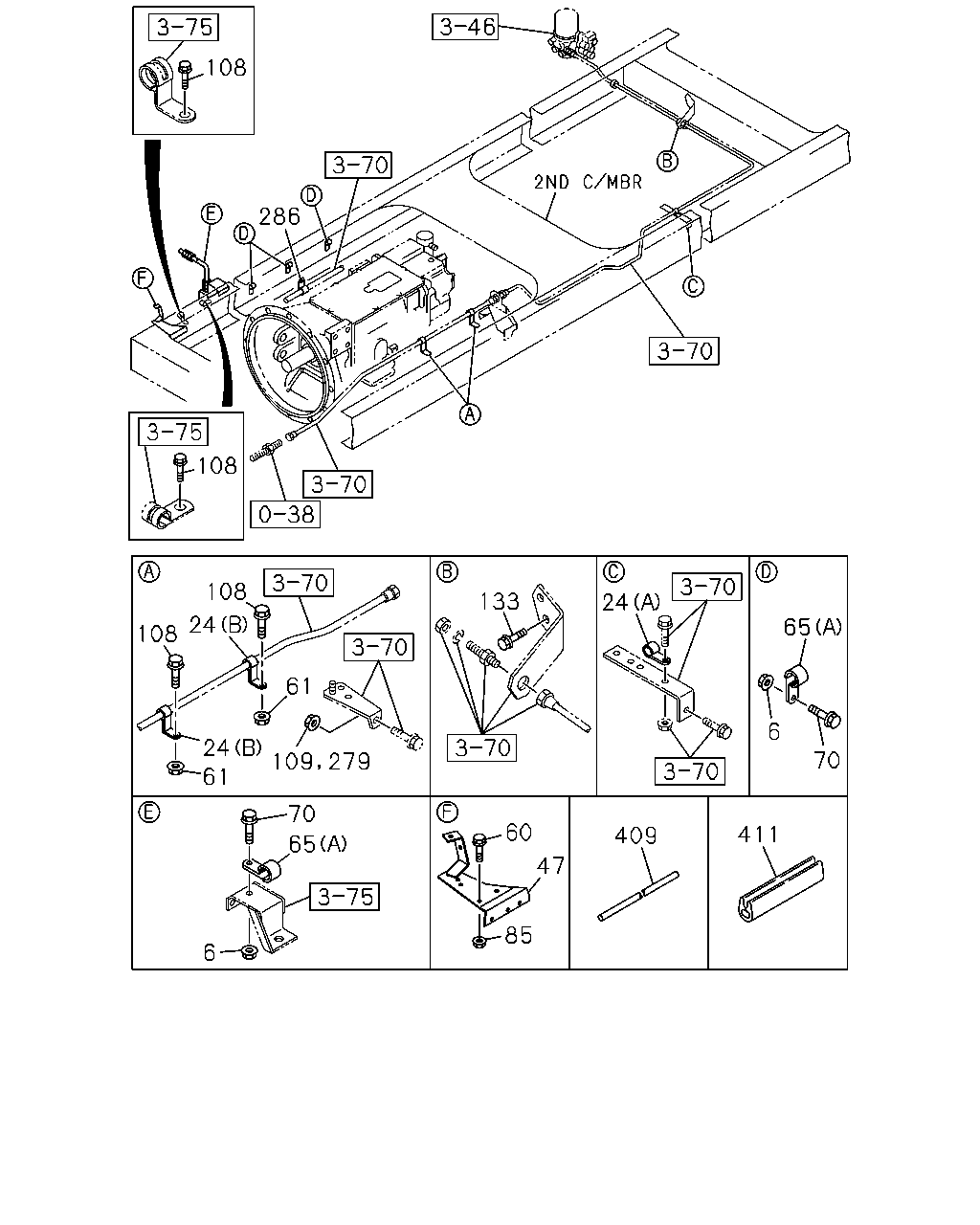

108 286 108 108 133 24 24 65 108 61 6 24 70 61 70 60 411 409 65 47 85 6 109 279

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	06	1	0610-0610
6	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	08	1	0610-
24	CLIP; PIPE (A) ID=19 L=20	0-95235-836-0	01	1	0610-
24	CLIP; PIPE (B) ID=25 H=30 L=35	1-09700-875-0	02	1	0610-
47	BRACKET; PIPE CLIP	1-47471-389-0	01	1	0610-
60	BOLT; CLIP FIX M8X25 FLANGE	0-28650-825-0	02	1	0610-
60	BOLT; CLIP FIX M8X30 FLANGE	0-28650-830-0	02	1	0610-
61	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	03	1	0610-
65	CLIP; AIR PIPE (A) ID=19 L=28	0-95235-856-0	02	1	0610-
65	CLIP; AIR PIPE (B) ID=12 H=24 L=20	1-09700-605-0	02	1	0610-
65	CLIP; AIR PIPE (A) ID=13 L=20	0-95235-235-0	04	1	0610-0610
65	CLIP; AIR PIPE (A) ID=13 L=20	0-95235-235-0	06	1	0610-
70	BOLT; CLIP,AIR PIPE M8X30 FLANGE	0-28650-830-0	02	1	0610-
70	BOLT; CLIP,AIR PIPE M8X25 FLANGE	0-28650-825-0	06	1	0610-0610
70	BOLT; CLIP,AIR PIPE M8X25 FLANGE	0-28650-825-0	08	1	0610-
85	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	06	1	0610-0610
85	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	10	1	0610-
108	BOLT; TUBE CLIP M8X20 FLANGE	0-28650-820-0	01	1	0610-
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28650-825-0	09	1	0610-
108	BOLT; TUBE CLIP M8X30 FLANGE	0-28650-830-0	01	1	0610-
109	NUT; TUBE CLIP MJT7 M/T<Y9E> M8 FLANGE	0-91180-108-0	01	1	0610-
109	NUT; TUBE CLIP M8 FLANGE	0-91180-108-0	06	1	0610-
133	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	01	1	0610-
133	BOLT; BRKT MIXER TRUCK<RA2> M8X20 FLANGE	0-28650-820-0	01	1	0610-
133	BOLT; BRKT WHEEL BASE 6300MM(63W) M8X35 FLANGE	0-28650-835-0	03	1	0610-
133	BOLT; BRKT WHEEL BASE 6600MM(66W) M8X25 FLANGE	0-28650-825-0	03	1	0610-
133	BOLT; BRKT WHEEL BASE 6600MM(66W) M8X30 FLANGE	0-28650-830-0	02	1	0610-
133	BOLT; BRKT M8X12 FLANGE	0-28050-812-0	02	1	0610-
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	17	1	0610-
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	07	1	0610-
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	01	1	0610-
133	BOLT; BRKT EXC. MIXER TRUCK<RA2> M6X10 FLANGE	0-28050-610-0	01	1	0610-
279	NUT; BRKT M8 FLANGE	0-91180-108-0	09	1	0610-
286	CLIP; NYLON TUBE MJT7 M/T<Y9E> ID=16 H=25 L=25	1-09701-162-0	01	1	0611-
409	TUBE; DISTANCE MJT7 M/T<Y9E> L=22	9-22159-024-0	01	1	0610-
411	SLEEVE; RUBBER L=60	8-97865-346-0	01	1	0610-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
