◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ MR ▶ 10663 - MR ▶ 3 - Brakes, Brake System ▶ 3-30 - BRAKE MASTER CYLINDER ▶
3-30 — BRAKE MASTER CYLINDER (#2654) — 7 parça

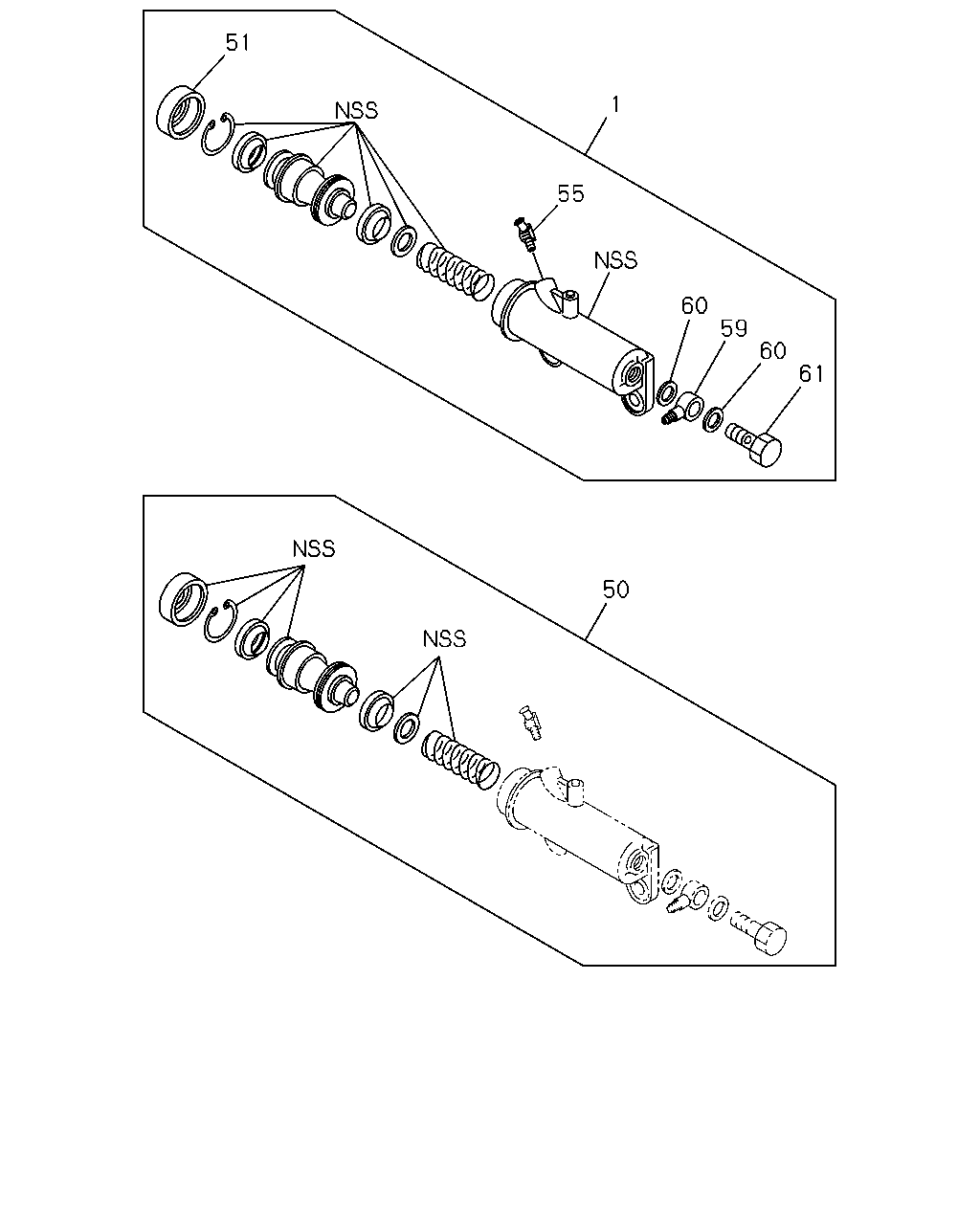

çizim 38896
51 1 55 60 59 60 61 50
BalonParca AdiParca NoAdetTipApplied Date A B
1 CYLINDER ASM; BRK MASTER
BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) 		1-47500-207-1 01 1 9101- ● ●
50 REPAIR KIT; BRK M/CYL
BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) 		1-87830-262-0 01 1 9101- ● ●
51 BOOT; BRK M/CYL
BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) 		1-47545-005-0 01 1 9101- ● ●
55 CONNECTOR; PIPE,BRK M/CYL
BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) 		1-47517-001-0 01 1 9101- ● ●
59 JOINT; BRK M/CYL
BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) 		9-09907-422-0 01 1 9101- ● ●
60 GASKET; BOLT TO UNION
BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) 		9-09851-004-0 02 1 9101- ● ●
61 BOLT; UNION TO BRK M/CYL
BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) 		9-09906-259-0 01 1 9101- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
