◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11035 - CYH RHD EURO4 ▶ 3 - Brakes, Brake System ▶ 3-70 - BRAKE PIPING; AIR,AIR MASTER ▶
3-70 — BRAKE PIPING; AIR,AIR MASTER (#26539) — 196 parça

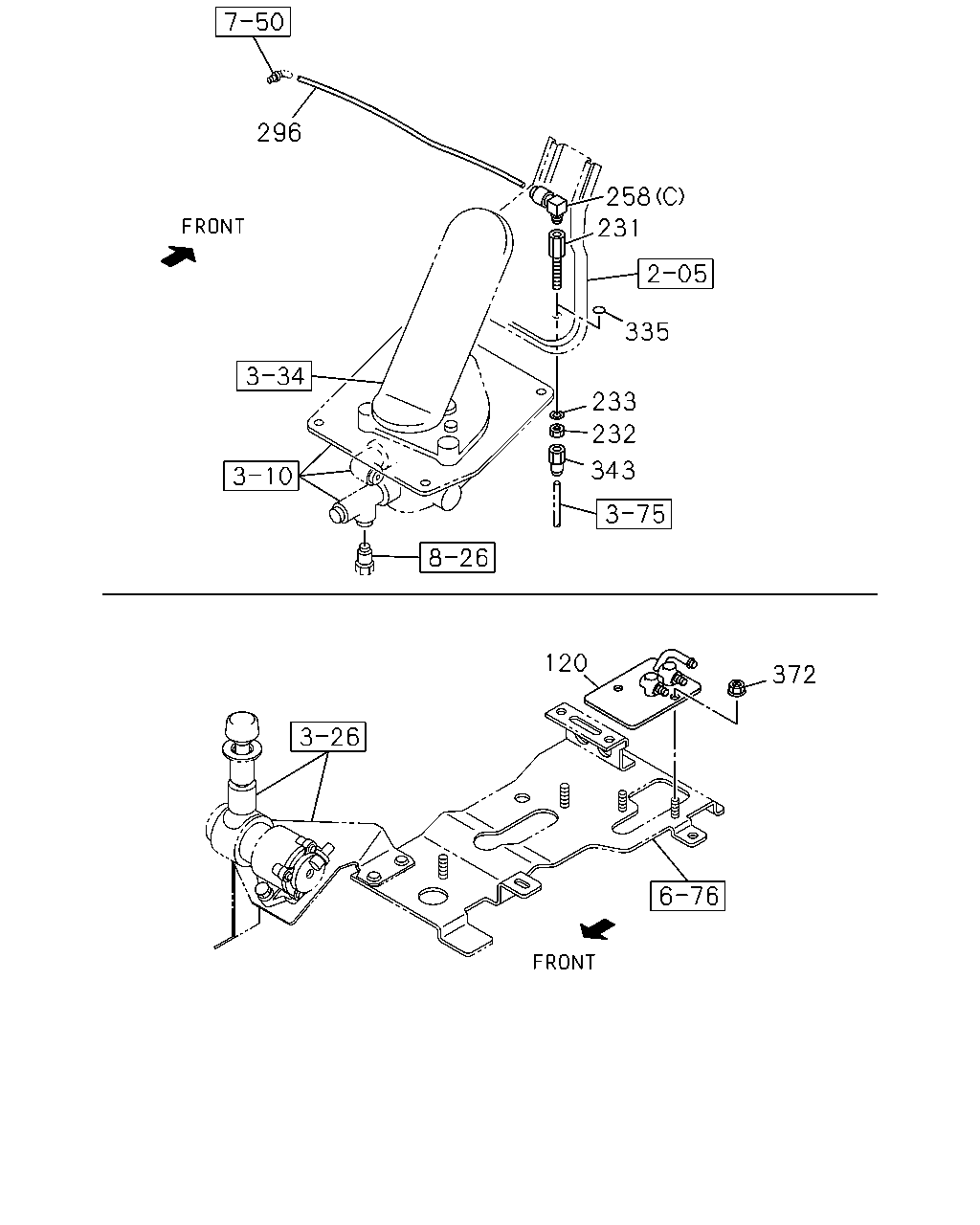

çizim 139460
296 258 231 335 233 232 343 120 372
BalonParca AdiParca NoAdetTipApplied Date
120 CONNECTOR; AIR PIPE 1-47470-547-0 01 1 0610-
231 UNION; AIR PIPE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) PT1/8 & M10 STRAIGHT 		1-09656-713-2 01 1 0610-
232 NUT; UNION,AIR PIPE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M10 H=8 		1-09400-029-0 01 1 0610-
233 WASHER; LK,UNION,AIR PIPE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.2 		0-91510-510-0 01 1 0610-
258 CONNECTOR; NYLON TUBE
TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) PT3/8 4WAY 		1-09661-489-0 01 1 0610-0705
258 CONNECTOR; NYLON TUBE
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) PT3/8 4WAY 		1-09661-489-0 01 1 0706-0801
258 CONNECTOR; NYLON TUBE
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) PT3/8 4WAY 		1-09661-489-0 01 1 0802-
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) TRI LC6X4-R1/8 		1-09660-760-1 01 1 0610-
258 CONNECTOR; NYLON TUBE
MJT7 M/T<Y9E> (D) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0610-
258 CONNECTOR; NYLON TUBE
MJT7 M/T<Y9E> (F) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0610-
258 CONNECTOR; NYLON TUBE
MJT7 M/T<Y9E> (E) PT3/8 & PT3/8 		1-09661-303-0 01 1 0610-
258 CONNECTOR; NYLON TUBE
MJT7 M/T<Y9E> (G) 		1-09661-570-0 01 1 0610-0806
258 CONNECTOR; NYLON TUBE
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) PT3/8 3WAY 		1-09661-300-0 01 1 0610-0705
258 CONNECTOR; NYLON TUBE
EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) PT3/8 3WAY 		1-09661-300-0 01 1 0706-0801
258 CONNECTOR; NYLON TUBE
EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) PT3/8 3WAY 		1-09661-300-0 01 1 0802-
296 TUBE; NYLON
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) L=1200 OD=6 		1-09366-256-1 01 1 0610-
296 TUBE; NYLON
SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 0610-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0610-
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0610-
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0610-
335 SEAL; UNION
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) OD=30 BLACK 		1-76798-035-0 01 1 0610-
343 UNION; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DIN6 & M10 STRAIGHT 		1-09661-382-0 01 1 0610-
372 NUT
M8 FLANGE 		0-91180-108-0 02 1 0610-

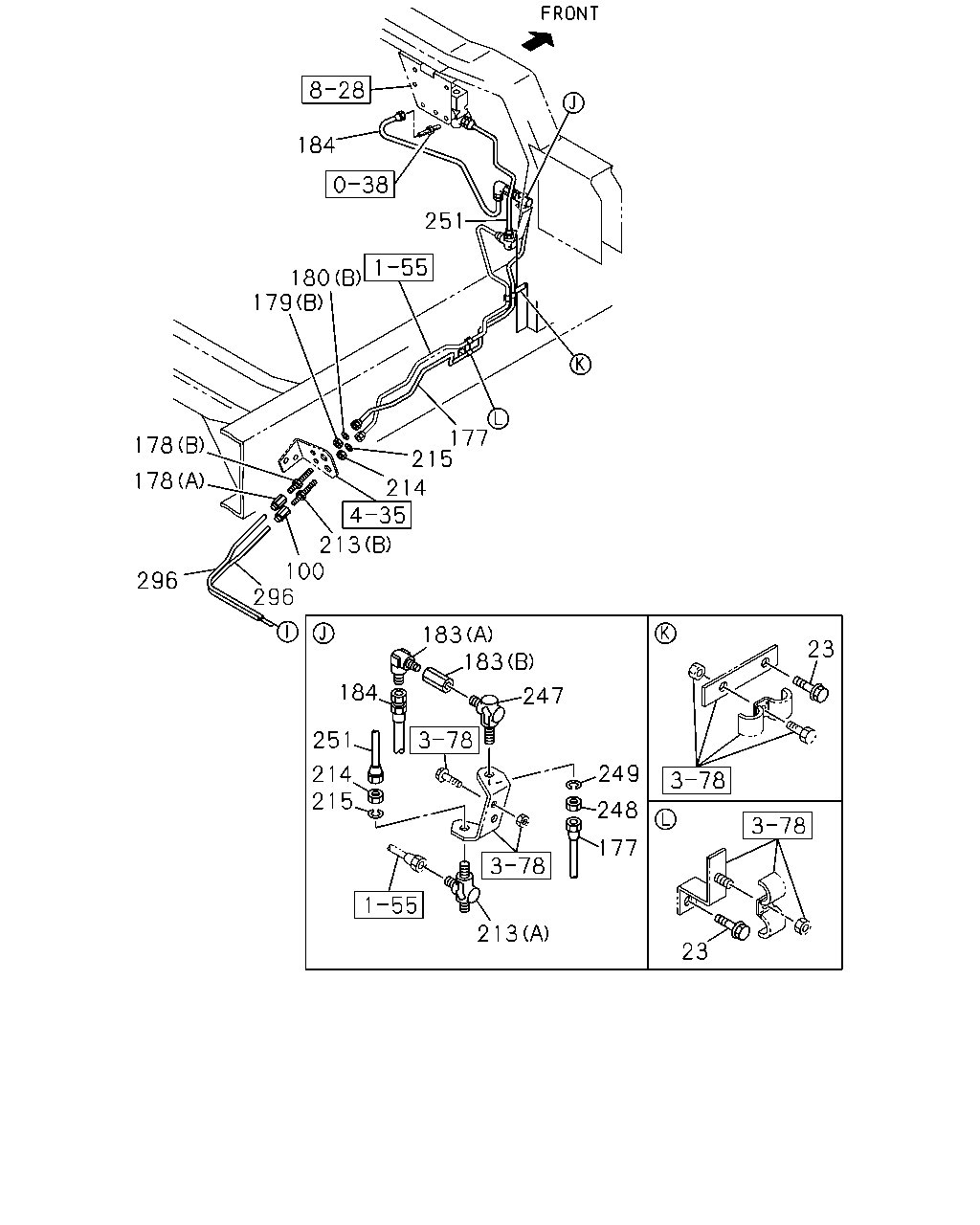

çizim 139469
184 251 180 179 177 215 178 178 214 213 100 296 296 183 183 23 184 247 251 249 214 215 248 177 213 23
BalonParca AdiParca NoAdetTipApplied Date
23 BOLT; BRKT,AIR PIPE
M8X20 FLANGE 		0-28650-820-0 01 1 0610-
23 BOLT; BRKT,AIR PIPE
M8X25 FLANGE 		0-28650-825-0 01 1 0610-
100 CONNECTOR; AIR PIPE
DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0610-
177 PIPE; AIR,UNION TO UNION
MIXER TRUCK<RA2> L=1064 SERVICED BY L=1100 		1-47428-815-0 01 1 0610-
177 PIPE; AIR,UNION TO UNION
EXC. MIXER TRUCK<RA2> L=1031 SERVICED BY L=1100 		1-47428-815-0 01 1 0610-
178 UNION; AIR PIPE
(B) M12 L=66.5 		0-92113-306-0 01 1 0610-
178 UNION; AIR PIPE
(A) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0610-
179 NUT; UNION
(A) M22 		0-91111-522-0 02 1 0610-
179 NUT; UNION
(B) M12 		9-09840-280-0 01 1 0610-
180 WASHER; LK,UNION
(B) ID=12.2 		0-91510-512-0 01 1 0610-
180 WASHER; LK,UNION
(A) ID=22.5 		0-91510-522-0 02 1 0610-
183 UNION; FLEX HOSE,GOV
EXC. MIXER TRUCK<RA2> (B) M12 & RC3/8 STRAIGHT 		1-09660-879-0 01 1 0710-
183 UNION; FLEX HOSE,GOV
EXC. MIXER TRUCK<RA2> (A) M12 & PT3/8 ELBOW 		1-09650-436-0 01 1 0610-
184 HOSE; FLEX,AIR GOV
MIXER TRUCK<RA2> L=370 		1-09363-771-0 01 1 0610-
184 HOSE; FLEX,AIR GOV
EXC. MIXER TRUCK<RA2> L=740 		1-09363-675-0 01 1 0610-
213 UNION; AIR PIPE
(B) M12 L=66.5 		0-92113-306-0 01 1 0610-
213 UNION; AIR PIPE
(A) M12 3WAY 		0-92138-906-0 01 1 0610-
214 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 02 1 0610-
215 WASHER; LK,UNION,AIR PIPE
ID=12.2 		0-91510-512-0 02 1 0610-
247 UNION; AIR PIPE
MIXER TRUCK<RA2> M12 L=66.5 		0-92113-306-0 01 1 0610-
247 UNION; AIR PIPE
EXC. MIXER TRUCK<RA2> M12 ELBOW 		0-92125-206-0 01 1 0610-
248 NUT; PIPE UNION
M12 		9-09840-280-0 01 1 0610-
249 WASHER; LK,PIPE UNION
ID=12.2 		0-91510-512-0 01 1 0610-
251 PIPE; AIR,UNION TO MAG VLV
MIXER TRUCK<RA2> L=346 		8-98059-952-0 01 1 0610-
251 PIPE; AIR,UNION TO MAG VLV
EXC. MIXER TRUCK<RA2> L=375 		1-49124-511-0 01 1 0610-
296 TUBE; NYLON
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) L=1200 OD=6 		1-09366-256-1 01 1 0610-
296 TUBE; NYLON
SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 0610-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0610-
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0610-
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0610-

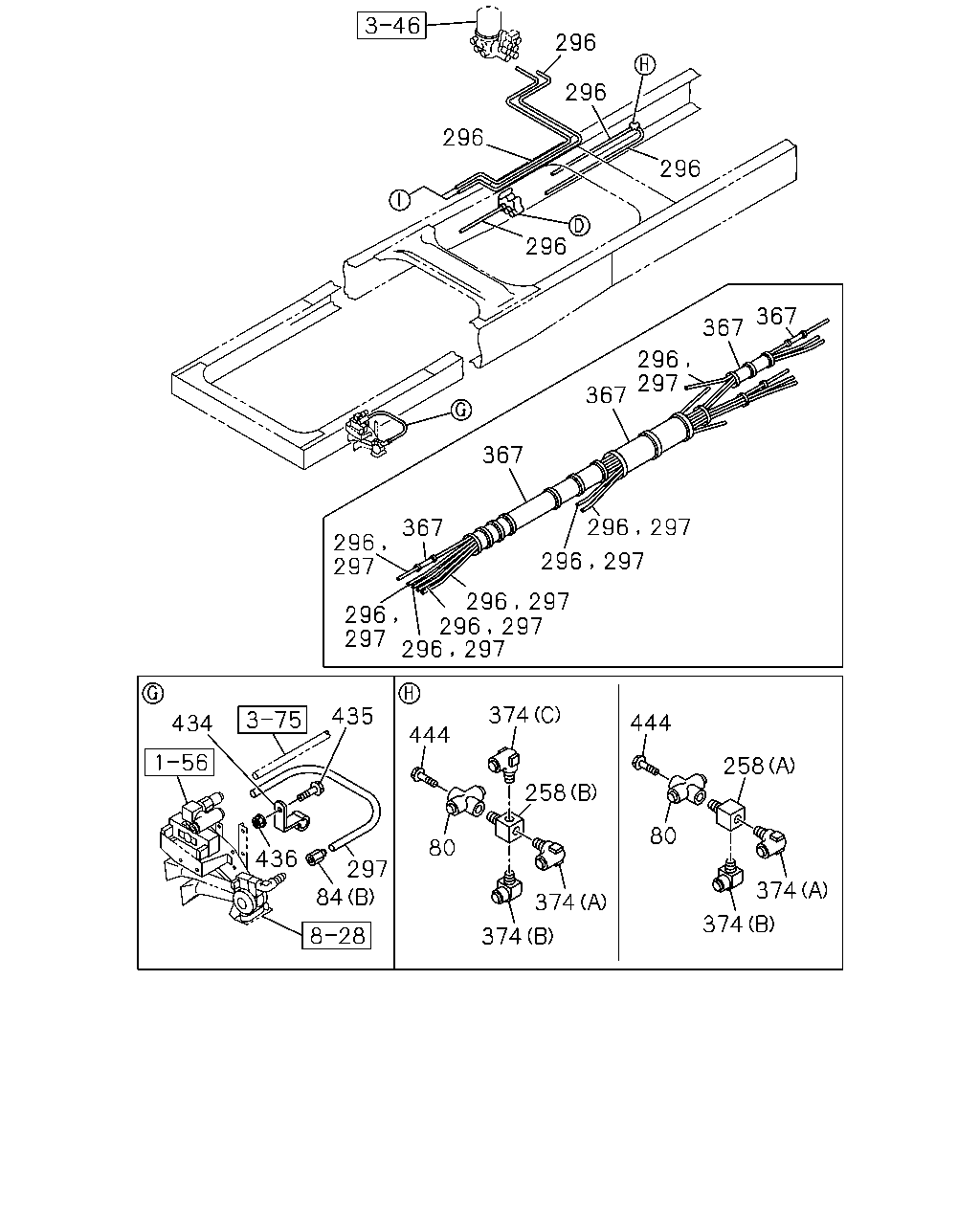

çizim 139471
296 296 296 296 296 367 367 296 297 367 367 367 296 297 296 297 374 435 444 434 444 258 258 80 80 436 297 84 374 374 374 374 296 297 296 297 297 296 296 297 297 296
BalonParca AdiParca NoAdetTipApplied Date
80 UNION; 3 WAY
DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 0610-
84 UNION; NYLON TUBE
(A) 		1-09661-092-0 01 1 0610-
84 UNION; NYLON TUBE
(B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0610-
258 CONNECTOR; NYLON TUBE
TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) PT3/8 4WAY 		1-09661-489-0 01 1 0610-0705
258 CONNECTOR; NYLON TUBE
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) PT3/8 4WAY 		1-09661-489-0 01 1 0706-0801
258 CONNECTOR; NYLON TUBE
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) PT3/8 4WAY 		1-09661-489-0 01 1 0802-
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) TRI LC6X4-R1/8 		1-09660-760-1 01 1 0610-
258 CONNECTOR; NYLON TUBE
MJT7 M/T<Y9E> (D) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0610-
258 CONNECTOR; NYLON TUBE
MJT7 M/T<Y9E> (F) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0610-
258 CONNECTOR; NYLON TUBE
MJT7 M/T<Y9E> (E) PT3/8 & PT3/8 		1-09661-303-0 01 1 0610-
258 CONNECTOR; NYLON TUBE
MJT7 M/T<Y9E> (G) 		1-09661-570-0 01 1 0610-0806
258 CONNECTOR; NYLON TUBE
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) PT3/8 3WAY 		1-09661-300-0 01 1 0610-0705
258 CONNECTOR; NYLON TUBE
EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) PT3/8 3WAY 		1-09661-300-0 01 1 0706-0801
258 CONNECTOR; NYLON TUBE
EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) PT3/8 3WAY 		1-09661-300-0 01 1 0802-
296 TUBE; NYLON
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) L=1200 OD=6 		1-09366-256-1 01 1 0610-
296 TUBE; NYLON
SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 0610-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0610-
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0610-
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0610-
297 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0610-
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0610-
297 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0610-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 0610-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0610-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 0610-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87411-027-0 AR 1 0610-
374 CONNECTOR
TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) DIN6 & R3/8 ELBOW 		1-09661-234-0 01 1 0610-0705
374 CONNECTOR
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) DIN6 & R3/8 ELBOW 		1-09661-234-0 01 1 0706-0801
374 CONNECTOR
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) DIN6 & R3/8 ELBOW 		1-09661-234-0 01 1 0802-
374 CONNECTOR
(A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0610-
374 CONNECTOR
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0610-
434 CLIP
ID=6 H=20 L=20 		1-09700-603-0 01 1 0610-
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 0610-
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0610-
444 BOLT; UNION
M8X20 FLANGE 		0-28650-820-0 01 1 0610-

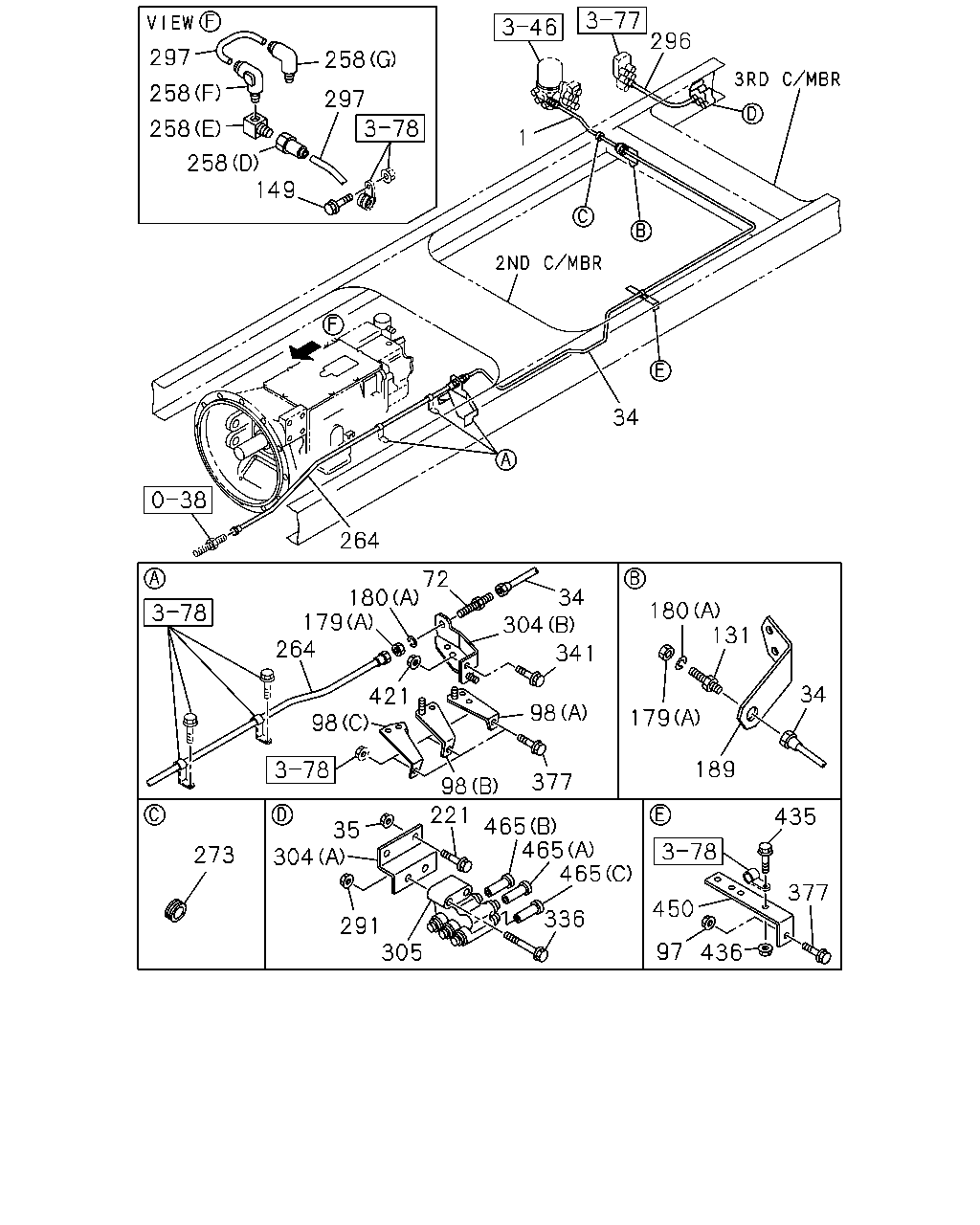

çizim 139477
296 297 258 258 297 258 1 258 149 34 264 72 34 304 180 179 264 180 131 341 34 421 98 98 179 189 377 98 221 435 465 465 465 35 304 273 377 450 336 291 305 97 436
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK
L=880 		1-09363-920-0 01 1 0610-
34 PIPE; AIR
L=1217 		8-98043-255-0 01 1 0610-
35 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0610-
72 UNION; AIR PIPE
M22 & M30 STRAIGHT 		1-09664-237-1 01 1 0610-
97 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0610-
98 BRACKET; AIR PIPE
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (C) 		1-47471-283-0 01 1 0706-
98 BRACKET; AIR PIPE
(B) 		1-47479-639-0 01 1 0610-0705
98 BRACKET; AIR PIPE
EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B) 		1-47479-639-0 01 1 0706-
98 BRACKET; AIR PIPE
(A) 		1-47479-723-0 01 1 0610-
131 UNION; AIR PIPE
M22 & M30 STRAIGHT 		1-09664-237-1 01 1 0610-
149 BOLT; TUBE CLIP
MJT7 M/T<Y9E> M8X50 FLANGE 		0-28050-850-0 01 1 0610-
179 NUT; UNION
(A) M22 		0-91111-522-0 02 1 0610-
179 NUT; UNION
(B) M12 		9-09840-280-0 01 1 0610-
180 WASHER; LK,UNION
(B) ID=12.2 		0-91510-512-0 01 1 0610-
180 WASHER; LK,UNION
(A) ID=22.5 		0-91510-522-0 02 1 0610-
189 BRACKET; FLEX HOSE 1-47479-905-0 01 1 0610-
221 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0610-
258 CONNECTOR; NYLON TUBE
TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) PT3/8 4WAY 		1-09661-489-0 01 1 0610-0705
258 CONNECTOR; NYLON TUBE
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) PT3/8 4WAY 		1-09661-489-0 01 1 0706-0801
258 CONNECTOR; NYLON TUBE
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) PT3/8 4WAY 		1-09661-489-0 01 1 0802-
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) TRI LC6X4-R1/8 		1-09660-760-1 01 1 0610-
258 CONNECTOR; NYLON TUBE
MJT7 M/T<Y9E> (D) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0610-
258 CONNECTOR; NYLON TUBE
MJT7 M/T<Y9E> (F) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0610-
258 CONNECTOR; NYLON TUBE
MJT7 M/T<Y9E> (E) PT3/8 & PT3/8 		1-09661-303-0 01 1 0610-
258 CONNECTOR; NYLON TUBE
MJT7 M/T<Y9E> (G) 		1-09661-570-0 01 1 0610-0806
258 CONNECTOR; NYLON TUBE
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) PT3/8 3WAY 		1-09661-300-0 01 1 0610-0705
258 CONNECTOR; NYLON TUBE
EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) PT3/8 3WAY 		1-09661-300-0 01 1 0706-0801
258 CONNECTOR; NYLON TUBE
EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) PT3/8 3WAY 		1-09661-300-0 01 1 0802-
264 HOSE; FLEX
L=1000 		1-09363-794-0 01 1 0610-
273 GROMMET
ID=28 OD=35 T=17 		9-09956-256-2 01 1 0610-
291 NUT; UNION
M8 FLANGE 		0-91180-108-0 02 1 0610-
296 TUBE; NYLON
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) L=1200 OD=6 		1-09366-256-1 01 1 0610-
296 TUBE; NYLON
SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 0610-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0610-
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0610-
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0610-
297 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0610-
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0610-
297 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0610-
304 BRACKET; UNION
(A) 		1-47479-603-0 01 1 0610-
304 BRACKET; UNION
(B) 		8-97610-319-1 01 1 0610-
305 UNION ASM; NYLON TUBE 1-09661-613-1 01 1 0610-
336 BOLT; PIPE UNION
M8X70 FLANGE 		0-28050-870-0 02 1 0610-0906
336 BOLT; PIPE UNION
M8X60 FLANGE 		0-28050-860-0 02 1 0907-
341 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 0610-0610
341 BOLT; BRKT
WHEEL BASE 6600MM(66W) M8X30 FLANGE 		0-28650-830-0 01 1 0610-0610
341 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0610-
377 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 01 1 0610-
377 BOLT; BRKT FIX
M8X30 FLANGE 		0-28650-830-0 02 1 0610-
421 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0610-
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 0610-
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0610-
450 BRACKET; CLIP 1-82698-358-0 01 1 0610-
465 PLUG
MJX12P M/T SMOOTHER-G(Y4S) (C) OD=12 		1-09661-617-0 01 1 0610-
465 PLUG
(A) OD=6 L=27 		1-09661-615-0 01 1 0610-0610
465 PLUG
(A) OD=6 L=27 		1-09661-615-0 01 1 0610-
465 PLUG
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) OD=6 L=27 		1-09661-615-0 01 1 0610-
465 PLUG
(B) OD=8 PLASTIC 		1-09661-616-0 01 1 0610-0610
465 PLUG
(B) OD=8 PLASTIC 		1-09661-616-0 01 1 0610-
465 PLUG
EXC. BRAKE SYSTEM HSA<SLD> (B) OD=8 PLASTIC 		1-09661-616-0 01 1 0610-

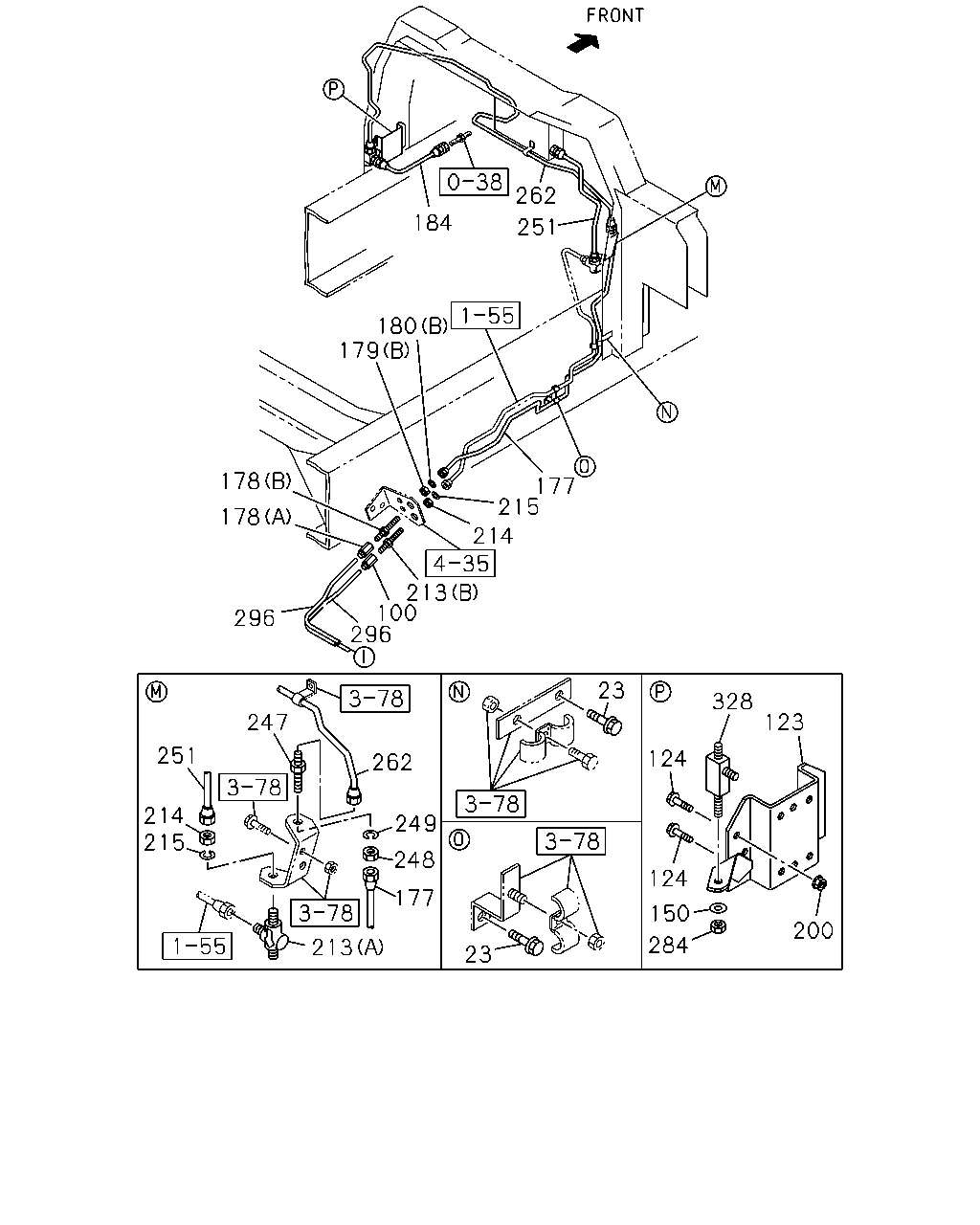

çizim 139478
262 184 251 180 179 177 215 178 178 214 213 100 296 296 23 328 123 247 251 124 262 214 215 249 248 124 177 150 200 284 213 23
BalonParca AdiParca NoAdetTipApplied Date
23 BOLT; BRKT,AIR PIPE
M8X20 FLANGE 		0-28650-820-0 01 1 0610-
23 BOLT; BRKT,AIR PIPE
M8X25 FLANGE 		0-28650-825-0 01 1 0610-
100 CONNECTOR; AIR PIPE
DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0610-
123 BRACKET; UNION
MIXER TRUCK<RA2> 		1-82569-367-1 01 1 0610-
124 BOLT; BRKT
MIXER TRUCK<RA2> M8X25 FLANGE 		0-28650-825-0 04 1 0610-
150 WASHER; LK,UNION
MIXER TRUCK<RA2> ID=12.2 		0-91510-512-0 01 1 0610-
177 PIPE; AIR,UNION TO UNION
MIXER TRUCK<RA2> L=1064 SERVICED BY L=1100 		1-47428-815-0 01 1 0610-
177 PIPE; AIR,UNION TO UNION
EXC. MIXER TRUCK<RA2> L=1031 SERVICED BY L=1100 		1-47428-815-0 01 1 0610-
178 UNION; AIR PIPE
(B) M12 L=66.5 		0-92113-306-0 01 1 0610-
178 UNION; AIR PIPE
(A) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0610-
179 NUT; UNION
(A) M22 		0-91111-522-0 02 1 0610-
179 NUT; UNION
(B) M12 		9-09840-280-0 01 1 0610-
180 WASHER; LK,UNION
(B) ID=12.2 		0-91510-512-0 01 1 0610-
180 WASHER; LK,UNION
(A) ID=22.5 		0-91510-522-0 02 1 0610-
184 HOSE; FLEX,AIR GOV
MIXER TRUCK<RA2> L=370 		1-09363-771-0 01 1 0610-
184 HOSE; FLEX,AIR GOV
EXC. MIXER TRUCK<RA2> L=740 		1-09363-675-0 01 1 0610-
200 NUT; BRKT
MIXER TRUCK<RA2> M8 FLANGE 		0-91180-108-0 04 1 0610-
213 UNION; AIR PIPE
(B) M12 L=66.5 		0-92113-306-0 01 1 0610-
213 UNION; AIR PIPE
(A) M12 3WAY 		0-92138-906-0 01 1 0610-
214 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 02 1 0610-
215 WASHER; LK,UNION,AIR PIPE
ID=12.2 		0-91510-512-0 02 1 0610-
247 UNION; AIR PIPE
MIXER TRUCK<RA2> M12 L=66.5 		0-92113-306-0 01 1 0610-
247 UNION; AIR PIPE
EXC. MIXER TRUCK<RA2> M12 ELBOW 		0-92125-206-0 01 1 0610-
248 NUT; PIPE UNION
M12 		9-09840-280-0 01 1 0610-
249 WASHER; LK,PIPE UNION
ID=12.2 		0-91510-512-0 01 1 0610-
251 PIPE; AIR,UNION TO MAG VLV
MIXER TRUCK<RA2> L=346 		8-98059-952-0 01 1 0610-
251 PIPE; AIR,UNION TO MAG VLV
EXC. MIXER TRUCK<RA2> L=375 		1-49124-511-0 01 1 0610-
262 PIPE; AIR,UNION TO FLEX
MIXER TRUCK<RA2> 		1-49124-942-0 01 1 0610-
284 NUT; UNION
MIXER TRUCK<RA2> M12 		9-09840-280-0 01 1 0610-
296 TUBE; NYLON
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) L=1200 OD=6 		1-09366-256-1 01 1 0610-
296 TUBE; NYLON
SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 0610-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0610-
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0610-
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0610-
328 UNION; AIR PIPE
MIXER TRUCK<RA2> M12 2WAY 		1-09654-059-2 01 1 0610-

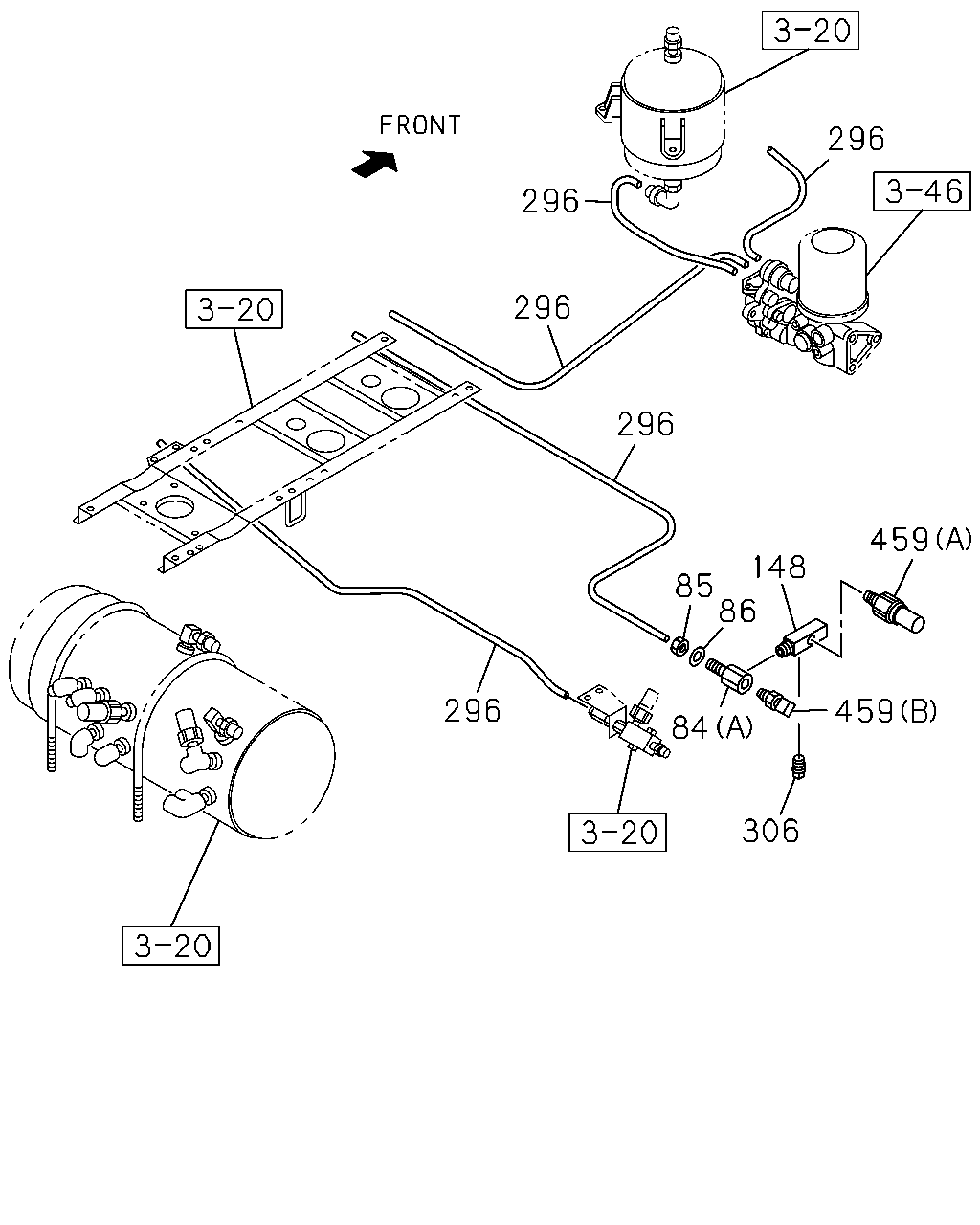

çizim 139479
296 296 296 296 459 148 85 86 84 296 459 306
BalonParca AdiParca NoAdetTipApplied Date
84 UNION; NYLON TUBE
(A) 		1-09661-092-0 01 1 0610-
84 UNION; NYLON TUBE
(B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0610-
85 NUT; UNION
M18 		0-91110-518-0 01 1 0610-
86 WASHER; LK,TUBE UNION
ID=18.2 		0-91510-518-0 01 1 0610-
148 CONNECTOR; UNION
DIN14 & R1/4 & RC1/4 		1-09661-729-0 01 1 0610-
296 TUBE; NYLON
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) L=1200 OD=6 		1-09366-256-1 01 1 0610-
296 TUBE; NYLON
SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 0610-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0610-
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0610-
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0610-
306 PLUG; NYLON TUBE
PT1/4 		9-99204-513-0 01 1 0610-
459 SWITCH; PRESS
(A) 		1-48340-065-0 01 1 0610-
459 SWITCH; PRESS
(B) THREAD R1/4 		1-80220-023-1 01 1 0610-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
