◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11035 - CYH RHD EURO4 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-85 - POWER TAKE OFF CONTROL ▶
2-85 — POWER TAKE OFF CONTROL (#26525) — 47 parça
çizim 139428
1 3 246 217 132 3 3 1 139 55
BalonParca AdiParca NoAdetTipApplied Date
1 LEVER ASM; PTO & DUMP CONT
ENGINE REAR PTO(SV1) (B) 		1-79907-048-1 01 1 0912-0912
1 LEVER ASM; PTO & DUMP CONT
DUMP CONTROL LEVER<RC4> (A) 		1-79996-244-0 01 1 0610-
3 BOLT; BRKT,DUMP CONT LEVER
ENGINE REAR PTO(SV1) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 06 1 0912-0912
3 BOLT; BRKT,DUMP CONT LEVER
DUMP CONTROL LEVER<RC4> M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 0610-
55 GROMMET; CABLE
EXC. DUMP CONTROL LEVER<RC4> 		1-09983-068-0 01 1 0610-0911
55 GROMMET; CABLE
EXC. DUMP CONTROL LEVER<RC4>,ENGINE REAR PTO(SV1) 		1-09983-068-0 01 1 0912-0912
55 GROMMET; CABLE
EXC. DUMP CONTROL LEVER<RC4> 		1-09983-068-0 01 1 1001-
132 COVER; PTO CONT
DUMP CONTROL LEVER<RC4> 		1-79997-376-0 01 1 0610-
139 BRACKET; CONT BOX
ENGINE REAR PTO(SV1) 		1-79907-044-0 01 1 0912-0912
217 WASHER; PL
DUMP CONTROL LEVER<RC4> ID=4.3 		9-09160-504-0 02 1 0610-
246 SCREW; CABLE CLIP
DUMP CONTROL LEVER<RC4> M4X8 TAPPING 		0-71240-408-0 02 1 0610-

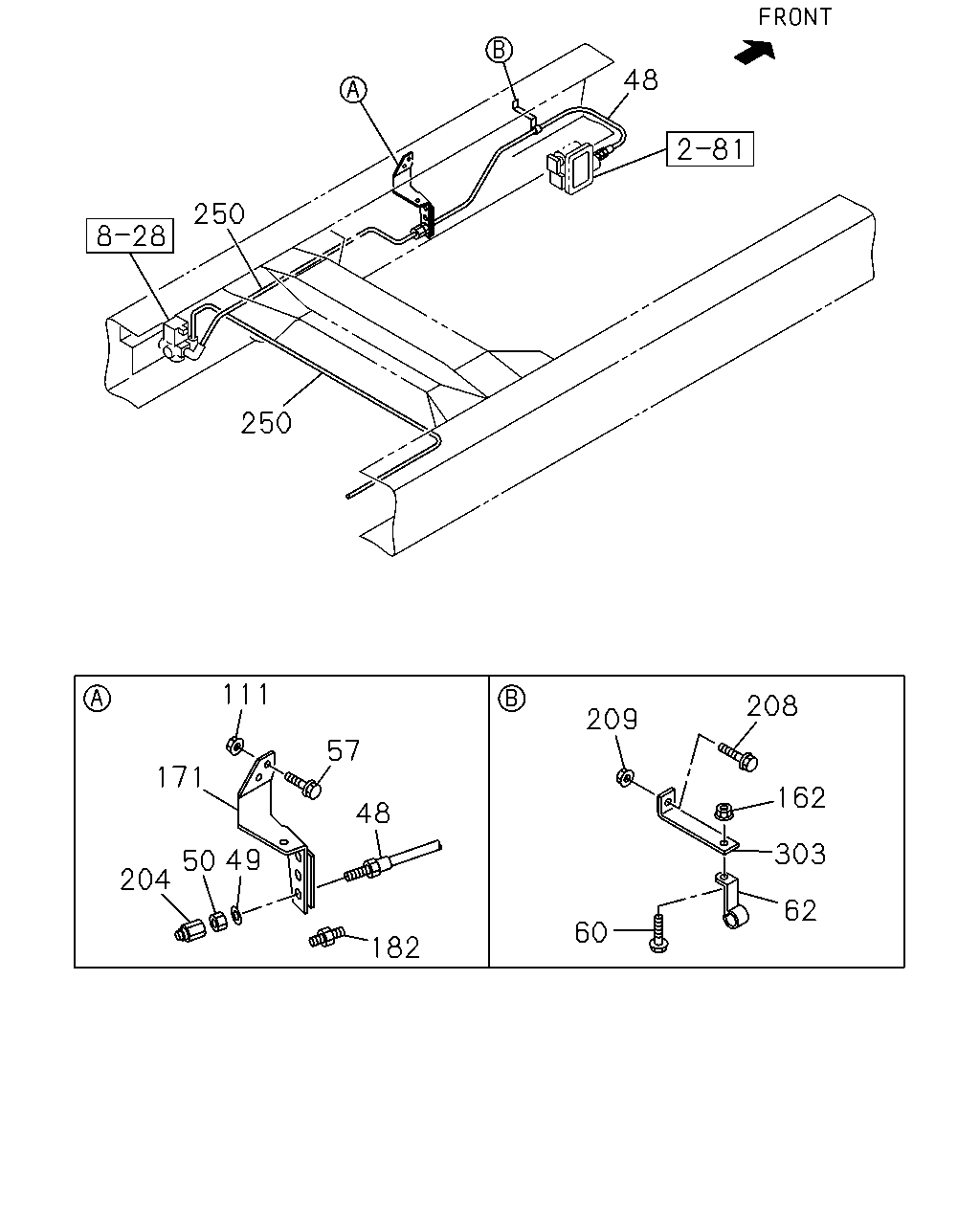

çizim 139433
48 250 250 111 208 209 57 171 162 48 303 204 62 60 182 50 49
BalonParca AdiParca NoAdetTipApplied Date
48 HOSE; FLEX,PTO
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) L=380 		1-09363-884-0 01 1 0706-
48 HOSE; FLEX,PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) L=760 		1-09363-715-0 01 1 0610-
48 HOSE; FLEX,PTO
TRANSMISSION SIDE PTO HEAVY DUTY(B4P) L=370 		1-09363-621-0 01 1 0610-
49 WASHER; LK,FLEX HOSE
TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=12.2 		0-91510-512-0 01 1 0610-0610
49 WASHER; LK,FLEX HOSE
TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=12.2 		0-91510-512-0 01 1 0610-0705
49 WASHER; LK,FLEX HOSE
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=12.2 		0-91510-512-0 01 1 0706-
50 NUT; FLEX HOSE
TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 		9-09840-280-0 01 1 0610-0610
50 NUT; FLEX HOSE
TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 		9-09840-280-0 01 1 0610-0705
50 NUT; FLEX HOSE
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 		9-09840-280-0 01 1 0706-
57 BOLT; BRKT
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X25 FLANGE 		0-28650-825-0 02 1 0610-0610
57 BOLT; BRKT
TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X25 FLANGE 		0-28650-825-0 02 1 0610-0705
57 BOLT; BRKT
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X25 FLANGE 		0-28650-825-0 02 1 0706-
60 BOLT; CLIP FIX
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE 		0-28650-820-0 01 1 0610-
62 CLIP; PIPE,AIR
TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=15 L=22 H=30 		1-09701-215-1 01 1 0610-
111 NUT; BRKT
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE 		0-91180-108-0 02 1 0610-0610
111 NUT; BRKT
TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE 		0-91180-108-0 02 1 0610-0705
111 NUT; BRKT
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE 		0-91180-108-0 02 1 0706-
162 NUT; CLIP
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE 		0-91180-108-0 01 1 0610-
171 BRACKET; FLEX HOSE
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-47479-634-1 01 1 0610-0610
171 BRACKET; FLEX HOSE
TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-47479-634-1 01 1 0610-0705
171 BRACKET; FLEX HOSE
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-47479-634-1 01 1 0706-
182 CONNECTOR; FLARE
TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 L=56.5 		0-92113-106-0 01 1 0610-0610
182 CONNECTOR; FLARE
TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 L=56.5 		0-92113-106-0 01 1 0610-0705
182 CONNECTOR; FLARE
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 L=56.5 		0-92113-106-0 01 1 0706-1104
204 CONNECTOR; NYLON TUBE
TRANSMISSION SIDE PTO WO/LEVER(SH5) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0610-0610
204 CONNECTOR; NYLON TUBE
TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0610-0705
204 CONNECTOR; NYLON TUBE
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0706-
208 BOLT; BRKT,AIR PIPE
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X30 FLANGE 		0-28650-830-0 01 1 0610-
209 NUT; BRKT,AIR PIPE
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE 		0-91180-108-0 01 1 0610-
250 TUBE; NYLON
TRANSMISSION SIDE PTO WO/LEVER(SH5) SERVICED BY L=2000 OD=6 		1-87411-001-0 01 1 0610-0610
250 TUBE; NYLON
TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) SERVICED BY L=2000 OD=6 		1-87411-001-0 01 1 0610-0705
250 TUBE; NYLON
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) SERVICED BY L=2000 OD=6 		1-87411-001-0 01 1 0706-
250 TUBE; NYLON
TRANSMISSION SIDE PTO WO/LEVER(SH5) SERVICED BY L=4000 OD=6 		1-87411-002-0 01 1 0610-0610
250 TUBE; NYLON
TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) SERVICED BY L=4000 OD=6 		1-87411-002-0 01 1 0610-0705
250 TUBE; NYLON
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO HEAVY DUTY(B4P),TRANSMISSION SIDE PTO WO/LEVER(SH5) SERVICED BY L=4000 OD=6 		1-87411-002-0 01 1 0706-
303 BRACKET; CLIP
TRANSMISSION SIDE PTO WO/LEVER(SH5) L=95 		1-82699-085-0 01 1 0610-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
