2-53 — TRANSMISSION OIL COOLER SYSTEM (#26523) — 168 parça
çizim 139439
11 29 178 8 109 12 50 95 1 101 48 117 116 114 136 210 73 80 179 77 76 19 91
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; ATF
MJX12P M/T SMOOTHER-G(Y4S) L=585 		1-09365-348-0 01 1 0610-
1 HOSE; ATF
MJT7 M/T<Y9E> L=430 		1-09364-872-0 01 1 0610-
8 UNION
MJX12P M/T SMOOTHER-G(Y4S) M22 L=51 		0-92123-015-0 02 1 0610-
8 UNION
MJT7 M/T<Y9E> M16 STRAIGHT L=42 		0-92123-010-0 01 1 0610-
11 CLIP; PIPE
MJX12P M/T SMOOTHER-G(Y4S) (E) ID=19 L=28 		0-95235-856-0 02 1 0610-
11 CLIP; PIPE
MJX12P M/T SMOOTHER-G(Y4S) (D) ID=16X2 L=20 		0-95325-535-0 05 1 0610-
11 CLIP; PIPE
MJT7 M/T<Y9E> (A) ID=11 & 11 L=21.5 & 21.5 		1-09700-660-0 01 1 0610-0611
11 CLIP; PIPE
MJT7 M/T<Y9E> (A) ID=11 & 11 L=21.5 & 21.5 		1-09700-660-0 02 1 0612-
11 CLIP; PIPE
MJT7 M/T<Y9E> (B) ID=11 H=20 L=20 		5-09700-351-0 01 1 0610-0707
11 CLIP; PIPE
MJT7 M/T<Y9E> (B) ID=11 H=20 L=20 		8-98033-780-0 01 1 0708-
11 CLIP; PIPE
MJT7 M/T<Y9E> (C) ID=11X2 L=20 		9-09535-036-0 04 1 0610-
12 NUT; BRKT
M8 FLANGE 		0-91180-108-0 05 1 0610-
19 BRACKET; FLEX HOSE
MJX12P M/T SMOOTHER-G(Y4S) 		1-47479-613-1 01 1 0610-
19 BRACKET; FLEX HOSE
MJT7 M/T<Y9E> 		1-47479-559-0 01 1 0610-
29 BOLT; FILTER TO BRKT
MJX12P M/T SMOOTHER-G(Y4S) (B) M8X20 FLANGE 		0-28650-820-0 01 1 0610-
29 BOLT; FILTER TO BRKT
MJX12P M/T SMOOTHER-G(Y4S) (B) M10X20 FLANGE 		0-28651-020-0 01 1 0610-
29 BOLT; FILTER TO BRKT
MJT7 M/T<Y9E> (A) M10X30 FLANGE 		0-28651-030-0 02 1 0610-
29 BOLT; FILTER TO BRKT
(B) M8X30 FLANGE 		0-28650-830-0 04 1 0610-
48 NUT; BRKT
MJT7 M/T<Y9E> M8 FLANGE 		0-91180-108-0 01 1 0610-
48 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0610-
50 BOLT; CLIP
MJX12P M/T SMOOTHER-G(Y4S) M8X16 FLANGE 		0-28050-816-0 02 1 0610-0611
50 BOLT; CLIP
MJX12P M/T SMOOTHER-G(Y4S) MJT7 M/T<Y9E> M8X16 FLANGE 		0-28050-816-0 02 1 0612-
50 BOLT; CLIP
MJX12P M/T SMOOTHER-G(Y4S) M8X20 FLANGE 		0-28650-820-0 05 1 0610-
50 BOLT; CLIP
MJT7 M/T<Y9E> M8X16 FLANGE 		0-28050-816-0 01 1 0610-0611
50 BOLT; CLIP
MJT7 M/T<Y9E> M8X20 FLANGE 		0-28050-820-0 01 1 0610-
50 BOLT; CLIP
MJT7 M/T<Y9E> M8X25 FLANGE 		0-28650-825-0 04 1 0610-
73 HOSE; FLEX,TRANS
MJX12P M/T SMOOTHER-G(Y4S) L=530 		1-09365-248-0 01 1 0610-
73 HOSE; FLEX,TRANS
MJT7 M/T<Y9E> L=430 		1-09364-872-0 01 1 0610-
76 NUT; FLEX HOSE
MJX12P M/T SMOOTHER-G(Y4S) M22 		0-91111-522-0 01 1 0610-
76 NUT; FLEX HOSE
MJT7 M/T<Y9E> M16 		0-91111-516-0 01 1 0610-
77 WASHER; LK
MJX12P M/T SMOOTHER-G(Y4S) ID=22.5 		0-91510-522-0 01 1 0610-
77 WASHER; LK
MJT7 M/T<Y9E> ID=16.2 		0-91510-516-0 01 1 0610-
80 UNION; FLEX HOSE
MJX12P M/T SMOOTHER-G(Y4S) M22 & M22 STRAIGHT 		1-09654-204-2 01 1 0610-
91 PIPE; OIL,FLEX HOSE TO UNION
MJX12P M/T SMOOTHER-G(Y4S) L=897 		8-98042-990-0 01 1 0610-
91 PIPE; OIL,FLEX HOSE TO UNION
MJT7 M/T<Y9E> L=912 		8-98039-021-0 01 1 0610-0810
91 PIPE; OIL,FLEX HOSE TO UNION
MJT7 M/T<Y9E> L=918 		8-98100-825-0 01 1 0811-
95 BRACKET; CLIP
MJX12P M/T SMOOTHER-G(Y4S) (C) 		8-97610-663-0 01 1 0610-
95 BRACKET; CLIP
MJX12P M/T SMOOTHER-G(Y4S) (D) 		8-97610-664-0 01 1 0610-
95 BRACKET; CLIP
MJT7 M/T<Y9E> (A) L=50 		1-47475-299-2 01 1 0610-
95 BRACKET; CLIP
(B) 		1-47479-482-0 05 1 0610-
101 UNION; FLEX HOSE
MJX12P M/T SMOOTHER-G(Y4S) M22 & M22 STRAIGHT 		1-09654-204-2 01 1 0610-
109 UNION
MJX12P M/T SMOOTHER-G(Y4S) M22 L=51 		0-92123-015-0 02 1 0610-
109 UNION
MJT7 M/T<Y9E> M16 STRAIGHT L=42 		0-92123-010-0 01 1 0610-
114 PIPE; OIL,UNION TO FLEX HOSE
MJX12P M/T SMOOTHER-G(Y4S) L=825 		8-98042-991-0 01 1 0610-
114 PIPE; OIL,UNION TO FLEX HOSE
MJT7 M/T<Y9E> L=856 		8-98039-022-0 01 1 0610-0810
114 PIPE; OIL,UNION TO FLEX HOSE
MJT7 M/T<Y9E> L=856 		8-98100-976-0 01 1 0811-
116 NUT; BRKT,FLEX HOSE
MJX12P M/T SMOOTHER-G(Y4S) M22 		0-91111-522-0 01 1 0610-
116 NUT; BRKT,FLEX HOSE
MJT7 M/T<Y9E> M16 		0-91111-516-0 01 1 0610-
117 WASHER; LK,FLEX HOSE
MJX12P M/T SMOOTHER-G(Y4S) ID=22.5 		0-91510-522-0 01 1 0610-
117 WASHER; LK,FLEX HOSE
MJT7 M/T<Y9E> ID=16.2 		0-91510-516-0 01 1 0610-
136 CLIP; FLEX HOSE
L=350 		1-09707-183-0 01 1 0610-
178 BOLT; BRKT,CLIP
MJX12P M/T SMOOTHER-G(Y4S) M8X30 FLANGE 		0-28650-830-0 01 1 0610-
178 BOLT; BRKT,CLIP
MJT7 M/T<Y9E> M8X35 FLANGE 		0-28650-835-0 01 1 0610-
179 BOLT; BRKT
MJX12P M/T SMOOTHER-G(Y4S) M8X30 FLANGE 		0-28650-830-0 02 1 0610-
179 BOLT; BRKT
MJT7 M/T<Y9E> M8X35 FLANGE 		0-28650-835-0 02 1 0610-
210 BAND; FLEX HOSE
L=175 		1-09707-178-0 01 1 0610-

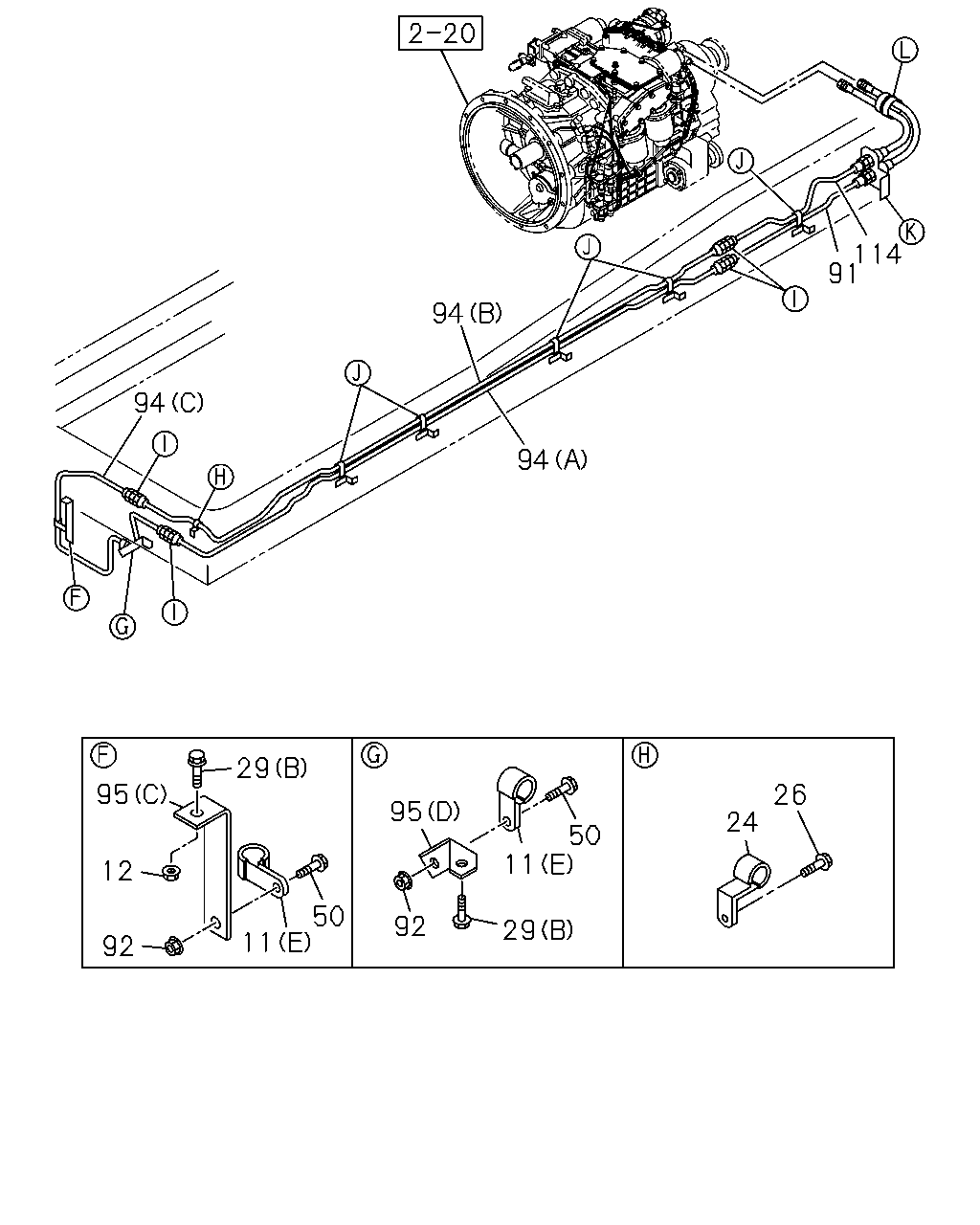

çizim 139450
114 91 94 94 94 29 95 26 95 24 50 11 12 50 11 92 29 92
BalonParca AdiParca NoAdetTipApplied Date
11 CLIP; PIPE
MJX12P M/T SMOOTHER-G(Y4S) (E) ID=19 L=28 		0-95235-856-0 02 1 0610-
11 CLIP; PIPE
MJX12P M/T SMOOTHER-G(Y4S) (D) ID=16X2 L=20 		0-95325-535-0 05 1 0610-
11 CLIP; PIPE
MJT7 M/T<Y9E> (A) ID=11 & 11 L=21.5 & 21.5 		1-09700-660-0 01 1 0610-0611
11 CLIP; PIPE
MJT7 M/T<Y9E> (A) ID=11 & 11 L=21.5 & 21.5 		1-09700-660-0 02 1 0612-
11 CLIP; PIPE
MJT7 M/T<Y9E> (B) ID=11 H=20 L=20 		5-09700-351-0 01 1 0610-0707
11 CLIP; PIPE
MJT7 M/T<Y9E> (B) ID=11 H=20 L=20 		8-98033-780-0 01 1 0708-
11 CLIP; PIPE
MJT7 M/T<Y9E> (C) ID=11X2 L=20 		9-09535-036-0 04 1 0610-
12 NUT; BRKT
M8 FLANGE 		0-91180-108-0 05 1 0610-
24 CLIP; OIL PIPE
MJX12P M/T SMOOTHER-G(Y4S) ID=15 H=24 L=20 		1-09700-606-0 01 1 0610-
24 CLIP; OIL PIPE
MJT7 M/T<Y9E> ID=11 H=20 L=20 		5-09700-351-0 02 1 0610-0707
24 CLIP; OIL PIPE
MJT7 M/T<Y9E> ID=11 H=20 L=20 		8-98033-780-0 02 1 0708-
26 BOLT; PIPE CLIP
MJX12P M/T SMOOTHER-G(Y4S) M8X20 FLANGE 		0-28650-820-0 01 1 0610-
26 BOLT; PIPE CLIP
MJT7 M/T<Y9E> M8X20 FLANGE 		0-28650-820-0 02 1 0610-
29 BOLT; FILTER TO BRKT
MJX12P M/T SMOOTHER-G(Y4S) (B) M8X20 FLANGE 		0-28650-820-0 01 1 0610-
29 BOLT; FILTER TO BRKT
MJX12P M/T SMOOTHER-G(Y4S) (B) M10X20 FLANGE 		0-28651-020-0 01 1 0610-
29 BOLT; FILTER TO BRKT
MJT7 M/T<Y9E> (A) M10X30 FLANGE 		0-28651-030-0 02 1 0610-
29 BOLT; FILTER TO BRKT
(B) M8X30 FLANGE 		0-28650-830-0 04 1 0610-
50 BOLT; CLIP
MJX12P M/T SMOOTHER-G(Y4S) M8X16 FLANGE 		0-28050-816-0 02 1 0610-0611
50 BOLT; CLIP
MJX12P M/T SMOOTHER-G(Y4S) MJT7 M/T<Y9E> M8X16 FLANGE 		0-28050-816-0 02 1 0612-
50 BOLT; CLIP
MJX12P M/T SMOOTHER-G(Y4S) M8X20 FLANGE 		0-28650-820-0 05 1 0610-
50 BOLT; CLIP
MJT7 M/T<Y9E> M8X16 FLANGE 		0-28050-816-0 01 1 0610-0611
50 BOLT; CLIP
MJT7 M/T<Y9E> M8X20 FLANGE 		0-28050-820-0 01 1 0610-
50 BOLT; CLIP
MJT7 M/T<Y9E> M8X25 FLANGE 		0-28650-825-0 04 1 0610-
91 PIPE; OIL,FLEX HOSE TO UNION
MJX12P M/T SMOOTHER-G(Y4S) L=897 		8-98042-990-0 01 1 0610-
91 PIPE; OIL,FLEX HOSE TO UNION
MJT7 M/T<Y9E> L=912 		8-98039-021-0 01 1 0610-0810
91 PIPE; OIL,FLEX HOSE TO UNION
MJT7 M/T<Y9E> L=918 		8-98100-825-0 01 1 0811-
92 NUT; CLIP
MJX12P M/T SMOOTHER-G(Y4S) M8 FLANGE 		0-91180-108-0 02 1 0610-
92 NUT; CLIP
MJT7 M/T<Y9E> M8 FLANGE 		0-91180-108-0 01 1 0610-
94 PIPE; OIL,UNION TO UNION
MJX12P M/T SMOOTHER-G(Y4S) (B) L=2045 		1-49167-291-0 01 1 0610-
94 PIPE; OIL,UNION TO UNION
MJX12P M/T SMOOTHER-G(Y4S) (A) L=1610 		1-49167-565-0 01 1 0610-
94 PIPE; OIL,UNION TO UNION
MJX12P M/T SMOOTHER-G(Y4S) (C) L=1010 		1-49167-738-0 01 1 0610-
95 BRACKET; CLIP
MJX12P M/T SMOOTHER-G(Y4S) (C) 		8-97610-663-0 01 1 0610-
95 BRACKET; CLIP
MJX12P M/T SMOOTHER-G(Y4S) (D) 		8-97610-664-0 01 1 0610-
95 BRACKET; CLIP
MJT7 M/T<Y9E> (A) L=50 		1-47475-299-2 01 1 0610-
95 BRACKET; CLIP
(B) 		1-47479-482-0 05 1 0610-
114 PIPE; OIL,UNION TO FLEX HOSE
MJX12P M/T SMOOTHER-G(Y4S) L=825 		8-98042-991-0 01 1 0610-
114 PIPE; OIL,UNION TO FLEX HOSE
MJT7 M/T<Y9E> L=856 		8-98039-022-0 01 1 0610-0810
114 PIPE; OIL,UNION TO FLEX HOSE
MJT7 M/T<Y9E> L=856 		8-98100-976-0 01 1 0811-

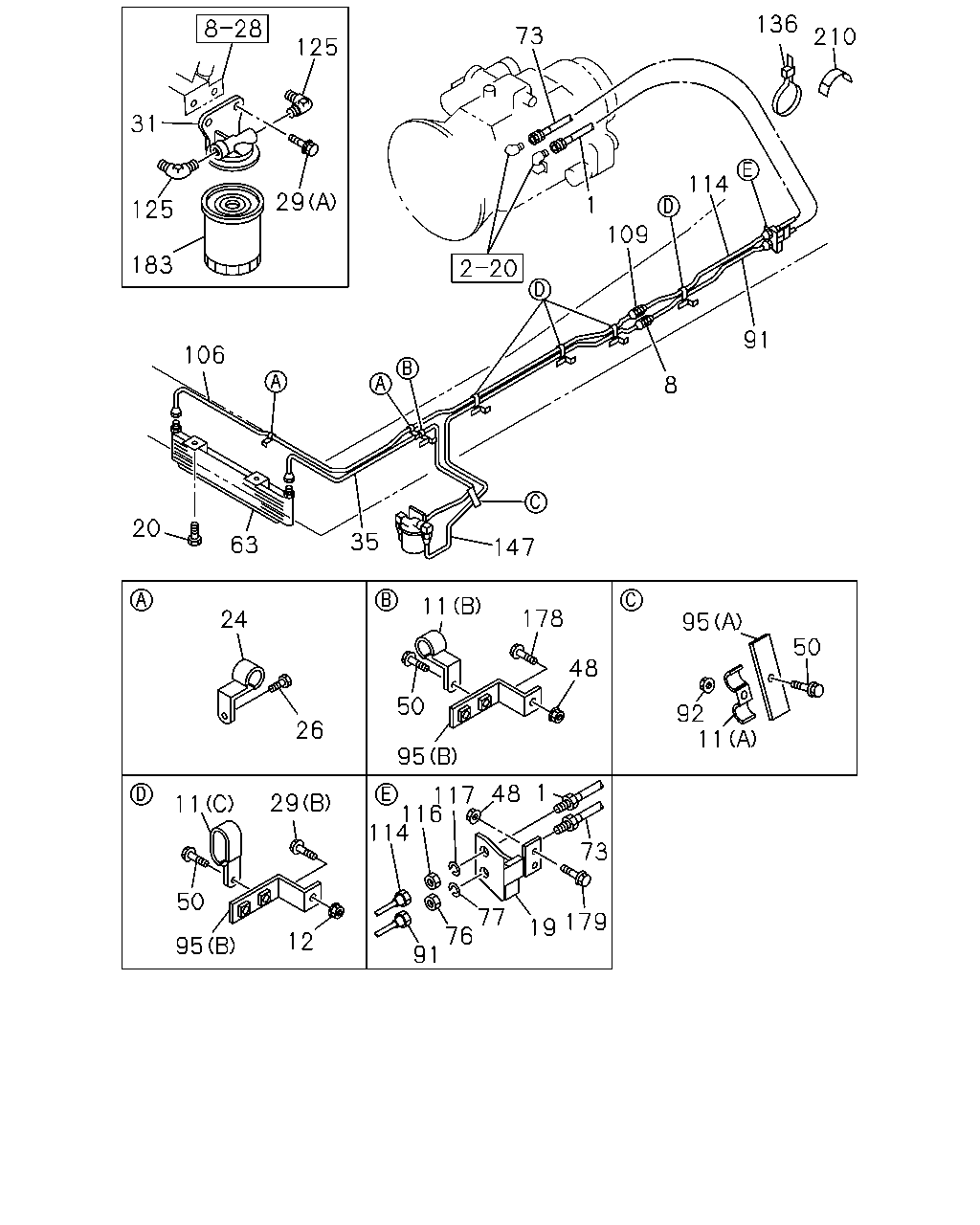

çizim 139458
136 73 210 125 31 114 29 1 125 109 183 91 106 8 20 35 63 147 11 178 24 95 50 48 50 92 11 26 95 1 48 117 116 114 29 11 73 50 77 76 91 179 19 12 95
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; ATF
MJX12P M/T SMOOTHER-G(Y4S) L=585 		1-09365-348-0 01 1 0610-
1 HOSE; ATF
MJT7 M/T<Y9E> L=430 		1-09364-872-0 01 1 0610-
8 UNION
MJX12P M/T SMOOTHER-G(Y4S) M22 L=51 		0-92123-015-0 02 1 0610-
8 UNION
MJT7 M/T<Y9E> M16 STRAIGHT L=42 		0-92123-010-0 01 1 0610-
11 CLIP; PIPE
MJX12P M/T SMOOTHER-G(Y4S) (E) ID=19 L=28 		0-95235-856-0 02 1 0610-
11 CLIP; PIPE
MJX12P M/T SMOOTHER-G(Y4S) (D) ID=16X2 L=20 		0-95325-535-0 05 1 0610-
11 CLIP; PIPE
MJT7 M/T<Y9E> (A) ID=11 & 11 L=21.5 & 21.5 		1-09700-660-0 01 1 0610-0611
11 CLIP; PIPE
MJT7 M/T<Y9E> (A) ID=11 & 11 L=21.5 & 21.5 		1-09700-660-0 02 1 0612-
11 CLIP; PIPE
MJT7 M/T<Y9E> (B) ID=11 H=20 L=20 		5-09700-351-0 01 1 0610-0707
11 CLIP; PIPE
MJT7 M/T<Y9E> (B) ID=11 H=20 L=20 		8-98033-780-0 01 1 0708-
11 CLIP; PIPE
MJT7 M/T<Y9E> (C) ID=11X2 L=20 		9-09535-036-0 04 1 0610-
12 NUT; BRKT
M8 FLANGE 		0-91180-108-0 05 1 0610-
19 BRACKET; FLEX HOSE
MJX12P M/T SMOOTHER-G(Y4S) 		1-47479-613-1 01 1 0610-
19 BRACKET; FLEX HOSE
MJT7 M/T<Y9E> 		1-47479-559-0 01 1 0610-
20 BOLT; COOLER TO BRKT
MJT7 M/T<Y9E> M10X20 FLANGE 		0-28051-020-0 02 1 0610-
24 CLIP; OIL PIPE
MJX12P M/T SMOOTHER-G(Y4S) ID=15 H=24 L=20 		1-09700-606-0 01 1 0610-
24 CLIP; OIL PIPE
MJT7 M/T<Y9E> ID=11 H=20 L=20 		5-09700-351-0 02 1 0610-0707
24 CLIP; OIL PIPE
MJT7 M/T<Y9E> ID=11 H=20 L=20 		8-98033-780-0 02 1 0708-
26 BOLT; PIPE CLIP
MJX12P M/T SMOOTHER-G(Y4S) M8X20 FLANGE 		0-28650-820-0 01 1 0610-
26 BOLT; PIPE CLIP
MJT7 M/T<Y9E> M8X20 FLANGE 		0-28650-820-0 02 1 0610-
29 BOLT; FILTER TO BRKT
MJX12P M/T SMOOTHER-G(Y4S) (B) M8X20 FLANGE 		0-28650-820-0 01 1 0610-
29 BOLT; FILTER TO BRKT
MJX12P M/T SMOOTHER-G(Y4S) (B) M10X20 FLANGE 		0-28651-020-0 01 1 0610-
29 BOLT; FILTER TO BRKT
MJT7 M/T<Y9E> (A) M10X30 FLANGE 		0-28651-030-0 02 1 0610-
29 BOLT; FILTER TO BRKT
(B) M8X30 FLANGE 		0-28650-830-0 04 1 0610-
31 BRACKET; OIL FILTER
MJT7 M/T<Y9E> 		1-33119-222-0 01 1 0610-
35 PIPE; OIL,OIL COOLER TO FILTER
MJT7 M/T<Y9E> L=1319 SERVICED BY L=1400 		1-47428-878-0 01 1 0610-0610
35 PIPE; OIL,OIL COOLER TO FILTER
MJT7 M/T<Y9E> L=1329 SERVICED BY L=1400 		1-47428-878-0 01 1 0610-0611
35 PIPE; OIL,OIL COOLER TO FILTER
MJT7 M/T<Y9E> L=1328 SERVICED BY L=1400 		1-47428-878-0 01 1 0612-
48 NUT; BRKT
MJT7 M/T<Y9E> M8 FLANGE 		0-91180-108-0 01 1 0610-
48 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0610-
50 BOLT; CLIP
MJX12P M/T SMOOTHER-G(Y4S) M8X16 FLANGE 		0-28050-816-0 02 1 0610-0611
50 BOLT; CLIP
MJX12P M/T SMOOTHER-G(Y4S) MJT7 M/T<Y9E> M8X16 FLANGE 		0-28050-816-0 02 1 0612-
50 BOLT; CLIP
MJX12P M/T SMOOTHER-G(Y4S) M8X20 FLANGE 		0-28650-820-0 05 1 0610-
50 BOLT; CLIP
MJT7 M/T<Y9E> M8X16 FLANGE 		0-28050-816-0 01 1 0610-0611
50 BOLT; CLIP
MJT7 M/T<Y9E> M8X20 FLANGE 		0-28050-820-0 01 1 0610-
50 BOLT; CLIP
MJT7 M/T<Y9E> M8X25 FLANGE 		0-28650-825-0 04 1 0610-
63 COOLER; OIL
MJT7 M/T<Y9E> 		1-21700-290-0 01 1 0610-0610
63 COOLER; OIL
MJT7 M/T<Y9E> 		1-21700-394-0 01 1 0610-1405
63 COOLER; OIL
MJT7 M/T<Y9E> 		8-98269-766-0 01 1 1406-
73 HOSE; FLEX,TRANS
MJX12P M/T SMOOTHER-G(Y4S) L=530 		1-09365-248-0 01 1 0610-
73 HOSE; FLEX,TRANS
MJT7 M/T<Y9E> L=430 		1-09364-872-0 01 1 0610-
76 NUT; FLEX HOSE
MJX12P M/T SMOOTHER-G(Y4S) M22 		0-91111-522-0 01 1 0610-
76 NUT; FLEX HOSE
MJT7 M/T<Y9E> M16 		0-91111-516-0 01 1 0610-
77 WASHER; LK
MJX12P M/T SMOOTHER-G(Y4S) ID=22.5 		0-91510-522-0 01 1 0610-
77 WASHER; LK
MJT7 M/T<Y9E> ID=16.2 		0-91510-516-0 01 1 0610-
91 PIPE; OIL,FLEX HOSE TO UNION
MJX12P M/T SMOOTHER-G(Y4S) L=897 		8-98042-990-0 01 1 0610-
91 PIPE; OIL,FLEX HOSE TO UNION
MJT7 M/T<Y9E> L=912 		8-98039-021-0 01 1 0610-0810
91 PIPE; OIL,FLEX HOSE TO UNION
MJT7 M/T<Y9E> L=918 		8-98100-825-0 01 1 0811-
92 NUT; CLIP
MJX12P M/T SMOOTHER-G(Y4S) M8 FLANGE 		0-91180-108-0 02 1 0610-
92 NUT; CLIP
MJT7 M/T<Y9E> M8 FLANGE 		0-91180-108-0 01 1 0610-
95 BRACKET; CLIP
MJX12P M/T SMOOTHER-G(Y4S) (C) 		8-97610-663-0 01 1 0610-
95 BRACKET; CLIP
MJX12P M/T SMOOTHER-G(Y4S) (D) 		8-97610-664-0 01 1 0610-
95 BRACKET; CLIP
MJT7 M/T<Y9E> (A) L=50 		1-47475-299-2 01 1 0610-
95 BRACKET; CLIP
(B) 		1-47479-482-0 05 1 0610-
106 PIPE ASM; OIL,COOLER TO UNION
MJT7 M/T<Y9E> 		8-98034-834-0 01 1 0610-
109 UNION
MJX12P M/T SMOOTHER-G(Y4S) M22 L=51 		0-92123-015-0 02 1 0610-
109 UNION
MJT7 M/T<Y9E> M16 STRAIGHT L=42 		0-92123-010-0 01 1 0610-
114 PIPE; OIL,UNION TO FLEX HOSE
MJX12P M/T SMOOTHER-G(Y4S) L=825 		8-98042-991-0 01 1 0610-
114 PIPE; OIL,UNION TO FLEX HOSE
MJT7 M/T<Y9E> L=856 		8-98039-022-0 01 1 0610-0810
114 PIPE; OIL,UNION TO FLEX HOSE
MJT7 M/T<Y9E> L=856 		8-98100-976-0 01 1 0811-
116 NUT; BRKT,FLEX HOSE
MJX12P M/T SMOOTHER-G(Y4S) M22 		0-91111-522-0 01 1 0610-
116 NUT; BRKT,FLEX HOSE
MJT7 M/T<Y9E> M16 		0-91111-516-0 01 1 0610-
117 WASHER; LK,FLEX HOSE
MJX12P M/T SMOOTHER-G(Y4S) ID=22.5 		0-91510-522-0 01 1 0610-
117 WASHER; LK,FLEX HOSE
MJT7 M/T<Y9E> ID=16.2 		0-91510-516-0 01 1 0610-
125 CONNECTOR; OIL FILTER
MJT7 M/T<Y9E> M16 & PT1/4 ELBOW 		0-92134-310-0 02 1 0610-
136 CLIP; FLEX HOSE
L=350 		1-09707-183-0 01 1 0610-
147 PIPE; OIL,UNION TO FILTER
MJT7 M/T<Y9E> L=1713 SERVICED BY L=1783 		1-47428-881-0 01 1 0610-0611
147 PIPE; OIL,UNION TO FILTER
MJT7 M/T<Y9E> L=1764 		8-98069-775-0 01 1 0612-
178 BOLT; BRKT,CLIP
MJX12P M/T SMOOTHER-G(Y4S) M8X30 FLANGE 		0-28650-830-0 01 1 0610-
178 BOLT; BRKT,CLIP
MJT7 M/T<Y9E> M8X35 FLANGE 		0-28650-835-0 01 1 0610-
179 BOLT; BRKT
MJX12P M/T SMOOTHER-G(Y4S) M8X30 FLANGE 		0-28650-830-0 02 1 0610-
179 BOLT; BRKT
MJT7 M/T<Y9E> M8X35 FLANGE 		0-28650-835-0 02 1 0610-
183 CARTRIDGE; OIL FILTER
MJT7 M/T<Y9E> 		8-94459-700-1 01 1 0610-
210 BAND; FLEX HOSE
L=175 		1-09707-178-0 01 1 0610-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
