0-42 — FUEL PUMP AND PIPE (#26521) — 56 parça

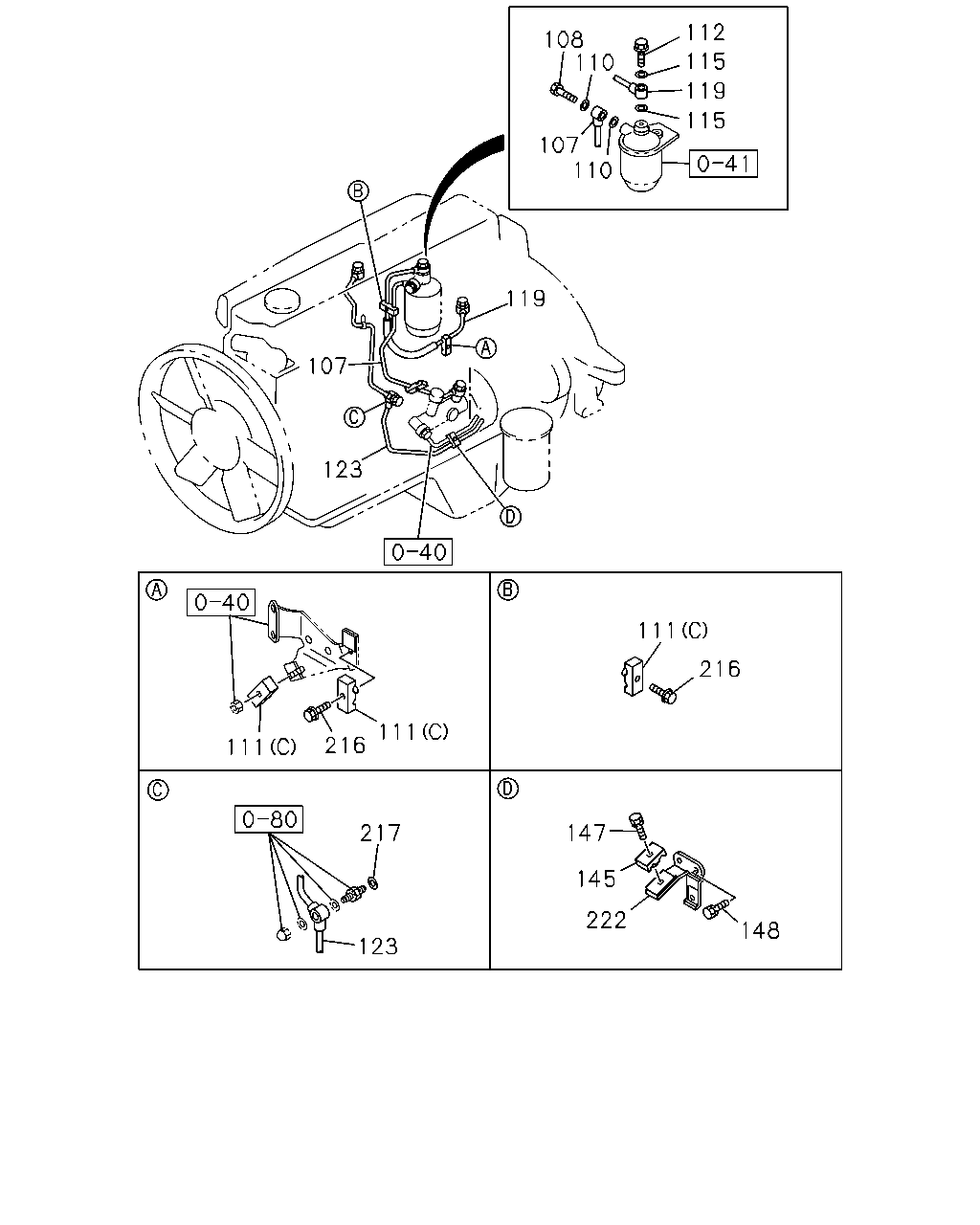

112 108 110 115 119 115 107 110 119 107 123 111 216 111 216 111 217 147 145 222 148 123

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-94395-042-1	01	1	0407-	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-94392-069-0	01	1	0407-		●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0407-	●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0407-	●	●
111	CLIP; FUEL PIPE (C) L=48	5-09709-103-0	03	1	0407-	●
111	CLIP; FUEL PIPE (A)	1-15419-215-1	01	1	0407-		●
111	CLIP; FUEL PIPE (B) ID=6.0 & 9.5	8-94100-359-0	01	1	0407-		●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0407-	●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0407-	●	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-94395-041-0	01	1	0407-	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-94392-959-0	01	1	0407-		●
123	PIPE; FUEL,FUEL FILTER LEAK OFF	8-94390-831-2	01	1	0407-	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF	8-94392-617-1	01	1	0407-		●
145	CLIP; FUEL PIPE L=48	5-09709-103-0	01	1	0407-	●	●
147	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	01	1	0407-0512	●	●
147	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50540-630-0	01	1	0601-	●	●
148	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	02	1	0407-0512	●
148	BOLT; BRKT M8X16 FLANGE THA	0-28050-816-0	02	1	0601-	●
148	BOLT; BRKT M8X50 FLANGE	0-28080-850-0	02	1	0407-0512		●
148	BOLT; BRKT M8X50 FLANGE THA	0-28050-850-0	02	1	0601-		●
216	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	02	1	0407-0512	●	●
216	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50540-630-0	02	1	0601-	●	●
217	GASKET; OVERFLOW VLV ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	01	1	0407-	●
222	BRACKET; CLIP	8-94395-079-2	01	1	0407-	●
222	BRACKET; CLIP	8-94392-071-1	01	1	0407-		●

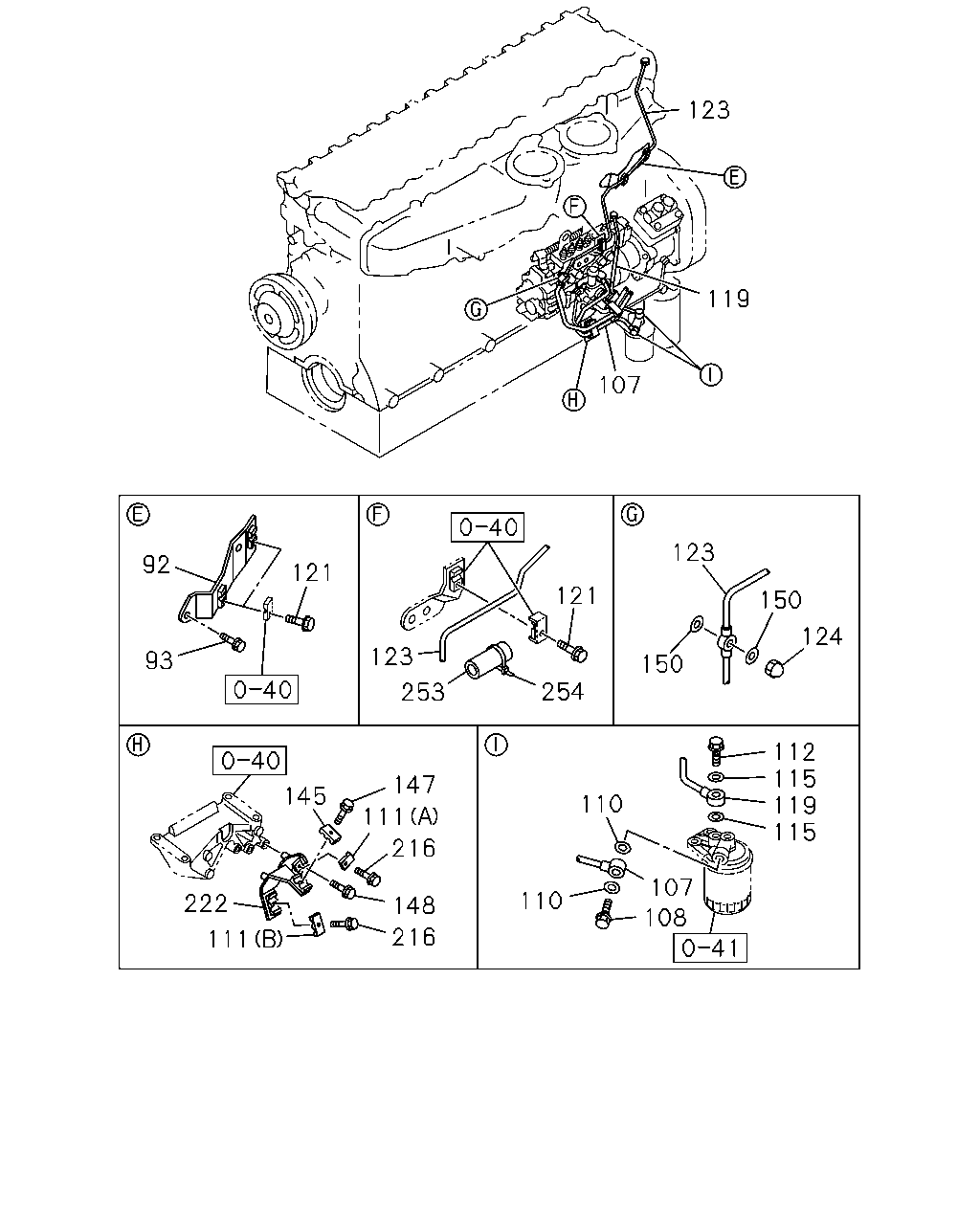

123 119 107 123 92 121 121 150 124 123 93 150 254 253 112 115 119 115 147 145 110 111 216 107 108 110 222 148 216 111

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
92	BRACKET; FUEL PIPE	8-94391-980-0	01	1	0407-		●
93	BOLT; PIPE BRKT M8X14 FLANGE	0-28080-814-0	02	1	0407-		●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-94395-042-1	01	1	0407-	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-94392-069-0	01	1	0407-		●
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0407-	●	●
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0407-	●	●
111	CLIP; FUEL PIPE (C) L=48	5-09709-103-0	03	1	0407-	●
111	CLIP; FUEL PIPE (A)	1-15419-215-1	01	1	0407-		●
111	CLIP; FUEL PIPE (B) ID=6.0 & 9.5	8-94100-359-0	01	1	0407-		●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0407-	●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0407-	●	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-94395-041-0	01	1	0407-	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-94392-959-0	01	1	0407-		●
121	BOLT; CLIP M6X22 FLANGE	0-28080-622-0	03	1	0407-		●
123	PIPE; FUEL,FUEL FILTER LEAK OFF	8-94390-831-2	01	1	0407-	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF	8-94392-617-1	01	1	0407-		●
124	NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	0407-		●
145	CLIP; FUEL PIPE L=48	5-09709-103-0	01	1	0407-	●	●
147	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	01	1	0407-0512	●	●
147	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50540-630-0	01	1	0601-	●	●
148	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	02	1	0407-0512	●
148	BOLT; BRKT M8X16 FLANGE THA	0-28050-816-0	02	1	0601-	●
148	BOLT; BRKT M8X50 FLANGE	0-28080-850-0	02	1	0407-0512		●
148	BOLT; BRKT M8X50 FLANGE THA	0-28050-850-0	02	1	0601-		●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0407-		●
216	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	02	1	0407-0512	●	●
216	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50540-630-0	02	1	0601-	●	●
222	BRACKET; CLIP	8-94395-079-2	01	1	0407-	●
222	BRACKET; CLIP	8-94392-071-1	01	1	0407-		●
253	COVER; RUBBER ID=6 OD=10 L=70	1-09376-512-0	01	1	0407-		●
254	CLIP L=250	5-09707-030-1	01	1	0407-		●
