◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 10943 - FVM(THAI)EURO2 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-39 - AIR COMPRESSOR; BRAKE ▶
0-39 — AIR COMPRESSOR; BRAKE (#26518) — 77 parça

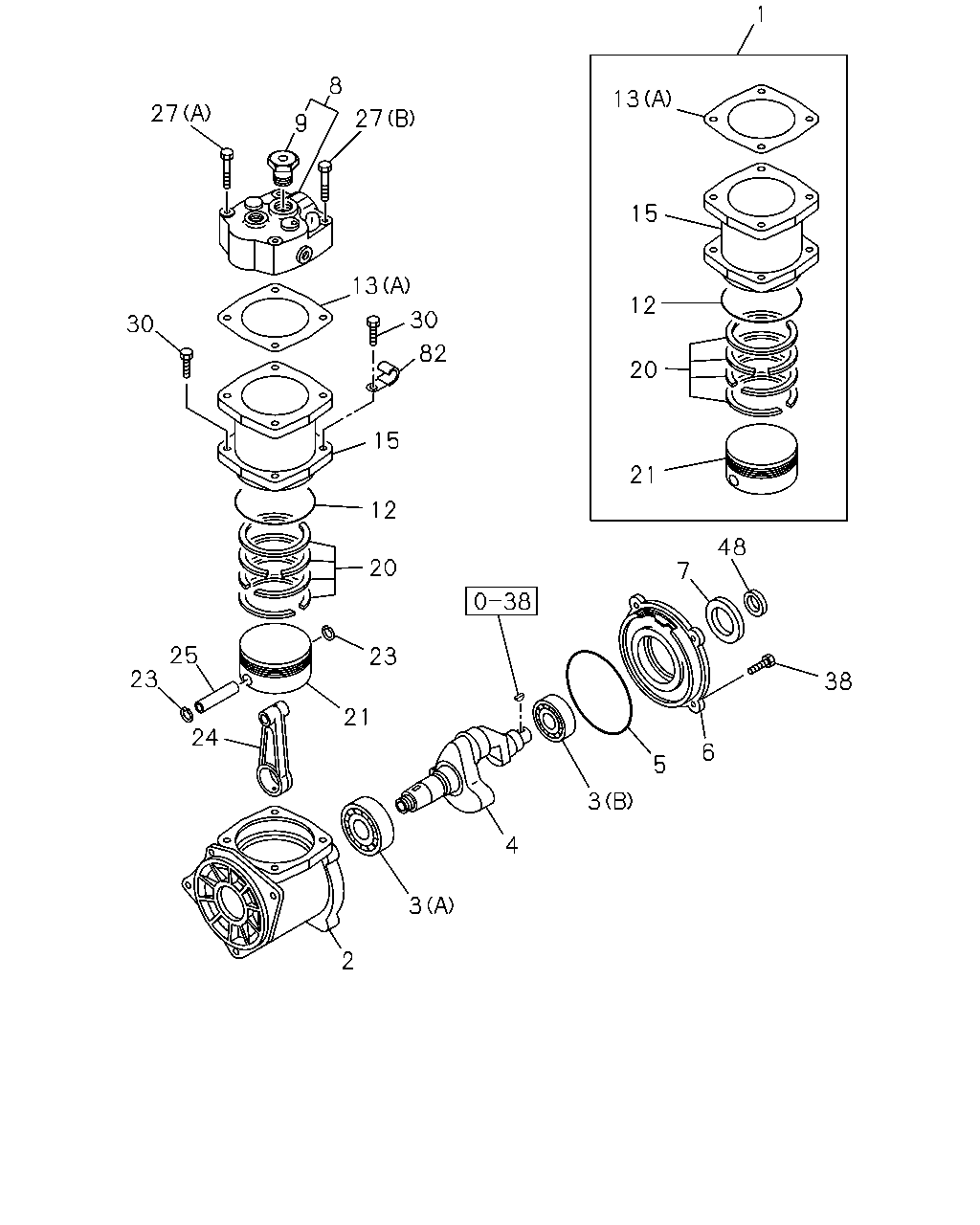

çizim 82306
1 8 13 27 27 9 15 13 12 30 30 82 20 15 21 12 48 20 7 25 23 23 38 21 24 6 5 3 4 3 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 LINER KIT; CYL,AIR CMPR 1-19163-052-1 01 1 0407- ●
1 LINER KIT; CYL,AIR CMPR 1-19163-062-1 01 1 0407- ●
2 CRANKCASE; AIR CMPR 1-19151-274-0 01 1 0407- ●
2 CRANKCASE; AIR CMPR 1-19151-282-2 01 1 0407- ●
3 BEARING; AIR CMPR
(B) 		9-00006-206-0 01 1 0407- ●
3 BEARING; AIR CMPR
(A) 		9-00090-152-0 01 1 0407- ●
3 BEARING; AIR CMPR
(A) 		1-19177-009-0 01 1 0407- ●
3 BEARING; AIR CMPR
(B) 		1-19177-010-0 01 1 0407- ●
4 CRANKSHAFT; AIR CMPR 1-19171-028-0 01 1 0407- ●
4 CRANKSHAFT; AIR CMPR 1-19171-074-1 01 1 0407- ●
5 GASKET; AIR CMPR 1-09623-361-0 01 1 0407- ●
5 GASKET; AIR CMPR 1-09623-627-0 01 1 0407- ●
6 COVER ASM; BRG,AIR CMPR 1-19156-039-0 01 1 0407- ●
6 COVER ASM; BRG,AIR CMPR 1-19156-075-1 01 1 0407- ●
7 SEAL; OIL,BRG COVER,AIR CMPR 1-09625-534-0 01 1 0407- ●
8 HEAD ASM; CYL,AIR CMPR 1-19110-056-1 01 1 0407- ●
8 HEAD ASM; CYL,AIR CMPR 1-19110-051-0 01 1 0407- ●
9 VALVE ASM; UNLOADER,AIR CMPR 1-19120-017-1 01 1 0407- ● ●
12 GASKET; AIR CMPR 1-09623-539-0 01 1 0407- ● ●
13 GASKET; AIR CMPR
(A) 		8-98112-947-0 01 1 0407- ●
13 GASKET; AIR CMPR
(B) 		1-19139-016-0 01 1 0407- ●
15 CYLINDER; AIR CMPR 1-19151-218-0 01 1 0407- ●
15 CYLINDER; AIR CMPR 1-19151-283-1 01 1 0407- ●
20 RING KIT; PISTON,AIR CMPR 1-19163-051-1 01 1 0407- ● ●
21 PISTON; AIR CMPR 1-19161-016-0 01 1 0407- ● ●
23 RING; SNAP,PISTON,AIR CMPR 1-19169-004-0 02 1 0407- ●
23 RING; SNAP,PISTON,AIR CMPR 9-19168-008-0 02 1 0407- ●
24 ROD ASM; CONN,AIR CMPR 1-19173-010-0 01 1 0407- ●
24 ROD ASM; CONN,AIR CMPR 1-19173-007-0 01 1 0407- ●
25 PIN; PISTON,AIR CMPR 1-19167-003-0 01 1 0407- ●
25 PIN; PISTON,AIR CMPR 9-19167-003-0 01 1 0407- ●
27 BOLT; HD
(B) M10X45 		9-01066-045-0 02 1 0407- ● ●
27 BOLT; HD
(A) M10X60 		9-01066-060-0 02 1 0407- ● ●
30 BOLT; CYL TO CRANKCASE
M10X25 		9-02051-025-0 04 1 0407- ●
30 BOLT; CYL TO CRANKCASE
M10X25 		9-01911-025-0 04 1 0407- ●
38 BOLT; COVER FIX 1-19179-011-0 04 1 0407- ●
38 BOLT; COVER FIX 1-09100-018-0 02 1 0407- ●
48 SLEEVE; CR/SHF 1-19179-024-0 01 1 0407- ●
82 CLIP; AIR COMPRESSOR 1-19159-017-0 01 1 0407- ●

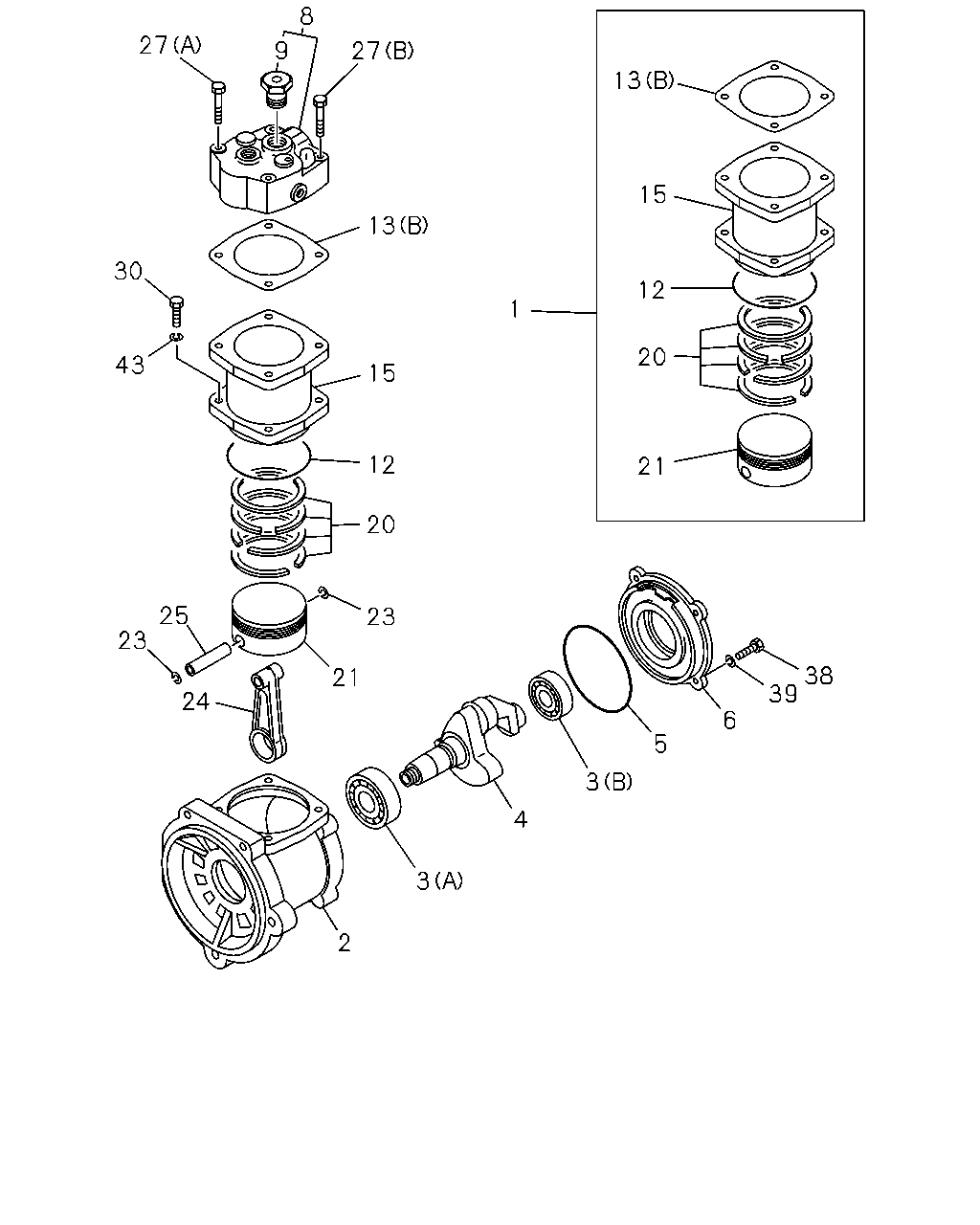

çizim 84103
8 27 9 27 13 15 13 30 12 1 20 43 15 12 21 20 25 23 23 38 39 21 24 6 5 3 4 3 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 LINER KIT; CYL,AIR CMPR 1-19163-052-1 01 1 0407- ●
1 LINER KIT; CYL,AIR CMPR 1-19163-062-1 01 1 0407- ●
2 CRANKCASE; AIR CMPR 1-19151-274-0 01 1 0407- ●
2 CRANKCASE; AIR CMPR 1-19151-282-2 01 1 0407- ●
3 BEARING; AIR CMPR
(B) 		9-00006-206-0 01 1 0407- ●
3 BEARING; AIR CMPR
(A) 		9-00090-152-0 01 1 0407- ●
3 BEARING; AIR CMPR
(A) 		1-19177-009-0 01 1 0407- ●
3 BEARING; AIR CMPR
(B) 		1-19177-010-0 01 1 0407- ●
4 CRANKSHAFT; AIR CMPR 1-19171-028-0 01 1 0407- ●
4 CRANKSHAFT; AIR CMPR 1-19171-074-1 01 1 0407- ●
5 GASKET; AIR CMPR 1-09623-361-0 01 1 0407- ●
5 GASKET; AIR CMPR 1-09623-627-0 01 1 0407- ●
6 COVER ASM; BRG,AIR CMPR 1-19156-039-0 01 1 0407- ●
6 COVER ASM; BRG,AIR CMPR 1-19156-075-1 01 1 0407- ●
8 HEAD ASM; CYL,AIR CMPR 1-19110-056-1 01 1 0407- ●
8 HEAD ASM; CYL,AIR CMPR 1-19110-051-0 01 1 0407- ●
9 VALVE ASM; UNLOADER,AIR CMPR 1-19120-017-1 01 1 0407- ● ●
12 GASKET; AIR CMPR 1-09623-539-0 01 1 0407- ● ●
13 GASKET; AIR CMPR
(A) 		8-98112-947-0 01 1 0407- ●
13 GASKET; AIR CMPR
(B) 		1-19139-016-0 01 1 0407- ●
15 CYLINDER; AIR CMPR 1-19151-218-0 01 1 0407- ●
15 CYLINDER; AIR CMPR 1-19151-283-1 01 1 0407- ●
20 RING KIT; PISTON,AIR CMPR 1-19163-051-1 01 1 0407- ● ●
21 PISTON; AIR CMPR 1-19161-016-0 01 1 0407- ● ●
23 RING; SNAP,PISTON,AIR CMPR 1-19169-004-0 02 1 0407- ●
23 RING; SNAP,PISTON,AIR CMPR 9-19168-008-0 02 1 0407- ●
24 ROD ASM; CONN,AIR CMPR 1-19173-010-0 01 1 0407- ●
24 ROD ASM; CONN,AIR CMPR 1-19173-007-0 01 1 0407- ●
25 PIN; PISTON,AIR CMPR 1-19167-003-0 01 1 0407- ●
25 PIN; PISTON,AIR CMPR 9-19167-003-0 01 1 0407- ●
27 BOLT; HD
(B) M10X45 		9-01066-045-0 02 1 0407- ● ●
27 BOLT; HD
(A) M10X60 		9-01066-060-0 02 1 0407- ● ●
30 BOLT; CYL TO CRANKCASE
M10X25 		9-02051-025-0 04 1 0407- ●
30 BOLT; CYL TO CRANKCASE
M10X25 		9-01911-025-0 04 1 0407- ●
38 BOLT; COVER FIX 1-19179-011-0 04 1 0407- ●
38 BOLT; COVER FIX 1-09100-018-0 02 1 0407- ●
39 WASHER; LK,COVER FIX
ID=8.2 		9-09150-608-0 04 1 0407- ●
43 WASHER; LK,CYL TO CRANKCASE,AIR CMPR
ID=10.2 		9-09150-610-0 04 1 0407- ●
