0-38 — AIR COMPRESSOR PIPING; ENGINE SIDE (#26517) — 121 parça

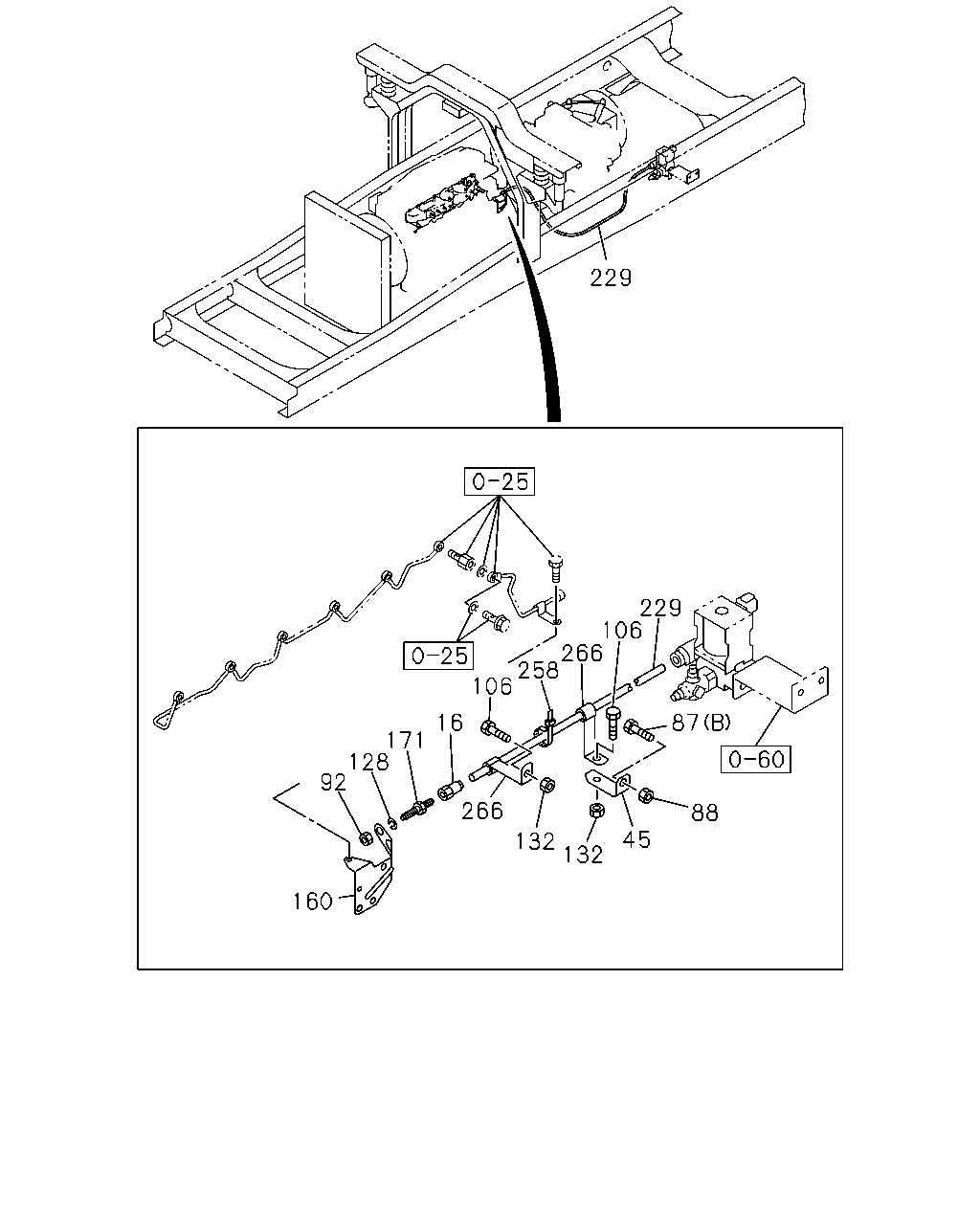

229 229 106 266 258 106 16 87 171 128 92 266 88 45 132 132 160

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	ADAPTER DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0407-	●
45	BRACKET; CLIP	1-47478-052-1	01	1	0407-	●
87	BOLT; BRKT FIX (A) M8X16 FLANGE	0-28080-816-0	02	1	0407-0512	●
87	BOLT; BRKT FIX (A) M8X16 FLANGE THA	0-28050-816-0	02	1	0601-	●
87	BOLT; BRKT FIX (B) M8X25 FLANGE	0-28680-825-0	01	1	0407-0611	●
87	BOLT; BRKT FIX (B) M8X25 FLANGE THA	0-28650-825-0	01	1	0612-	●
88	NUT; BRKT FIX M8 FLANGE	0-91150-108-0	01	1	0407-	●
92	NUT; UNION M12	9-09840-280-0	01	1	0407-	●
106	BOLT; CLIP M8X30 FLANGE	0-28680-830-0	02	1	0407-0611	●
106	BOLT; CLIP M8X30 FLANGE THA	0-28650-830-0	02	1	0612-	●
128	WASHER; LK,UNION ID=12.2	9-09150-512-0	01	1	0407-0603	●
128	WASHER; LK,UNION ID=12.2	0-91510-512-0	01	1	0604-	●
132	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	0407-	●
160	BRACKET; AIR PIPE	8-94392-614-0	01	1	0407-	●
160	BRACKET; AIR PIPE	8-94393-091-0	01	1	0407-		●
171	UNION M12 L=56.5	9-09223-106-1	01	1	0407-0607	●
171	UNION M12 L=56.5	0-92113-106-0	01	1	0608-	●
229	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0407-	●
258	CLIP; BAND,NYLON TUBE L=250	1-09707-126-0	02	1	0407-	●
266	CLIP; NYLON TUBE ID=9 H=60	1-09700-956-0	02	1	0407-	●

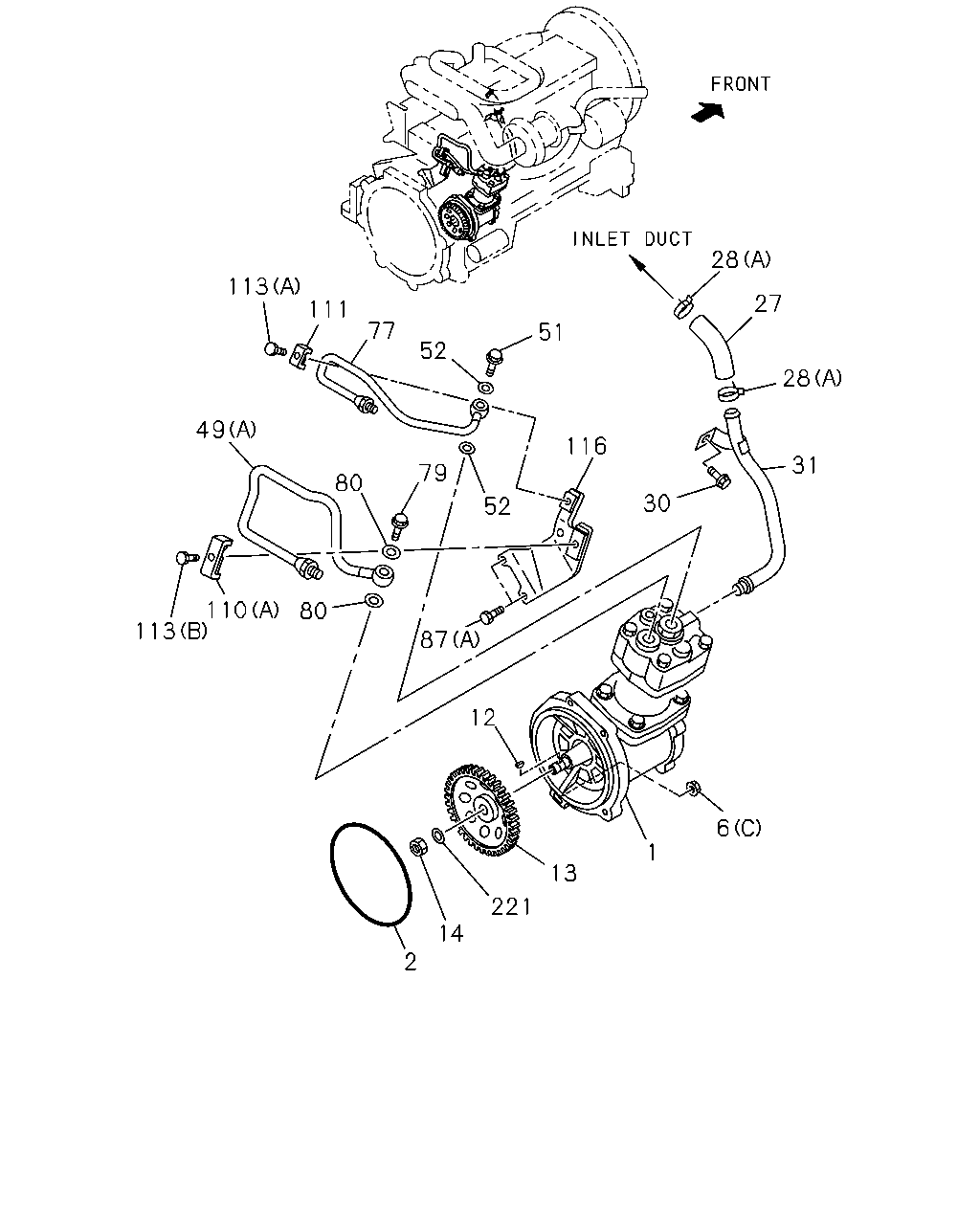

28 113 111 27 77 51 52 28 49 116 31 79 80 30 52 110 113 80 87 12 6 1 13 221 14 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94394-039-4	01	1	0407-	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-97600-705-1	01	1	0407-		●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162.6	1-09623-570-0	01	1	0407-	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	0407-		●
6	NUT; AIR CMPR (C) M12 FLANGE	0-91150-212-0	01	1	0407-0602	●
6	NUT; AIR CMPR (C) M12 FLANGE THA	0-91180-212-0	01	1	0603-	●
6	NUT; AIR CMPR (A) M10 FLANGE	0-91150-110-0	02	1	0407-0602		●
6	NUT; AIR CMPR (A) M10 FLANGE THA	0-91180-110-0	02	1	0603-		●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91150-112-0	01	1	0407-0602		●
6	NUT; AIR CMPR (B) M12 FLANGE THA	0-91180-112-0	01	1	0603-		●
12	KEY; AIR CMPR GEAR	9-08055-516-0	01	1	0407-	●
13	GEAR; AIR CMPR DRIVE Z=49	8-94394-511-4	01	1	0407-	●
14	NUT; GEAR M20	9-99110-520-0	01	1	0407-0512	●
14	NUT; GEAR M20	0-91110-520-0	01	1	0601-	●
14	NUT; GEAR M24	9-99110-524-0	01	1	0407-0512		●
14	NUT; GEAR M24	0-91110-524-0	01	1	0601-		●
27	HOSE; AIR CMPR,SUCTION L=80 SERVICED BY L=1500	1-09360-476-0	01	1	0407-	●
27	HOSE; AIR CMPR,SUCTION	8-94391-030-2	01	1	0407-		●
28	CLIP; HOSE,AIR CMPR (A) ID=26	1-09707-091-0	02	1	0407-	●
28	CLIP; HOSE,AIR CMPR (A) ID=26	1-09707-091-0	01	1	0407-		●
28	CLIP; HOSE,AIR CMPR (B) ID=22.7	8-94466-382-0	01	1	0407-		●
30	BOLT; PIPE CLIP M8X12 FLANGE	0-28080-812-0	01	1	0407-0512	●
30	BOLT; PIPE CLIP M8X12 FLANGE THA	0-28050-812-0	01	1	0601-	●
31	PIPE; AIR,AIR CMPR SUCTION	8-94390-405-0	01	1	0407-	●
31	PIPE; AIR,AIR CMPR SUCTION	8-94390-949-0	01	1	0407-		●
49	PIPE; AIR,CHARGE (A)	8-94395-723-0	01	1	0407-	●
49	PIPE; AIR,CHARGE (B)	8-94392-073-0	01	1	0407-		●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-1	01	1	0407-	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0407-	●	●
77	PIPE; AIR,GOV	8-94394-960-1	01	1	0407-	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	0407-	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0407-	●	●
87	BOLT; BRKT FIX (A) M8X16 FLANGE	0-28080-816-0	02	1	0407-0512	●
87	BOLT; BRKT FIX (A) M8X16 FLANGE THA	0-28050-816-0	02	1	0601-	●
87	BOLT; BRKT FIX (B) M8X25 FLANGE	0-28680-825-0	01	1	0407-0611	●
87	BOLT; BRKT FIX (B) M8X25 FLANGE THA	0-28650-825-0	01	1	0612-	●
110	CLIP; AIR PIPE (A)	8-94393-037-0	02	1	0407-	●
110	CLIP; AIR PIPE (B)	8-94393-037-0	01	1	0407-		●
111	CLIP; AIR PIPE	1-09701-091-0	01	1	0407-	●
113	BOLT; CLIP,AIR PIPE (B) M6X40 FLANGE	0-28080-640-0	02	1	0407-0512	●
113	BOLT; CLIP,AIR PIPE (B) M6X40 FLANGE	0-28050-640-0	02	1	0601-	●
113	BOLT; CLIP,AIR PIPE (A) M6X20 FLANGE	0-28680-620-0	01	1	0407-0512	●
113	BOLT; CLIP,AIR PIPE (A) M6X20 FLANGE THA	0-28650-620-0	01	1	0601-0611	●
113	BOLT; CLIP,AIR PIPE (A) M6X30 FLANGE	0-28050-630-0	01	1	0612-	●
113	BOLT; CLIP,AIR PIPE (B) M6X40 FLANGE	0-28080-640-0	01	1	0407-0512		●
113	BOLT; CLIP,AIR PIPE (B) M6X40 FLANGE	0-28050-640-0	01	1	0601-		●
116	BRACKET; AIR PIPE	8-94394-594-2	01	1	0407-	●
221	WASHER; PL,GEAR ID=21	9-09160-520-0	01	1	0407-0605	●
221	WASHER; PL,GEAR ID=21	0-91610-520-0	01	1	0606-	●
221	WASHER; PL,GEAR ID=25	9-09160-524-0	01	1	0407-		●

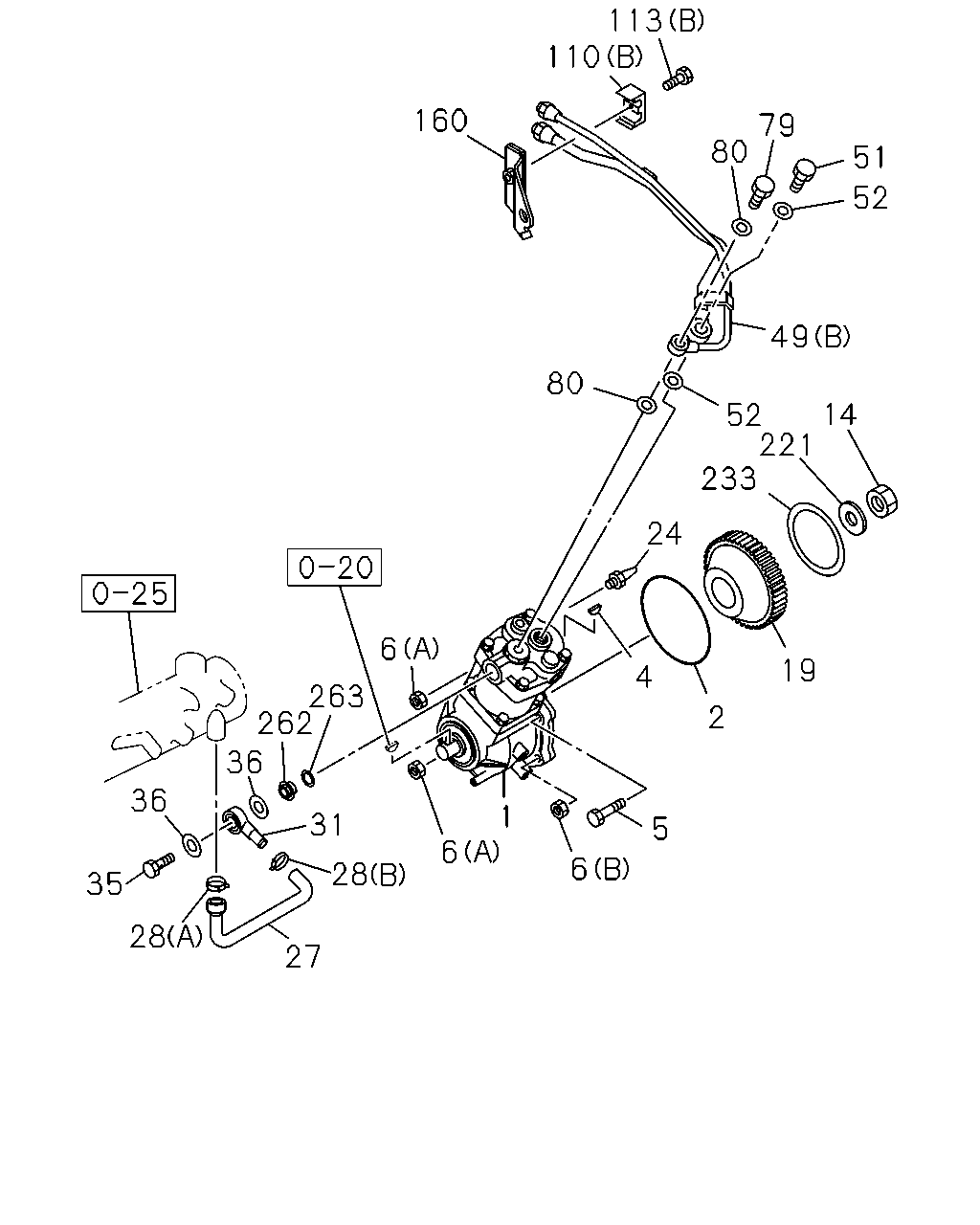

113 110 160 79 80 51 52 49 80 14 52 221 233 24 6 19 4 263 262 2 36 36 1 31 5 6 6 35 27 28 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94394-039-4	01	1	0407-	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-97600-705-1	01	1	0407-		●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162.6	1-09623-570-0	01	1	0407-	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	0407-		●
4	KEY; INJ PUMP GEAR	9-08055-519-0	01	1	0407-		●
5	BOLT; AIR CMPR FIX M12X110	0-28186-211-0	01	1	0407-0512		●
5	BOLT; AIR CMPR FIX M12X110 FLANGE	0-28156-211-0	01	1	0601-		●
6	NUT; AIR CMPR (C) M12 FLANGE	0-91150-212-0	01	1	0407-0602	●
6	NUT; AIR CMPR (C) M12 FLANGE THA	0-91180-212-0	01	1	0603-	●
6	NUT; AIR CMPR (A) M10 FLANGE	0-91150-110-0	02	1	0407-0602		●
6	NUT; AIR CMPR (A) M10 FLANGE THA	0-91180-110-0	02	1	0603-		●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91150-112-0	01	1	0407-0602		●
6	NUT; AIR CMPR (B) M12 FLANGE THA	0-91180-112-0	01	1	0603-		●
14	NUT; GEAR M20	9-99110-520-0	01	1	0407-0512	●
14	NUT; GEAR M20	0-91110-520-0	01	1	0601-	●
14	NUT; GEAR M24	9-99110-524-0	01	1	0407-0512		●
14	NUT; GEAR M24	0-91110-524-0	01	1	0601-		●
19	GEAR; INJ PUMP Z=35	8-94390-998-2	01	1	0407-		●
24	POINTER; AIR CMPR L=21	9-11327-602-0	01	1	0407-		●
27	HOSE; AIR CMPR,SUCTION L=80 SERVICED BY L=1500	1-09360-476-0	01	1	0407-	●
27	HOSE; AIR CMPR,SUCTION	8-94391-030-2	01	1	0407-		●
28	CLIP; HOSE,AIR CMPR (A) ID=26	1-09707-091-0	02	1	0407-	●
28	CLIP; HOSE,AIR CMPR (A) ID=26	1-09707-091-0	01	1	0407-		●
28	CLIP; HOSE,AIR CMPR (B) ID=22.7	8-94466-382-0	01	1	0407-		●
31	PIPE; AIR,AIR CMPR SUCTION	8-94390-405-0	01	1	0407-	●
31	PIPE; AIR,AIR CMPR SUCTION	8-94390-949-0	01	1	0407-		●
35	BOLT; EYE,AIR PIPE M24X39	1-09675-132-1	01	1	0407-		●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0407-		●
49	PIPE; AIR,CHARGE (A)	8-94395-723-0	01	1	0407-	●
49	PIPE; AIR,CHARGE (B)	8-94392-073-0	01	1	0407-		●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-1	01	1	0407-	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0407-	●	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	0407-	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0407-	●	●
110	CLIP; AIR PIPE (A)	8-94393-037-0	02	1	0407-	●
110	CLIP; AIR PIPE (B)	8-94393-037-0	01	1	0407-		●
113	BOLT; CLIP,AIR PIPE (B) M6X40 FLANGE	0-28080-640-0	02	1	0407-0512	●
113	BOLT; CLIP,AIR PIPE (B) M6X40 FLANGE	0-28050-640-0	02	1	0601-	●
113	BOLT; CLIP,AIR PIPE (A) M6X20 FLANGE	0-28680-620-0	01	1	0407-0512	●
113	BOLT; CLIP,AIR PIPE (A) M6X20 FLANGE THA	0-28650-620-0	01	1	0601-0611	●
113	BOLT; CLIP,AIR PIPE (A) M6X30 FLANGE	0-28050-630-0	01	1	0612-	●
113	BOLT; CLIP,AIR PIPE (B) M6X40 FLANGE	0-28080-640-0	01	1	0407-0512		●
113	BOLT; CLIP,AIR PIPE (B) M6X40 FLANGE	0-28050-640-0	01	1	0601-		●
160	BRACKET; AIR PIPE	8-94392-614-0	01	1	0407-	●
160	BRACKET; AIR PIPE	8-94393-091-0	01	1	0407-		●
221	WASHER; PL,GEAR ID=21	9-09160-520-0	01	1	0407-0605	●
221	WASHER; PL,GEAR ID=21	0-91610-520-0	01	1	0606-	●
221	WASHER; PL,GEAR ID=25	9-09160-524-0	01	1	0407-		●
233	RING; FRICTION	8-97603-297-0	01	1	0407-		●
262	ADAPTER; AIR SUCTION PIPE	8-94391-995-0	01	1	0407-		●
263	GASKET; ADAPTER ID=30.5 OD=38.0	9-09571-430-0	01	1	0407-		●
