Isuzu WW
▶
TRUCKS
▶
FVM
▶
10943 - FVM(THAI)EURO2
▶
0 - Engine, Emission, Engine Electrical
▶

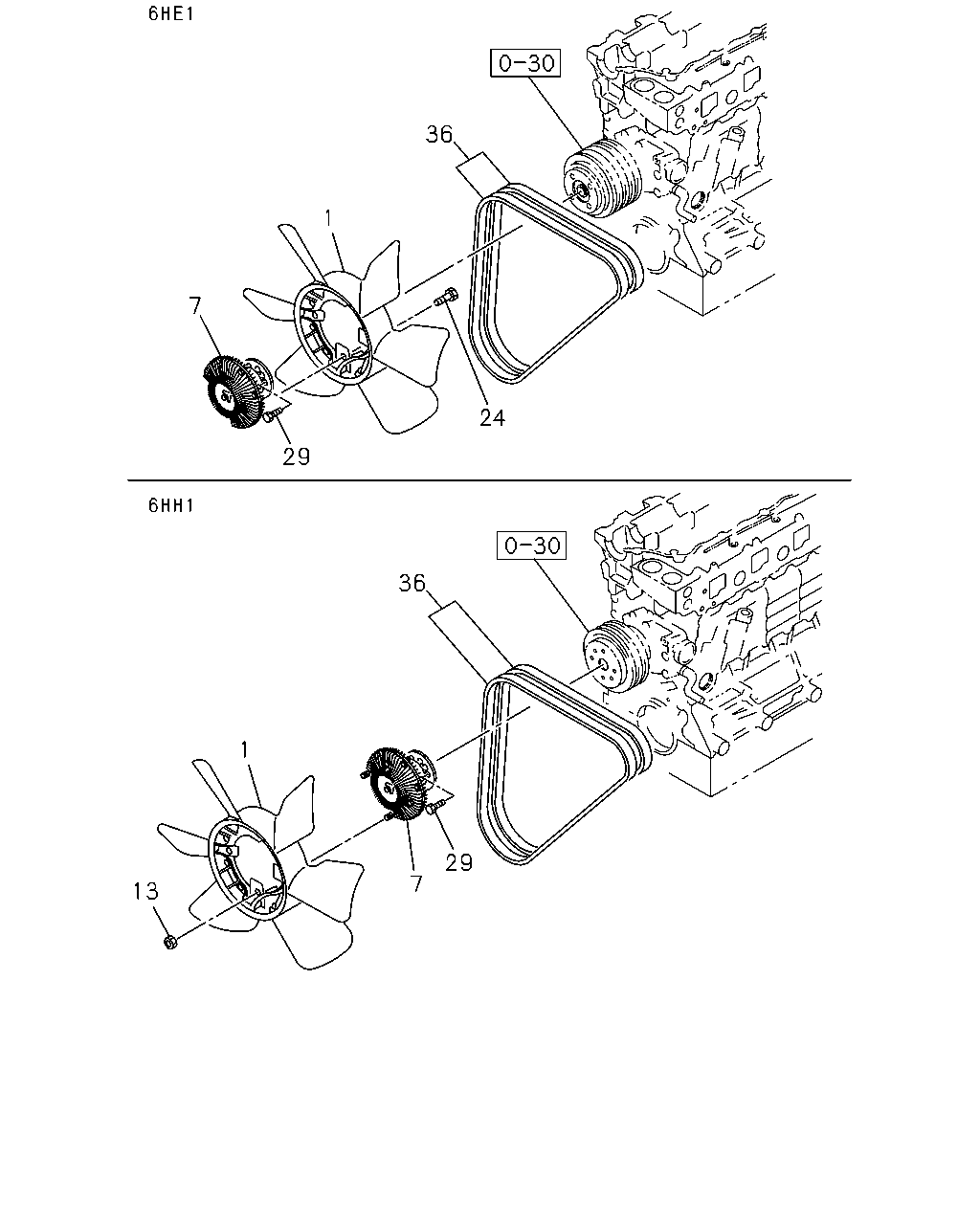

0-33 - FAN AND FAN BELT
▶
0-33 — FAN AND FAN BELT
(#26513) — 21 parça
Tümü
A - 6HE1 TC ENG
B - 6HH1 STD ENG
◀

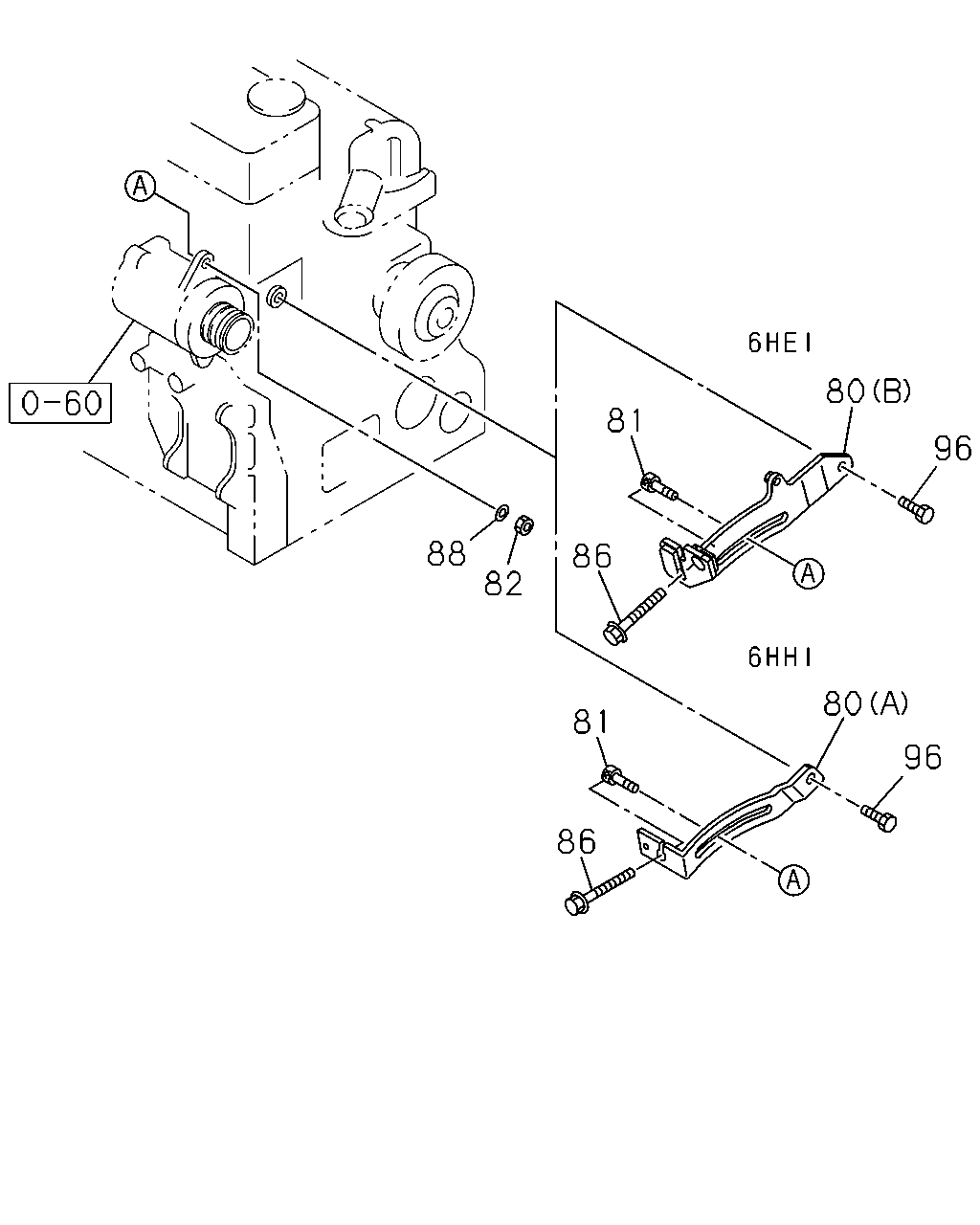

[033A] NO.2 (10 parça)
[033A] NO.1 (11 parça)
▶
80
81
96
88
86
82
80
81
96
86
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
80
PLATE; ADJ
(B)
8-94392-188-0
01
1
0407-
●
80
PLATE; ADJ
(A)
8-97601-021-0
01
1
0407-
●
81
PIECE; SLIDING
M12X45
1-13674-160-0
01
1
0407-
●
●
82
NUT; ADJ PLATE
M12 FLANGE
0-91150-112-0
01
1
0407-0602
●
●
82
NUT; ADJ PLATE
M12 FLANGE THA
0-91180-112-0
01
1
0603-
●
●
86
BOLT; ADJ
M10X155 FLANGE
1-09009-114-1
01
1
0407-
●
●
88
WASHER; PL,ADJ PLATE
ID=12.5 OD=32
9-09164-712-0
01
1
0407-0605
●
●
88
WASHER; PL,ADJ PLATE
ID=12.5 OD=32
0-91614-712-0
01
1
0606-
●
●
96
BOLT; ADJ PLATE
M10X45 FLANGE
0-28181-045-0
01
1
0407-0512
●
●
96
BOLT; ADJ PLATE
M10X45 FLANGE
0-28151-045-0
01
1
0601-
●
●
36
1
7
24
29
36
1
29
7
13
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
FAN; COOLING
1-13660-232-0
01
1
0407-
●
1
FAN; COOLING
8-94399-286-1
01
1
0407-
●
7
COUPLING; FAN
8-94394-011-0
01
1
0407-
●
7
COUPLING; FAN
8-94395-254-1
01
1
0407-
●
13
NUT; COOLING FAN
M6 FLANGE
0-91150-106-0
04
1
0407-
●
24
BOLT; FAN
M8X14 FLANGE
0-28080-814-0
06
1
0407-0702
●
24
BOLT; FAN
M8X12 FLANGE THA
0-28050-812-0
06
1
0703-
●
29
BOLT; COUPLING TO WATER PUMP
M10X22 FLANGE
0-28181-022-0
04
1
0407-
●
29
BOLT; COUPLING TO WATER PUMP
M8X16 FLANGE
0-28080-816-0
04
1
0407-
●
36
BELT; COOLING FAN
1 SET=2 PIECE(8979179360) MITSUBOSHI THA
8-97917-935-0
01
1
0407-
●
36
BELT; COOLING FAN
1 SET=2 PIECE(8979165210) MITSUBOSHI THA
8-97917-934-0
01
1
0407-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
