Isuzu WW
▶
TRUCKS
▶
FVM
▶
10943 - FVM(THAI)EURO2
▶
0 - Engine, Emission, Engine Electrical
▶

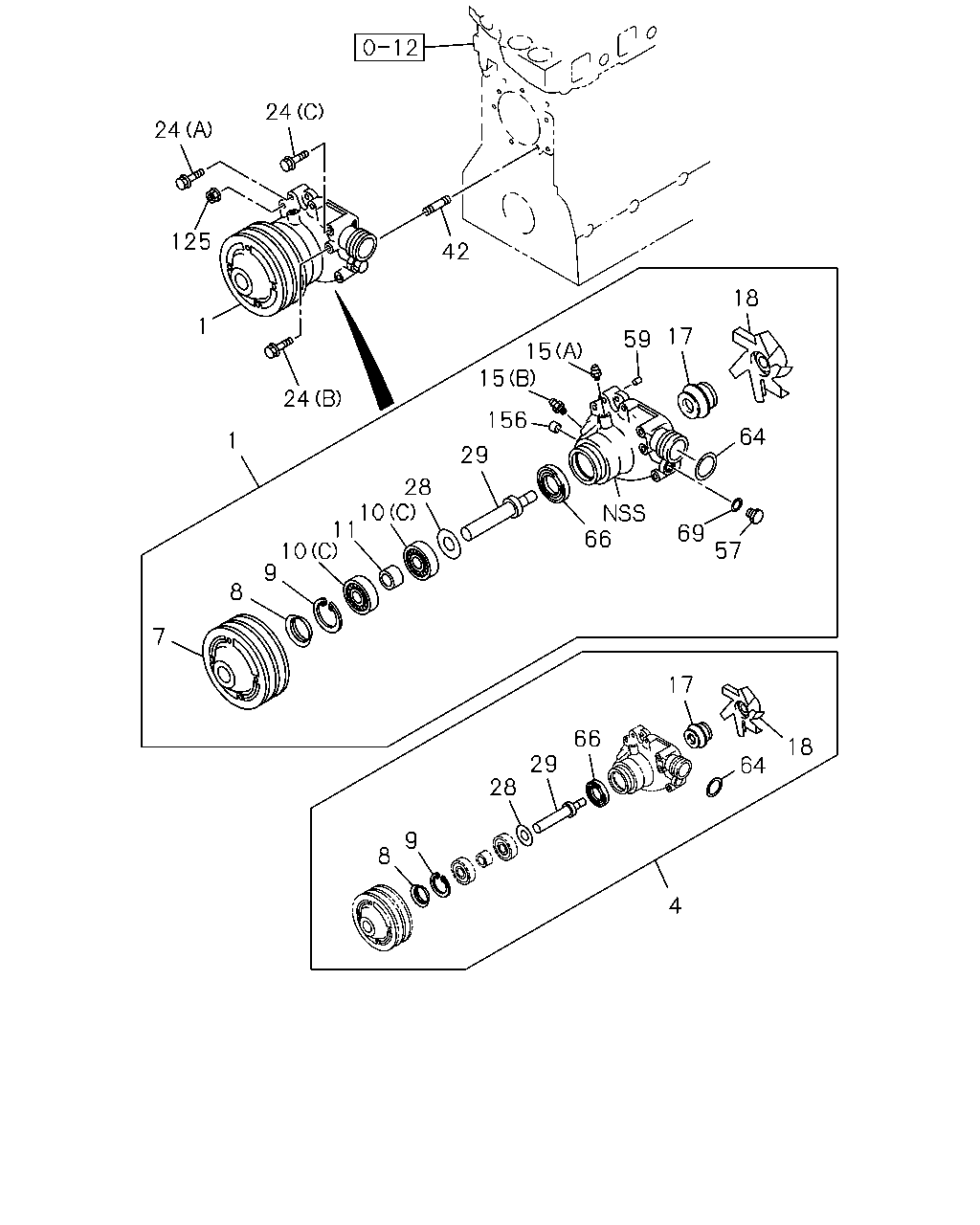

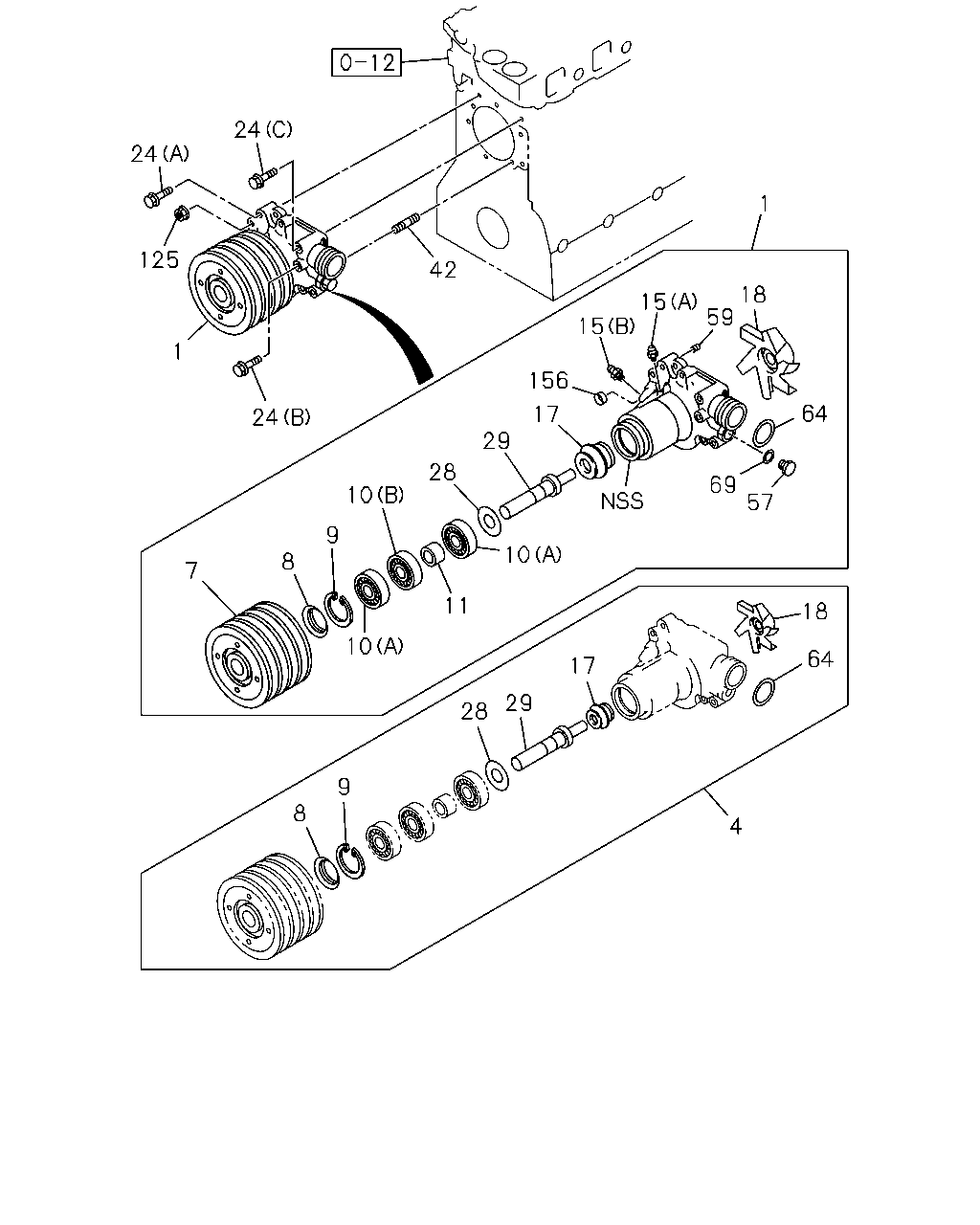

0-30 - WATER PUMP AND CORROSION RESISTOR
▶
0-30 — WATER PUMP AND CORROSION RESISTOR
(#26510) — 80 parça
Tümü
A - 6HE1 TC ENG
B - 6HH1 STD ENG
◀
[030A] 6HH1 (41 parça)
[030A] 6HE1 (39 parça)
▶
24
24
125
42
18
1
17
59
15
15
24
156
64
1
29
28
10
11
10
9
66
69
57
8
7
17
66
18
29
64
28
9
8
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
PUMP ASM; WATER,W/GASKET
8-97602-781-2
01
1
0407-
●
1
PUMP ASM; WATER,W/GASKET
8-97602-773-0
01
1
0407-0801
●
1
PUMP ASM; WATER,W/GASKET
8-97627-355-1
01
1
0802-
●
4
REPAIR KIT; WATER PUMP
1-87812-028-1
01
1
0407-
●
4
REPAIR KIT; WATER PUMP
1-87812-029-1
01
1
0407-0801
●
4
REPAIR KIT; WATER PUMP
1-87813-358-0
01
1
0802-
●
7
PULLEY; WATER PUMP
4-GROOVE
8-94394-927-0
01
1
0407-
●
7
PULLEY; WATER PUMP
2-GROOVE
8-94394-826-0
01
1
0407-
●
8
THROWER; DUST,WATER PUMP
8-94399-457-0
01
1
0407-
●
●
9
RING; SNAP,WATER PUMP
ID=57.9
9-09180-162-0
01
1
0407-
●
●
10
BEARING; WATER PUMP
(A)
8-94391-298-0
02
1
0407-
●
10
BEARING; WATER PUMP
(B)
8-94391-299-0
01
1
0407-
●
10
BEARING; WATER PUMP
(C)
1-09800-011-0
02
1
0407-
●
11
SPACER; BRG,WATER PUMP
1-13634-040-0
01
1
0407-
●
11
SPACER; BRG,WATER PUMP
1-13634-025-0
01
1
0407-
●
15
NIPPLE; GREASE,WATER PUMP
(A) PT1/8 STRAIGHT
1-09380-002-0
01
1
0407-
●
●
15
NIPPLE; GREASE,WATER PUMP
(B) PT1/8 STRAIGHT
9-09031-010-0
01
1
0407-0512
●
●
15
NIPPLE; GREASE,WATER PUMP
(B) PT1/8 STRAIGHT
0-90301-410-0
01
1
0601-
●
●
17
SEAL UNIT; WATER PUMP
8-94392-090-0
01
1
0407-
●
●
18
IMPELLER; WATER PUMP
8-94397-375-0
01
1
0407-
●
18
IMPELLER; WATER PUMP
8-94392-922-0
01
1
0407-
●
24
BOLT; WATER PUMP
(B) M8X80 FLANGE
0-28080-880-0
01
1
0407-0512
●
●
24
BOLT; WATER PUMP
(B) M8X80 FLANGE THA
0-28050-880-0
01
1
0601-
●
●
24
BOLT; WATER PUMP
(A) M8X58 FLANGE THA
8-94130-055-1
03
1
0407-
●
●
24
BOLT; WATER PUMP
(C) M10X85 FLANGE
8-94397-359-1
01
1
0407-
●
●
28
WASHER; WATER PUMP
ID=25.5 OD=50
8-94397-097-0
01
1
0407-
●
●
29
SHAFT; WATER PUMP
8-94396-130-1
01
1
0407-
●
29
SHAFT; WATER PUMP
8-94397-374-0
01
1
0407-
●
42
STUD; WATER PUMP
M8X30 L=46
9-04010-830-0
01
1
0407-0604
●
●
42
STUD; WATER PUMP
M8X30 L=46
0-40110-830-0
01
1
0605-
●
●
57
PLUG; HTR,WATER PUMP
M20
9-99202-320-0
01
1
0407-
●
●
59
DOWEL; WATER PUMP
OD=12 L=9
1-13119-003-0
02
1
0407-0801
●
59
DOWEL; WATER PUMP
OD=12 L=9
1-13119-003-0
02
1
0802-
●
●
59
DOWEL; WATER PUMP
9-13119-022-0
02
1
0407-0801
●
64
GASKET; WATER PUMP TO DUCT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=44.7
1-09623-383-0
01
1
0407-
●
●
66
SEAL; SECONDARY
1-09625-437-0
01
1
0407-0801
●
66
SEAL; SECONDARY
8-98084-780-0
01
1
0802-
●
69
GASKET; PLUG,HTR
ID=20.5 OD=28.0
9-09571-420-0
01
1
0407-
●
●
125
NUT; WATER PUMP
M8 FLANGE
0-91150-108-0
04
1
0407-0602
●
●
125
NUT; WATER PUMP
M8 FLANGE THA
0-91180-108-0
04
1
0603-
●
●
156
CUP; SEALING
OD=25
1-09600-016-0
01
1
0407-
●
●
24
24
1
125
42
18
59
15
15
1
156
64
17
24
29
28
69
10
57
9
10
8
7
11
18
10
64
17
29
28
9
8
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
PUMP ASM; WATER,W/GASKET
8-97602-781-2
01
1
0407-
●
1
PUMP ASM; WATER,W/GASKET
8-97602-773-0
01
1
0407-0801
●
1
PUMP ASM; WATER,W/GASKET
8-97627-355-1
01
1
0802-
●
4
REPAIR KIT; WATER PUMP
1-87812-028-1
01
1
0407-
●
4
REPAIR KIT; WATER PUMP
1-87812-029-1
01
1
0407-0801
●
4
REPAIR KIT; WATER PUMP
1-87813-358-0
01
1
0802-
●
7
PULLEY; WATER PUMP
4-GROOVE
8-94394-927-0
01
1
0407-
●
7
PULLEY; WATER PUMP
2-GROOVE
8-94394-826-0
01
1
0407-
●
8
THROWER; DUST,WATER PUMP
8-94399-457-0
01
1
0407-
●
●
9
RING; SNAP,WATER PUMP
ID=57.9
9-09180-162-0
01
1
0407-
●
●
10
BEARING; WATER PUMP
(A)
8-94391-298-0
02
1
0407-
●
10
BEARING; WATER PUMP
(B)
8-94391-299-0
01
1
0407-
●
10
BEARING; WATER PUMP
(C)
1-09800-011-0
02
1
0407-
●
11
SPACER; BRG,WATER PUMP
1-13634-040-0
01
1
0407-
●
11
SPACER; BRG,WATER PUMP
1-13634-025-0
01
1
0407-
●
15
NIPPLE; GREASE,WATER PUMP
(A) PT1/8 STRAIGHT
1-09380-002-0
01
1
0407-
●
●
15
NIPPLE; GREASE,WATER PUMP
(B) PT1/8 STRAIGHT
9-09031-010-0
01
1
0407-0512
●
●
15
NIPPLE; GREASE,WATER PUMP
(B) PT1/8 STRAIGHT
0-90301-410-0
01
1
0601-
●
●
17
SEAL UNIT; WATER PUMP
8-94392-090-0
01
1
0407-
●
●
18
IMPELLER; WATER PUMP
8-94397-375-0
01
1
0407-
●
18
IMPELLER; WATER PUMP
8-94392-922-0
01
1
0407-
●
24
BOLT; WATER PUMP
(B) M8X80 FLANGE
0-28080-880-0
01
1
0407-0512
●
●
24
BOLT; WATER PUMP
(B) M8X80 FLANGE THA
0-28050-880-0
01
1
0601-
●
●
24
BOLT; WATER PUMP
(A) M8X58 FLANGE THA
8-94130-055-1
03
1
0407-
●
●
24
BOLT; WATER PUMP
(C) M10X85 FLANGE
8-94397-359-1
01
1
0407-
●
●
28
WASHER; WATER PUMP
ID=25.5 OD=50
8-94397-097-0
01
1
0407-
●
●
29
SHAFT; WATER PUMP
8-94396-130-1
01
1
0407-
●
29
SHAFT; WATER PUMP
8-94397-374-0
01
1
0407-
●
42
STUD; WATER PUMP
M8X30 L=46
9-04010-830-0
01
1
0407-0604
●
●
42
STUD; WATER PUMP
M8X30 L=46
0-40110-830-0
01
1
0605-
●
●
57
PLUG; HTR,WATER PUMP
M20
9-99202-320-0
01
1
0407-
●
●
59
DOWEL; WATER PUMP
OD=12 L=9
1-13119-003-0
02
1
0407-0801
●
59
DOWEL; WATER PUMP
OD=12 L=9
1-13119-003-0
02
1
0802-
●
●
59
DOWEL; WATER PUMP
9-13119-022-0
02
1
0407-0801
●
64
GASKET; WATER PUMP TO DUCT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=44.7
1-09623-383-0
01
1
0407-
●
●
69
GASKET; PLUG,HTR
ID=20.5 OD=28.0
9-09571-420-0
01
1
0407-
●
●
125
NUT; WATER PUMP
M8 FLANGE
0-91150-108-0
04
1
0407-0602
●
●
125
NUT; WATER PUMP
M8 FLANGE THA
0-91180-108-0
04
1
0603-
●
●
156
CUP; SEALING
OD=25
1-09600-016-0
01
1
0407-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
