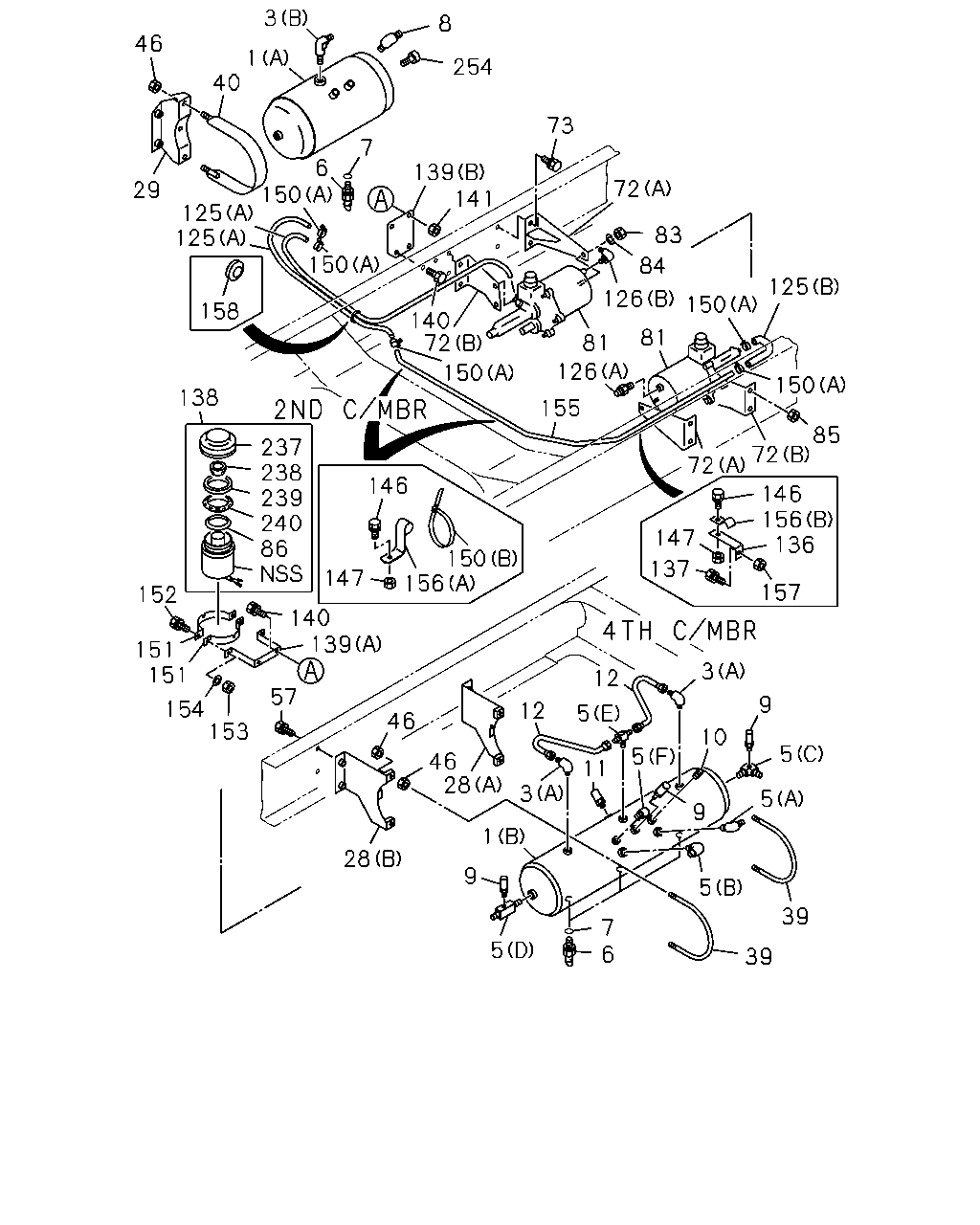

3-20 — AIR TANK (#2651) — 86 parça

3 8 46 1 40 254 73 7 6 150 139 141 72 29 125 125 83 150 84 125 126 150 158 140 72 81 81 126 150 150 138 155 85 72 237 238 239 240 86 72 146 146 156 136 147 150 156 137 147 157 152 140 139 151 151 3 12 57 12 9 154 153 5 46 10 5 5 46 28 11 3 5 9 1 28 9 5 39 7 6 5 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-48330-461-3	01	1	9101-	●	●
1	TANK ASM; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DOOR CENTER FOLDING<E85> (A)	1-48330-404-1	01	1	9101-	●	●
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-48410-133-2	02	1	9101-9606	●	●
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M20 & PT3/4 ELBOW	1-48410-412-0	02	1	9607-	●	●
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DOOR CENTER FOLDING<E85> (B)	1-48410-133-2	01	1	9101-9606	●	●
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DOOR CENTER FOLDING<E85> (B) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	9607-	●	●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M14 & PT1/4 ELBOW	1-09650-034-1	01	1	9101-9302	●	●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M14 & PT1/4 ELBOW	1-09650-432-0	01	1	9303-	●	●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) PT1/4 & M12 ELBOW	1-09650-117-1	01	1	9101-9302	●	●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9303-	●	●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) M16	1-09656-437-1	01	1	9101-9302	●	●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C)	1-09656-673-0	01	1	9303-	●	●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D)	1-09656-446-0	01	1	9101-	●	●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (E)	1-09656-530-1	01	1	9101-	●	●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (F) M22 & PT1/2 ELBOW	9-09234-315-1	01	1	9101-9302	●	●
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (F) M22 & PT1/2 ELBOW	1-09650-444-0	01	1	9303-	●	●
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) W/COVER	1-48312-004-1	03	1	9101-9604	●	●
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48312-015-0	03	1	9605-	●	●
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DOOR CENTER FOLDING<E85> W/COVER	1-48312-004-1	01	1	9101-9604	●	●
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DOOR CENTER FOLDING<E85>	1-48312-015-0	01	1	9605-	●	●
7	GASKET; DRAIN COCK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-09572-014-0	03	1	9101-9608	●	●
7	GASKET; DRAIN COCK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=14	1-09630-145-0	03	1	9609-	●	●
7	GASKET; DRAIN COCK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DOOR CENTER FOLDING<E85>	9-09572-014-0	01	1	9101-	●	●
8	CONNECTOR; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DOOR CENTER FOLDING<E85> M20 & PT1/2 ELBOW	1-09650-178-1	01	1	9101-9302	●	●
8	CONNECTOR; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DOOR CENTER FOLDING<E85> M20 & PT1/2 ELBOW	1-09650-443-0	01	1	9303-	●	●
8	CONNECTOR; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DOOR CENTER FOLDING<E85>	1-09650-221-1	02	1	9101-9302	●	●
8	CONNECTOR; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DOOR CENTER FOLDING<E85> M16 & PT1/2 ELBOW	1-09650-442-0	02	1	9303-	●	●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48340-035-0	03	1	9101-9411	●	●
9	SWITCH; LOW PRESSURE GAGE,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48340-052-0	03	1	9412-	●	●
10	PLUG; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PT1/2	9-09204-521-0	01	1	9101-	●	●
10	PLUG; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PT1/4	9-99204-513-0	01	1	9101-	●	●
11	VALVE; SAFETY,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48320-003-0	01	1	9101-	●	●
12	PIPE ASM; AIR,AIR TANK TO AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47485-733-0	02	1	9101-9212	●	●
12	PIPE ASM; AIR,AIR TANK TO AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47496-760-0	02	1	9301-	●	●
28	BRACKET; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-48317-416-1	01	1	9101-	●	●
28	BRACKET; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-48317-421-1	01	1	9101-	●	●
29	BRACKET; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DOOR CENTER FOLDING<E85>	1-48317-319-0	02	1	9101-	●	●
39	U-BOLT; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=210	1-48317-458-0	02	1	9101-	●	●
40	BAND ASM; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DOOR CENTER FOLDING<E85> L=514	1-48317-318-0	02	1	9101-	●	●
46	NUT; U-BOLT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-09110-408-0	08	1	9101-	●	●
46	NUT; U-BOLT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DOOR CENTER FOLDING<E85>	9-09110-408-0	08	1	9101-	●	●
57	BOLT; BRKT,AIR TANK TO FRAME BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	0-50041-225-0	08	1	9101-	●	●
72	BRACKET; AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-53318-256-1	02	1	9101-	●	●
72	BRACKET; AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-53318-257-1	02	1	9101-	●	●
73	BOLT; BRKT TO FRAME,AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	0-50041-025-0	08	1	9101-	●	●
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47800-351-1	02	1	9101-	●	●
83	NUT; AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-09110-408-0	08	1	9101-	●	●
84	WASHER; LK,AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-09150-508-0	08	1	9101-	●	●
85	NUT; BRKT TO FRAME,AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-09110-510-0	08	1	9101-	●	●
86	SEAL; DUST BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47529-019-0	01	1	9101-	●	●
125	HOSE; OIL TANK TO AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) SERVICED BY L=1800	1-09360-320-0	02	1	9101-	●	●
125	HOSE; OIL TANK TO AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=215 SERVICED BY L=1800	1-09360-320-0	01	1	9101-	●	●
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M16 & PT3/8 STRAIGHT	1-09650-179-1	01	1	9101-	●	●
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M16 & PT3/8 ELBOW	1-09650-180-1	01	1	9101-9302	●	●
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M16 & PT3/8 ELBOW	1-09650-438-0	01	1	9303-	●	●
136	BRACKET; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-34656-009-0	02	1	9101-	●	●
137	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-01900-820-0	02	1	9101-9204	●	●
137	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	0-50040-820-0	02	1	9205-	●	●
138	TANK ASM; OIL,AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47530-154-1	01	1	9101-	●	●
139	BRACKET; OIL TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-47537-069-1	01	1	9101-	●	●
139	BRACKET; OIL TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-53319-021-1	01	1	9101-	●	●
140	BOLT; OIL TANK TO BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-01901-025-0	04	1	9101-9204	●	●
140	BOLT; OIL TANK TO BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	0-50041-025-0	04	1	9205-	●	●
141	NUT; OIL TANK TO BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-09110-410-0	04	1	9101-9307	●	●
141	NUT; OIL TANK TO BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-09110-510-0	04	1	9308-	●	●
146	BOLT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-01900-820-0	04	1	9101-9204	●	●
146	BOLT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	0-50040-820-0	04	1	9205-	●	●
147	NUT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-09110-408-0	04	1	9101-	●	●
150	CLIP; BAND,RUBBER SLEEVE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=15	1-09704-018-1	06	1	9101-9307	●	●
150	CLIP; BAND,RUBBER SLEEVE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=14	1-09704-102-0	06	1	9308-	●	●
150	CLIP; BAND,RUBBER SLEEVE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=140	5-09707-031-1	01	1	9101-	●	●
151	BAND; OIL TANK,AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47537-056-2	02	1	9101-	●	●
152	BOLT; OIL TANK TO BAND BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	0-50000-820-0	02	1	9101-9204	●	●
152	BOLT; OIL TANK TO BAND BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	0-50080-820-0	02	1	9205-	●	●
153	NUT; OIL TANK TO BAND BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-09400-052-0	02	1	9101-	●	●
154	WASHER; PL,OIL TANK TO BAND BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-09985-106-0	02	1	9101-	●	●
155	PIPE; OIL,HOSE TO AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47421-436-0	01	1	9101-	●	●
156	CLIP; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=11 H=20 L=20	5-09700-351-0	02	1	9101-	●	●
156	CLIP; OIL PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=11 L=32	9-09525-065-0	02	1	9101-	●	●
157	NUT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-09110-408-0	02	1	9101-	●	●
158	GROMMET; PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-09956-725-0	01	1	9101-	●	●
237	CAP; OIL TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47525-026-1	01	1	9101-	●	●
238	PLATE; BAFFLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47529-022-0	01	1	9101-	●	●
239	FILTER; DUST BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47529-017-0	01	1	9101-	●	●
240	HOLDER; FILTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47529-018-0	01	1	9101-	●	●
254	PLUG; DRAIN COCK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DOOR CENTER FOLDING<E85>	9-09204-521-0	02	1	9101-	●	●
