Isuzu WW
▶
TRUCKS
▶
FVM
▶
10943 - FVM(THAI)EURO2
▶
0 - Engine, Emission, Engine Electrical
▶
0-28 - VENTILATION SYSTEM
▶

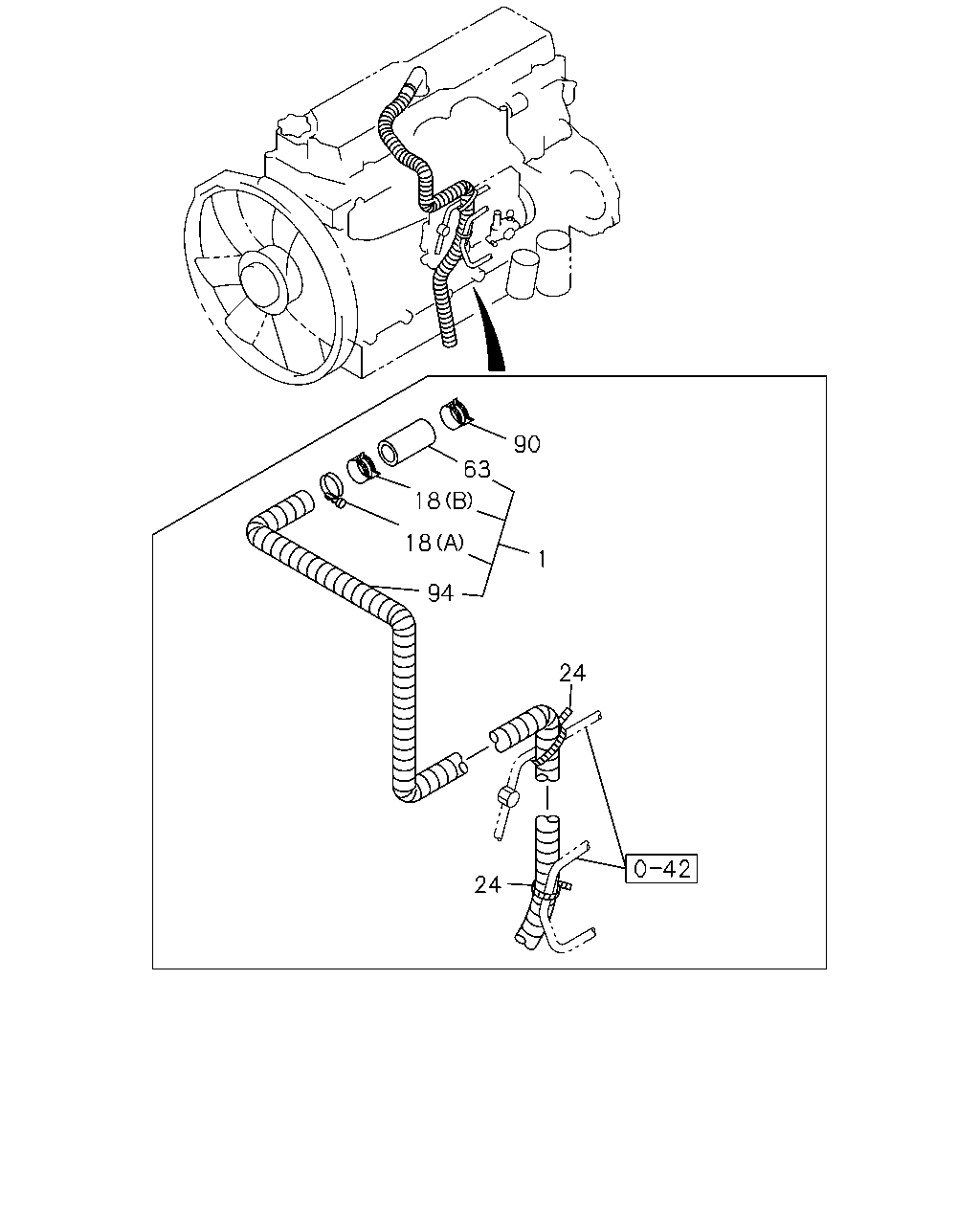

0-28 — VENTILATION SYSTEM
(#26509) — 11 parça
Tümü
A - 6HE1 TC ENG
B - 6HH1 STD ENG
90
63
18
18
1
94
24
24
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
BREATHER; AIR
8-94394-777-2
01
1
0407-
●
1
BREATHER; AIR
8-94392-083-1
01
1
0407-
●
18
CLIP; RUBBER HOSE,AIR BREATHER
(A) ID=38
9-09915-041-1
01
1
0407-
●
18
CLIP; RUBBER HOSE,AIR BREATHER
(B) ID=33.6
8-94362-518-0
01
1
0407-
●
●
24
CLIP; RUBBER HOSE,VENTILATOR
L=250
5-09707-030-1
02
1
0407-
●
24
CLIP; RUBBER HOSE,VENTILATOR
L=250
5-09707-030-1
01
1
0407-
●
63
HOSE; RUBBER,AIR BREATHER
0-02828-070-0
01
1
0407-
●
63
HOSE; RUBBER,AIR BREATHER
8-94394-471-0
01
1
0407-
●
90
CLIP; RUBBER HOSE
ID=33.6
8-94362-518-0
01
1
0407-
●
●
94
HOSE; BREATHER TO PIPE
L=1100
8-94394-785-0
01
1
0407-
●
94
HOSE; BREATHER TO PIPE
L=1260
8-94392-082-0
01
1
0407-
●
