0-25 — INLET MANIFOLD (#26507) — 100 parça

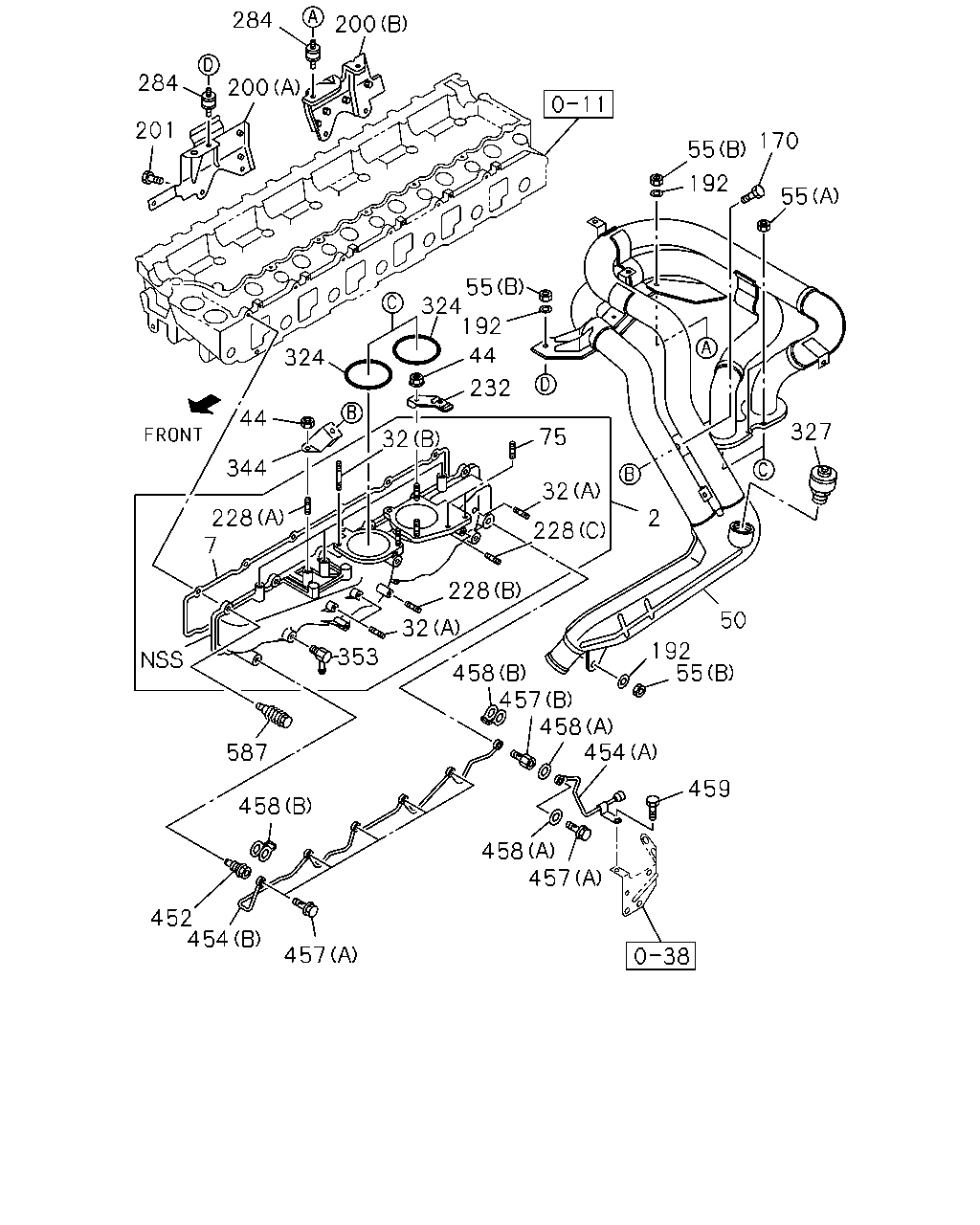

284 200 284 200 201 170 55 192 55 324 192 44 324 232 32 44 327 75 344 32 228 7 2 228 228 50 32 192 55 353 458 457 458 454 587 459 458 458 457 452 454 457 55

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	COVER; INL	8-97602-255-0	01	1	0407-	●
2	COVER; INL	8-94395-823-0	01	1	0407-		●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94397-039-1	01	1	0407-	●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94395-841-0	01	1	0407-		●
32	STUD; INL PIPE (A) M6X30 L=38	9-04110-630-0	03	1	0407-0604	●
32	STUD; INL PIPE (A) M6X30 L=38 THA	0-41010-630-0	03	1	0605-	●
32	STUD; INL PIPE (B) M10X20 L=35	9-04411-020-0	04	1	0407-	●
32	STUD; INL PIPE (B) M6X30 L=38	9-04110-630-0	04	1	0407-0604		●
32	STUD; INL PIPE (B) M6X30 L=38 THA	0-41010-630-0	04	1	0605-		●
32	STUD; INL PIPE (A) M8X30 L=41	9-04110-830-0	03	1	0407-0604		●
32	STUD; INL PIPE (A) M8X30 L=41	0-41010-830-0	03	1	0605-		●
44	NUT; PIPE BRKT M8 FLANGE	0-91150-108-0	03	1	0407-0602	●
44	NUT; PIPE BRKT M8 FLANGE THA	0-91180-108-0	03	1	0603-	●
50	PIPE; INL	8-97601-301-0	01	1	0407-	●
55	NUT; INL PIPE (A) M10 FLANGE	0-91150-110-0	04	1	0407-0602	●
55	NUT; INL PIPE (A) M10 FLANGE THA	0-91180-110-0	04	1	0603-	●
55	NUT; INL PIPE (B) M8	9-09110-408-0	03	1	0407-0512	●
55	NUT; INL PIPE (B) M8	0-91110-508-0	03	1	0601-	●
55	NUT; INL PIPE (C) M8 FLANGE	0-91150-108-0	03	1	0407-0602		●
55	NUT; INL PIPE (C) M8 FLANGE THA	0-91180-108-0	03	1	0603-		●
75	STUD; BRKT,AIR PIPE M10X25 L=40	9-04411-025-0	02	1	0407-0604	●
75	STUD; BRKT,AIR PIPE M10X25 L=40 THA	0-44011-025-0	02	1	0605-	●
170	BOLT; BRKT M8X25 FLANGE	0-28080-825-0	01	1	0407-0512	●
170	BOLT; BRKT M8X25 FLANGE THA	0-28050-825-0	01	1	0601-	●
170	BOLT; BRKT M10X25 FLANGE	0-28081-025-0	01	1	0407-0512	●
170	BOLT; BRKT M10X25 FLANGE	0-28051-025-0	01	1	0601-	●
170	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	01	1	0407-0512	●	●
170	BOLT; BRKT M8X16 FLANGE THA	0-28050-816-0	01	1	0601-	●	●
192	WASHER; PL,INL PIPE ID=8.4 OD=26	9-09164-808-0	03	1	0407-0605	●
192	WASHER; PL,INL PIPE ID=8.4 OD=26	0-91614-808-0	03	1	0606-	●
200	BRACKET; AIR DUCT (B)	8-94390-088-0	01	1	0407-	●
200	BRACKET; AIR DUCT (A)	8-94394-312-1	01	1	0407-	●
201	BOLT; BRKT,AIR DUCT M8X16 FLANGE	0-28080-816-0	05	1	0407-0512	●
201	BOLT; BRKT,AIR DUCT M8X16 FLANGE THA	0-28050-816-0	05	1	0601-	●
228	STUD; INL COVER (A) M8X16 L=28	9-04110-816-0	06	1	0407-0604	●
228	STUD; INL COVER (A) M8X16 L=28 THA	0-41010-816-0	06	1	0605-	●
228	STUD; INL COVER (B) M8X25 L=37	9-04110-825-0	01	1	0407-0604	●
228	STUD; INL COVER (B) M8X25 L=37	0-41010-825-0	01	1	0605-	●
228	STUD; INL COVER (C) M8X40 L=52	9-04110-840-0	01	1	0407-0604	●
228	STUD; INL COVER (C) M8X40 L=52	0-41010-840-0	01	1	0605-	●
232	BRACKET; INJ PIPE	8-94391-452-0	01	1	0407-	●
284	RUBBER; INL PIPE MTG	8-94394-268-1	02	1	0407-	●
324	GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=62.6	1-09623-505-0	02	1	0407-	●
324	GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94392-243-2	01	1	0407-		●
327	VALVE; SAFETY,TURBOCHARGER	8-94393-227-0	01	1	0407-	●
344	BRACKET; INL PIPE	8-94393-865-0	01	1	0407-	●
353	PIPE; AIR,BOOST PT1/4 ELBOW	8-94221-562-0	01	1	0407-	●
452	CYLINDER ASM; AIR	1-14370-007-0	06	1	0407-	●
454	PIPE; AIR,IVES (B) 6-JOINT	8-94394-415-1	01	1	0407-	●
454	PIPE; AIR,IVES (A) JOINT & NUT W/BRKT	8-94395-743-0	01	1	0407-	●
457	BOLT; EYE,AIR PIPE,IVES (A) M8X18 EYE BOLT	1-09675-037-1	06	1	0407-	●
457	BOLT; EYE,AIR PIPE,IVES (B) M8X19	1-09675-220-0	01	1	0407-	●
458	GASKET; AIR PIPE,VSS (A) ID=8.2 OD=13.2	1-09630-082-0	02	1	0407-	●
458	GASKET; AIR PIPE,VSS (B) ID=8.3	8-97600-925-0	06	1	0407-	●
459	BOLT; CLIP FIX M8X12 FLANGE	0-28080-812-0	01	1	0407-0512	●
459	BOLT; CLIP FIX M8X12 FLANGE THA	0-28050-812-0	01	1	0601-	●
587	MOUNTING; INTAKE DUCT	8-94395-966-0	13	1	0407-	●

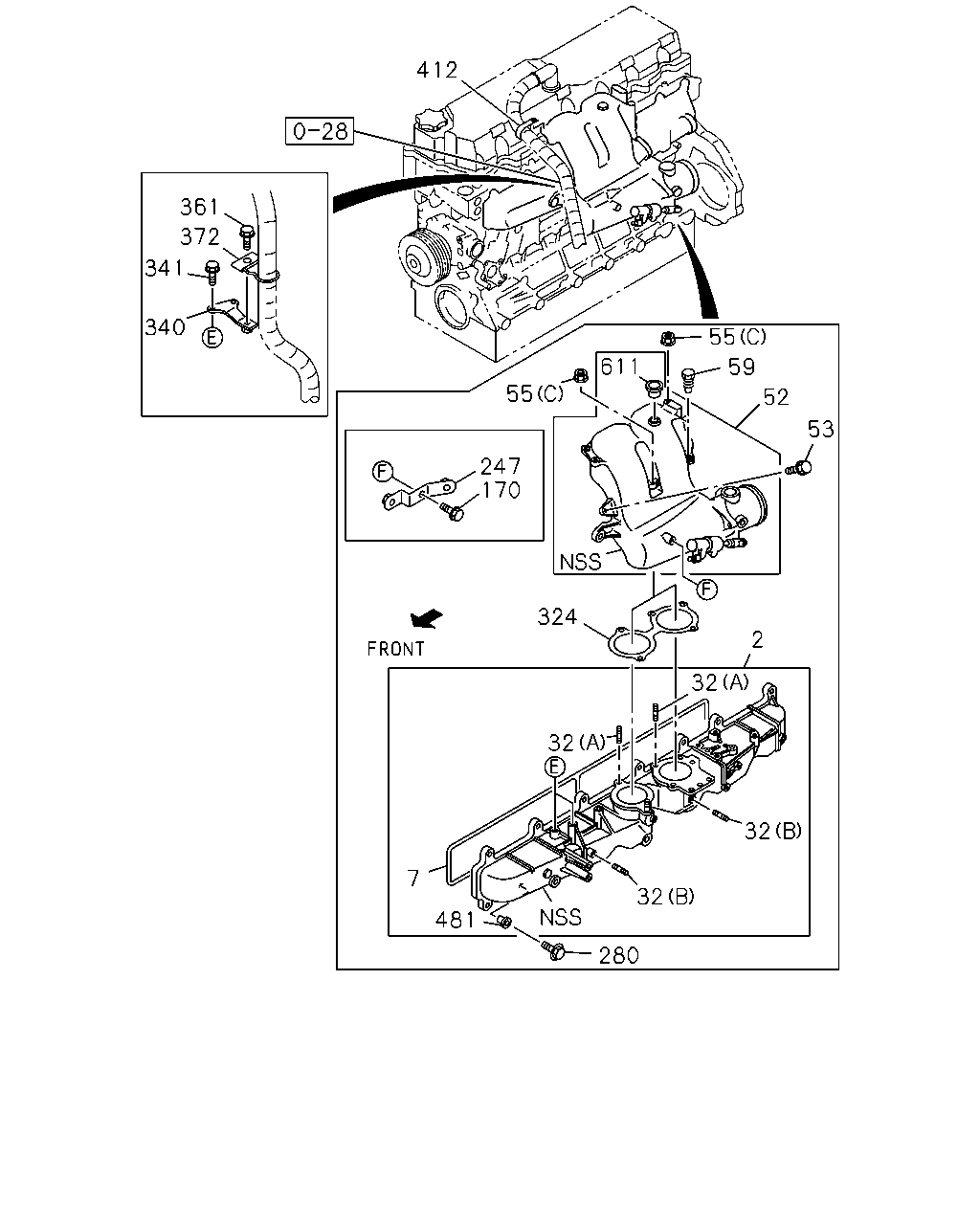

412 361 372 341 340 55 611 59 55 52 53 247 170 324 2 32 32 32 7 32 481 280

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	COVER; INL	8-97602-255-0	01	1	0407-	●
2	COVER; INL	8-94395-823-0	01	1	0407-		●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94397-039-1	01	1	0407-	●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94395-841-0	01	1	0407-		●
32	STUD; INL PIPE (A) M6X30 L=38	9-04110-630-0	03	1	0407-0604	●
32	STUD; INL PIPE (A) M6X30 L=38 THA	0-41010-630-0	03	1	0605-	●
32	STUD; INL PIPE (B) M10X20 L=35	9-04411-020-0	04	1	0407-	●
32	STUD; INL PIPE (B) M6X30 L=38	9-04110-630-0	04	1	0407-0604		●
32	STUD; INL PIPE (B) M6X30 L=38 THA	0-41010-630-0	04	1	0605-		●
32	STUD; INL PIPE (A) M8X30 L=41	9-04110-830-0	03	1	0407-0604		●
32	STUD; INL PIPE (A) M8X30 L=41	0-41010-830-0	03	1	0605-		●
52	PIPE; INL	8-94391-607-4	01	1	0407-		●
53	BOLT; INL PIPE M8X30 FLANGE	0-28680-830-0	01	1	0407-0512		●
53	BOLT; INL PIPE M8X30 FLANGE THA	0-28650-830-0	01	1	0601-		●
55	NUT; INL PIPE (A) M10 FLANGE	0-91150-110-0	04	1	0407-0602	●
55	NUT; INL PIPE (A) M10 FLANGE THA	0-91180-110-0	04	1	0603-	●
55	NUT; INL PIPE (B) M8	9-09110-408-0	03	1	0407-0512	●
55	NUT; INL PIPE (B) M8	0-91110-508-0	03	1	0601-	●
55	NUT; INL PIPE (C) M8 FLANGE	0-91150-108-0	03	1	0407-0602		●
55	NUT; INL PIPE (C) M8 FLANGE THA	0-91180-108-0	03	1	0603-		●
59	BOLT; INL PIPE TO MANIF M8X30 FLANGE	0-28080-830-0	02	1	0407-0512		●
59	BOLT; INL PIPE TO MANIF M8X30 FLANGE THA	0-28050-830-0	02	1	0601-		●
170	BOLT; BRKT M8X25 FLANGE	0-28080-825-0	01	1	0407-0512	●
170	BOLT; BRKT M8X25 FLANGE THA	0-28050-825-0	01	1	0601-	●
170	BOLT; BRKT M10X25 FLANGE	0-28081-025-0	01	1	0407-0512	●
170	BOLT; BRKT M10X25 FLANGE	0-28051-025-0	01	1	0601-	●
170	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	01	1	0407-0512	●	●
170	BOLT; BRKT M8X16 FLANGE THA	0-28050-816-0	01	1	0601-	●	●
247	BRACKET; CLIP	8-94392-277-0	01	1	0407-		●
280	BOLT; INL COVER M8X28 FLANGE	0-28080-828-0	14	1	0407-		●
324	GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=62.6	1-09623-505-0	02	1	0407-	●
324	GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94392-243-2	01	1	0407-		●
340	BRACKET; HARNESS INL MANIF	8-97601-325-0	01	1	0407-		●
341	BOLT; BRKT,INL COVER M8X16 FLANGE	0-28080-816-0	02	1	0407-0512		●
341	BOLT; BRKT,INL COVER M8X16 FLANGE THA	0-28050-816-0	02	1	0601-		●
361	BOLT; CLIP M10X12 FLANGE	0-28081-012-0	01	1	0407-0512		●
361	BOLT; CLIP M10X12 FLANGE	0-28051-012-0	01	1	0601-		●
372	CLIP; HOSE	1-11369-115-0	01	1	0407-		●
412	CLIP; HARNESS	5-09700-342-0	01	1	0407-		●
481	TUBE; DIST,INL COVER OD=22	8-94395-684-0	14	1	0407-		●
611	CUP; SEALING,INT DUCT OD=18	5-11219-008-0	01	1	0407-0503		●
611	CUP; SEALING,INT DUCT OD=18	5-11219-008-0	02	1	0504-0507		●
611	CUP; SEALING,INT DUCT OD=18	5-11219-008-0	01	1	0508-		●
