Isuzu WW
▶
TRUCKS
▶
FVM
▶
10943 - FVM(THAI)EURO2
▶
0 - Engine, Emission, Engine Electrical
▶
0-13 - OIL PAN AND LEVEL GAUGE
▶

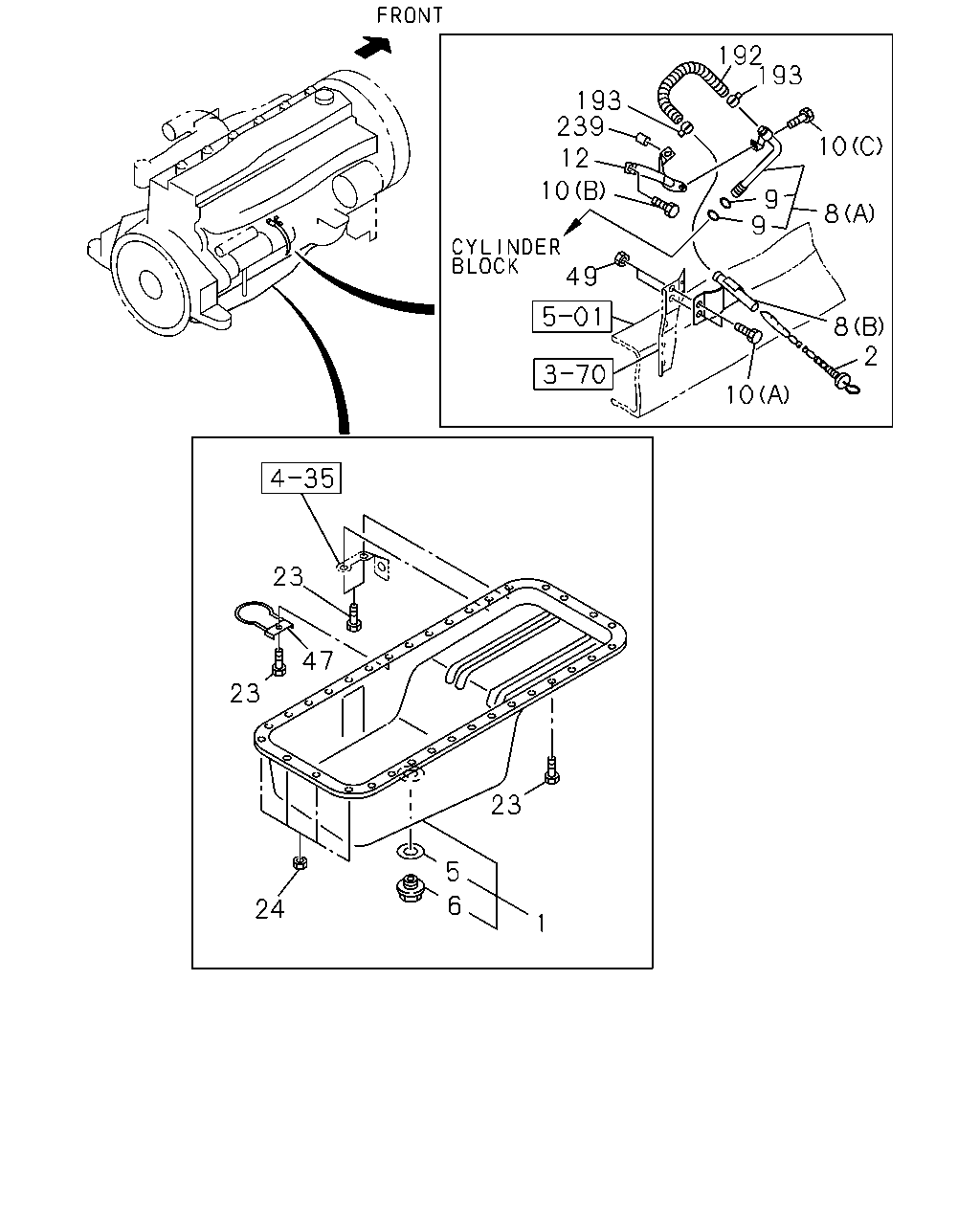

0-13 — OIL PAN AND LEVEL GAUGE
(#26502) — 28 parça
Tümü
A - 6HE1 TC ENG
B - 6HH1 STD ENG
192
193
193
239
12
10
10
9
9
8
49
8
2
10
2
47
23
23
5
6
24
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
PAN ASM; OIL
8-94394-711-1
01
1
0407-
●
1
PAN ASM; OIL
8-94395-861-1
01
1
0407-
●
2
GAUGE; OIL LEVEL
1-11760-396-1
01
1
0407-
●
●
5
GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4
1-09623-057-0
01
1
0407-
●
●
6
PLUG; OIL DRAIN
9-09662-012-0
01
1
0407-
●
●
8
TUBE; GUIDE,OIL LEVEL GAUGE
(A)
8-94395-114-3
01
1
0407-
●
●
8
TUBE; GUIDE,OIL LEVEL GAUGE
(B)
1-11766-453-0
01
1
0407-
●
●
9
GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11
1-09623-469-0
02
1
0407-
●
●
10
BOLT; GUIDE TUBE
(B) M8X20 FLANGE
0-28080-820-0
02
1
0407-0512
●
10
BOLT; GUIDE TUBE
(B) M8X20 FLANGE THA
0-28050-820-0
02
1
0601-
●
10
BOLT; GUIDE TUBE
(B) M8X12 FLANGE
0-28080-812-0
01
1
0407-0512
●
10
BOLT; GUIDE TUBE
(B) M8X12 FLANGE THA
0-28050-812-0
01
1
0601-
●
10
BOLT; GUIDE TUBE
(B) M8X35 FLANGE
0-28680-835-0
01
1
0407-0512
●
10
BOLT; GUIDE TUBE
(B) M8X35 FLANGE THA
0-28650-835-0
01
1
0601-
●
10
BOLT; GUIDE TUBE
(C) M8X16 FLANGE
0-28080-816-0
01
1
0407-0512
●
●
10
BOLT; GUIDE TUBE
(C) M8X16 FLANGE THA
0-28050-816-0
01
1
0601-
●
●
10
BOLT; GUIDE TUBE
(A) M8X20 FLANGE
0-28680-820-0
02
1
0407-0611
●
●
10
BOLT; GUIDE TUBE
(A) M8X20 FLANGE THA
0-28650-820-0
02
1
0612-
●
●
12
BRACKET; TUBE,OIL LEVEL GAUGE
8-94395-843-0
01
1
0407-
●
12
BRACKET; TUBE,OIL LEVEL GAUGE
8-94395-150-0
01
1
0407-
●
23
BOLT; OIL PAN
M8X18 FLANGE
0-28080-818-0
30
1
0407-
●
●
24
NUT; OIL PAN
M8 FLANGE
0-91150-108-0
04
1
0407-0602
●
●
24
NUT; OIL PAN
M8 FLANGE THA
0-91180-108-0
04
1
0603-
●
●
47
CLIP; HOSE,AIR BREATHER
1-11369-115-0
01
1
0407-
●
●
49
NUT; GUIDE TUBE
M8 FLANGE
0-91150-108-0
02
1
0407-
●
●
192
HOSE; GUIDE TUBE
L=300
1-09360-978-0
01
1
0407-
●
●
193
CLIP; HOSE,GUIDE TUBE
ID=17 THA
1-09707-158-0
02
1
0407-
●
●
239
SPACER; BRKT
8-94313-327-0
01
1
0407-
●
