0-12 — CYLINDER BLOCK (#26501) — 143 parça

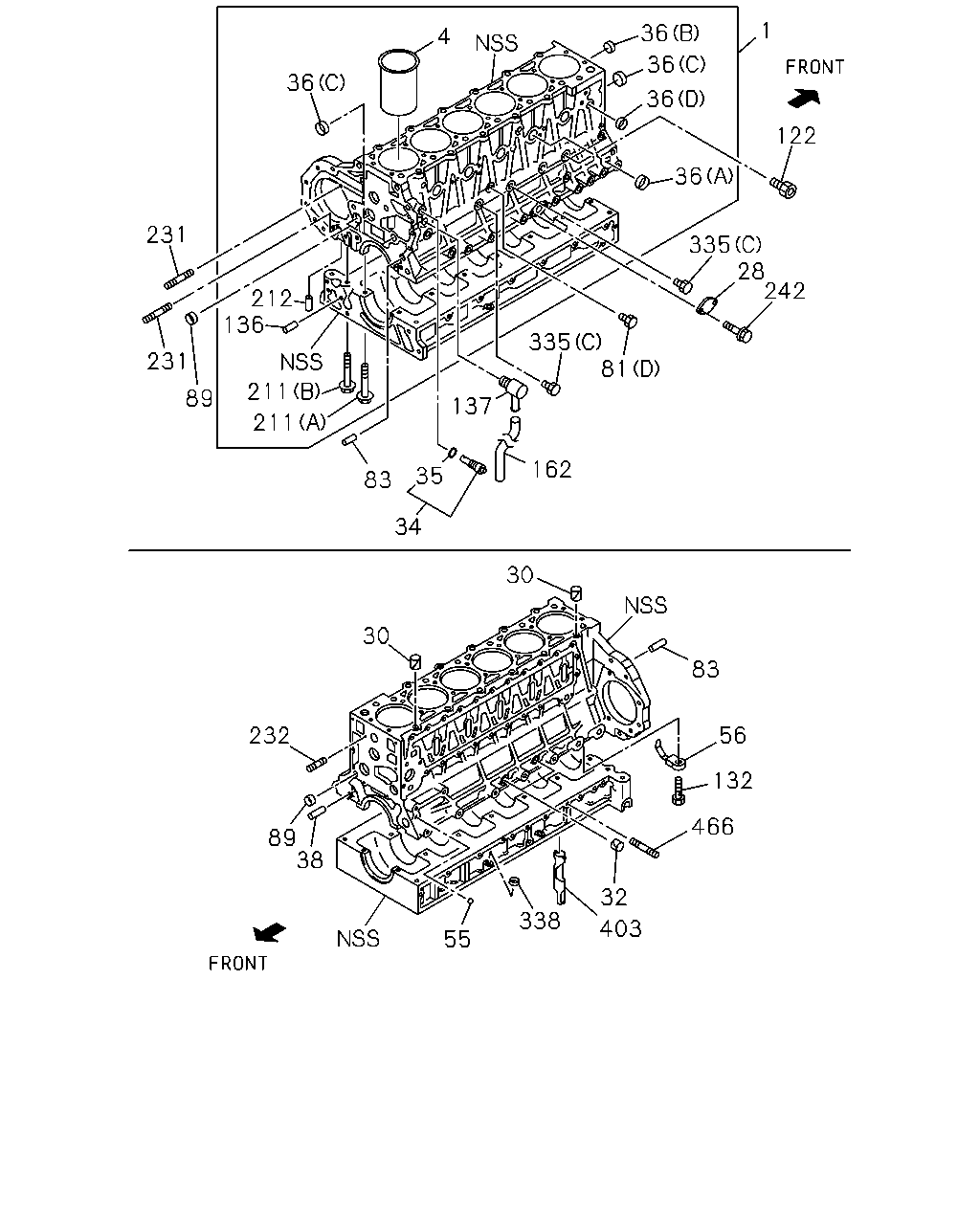

1 36 4 36 36 36 122 36 231 335 28 242 212 136 335 81 231 211 89 137 211 162 35 83 34 30 30 83 56 232 132 466 89 38 32 338 403 55

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BLOCK ASM; CYL	8-97601-299-5	01	1	0407-	●
1	BLOCK ASM; CYL	8-97602-023-2	01	1	0407-0504		●
1	BLOCK ASM; CYL	8-98005-412-0	01	1	0505-0607		●
1	BLOCK ASM; CYL	8-98005-414-2	01	1	0608-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-600-1	06	1	0407-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-601-1	06	1	0407-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-602-0	06	1	0407-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-603-0	06	1	0407-		●
28	COVER; OIL PORT	1-11219-163-0	01	1	0407-		●
30	PIN; CYL HD GASKET SETTING OD=18.15	8-94399-688-1	02	1	0407-	●	●
32	PIN; INJ PUMP BRKT	8-94453-344-0	02	1	0407-	●	●
34	VALVE; OIL RELIEF	8-94393-077-1	01	1	0407-	●	●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	5-09623-035-0	01	1	0407-	●	●
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-2	04	1	0407-	●
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-2	05	1	0407-		●
36	CUP; SEALING,WATER JACKET (D) OD=25	1-09600-016-0	01	1	0407-	●	●
36	CUP; SEALING,WATER JACKET (B) OD=25	8-94399-005-0	01	1	0407-	●	●
36	CUP; SEALING,WATER JACKET (C) OD=40	8-94399-639-0	04	1	0407-0502	●	●
36	CUP; SEALING,WATER JACKET (C) OD=40	8-97096-824-0	04	1	0503-	●	●
38	PIN; TIMING GEAR CASE L=22	8-94483-674-0	02	1	0407-	●	●
55	PLUG; OIL GALLERY 3/8" BALL	9-00097-011-0	02	1	0407-	●	●
56	JET; OIL,PISTON COOLING	8-94395-194-0	06	1	0407-0703	●	●
56	JET; OIL,PISTON COOLING	8-98020-649-0	06	1	0704-	●	●
81	PLUG; WATER JACKET (A) NPTF1-11 1/2	1-09605-065-1	01	1	0407-0507	●
81	PLUG; WATER JACKET (C) M14X14 THA	9-09862-156-0	01	1	0508-	●
81	PLUG; WATER JACKET (B) PT3/8	8-94397-338-0	01	1	0407-	●
81	PLUG; WATER JACKET (D) M14	8-94399-225-0	01	1	0407-		●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	0407-	●	●
89	CUP; SEALING,OIL GALLERY OD=20	9-11219-192-0	03	1	0407-	●	●
122	ADAPTER; OIL PRESSURE SWITCH	8-94399-858-2	01	1	0407-	●	●
132	VALVE; CHECK,OIL M12X18.5	8-94394-419-1	06	1	0407-	●
132	VALVE; CHECK,OIL M10X18.5	1-13161-012-0	06	1	0407-0704		●
132	VALVE; CHECK,OIL M10X18.5	8-97329-618-0	06	1	0705-		●
136	BUSHING; DRIVE SHAFT,OIL PUMP	8-94393-596-1	02	1	0407-	●	●
137	COCK; DRAIN,WATER	8-94393-716-1	01	1	0407-	●
137	COCK; DRAIN,WATER	1-09680-024-0	01	1	0407-		●
162	HOSE; WATER DRAIN,C/BL L=310 SERVICED BY L=3000	0-03559-300-0	01	1	0407-		●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-94396-207-3	14	1	0407-	●	●
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	25	1	0407-	●	●
212	PIN; CRANKCASE OD=10 L=20	8-97135-423-0	02	1	0407-	●	●
231	STUD; AIR CMPR M10X46.5 L=58.5	8-97363-237-0	02	1	0407-		●
232	STUD; WATER PUMP M8X55 L=67	9-04110-855-0	03	1	0407-0604	●	●
232	STUD; WATER PUMP M8X55 L=67	0-41010-855-0	03	1	0605-	●	●
242	BOLT; COVER,OIL PORT M8X16 FLANGE	0-28080-816-0	02	1	0407-0512		●
242	BOLT; COVER,OIL PORT M8X16 FLANGE THA	0-28050-816-0	02	1	0601-		●
335	PLUG; C/BL,SIDE (B) M14	8-94399-225-0	02	1	0407-	●
335	PLUG; C/BL,SIDE (A) M8X6	8-94399-421-0	01	1	0407-0501	●
335	PLUG; C/BL,SIDE (A) M8X10	8-98003-416-0	01	1	0502-	●
335	PLUG; C/BL,SIDE (C) M14	8-94399-225-0	05	1	0407-		●
338	CUP; SEALING,GUIDE TUBE HOLE OD=15.6	5-11129-003-0	01	1	0407-0607	●	●
338	CUP; SEALING,GUIDE TUBE HOLE OD=15.6	5-11129-003-0	02	1	0608-	●	●
403	GUIDE; GALLERY	8-94395-351-1	01	1	0407-		●
466	STUD; FUEL FILTER BRKT M8X20 L=32	1-09305-005-0	01	1	0407-		●

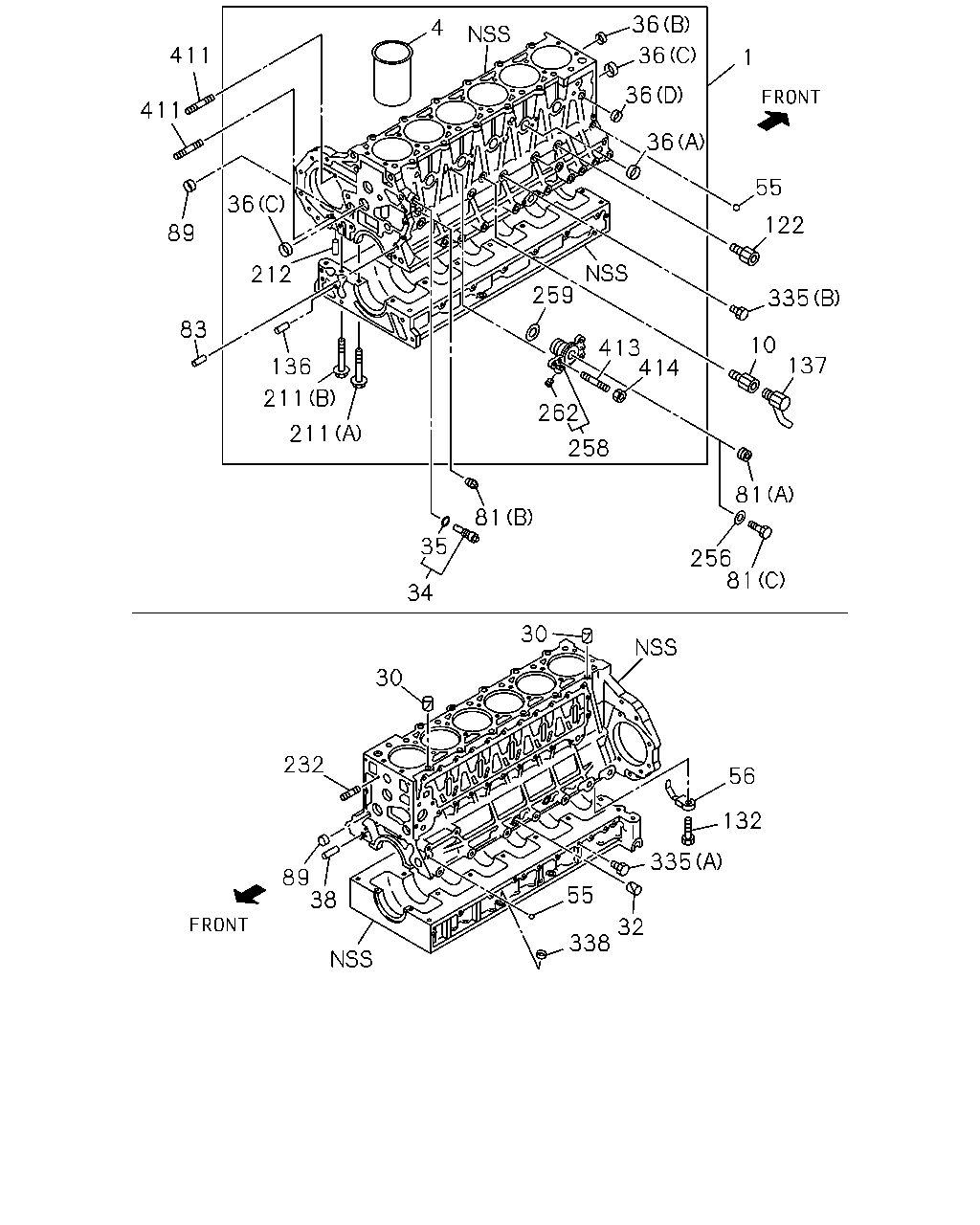

36 4 411 36 1 36 411 36 55 36 122 89 259 212 335 83 413 414 10 137 136 211 262 211 258 81 81 35 256 81 34 30 30 232 56 132 335 89 38 55 32 338

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BLOCK ASM; CYL	8-97601-299-5	01	1	0407-	●
1	BLOCK ASM; CYL	8-97602-023-2	01	1	0407-0504		●
1	BLOCK ASM; CYL	8-98005-412-0	01	1	0505-0607		●
1	BLOCK ASM; CYL	8-98005-414-2	01	1	0608-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-600-1	06	1	0407-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-601-1	06	1	0407-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-602-0	06	1	0407-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-603-0	06	1	0407-		●
10	CONNECTOR; WATER DRAIN	8-94396-378-0	01	1	0407-	●
30	PIN; CYL HD GASKET SETTING OD=18.15	8-94399-688-1	02	1	0407-	●	●
32	PIN; INJ PUMP BRKT	8-94453-344-0	02	1	0407-	●	●
34	VALVE; OIL RELIEF	8-94393-077-1	01	1	0407-	●	●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	5-09623-035-0	01	1	0407-	●	●
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-2	04	1	0407-	●
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-2	05	1	0407-		●
36	CUP; SEALING,WATER JACKET (D) OD=25	1-09600-016-0	01	1	0407-	●	●
36	CUP; SEALING,WATER JACKET (B) OD=25	8-94399-005-0	01	1	0407-	●	●
36	CUP; SEALING,WATER JACKET (C) OD=40	8-94399-639-0	04	1	0407-0502	●	●
36	CUP; SEALING,WATER JACKET (C) OD=40	8-97096-824-0	04	1	0503-	●	●
38	PIN; TIMING GEAR CASE L=22	8-94483-674-0	02	1	0407-	●	●
55	PLUG; OIL GALLERY 3/8" BALL	9-00097-011-0	02	1	0407-	●	●
56	JET; OIL,PISTON COOLING	8-94395-194-0	06	1	0407-0703	●	●
56	JET; OIL,PISTON COOLING	8-98020-649-0	06	1	0704-	●	●
81	PLUG; WATER JACKET (A) NPTF1-11 1/2	1-09605-065-1	01	1	0407-0507	●
81	PLUG; WATER JACKET (C) M14X14 THA	9-09862-156-0	01	1	0508-	●
81	PLUG; WATER JACKET (B) PT3/8	8-94397-338-0	01	1	0407-	●
81	PLUG; WATER JACKET (D) M14	8-94399-225-0	01	1	0407-		●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	0407-	●	●
89	CUP; SEALING,OIL GALLERY OD=20	9-11219-192-0	03	1	0407-	●	●
122	ADAPTER; OIL PRESSURE SWITCH	8-94399-858-2	01	1	0407-	●	●
132	VALVE; CHECK,OIL M12X18.5	8-94394-419-1	06	1	0407-	●
132	VALVE; CHECK,OIL M10X18.5	1-13161-012-0	06	1	0407-0704		●
132	VALVE; CHECK,OIL M10X18.5	8-97329-618-0	06	1	0705-		●
136	BUSHING; DRIVE SHAFT,OIL PUMP	8-94393-596-1	02	1	0407-	●	●
137	COCK; DRAIN,WATER	8-94393-716-1	01	1	0407-	●
137	COCK; DRAIN,WATER	1-09680-024-0	01	1	0407-		●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-94396-207-3	14	1	0407-	●	●
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	25	1	0407-	●	●
212	PIN; CRANKCASE OD=10 L=20	8-97135-423-0	02	1	0407-	●	●
232	STUD; WATER PUMP M8X55 L=67	9-04110-855-0	03	1	0407-0604	●	●
232	STUD; WATER PUMP M8X55 L=67	0-41010-855-0	03	1	0605-	●	●
256	GASKET; ADAPTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25	1-09630-141-0	01	1	0508-	●
258	ADAPTER; BLOCK HTR	8-94395-868-0	01	1	0407-0507	●
258	ADAPTER; BLOCK HTR	8-97602-806-0	01	1	0508-	●
259	GASKET; ADAPTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=38.7	1-09623-184-0	01	1	0407-	●
262	PLUG; ADAPTER	1-13163-002-0	01	1	0407-	●
335	PLUG; C/BL,SIDE (B) M14	8-94399-225-0	02	1	0407-	●
335	PLUG; C/BL,SIDE (A) M8X6	8-94399-421-0	01	1	0407-0501	●
335	PLUG; C/BL,SIDE (A) M8X10	8-98003-416-0	01	1	0502-	●
335	PLUG; C/BL,SIDE (C) M14	8-94399-225-0	05	1	0407-		●
338	CUP; SEALING,GUIDE TUBE HOLE OD=15.6	5-11129-003-0	01	1	0407-0607	●	●
338	CUP; SEALING,GUIDE TUBE HOLE OD=15.6	5-11129-003-0	02	1	0608-	●	●
411	STUD; BRG CASE M10X25 L=40	0-49841-025-0	02	1	0407-0512	●
411	STUD; BRG CASE M10X25 L=48.5	0-49241-025-0	02	1	0601-	●
413	STUD; ADAPTER M8X30 L=41	9-04110-830-0	02	1	0407-0604	●
413	STUD; ADAPTER M8X30 L=41	0-41010-830-0	02	1	0605-	●
414	NUT; ADAPTER M8 FLANGE	0-91150-208-0	02	1	0407-0602	●
414	NUT; ADAPTER M8 FLANGE THA	0-91180-208-0	02	1	0603-	●

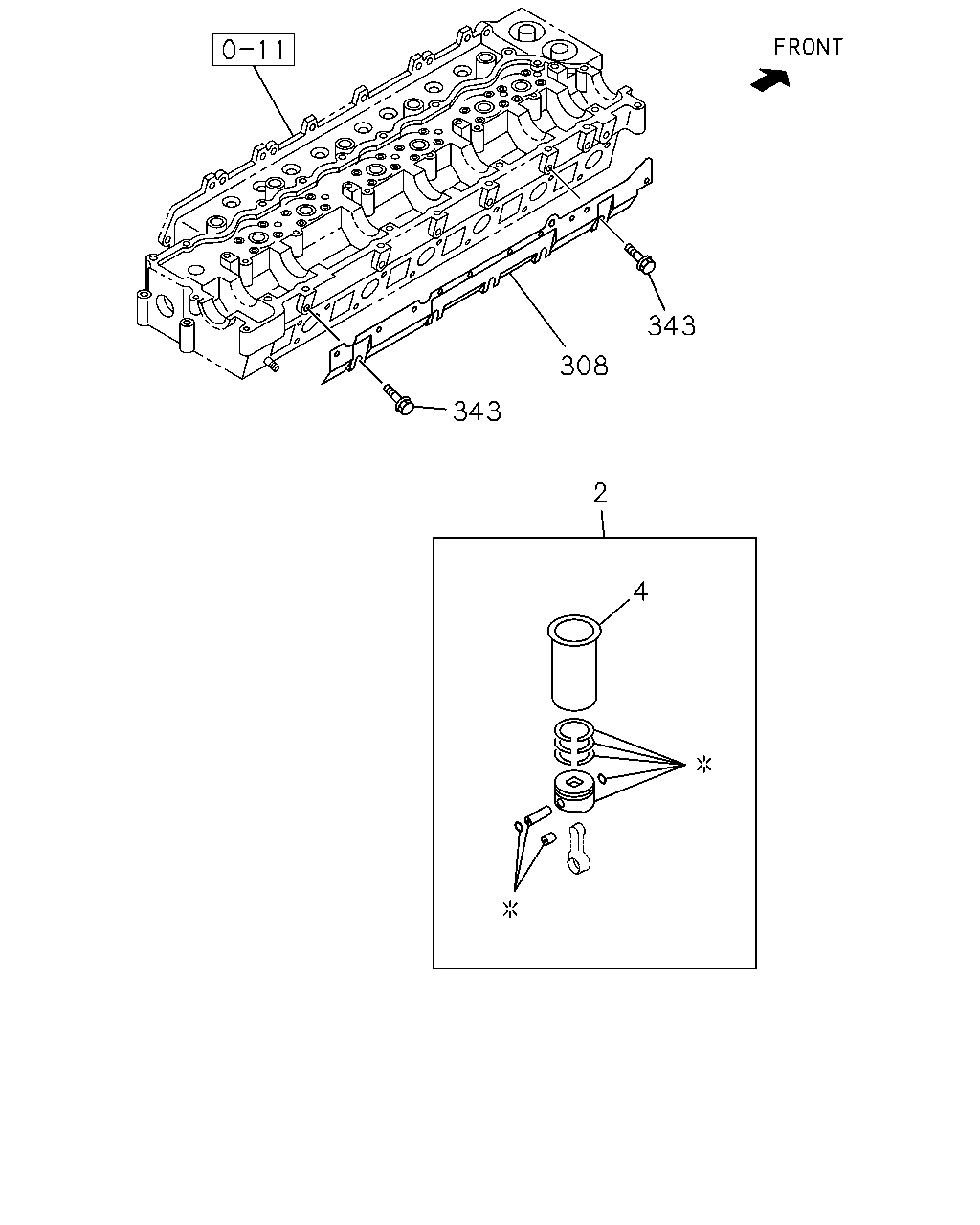

343 308 2 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	LINER SET; ENG CYL GRADE=1X	1-87811-701-4	06	1	0407-0706	●
2	LINER SET; ENG CYL GRADE=1X	1-87812-203-3	06	1	0707-	●
2	LINER SET; ENG CYL GRADE=3X	1-87811-702-4	06	1	0407-0706	●
2	LINER SET; ENG CYL GRADE=3X	1-87812-204-3	06	1	0707-	●
2	LINER SET; ENG CYL GRADE=1X	1-87811-917-6	06	1	0407-		●
2	LINER SET; ENG CYL GRADE=3X	1-87811-918-6	06	1	0407-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-600-1	06	1	0407-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-601-1	06	1	0407-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-602-0	06	1	0407-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-603-0	06	1	0407-		●
308	PROTECTOR; HEAT,HD COVER	8-94395-748-0	01	1	0407-	●
308	PROTECTOR; HEAT,HD COVER	8-94391-759-2	01	1	0407-		●
343	BOLT; HEAT PROTECTOR M8X12 FLANGE	0-28080-812-0	04	1	0407-0512	●
343	BOLT; HEAT PROTECTOR M8X12 FLANGE THA	0-28050-812-0	04	1	0601-	●
343	BOLT; HEAT PROTECTOR M8X12 FLANGE	0-28080-812-0	05	1	0407-0512		●
343	BOLT; HEAT PROTECTOR M8X12 FLANGE THA	0-28050-812-0	05	1	0601-		●

343 308 343 2 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	LINER SET; ENG CYL GRADE=1X	1-87811-701-4	06	1	0407-0706	●
2	LINER SET; ENG CYL GRADE=1X	1-87812-203-3	06	1	0707-	●
2	LINER SET; ENG CYL GRADE=3X	1-87811-702-4	06	1	0407-0706	●
2	LINER SET; ENG CYL GRADE=3X	1-87812-204-3	06	1	0707-	●
2	LINER SET; ENG CYL GRADE=1X	1-87811-917-6	06	1	0407-		●
2	LINER SET; ENG CYL GRADE=3X	1-87811-918-6	06	1	0407-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-600-1	06	1	0407-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-601-1	06	1	0407-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-602-0	06	1	0407-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-603-0	06	1	0407-		●
308	PROTECTOR; HEAT,HD COVER	8-94395-748-0	01	1	0407-	●
308	PROTECTOR; HEAT,HD COVER	8-94391-759-2	01	1	0407-		●
343	BOLT; HEAT PROTECTOR M8X12 FLANGE	0-28080-812-0	04	1	0407-0512	●
343	BOLT; HEAT PROTECTOR M8X12 FLANGE THA	0-28050-812-0	04	1	0601-	●
343	BOLT; HEAT PROTECTOR M8X12 FLANGE	0-28080-812-0	05	1	0407-0512		●
343	BOLT; HEAT PROTECTOR M8X12 FLANGE THA	0-28050-812-0	05	1	0601-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
