0-11 — CYLINDER HEAD (#26500) — 117 parça

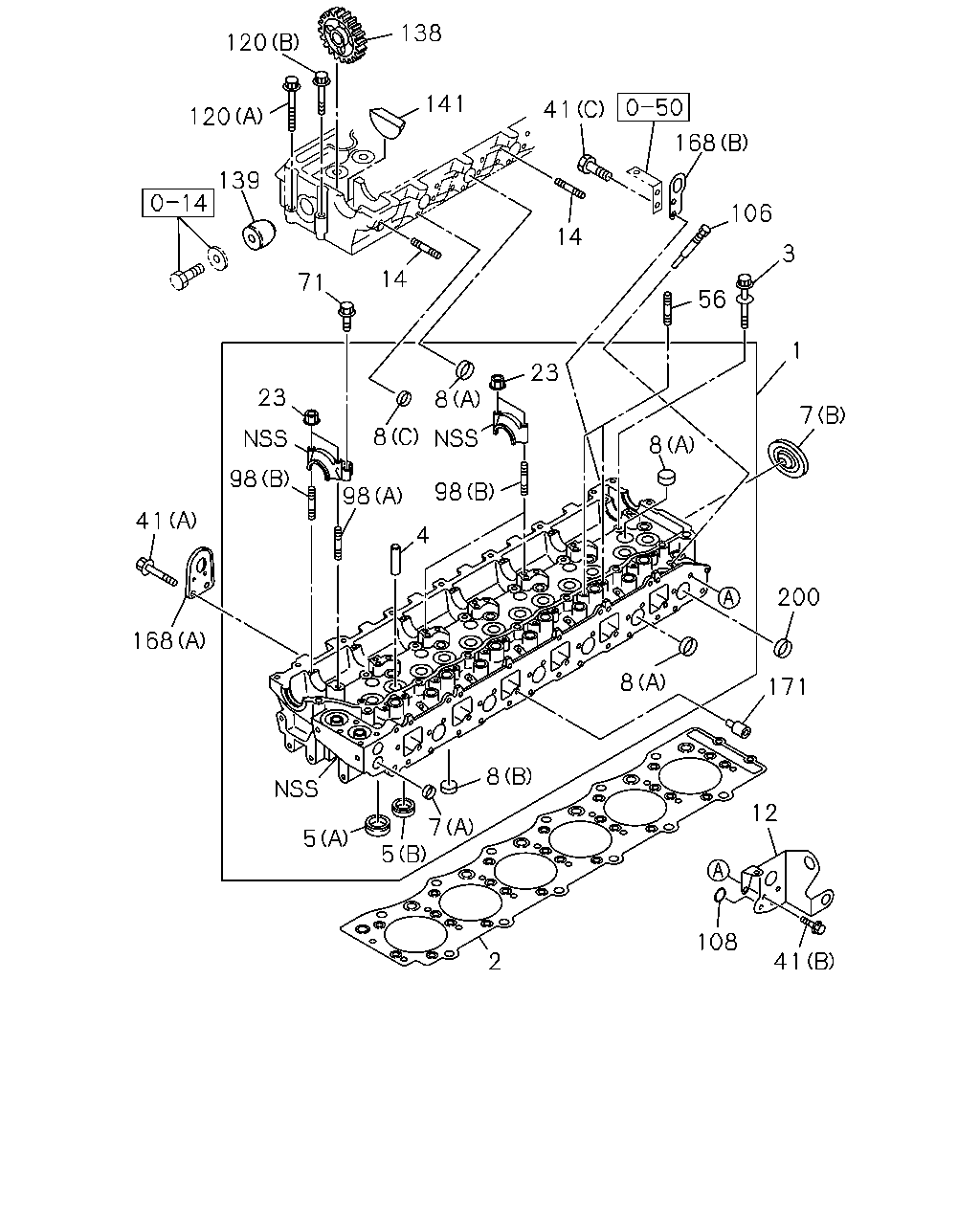

çizim 25285
138 120 141 41 120 168 139 106 14 3 14 71 56 1 23 23 8 7 8 8 98 98 98 41 4 200 168 8 171 8 12 7 5 5 108 2 41
BalonParca AdiParca NoAdetTipApplied Date A B
1 HEAD ASM; CYL 8-94391-162-6 01 1 0407- ●
1 HEAD ASM; CYL 8-97605-007-2 01 1 0407-0507 ●
1 HEAD ASM; CYL 8-97606-994-5 01 1 0508- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94395-447-2 01 1 0407- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94390-787-4 01 1 0407-0407 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97605-228-0 01 1 0408- ●
3 BOLT; CYL HD TO BLOCK
M14X115 W/FLANGE 		8-94396-207-3 26 1 0407- ● ●
4 GUIDE; VLV 8-94396-598-0 12 1 0407- ●
4 GUIDE; VLV 8-94390-780-0 24 1 0407-0707 ●
4 GUIDE; VLV 8-97376-719-2 24 1 0708- ●
5 SEAT; VLV INSERT
(A) INLET OD=48 		8-94394-462-0 06 1 0407- ●
5 SEAT; VLV INSERT
(B) EXHAUST OD=43 		8-94396-172-0 06 1 0407- ●
5 SEAT; VLV INSERT
(A) INLET OD=40 		8-97216-510-0 12 1 0407- ●
5 SEAT; VLV INSERT
(B) EXHAUST OD=38 		8-97216-511-0 12 1 0407-0703 ●
5 SEAT; VLV INSERT
(B) EXHAUST ID=31 OD=38 		8-98028-875-0 12 1 0704- ●
7 CUP; SEALING,CYL HEAD
(A) OD=30 		8-94393-509-0 01 1 0407- ● ●
7 CUP; SEALING,CYL HEAD
(B) OD=51 		8-97096-826-0 01 1 0407- ● ●
8 CUP; SEALING,WATER JACKET
(A) OD=32 		1-09600-012-2 17 1 0407- ●
8 CUP; SEALING,WATER JACKET
(B) OD=25 		1-09600-016-0 03 1 0407- ●
8 CUP; SEALING,WATER JACKET
(C) OD=12.3 		5-09600-013-0 06 1 0407- ●
8 CUP; SEALING,WATER JACKET
(A) OD=32 		1-09600-012-2 06 1 0407- ●
8 CUP; SEALING,WATER JACKET
(B) OD=25 		1-09600-016-0 06 1 0407- ●
8 CUP; SEALING,WATER JACKET
(C) OD=16 		5-11129-006-0 07 1 0407- ●
8 CUP; SEALING,WATER JACKET
(D) OD=20 		9-11129-128-0 11 1 0407- ●
12 HANGER; ENG,RR 8-94394-337-1 01 1 0407- ●
12 HANGER; ENG,RR 8-94392-080-0 01 1 0407- ●
14 STUD; EXH MANIF
M10X60 L=75 		8-94397-286-0 12 1 0407- ● ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91150-208-0 08 1 0407-0602 ● ●
23 NUT; CAM BRKT
M8 FLANGE THA 		0-91180-208-0 08 1 0603- ● ●
41 BOLT; ENG HANGER
(A) M10X20 FLANGE 		0-28181-020-0 03 1 0407-0512 ●
41 BOLT; ENG HANGER
(A) M10X20 FLANGE 		0-28151-020-0 03 1 0601- ●
41 BOLT; ENG HANGER
(C) M10X30 FLANGE 		0-28181-030-0 02 1 0407-0512 ●
41 BOLT; ENG HANGER
(C) M10X30 FLANGE 		0-28151-030-0 02 1 0601- ●
41 BOLT; ENG HANGER
(A) M10X20 FLANGE 		0-28181-020-0 02 1 0407-0512 ●
41 BOLT; ENG HANGER
(A) M10X20 FLANGE 		0-28151-020-0 02 1 0601- ●
41 BOLT; ENG HANGER
(B) M12X22 FLANGE 		0-28181-222-0 03 1 0407- ● ●
56 STUD; NOZZLE HOLDER
M8X66 L=90 		1-09300-014-0 12 1 0407- ●
71 BOLT; CAM BRKT
M8X35 FLANGE 		0-28080-835-0 02 1 0407-0512 ● ●
71 BOLT; CAM BRKT
M8X35 FLANGE THA 		0-28050-835-0 02 1 0601- ● ●
98 STUD; CAM BRKT
(A) M8X54 L=79 		8-94322-512-2 02 1 0407- ● ●
98 STUD; CAM BRKT
(B) M8X41 L=66 		8-94322-513-2 06 1 0407- ● ●
106 PLUG; GLOW PLUG HOLE 5-11119-007-1 06 1 0407- ●
106 PLUG; GLOW PLUG HOLE 8-94392-236-0 06 1 0407- ●
108 GASKET; HANGER,RR
ID=35.2 		1-09623-375-0 01 1 0407- ● ●
120 BOLT; CYL HD TO HSG
(A) M10X73 		8-94399-554-0 01 1 0407- ● ●
120 BOLT; CYL HD TO HSG
(B) M10X43 		8-94399-555-0 01 1 0407- ● ●
138 GEAR; IDLE
Z=41 		8-97112-607-1 01 1 0407- ● ●
139 SHAFT; IDLE GEAR 8-97186-398-1 01 1 0407- ● ●
141 PLUG; RUBBER,CYL HD 8-94399-605-0 02 1 0407- ● ●
168 HANGER; ENG,FRT
(A) 		8-94391-505-0 01 1 0407- ●
168 HANGER; ENG,FRT
(B) 		8-94393-810-0 01 1 0407- ●
168 HANGER; ENG,FRT
(C) 		8-94399-403-1 01 1 0407- ●
171 SEAT; VLV 8-94394-678-1 06 1 0407- ●
200 CUP; SEALING,INLET MANIFOLD
OD=32 		1-09600-012-2 01 1 0407- ●

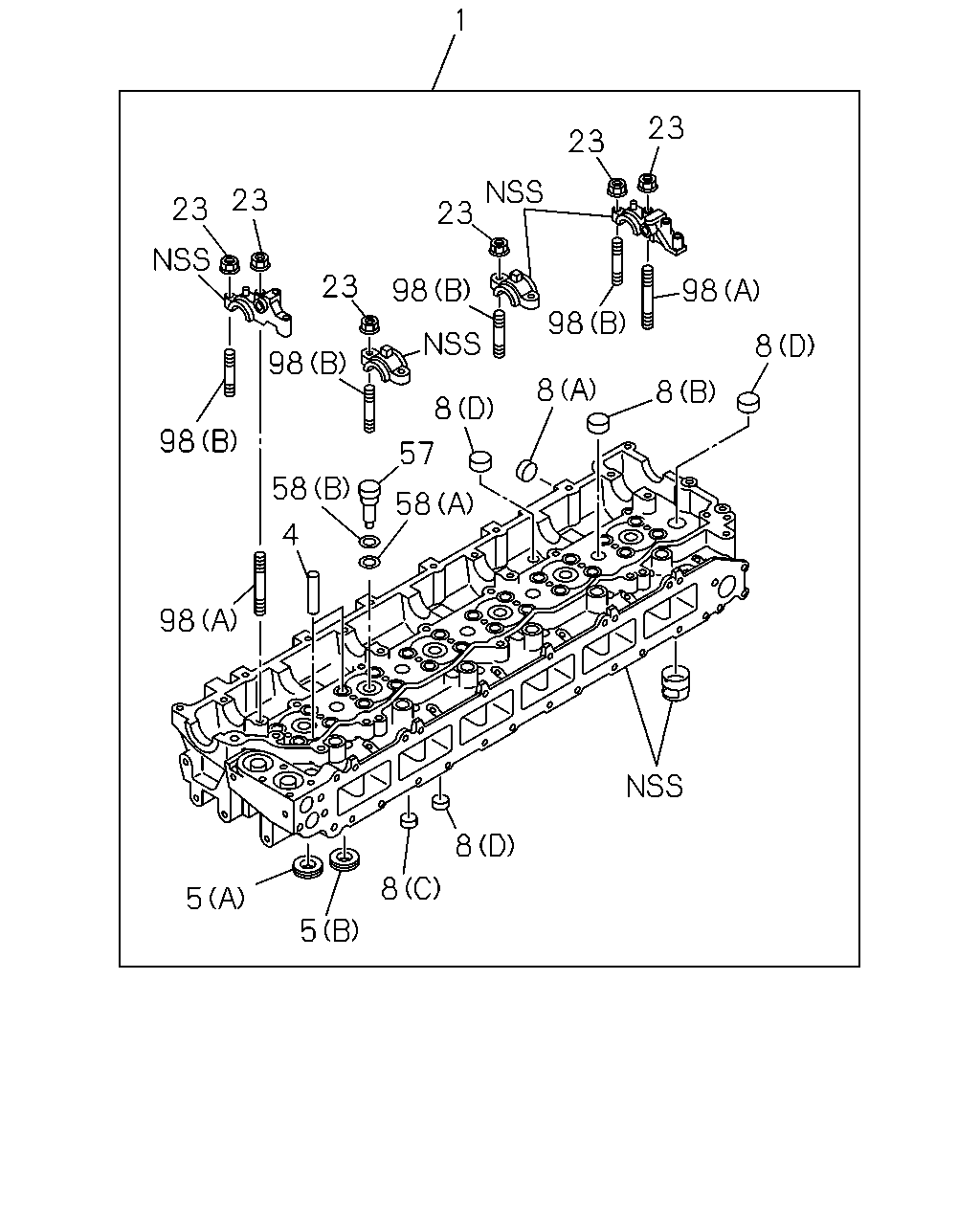

çizim 84560
1 23 23 23 23 23 98 98 23 98 98 8 8 8 8 98 57 58 58 4 98 8 8 5 5
BalonParca AdiParca NoAdetTipApplied Date A B
1 HEAD ASM; CYL 8-94391-162-6 01 1 0407- ●
1 HEAD ASM; CYL 8-97605-007-2 01 1 0407-0507 ●
1 HEAD ASM; CYL 8-97606-994-5 01 1 0508- ●
4 GUIDE; VLV 8-94396-598-0 12 1 0407- ●
4 GUIDE; VLV 8-94390-780-0 24 1 0407-0707 ●
4 GUIDE; VLV 8-97376-719-2 24 1 0708- ●
5 SEAT; VLV INSERT
(A) INLET OD=48 		8-94394-462-0 06 1 0407- ●
5 SEAT; VLV INSERT
(B) EXHAUST OD=43 		8-94396-172-0 06 1 0407- ●
5 SEAT; VLV INSERT
(A) INLET OD=40 		8-97216-510-0 12 1 0407- ●
5 SEAT; VLV INSERT
(B) EXHAUST OD=38 		8-97216-511-0 12 1 0407-0703 ●
5 SEAT; VLV INSERT
(B) EXHAUST ID=31 OD=38 		8-98028-875-0 12 1 0704- ●
8 CUP; SEALING,WATER JACKET
(A) OD=32 		1-09600-012-2 17 1 0407- ●
8 CUP; SEALING,WATER JACKET
(B) OD=25 		1-09600-016-0 03 1 0407- ●
8 CUP; SEALING,WATER JACKET
(C) OD=12.3 		5-09600-013-0 06 1 0407- ●
8 CUP; SEALING,WATER JACKET
(A) OD=32 		1-09600-012-2 06 1 0407- ●
8 CUP; SEALING,WATER JACKET
(B) OD=25 		1-09600-016-0 06 1 0407- ●
8 CUP; SEALING,WATER JACKET
(C) OD=16 		5-11129-006-0 07 1 0407- ●
8 CUP; SEALING,WATER JACKET
(D) OD=20 		9-11129-128-0 11 1 0407- ●
23 NUT; CAM BRKT
M8 FLANGE 		0-91150-208-0 08 1 0407-0602 ● ●
23 NUT; CAM BRKT
M8 FLANGE THA 		0-91180-208-0 08 1 0603- ● ●
57 SLEEVE; NOZZLE HOLDER 8-97602-301-1 06 1 0407-0507 ●
57 SLEEVE; NOZZLE HOLDER 8-97606-661-0 06 1 0508- ●
58 GASKET; SLEEVE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=26.2 		8-98004-187-0 06 1 0508- ●
58 GASKET; SLEEVE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=26.4 		8-97604-916-0 06 1 0407- ●
98 STUD; CAM BRKT
(A) M8X54 L=79 		8-94322-512-2 02 1 0407- ● ●
98 STUD; CAM BRKT
(B) M8X41 L=66 		8-94322-513-2 06 1 0407- ● ●

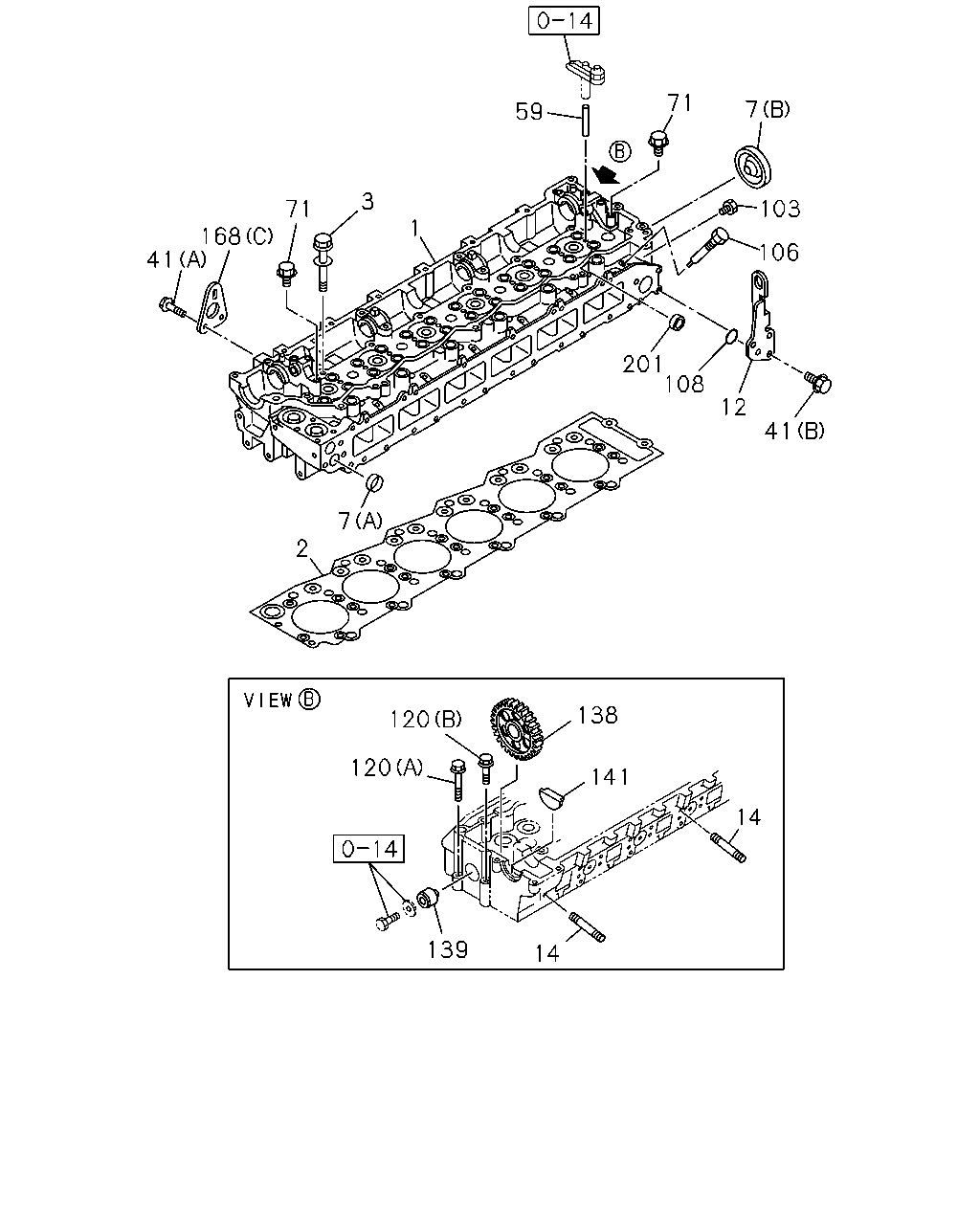

çizim 84608
71 7 59 3 71 103 1 168 106 41 201 108 12 41 7 2 138 120 120 141 14 139 14
BalonParca AdiParca NoAdetTipApplied Date A B
1 HEAD ASM; CYL 8-94391-162-6 01 1 0407- ●
1 HEAD ASM; CYL 8-97605-007-2 01 1 0407-0507 ●
1 HEAD ASM; CYL 8-97606-994-5 01 1 0508- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94395-447-2 01 1 0407- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94390-787-4 01 1 0407-0407 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97605-228-0 01 1 0408- ●
3 BOLT; CYL HD TO BLOCK
M14X115 W/FLANGE 		8-94396-207-3 26 1 0407- ● ●
7 CUP; SEALING,CYL HEAD
(A) OD=30 		8-94393-509-0 01 1 0407- ● ●
7 CUP; SEALING,CYL HEAD
(B) OD=51 		8-97096-826-0 01 1 0407- ● ●
12 HANGER; ENG,RR 8-94394-337-1 01 1 0407- ●
12 HANGER; ENG,RR 8-94392-080-0 01 1 0407- ●
14 STUD; EXH MANIF
M10X60 L=75 		8-94397-286-0 12 1 0407- ● ●
41 BOLT; ENG HANGER
(A) M10X20 FLANGE 		0-28181-020-0 03 1 0407-0512 ●
41 BOLT; ENG HANGER
(A) M10X20 FLANGE 		0-28151-020-0 03 1 0601- ●
41 BOLT; ENG HANGER
(C) M10X30 FLANGE 		0-28181-030-0 02 1 0407-0512 ●
41 BOLT; ENG HANGER
(C) M10X30 FLANGE 		0-28151-030-0 02 1 0601- ●
41 BOLT; ENG HANGER
(A) M10X20 FLANGE 		0-28181-020-0 02 1 0407-0512 ●
41 BOLT; ENG HANGER
(A) M10X20 FLANGE 		0-28151-020-0 02 1 0601- ●
41 BOLT; ENG HANGER
(B) M12X22 FLANGE 		0-28181-222-0 03 1 0407- ● ●
59 GUIDE; BRIDGE 8-94395-889-1 12 1 0407-0409 ●
59 GUIDE; BRIDGE 8-97381-603-0 12 1 0410- ●
71 BOLT; CAM BRKT
M8X35 FLANGE 		0-28080-835-0 02 1 0407-0512 ● ●
71 BOLT; CAM BRKT
M8X35 FLANGE THA 		0-28050-835-0 02 1 0601- ● ●
103 PLUG; HD
M8X6 		8-94399-421-0 01 1 0407-0501 ●
103 PLUG; HD
M8X10 		8-98003-416-0 01 1 0502- ●
106 PLUG; GLOW PLUG HOLE 5-11119-007-1 06 1 0407- ●
106 PLUG; GLOW PLUG HOLE 8-94392-236-0 06 1 0407- ●
108 GASKET; HANGER,RR
ID=35.2 		1-09623-375-0 01 1 0407- ● ●
120 BOLT; CYL HD TO HSG
(A) M10X73 		8-94399-554-0 01 1 0407- ● ●
120 BOLT; CYL HD TO HSG
(B) M10X43 		8-94399-555-0 01 1 0407- ● ●
138 GEAR; IDLE
Z=41 		8-97112-607-1 01 1 0407- ● ●
139 SHAFT; IDLE GEAR 8-97186-398-1 01 1 0407- ● ●
141 PLUG; RUBBER,CYL HD 8-94399-605-0 02 1 0407- ● ●
168 HANGER; ENG,FRT
(A) 		8-94391-505-0 01 1 0407- ●
168 HANGER; ENG,FRT
(B) 		8-94393-810-0 01 1 0407- ●
168 HANGER; ENG,FRT
(C) 		8-94399-403-1 01 1 0407- ●
201 GASKET; SLEEVE,INJ PUMP
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-09639-034-0 06 1 0407- ●
