3-11 — PARKING BRAKE CONTROL (#2650) — 87 parça

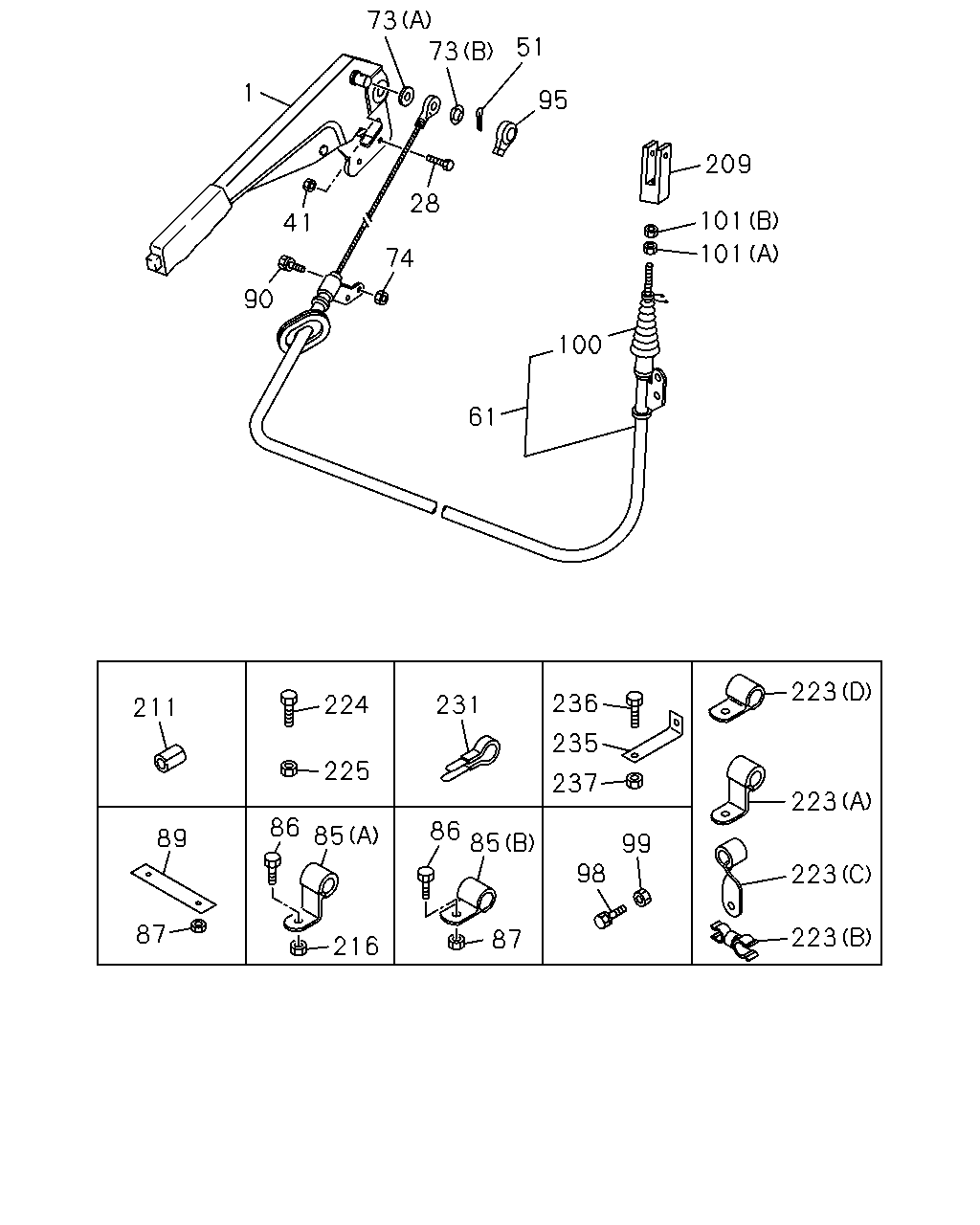

çizim 4795
73 73 51 1 95 209 28 101 41 101 74 90 100 61 223 236 224 231 211 235 225 237 223 86 86 85 85 89 99 98 223 87 223 87 216
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 STEM ASM; PARKING BRK
RIGHT HAND DRIVE(MRR5FB) 		1-46120-080-2 01 1 9101- ● ● ● ●
1 STEM ASM; PARKING BRK
LEFT HAND DRIVE(MRR6FB) 		1-46120-079-2 01 1 9101- ● ● ● ●
28 BOLT; HAND BRK LEVER 0-50040-830-0 02 1 9101-9412 ● ● ● ●
28 BOLT; HAND BRK LEVER
M8X30 FLANGE 		0-28080-830-0 02 1 9501- ● ● ● ●
41 NUT; HAND BRK STEM 9-09110-408-0 02 1 9101-9412 ● ● ● ●
41 NUT; HAND BRK STEM
M8 FLANGE 		0-91150-208-0 02 1 9501-9501 ● ● ● ●
41 NUT; HAND BRK STEM
M8 FLANGE 		1-09440-049-0 02 1 9502- ● ● ● ●
51 PIN; JOINT,RELAY LEVER
OD=3.7 L=28 		9-08114-028-0 01 1 9101- ● ● ● ●
61 CABLE; PARKING BRK
LEFT HAND DRIVE(MRR6FB) L=4575 		1-46151-300-2 01 1 9101- ● ● ●
61 CABLE; PARKING BRK
RIGHT HAND DRIVE(MRR5FB) L=2325 		1-46151-442-0 01 1 9101-9910 ● ● ● ●
61 CABLE; PARKING BRK
RIGHT HAND DRIVE(MRR5FB) L=2325 		1-46151-867-0 01 1 9911- ● ● ● ●
61 CABLE; PARKING BRK
LEFT HAND DRIVE(MRR6FB) L=4950 		1-46151-403-1 01 1 9101-9910 ●
61 CABLE; PARKING BRK
LEFT HAND DRIVE(MRR6FB) L=4950 		1-46151-822-0 01 1 9911- ●
73 WASHER; PL,CABLE
(B) ID=19 		8-94206-429-1 02 1 9101- ● ● ● ●
73 WASHER; PL,CABLE
(A) ID=17 		9-09160-516-0 01 1 9101- ● ● ● ●
74 NUT; CONT WIRE
LEFT HAND DRIVE(MRR6FB) 		9-09110-408-0 01 1 9101-9910 ●
85 CLIP; BRKT
RIGHT HAND DRIVE(MRR5FB) (B) ID=13 L=40 		9-09525-276-0 01 1 9101- ● ● ●
85 CLIP; BRKT
LEFT HAND DRIVE(MRR6FB) (A) ID=15 H=24 L=20 		1-09700-606-0 02 1 9101- ● ● ● ●
85 CLIP; BRKT
LEFT HAND DRIVE(MRR6FB) (B) ID=13 L=28 		9-09525-256-0 02 1 9101- ● ● ● ●
85 CLIP; BRKT
RIGHT HAND DRIVE(MRR5FB) (B) ID=13 L=20 		9-09525-236-0 01 1 9101- ●
86 BOLT
RIGHT HAND DRIVE(MRR5FB) M8X20 W/LK WASHER 		9-01900-820-0 01 1 9101-9204 ● ● ●
86 BOLT
RIGHT HAND DRIVE(MRR5FB) M8X20 W/LK WASHER 		0-50040-820-0 01 1 9205- ● ● ●
86 BOLT
LEFT HAND DRIVE(MRR6FB) M8X20 W/LK WASHER 		9-01900-820-0 04 1 9101-9204 ● ● ● ●
86 BOLT
LEFT HAND DRIVE(MRR6FB) M8X20 W/LK WASHER 		0-50040-820-0 04 1 9205- ● ● ● ●
86 BOLT
RIGHT HAND DRIVE(MRR5FB) M8X20 W/LK WASHER 		9-01900-820-0 02 1 9101-9204 ●
86 BOLT
RIGHT HAND DRIVE(MRR5FB) M8X20 W/LK WASHER 		0-50040-820-0 02 1 9205- ●
87 NUT
RIGHT HAND DRIVE(MRR5FB) 		9-09110-408-0 01 1 9101- ● ● ●
87 NUT
LEFT HAND DRIVE(MRR6FB) 		9-09110-408-0 03 1 9101- ● ● ● ●
87 NUT
RIGHT HAND DRIVE(MRR5FB) 		9-09110-408-0 02 1 9101- ●
89 BRACKET; CLIP
RIGHT HAND DRIVE(MRR5FB) 		1-47475-704-0 01 1 9101- ●
90 BOLT; CABLE TO BRKT 0-50140-845-0 02 1 9101- ● ● ● ●
95 CAP; CABLE,PARKING BRK 1-79997-140-2 01 1 9101- ● ● ● ●
98 BOLT; RR COVER 0-50041-025-0 02 1 9101- ● ● ● ●
99 NUT; CONT CABLE
M8 		9-09110-408-0 02 1 9101- ● ● ● ●
99 NUT; CONT CABLE
M10 		9-09110-410-0 02 1 9101-9307 ● ● ● ●
99 NUT; CONT CABLE
M10 		9-09110-510-0 02 1 9308- ● ● ● ●
100 BELLOWS; CONT WIRE 1-46159-004-0 01 1 9101-9910 ● ● ● ●
100 BELLOWS; CONT WIRE
LEFT HAND DRIVE(MRR6FB) 		1-46159-004-0 01 1 9911- ● ● ●
101 NUT; CABLE TO LEVER
(A) M8 		9-09110-408-0 01 1 9101- ● ● ● ●
101 NUT; CABLE TO LEVER
(B) M8 FLANGE 		9-46259-016-0 01 1 9101- ● ● ● ●
209 JOINT; JAW,CONT WIRE
LEFT HAND DRIVE(MRR6FB) 		1-09768-058-0 01 1 9101-9910 ●
211 SLEEVE; RUBBER
LEFT HAND DRIVE(MRR6FB) 		1-09337-014-0 01 1 9106- ● ● ●
216 NUT; CLIP,1ST C/MBR
LEFT HAND DRIVE(MRR6FB) 		9-09110-408-0 01 1 9101- ● ● ● ●
223 CLIP; PARKING BRK CABLE
RIGHT HAND DRIVE(MRR5FB) (A) ID=15 H=24 L=20 		1-09700-606-0 01 1 9101- ● ● ●
223 CLIP; PARKING BRK CABLE
RIGHT HAND DRIVE(MRR5FB) (B) ID=8 & 5.6 		8-94149-705-0 01 1 9101- ● ● ●
223 CLIP; PARKING BRK CABLE
LEFT HAND DRIVE(MRR6FB) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=8 & 5.6 		8-94149-705-0 01 1 9101- ● ● ●
223 CLIP; PARKING BRK CABLE
RIGHT HAND DRIVE(MRR5FB) (C) ID=15 L=42 		9-09716-203-1 01 1 9101- ● ● ●
223 CLIP; PARKING BRK CABLE
LEFT HAND DRIVE(MRR6FB) (D) ID=13 L=20 		9-09525-236-0 01 1 9101-9107 ● ● ●
223 CLIP; PARKING BRK CABLE
RIGHT HAND DRIVE(MRR5FB) (D) ID=13 L=20 		9-09525-236-0 03 1 9101-9107 ● ● ● ●
223 CLIP; PARKING BRK CABLE
(D) ID=13 L=20 		9-09525-236-0 03 1 9108- ● ● ●
223 CLIP; PARKING BRK CABLE
RIGHT HAND DRIVE(MRR5FB) (D) ID=13 L=20 		9-09525-236-0 03 1 9108- ●
223 CLIP; PARKING BRK CABLE
LEFT HAND DRIVE(MRR6FB) (D) ID=13 L=20 		9-09525-236-0 05 1 9101- ●
224 BOLT; CABLE CLIP
RIGHT HAND DRIVE(MRR5FB) M8X20 W/LK WASHER 		9-01900-820-0 05 1 9101-9204 ● ● ●
224 BOLT; CABLE CLIP
LEFT HAND DRIVE(MRR6FB) M8X20 W/LK WASHER 		9-01900-820-0 05 1 9101-9204 ●
224 BOLT; CABLE CLIP
RIGHT HAND DRIVE(MRR5FB) M8X20 W/LK WASHER 		0-50040-820-0 05 1 9205- ● ● ●
224 BOLT; CABLE CLIP
LEFT HAND DRIVE(MRR6FB) M8X20 W/LK WASHER 		0-50040-820-0 05 1 9205- ●
224 BOLT; CABLE CLIP
LEFT HAND DRIVE(MRR6FB) M8X20 W/LK WASHER 		9-01900-820-0 01 1 9101-9107 ● ● ●
224 BOLT; CABLE CLIP
RIGHT HAND DRIVE(MRR5FB) M8X20 W/LK WASHER 		9-01900-820-0 03 1 9101-9107 ●
224 BOLT; CABLE CLIP
LEFT HAND DRIVE(MRR6FB) M8X20 W/LK WASHER 		9-01900-820-0 03 1 9108-9204 ● ● ●
224 BOLT; CABLE CLIP
RIGHT HAND DRIVE(MRR5FB) M8X20 W/LK WASHER 		9-01900-820-0 03 1 9108-9204 ●
224 BOLT; CABLE CLIP
LEFT HAND DRIVE(MRR6FB) M8X20 W/LK WASHER 		0-50040-820-0 03 1 9205- ● ● ●
224 BOLT; CABLE CLIP
RIGHT HAND DRIVE(MRR5FB) M8X20 W/LK WASHER 		0-50040-820-0 03 1 9205- ●
225 NUT; CABLE CLIP
RIGHT HAND DRIVE(MRR5FB) 		9-09110-408-0 05 1 9101- ● ● ●
225 NUT; CABLE CLIP
LEFT HAND DRIVE(MRR6FB) 		9-09110-408-0 05 1 9101- ●
225 NUT; CABLE CLIP
LEFT HAND DRIVE(MRR6FB) 		9-09110-408-0 01 1 9101-9107 ● ● ●
225 NUT; CABLE CLIP
RIGHT HAND DRIVE(MRR5FB) 		9-09110-408-0 03 1 9101-9107 ●
225 NUT; CABLE CLIP
LEFT HAND DRIVE(MRR6FB) 		9-09110-408-0 03 1 9108- ● ● ●
225 NUT; CABLE CLIP
RIGHT HAND DRIVE(MRR5FB) 		9-09110-408-0 03 1 9108- ●
231 CLIP; BAND,BRK CABLE
LEFT HAND DRIVE(MRR6FB) ID=15 L=65 		1-09700-466-0 03 1 9101-9107 ● ● ●
231 CLIP; BAND,BRK CABLE
LEFT HAND DRIVE(MRR6FB) ID=15 L=65 		1-09700-466-0 01 1 9108- ● ● ●
231 CLIP; BAND,BRK CABLE
LEFT HAND DRIVE(MRR6FB) L=140 		5-09707-031-1 01 1 9106- ● ● ●
235 BRACKET; CONT CABLE TO FRAME 1-34656-009-0 01 1 9101- ● ● ●
235 BRACKET; CONT CABLE TO FRAME
RIGHT HAND DRIVE(MRR5FB) 		1-34656-009-0 01 1 9101- ●
235 BRACKET; CONT CABLE TO FRAME
LEFT HAND DRIVE(MRR6FB) 		1-34656-009-0 02 1 9108- ● ● ●
235 BRACKET; CONT CABLE TO FRAME
LEFT HAND DRIVE(MRR6FB) 		1-34656-009-0 03 1 9101- ●
236 BOLT; BRKT TO FRAME
M8X20 W/LK WASHER 		9-01900-820-0 01 1 9101-9204 ● ● ●
236 BOLT; BRKT TO FRAME
RIGHT HAND DRIVE(MRR5FB) M8X20 W/LK WASHER 		9-01900-820-0 01 1 9101-9204 ●
236 BOLT; BRKT TO FRAME
M8X20 W/LK WASHER 		0-50040-820-0 01 1 9205- ● ● ●
236 BOLT; BRKT TO FRAME
RIGHT HAND DRIVE(MRR5FB) M8X20 W/LK WASHER 		0-50040-820-0 01 1 9205- ●
236 BOLT; BRKT TO FRAME
LEFT HAND DRIVE(MRR6FB) M8X20 W/LK WASHER 		9-01900-820-0 02 1 9108-9204 ● ● ●
236 BOLT; BRKT TO FRAME
LEFT HAND DRIVE(MRR6FB) M8X20 W/LK WASHER 		0-50040-820-0 02 1 9205- ● ● ●
236 BOLT; BRKT TO FRAME
LEFT HAND DRIVE(MRR6FB) M8X20 W/LK WASHER 		9-01900-820-0 03 1 9101-9204 ●
236 BOLT; BRKT TO FRAME
LEFT HAND DRIVE(MRR6FB) M8X20 W/LK WASHER 		0-50040-820-0 03 1 9205- ●
237 NUT; BRKT TO FRAME 9-09110-408-0 01 1 9101- ● ● ●
237 NUT; BRKT TO FRAME
RIGHT HAND DRIVE(MRR5FB) 		9-09110-408-0 01 1 9101- ●
237 NUT; BRKT TO FRAME
LEFT HAND DRIVE(MRR6FB) 		9-09110-408-0 02 1 9108- ● ● ●
237 NUT; BRKT TO FRAME
LEFT HAND DRIVE(MRR6FB) 		9-09110-408-0 03 1 9101- ●
