◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 10625 - FSR-LHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-43 - SUN VISOR AND ASSIST GRIP ▶
7-43 — SUN VISOR AND ASSIST GRIP (#265) — 43 parça

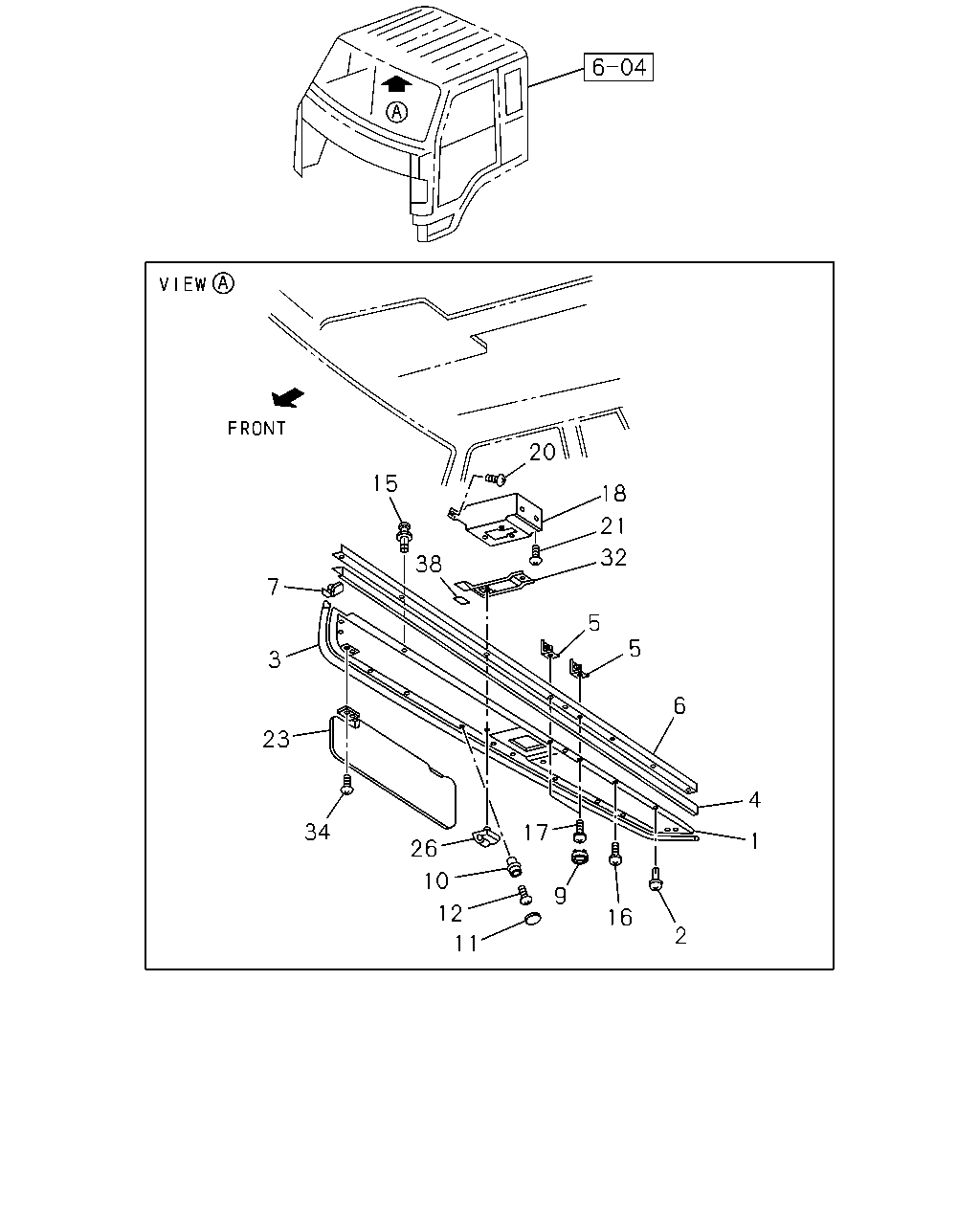

çizim 94599
20 15 18 21 32 38 7 5 5 3 6 23 4 34 17 1 26 10 9 12 16 2 11
BalonParca AdiParca NoAdetTipApplied Date
1 BOARD; HEADER SHELF
DELUXE CAB(W14) 		1-73318-501-2 01 1 9212-
2 FASTENER; HEADER SHELF BOARD
DELUXE CAB(W14) GRAY 		1-73318-356-0 04 1 9212-
3 FINISHER; HEADER SHELF,FRT
DELUXE CAB(W14) L=2030 		1-73318-363-0 01 1 9212-
4 FRAME; HEADER SHELF
DELUXE CAB(W14) 		1-73318-204-5 01 1 9212-
5 BRACKET; HEADER SHELF FRAME
DELUXE CAB(W14) 		1-73318-206-0 02 1 9212-
6 FINISHER; HEADER SHELF,REAR
DELUXE CAB(W14) L=1596 		1-73318-147-4 01 1 9212-
7 FINISHER; HEADER SHELF,CORNER
DELUXE CAB(W14) 		1-73318-269-1 01 1 9212-
7 FINISHER; HEADER SHELF,CORNER
DELUXE CAB(W14) 		1-73318-268-1 01 1 9212-
9 COVER; HOLE,HEADER SHELF CENTER
DELUXE CAB(W14) EXC. RADIO AM & TAPE PLAYER(UM1),SPEAKER SYSTEM FRT2 SPEAKERS<UX6> 		1-73317-231-0 02 1 9212-9403
9 COVER; HOLE,HEADER SHELF CENTER
DELUXE CAB(W14) EXC. RADIO AM & TAPE PLAYER(UM1) 		1-73317-231-0 02 1 9404-
10 COLLAR; HEADER SHELF
DELUXE CAB(W14) 		1-73318-341-0 06 1 9212-
11 CAP; HEADER SHELF
DELUXE CAB(W14) GRAY 		1-73318-357-0 06 1 9212-
12 SCREW; HEADER SHELF
DELUXE CAB(W14) M6X16 		1-09981-531-0 06 1 9212-
15 FASTENER; HEADER SHELF BOARD
DELUXE CAB(W14) D6.8X11 PUSH RIVET 		1-73318-230-0 07 1 9212-
16 SCREW; FRAME,HEADER SHELF
DELUXE CAB(W14) M6X12 W/LK WASHER 		9-03910-612-0 04 1 9212-
17 SCREW; BRKT,HEADER SHELF FRAME
DELUXE CAB(W14) M6X12 W/LK WASHER 		9-03910-612-0 02 1 9212-
18 SUPPORT; HEADER SHELF CENTER
DELUXE CAB(W14) RADIO AM & TAPE PLAYER(UM1) 		1-73318-417-1 01 1 9212-9403
18 SUPPORT; HEADER SHELF CENTER
DELUXE CAB(W14) RADIO AM & TAPE PLAYER(UM1) GRAY 		1-73318-416-1 01 1 9404-
18 SUPPORT; HEADER SHELF CENTER
DELUXE CAB(W14) EXC. RADIO AM & TAPE PLAYER(UM1) 		1-73318-476-0 01 1 9212-
20 SCREW; SUPPORT,HEADER SHELF
DELUXE CAB(W14) M6X12 W/LK WASHER 		9-03910-612-0 06 1 9212-
21 SCREW; SUPPORT,HEADER SHELF CENTER
DELUXE CAB(W14) M6X12 W/LK WASHER 		9-03910-612-0 04 1 9212-
23 SUN VISOR
DELUXE CAB(W14) GRAY 		1-73138-112-1 01 1 9212-
23 SUN VISOR
DELUXE CAB(W14) GRAY 		1-73138-113-1 01 1 9212-
23 SUN VISOR
EXC. DELUXE CAB(W14) 		1-73138-115-0 01 1 9212-
23 SUN VISOR
EXC. DELUXE CAB(W14) 		1-73138-121-0 01 1 9212-
26 HOLDER; SUN VISOR
GRAY 		1-73137-141-0 02 1 9212-
32 PLATE; HOLDER,SUN VISOR
DELUXE CAB(W14) 		1-73318-229-0 02 1 9212-
34 SCREW; SUN VISOR
M6X20 		1-09981-310-0 04 1 9212-
38 CUSHION; PLATE
DELUXE CAB(W14) 		1-73318-286-0 02 1 9212-
çizim 95650
71 129 107 37 66 68 103 105 104 71 57
BalonParca AdiParca NoAdetTipApplied Date
37 SUPPORT; SUN VISOR & HTR SHELF FRAME
DELUXE CAB(W14) 		1-73318-234-2 01 1 9212-
37 SUPPORT; SUN VISOR & HTR SHELF FRAME
DELUXE CAB(W14) 		1-73318-233-2 01 1 9212-
57 GRIP; ASSIST,RR PILLAR
HEAVY DUTY PACKAGE TRUCK<RD2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-71998-467-0 02 1 9212-
66 BOLT; ASSIST GRIP BRKT
M6X20 W/LK&PL WASHER 		1-09980-493-0 04 1 9212-
68 BRACKET; ASSIST GRIP,FRT PANEL 1-65580-192-0 02 1 9212-
71 SCREW
(B) M6X20 W/LK&PL WASHER 		1-09981-509-0 04 1 9212-
71 SCREW
HEAVY DUTY PACKAGE TRUCK<RD2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) M6X16 W/LK&PL WASHER 		1-09981-172-0 04 1 9212-
103 GRIP; ASSIST,FRT PNL
WHITE 		1-71998-131-0 02 1 9212-
104 SPACER; ASSIST GRIP 1-71997-529-2 04 1 9212-
105 SCREW; ASSIST GRIP
M6X30 W/PL WASHER M6X33.5 W/LK&PL WASHER 		1-09980-613-1 04 1 9212-
107 PLUG; ASSIST GRIP,DUMMY HOLE
DELUXE CAB(W14) EXC. HEAVY DUTY PACKAGE TRUCK<RD2>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-76378-240-0 04 1 9212-9305
107 PLUG; ASSIST GRIP,DUMMY HOLE
HEAVY DUTY PACKAGE TRUCK<RD2> DELUXE CAB(W14) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-76378-240-0 04 1 9306-
107 PLUG; ASSIST GRIP,DUMMY HOLE
DELUXE CAB(W14) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-76378-240-0 04 1 9306-
129 GRIP; ASSIST,FRT PILLAR 1-73618-158-2 02 1 9212-
