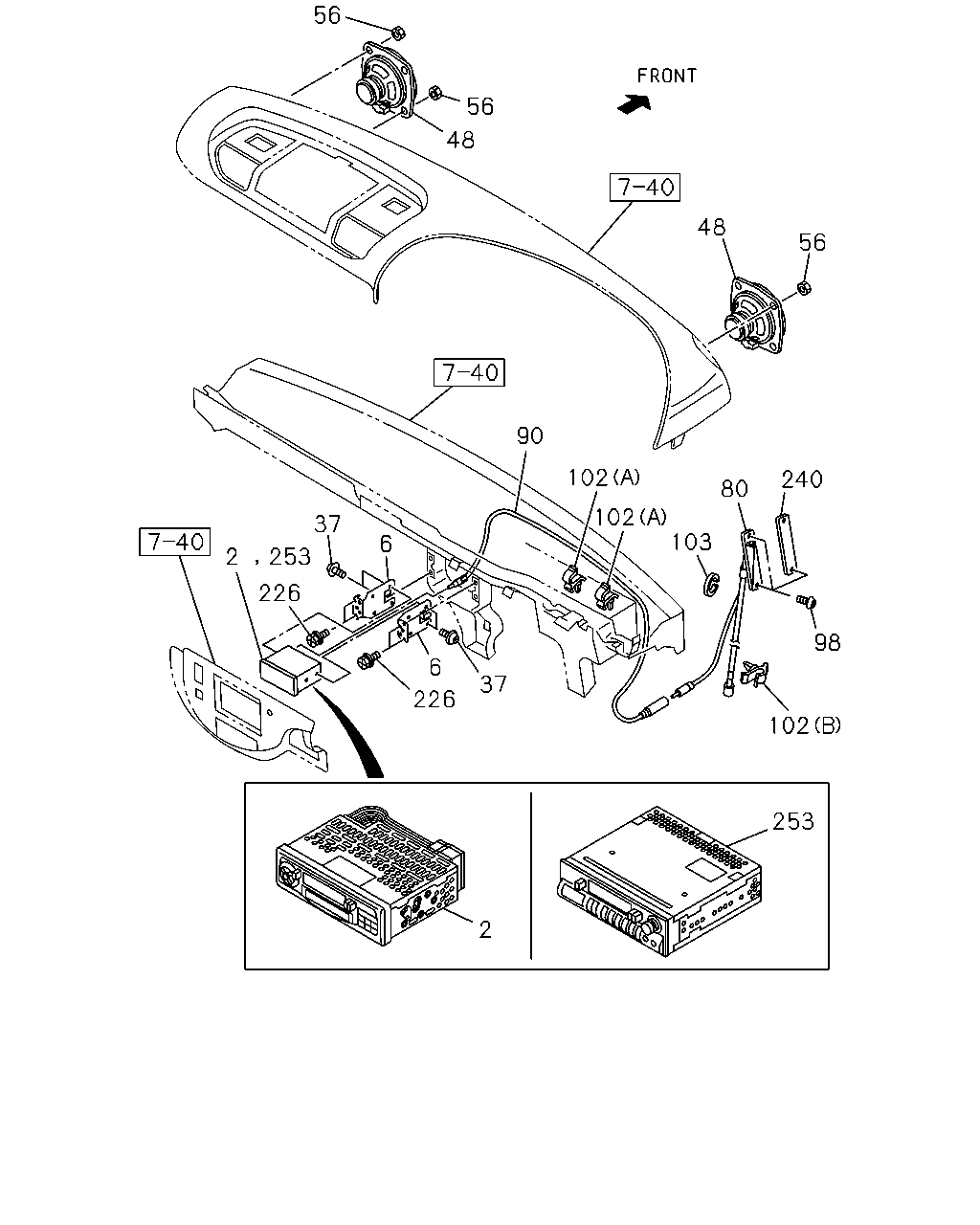

8-90 — RADIO AND TV (#26496) — 15 parça

56 56 48 48 56 90 102 240 80 102 103 37 6 2 253 226 98 6 37 226 102 253 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	RADIO & CASSETTE DECK ASM RADIO AM/FM STEREO & TAPE PLAYER<UN3> THA	8-97917-414-0	01	1	0407-0610	●	●
6	BRACKET; RADIO TO PANEL	1-65671-551-4	02	1	0407-0612	●	●
6	BRACKET; RADIO TO PANEL	1-65671-822-1	02	1	0701-	●	●
37	SCREW; CASSETTE & RADIO RADIO AM/FM STEREO & TAPE PLAYER<UN3> M5X10 W/LK+PL WASHER	9-03920-510-0	04	1	0407-	●	●
48	SPEAKER; AUDIO THA	8-97917-853-0	02	1	0407-	●	●
56	NUT; SPEAKER,RADIO OR STEREO SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> THA	8-97917-854-0	04	1	0407-	●	●
80	ANTENNA THA	8-97917-855-1	01	1	0407-	●	●
90	CABLE; ANTENNA,FEEDER THA	8-97917-857-0	01	1	0407-	●	●
98	SCREW; TAP,ANTENNA M5X11	1-09981-536-1	02	1	0407-	●	●
102	CLIP; CABLE ANTENNA RADIO<U73> (B) ID=4.8 THA	1-73907-618-0	05	1	0407-	●	●
102	CLIP; CABLE ANTENNA RADIO<U73> (A) ID=4.8	8-94128-483-0	02	1	0407-	●	●
103	GROMMET; ANTENNA HOLE,FRT ANTENNA RADIO<U73> THA	8-97917-338-0	01	1	0407-	●	●
226	BOLT; BRKT M6X19.5 W/LK&PL WASHER THA	8-94279-201-0	04	1	0407-	●	●
240	COVER; ANTENNA EXC. ANTENNA RADIO<U73>	1-79996-296-0	01	1	0407-	●	●
253	DECK ASM; RADIO & CD RADIO AM/FM STEREO & TAPE PLAYER<UN3> CLARION THA	1-84122-032-3	01	1	0611-	●	●
