3-10 — BRAKE PEDAL AND CONTROL (#2649) — 65 parça

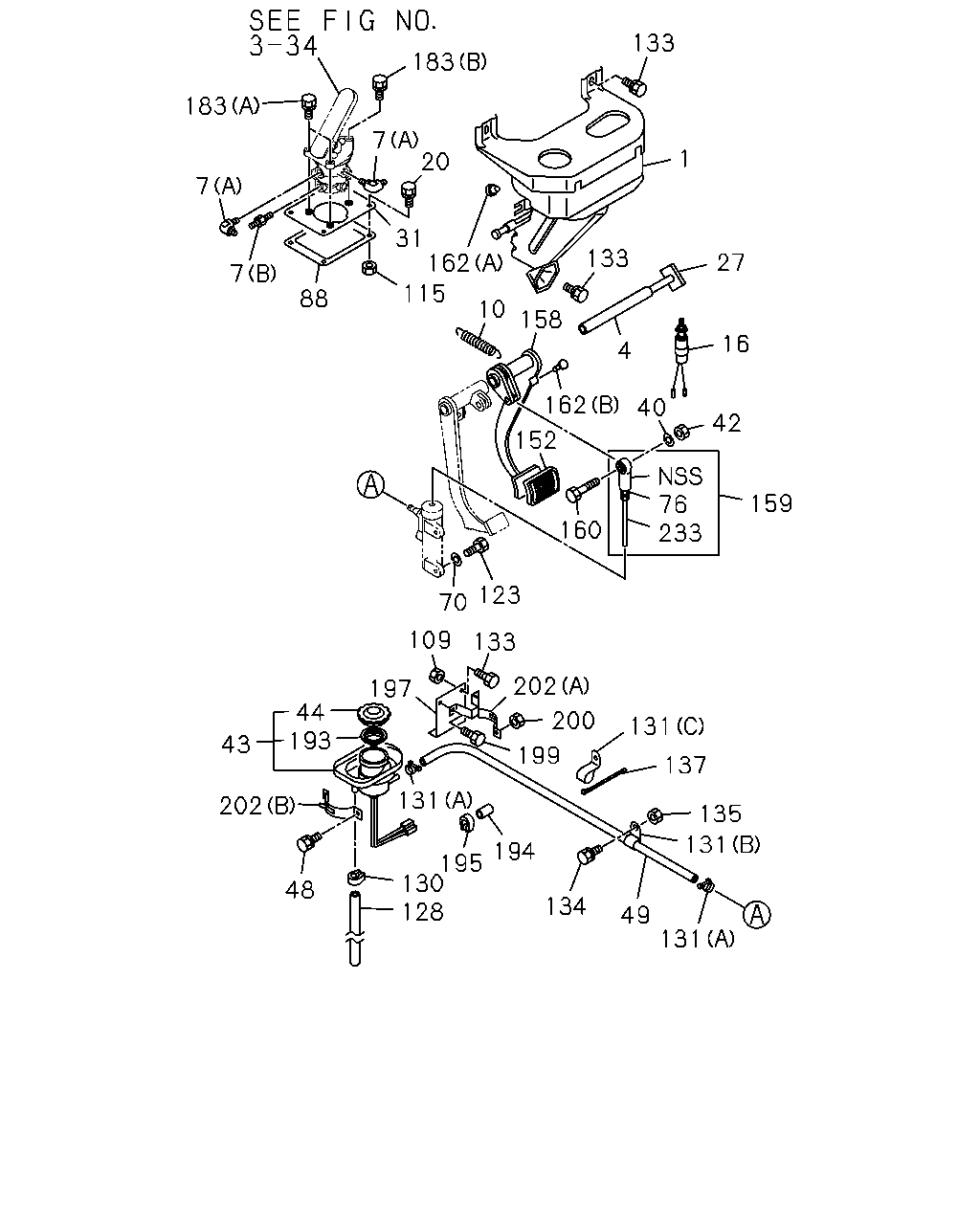

çizim 3271
133 183 183 7 20 1 7 31 133 27 162 7 115 88 10 158 16 4 162 40 42 152 76 233 159 160 123 70 109 133 202 197 44 193 200 131 43 199 137 131 202 135 131 194 195 130 128 48 134 49 131
BalonParca AdiParca NoAdetTipApplied Date A B
1 BRACKET ASM; PEDAL
AT545 A/T ALLISON(MD1) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-73990-017-0 01 1 9101- ● ●
1 BRACKET ASM; PEDAL
AT545 A/T ALLISON(MD1) BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) 		1-73990-012-1 01 1 9101- ● ●
1 BRACKET ASM; PEDAL
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ISUZU M/T<X9A> 		1-73990-018-0 01 1 9101- ● ●
1 BRACKET ASM; PEDAL
BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) ISUZU M/T<X9A> 		1-73990-011-1 01 1 9101- ● ●
4 BUSHING; BRK PEDAL
BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) 		1-09330-045-0 02 1 9101- ● ●
7 CONNECTOR; BRK VALVE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M16 & PT3/8 STRAIGHT 		1-09650-179-1 02 1 9101- ● ●
7 CONNECTOR; BRK VALVE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M16 & PT3/8 ELBOW 		1-09650-180-1 02 1 9101-9302 ● ●
7 CONNECTOR; BRK VALVE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M16 & PT3/8 ELBOW 		1-09650-438-0 02 1 9303- ● ●
10 SPRING; RETURN,BRK PEDAL
BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) 		1-73998-401-1 01 1 9101- ● ●
16 SWITCH; STOP LAMP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) OPERATE PRESSURE 0.3 		1-82410-080-1 02 1 9101- ● ●
16 SWITCH; STOP LAMP
BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) 		1-82380-036-1 01 1 9101- ● ●
20 BOLT; BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		9-01960-620-0 04 1 9101-9204 ● ●
20 BOLT; BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		0-50140-620-0 04 1 9205- ● ●
27 SHAFT; BRK PEDAL
AT545 A/T ALLISON(MD1) BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) 		1-31411-162-0 01 1 9101- ● ●
27 SHAFT; BRK PEDAL
BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) ISUZU M/T<X9A> 		1-73998-399-1 01 1 9101- ● ●
31 PLATE; MTG,BRKT VLV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-73997-620-4 01 1 9101- ● ●
40 WASHER; BRK PEDAL
BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) 		9-09150-614-0 01 1 9101- ● ●
42 NUT; BRK PEDAL
BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) 		9-99110-514-0 01 1 9101- ● ●
43 TANK ASM; OIL
AT545 A/T ALLISON(MD1) BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) 		1-47530-136-0 01 1 9101- ● ●
43 TANK ASM; OIL
ISUZU M/T<X9A> BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) 		1-47530-135-0 01 1 9101- ● ●
44 CAP; OIL TANK
BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) 		1-47525-020-0 01 1 9101- ● ●
48 BOLT; OIL TANK TO BRKT
BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) M6X16 W/LK WASHER 		0-50040-616-0 03 1 9101- ● ●
48 BOLT; OIL TANK TO BRKT
BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) M6X16 W/LK&PL WASHER 		0-50140-616-0 01 1 9101- ● ●
49 HOSE; OIL TANK TO BRK M/CYL
BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) 		1-09360-354-0 01 1 9101- ● ●
70 WASHER; LK,BRK M/CYL
BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) 		9-09150-512-0 02 1 9101- ● ●
76 NUT; PUSH ROD
BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) 		9-09111-410-0 01 1 9101- ● ●
88 COVER; PEDAL BOARD,BRK VLV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-73997-622-4 01 1 9101- ● ●
109 NUT; BRKT TO FRAME 9-09110-408-0 03 1 9101- ● ●
115 NUT; BRK VLV BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		9-09110-406-0 04 1 9101- ● ●
123 BOLT; BRK M/CYL
BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) 		0-20801-245-0 02 1 9101- ● ●
128 PIPE; VINYL,BRK & CLU
BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) L=1800 SERVICED BY L=10000 		1-09366-161-0 01 1 9101- ● ●
130 CLIP; VINYL HOSE
BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) 		9-09715-098-0 01 1 9101- ● ●
131 CLIP; RUBBER HOSE,OIL TANK TO BRK M/CY
AT545 A/T ALLISON(MD1) BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) (C) ID=16 H=24 L=20 		9-09527-015-0 02 1 9101- ●
131 CLIP; RUBBER HOSE,OIL TANK TO BRK M/CY
ISUZU M/T<X9A> BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) (B) D=14 L=33 		1-09700-497-0 02 1 9101- ●
131 CLIP; RUBBER HOSE,OIL TANK TO BRK M/CY
BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) (A) ID=15 		1-09704-018-1 02 1 9101-9307 ● ●
131 CLIP; RUBBER HOSE,OIL TANK TO BRK M/CY
BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) (A) ID=14 		1-09704-102-0 02 1 9308- ● ●
131 CLIP; RUBBER HOSE,OIL TANK TO BRK M/CY
ISUZU M/T<X9A> BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) (B) D=14 L=33 		1-09700-497-0 01 1 9101- ●
131 CLIP; RUBBER HOSE,OIL TANK TO BRK M/CY
ISUZU M/T<X9A> BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) (C) ID=16 H=24 L=20 		9-09527-015-0 01 1 9101- ●
133 BOLT; BRKT TO FRAME 0-50140-820-0 04 1 9101- ● ●
134 BOLT; CLIP
BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) M6X20 W/LK WASHER 		9-01900-620-0 02 1 9101-9204 ●
134 BOLT; CLIP
BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) M6X20 W/LK WASHER 		0-50040-620-0 02 1 9205- ●
134 BOLT; CLIP
BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) M6X20 W/LK WASHER 		9-01900-620-0 01 1 9101-9204 ●
134 BOLT; CLIP
BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) M6X20 W/LK WASHER 		0-50040-620-0 01 1 9205- ●
135 NUT; CLIP
BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) 		9-09110-406-0 02 1 9101- ●
135 NUT; CLIP
BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) 		9-09110-406-0 01 1 9101- ●
137 CLIP; BAND,RUBBER HOSE
BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) 		5-09707-030-1 01 1 9101- ● ●
152 COVER; PEDAL
BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) 		8-94204-810-0 01 1 9101- ● ●
158 PEDAL ASM; BRK
BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) 		1-73990-019-0 01 1 9101- ● ●
159 ROD ASM; PUSH,BRK
BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) 		1-47332-020-1 01 1 9101- ● ●
160 BOLT; BRK PEDAL
BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) 		9-91061-450-0 01 1 9101- ● ●
162 STOPPER; PEDAL ARM
BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) (A) 		1-47319-014-1 01 1 9101- ● ●
162 STOPPER; PEDAL ARM
BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) (B) 		5-31419-003-0 01 1 9101- ● ●
183 BOLT; BRK VLV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M10X25 W/LK WASHER 		0-50041-025-0 01 1 9101- ● ●
183 BOLT; BRK VLV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M10X35 W/LK WASHER 		0-50041-035-0 02 1 9101- ● ●
193 RUBBER; BAFFLE,BRK M/CYL
BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) 		1-47529-020-0 01 1 9101- ● ●
194 CAP; OIL TANK HOSE
AT545 A/T ALLISON(MD1) BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) 		1-47539-005-0 01 1 9101- ● ●
195 CLIP; CAP TO OIL TANK
AT545 A/T ALLISON(MD1) BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) 		9-09715-098-0 01 1 9101- ● ●
197 BRACKET; OIL TANK
BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) 		1-21219-090-0 01 1 9101- ● ●
199 BOLT; OIL TANK BRKT
BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) 		9-01900-820-0 02 1 9101-9204 ● ●
199 BOLT; OIL TANK BRKT
BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) 		0-50040-820-0 02 1 9205- ● ●
200 NUT; BRKT
BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) M6 		9-09110-406-0 02 1 9101- ● ●
200 NUT; BRKT
BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) M8 		9-09110-408-0 01 1 9101- ● ●
202 BAND; OIL TANK
BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) (A) 		1-47537-061-0 01 1 9101- ● ●
202 BAND; OIL TANK
BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) (B) 		1-47537-072-0 01 1 9101- ● ●
233 ROD; PUSH,BRK
BRAKE SYSTEM VACUUM SINGLE CIRCUIT(Z01) 		1-47541-020-0 01 1 9101- ● ●
