8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#26487) — 12 parça

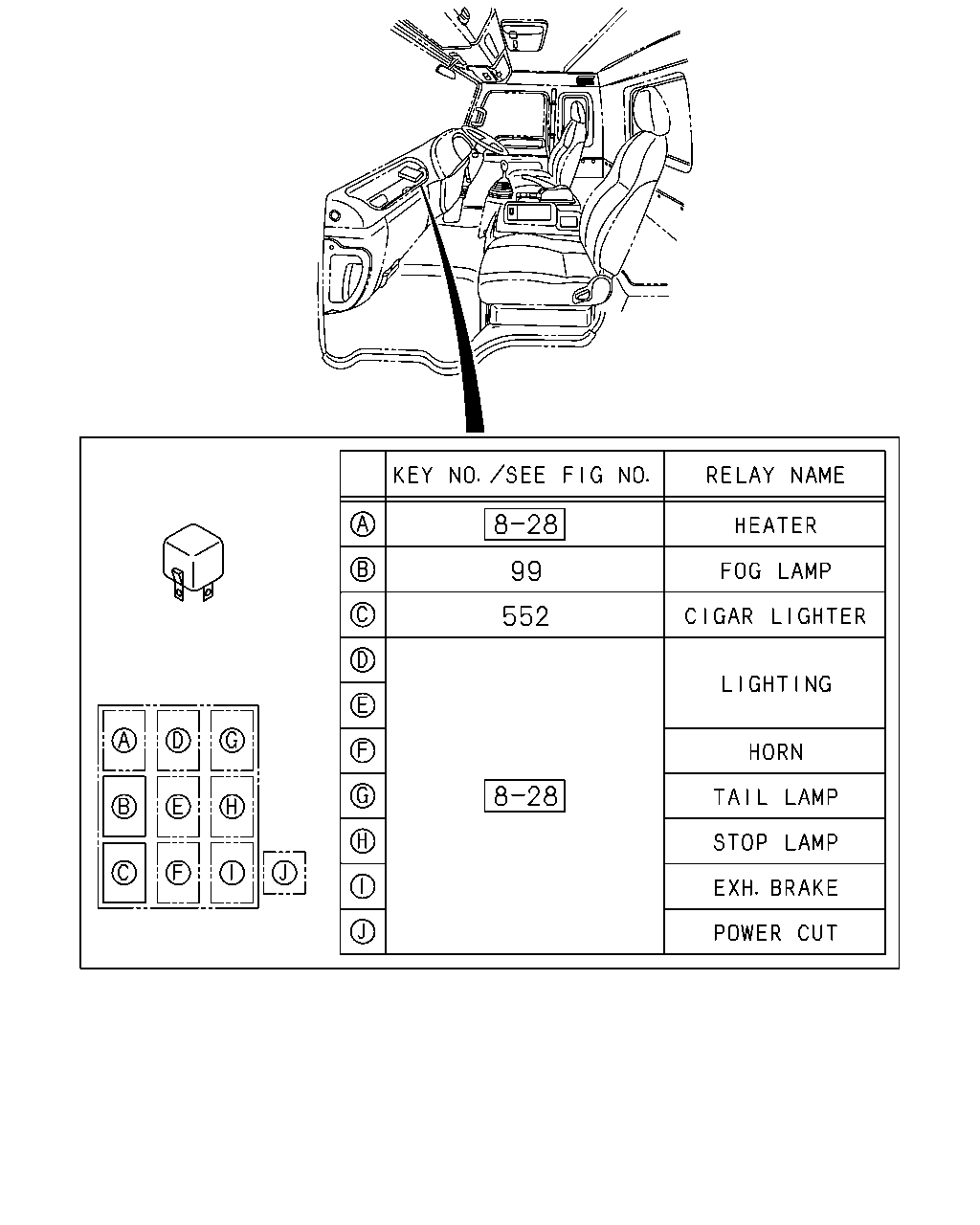

çizim 25924
99 552
BalonParca AdiParca NoAdetTipApplied Date A B
99 RELAY; FOG LAMP
24V 12.5A MATSUSHITA THA 		8-97262-933-0 01 1 0407- ● ●
552 RELAY; CIGAR LIGHTER
24V 12.5A MATSUSHITA THA 		8-97262-933-0 01 1 0407- ● ●

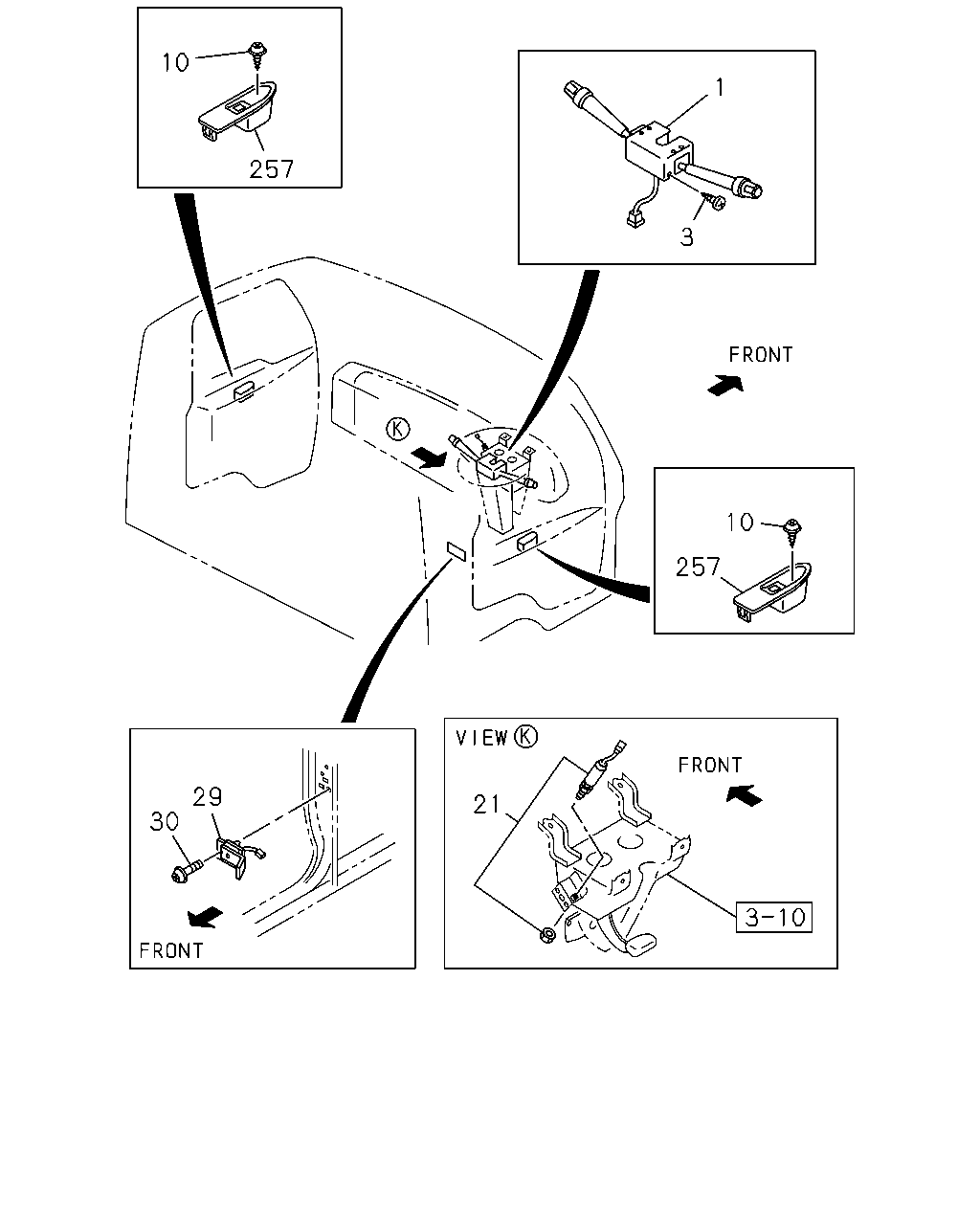

çizim 82078
10 1 257 3 10 257 29 21 30
BalonParca AdiParca NoAdetTipApplied Date A B
1 SWITCH; COMB 1-82360-715-0 01 1 0407- ● ●
3 SCREW; COMB SW
M5X12 TAPPING W/PL WASHER 		0-74105-512-0 04 1 0407-0604 ● ●
3 SCREW; COMB SW
M5X12 TAPPING W/PL WASHER 		0-74165-512-0 04 1 0605- ● ●
10 SCREW; POWER WINDOW SW
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0407-0604 ● ●
10 SCREW; POWER WINDOW SW
M5X16 TAPPING W/PL WASHER 		0-74360-516-0 02 1 0605- ● ●
21 SWITCH; CLU 1-82380-114-3 01 1 0407- ● ●
29 SWITCH; DOOR 8-97855-032-3 01 1 0407- ● ●
30 SCREW; DOOR SW
M5X11 		1-09981-536-1 01 1 0407- ● ●
257 COVER; HOLE,SW 1-82389-011-2 01 1 0407- ● ●
257 COVER; HOLE,SW 1-82389-012-2 01 1 0407- ● ●
